MDI for GM Diagnostic Tool Obd2 Scanner Plus EVG7 Tablet PC V2017.02 Software

  • Item No.  A194-1
  • History: 108  sold
  • GM MDI Wifi Selection:


  • Market Price: US$909.60
    Shop Price: US$758.00
    Quantity
    Total
  • Stock  292
  • Weight:  5.5KG
  • Rate:  comment rank 50 () Write a Review

  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


MDI for GM Diagnostic Tool Obd2 Scanner Plus EVG7 Tablet PC V2017.02 Software


Highlights of MDI:

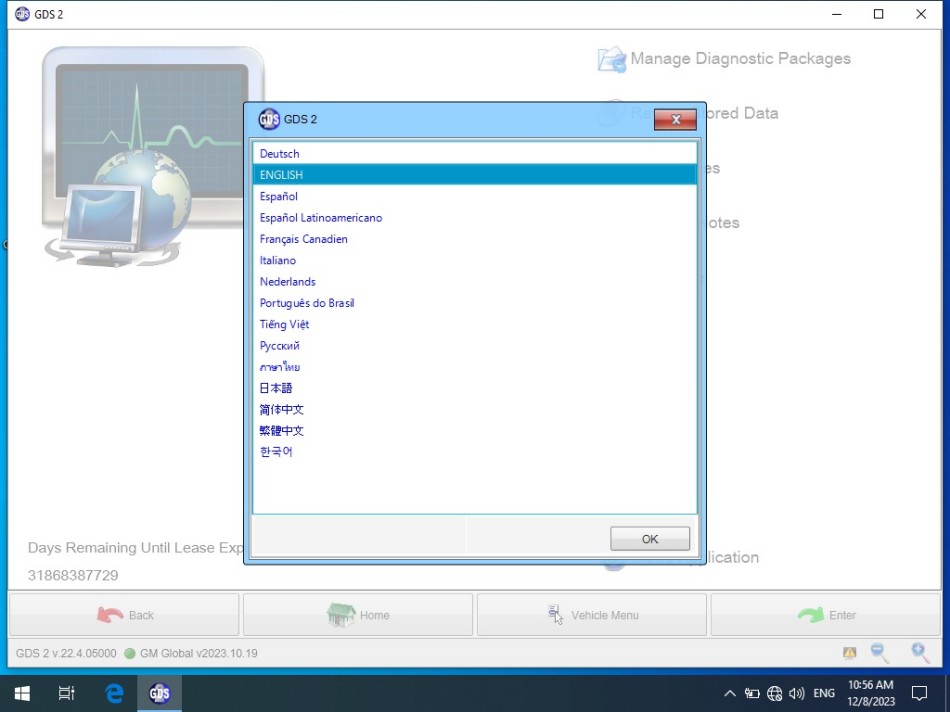

1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose
2.Can do cars from 1990-2016.08 Year

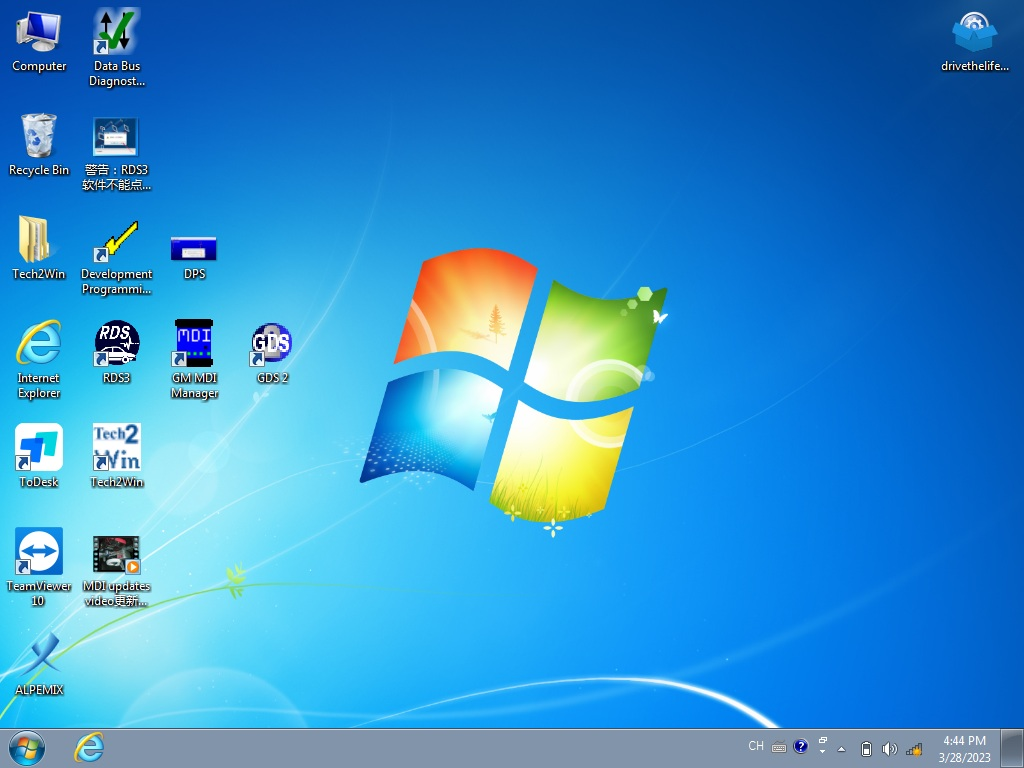

3.GM MDI software will be preinstalled in the EVG7 Tablet PC, you can use it directly after you receive it
4.Support 2010-2017.02 year new cars
5.Support WIFI(optional

Notice:
If you want to do programming online, you need to have an original account by yourself.

EVG7 DL46 Specification:
Mark : EVG7
Model : DL46
Processor : Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)
DDR : The biggest support memory : 2GB
HDD : 500 GB SATA HDD. (Can support more than 1 TB capacity )
LCD : 10.4 Inch The resolution of the 1024x768
Graphics : touchscreen widescreen LED backlight, the core graphics Intel HD Graphics
Speakers : Built-in Speakers
Wireless : 802.11b/g/n
LAN : The built-in 10-100M card
Bluetooth : BT2.0 , 4.0
USB : USB3.0 / Mini USB / 2 x USB2.0
Card Reader : TF Card Reader
Other Interface :
VGA Voice Input / The Sound Output /
DC Power Jack / Parallel LPT Port I/O
VGA Output
Battery Type : 9 The core of lithium batteries 10.08V 6600 mAh
Power Adapter : 110V-240V The adaptive communication power supply
Battery Life : The specific time depending on the use environment
Certificates : CE / FCC /  RoHS

Newest features for MDI:
1. With opel Global tis global diagnostic system
2. With GDS2 diagnostic system
3. Tech2win diagnostic software support adding latest software
4. support programming online
5. support cable communication
6. support original factory latest software
7. With European Chevetl Global tis, Supports European Chevet

Description:
General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

MDI and GDS Background

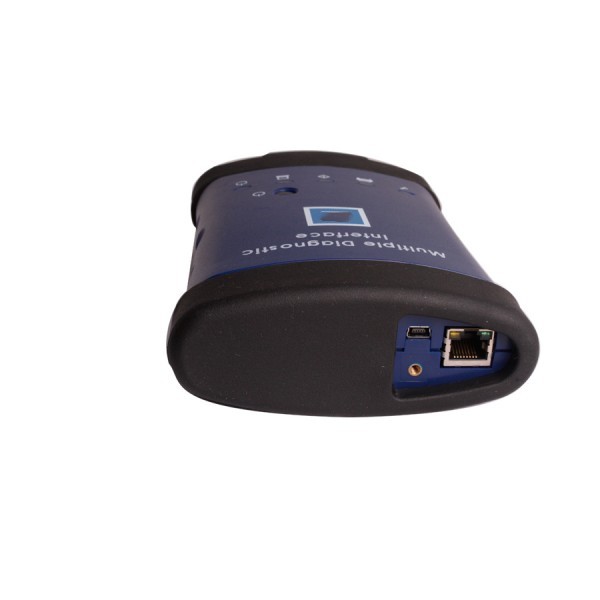

MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic

Language:

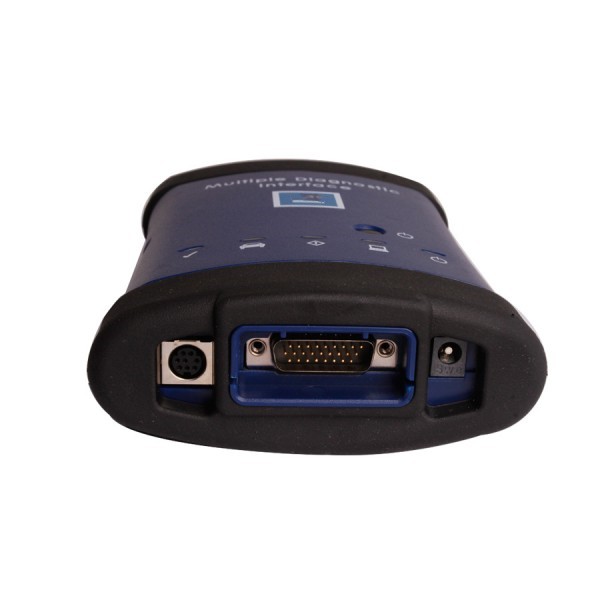

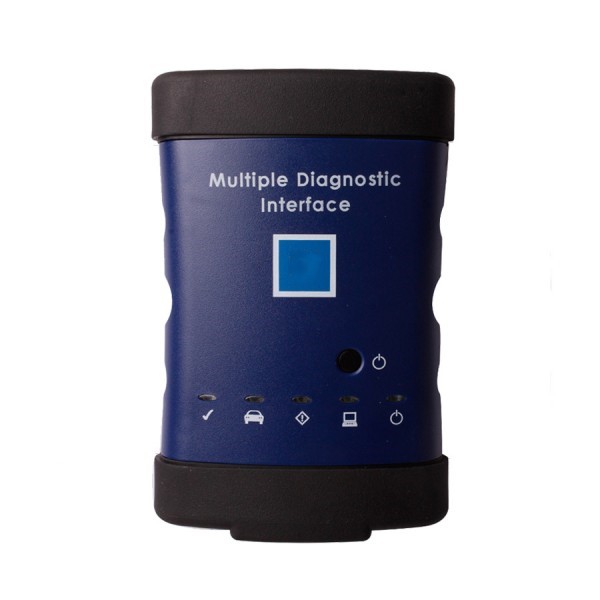

GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
Includes Flight Recorder Mode
New Diagnostic Application Software required for Global A Vehicles
Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.

What protocols does the MDI support?
For immediate use — At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
- UART
- Class 2
- KWP2000
- GMLAN (CAN)

The Future of the Tech 2
The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

HOW WILL THE GM MDI BE USED?
The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.

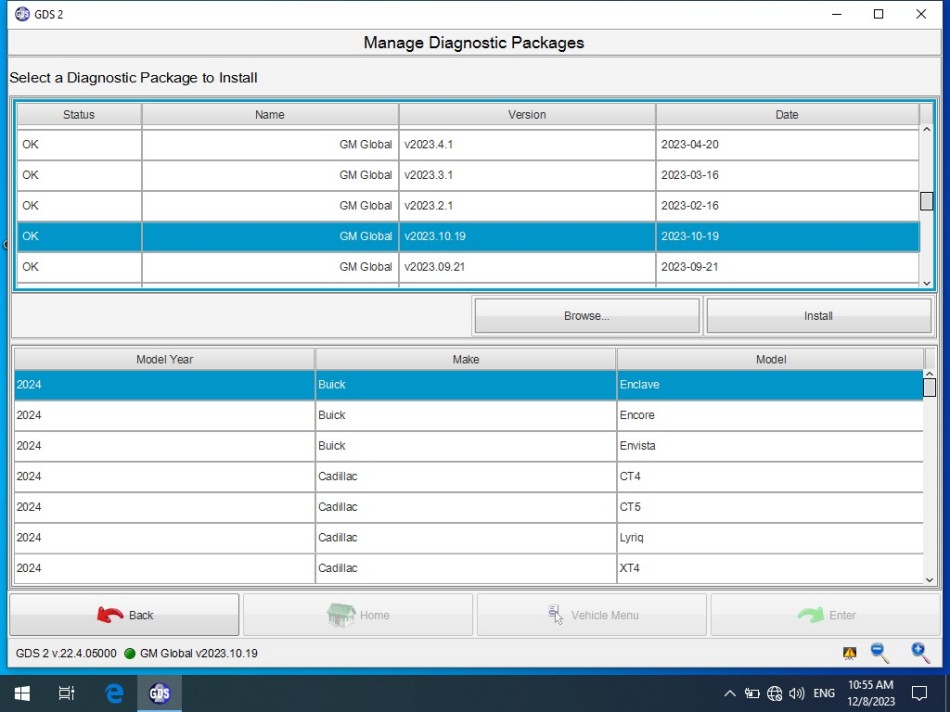

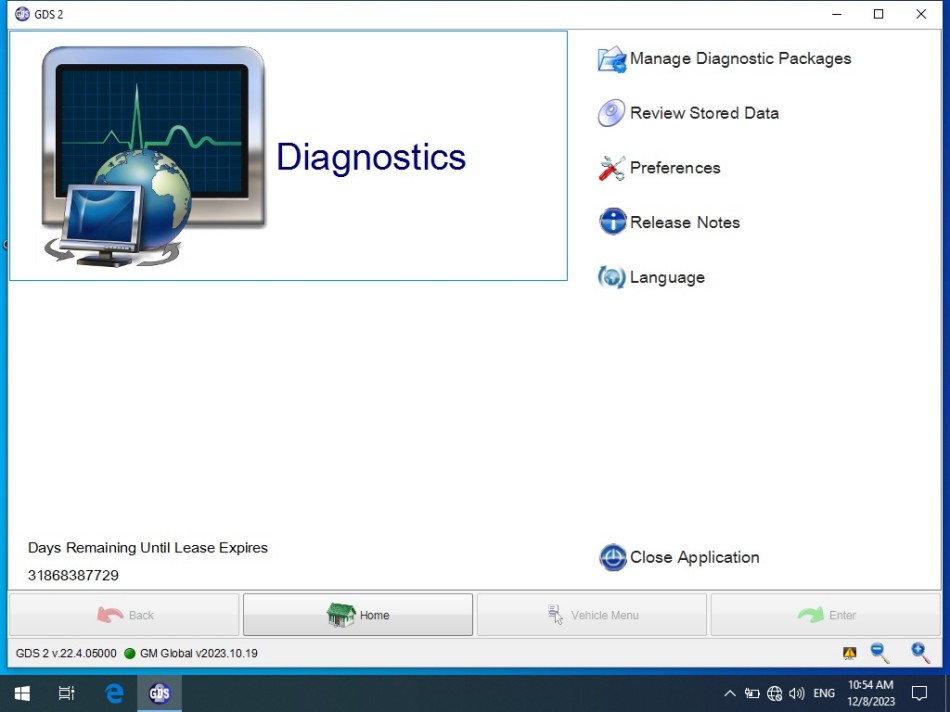

When you test after 2010 year gm car, you can use gm gds2 software:

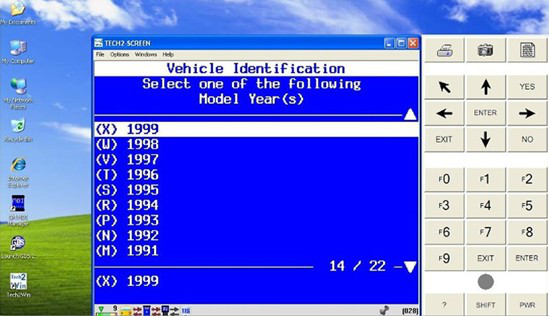

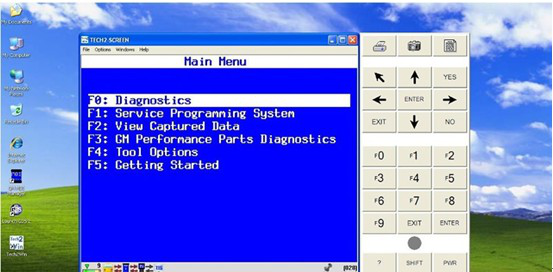

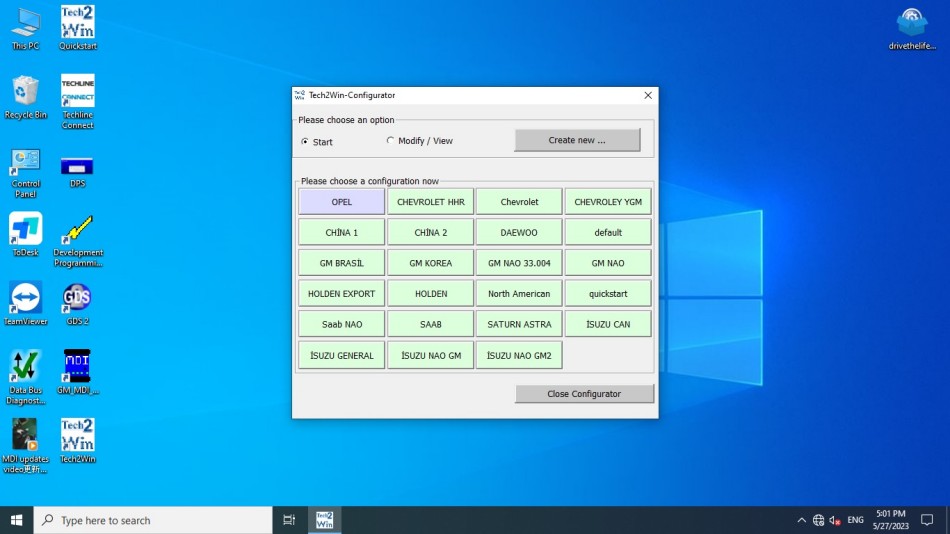

When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:








When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:











Test steps:
1: finish update lease step, connect with Car OBD, click diagnostic icon on the interface. Choose brand and click “input” on lower right corner, car information will be read automatically, or you can choose manual input VIN
2:choose test what you want, like module diagnostic—engine control modual—identifying information ( picture22-27)

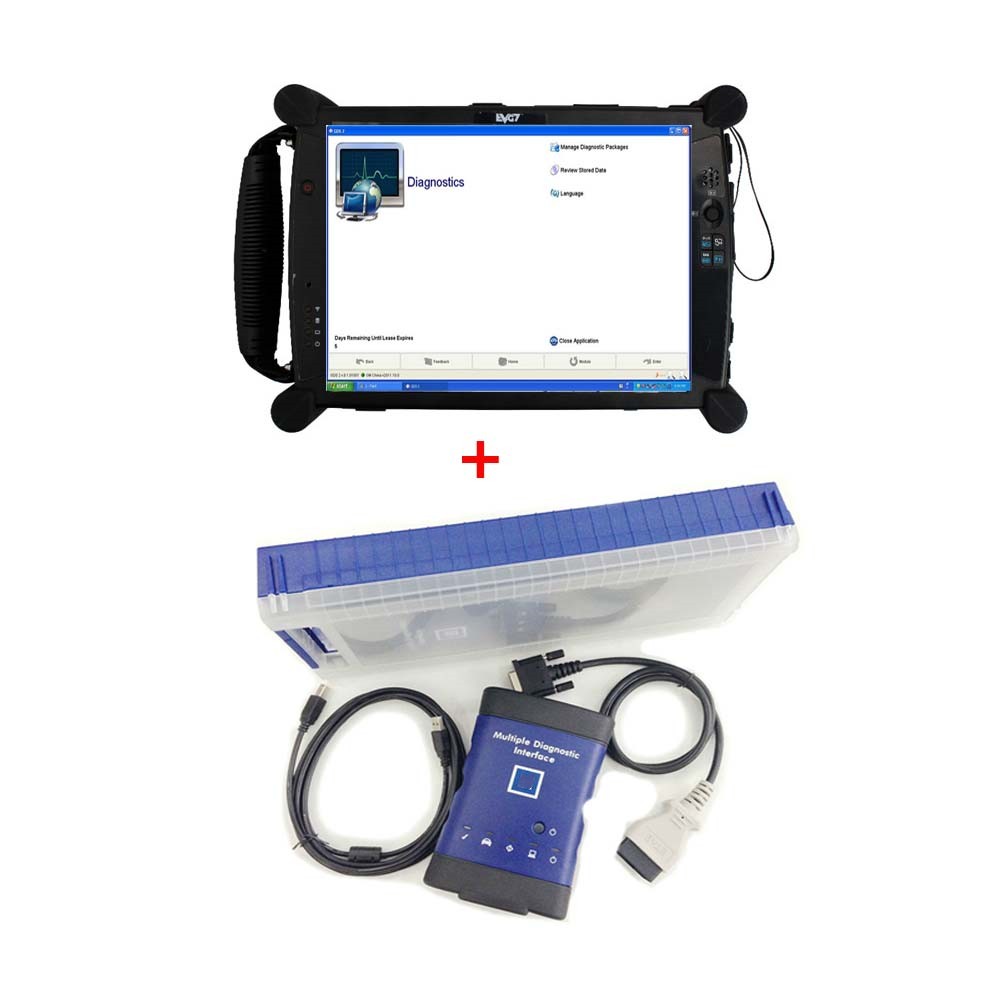

MDI Scan Tool Package List:
1pc x MDI Main unit
1pc x OBD2 Cable
1pc x USB Cable
1pc x AC Adapter
1pc x EVG7 Tablet PC

User Comment(Total 7 Customer Reviews)

  • by Mr.Edgar ,May 04,2017

    Does GM MDI China Clone support he Opel Insignia year 2010?

    Reply #1 by CnAutotool May 04,2017
    Yes, the China GM MDI multiplexer interface support Opel model before 2013 year.

    CnAutotool


  • by Mr.Klaus ,Apr 29,2017

    GM mdi opel interface can work on win7 system?

    Reply #1 by CnAutotool Apr 29,2017
    Yes,China GM mdi scanner can work both win7 and xp system.

    CnAutotool


  • by Mr.laskri,Apr 22,2017

    GM MDI china clone can do Chevrolet

    Reply #1 by CnAutotool Apr 22,2017
    China GM MDI scanner can diagnose Multiple Brand Car from 1990-2013 year, include: GM, Opel, Chevrolet, Saab.

    CnAutotool


  • by Mr.Vardanyan,Mar 28,2017

    Works great, shipped faster than half the products I have ever bought from the US

    Reply #1 by CnAutotool Mar 28,2017
    Hi dear friend,
    Thank you for your comment.
    We are looking forward to your visit again!
    Best regards

    CnAutotool


  • by Mr.Freidinger,Mar 11,2017

    Works great, awesome price!

    Reply #1 by CnAutotool Mar 11,2017
    Hi dear friend,
    Thank you for your comment.
    We are looking forward to your visit again!
    Best regards

    CnAutotool


  • by Mr.laskri ,Feb 20,2017

    AWESOME!!!! Fast shipping! GREAT. Thanks for the advice on which to buy!

    Reply #1 by CnAutotool Feb 20,2017
    Hi dear friend,
    Thank you for your comment.
    We are looking forward to your visit again!
    Best regards

    CnAutotool


  • by Mr.mario,Feb 13,2017

    Quik delivery and item worked as described. Recommended Seller.

    Reply #1 by CnAutotool Feb 13,2017
    Hi dear friend,
    Thank you for your comment.
    We are looking forward to your visit again!
    Best regards

    CnAutotool
