Original Launch X431 X-431 PAD with Wireless Update by WiFi Built-in Printer

Original Launch X431 X-431 PAD Auto Scanner with Wireless Update by 3G WiFi Built-in Printer

Note:
1. It doesn't have SD card ,only has a 16GB hard disk.
2. Languages: Japanese, German, English, French, Italian, Portuguese, Russian, Turkish, Spanish, Traditional Chinese
3. Regarding Update: It is not available for updating in USA and European countries.People in these countries can buy VPN for updating.

Launch X431 Pad Description:

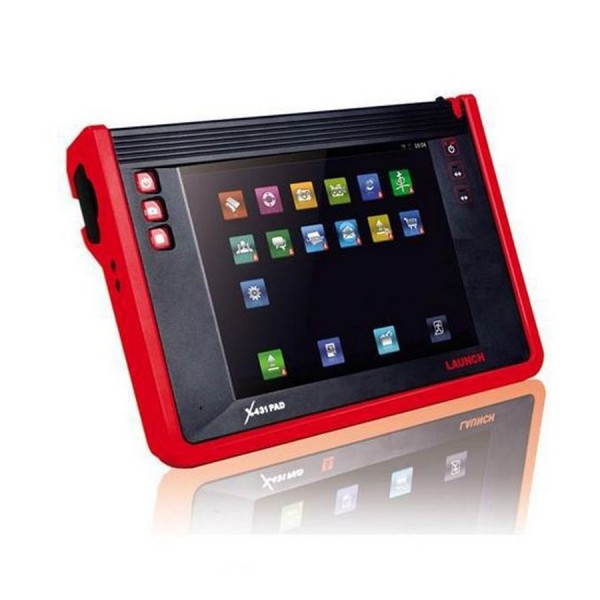

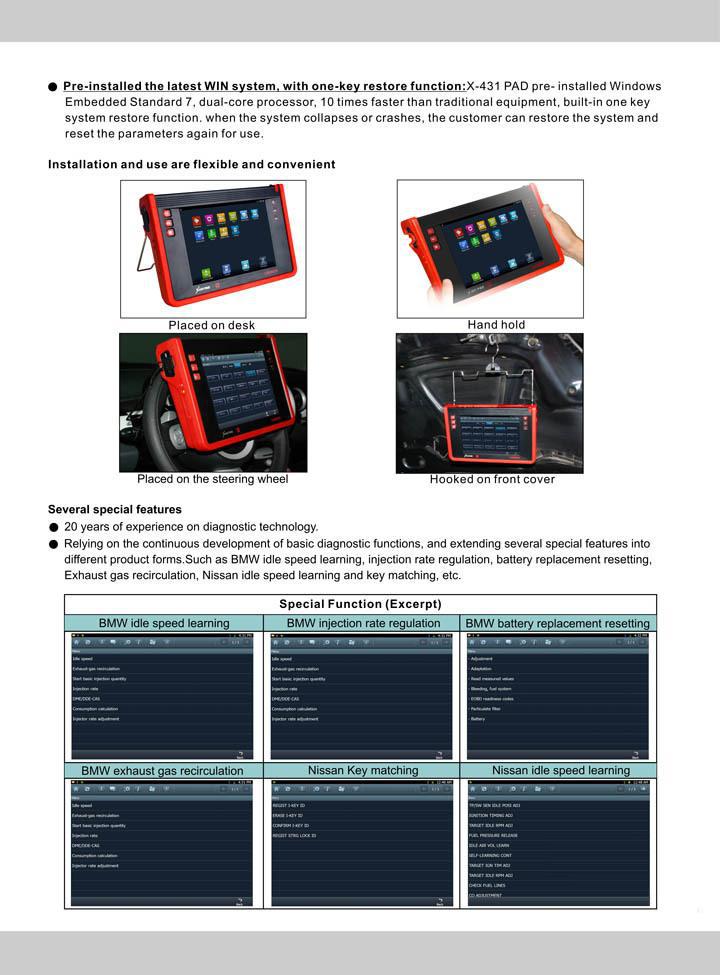

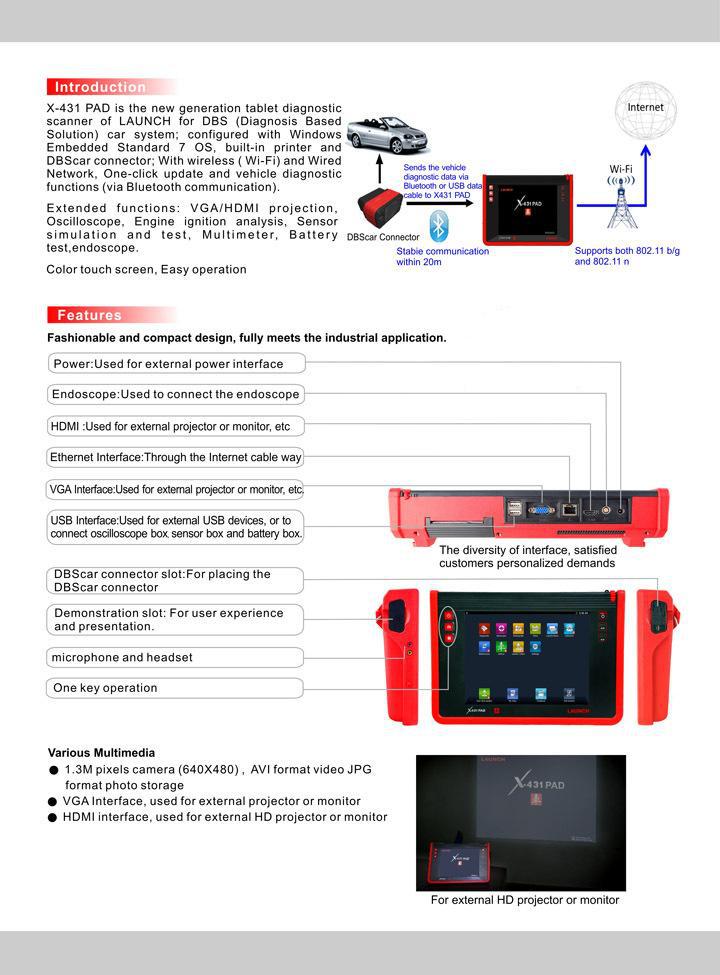

Launch X-431 PAD I is the new generation tablet diagnostic scanner of LAUNCH for DBS (Diagnosis Based Solution) car system; configured with Windows Embedded Standard 7 OS, built-in printer and Pluggable DBScar connector; With wireless (3G, Wi-Fi) and Wired Network, One-key update and vehicle diagnostic functions (via Bluetooth communication);Extended functions: VGA/HDMI projection, Oscilloscope, Engine ignition analysis, Sensor simulation and test, Multimeter, Battery test, endoscope.Color touch screen, Easy operation.

Launch X-431 Pad Feature
Compact structure ,powerful hardware configuration
Rich multimedia

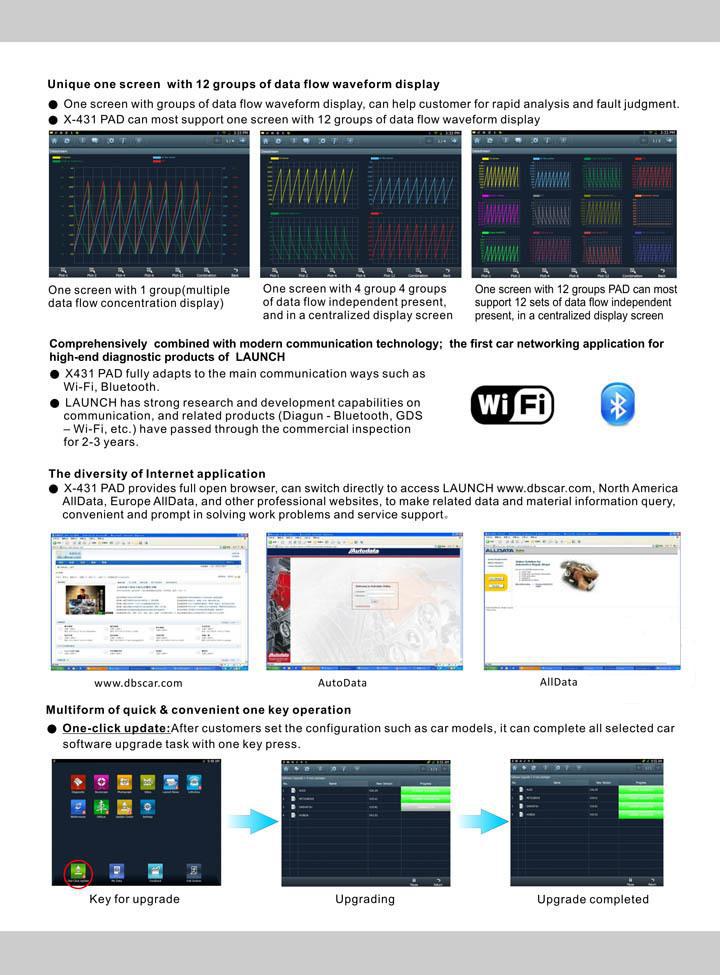

Twelve groups of data flow oscillogram displayed on one screen
Customized remote collaboration
The first high-end diagnostic product based on the car networking appllcation of LAUNCH Company ,combined with modern communication technology
Diverse internet applications

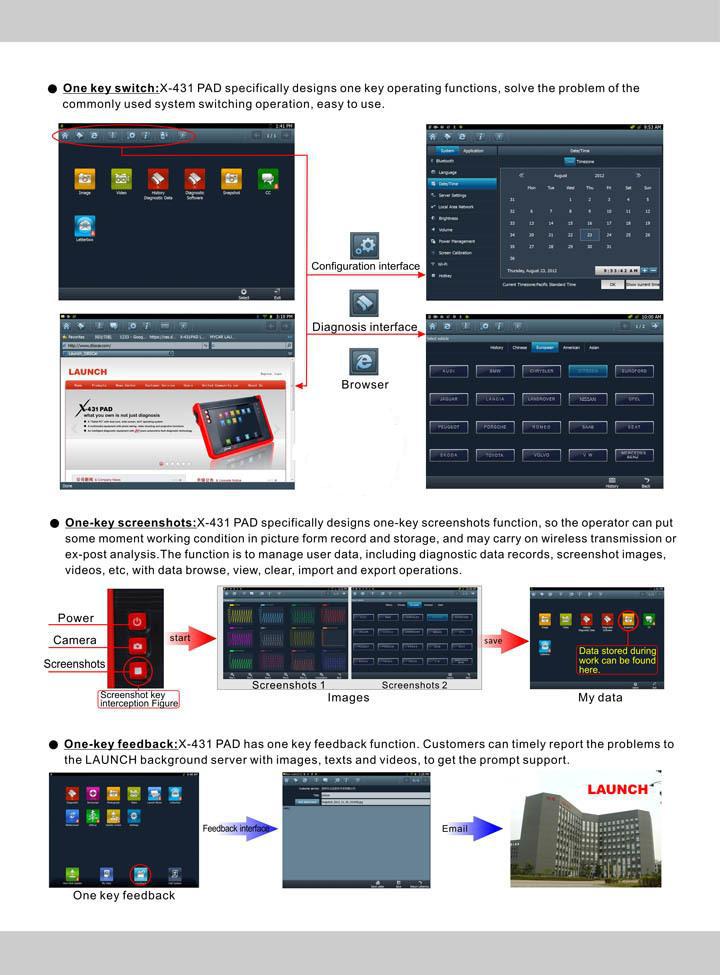

Various convenient one-key shortcuts
Convenient and flexible in use

Launch X-431 Pad Specification
1.6GHz Dual Core Processor
Memory --- 2GB.
Hard Disk --- 16GB SSD
Battery --- 7400mAh, 7 hrs
9.7'' TFT IPS Wide Screen
1.3 million pixels (640 x480 resolution) camera
High speed thermal printer
VGA&HDMI --- PPT/TV

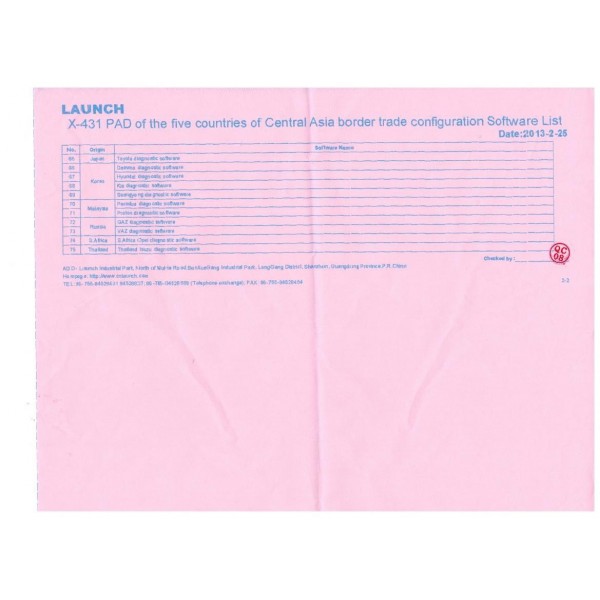

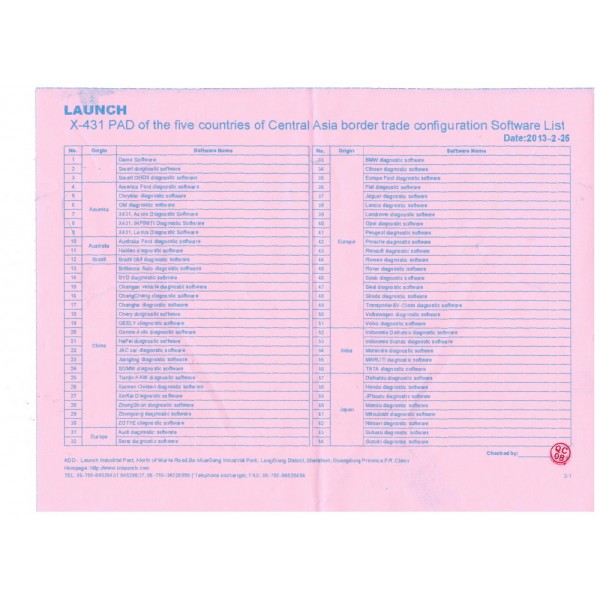

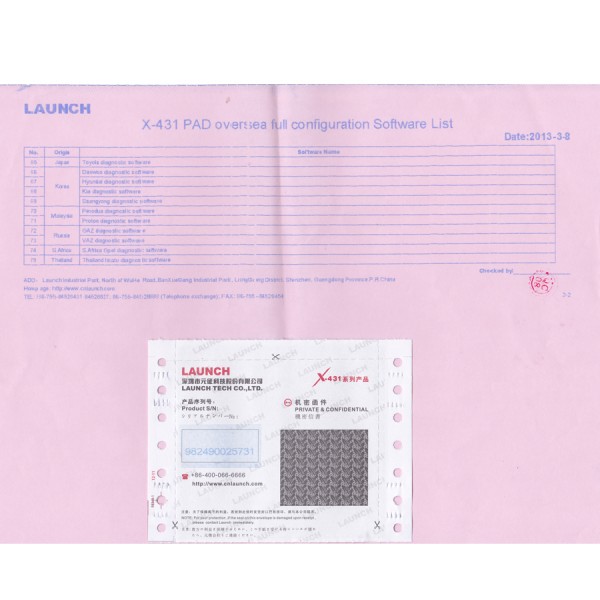

Launch X431 Pad Software List:

No.	Origin	Software Name	Version
1	-	Demo Software	V14.30
2		Smart diagnostic software	V17.27
3		Smart OBDII diagnostic software	V22.13
4	America	America Ford diagnostic software	V41.60
5		Chrysler diagnostic software	V28.01
6		GM diagnostic software	V42.50
7		X431, Acura Diagnostic Software	V10.43
8		X431, INFINITI Diagnostic Software	V10.31
9		X431, Lexus Diagnostic Software	V10.73
10	Australia	Australia Ford diagnostic software	V25.10
11		Holden diagnostic software	V40.00
12	Brazil	Brazil GM diagnostic software	V12.01
13	China	Brilliance Auto diagnostic software	V30.00
14		BYD diagnostic software	V17.01
15		Changan vehicle diagnostic software	V15.00
16		ChangCheng diagnostic software	V32.00
17		Changhe diagnostic software	V20.00
18		Chery diagnostic software	V45.01
19		GEELY diagnostic software	V17.00
20		Gonow Auto diagnostic software	V12.01
21		HaFei diagnostic software	V24.00
22		JAC car diagnostic software	V18.01
23		Jiangling diagnostic software	V12.22
24		SGMW diagnostic software	V17.00
25		Tianjin FAW diagnostic software	V16.40
26		Xiamen Golden diagnostic software	V13.00
27		XinKai Diagnostic software	V11.02
28		ZhongShun diagnostic software	V12.01
29		Zhongxing diagnostic software	V21.00
30		ZOTYE diagnostic software	V17.00
31	Europe	Audi diagnostic software	V26.30
32		Benz diagnostic software	V45.76
33	Europe	BMW diagnostic software	V45.60
34		Citroen diagnostic software	V40.46
35		Europe Ford diagnostic software	V40.30
36		Fiat diagnostic software	V32.60
37		Jaguar diagnostic software	V18.10
38		Lancia diagnostic software	V15.72
39		Landrover diagnostic software	V31.43
40		Opel diagnostic software	V39.93
41		Peugeot diagnostic software	V42.34
42		Porsche diagnostic software	V20.21
43		Renault diagnostic software	V40.75
44		Romeo diagnostic software	V18.51
45		Rover diagnostic software	V23.01
46		Saab diagnostic software	V21.32
47		Seat diagnostic software	V26.30
48		Skoda diagnostic software	V26.30
49		Transporter&V-Class diagnostic software	V19.43
50		Volkswagen diagnostic software	V26.30
51		Volvo diagnostic software	V41.61
52	India	Indonesia Daihatsu diagnostic software	V11.18
53		Indonesia Suzuki diagnostic software	V10.09
54		Mahindra diagnostic software	V11.03
55		MARUTI diagnostic software	V14.03
56		TATA diagnostic software	V13.03
57	Japan	Daihatsu diagnostic software	V19.90
58		Honda diagnostic software	V43.94
59		JPIsuzu diagnostic software	V13.30
60		Mazda diagnostic software	V37.90
61		Mitsubishi diagnostic software	V29.70
62		Nissan diagnostic software	V41.20
63		Subaru diagnostic software	V21.70
64		Suzuki diagnostic software	V33.00
65	Japan	Toyotadiagnostic software	V46.90
66	Korea	Daewoo diagnostic software	V26.60
67		Hyundai diagnostic software	V47.90
68		Kia diagnostic software	V41.90
69		Ssangyong diagnostic software	V17.81
70	Malaysia	Perodua diagnostic software	V13.14
71		Proton diagnostic software	V14.14
72	Russia	GAZ diagnostic software	V10.14
73		VAZ diagnostic software	V13.05
74	S.Africa	S.Africa Opel diagnostic software	V10.60
75	Thailand	Thailand Isuzu diagnostic software	V13.30

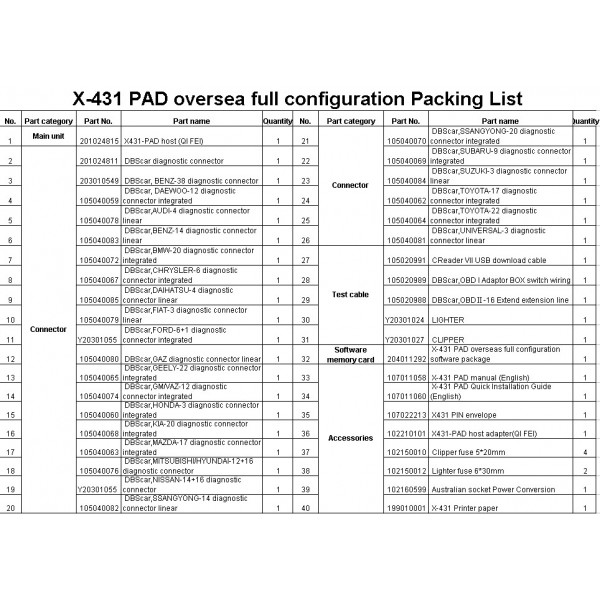

Launch X-431 Pad I Packing List:

1	Main unit	201024815	X431-PAD host (QI FEI)	1

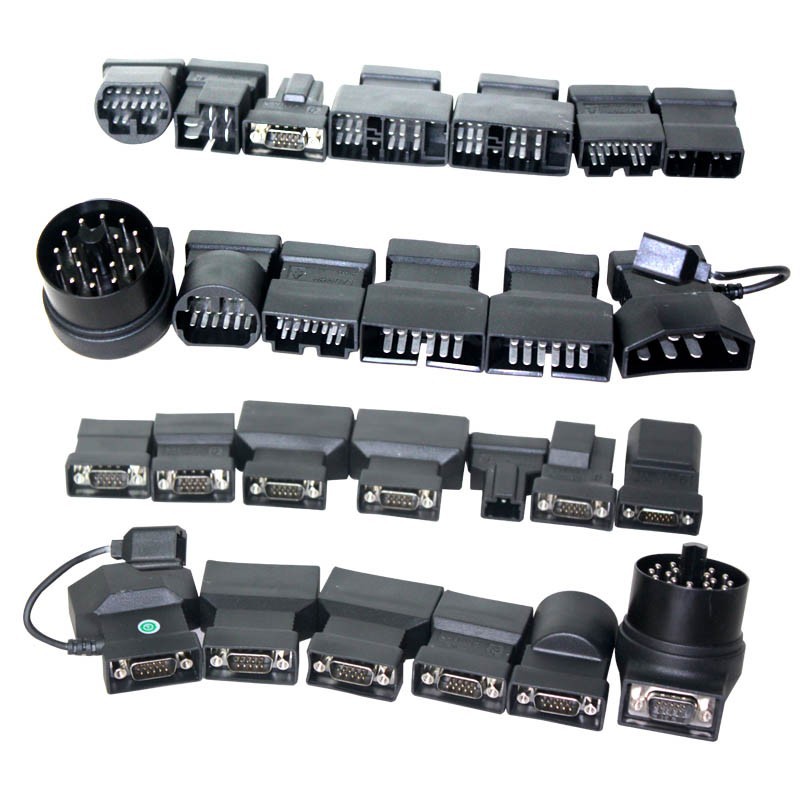

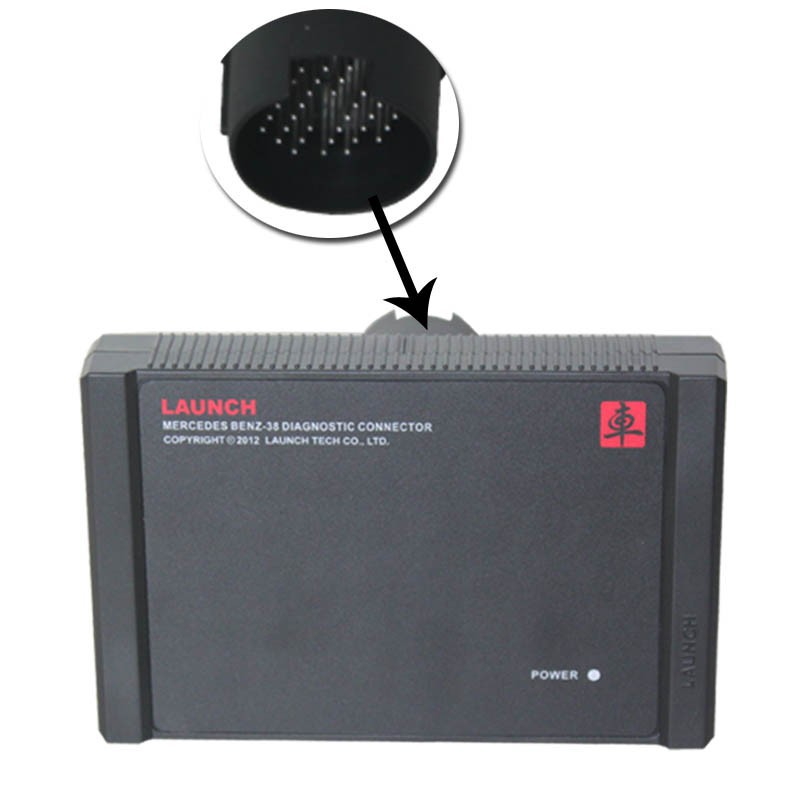

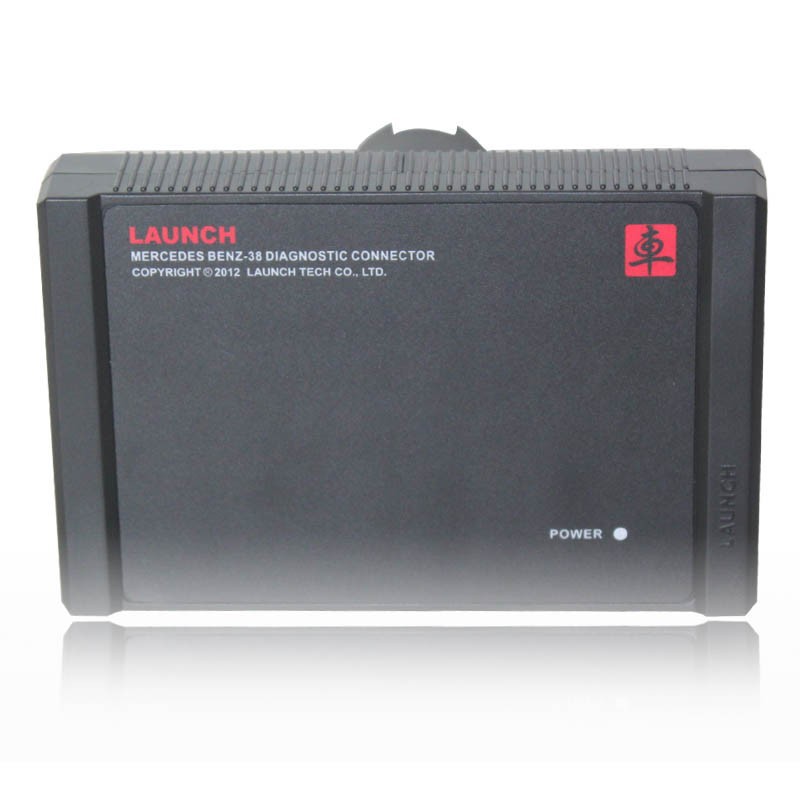

2	Connector	201024811	DBScar diagnostic connector	1

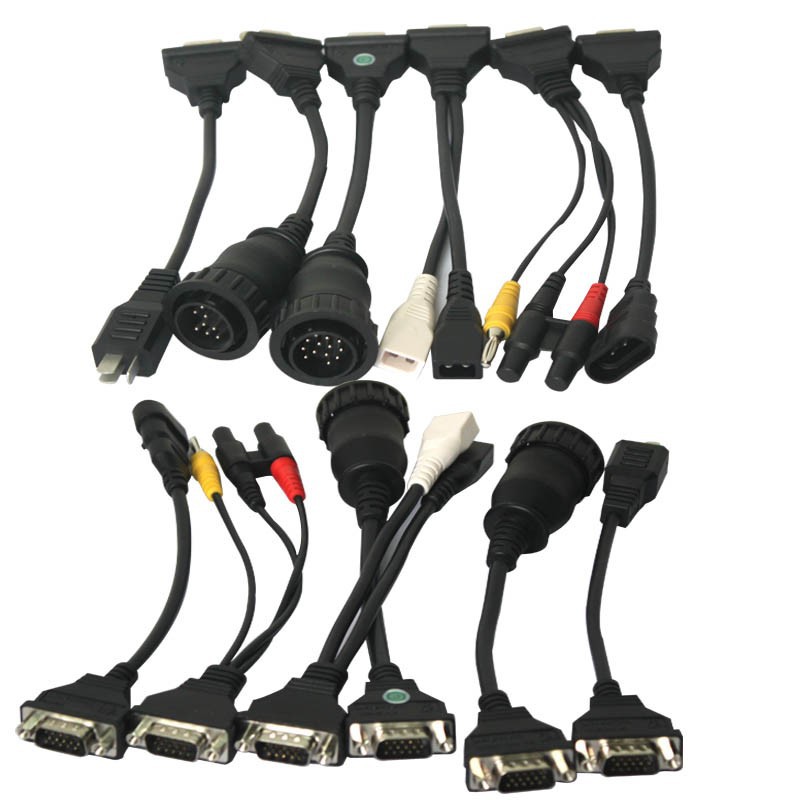

3		105040059	DBScar, DAEWOO-12 diagnostic connector integrated	1
4		105040078	DBScar,AUDI-4 diagnostic connector linear	1
5		105040083	DBScar,BENZ-14 diagnostic connector linear	1
6		105040072	DBScar,BMW-20 diagnostic connector integrated	1
7		105040067	DBScar,CHRYSLER-6 diagnostic connector integrated	1
8		105040085	DBScar,DAIHATSU-4 diagnostic connector linear	1
9		105040079	DBScar,FIAT-3 diagnostic connector linear	1
10		Y203010554	DBScar,FORD-6+1 diagnostic connector integrated	1
11		105040080	DBScar,GAZ diagnostic connector linear	1
12		105040065	DBScar,GEELY-22 diagnostic connector integrated	1
13		105040074	DBScar,GM/VAZ-12 diagnostic connector integrated	1
14		105040060	DBScar,HONDA-3 diagnostic connector integrated	1
15		105040068	DBScar,KIA-20 diagnostic connector integrated	1
16		105040063	DBScar,MAZDA-17 diagnostic connector integrated	1
17		105040076	DBScar,MITSUBISHI/HYUNDAI-12+16 diagnostic connector	1
18		Y203010556	DBScar,NISSAN-14+16 diagnostic connector	1
19		105040082	DBScar,SSANGYONG-14 diagnostic connector linear	1
20		105040070	DBScar,SSANGYONG-20 diagnostic connector integrated	1
21	Connector	105040069	DBScar,SUBARU-9 diagnostic connector integrated	1
22		105040084	DBScar,SUZUKI-3 diagnostic connector linear	1
23		105040062	DBScar,TOYOTA-17 diagnostic connector integrated	1
24		105040064	DBScar,TOYOTA-22 diagnostic connector integrated	1
25		105040081	DBScar,UNIVERSAL-3 diagnostic connector linear	1

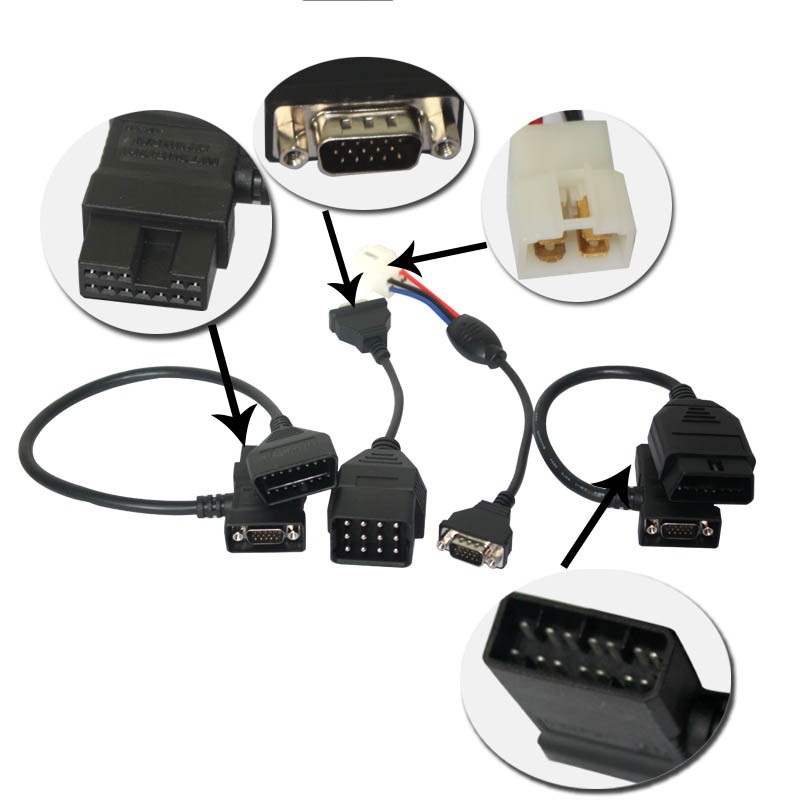

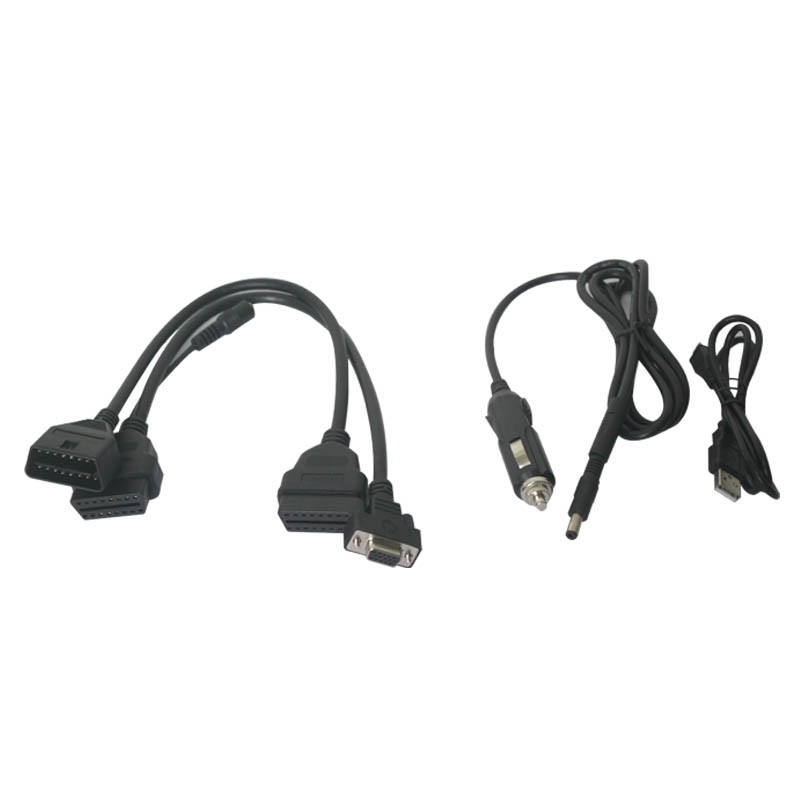

26	Test cable	105020991	CReader VII USB download cable	1
27		105020989	DBScar,OBD I Adaptor BOX switch wiring	1
28		105020988	DBScar,OBDⅡ-16 Extend extension line	1
29		Y203010242	LIGHTER	1

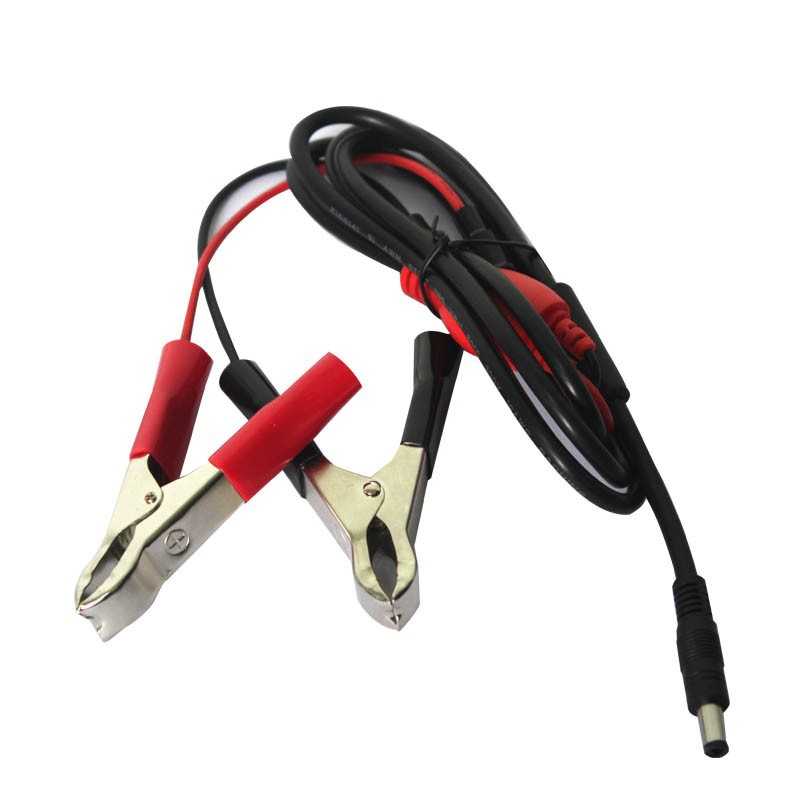

30		Y203010270	CLIPPER	1
31	Software memory card	204011292	X-431 PAD overseas full configuration software package	1

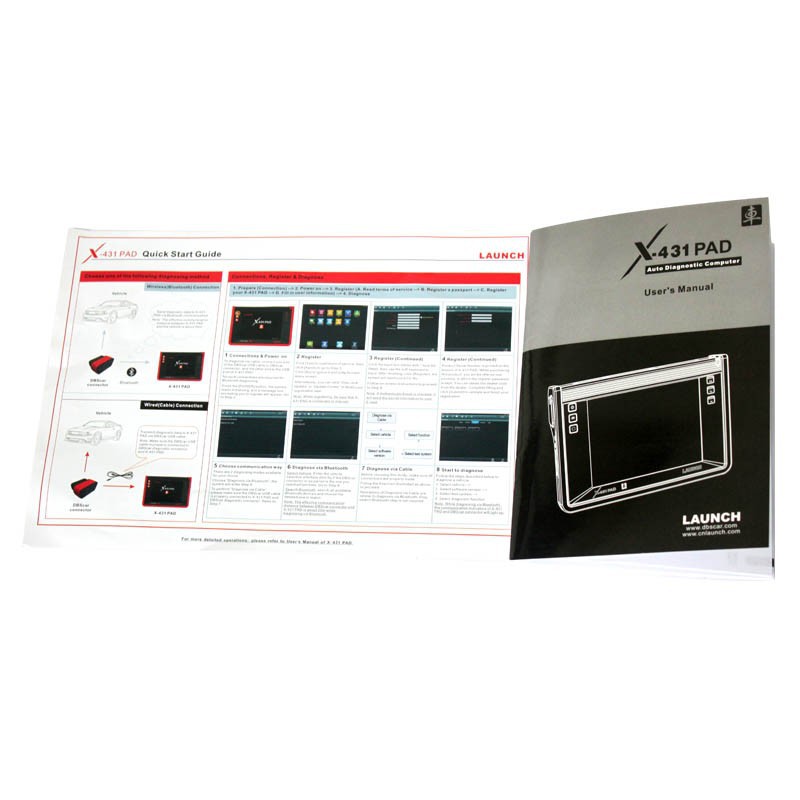

32	Accessories	107011058	X-431 PAD manual (English)	1

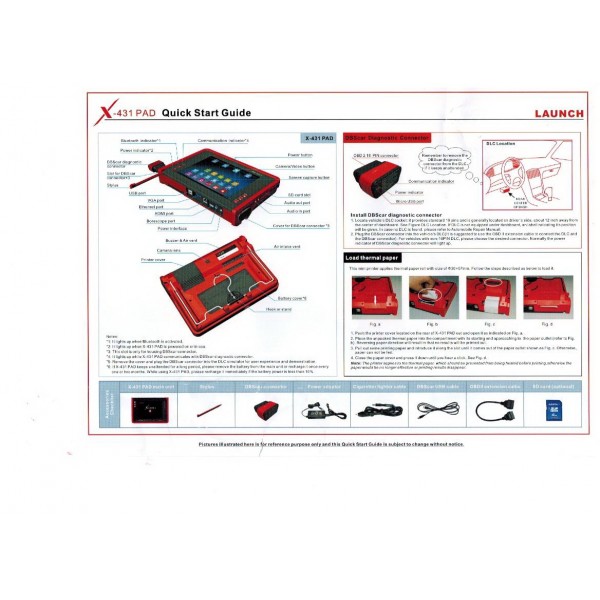

33		107011060	X-431 PAD Quick Installation Guide (English)	1

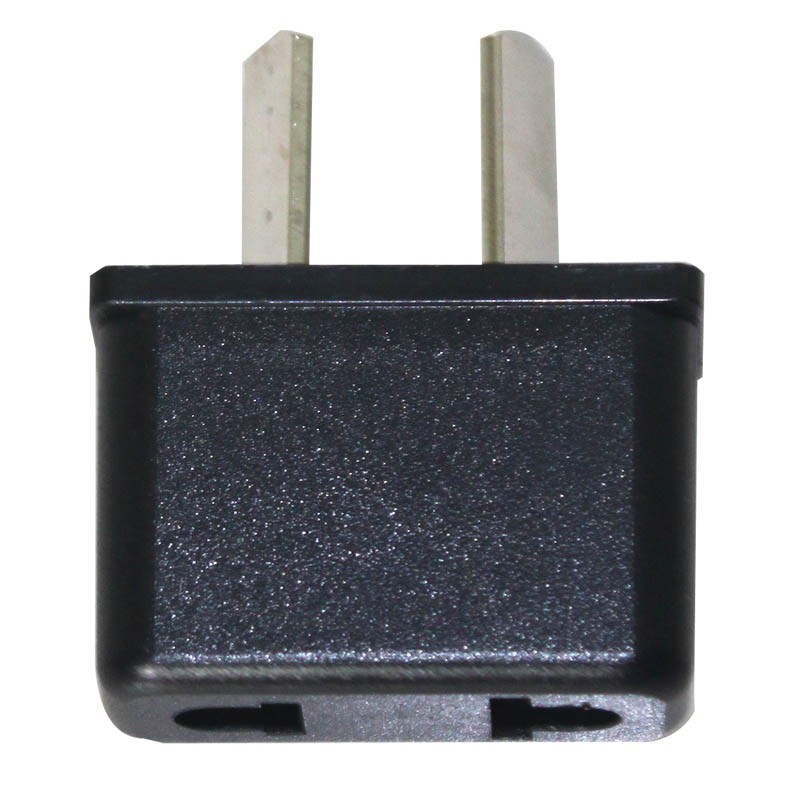

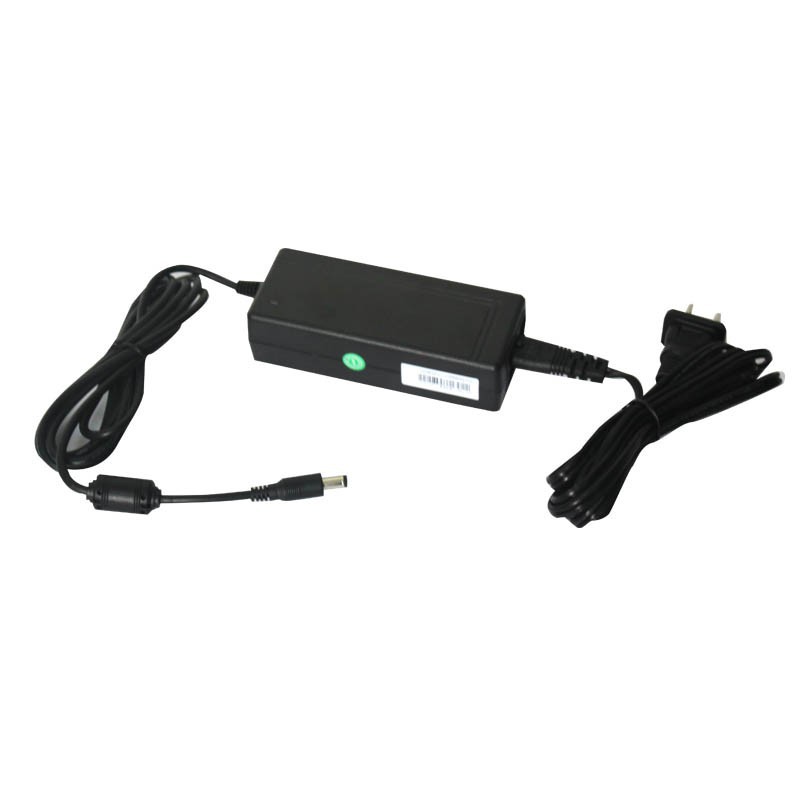

34		102210101	X431-PAD host adapter(QI FEI)	1
35		102150010	Clipper fuse 5*20mm	4
36		102150012	Lighter fuse 6*30mm	2
37		107020654	Private ＆ confidential	1

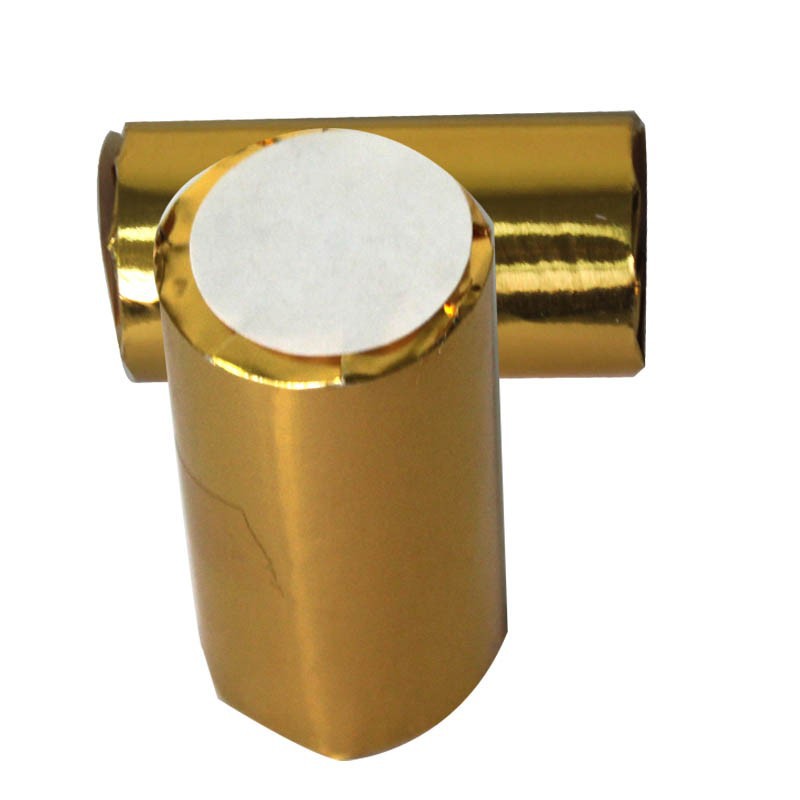

38		199010001	X-431 Printer paper	1

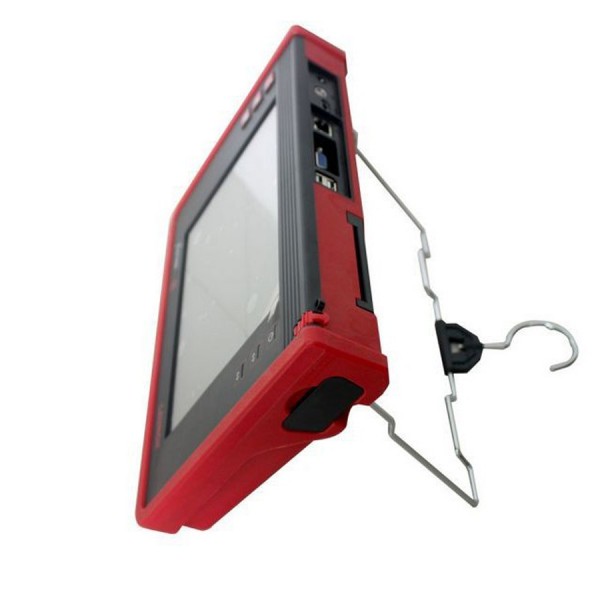

X431 Pad Related Pictures:

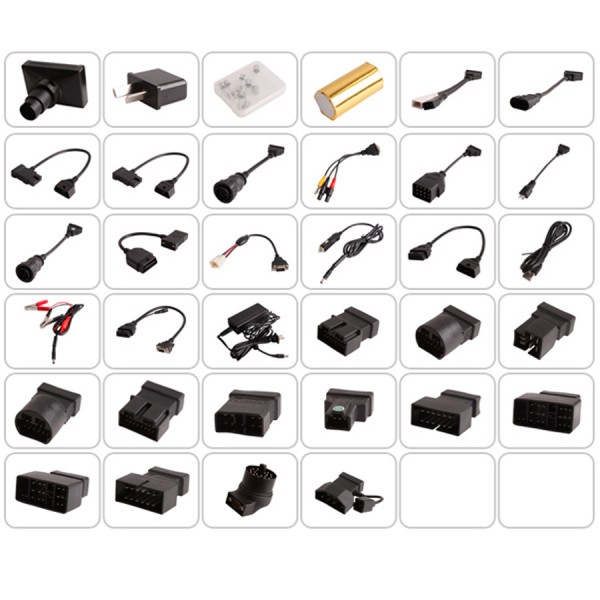

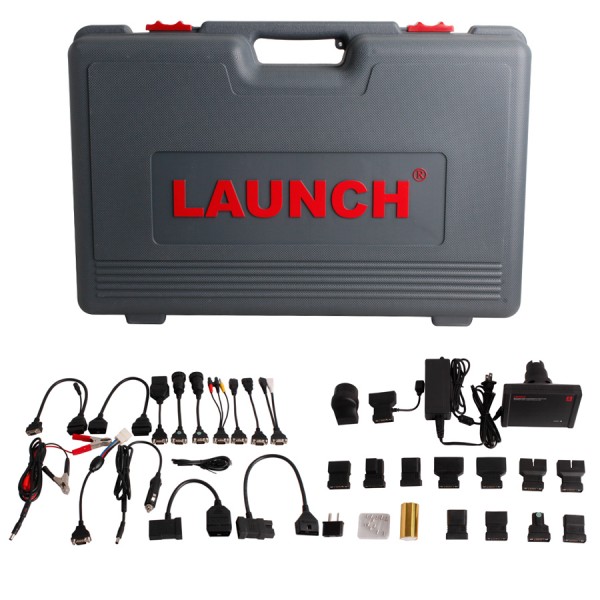

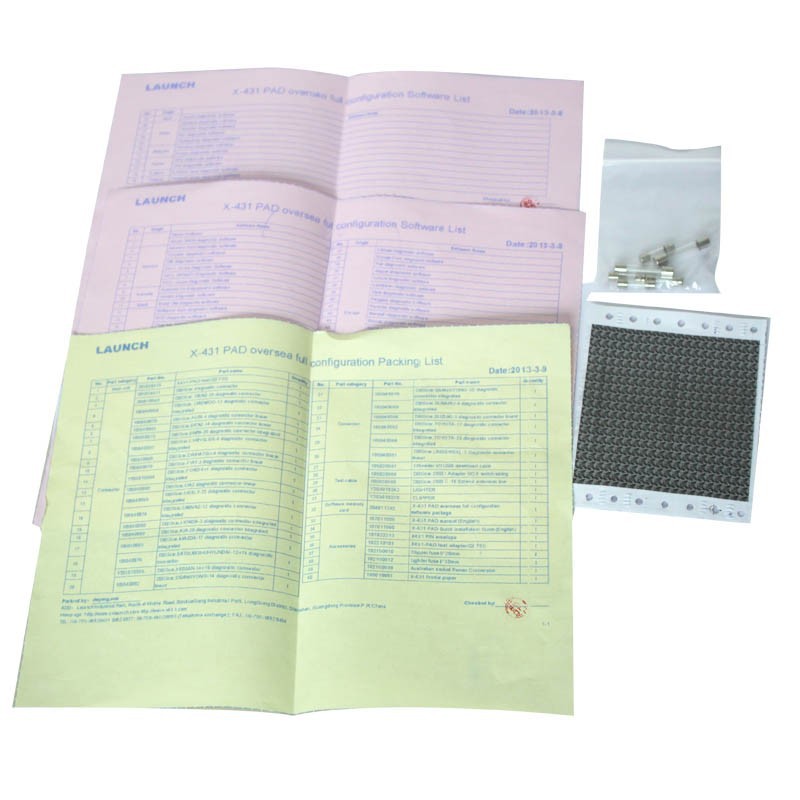

Packing List:
