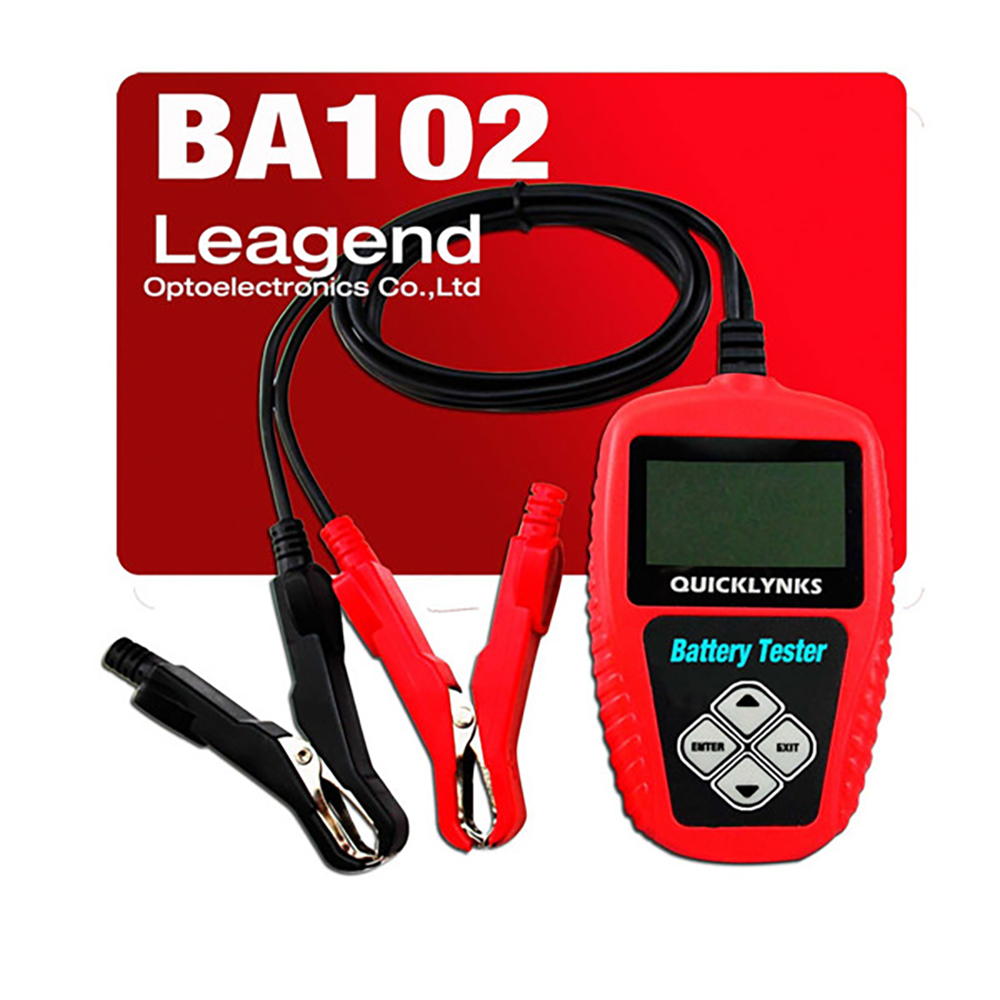

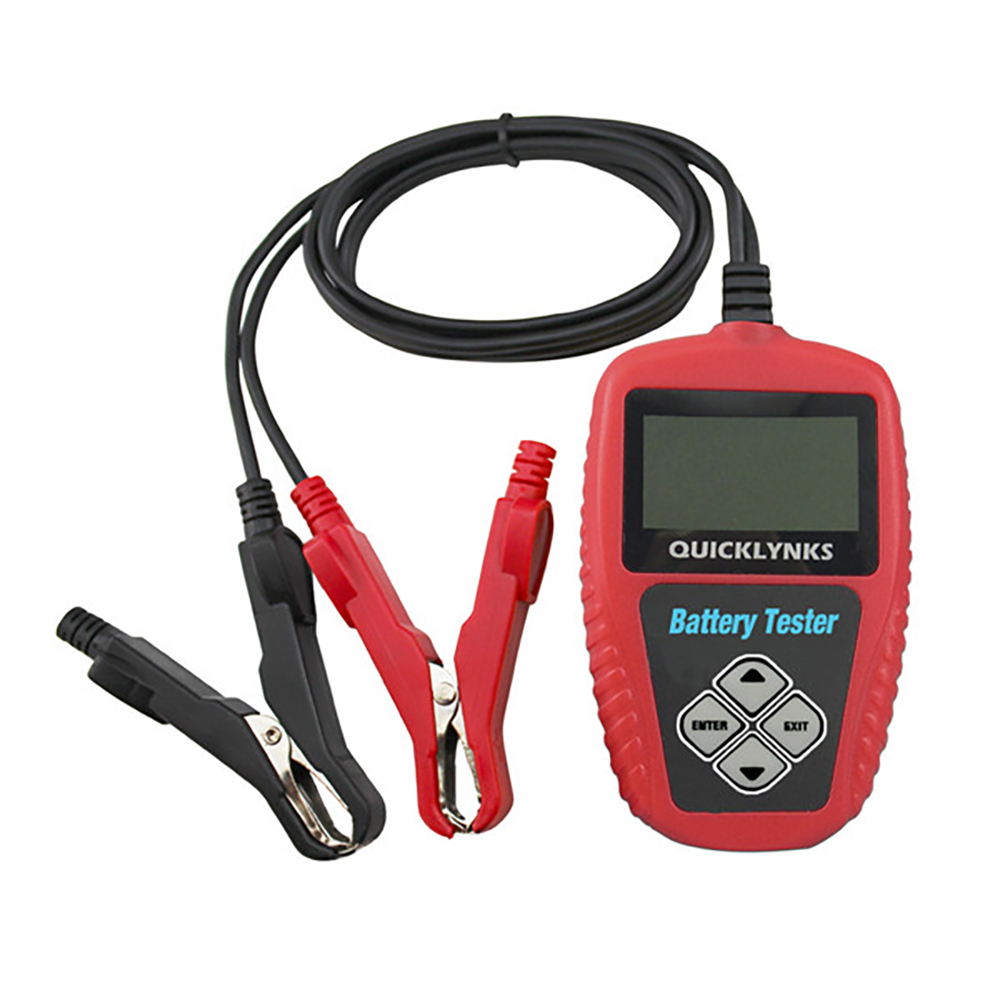

QUICKLYNKS BA102 Motorcycle Battery Tester

  • Item No.  CZ254-2
  • History: 0  sold
  • Market Price: US$67.20
    Shop Price: US$56.00
    Quantity
    Total
  • Stock  123
  • Weight:  500.0gram
  • Rate:  comment rank 50 () Write a Review

  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


QUICKLYNKS BA102 Motorcycle Battery Tester


QUICKLYNKS BA102 Motorcycle Battery Tester Benefit:
1. Conductance correlates directly to the battery capacity
2. Passive testing method is safe.
3. Never discharges or drain the battery.
4. Able to test condition of discharged battery.
5. Consistent and repeatable results.
6. Provides unique indication of battery conditions.
7. provides check the Alternator's charging and Starter's cranking conditions. It is maintenance free and no internal batteries required.
8. It powers up when connected to the battery posts during testing.

QUICKLYNKS BA102 Motorcycle Battery Tester Key Features:
1. Simple and easy to use
2. Test batteries on and off the motorcycle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.
8.Languages: English,

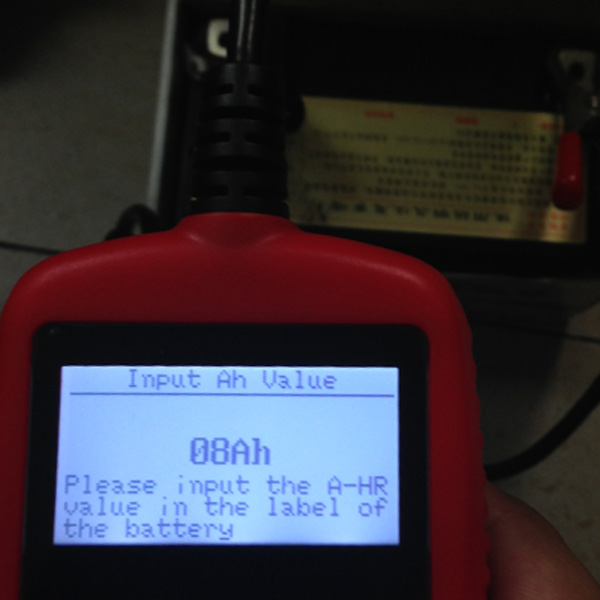

9.Quick test—input battery volume (AH), then it can show the battery status.
10. Store the testing result, print function

Online Update Tips:
1. Open Offcial Website
2. Log Name: l2h5s9x8c0b3d
3. password: i8a0j3b6e2h9f8v

QUICKLYNKS BA102 Motorcycle Battery Tester Functionality:
Test Result: Good or Replace
Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m? )
Life in percentage (%)
Cranking system
Charging system
Print

QUICKLYNKS BA102 Motorcycle Battery Tester Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

QUICKLYNKS BA102 Motorcycle Battery Tester Operating Parameters:
System voltage: 12 Volts
Input voltage range: 9V~15V
Power requirements: No internal batteries required. Power on when hooked up during testing.
Testing range: 20 ~ 300 CCA, 20 ~ 300 DIN, 20 ~ 300 IEC, 20 ~ 300 EN
AH range: 0-33AH

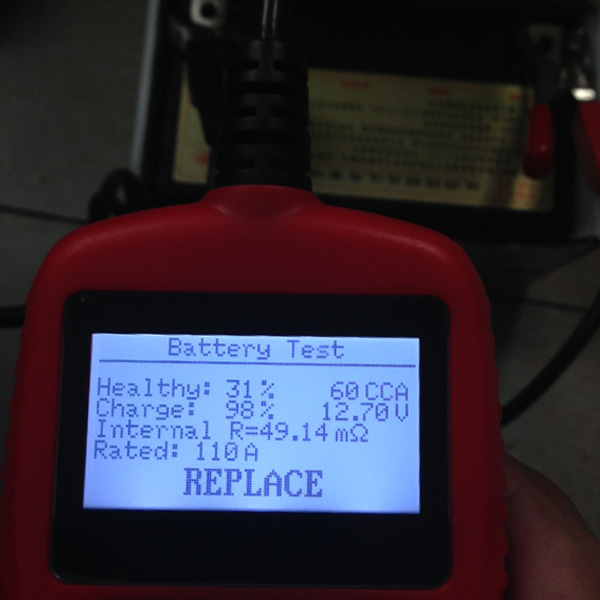

QUICKLYNKS BA102 Motorcycle Battery Tester Testing Result:


Package including:
1pc x QUICKLYNKS BA102 Motorcycle Battery Tester
