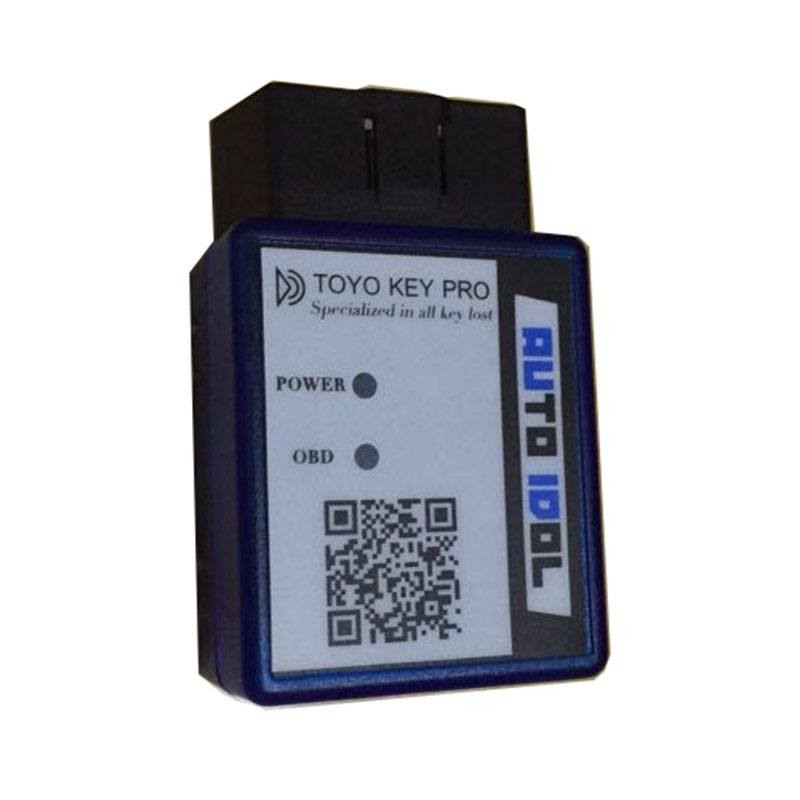

2018 NEW TOYO KEY PRO OBD II Support Toyota 40/80/128 BIT (4D, 4D-G, 4D-H) All Key Lost

  • Item No.  CT132-1
  • History: 21  sold
  • Market Price: US$441.59
    Shop Price: US$368.00
    Quantity
    Total
  • Stock  122
  • Weight:  200.0gram
  • Rate:  comment rank 50 () Write a Review

  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


NEW TOYO KEY PRO OBD II Support Toyota 4080128 BIT (4D, 4D-G, 4D-H) All Key Lost


Top 3 Reasons to Get Toyota OBD-Ⅱ:
1.Work Independently, No Need Connected with Other Device

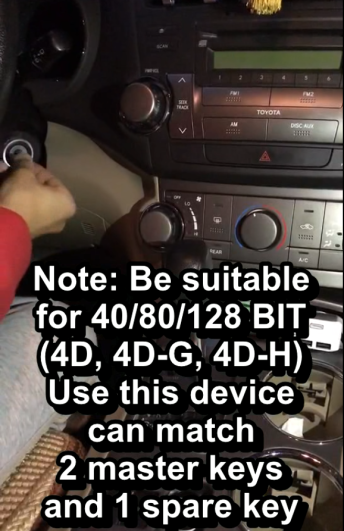

2.Be suitable for 40/80/128 BIT (4D, 4D-G, 4D-H)
3.Support Toyota ID72(G)/8A(H) all key lost

Use this device can match 2 master keys and 1 spare key.

Toyota OBD-Ⅱ operating steps:

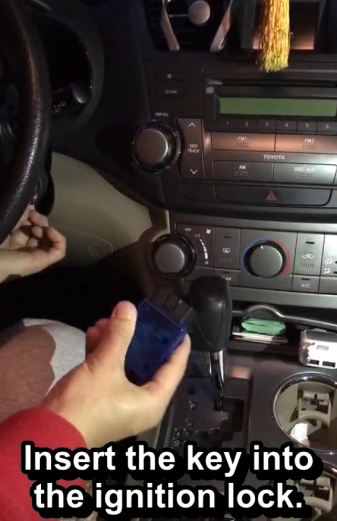

1. Insert the key into the ignition lock.

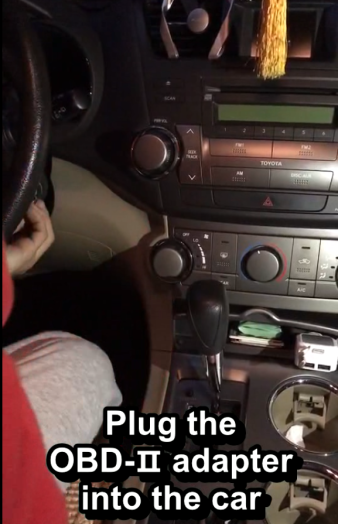

2.Plug the OBD-Ⅱ adapter into the car

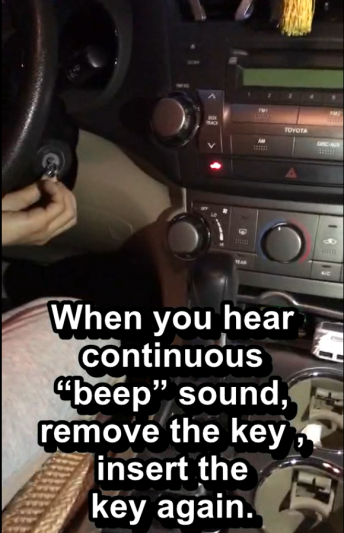

3. When you hear continuous “beep” sound, remove the key , insert the key again.

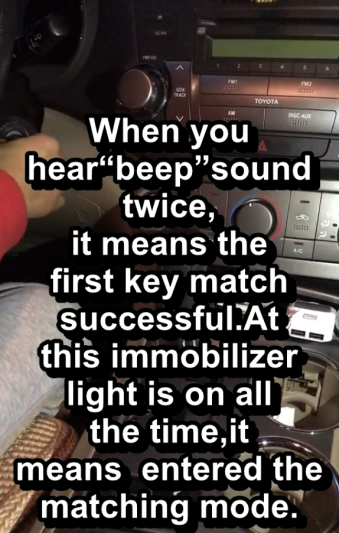

4.When you hear“beep”sound twice,it means the first key match successful.At this immobilizer light is on all the time,it means entered the matching mode.

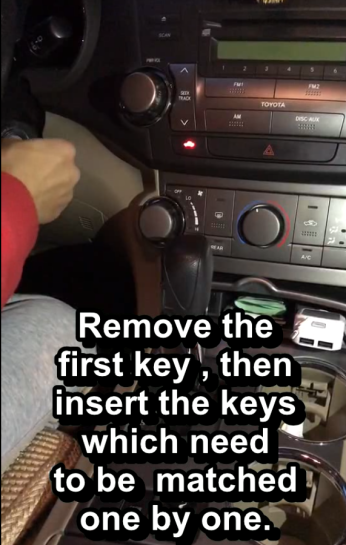

5.Remove the first key , then insert the keys which need to be matched one by one.

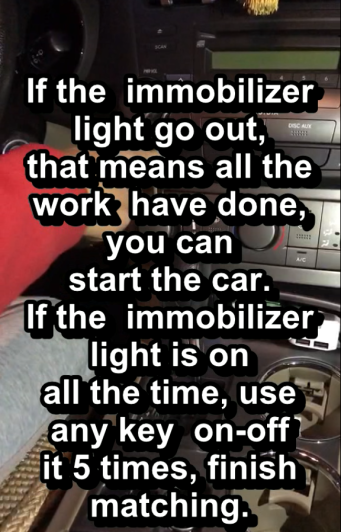

6. If the immobilizer light go out, that means all the work have done, you can start the car.

7. If the immobilizer light is on all the time, use any key on-off
it 5 times, finish matching.


Шаги управления Тойота OBD-Ⅱ
1) вставлять ключ
2) вставлять OBD-Ⅱ
3) когда появится безостановочный сигнал,
высвобождать ключ, еще раз вставлять ключ.
4) Когда слышать сигнал два раза,
первый ключ успешно согласовали.
в это время указанный свет светит, начать согласовать.
5) Высвобождать первый ключ, и вставлять согласованный ключ.
6) Если противоугонное устройство глушит,
все закончились.можно зажигать мишину.
7) Если противоугонное устройство светлеет,
зажигать 5 раза любым ключом,и все
Примечание:подходит чипам 40/80/128 bit (4D /4D–G /4D-H)
Только согласовать с ключами главными 2шт и неглавным 1шт этим прибором.

トヨタOBD-2操作方法:
1.キーを入れます。
2.OBDを入れます
3.『DI DI』の音が連続に2回した時、キーを引き抜き、またキーを入れます
4.″DIDI″の音が2回した時、一番目のキーがマッチング完了できました。その時のsecurity
  lighが長くついています。マッチング模式に入ったとの意味を表示します。
5.一番のキーを抜き出して手順に従って作り必要なキーを入れます。
6.もしsecurity light が消えたら全部マッチング終わりました。車を始動できます
7.もしsecurity lightがずっと点いたら随意1個のキーでON-OFFイグニッション5回してマッチングを終わります。


PS:40/80/12Bit(4D/4D-G/4D-H)に適用です
この商品で多くてもmaster2個、vice1個にチップキーをマッチングできます

Pakeage List:

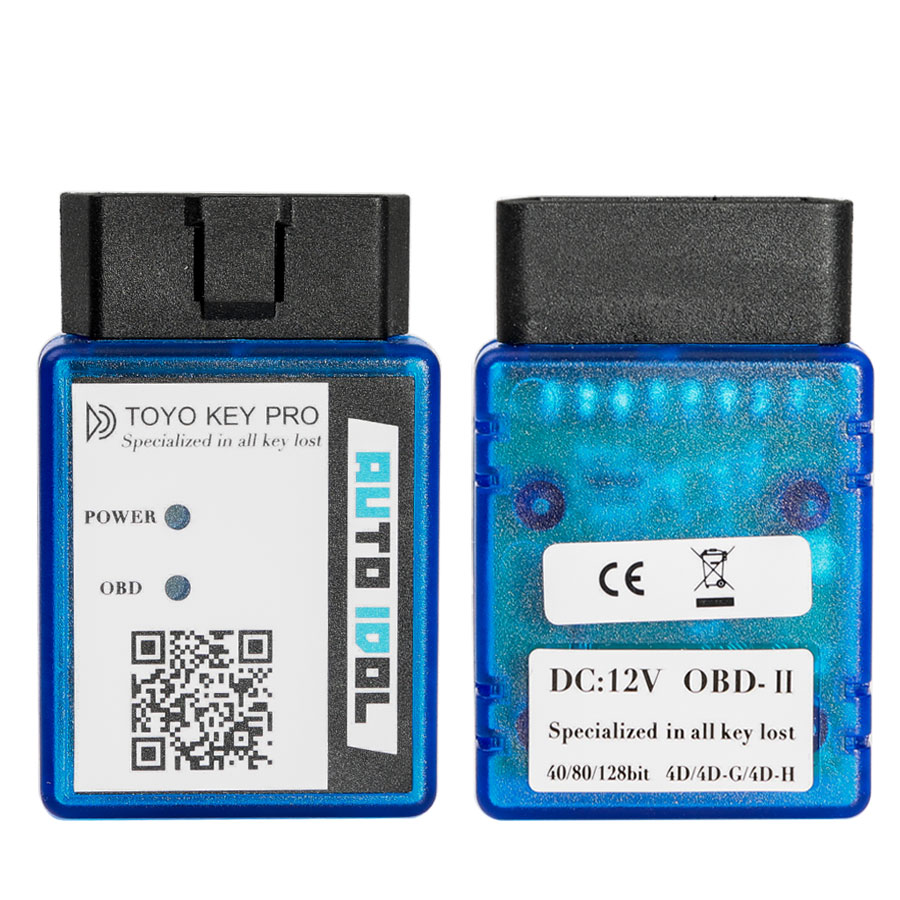

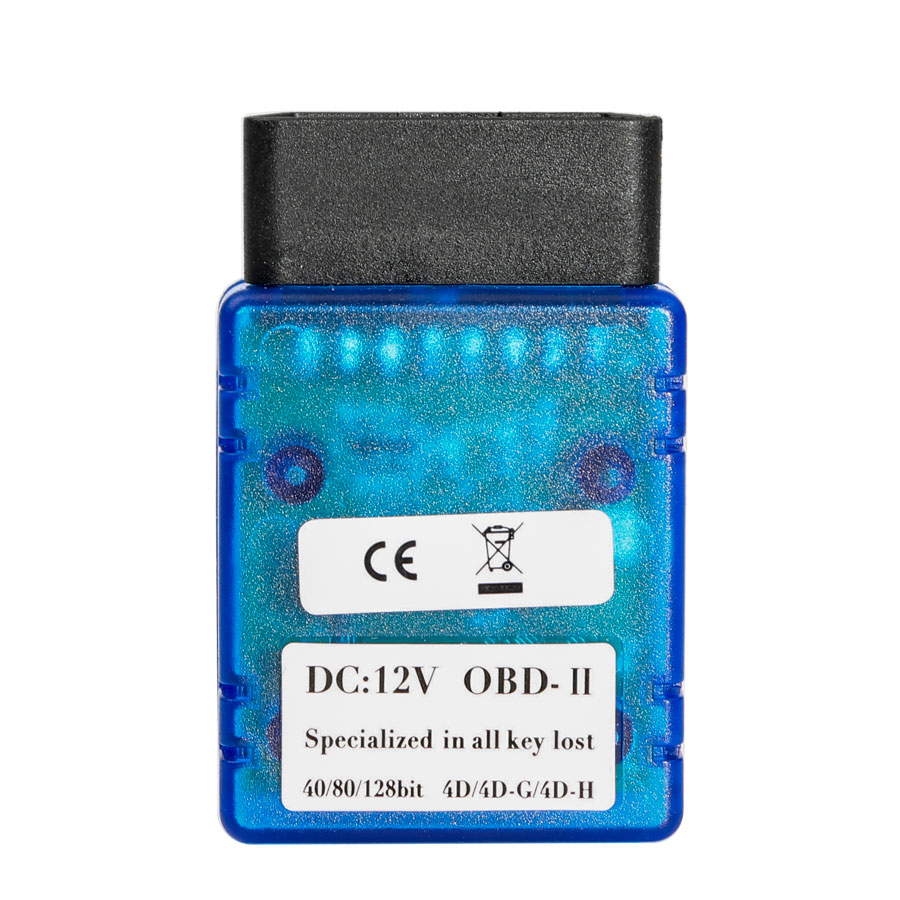

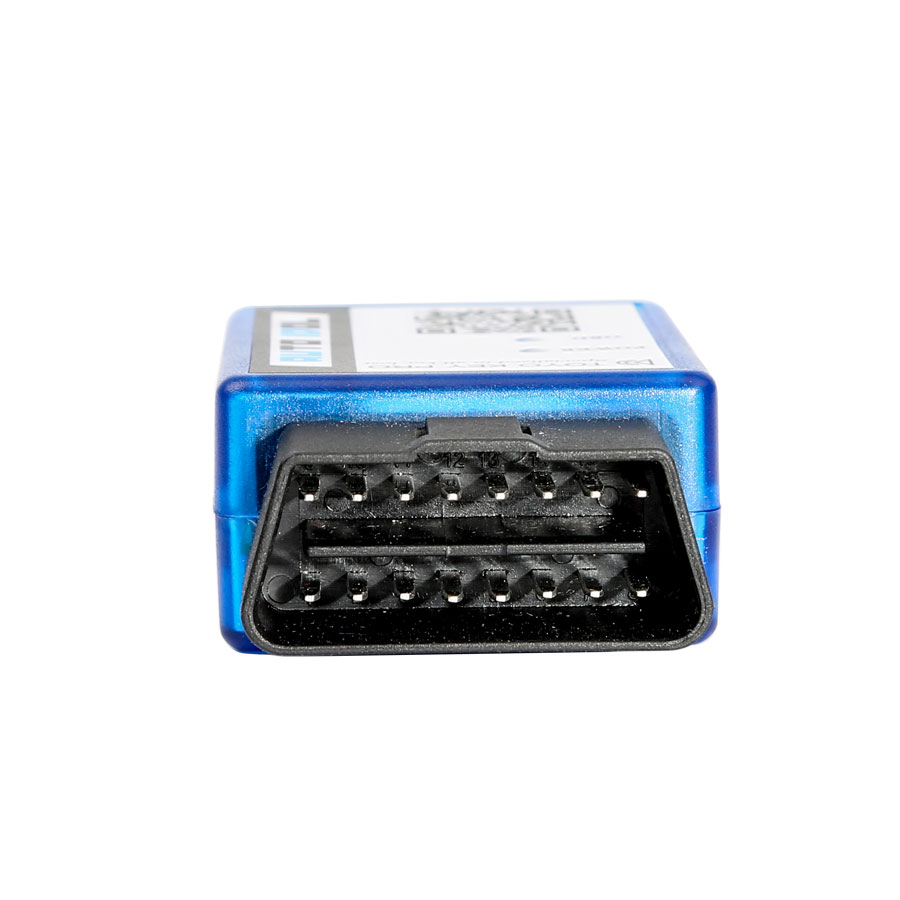

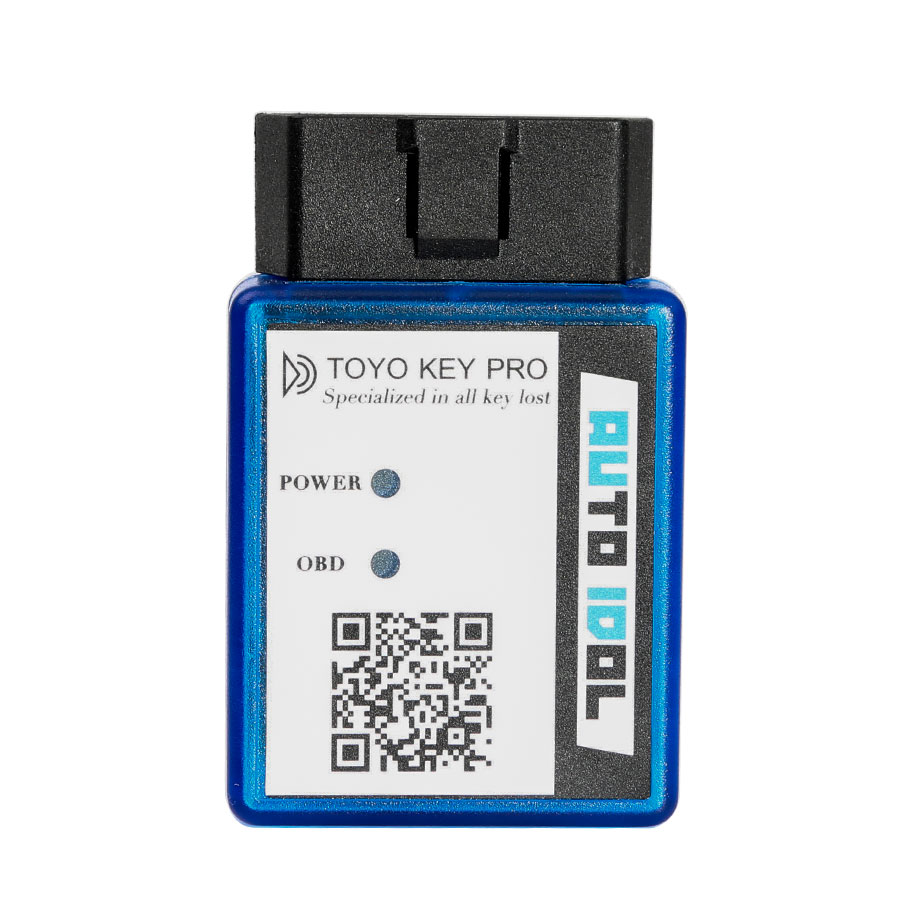

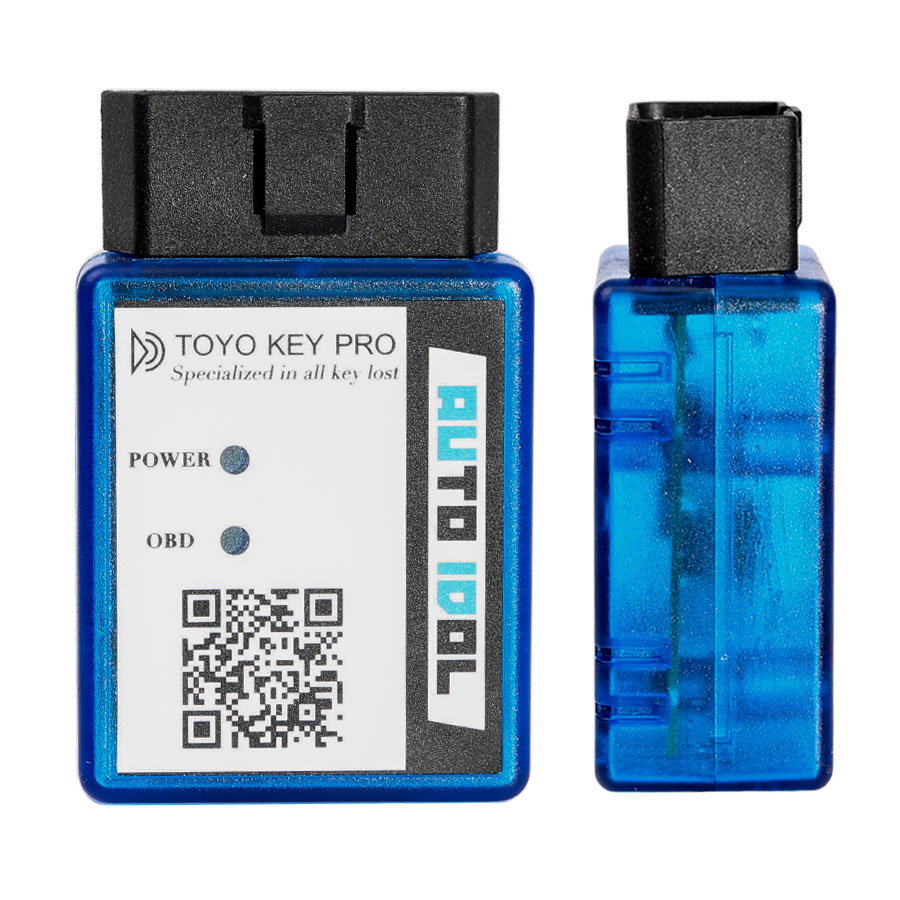

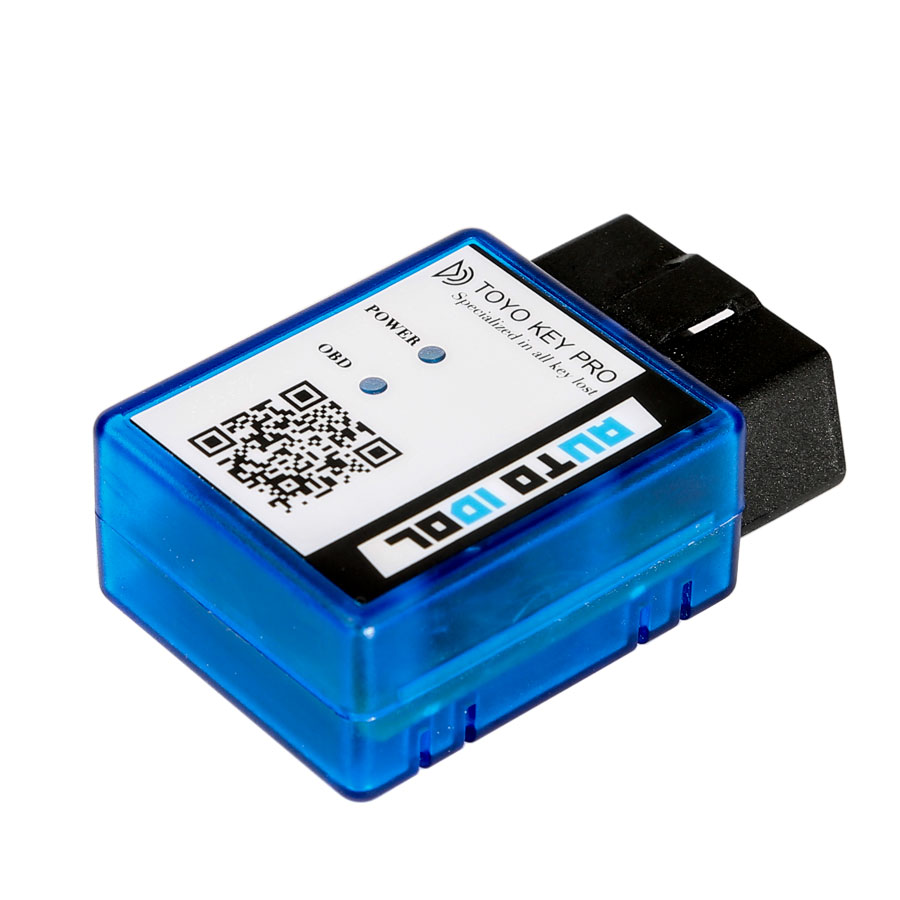

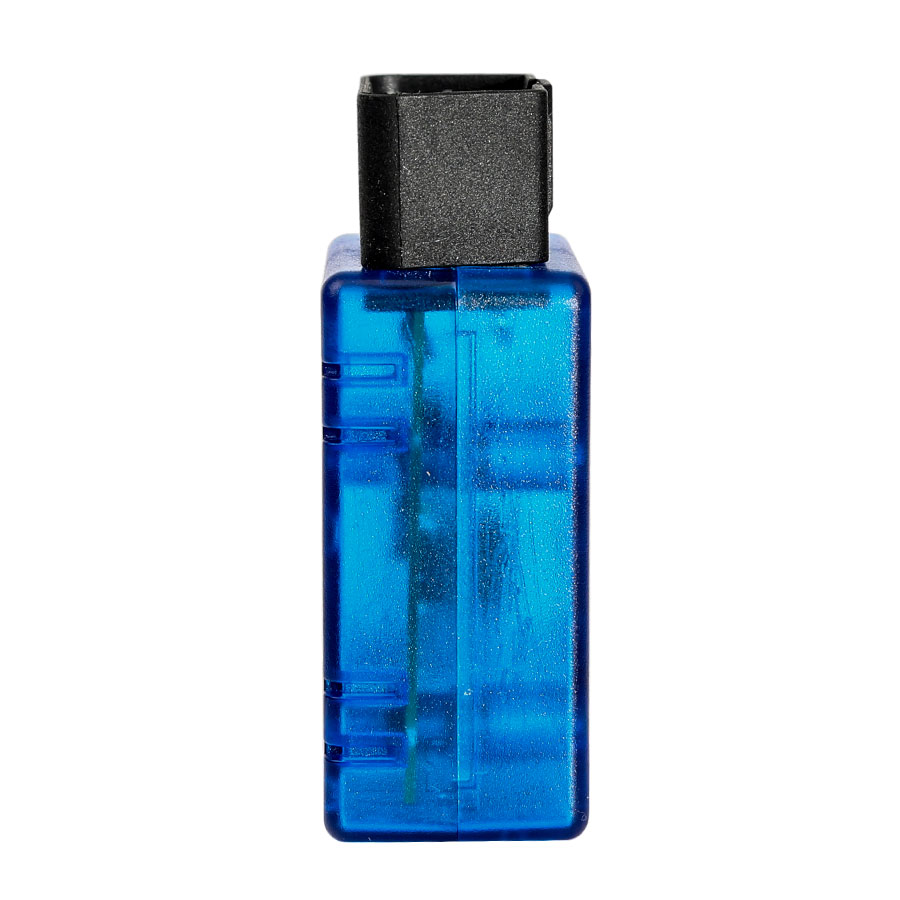

1pc* Toyo Key Pro OBDII Adapter
