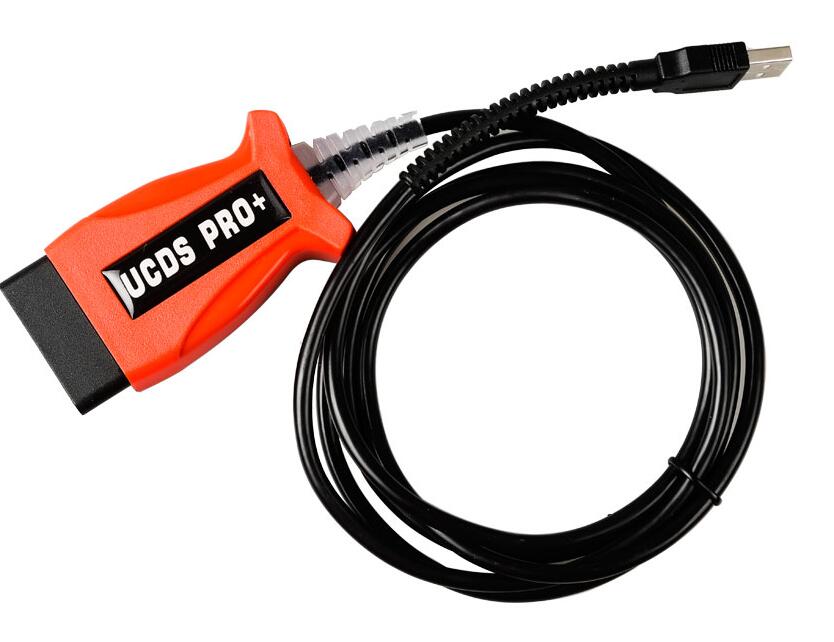

Ford UCDS Pro+ Ford UCDSYS Full Function Type With UCDS V1.2.7.001 Software Replace Ford VCM II Diagnostic Tool

  • Item No.  CA390
  • History: 184  sold
  • Market Price: US$39.60
    Shop Price: US$33.00
    Express Shipping Service    Estimated delivery time: 3-5 days »
    Affected by the epidemic, there will be delays in transit time.
  • Stock  184
  • Weight:  200.0gram
  • Rate:  comment rank 45 () Write a Review
  • Member Benefits  Shipping  Return Policy

Related Products




Technical Support


Ford UCDS Pro+ Ford UCDSYS Full Function Type With UCDS V1.2.7.001 Software Replace Ford VCM II Diagnostic Tool

Ford UCDS V1.2.7.001 Diagnostic Tool Highlight:
1.UCDS Software: V1.2.7.001
2.Ford UCDS full license adapter: full mode activated, access to existing sections of the software, such as: VBF Loader, Update Wizard and Direct Config.
3.With 35 tokens: token only need for mileage programming & ECU chip tuning function (tokens use up, send back to add token, 35usd for 35 tokens. )

4. UCDS support odometer correction
5. UCDS support both online and offline programming
6. UCDS support the reconfiguration of the car, the engine firmware stock firmware
7.UCDS support special functions like: VBF LOADER, UPDATE WIZARD, DIRECT CONFIG

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual  UCDS-program.
The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.
UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..

Ford UCDS V1.2.7.001 Obd2 Scanner Descriptions:
Ford UCDS is the 2017 New Released Diagnostic Adapter with neweest software V1.2.7.001 can replace Ford VCM II perferctly, just one difference, UCDS Ford cannot key programming, but UCDS (Universal CAN Diagnostic System) for Ford can support Mileage Correction and it is full function type has 35 tokens also support special functions like VBF LOADER, UPDATE WIZARD, DIRECT CONFIG.
VBF Loader - section UCDS design software, allowing yourself to load the modules in the Ford brand vehicles, the various files in the format .VBF
Update Wizard - section UCDS design software that allows to update the software of different brands of Ford cars modules in accordance with the latest IDS software databases, subject to the availability of files on the servers. Attention! Not all modules can be updated via the data section, because update files or not laid out in the server (security policy) or module is an alternative way to update their own software (eg via USB or SD card).
Direct Config - section UCDS design software that allows for the configuration of the various modules of Ford directly. A distinctive feature of car Ford Mondeo 5.
For information - Car Ford Mondeo 5 can only be configured via this section.

What Functions of Ford UCDS need use tokens?
35 Token Credits – mainly serve to clear runs, increase engine power by programming staff at higher power (eg Ford Focus 3 150HP -> 163HP), Russification recorder Sony 2nd Generation (pink lights plastic central volume control), programming Car Ford Focus 2 2008gv continue to function when closing Autofold mirrors arming, as well as various additional operations.

UCDS Ford V1.2.7.001 Supported Vehicles:
1.Focus MK2 (2004-2014) C307
2.New Focus MK3 (2012-2017) C346
5.New Mondeo 13 (Mondeo5)
8.Fiesta/B-Max sport
10.And other new models

UCDS Software Main Features, allows the user to:
1. Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
2. Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
3. Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
4. Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
5. Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
6. Upgrade (replacement) of the door modules software to activate the automatic folding door mirrors.
7. Other

UCDS Ford V1.2.7.001 Supported Functions:
1. Read the fault code
2. Clear trouble codes
3. Read the data stream
4. Data recording
5. Module reset
6. Module Installation
7. Re-program the ECU TCM BCM and so on
8. Clear the airbag (RCM) collision data
9. Read, backup, edit, and erase AsBuilt files
10. Read, backup, edit, and erase the underlying DirectConfig configuration file
11. Support ECU chip tuning, eg: Ford Focus 3 150HP -> 163HP, Ford Mondeo 2.0T 200HP -> 240HP, Focus 2012 Year 85HP -> 105HP, 150HP -> 163HP
12. Support VBF file directly to write
13. Support BIN file directly to write
14. Support online update vehicle entire module (Update Wizard)
15. Support Focus MK2, 2012 Focus MK3, Mondeo, S-Max and other models mileage programming
Ford UCDS Application on FOCUS2 KUGA/Focus 3/S-MAX

UCDS Ford Detailed Features For FOCUS2 KUGA:
Support models: 2004 after the FOCUS2 KUGA

Support functions: Scan and clear the fault code, read and modify the parameters of the following modules, PCM refresh KAM reset, IPC refresh and clear, RCM reconfiguration. ST power refresh

Support Modules: ABS, DCCU, EATC, HEC, PAM, GEM, VRM, ACM, RCM

Common Functions: Automatic lock, cruise control, refresh PCM, KAM reset, tire modification settings, seat belt alarm settings, RCM collision data reset, light locks personalized settings, instrument economic mode, instrument average fuel consumption, ultrasonic anti-theft monitoring

Ford UCDSYS Application on Focus 3:
Support for models: Focus 3
Support functions: scan and clear the fault code, As-built file to modify the instrument to update and clear the refresh, PCM refresh and power upgrade (200P brush 240P, etc.), TCM upgrade refresh SONY CD head upgrade, ABS upgrade, RCM programming and reset, direct configuration IPC BCMII APIM.
Common Functions: DDS tire pressure monitoring, cruise control, automatic headlights, automatic wipers, blind spot monitoring, automatic lock, tire modification, audio system upgrade, PCM programming, TCM programming A, ABS programming, instrument clear, mileage write

UCDS Ford Application on S-MAX:
Support models:  Ford Mondeo, S-MAX and Ford Transit
Support functions: Scan and clear the trouble code (all modules), As-built file to modify the instrument upgrade and refresh, PCM refresh and power upgrade (200P brush 240P, etc.), SONY CD head upgrade
Support Modules: BCMII, PCM, IPC
Common Functions: Modify the automatic lock, auto headlamps, xenon headlamps mode, cruise control, navigation activation, speeding alarm, tire modification, body configuration parameter changes, instrument upgrades, engine power upgrade.

UCDS Ford Application on KUGA:
Support models: KUGA
Support functions: Scan and clear the fault code, As-built file to modify the instrument to update and refresh, PCM refresh and power upgrade (200P brush 240P, etc.), TCM upgrade refresh, SONY CD head upgrade ,, ABS module programming, RCM programming And reset, direct configuration IPC BCMII APIM, CAN-BUS monitoring log.
Support Modules: BCM II, PCM, TCM, IPC, ABS, RCM
Common Functions: DDS tire pressure monitoring, folding reversing mirror, cruise control, automatic headlights, automatic wipers, tire modification, navigation activation, ABS module installation, RCM collision data removal, instrumentation mileage reset

UCDS 1.26.008 Software Display:

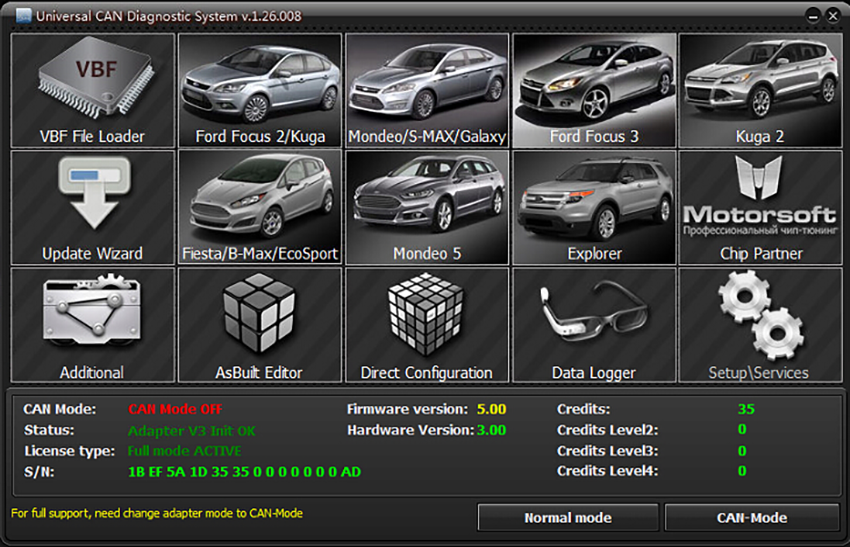

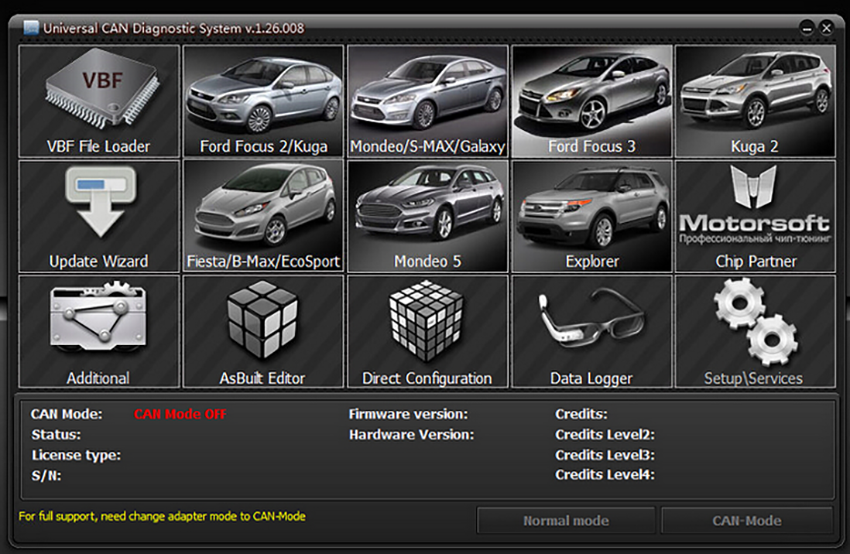

UCDS Software Condition Before Connecting UCDS Cable

UCDS Software Condition Connecting UCDS Cable

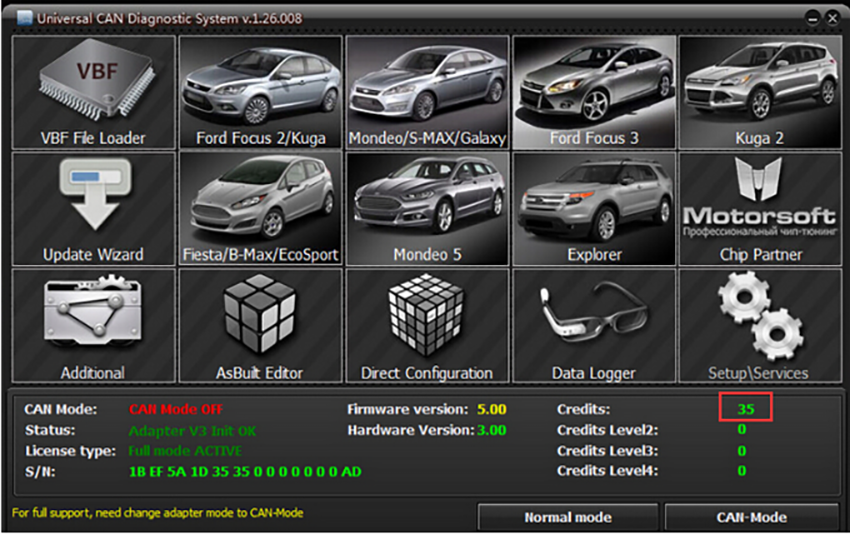

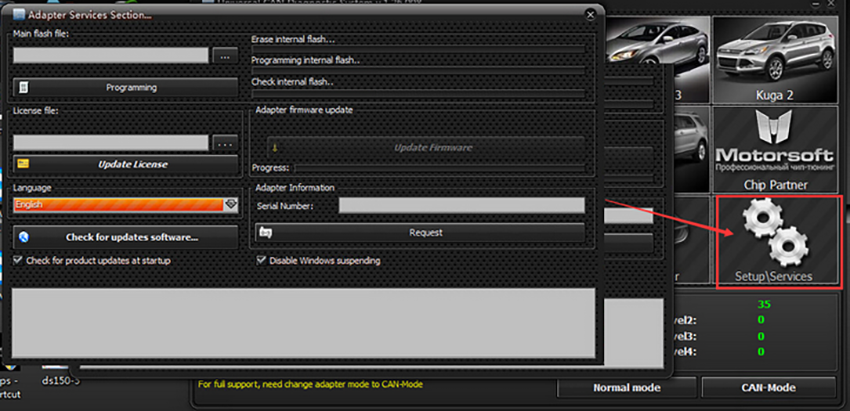

UCDS Adapter Services Section

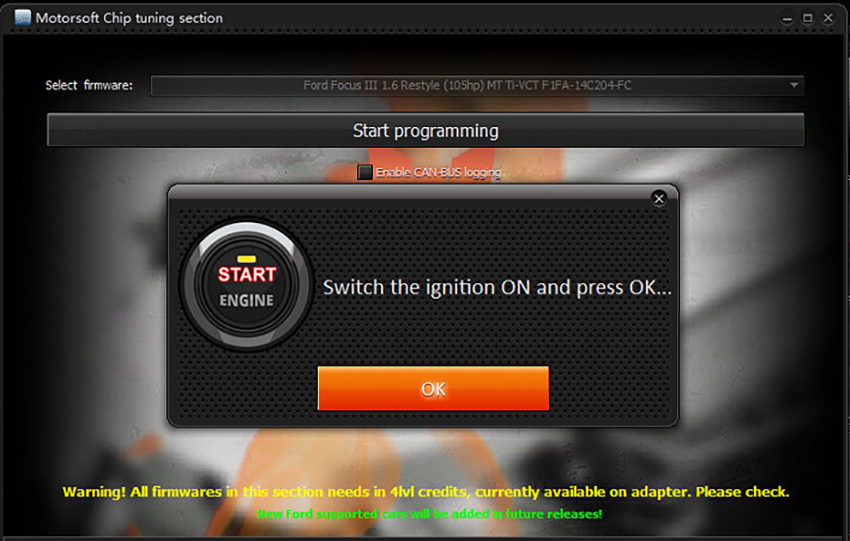

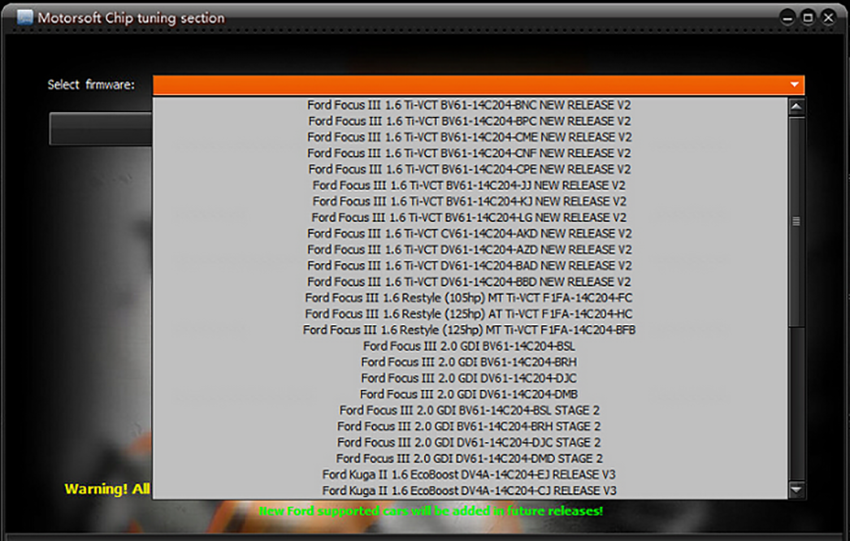

UCDS Motorsoft Chip Tuning Section

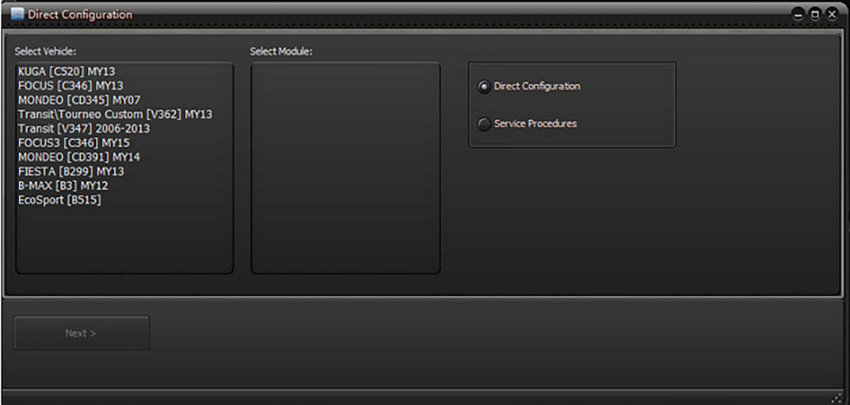

UCDS Direct Configuration

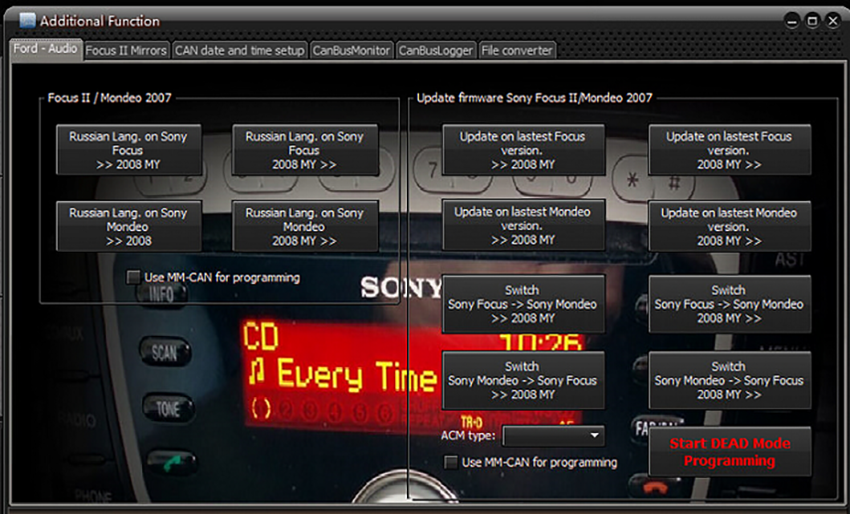

UCDS Additional Function

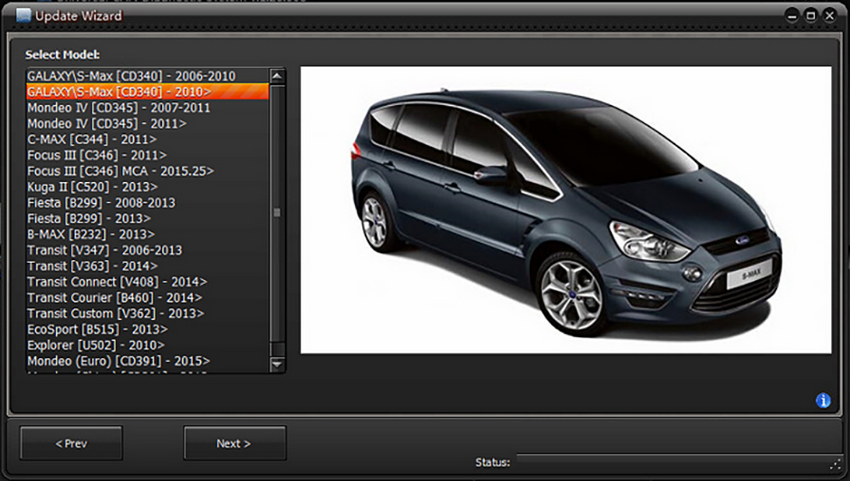

UCDS Update Wizard

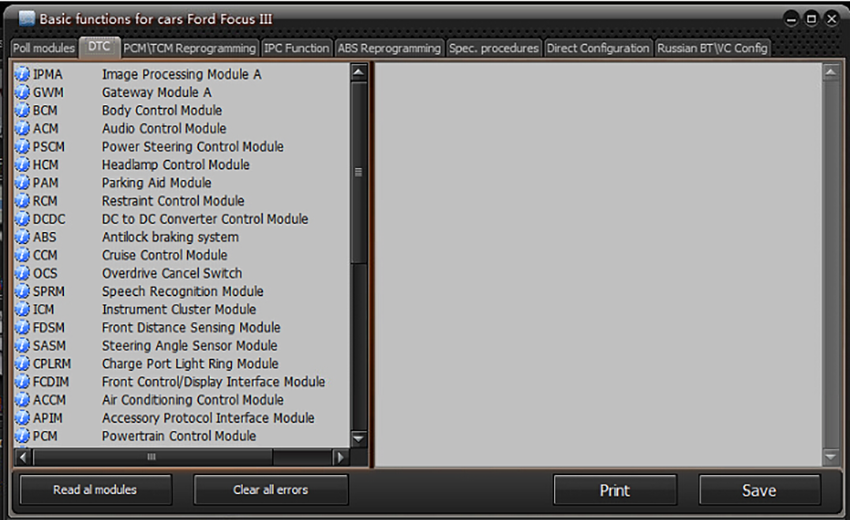

UCDS Basic Functions for cars Ford Focus III

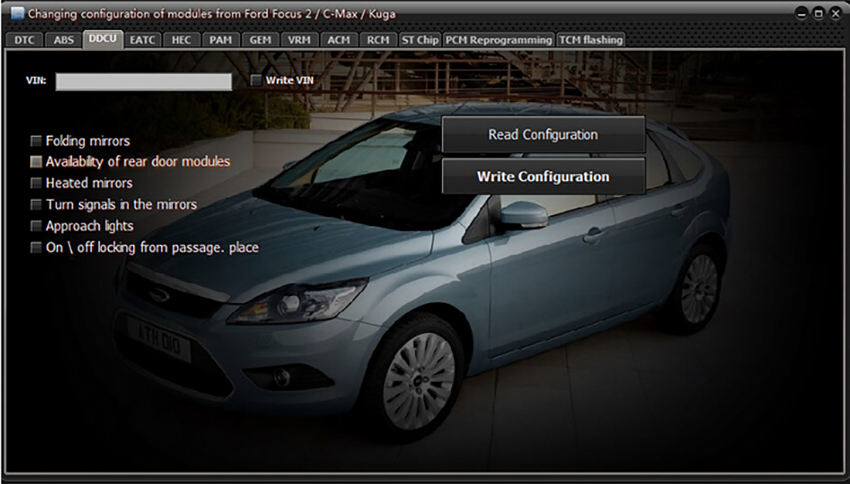

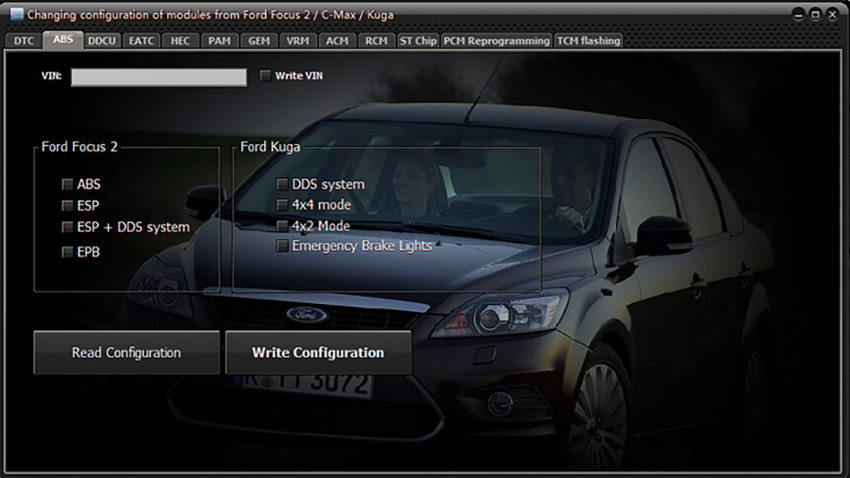

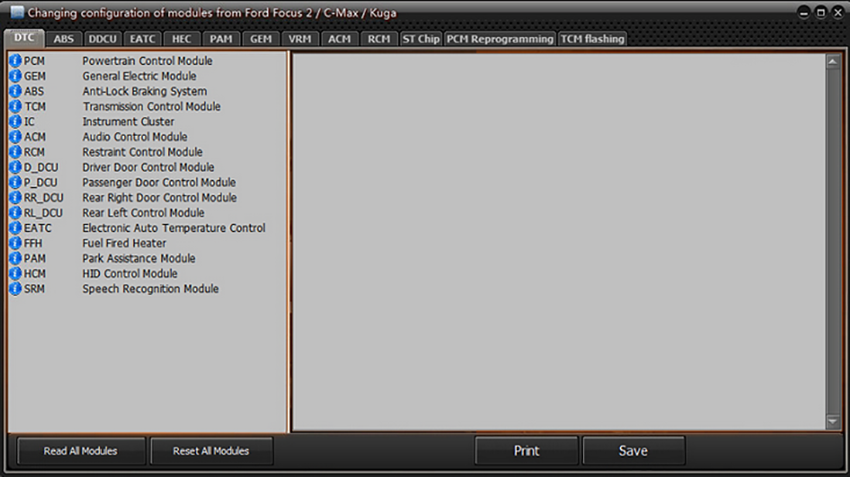

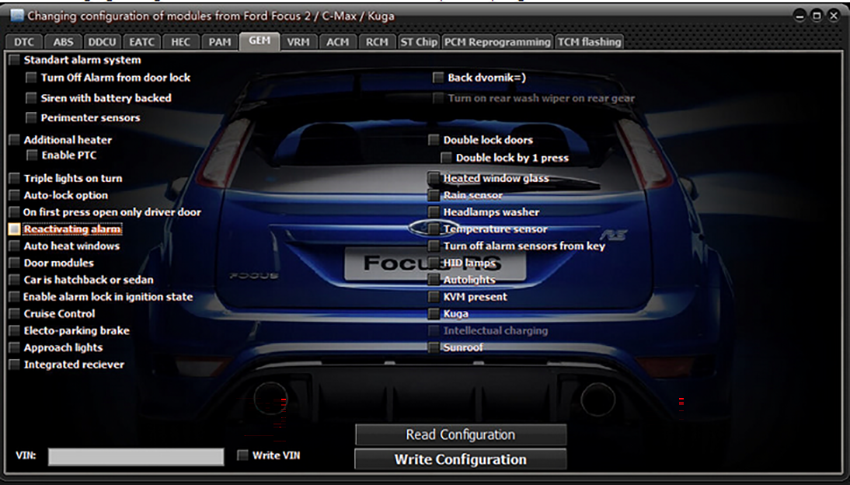

UCDS Changing configuration of modulers from Ford Focus 2/C-Max/Kuga

UCDS V1.2.7.001 Updated Information:
1. Increase support for the new version of UCDS V3 support.
2. Database Upgrade Synchronization IDS 102.00.
3. Classic Fox TCM programming can be added using the BIN file for 1.6 / 2.0 TCM
4. Classic Fox PCM Programming Function Added Save and Load VID information applies to all PCM.
5. Classic Fox PCM programming can increase the use of binary BIN file.
6. Classic Fox PCM programming fixes 1.8 / 2.0 / 2.0 ST data block errors.
7. Mondeo S-MAX addition You can program the 1.6 / 2.0 / 2.3 / 2.0 Diesel PCM firmware data block using the binary file.
8. Mondeo S-MAX increase can clear BCM II collision data.
9. New Focus adds adjustment to the clutch calibration of the 1.6 / 2.0 dual-clutch gearbox transmission.
10. New Focus adds the latest dual-clutch calibration programming file.
11. Carnival increased RCM collision data removal function.
12. Carnival increases wiper calibration function.
13. UPDATE WIZARD The Upgrade Wizard fixes an error after some module refreshes.
14. Mondeo wins the S-MAX 2.0T to increase the DPS450 dual clutch clutch calibration.
15. DIRECT CONFIG Direct Set-up Added support for Visteon ACM.
16. DATA LOGGER The Data Browser repairs some of the functions.
17. DIRECT CONFIG Direct Set Function Added new SYNC2 option.
18. DIRECT CONFIG Direct Set Function Added support for SYNC3.
19. C391 New Mondeo Added RCM collision data clear function.
20. C391 New Mondeo Added RCM module initialization function.
21. ASBUILT EDITOR AB The modifier has fixed some errors.
22. DIRECT CONFIG DIRECT CONFIGURATION Added C391 new Mondeo 2.0 engine.
23. new fox wing tiger added ABS exhaust function.
24. C391 New Mondeo adds the Chinese market 2.0T PCM calibration file.
25. MOTORSOFT tuning procedures increased
New E-tiger adds EV4A-14C204-BB
New Mondeo FS7A-14C204-ECA
V5 engine 2.5-5 wing tiger Mondeo
26. Optimize most applications.
27. Complete revision of the J2534-2 library for UCDS V1 / V2 / V3.

UCDS Ford VS. Ford VCM II Differences:
1. UCDS support special functions like: VBF LOADER, UPDATE WIZARD, DIRECT CONFIG
2. UCDS support more vehicles than vcmii
3. UCDS support odometer correction, while VCMII can't
4. UCDS support both online and offline programming, while VOBDII can only support online programming.
5. UCDS support the reconfiguration of the car, the engine firmware stock firmware, chip tuning, vcmii can't.
6. VCMII support key programming, while UCDS can't

UCDS V1.2.7.001 has the same data as the ids v102.

UCDS V1.2.7.001 Packing List:

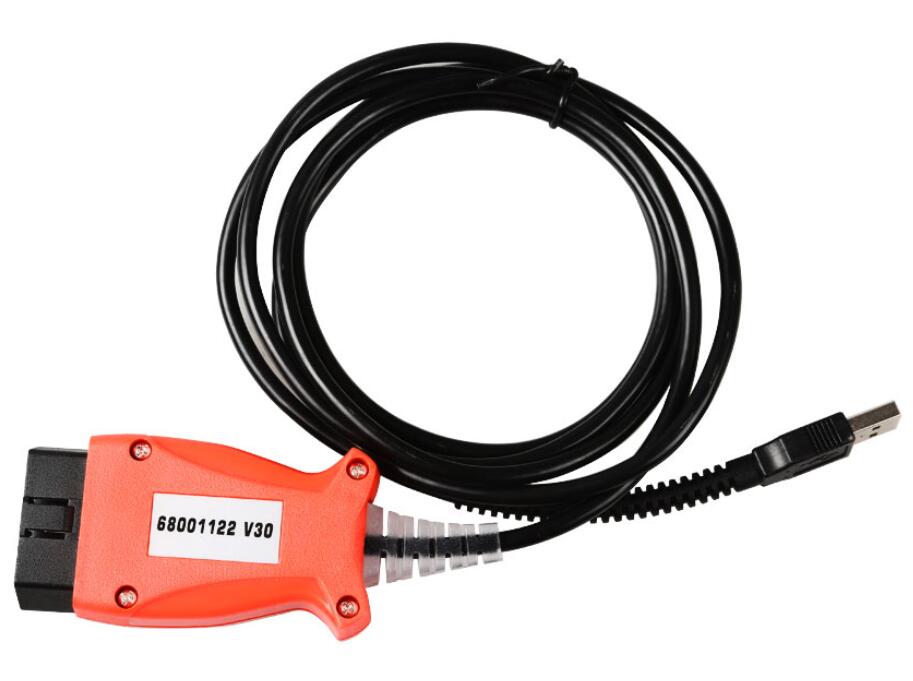

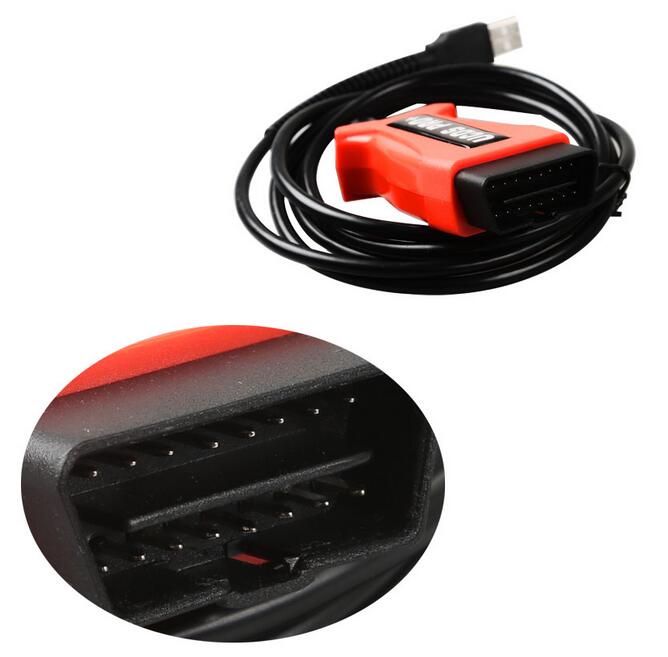

1x UCDS ford obd2 interface
1x UCDS V1.2.7.001 Software CD
