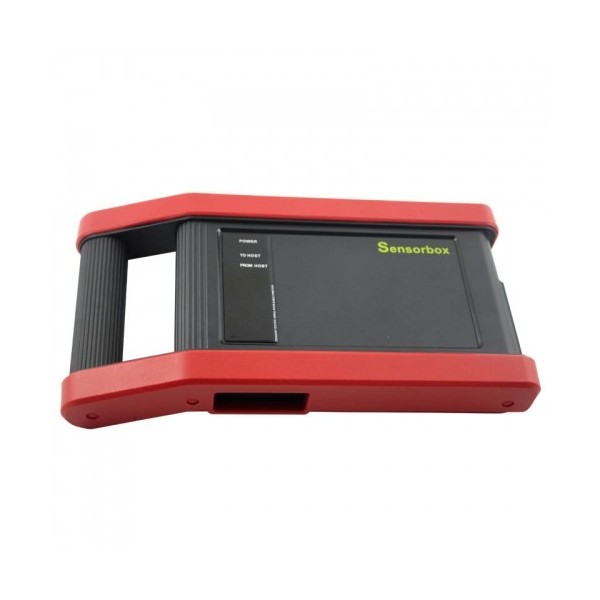

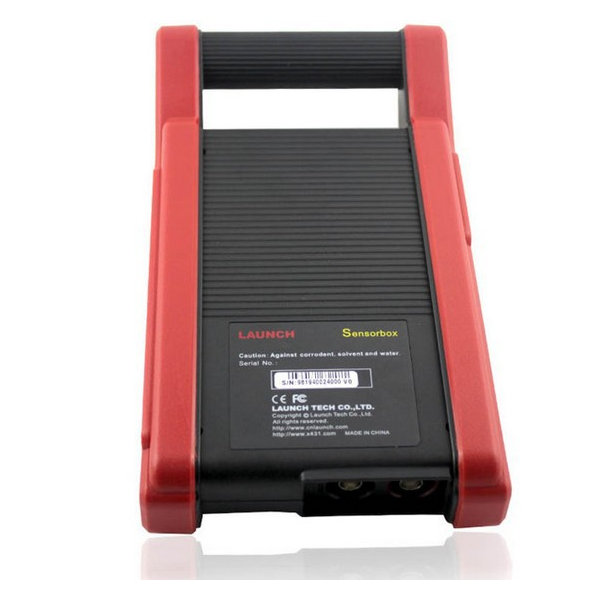

Original Launch X-431 X431 GDS Sensorbox

  • Item No.  CA257
  • History: 155  sold
  • Market Price: US$585.60
    Shop Price: US$488.00
    Express Shipping Service    Estimated delivery time: 3-5 days »
  • Stock  Out of stock
  • Weight:  6.5KG
  • Rate:  comment rank 50 () Write a Review
  • Member Benefits  Shipping  Return Policy




Technical Support

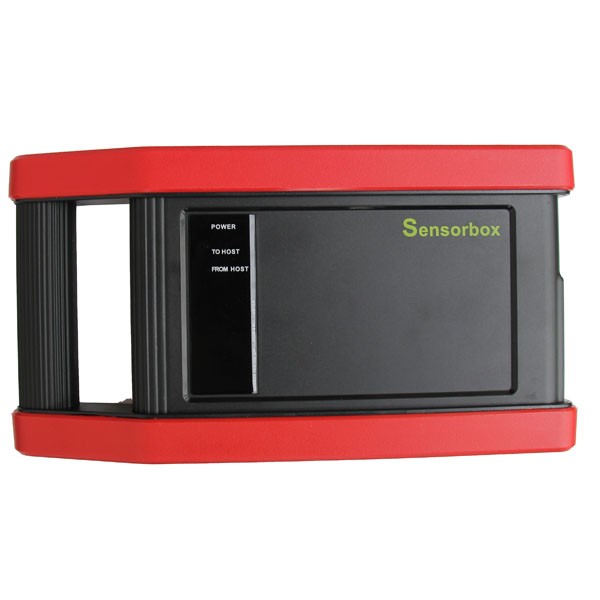

Original Launch X-431 X431 GDS Sensorbox

Launch x431 GDS Sensorbox Description:

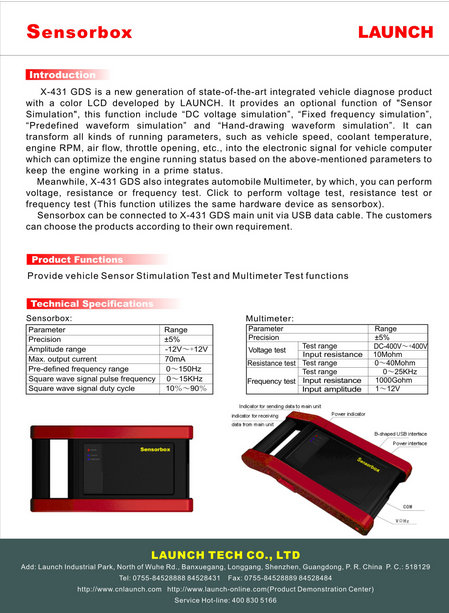

X-431 GDS is a new generation of state-of-the-art integrated vehicle diagnose product with a color LCD developed by LAUNCH. It provides an optional function of "Sensor Simulation", this function include "DC voltage simulation", "Fixed frequency simulation", "Predefined waveform simulation" and "Hand-drawing waveform simulation". It can transform all kinds of running parameters, such as vehicle speed, coolant temperature, engine RPM, air flow, throttle opening, etc., into the electronic signal for vehicle computer which can optimize the engine running status based on the above-mentioned parameters to keep the engine working in a prime status.
Meanwhile, X-431 GDS also integrates automobile Multimeter, by which, you can perform voltage, resistance or frequency test. Click to perform voltage test, resistance test or frequency test (This function utilizes the same hardware device as sensorbox).

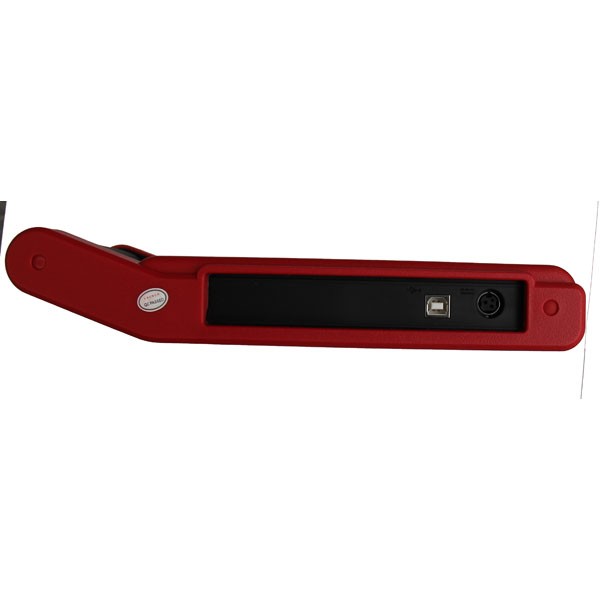

Sensorbox can be connected to X-431 GDS main unit via USB data cable. The customers can choose the products according to

GDS Sensorbox Funtion:
For use in conjuncture with the Launch X431 GDS and X431 Europad, The X431 Sensorbox allows you to convert your X431 into a sensor simulator.
If you suspect that your sensor is malfunctioning, all you need to do is use the Sensorbox to stimulate it with a suitable waveform and you will know within seconds whether or not there is an issue.
If you require a variant waveform that too is no issue. Using your finger, simply draw the desired waveform onto the GDS, press start and the Sensorbox will produce your new waveform.
In addition to this function, the Sensorbox also gives you the power to create and alter other types of signal parameters; including coolant temperature, Mass Air flow, Injector, Throttle Position and many more.
The Sensorbox also comes with an in-built Multimeter function, which allows you to view voltage, resistance and frequency on its digital display. You are also able to print out these results using the GDS.

GDS Sensorbox Features
Allows the user to substitute known good waveforms for isolated elements that could not otherwise have been authenticated
Contains an integrated library of standard waveforms
Wave forms can be altered or made from scratch using nothing more than your finger tip and the screen
Allows you to test DC voltage, fixed frequency, predefined waveforms and hand drawn waveforms

Sensorbox Technical Specifications
Precision: +/-5%
Amplitude Range: -12V / +12V
Maximum Output Current: 70mA
Predefined Frequency Range: 0-150Hz
Square Wave Signal Pulse Frequency: 0-15KHz

Multimeter Technical Specifications
Precision: +/-5%
Voltage Test Range: DC -400V / +400V
Voltage Test Input Resistance: 10Mohm
Resistance Test Range: 0-40Mohm
Frequency Test Range: 0-25KHz
Frequency Test Input Resistance: 1000Gohm
Frequency Test Input Amplitude: 1-12V
