gp-1

FEATURES:
Dimension: 160*180*32mm, weight:425g.

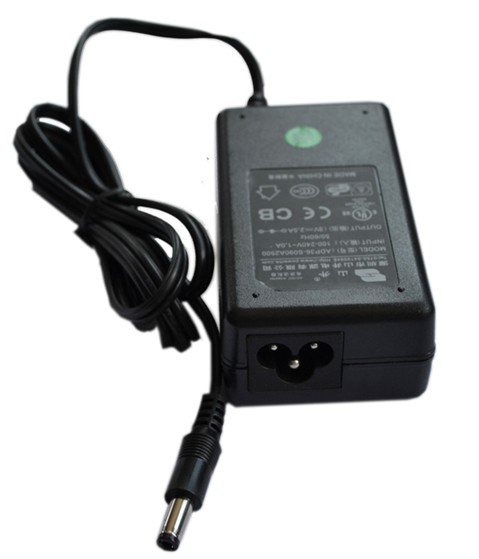

Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W

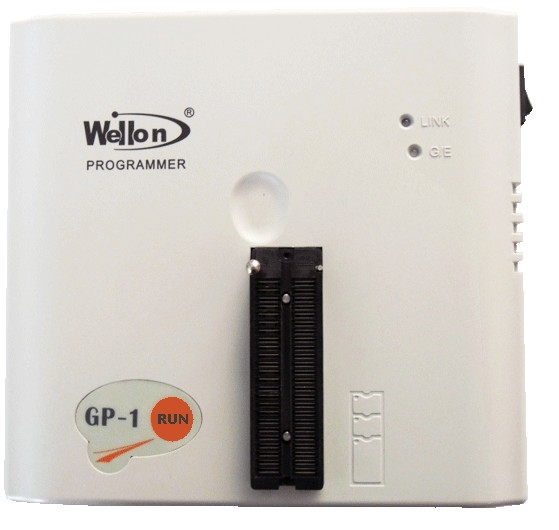

48 Pin ZIF socket with universal pin-drivers.
Support PC hosted mode and stand-alone mode

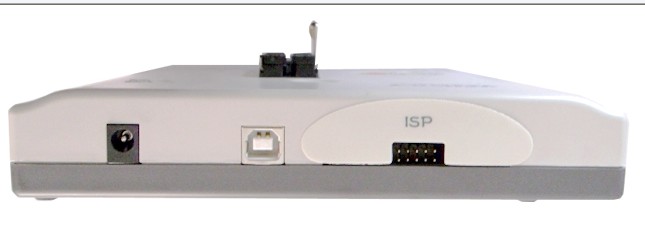

Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX,HOLTEK,EMC(.CDS),INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
Supports Windows XP / Vista / Windows 7 (32bit and 64bit)
Supports eight languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese and Dutch.

PC Hosted Mode DEVICE SUPPORT: VIEW
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

Stand-Alone Mode DEVICE SUPPORT: VIEW
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC TEST:
TTL (74 series), CMOS (40/45 series) Logic IC
DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device

DEVICE UPDATES:
WEILEI updates software and device algorithm regularly. You can get the latest software free of charge through internet http://www.weilei.com.
