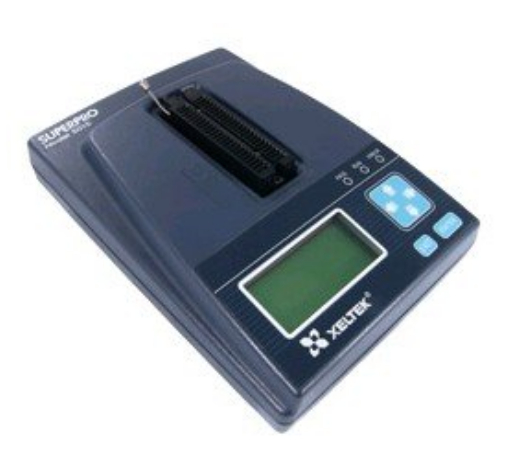

Superpro/501s Universal Programmer

Superpro/501s Universal Programmer

1.Lowest cost Stand-alone Programmer: With ARM7 MCU it gives ultra-fast programming experience.
2.Two programmers in one, a double value: PC mode for engineering and Stand-alone mode for production. The programmer operates in either PC hosted mode or stand-alone mode.
3.Under PC hosted mode, a PC controls the programmer via a high-speed USB connection to program a chip.
4.Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad.
5.A CF (compact flash) card stores the project files.
6.Programs devices with Vcc as low as 1.2V
7.Built-in 48 universal pin drivers
8.CE and ROHS Compliant
9.Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU
10.Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP,…
11.PC interface: USB2.0 (High speed)
12.Stand-alone memory: Compact FLASH Card
13.Power supply: AC Adapter: Input AC 90V- 250V; Output: 12V/2A
14.Main unit: Dimensions 205mm (L) * 148mm (W) * 50mm (H) Weight 1.35 lbs (0.6Kg)
15.Package: Dimensions 320mm (L) * 300mm (W) * 85mm (H) Weight 4lbs (1.8Kg)
