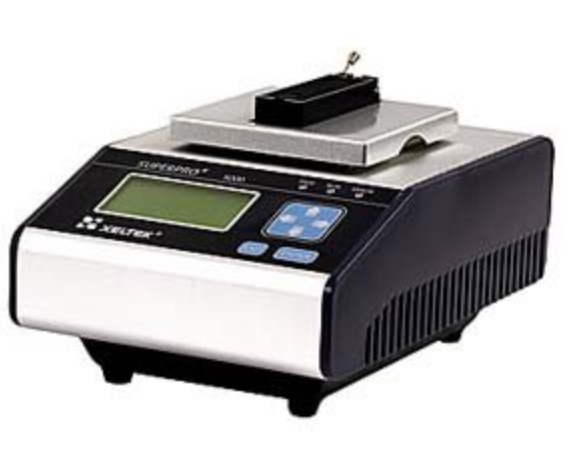

Superpro/5000 Universal Programmer

Superpro/5000 Universal Programmer

Programmer SUPERPRO/5000 Xeltek SUPERPRO Programmer,Support 167 manufacturer 51121 chips,xeltek,mcu,cpu,pld,eprom,eeprom,flash,bga,csp,nandflash,adapter. Ultra-high speed stand-alone universal device programmer,built with 144 universal pin-drivers.


Features:
42000+ devices will be supported soon (not less than SUPERPRO 3000U). Support devices with Vcc from 1.2V to 5V.
Extremely fast speed.  P+V 64 Mb NOR FLASH memory in 11.3 seconds and 1Gb NAND in 108 seconds.
Built with 144 universal pin-drivers. Universal adaptors are available for varies packages up to 144 pins. New device support will be easier.
PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip. Under stand-alone mode the programmer is controlled via the 6-KEY keypad and the 20 character by 4 line LCD display. A CF card is used to store the project files.
User can operate multiple units to construct a concurrent multiprogramming system thank for the stand-alone mode.
ISP/ICP programming capability available via ISP/ICP adaptor.

Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.

Advanced and powerful functions.

Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
Over-current and over-voltage protection for safety of the chip and programmer hardware.

WINDOWS XP/Vista compatibility

 Device     P+V(s)     Compare with SP3000U     type
 K8P6415UQB     9.1(P)+2.3(V)= 11.4(s)     25.1(P)+16.8(V)=41.9(s)     64Mb NOR FLASH
 AM29DL640G     20.5(P)+2.3(V) =22.8(s)     38.5(P)+11.8(V)=50.3(s)     64Mb NOR FLASH
 K9F1208U0B     35.2(P)+32.2(V)=67.4     188.6(P)+179.2(V)=367.8     512Mb NAND FLASH
 KAP21WP00M     53.2(p)+54.8(V)=108     -     1Gb NAND FLASH
 K9F1G08U0A     60.4(P)+56.1(V)=116.5     362.3(P)+359.3(v)=721.6     1Gb NAND FLASH
 AT28C64B     0.8(P)+0.1(V)= 0.9(s)     1.2(P)+0.8(V)= 2.0(s)     64Kb EEPROM
 24AA128     2.7(P)+1.8(V)= 4.5(s)     5.0(P)+4.0(V)= 9.0(s)     128Kb SPI EEPROM
 QB25F640S33B60     29.0(P)+14.4(V)= 43.4(s)     55.2(P)+41.4(V)= 96.6(s)     64Mb SPI EEPROM
 AT89C55WD     2.5(P)+0.4(V)=2.9(s)     3.3(P)+1.0(V)=4.3(s)     20KB FLASH MCU
 ST72F324BK4B5     2.6(P)+1.3(V)=3.9(s)     18(P)+7(V)=25(s)     32KB FLASH MCU
 MB89F538     1.21(P)+0.93(V)=2.14(s)     12(P)+6(V)=18(s)     32KB FLASH MCU
 Upd78F9234     2.6(P)+1.3(V)=3.9(s)     38(P)+16(V)=54(s)     16KB FLASH MCU

Hardware & Electrical Specifications:
Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND)n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic. .
Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
PC interface: USB2.0
Stand-alone Feature: Supported, Compact FLASH Card .
Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W
Mechanical parameter: Main unit: Size: 148*216*94 mm Weight: 1.6Kg.
Packing Box: Size 301*252*145 mm Weight: 2.8 Kg.
Accessories:
Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, user manual, software CD, register card
Optional accessories: adaptor in varies packages, CF card for stand-alone operation.
