Original AUTOBOSS V30 Elite One Year Free Update Online

Top 5 Reasons To Get AUTOBOSS V30 Elite:

1. Original from Autoboss

2. Supported Languages: English, Spanish, Russian ( You Can Choose Only One Language )

3. One Year Free Update Online

4. Cover more than 57 makers, 40,000 vehicle systems

5.  With built-in printer

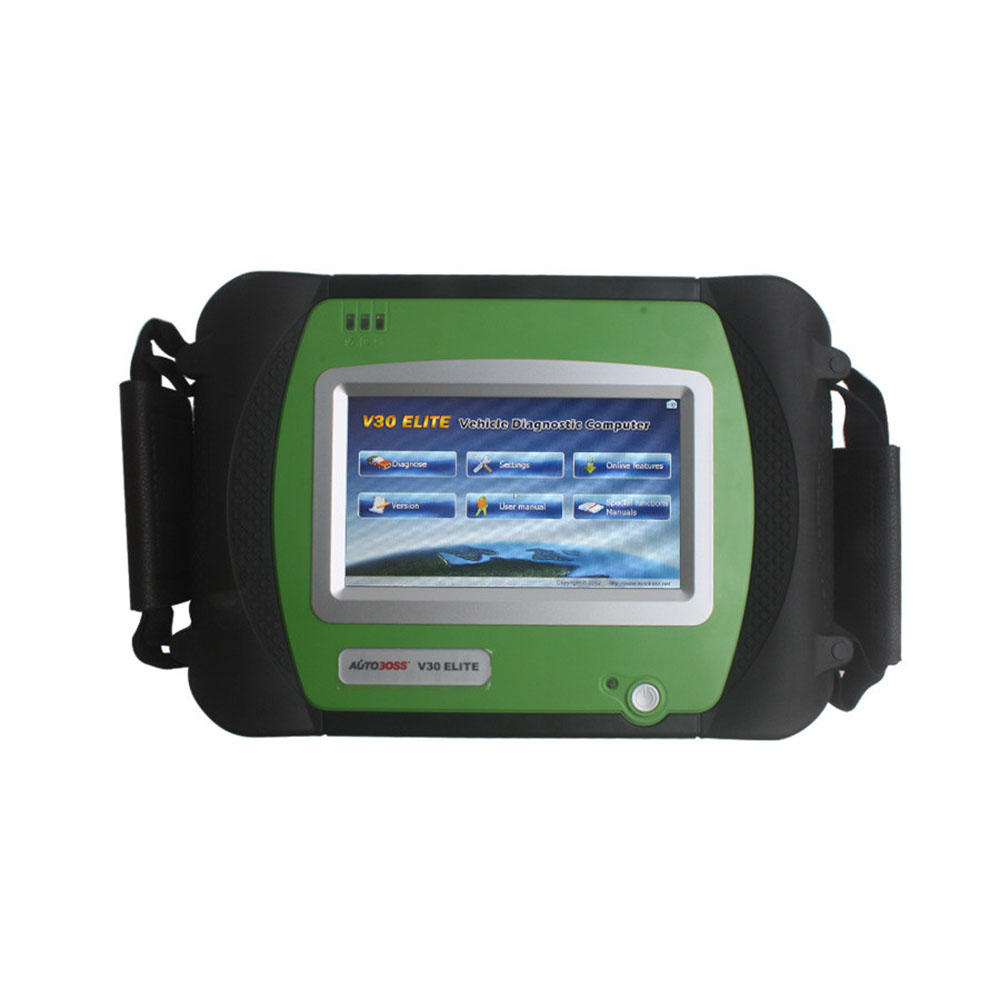

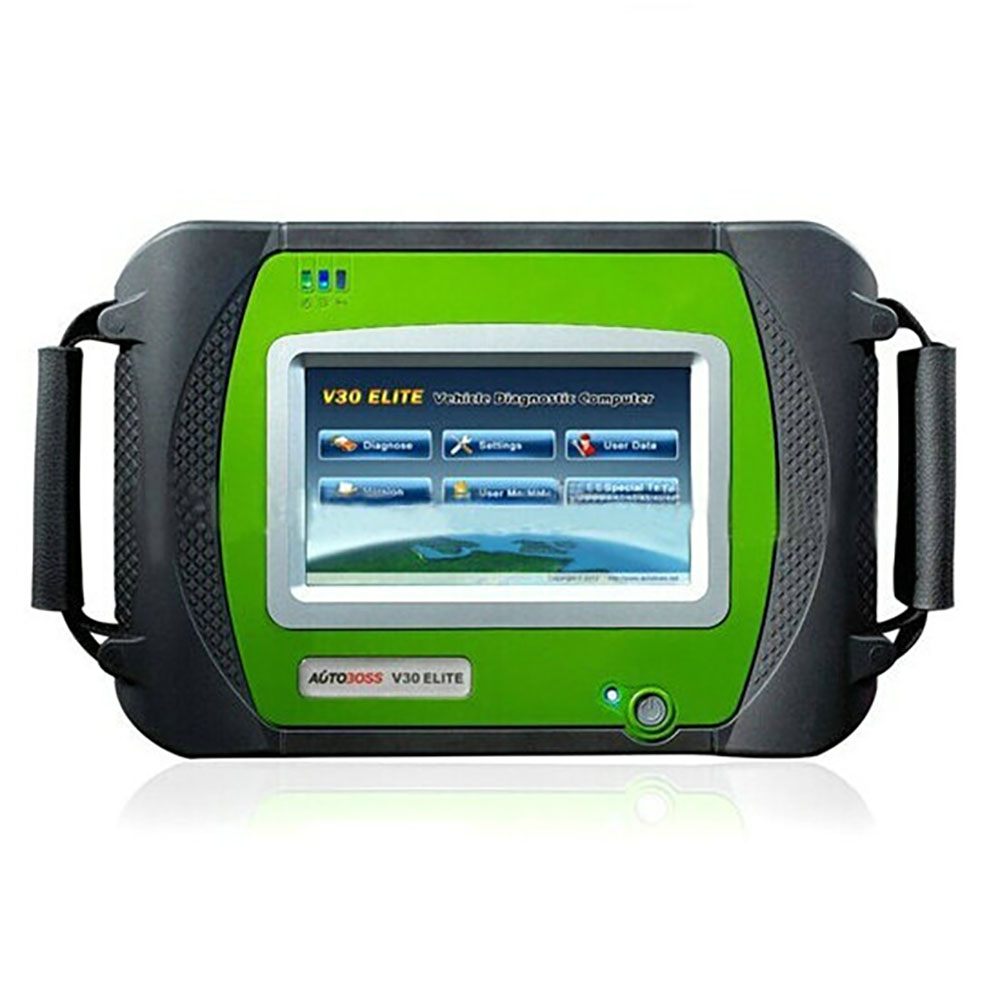

AUTOBOSS V30 Elite Description:

Autoboss V30 Elite Super Scanner is a new scanner made by Autoboss(SPX), The V30 coverage Tspans over 57 manufacturers with up to 148 systems per vehicle. Best of all, the V30's vehicle coverage continues to grow, with simple internet-ready updates accessible to you at the click of a button.

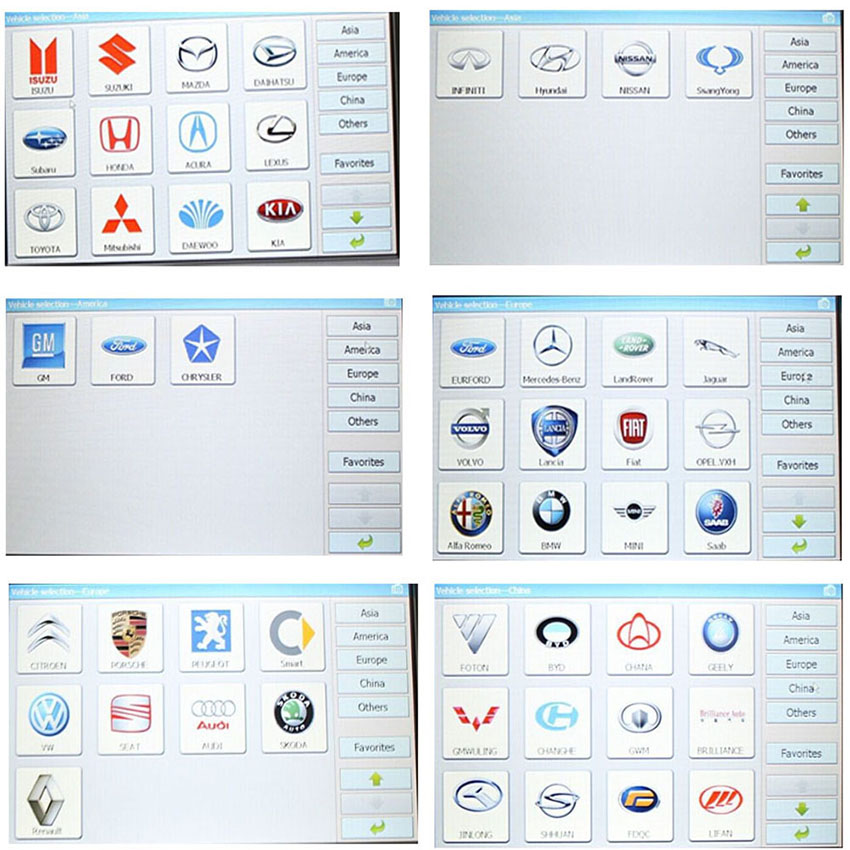

Autoboss V30 Elite Vehicle list:

Autoboss V30 Elite Super Scanner Function:

Quick test function to diagnose the complete vehicle

Cover more than 57 makes, 40,000 vehicle systems

More than just reading & clearing fault codes - goes far beyond and accesses the complete vehicle, including: drive line, chassis, body, and the networking /communication modules

Live data and graphing, performs actuations and adaptations

Electronic parking brake, Service light reset and much more

Cutting edge operation system: Windows CE

European & Asian vehicles with dealer-level power

Read & change ECU coding

Coding of the new control modules

Internet update function

Testing report saving function

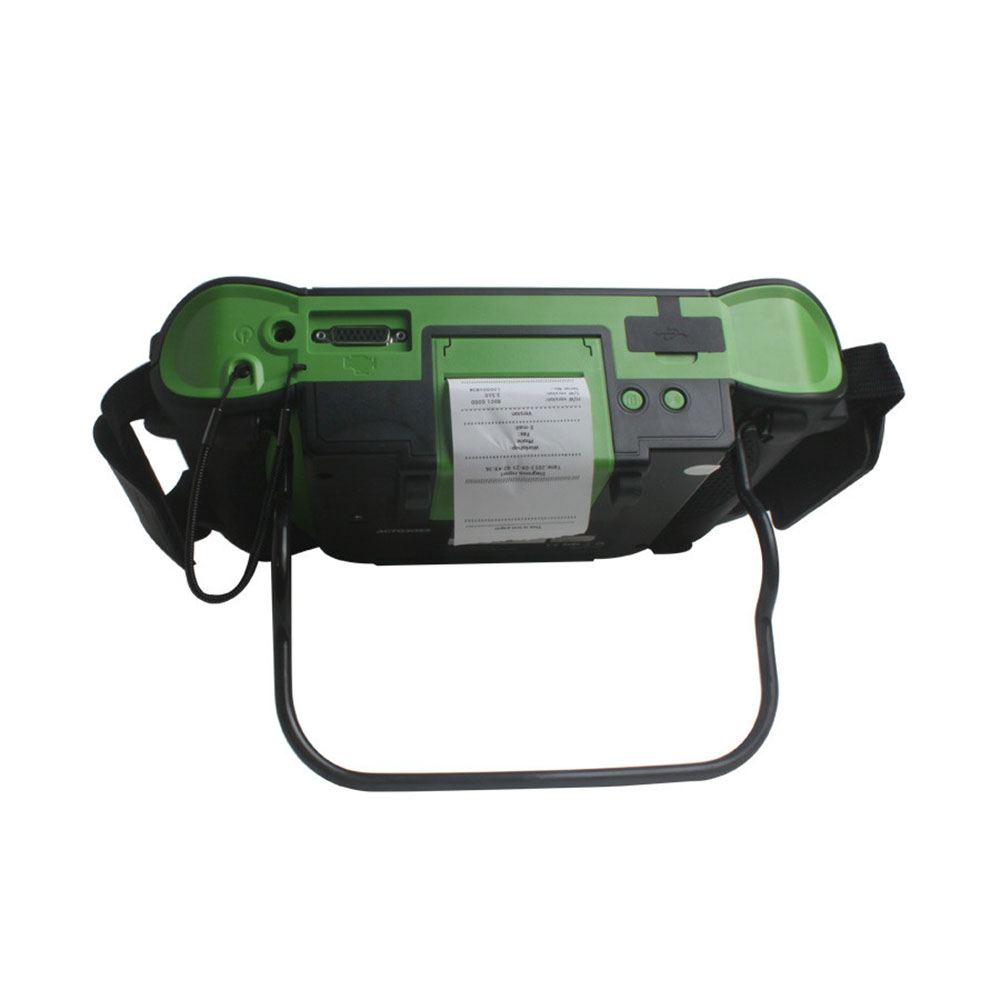

Built-in Mini Printer

All necessary cables and adapters included

One universal connector for most vehicles, including all CAN vehicles



Autoboss V30 Elite Special Functions:

Self-Learn function enables the scanner to learn and save correct values for ECU live data parameters from a vehicle in good condition. For example, it will learn that on a Vauxhall Astra 1.7 diesel the coolant temperature sender should be reading between 0.5 to 4.5 V.



Comparison function can compare the learned values against the vehicle you are working on and highlight values which are out of range.

Record function enables users to record the vehicle data when testing the vehicle. And users can send the recorded data back to AUTOBOSS head office for analysis, which will help users solve problems faster.Navigation bar makes this tool more user-friendly.



Autoboss V30 Elite Covering car diagnostic tool latest and early car models of Asian, European, American and domestic.

-You can use 80%-90% functions of the original scanner on many cars.

-Supporting CAN- BUS diagnosis of Volkswagen / Audi, Ford, Mazda, Nissan, Hyundai / KIA.

-Built-in high / low speed CAN- BUS and single CAN- BUS.

-Making all CAN- BUS systems available with only one connector.

-Supporting 5 OBDII protocols and 9 modes.

-Nissan idle speed adaptation.

-Immobilization system generation III adaptation of Volkswagen.



The Equipment can be used as original one with most of cars.80%-90% functions of the original equipment can be used in a few car models.

VW / Audi: All CAN- BUS system after 2005

GM: The testing function has covered 90% of the GM original equipment

Toyota: The actuation function is the same to the original equipment

Nissan: Covering 95% function of the original equipment

Honda: Only system selection is needed for diagnostic scanning

Hyundai / KIA: More than 90% function coverage of the original equipment

All systems of all car models are available

Opel: 17 models can be tested and the basic function makes no difference of the original equipment



AUTOBOSS V30 Elite Specification:

CPU: SAMSUNG ARM9 2410A, 200MHz

Memory: 64M

Flash card: SD card, 8G

Display: 7'' Wide VGA (800×480) Ultra Bright TFT

Power supply: DC 8~15V, AC 110~250V 50Hz

Port: Diagnostic port, COM port, USB port, Power port

Operating system: WINDOWS CE

Storage temperature: -30~85oC

Working temperature: -10~70oC

Humidity: <90%0



Autoboss V30 Elite Network Administration Parameter:

Network output port     6, Aviation plug

Network connection     RS485

Signal testing port     6

Communicating interface with PC     RS232

Power supply     DC, 8-12V; AC, 110-250V 50Hz



Autoboss V30 Elite Terminal Parameter:

Network input port     1,Aviation plug

Network output port     1,Aviation plug

Network connection     RS485

Signal testing port     6

Communicating interface with V30     RS232

Diagnostic connector with V30     OBDII-16

Power supply     DC, 8-12V; AC, 110-250V 50Hz

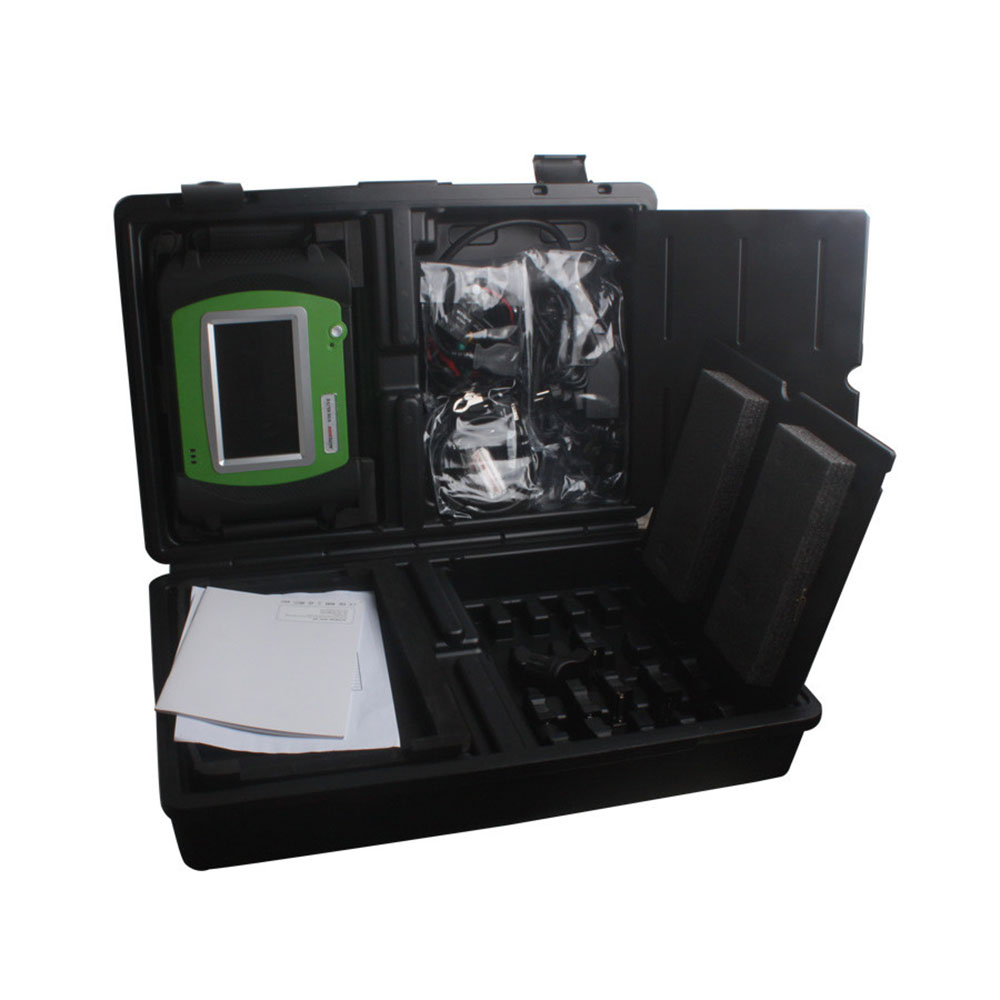

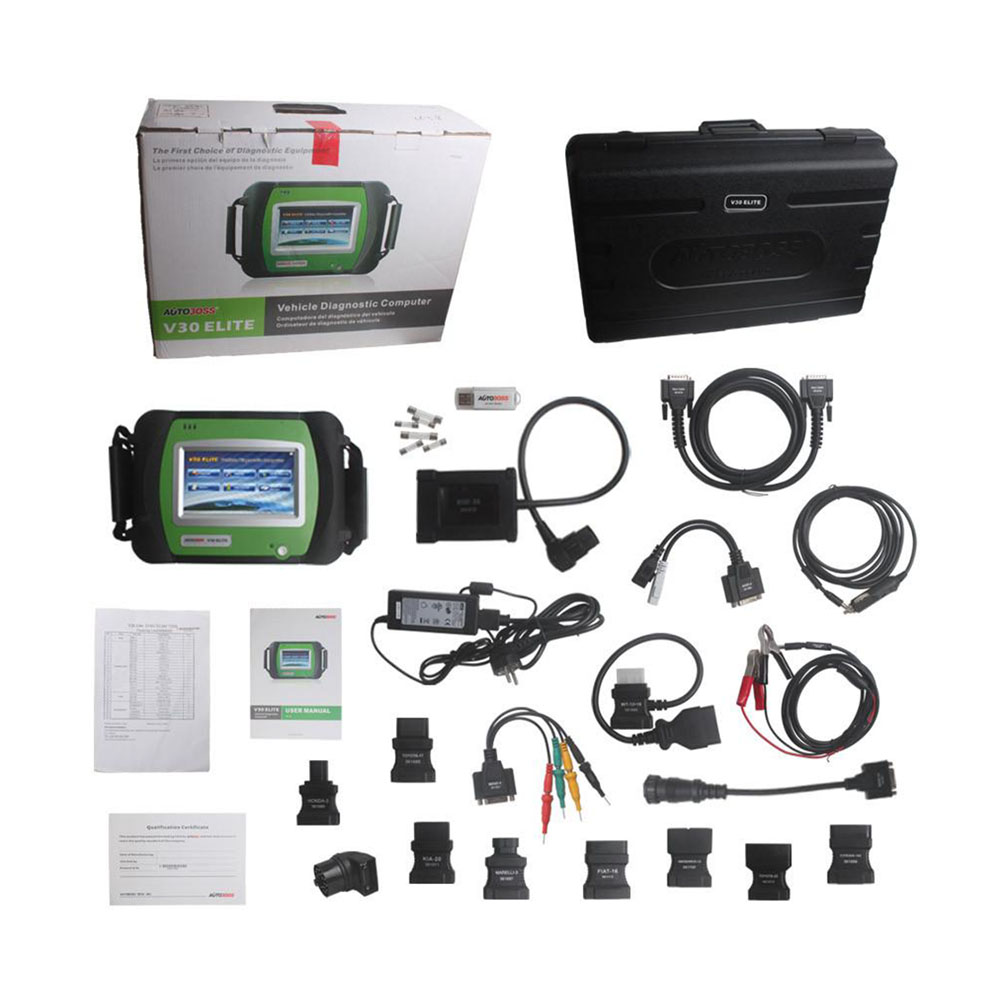

Autoboss V30 Package List:

1pc x Autoboss V30 Elite Main unit

1pc x 8G SD CARD

1pc x OBDII-16

1pc x BMW-20

1pc x MARELLI-3

1pc x GM/DAEWOO-12

1pc x KIA-20

1pc x MAZDA-17

1pc x TOYOTA-17

1pc x TOYOTA-22

1pc x MIT-12+16

1pc x HONDA-3

1pc x AUDI-4

1pc x NISSAN-14

1pc x CITROEN-16C

1pc x Benz-14 Connector

1pc x FIAT-16

1pc x Benz-4 Connector

1pc x BENZ-38

1pc x Main Cable(2m)

1pc x Battery Cable

1pc x Cigarette Cable

2pc x FUSE 5A 30*6

4pc x FUSE 5A 20*5

1pc x DC Adapter

1pc x Power cable

1pc x SD Card Reader

2pc x Printing paper

Autoboss V30 Package Details:
