V141 JLR VCM II VCM2 for Jaguar and Land Rover Diagnostic Tool

  • Item No.  CA319
  • History: 122  sold
  • Market Price: US$261.59
    Shop Price: US$218.00
    Quantity
    Total
    Shipping:
    Express Shipping Service    Estimated delivery time: 3-5 days »
    continue
  • Stock  165
  • Weight:  1.5KG
  • Rate:  comment rank 50 () Write a Review

  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


V141 JLR VCM II VCM2 for Jaguar and Land Rover Diagnostic Tool

Video:



JLR VCM II Description:
JLR VCM II device is auto diagnostic tool for Jaguar and Land Rover.
VCM2 for LandRover and Jaguar is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications.

JLR VCM2 Overview:
* JLR Approved device with latest version V141
* Replacement for JLR SDD VCM
* Covers CAN & ISO9141 vehicle networks
* Most cost effective Land Rover pass-thru VCI device
* Best suited for current and future vehicles
* 12ft USB cable as standard included
* Easy to update for new functionality Updates
* Best Quality, better than J2534 mode interface
* Simple and easy operation.

VCM II JLR Diagnostic Tool Language:
Englsih, Spanish, French, Italian, Nederlands, Portugues, Russian, Japanese, Chinese
jlr vcm ii

VCM II for Jaguar & Land Rover Vehicle Coverage:

JLR Vehicles Supported?
Defender Yes
Discovery /LR3/LR4 Yes
Range Rover Sport & New Range Rover Sport Yes
Range Rover Yes*
New Range Rover Yes
Freelander /LR2 Yes
Evoque Yes
XJ – X300/X308 No
XJ - X350 No
XJ - X351 Yes
XJS No
XK – X100 No
XK - X150 Yes
XF Yes
S-Type No
X-Type No
F-Type Yes
(Yes) – Vehicle line fully supported:
(Yes*) - Vehicle line fully supported apart from viewing Data logger signals from both ECM and TCM
modules simultaneously on 2006MY variants :
(No) - Vehicle Line Not supported


VCM2 for LandRover Functions:
1. The VCM2 for Land Rover connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD.
2. Once the J2534 DLL files are loaded, this product will allow normal operation with the JLR SDD diagnostic tool.
3. The device is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications.
4. Only SCP communications are not possible with this device.

What does the VCM2 for Land Rover do?
The VCM2 for Land Rover connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with the JLR SDD diagnostic tool.

The device is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications. Only SCP communications are not possible with this device.

How does the VCM2 for Land Rover operate?
The VCM2 for Land Rover device is simple and easy to use.
Please read the user manual firstly before using, install the software after watching the video or user manual in the DVD.
Connect the device to the vehicle OBDII connector (the device powers from the vehicle).
Connect the 12ft USB cable to the device and the other end to the SDD laptop.
The red vehicle power (PWR) LED will illuminate to show that the device is powered.
During communication with the vehicle the status (STS) LED will flash green.
The device interacts with the SDD diagnostic tool in the same way as the existing VCM.

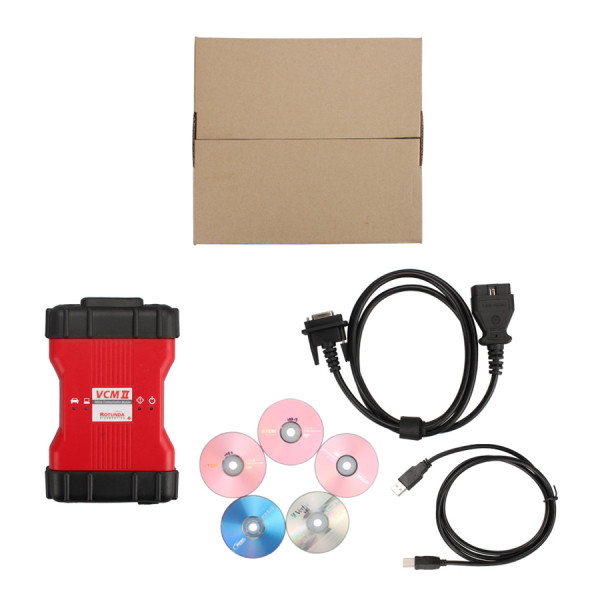

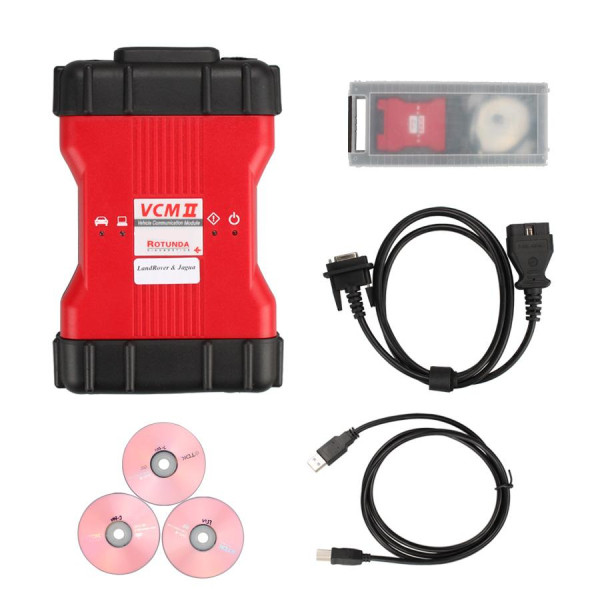

JLR VCMII Package Including:

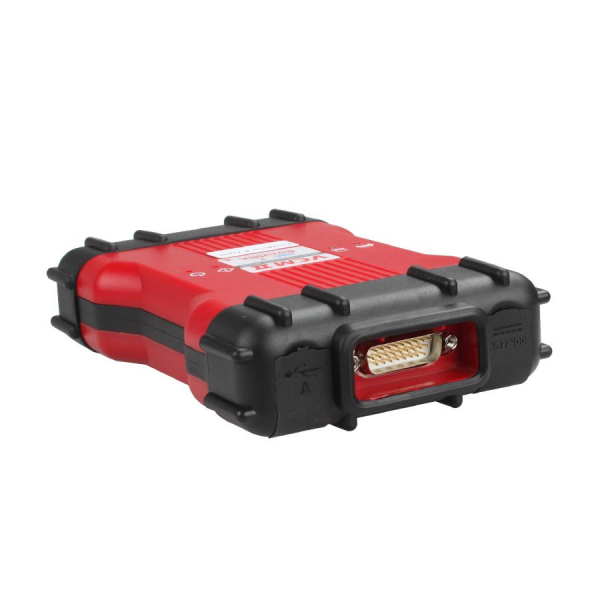

1pc x  VCM2 for Jaguar and LandRover Main Unit

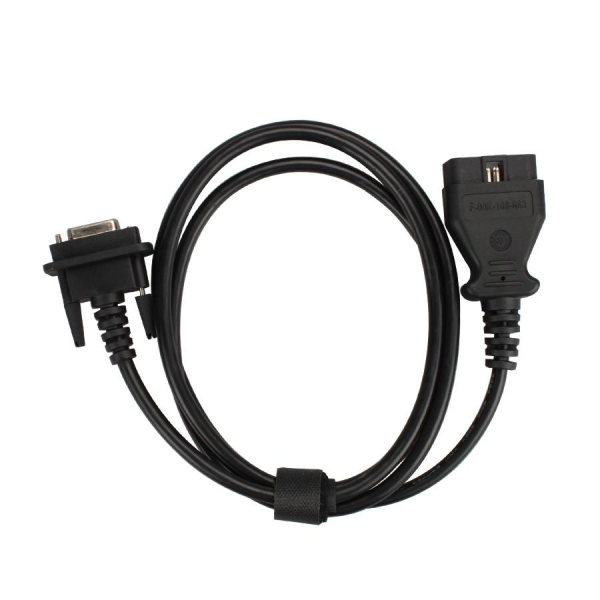

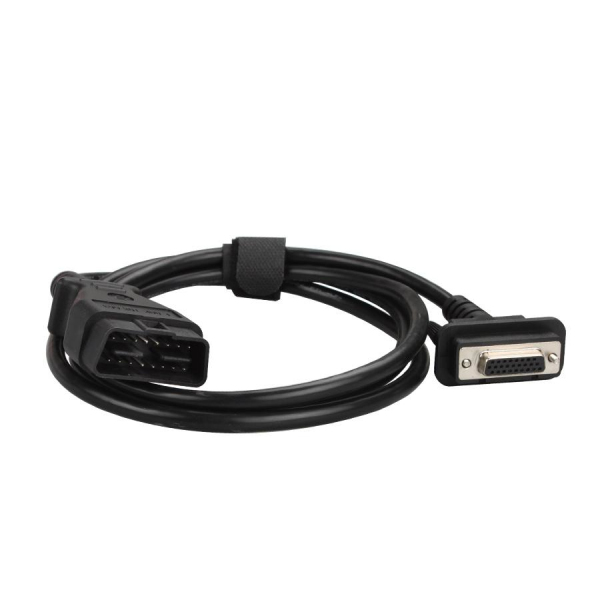

1pc x OBD2 Cable

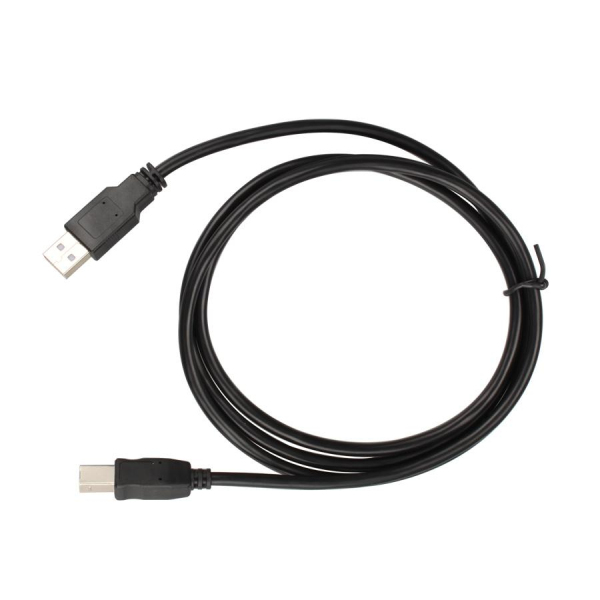

1pc x USB Cable
2pcs x CD

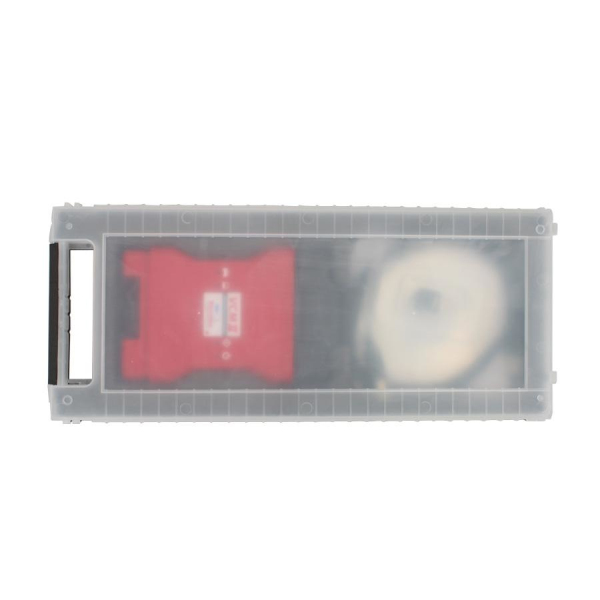

1pc x plactic box
