VCADS3 Volvo Truck Diagnostic Tool

  • Item No.  CA368
  • History: 12  sold
  • Market Price: US$1,110.00
    Shop Price: US$925.00
    Quantity
    Total
  • continue
  • Stock  188
  • Weight:  1.5KG
  • Rate:  comment rank 50 () Write a Review

  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


VCADS3 Volvo Truck Diagnostic Tool VCADS 88890180 (88890020 + Yellow Protection)  V2.01 Truck Diagnostic Interface With 9Pin Connector for North America Volvo


Highlights of VCADS 88890180:
1. Supported languages:
English, Czech, Danish, German, Spanish, French, Italian, Hungarian, Polish, Portuguese, Romanian, Serbian, Slovenian, Turkish,  Russian
2. Connect  via both USB Cable or Wireless Lan
3. Support Volvo Trucks, VOLVO CONSTRUCTION EQUIPMENT (CE), RENAULT TRUCKS (with DXi engines)
4. Newest Version: V2.01
5. With 9Pin Connector for North America Volvo Trucks

VCADS3 Volvo Truck Diagnostic Tool  Interface Specification:
Operating temperature range: -40 to +85°C.
Storage temperature range: -40 to +125°C.

How to connect Volvo Interface 88890180 to vehicle
Via USB-cable
1. Connect the communication unit to the vehicle.

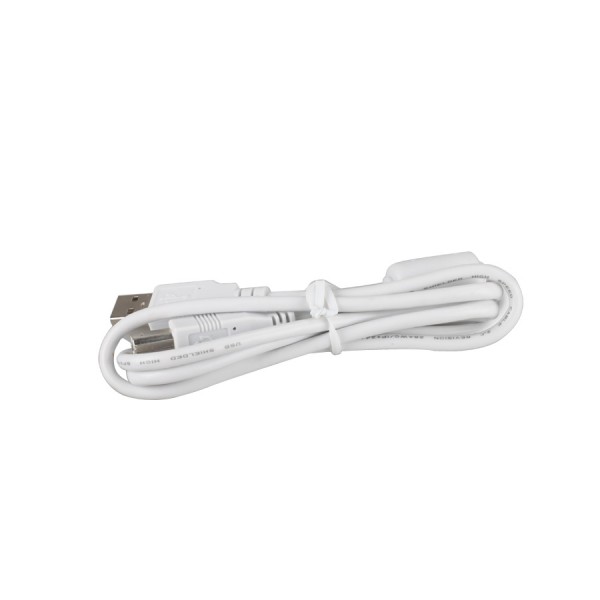

2. Connect the USB-cable between the communication unit and the PC.
3. Select communication unit 88890180 and USB-cable setting in window Alternative.

Directly to the communication unit
Note: Your PC must have Wireless LAN 802.11b/g adapter and support 128-bit WEP encryption. The WEP-key is generated automatically and is not seen during the configuration.
1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Direct to communication unit in window Alternative.
 Via an access pointNote: Contact the local IT-support or network technician before installation.
1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Via an access point in window Alternative.

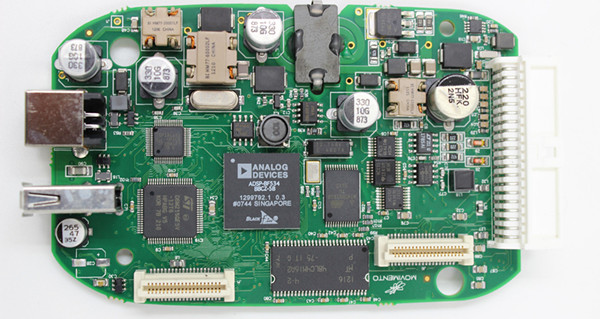

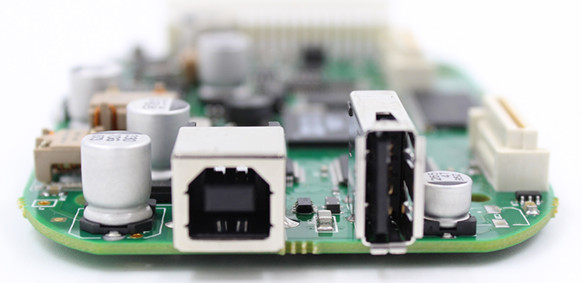

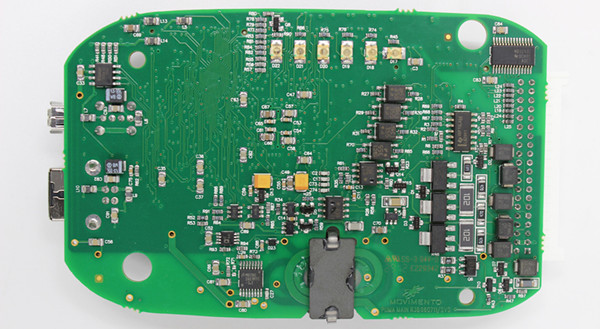

Volvo Truck Diagnostic Tool  PCB Display:


Volvo 88890180 (VCADS) vehicle list:
VOLVO TRUCKS:
AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

VOLVO CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990
Compact Excavator: ECR88

RENAULT TRUCKS (with DXi engines):
CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510

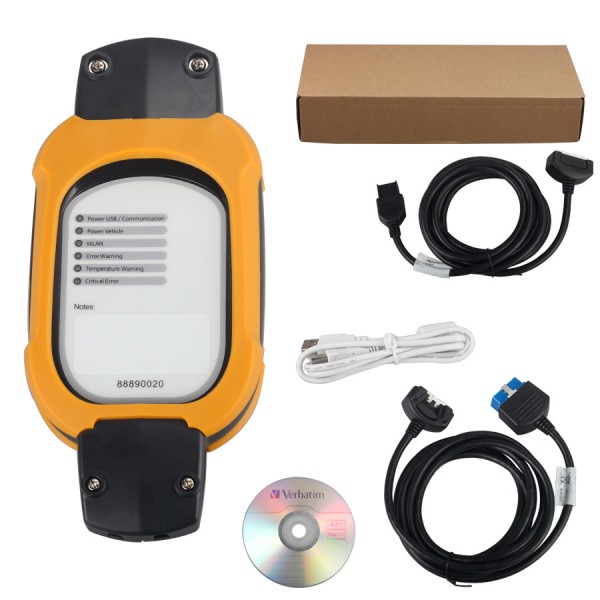

Package including:

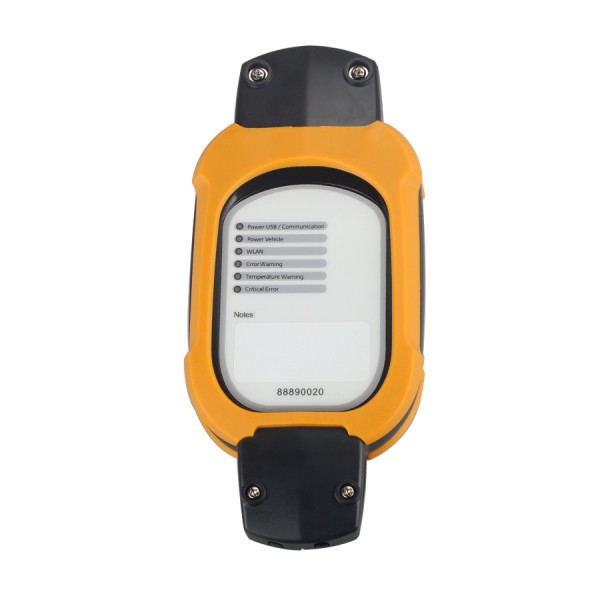

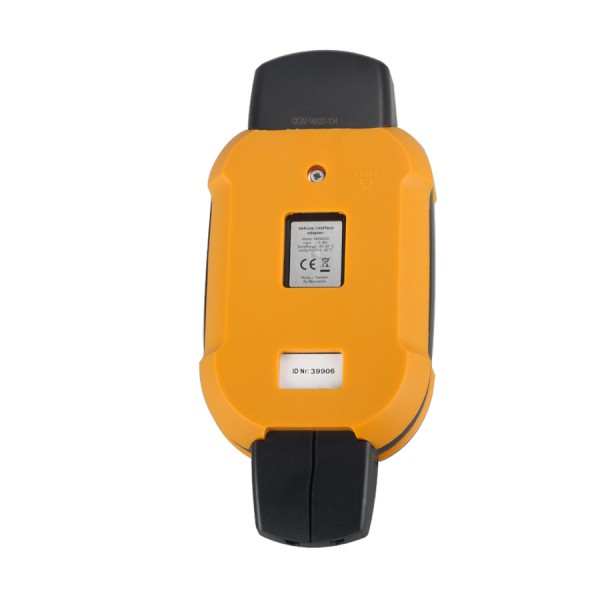

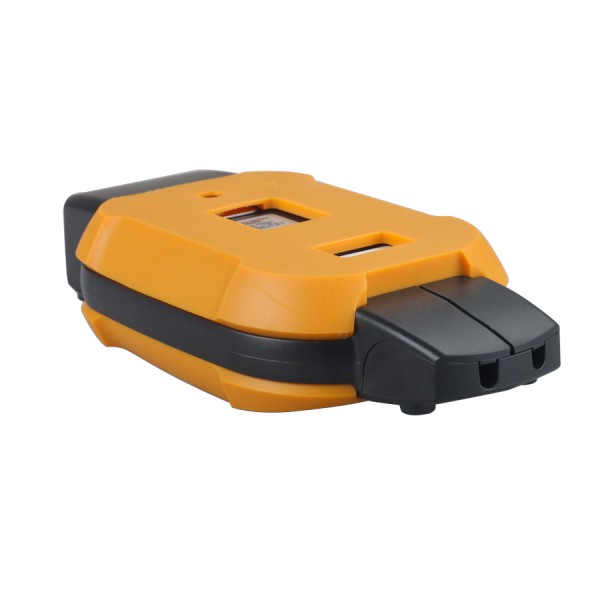

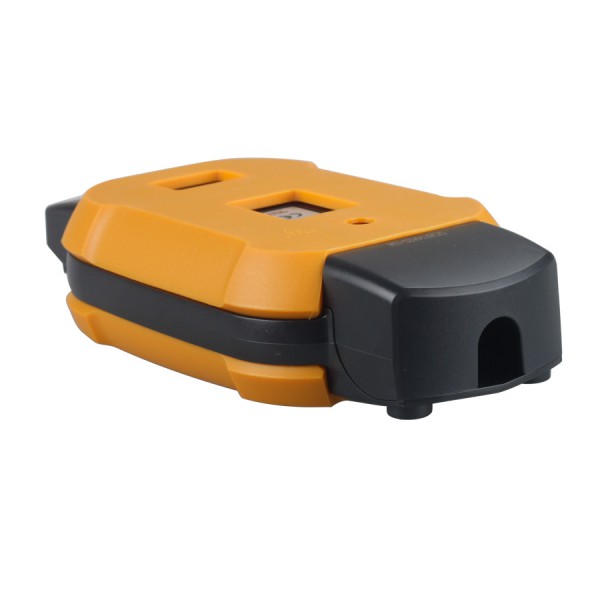

1pc x Volvo 88890180 (VCADS) Auto Diagnostic Interface Main Unit

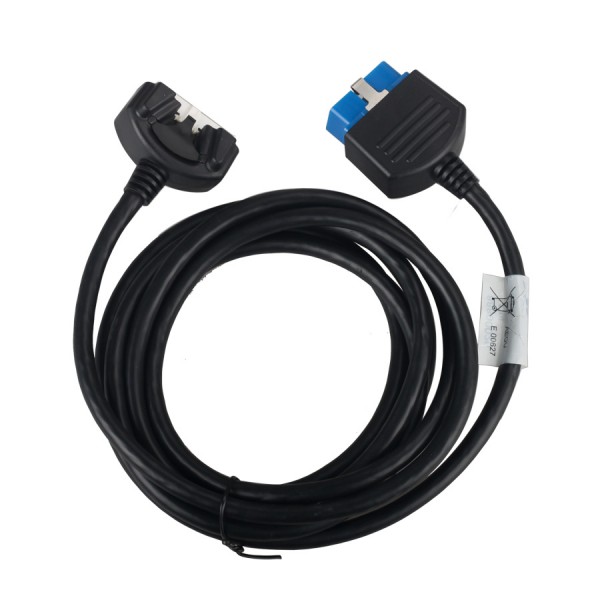

1pc x OBD2 Cable

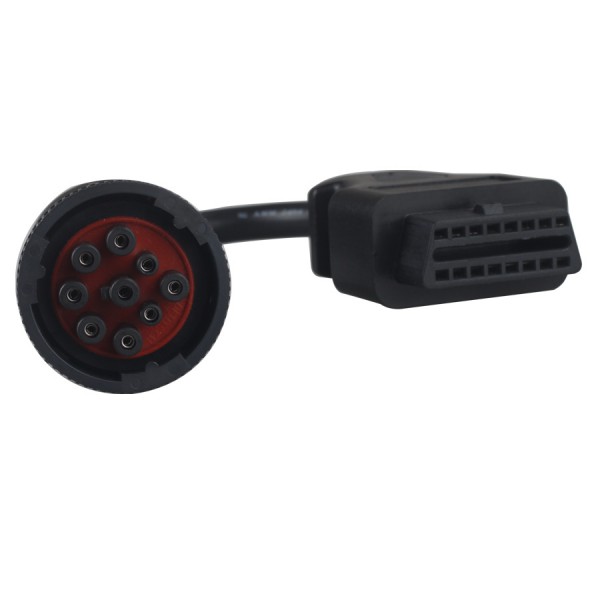

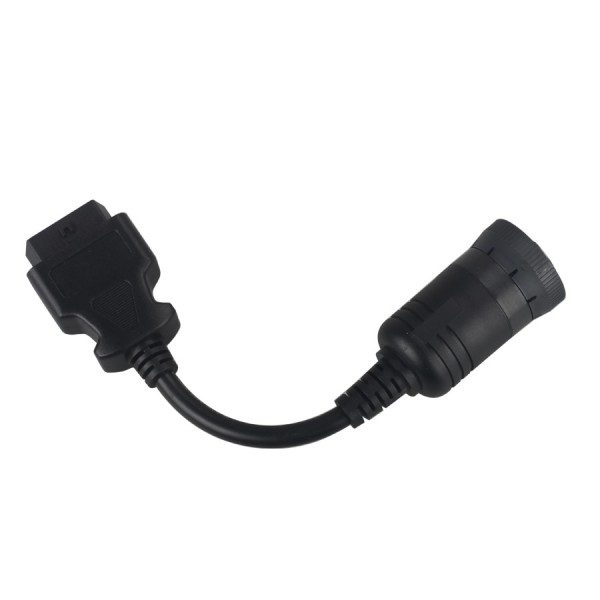

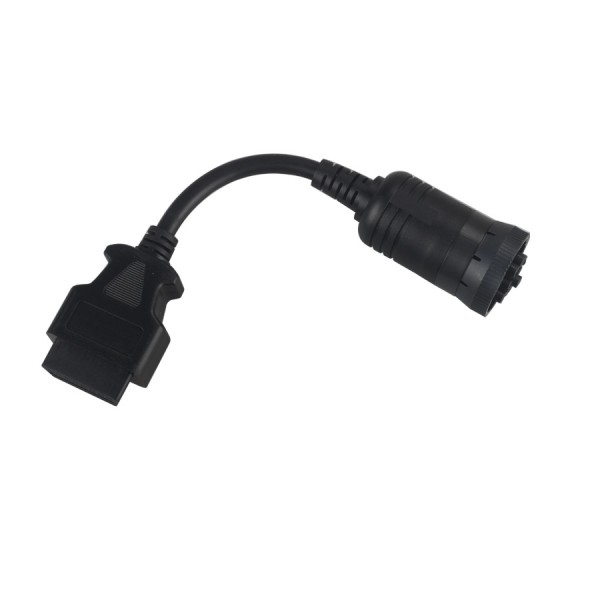

1pc x Volvo 88890302 North America Volvo Truck 9pin Cable
