XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function
The advantage of XTOOL EZ300:
1. Easy registration with EZ300 connected to WIFI, One-click software update via WIFI,free update for lifetimeXTOOL EZ300 QC MARK
2. Wireless diagnosis via Bluetooth, Remote access
3. Diagnosis reports in PDF file
4. Record and playback live data
5. 7 inch multi-touch screen, On-board battery
6. Extensive vehicle coverage for most US, Asian and European vehicle makes
7. Comes with 2 years warranty

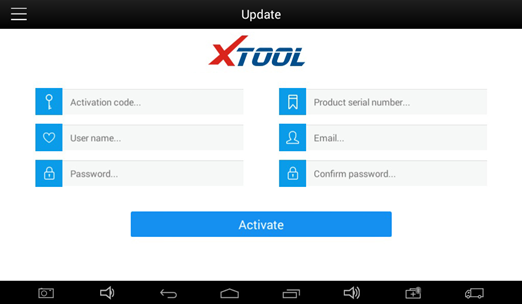

Easy registration with EZ300 connected to WIFI. Don’t bother to use PC for registration.
How to Register XTOOL EZ300 ?
Don’t bother to use PC for registration.

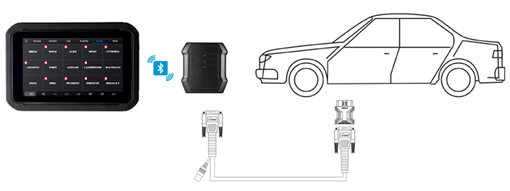

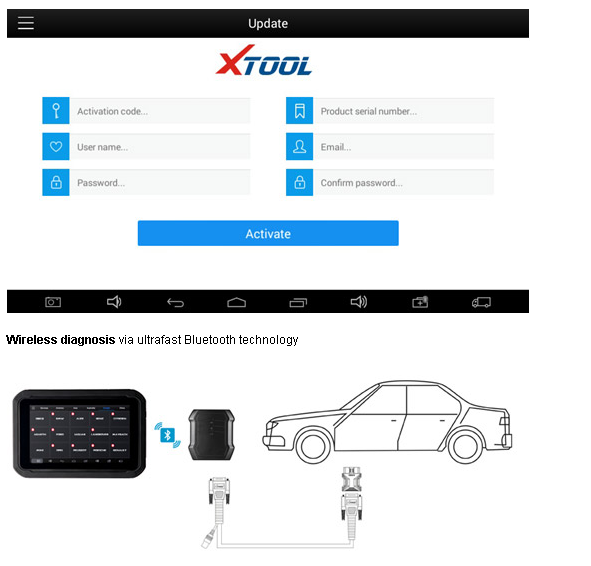

Wireless diagnosis via ultrafast Bluetooth technology

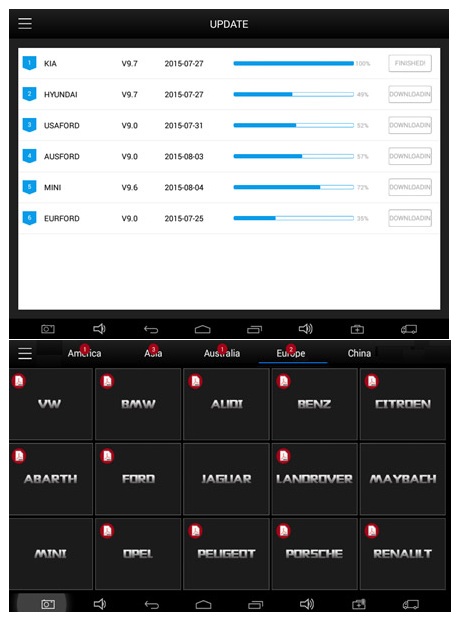

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

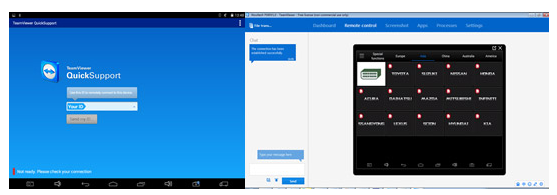

Remote access, which is perfect for training, demonstration and even remote diagnosis.

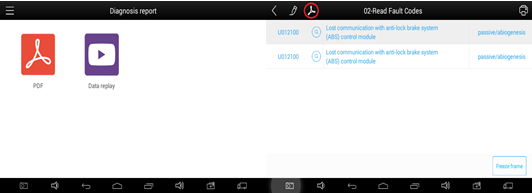

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.

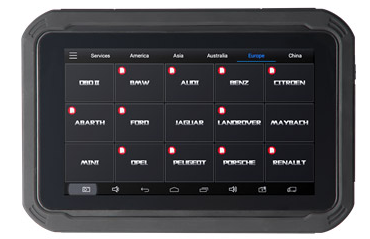

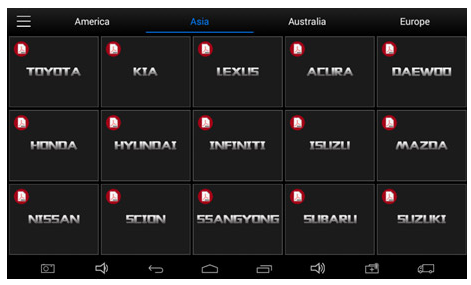

Extensive vehicle coverage for most US, Asian and European vehicle makes American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more

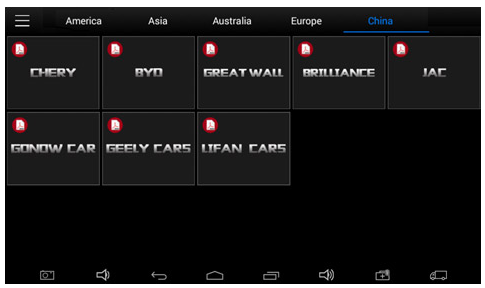

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

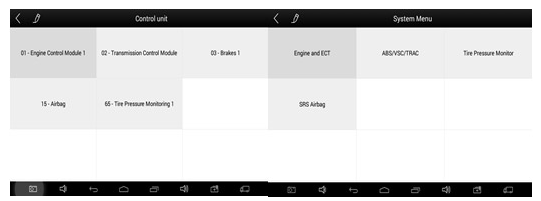

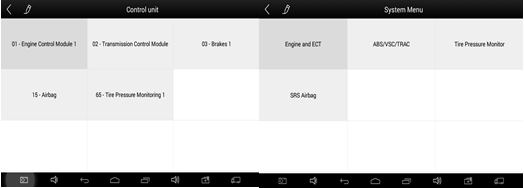

Four System Diagnosis: Engine, ABS, SRS, Transmission and TPMS
Basic Function: read fault codes, clear fault codes, live data

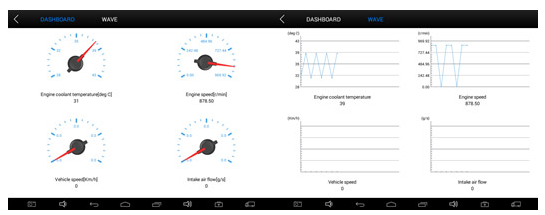

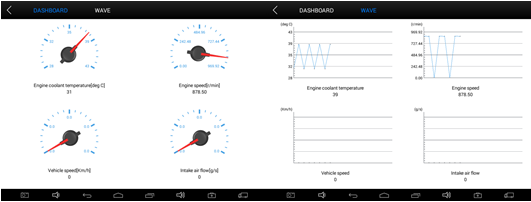

Accurate live data in both Wave and Dashboard form
Operating System: Android 4.4.4
Memory: 1GB RAM，16GB Flash
CPU Quad Core, 1.3 GHz
Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, MiniHDMIPort, 2.0USBPort, TF Card Port
Battery: 2400mAh, 3.7V
WIFI WIFI 2.4Ghz
Bluetooth 100 Meters
Power Voltage: 3.7V
Power Consumption: 4W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension: (L*W*H): 208*140*15.5mm
Xtools Products comparision :
Layout of EZ300:
Full System Diagnosis
yes
yes
Engine, ABS, SRS, AT
Key Programming
yes
yes
Oil Reset/Engine Oil Light Reset
yes
yes
yes
yes
EPB Electrical Parking Brake Adaptation
yes
yes
yes
TPS Throttle Body Adaptation
yes
yes
yes
Odometer Adjustment
yes
yes
EPS Electric Power Steering Calibration
yes
yes
Gear Learning
yes
yes
ABS Exhaust
yes
yes
ECU Reset
yes
yes
Tire Pressure Warning Light Reset
yes
yes
Battery Reset
yes
yes

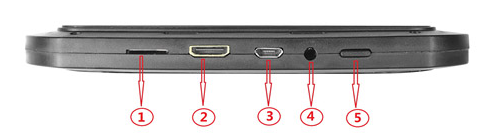

1.SD CardPort: up to 32GB extension SD card
2.HDMIPort: Compatible with HDMI
3.Micro USB: Battery charge or data synchronization with PC.
4.AudiPort: For headphone
5.Power Button: Power on or off

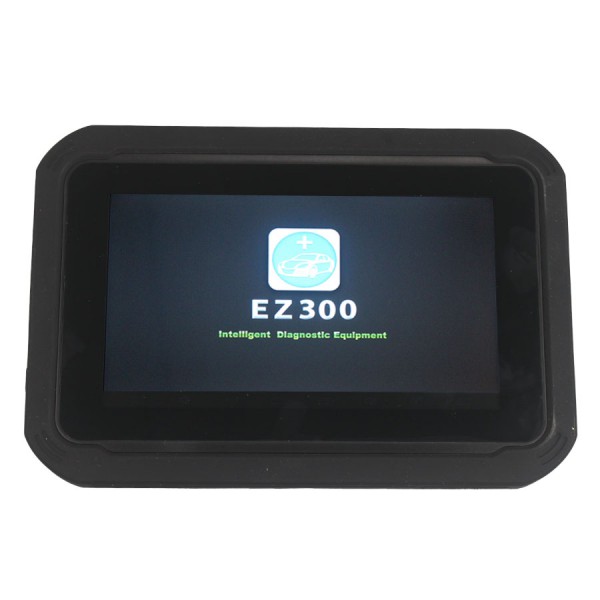

Front View of EZ300 Tablet

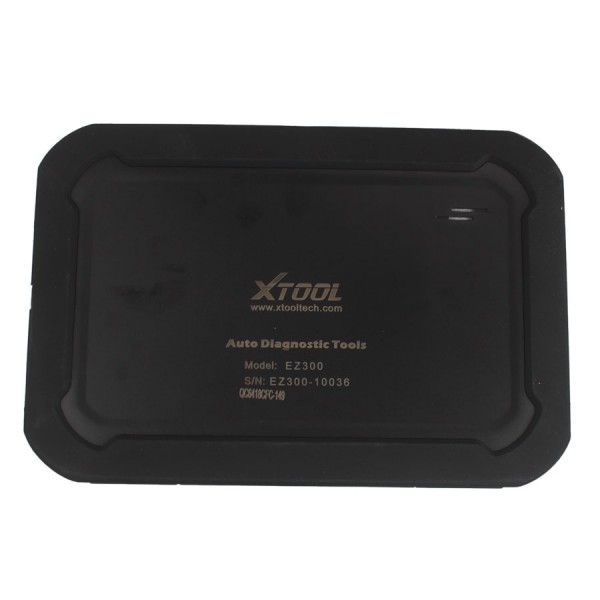

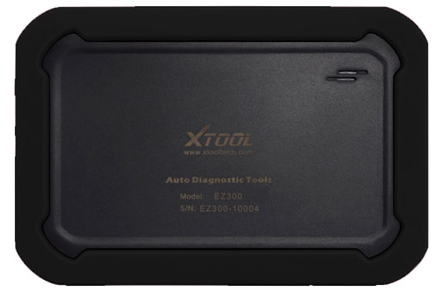

Back View of EZ300 Tablet

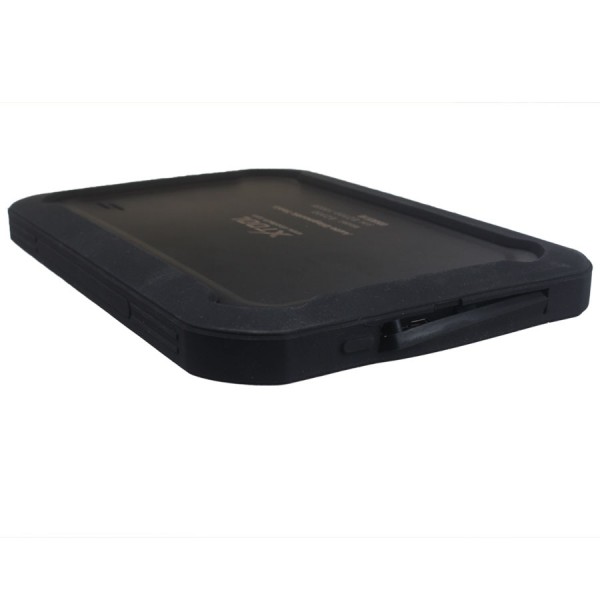

Side View of EZ300 Tablet

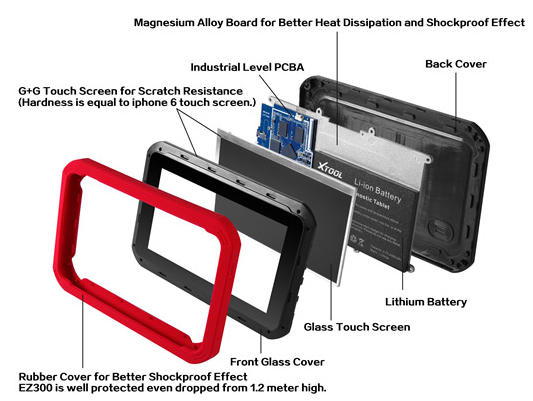

EZ300 Exploded Diagram
Layout of EZ300 VCI box
1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.

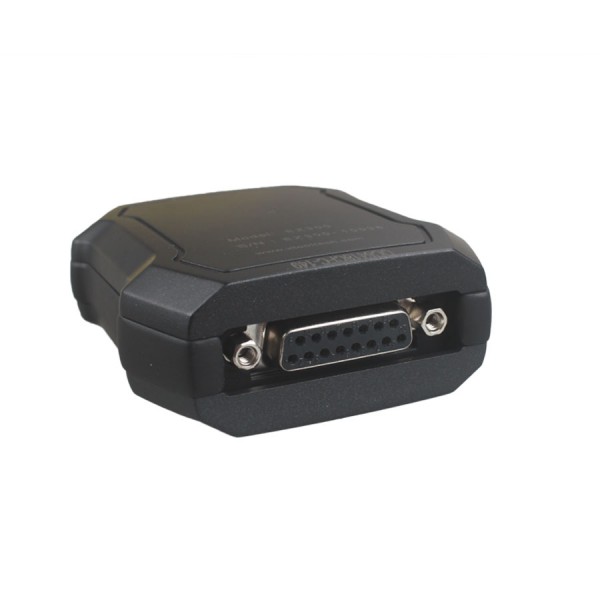

EZ300 VCI

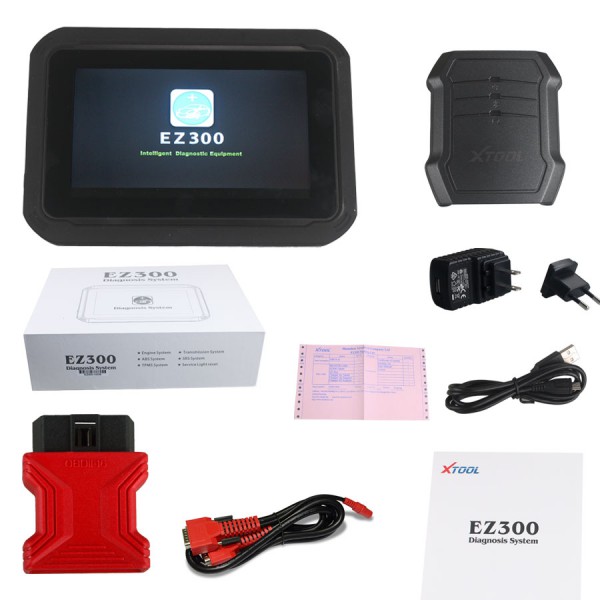

XTOOL EZ300 Package list:

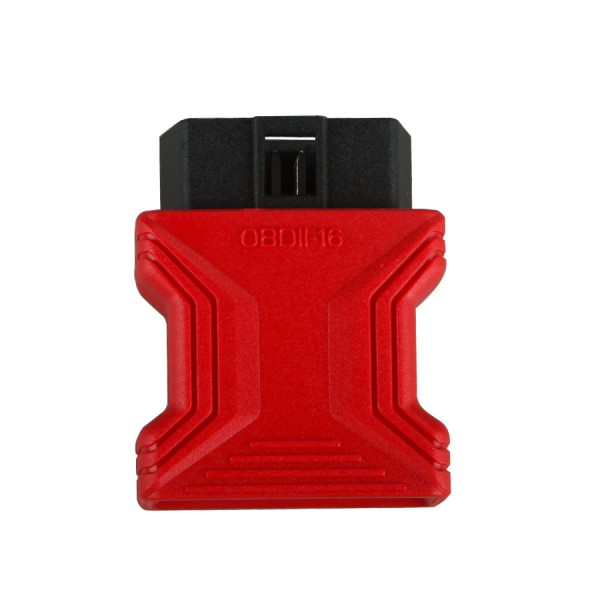

1pc X OBD II-16

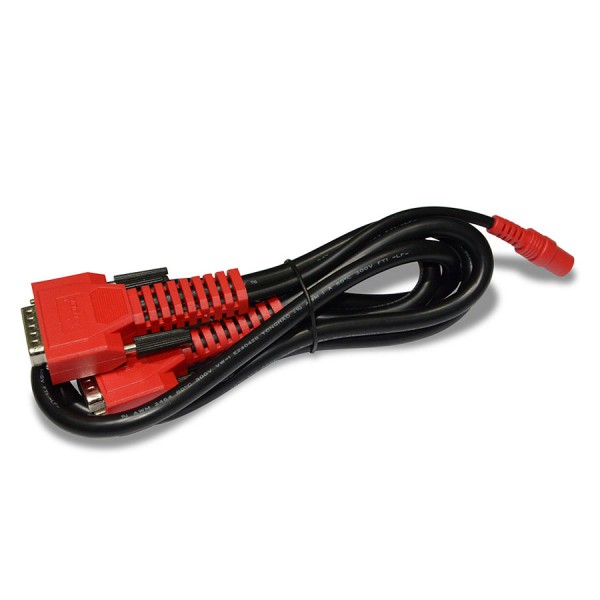

1pc X Main Cable
1pc X EZ300 Tablet
1pc X VCI Box

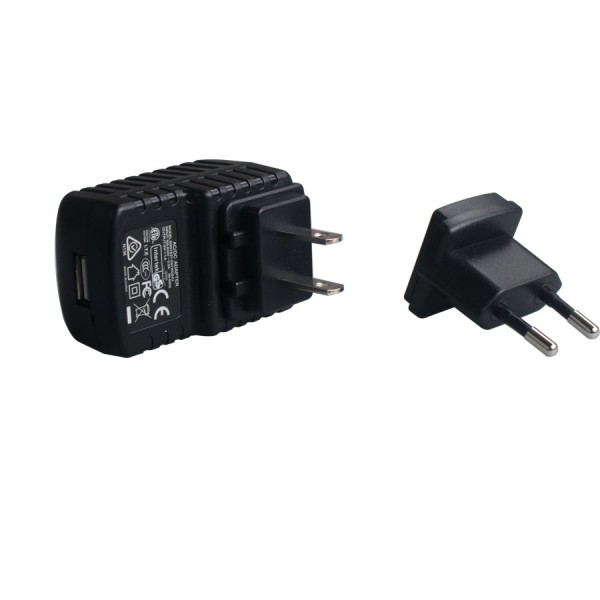

1pc X Charger for Tablet
1pc X US Power Adapter
1pc X EU Power Adapter
1pc X MicroUSB Cable
1pc X Certificate of Quality
1pc X Packing List
1pc X User Manual
1pc X Carton box
