V-Checker iOBD Module B342 OBD2 Diagnosis Interface for IOS

V-Checker iOBD Module B342 OBD2 Diagnosis Interface for IOS

Product  Features
Four display mode Idle, Cruise, Sports, Details.
Multiple security alarm Failure code, Coolant temperature, Fatigue driving, Over-speed, Etc.
Multiple fault diagnosis Read DTC, Clear DTC
Multiple fuel consumption Static instant fuel consumption, Dynamic instant fuel consumption, Average consumption, Etc.
Real time display vehicle information Vehicle speed, Instant fuel consumption, Intake air press, Acceleration, Coolant temperature, Etc.

Function Introduction

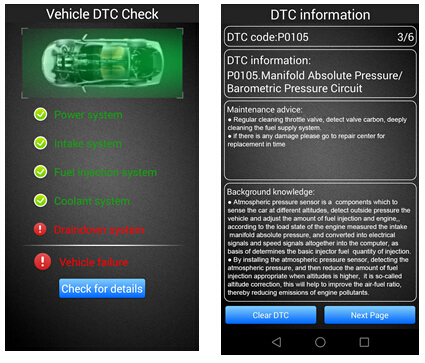

Vehicle DTC Detection
1.Vehicle detecting automatically
Detect the vehicle at any time and anywhereFive electric control systems, the Vehicle automatically detect DTC through to the end, refuse defective vehicles hitting the road to guard users’ safe.

2.Failure analysis
Professional analysis tips, as a warm reminder.There are professional interpretation for each fault information. It could be user’s warm reminder, and give users maintenance tips, avoid blind parking to save maintenance cost.


V-checker iobd module B341-1

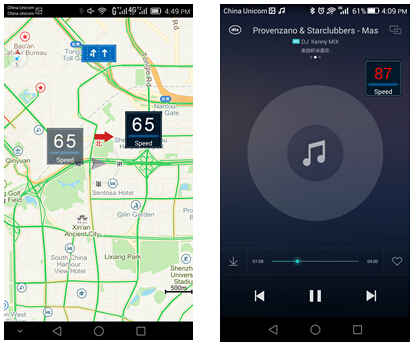

Multiple APPs running in sync

Click ”Home”, App automatically running in the background, real-time display in the floating icon, Provide a variety of vehicle security warning (DTC, Coolant temperature, Over-Speed, etc).

Floating windows and background functions, allowing other APPs to run in sync on the phone, not only GPS navigation, but also music, video, SNS and  even shopping online ,with the function of multiple APPs running in sync ,users can switch different Apps freely.


V-checker iobd module B341-2

Installation instructions

APP installation:



Please install V-checker iobd module refer to below steps strictly.

Step1: unpack the V-checker iobd module


Step1: unpack the V-checker iobd module-4

Step2: Find the OBD connection in your car, It usually located under the steering wheel, above the brake pedal if you cannot find it ,Please contact your local 4S dealer


Step3: Turn on your ignition key, start your car, keep your car under idle mode.

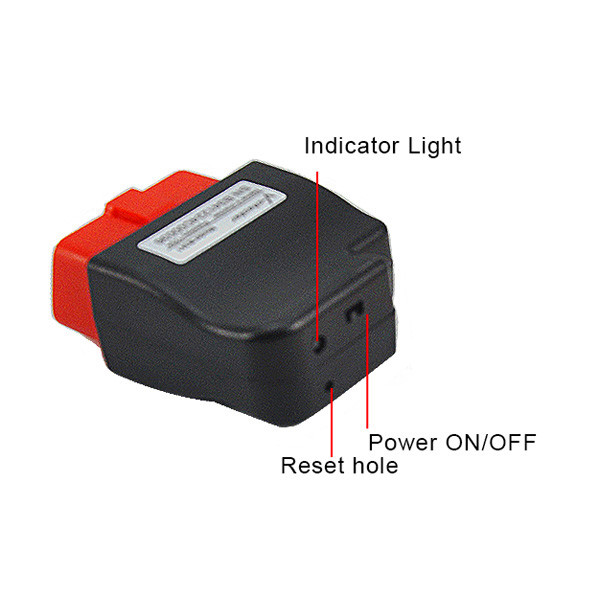

Step4: Plug iobd module into OBD socket correctly the  indicate will keep flashing, System will scan vehicle protocol automatically for 2 minute.


Step5: Run V-checker APP, initialize the iobd module settings refer to the steps on the screen.


Parameter

•Electrical characteristics

Input Voltage 8 – 36 VDC
Working Current 40 mA
Standby Current 15 mA
Wireless transmission Range With 10m open areas

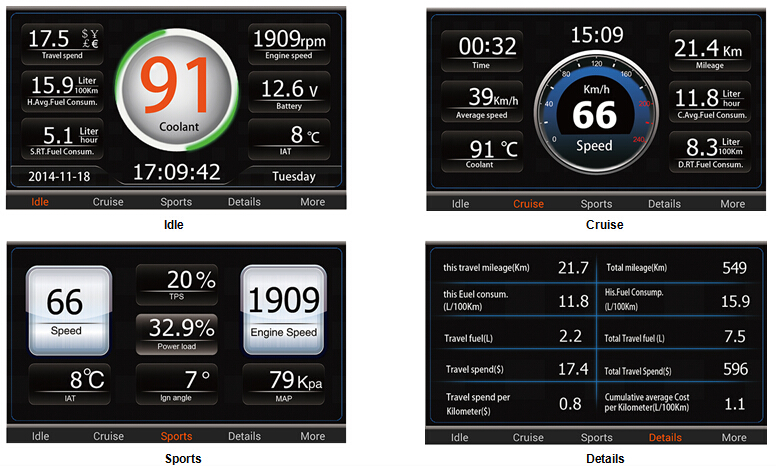

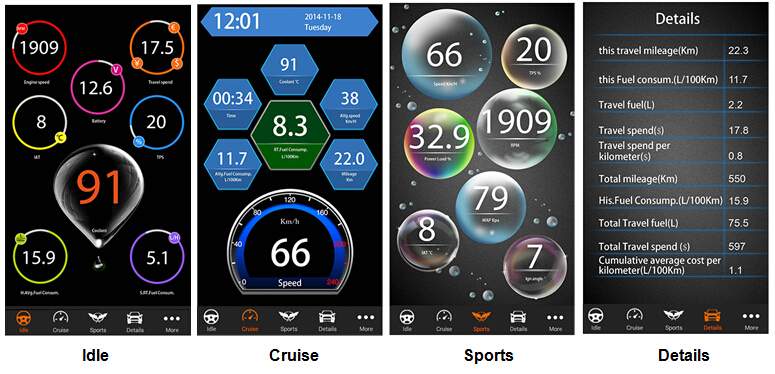

APP support two optional display interfaces: Free or Classic style. And 4 different modes available (Idle, Cruise, Sports, Details).

Display Mode: Free

Display Mode: Classic

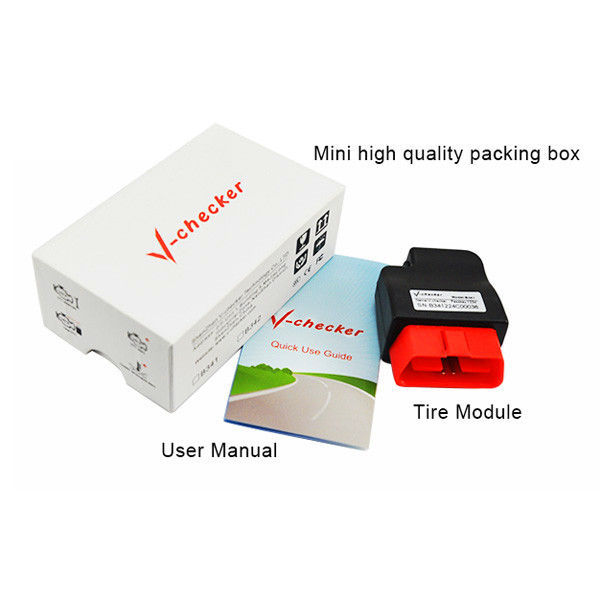

Package Including:
1pcs x Mini Packing Box
1pcs x Trie Module
1pcs x User Manual
