MB Carsoft 7.4 Multiplexer

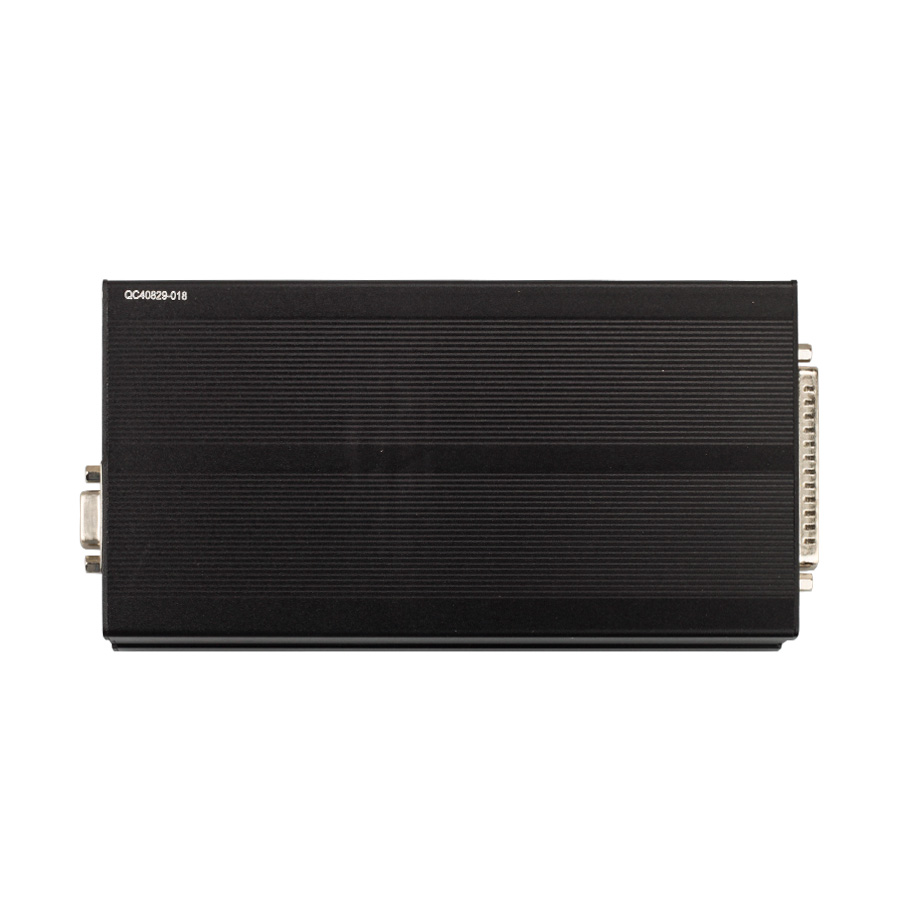

MCU controlled Interface for Mercedes Benz Carsoft 7.4 which is compatible with the original interface.

MB Carsoft 7.4 Interface Multiplexed

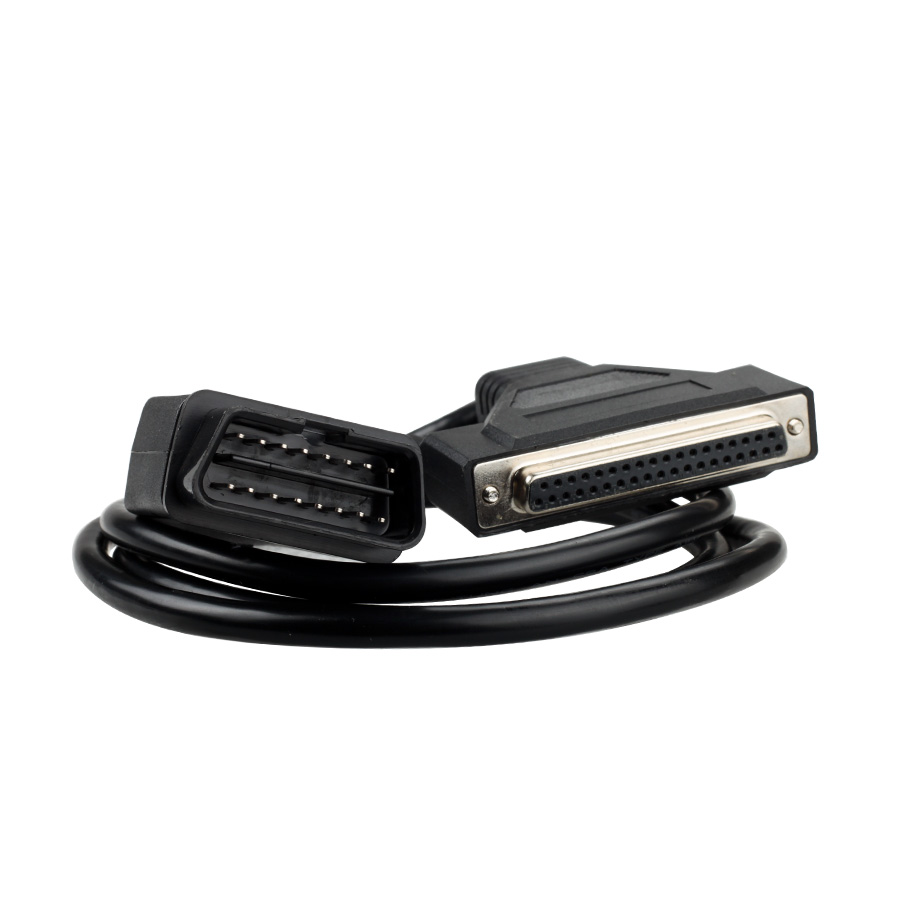

- OBD2 connection cable (all K-Lines wired)

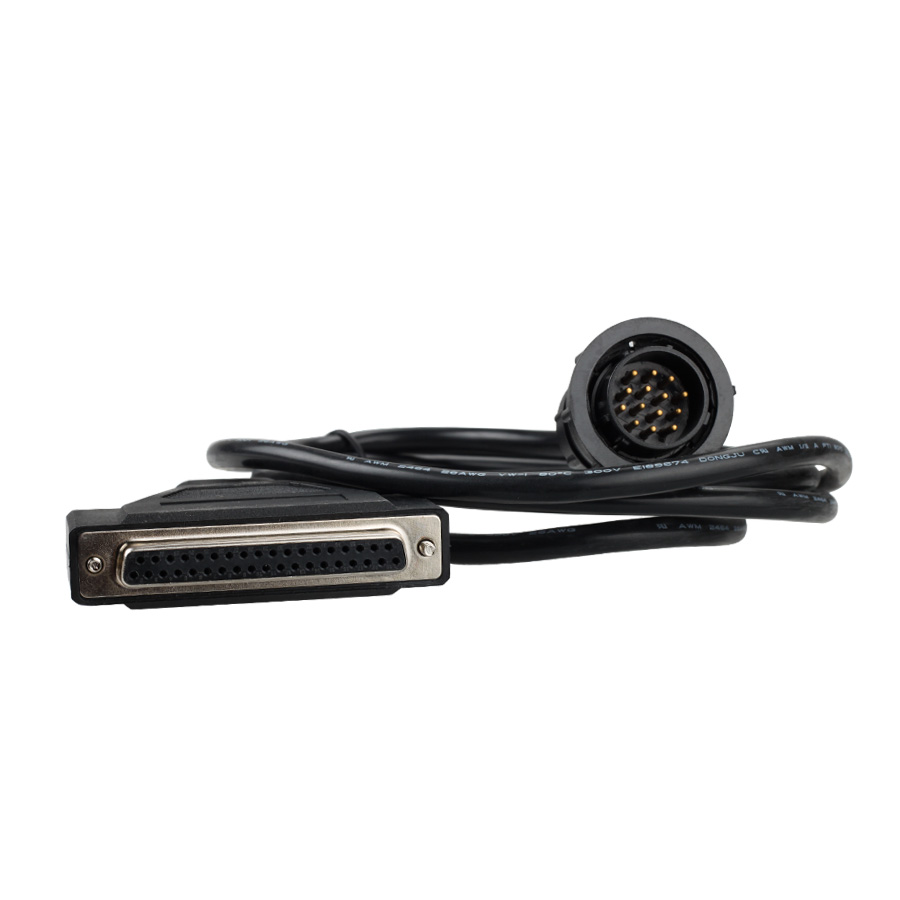

- MB 38 pin connection cable (all K-Lines wired)
- MB Sprinter connection cable (all K-Lines wired)
- MB 3 pin banana cable

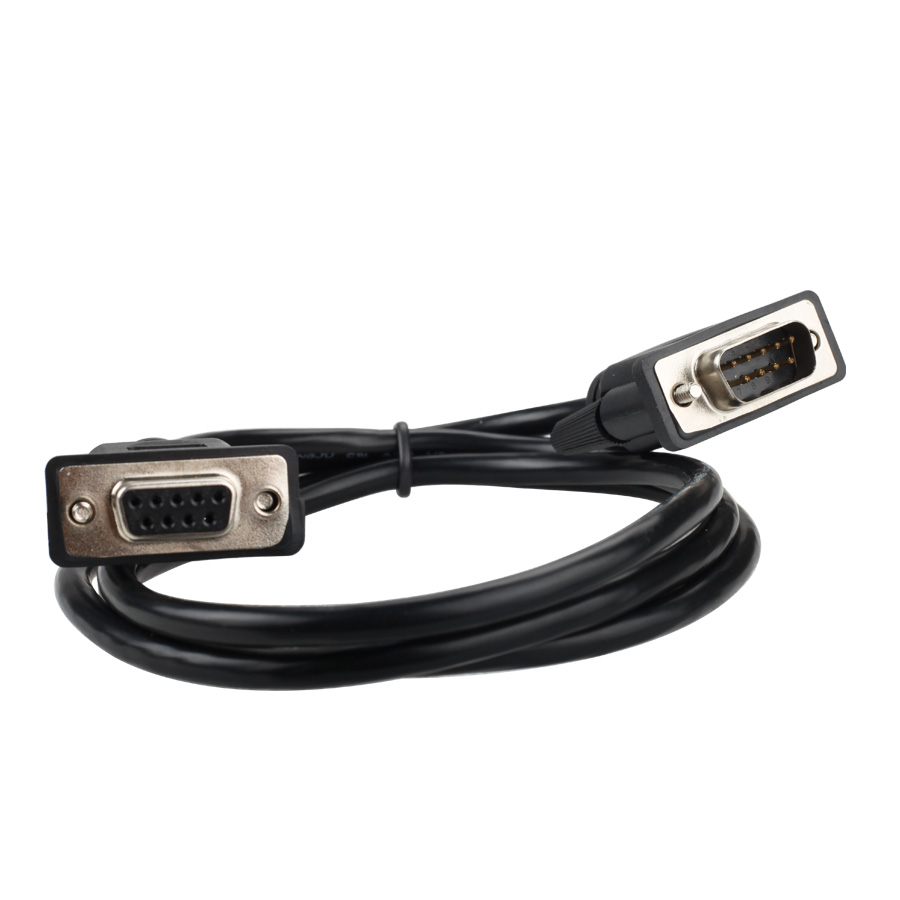

- RS232 extension cable

Interface contains Multiplexer to connect to all diagnosticable Modules fully automatically.

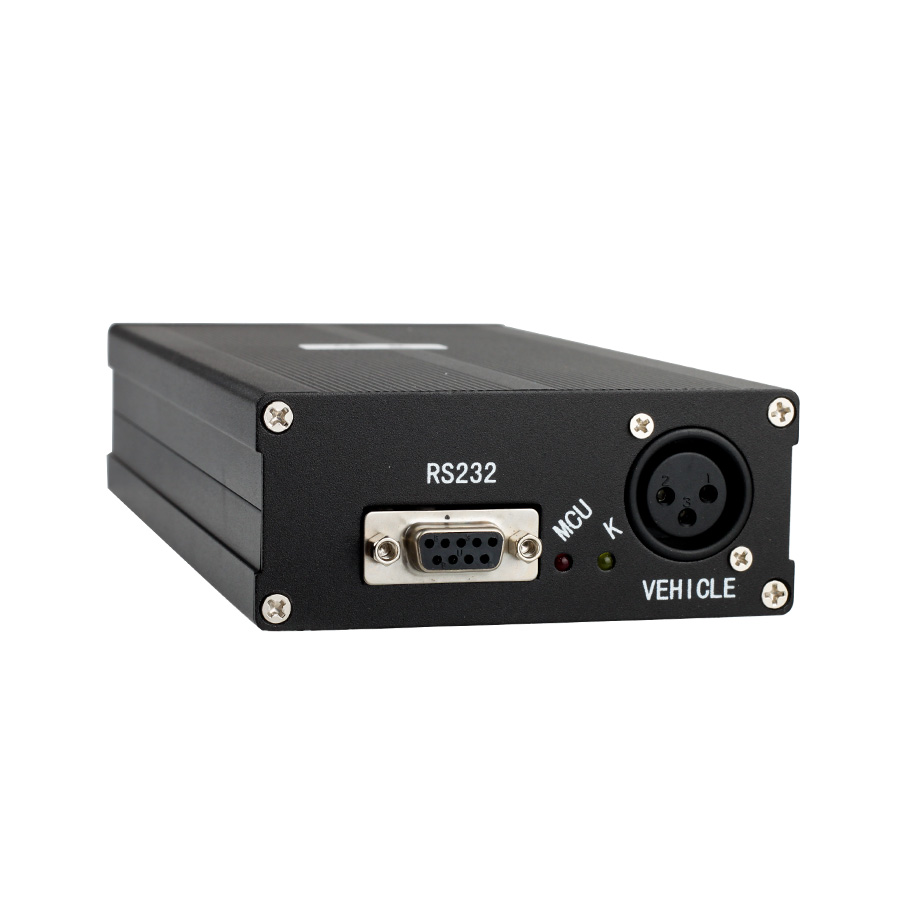

- Status Led's for Power, MCU and K-Line status

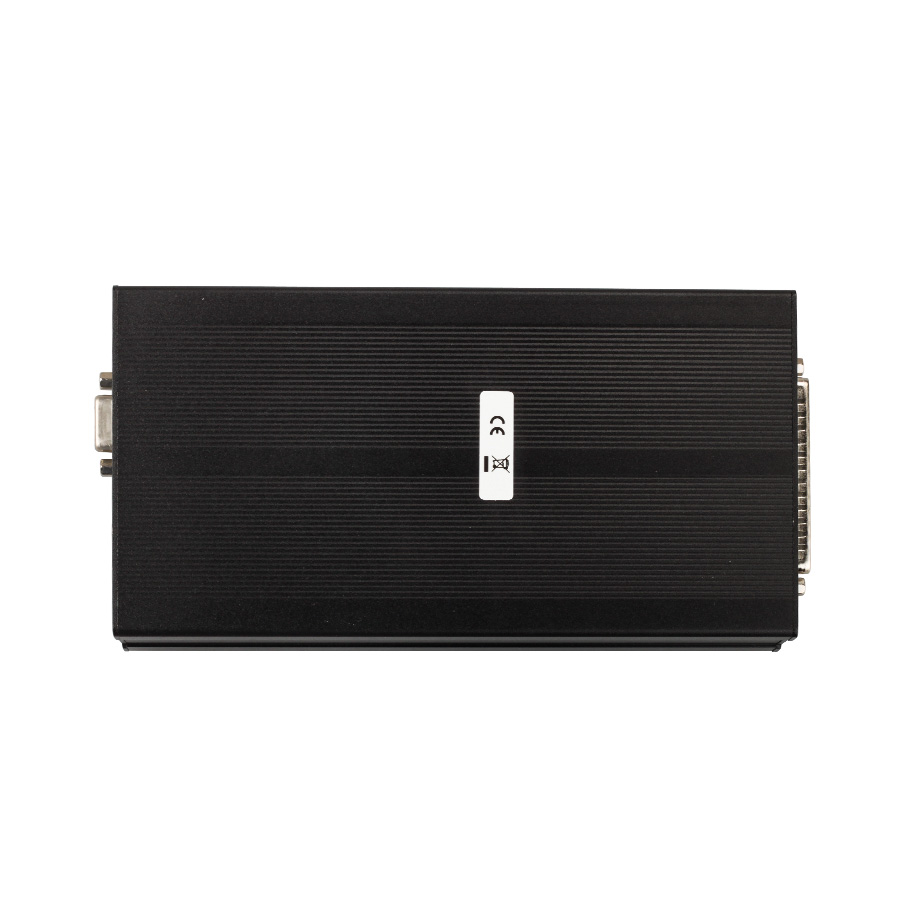

- Rubber buffer rugged Aluminium casing
- DB37 connection to vehicle
- Includes ALL cables including even Sprinter cable
- All cables with a length of 1,5 metres

Description:
YOU GET REPAIR INFORMATION AND FEATURES LIKE LIVE DATA AND CODING,TOTAL AND SINGLE DIAGNOSIS - READ and ERASE FAULT CODES LIVE DATA (some ECUs only) - ECU INFO - REPAIR INFO - PRINT REPORT

Petrol Engines : ENGINE - TYPES until April 2004 Additional Features: - ME LIVE DATA, ME CODING, ME ADAPTATION Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito / V-Class / Sprinter

Diesel Engines : ENGINE - TYPES until April 2004 Additional Features: - CDI LIVE DATA, CDI INJECTOR TEST Vehicle Types: - W124 / W202 / W140 / W210 / W208 / W203 / W163 / W168 / W220 / G461 / G463 / Vito / V-Class / Sprinter ABS - ASR - ETS - ESP - BRAKE Systems until April 2004 Additional Features: - ESP LIVE DATA, ABS ACTIVATION '95 onwards Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W211 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito / V-Class / Sprinter SBC - SENSITIVE BRAKE CONTROL Systems till April 2004

Additional Features: LIVE DATA , DE-ACTIVATION & ACTIVATION OF THE BRAKES

Vehicle Types: W211 / R230 AIRBAG - AIRBAG Systems until April 2004

Additional Features:
ECU CODING
Vehicle Types : - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito / V-Class / Sprinter KI - INSTRUMENT CLUSTERS until April 2004

Vehicle Types: - W202 / W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito / V-Class / Sprinter BAS - BRAKE ASSISTANCE Systems until April 2004

Vehicle Types : - W202 / W210 / R129 / W140 / W208 / R170 / W211 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito / V-Class / Sprinter EGS - GEARBOX Systems until April 2004

Additional Features: - LIVE DATA . ADAPTATION Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W211 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 KG - KEYLESS GO Systems until April 2004

Vehicle Types: - W220 / W215 / R230 ASSYST - SERVICE INTERVAL Systems until April 2004 Additional Features: - SERVICE RESET, SERVICE

PROGRAMMING
Vehicle Types: - W202 / W140 / R129 / W210 / W208 / R170 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito / V-Class / Sprinter AIRCONDITIONING - AIRCO Systems until April 2004 Additional Features: - LIVE DATA INFO (Guidance to Display A/C Live Data on vehicle display)

Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 / Vito/ V-Class / Sprinter AIRMATIC - AIR SUSPENSION Systems until April 2004 Additional Features: - LIVE DATA , ACTIVATION

Vehicle Types: - W220 / W215 ABC - ACTIVE BODYCONTROL Systems until April 2004
Vehicle Types: - W220 / W215 / R230 PSE - PNEUMATIC Systems until April 2004
Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W220 / W215 / R230 / G461 / G463 PTS - PARKTRONIC Systems until April 2004 Additional Features: - LIVE DATA
Vehicle Types: - W202 / W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W220 / W215 / R230 / G461 / G463 AAM - ALL ACTIVITY Systems until April 2004 Additional Features: - ECU CODING
Vehicle Types: - W163 EAM - EXTENDED ACTIVITY Systems until April 2004 Additional Features: - ECU CODING
Vehicle Types: - W163 D2B - COMMAND Systems until April 2004 Additional Features: - ECU CODING
Vehicle Types: - W202 / W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 ATA / DAS - ANTI THEFT ALARM Systems until April 2004
Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 EIS - ELECTRONIC IGNITION Systems until April 2004
Vehicle Types: - W124 / W202 / W140 / R129 / W210 / W208 / W209 / W203 / W220 / W215 / R230 / G461 / G463 UCP - UPPER CONTROL PANEL Systems until April 2004
Vehicle Types: - W209 / W203 / W220 / W215 LCP - LOWER CONTROL PANEL Systems until April 2004
Vehicle Types: - W210 / W208 / R230 OCP - OVERHEAD CONTROL PANEL Systems till April 2004
Vehicle Types: - W210 / W208 / W209 / W203 / W220 / W215 / R230 HRA - XENON LIGHT Systems until April 2004 Additional Features: - LIVE DATA, ACTIVATION
Vehicle Types: - W140 / R129 / W210 / W208 / R170 / W209 / W203 / W163 / W168 / W220 / W215 / R230 / G461 / G463 RVS / VD - CONVERTIBLE TOP Systems till April 2004
Vehicle Types: - R170 / R230 SAM - SIGNAL ACQUISITION Systems until April 2004
Vehicle Types: - W202 / W210 / W208 / W209 / W203 / W220 / W215 / R230 DCM - DOOR CONTROL Systems until April 2004
Vehicle Types: - W202 / W210 / W208 / W209 / W203 / W220 / W215 / R230 ESA - ELECTRICAL SEAT Systems until April 2004
Vehicle Types: - W202 / W210 / W208 / W209 / W203 / W220 / W215 / R23 FOR ALL MERCEDES MODELS UP TO 2004

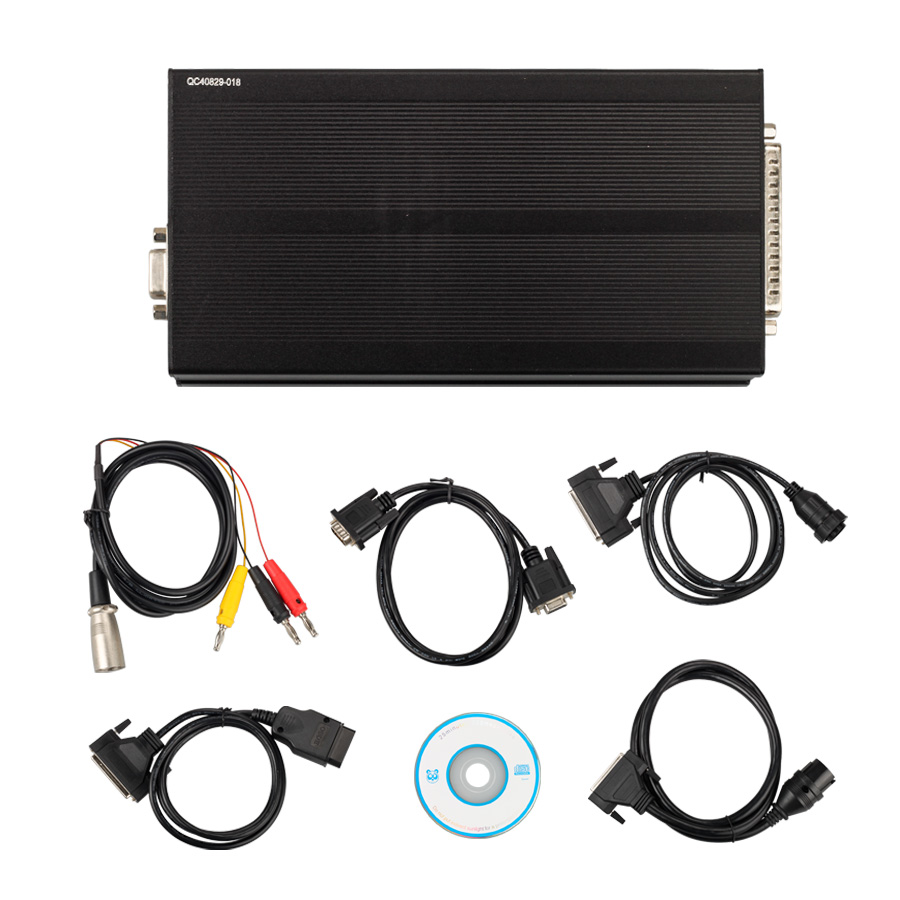

Package list:
MB Carsoft 7.4 Interface OBD2
connection cable MB 38 pin connection
cable MB 3 pin
banana cable
RS232 extension cable

Attention: You need to use this software under Windows XP system and close anti-virus software
