AUTEL MaxiDAS DS808 KIT Tablet Diagnostic Tool Full Set Support Injector & Key Coding Update Online

  • Item No.  CA151-2
  • History: 18  sold
  • Market Price: US$885.60
    Shop Price: US$738.00
    Quantity
    Total
  • continue
  • Stock  24
  • Weight:  3.5KG
  • Rate:  comment rank 40 () Write a Review
  • This goods is Free shipping!

  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video

Download

Latest AUTEL MaxiDAS DS808 (With Conkit) full set Handheld Touch Screen Autel Diagnostic Tools Update Online


AUTEL MaxiDAS DS808 full set VS MaxiDAS DS808:
The only difference: DS808 is full set, MaxiDAS DS808 is standard set. Please confirm by checking their packge list.
Same: same functions and same MUX specification




MaxiDAS DS808 (With Conkit) Features:
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

Note: There are two options available when accessing the Diagnosis section:
1. Auto Scan – starts auto scanning for all the available systems on the vehicle.
2. Control Units – displays a selection menu of all available control units of the test vehicle.
After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.


Supported Automotive Protocols:
 ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
How to update Autel DS808 (With Conkit) software:

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiDAS Job Menu;
or tap the update notification message when received one;
or tap the Update icon on Vehicle Menu in Diagnostics application.


The Update application screen displays.
3. Check all available updates:

If you decide to update all the items, tap the Update All button.
If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume
from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

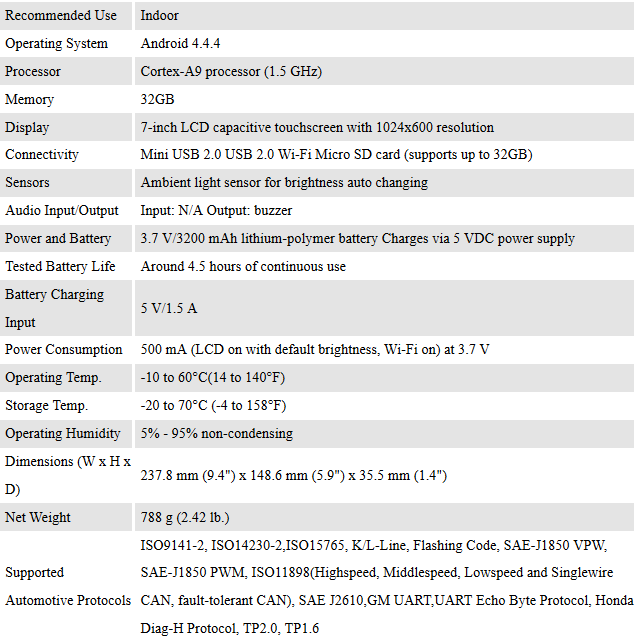

MaxiDAS DS808 (With Conkit) Specifications:
Operating System:Android™ 4.4.4
Processor:Cortex-A9 processor (1.5 GHz)
Memory :32GB

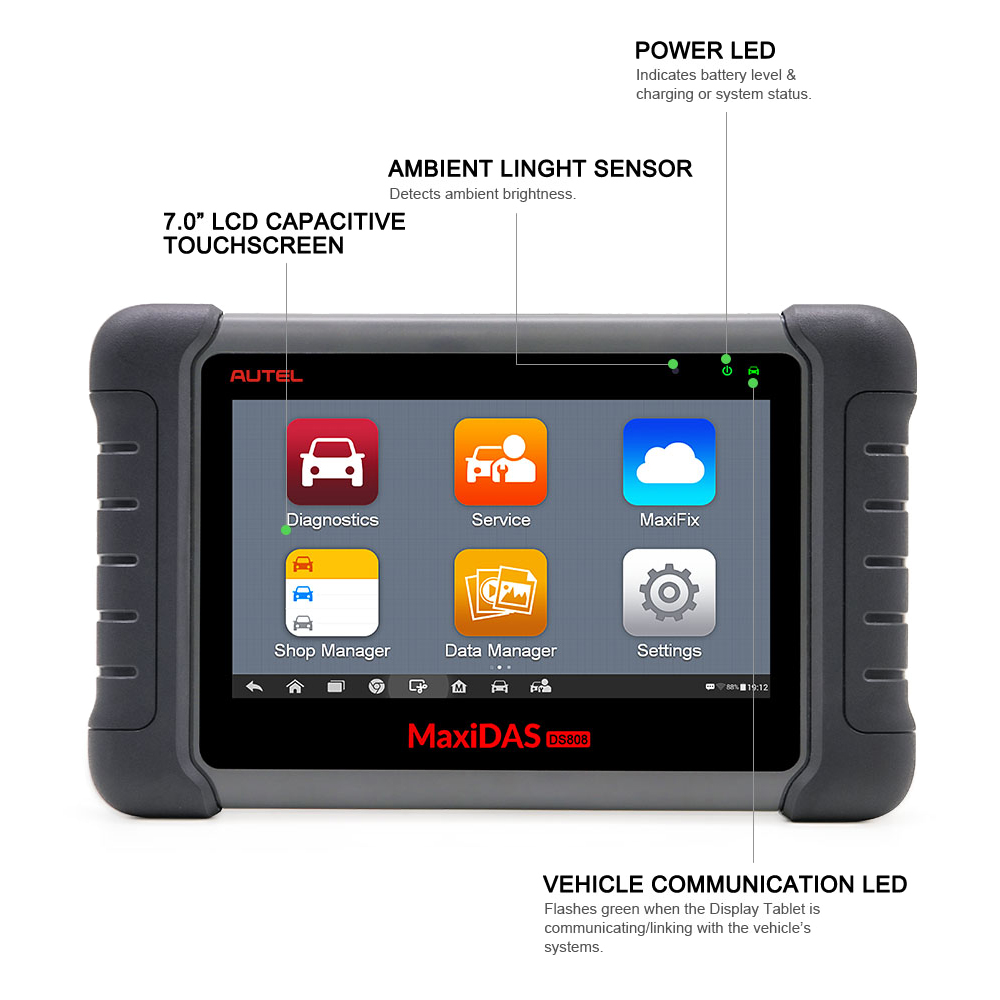

Display:7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity:• Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors:Ambient light sensor for brightness auto changing
Audio Input/Output:• Input: N/A • Output: buzzer
Power and Battery:• 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life:Around 4.5 hours of continuous use
Battery Charging Input:5 V/1.5 A
Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp:-10 to 60°C(14 to 140°F)
Storage Temp:-20 to 70°C (-4 to 158°F)
Operating Humidity:5% - 95% non-condensing
Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight:788 g (2.42 lb.)

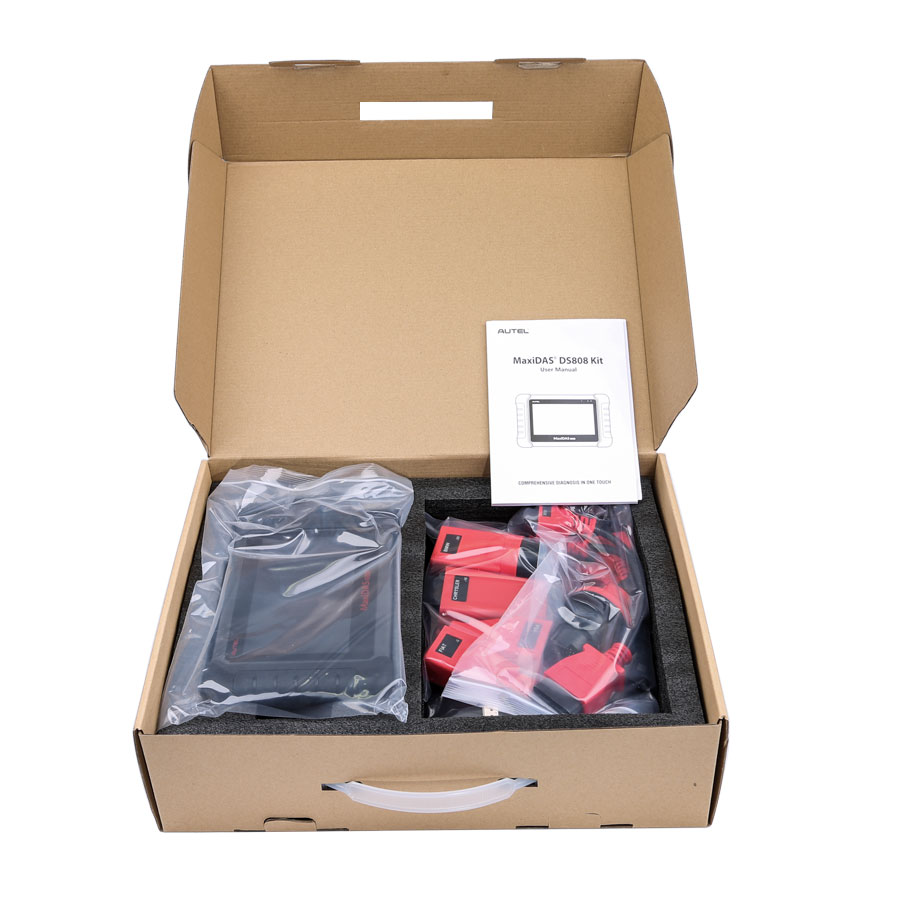

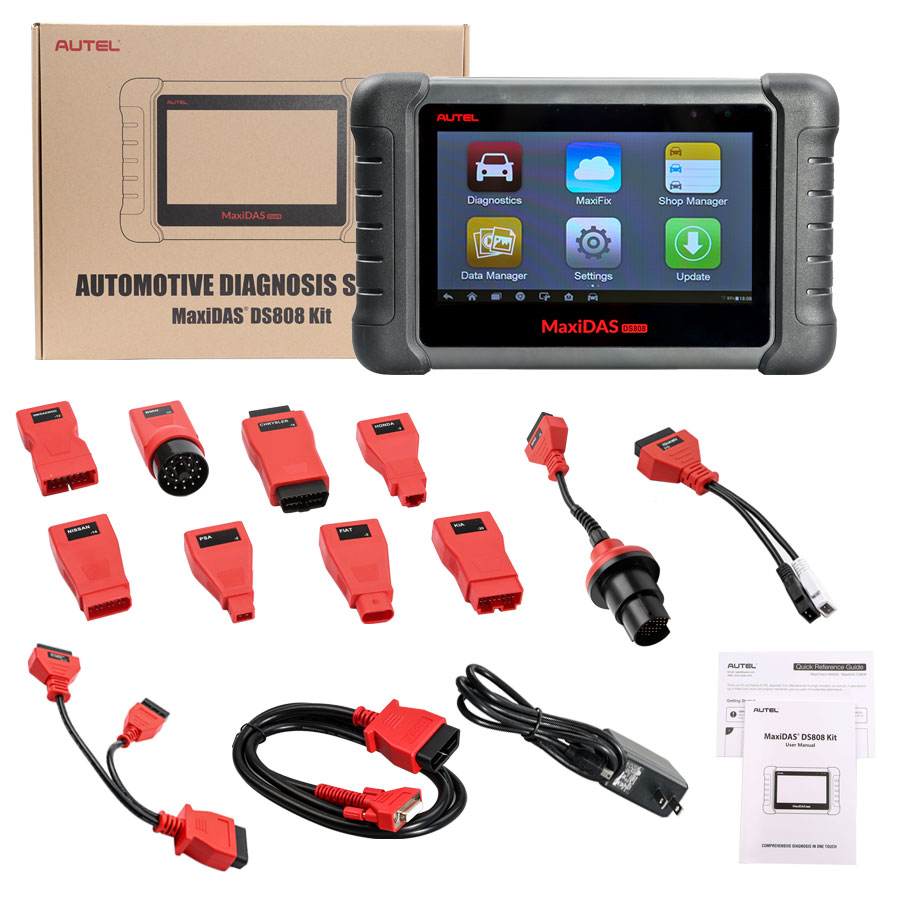

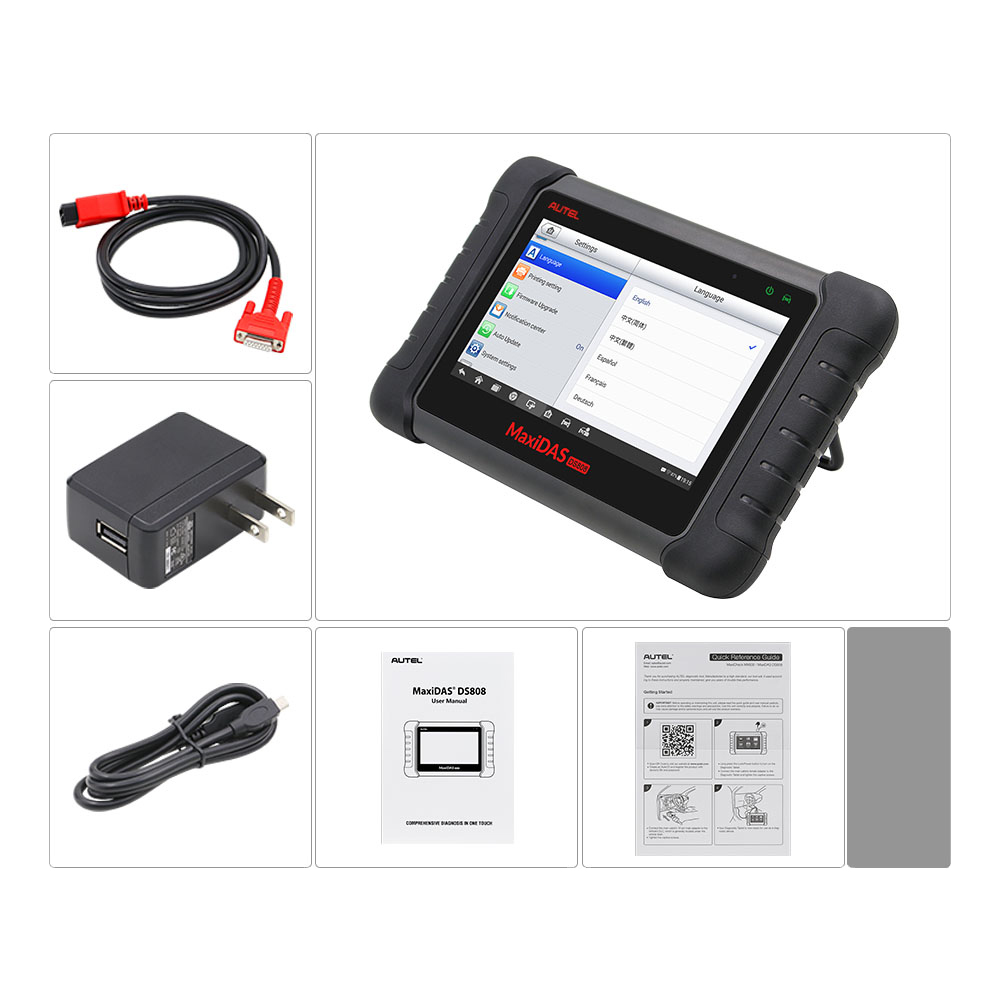

Package Includes:
 1pc x USB External
1pc x Power Adapter
1pc x USB External Power AdapterUser
1pc x ManualQuick reference guide

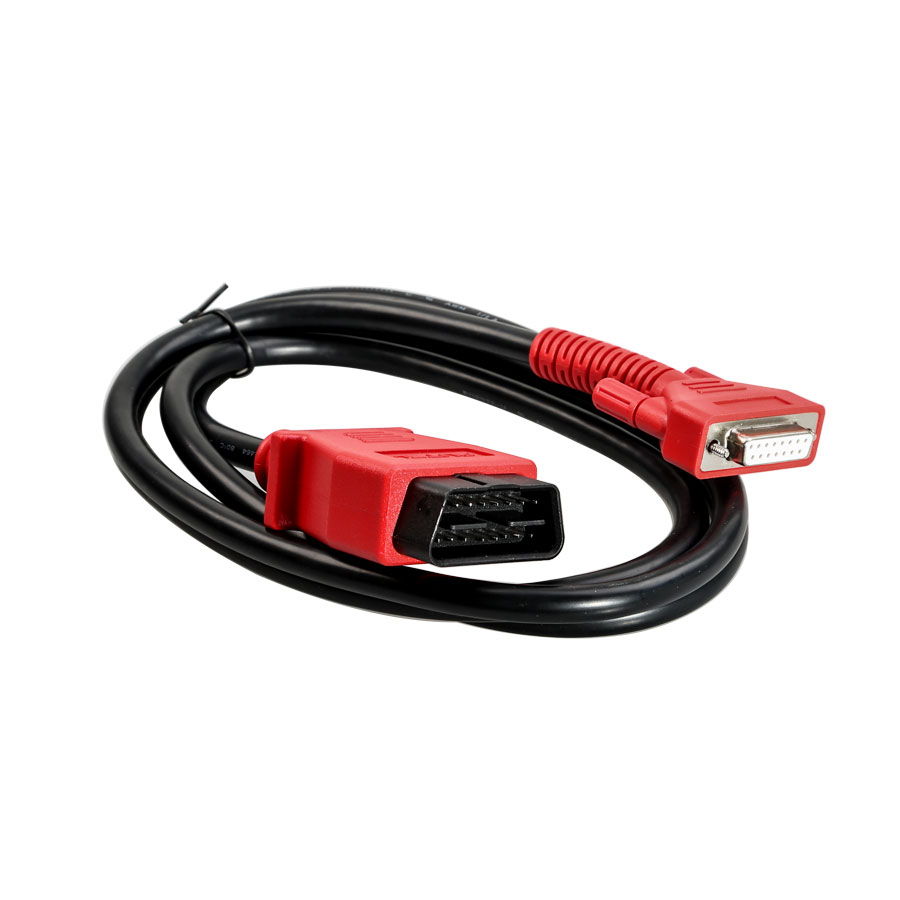

1pc x Main cable
1pc x Mini USB Cable
1pc x User Manual

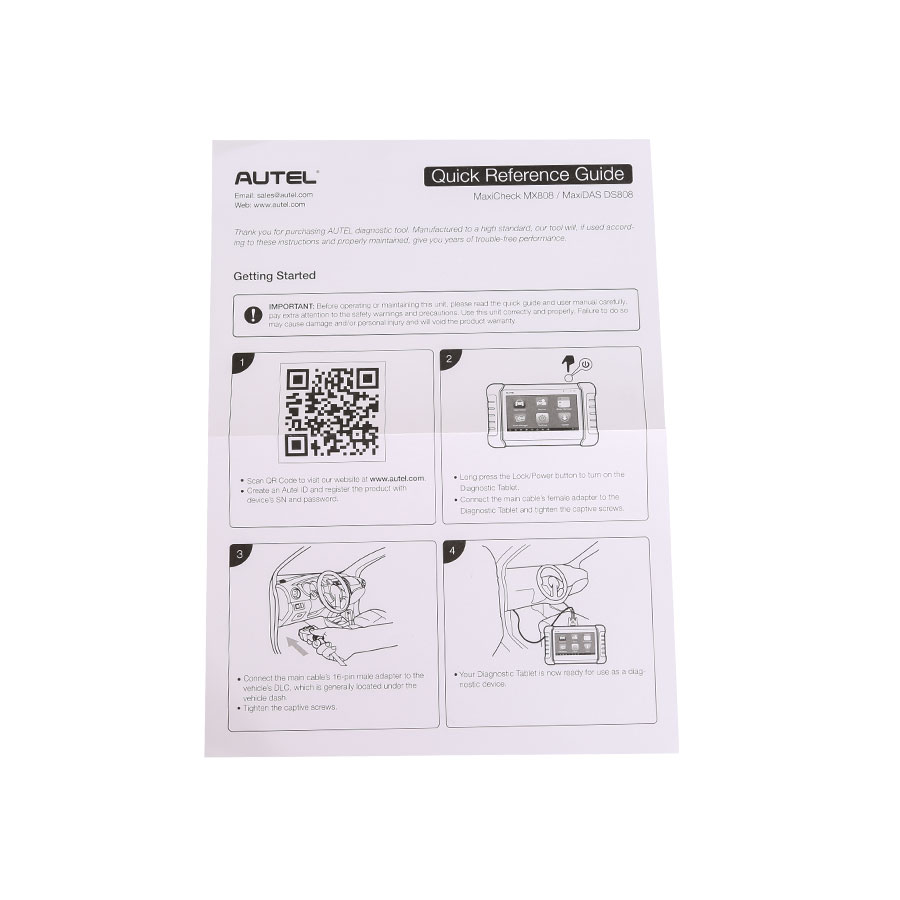

1pc x Quick Guide
1pc x Benz-14
1pc x Chrysler-16
1pc x BMW-20
1pc x Kia-20
1pc x Nissan-14
1pc x GM/Daewoo-12
1pc x Honda-3
1pc x VW/AUDI-2+2
1pc x Mitsubishi/Hyundai-12+16
1pc x Benz-38
1pc x PSA-2
1pc x Fiat-3


Basic information comparison table among Autel Ds708 scanner, Autel MaxiSYS MS906, Autel DS808 standard package and Autel DS808 full package.

Autel Autel MaxiDas DS808 (Full kit) Autel MaxiDas DS808 Autel MaxiSYS MS906 Autel MaxiDas DS708





Item No. A151-2  A151-1 A371 A151
CPU Cortex-A9 processor (1.5 GHz) Cortex-A9 processor (1.5 GHz) Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) Samsung S3C2440 ARM9 Processor 400 MHz
OS Android™ 4.4.4 Android™ 4.4.4 Android™ 4.4.2, KitKat Windows CE
SSD Hard Drive 32GB 32GB 32GB
Touch Screen Display 7″ LCD 1024×600 resolution touch scrren 7″ LCD 1024×600 resolution touch scrren 8″ 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology 7.0″ 800×480 TFT Resistive Touch Screen
Connectivity • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB) USB 2.0, Ethernet, Wi-fi
Wifi 802.11b/g/n Wi-Fi 802.11b/g/n Wi-Fi 802.11b/g/n Wi-Fi 2.4 GHz
Internal Battery 3.7 V/3200 mAh lithium-polymer battery 3.7 V/3200 mAh lithium-polymer battery 3.7V/5000 mAh lithium-polymer battery
Weight(Display)   788 g (2.42 lb.) 0.96 kg (2.12 lb.) 1.1kg (2.95lb)
Camera(rear)     8.0 Megapixel, AF with Flashlight N/A
Wireless VCI Yes Yes Yes
Boot Up Time Less than 40 seconds Less than 40 seconds Less than 40 seconds 40 Seconds
Complete OEM-Specific Scanner Coverage Yes Yes Yes Yes
AutoVIN Technology Yes Yes Yes
MaxiFix Cloud-Based Information System Yes Yes Yes
Shop Manager Yes Yes Yes
ECU coding Minimum Minimum Minimum Minimum
ECU Flash Programming N/A N/A N/A N/A
J2534 Hardware included N/A N/A N/A N/A
Default Language English, pay to change other language English; pay to change other language English English, Spanish, French, German, Portuguese and Russian
Subscription-Based On-Line Updates Yes Yes Yes Yes
Warranty Yes Yes 1 year 1 year

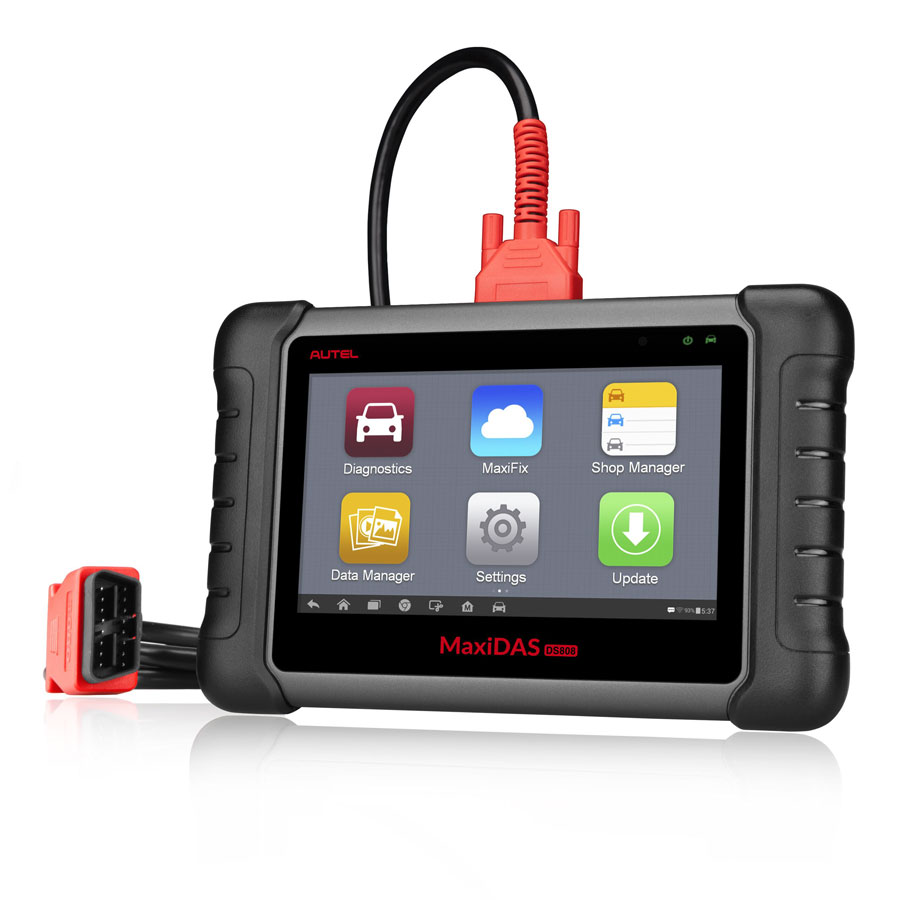

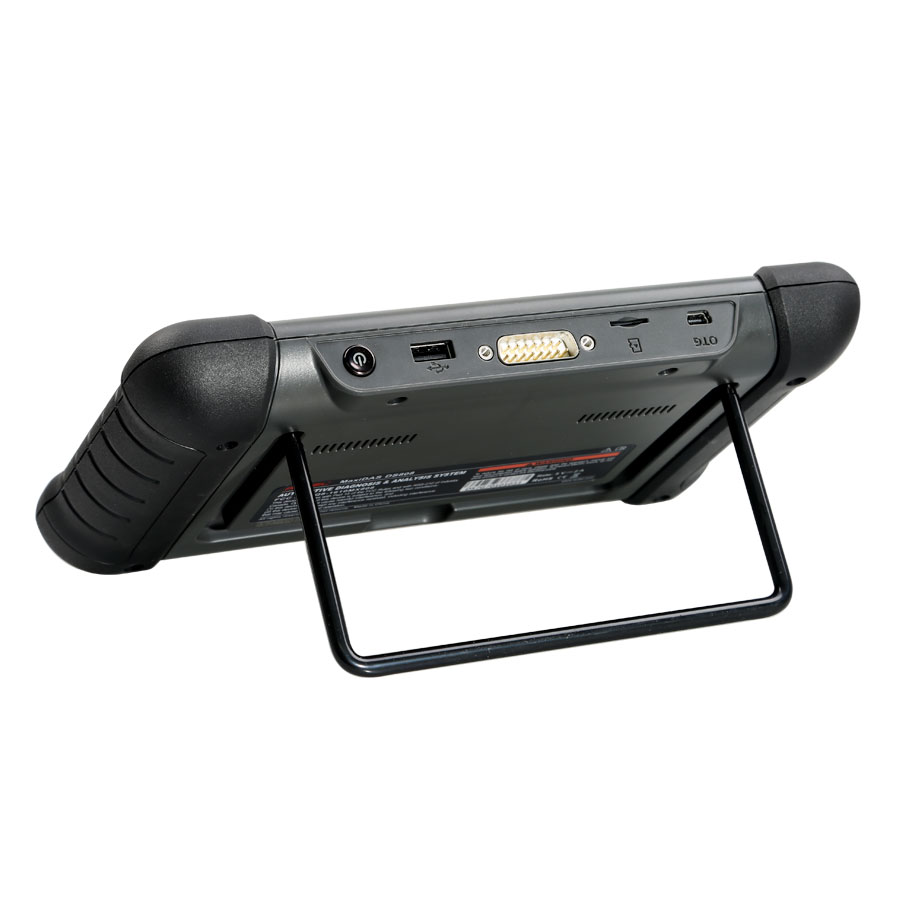

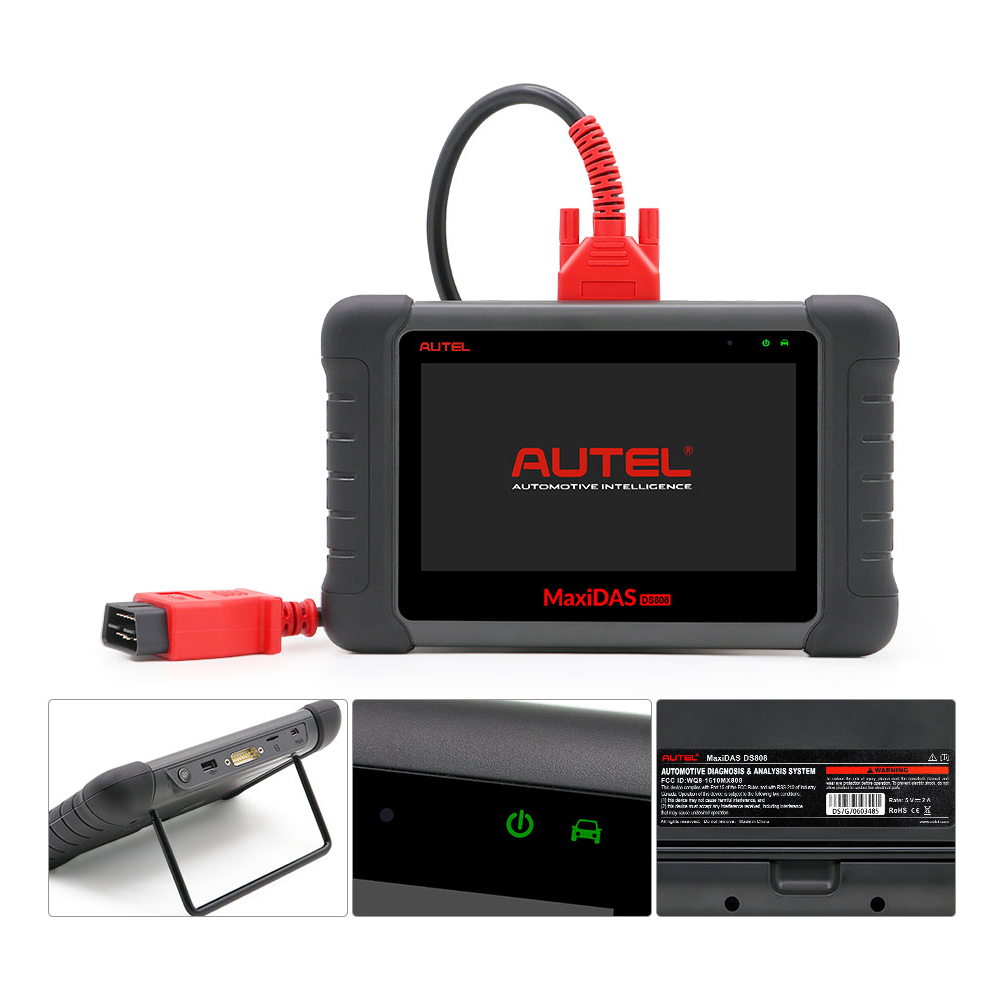

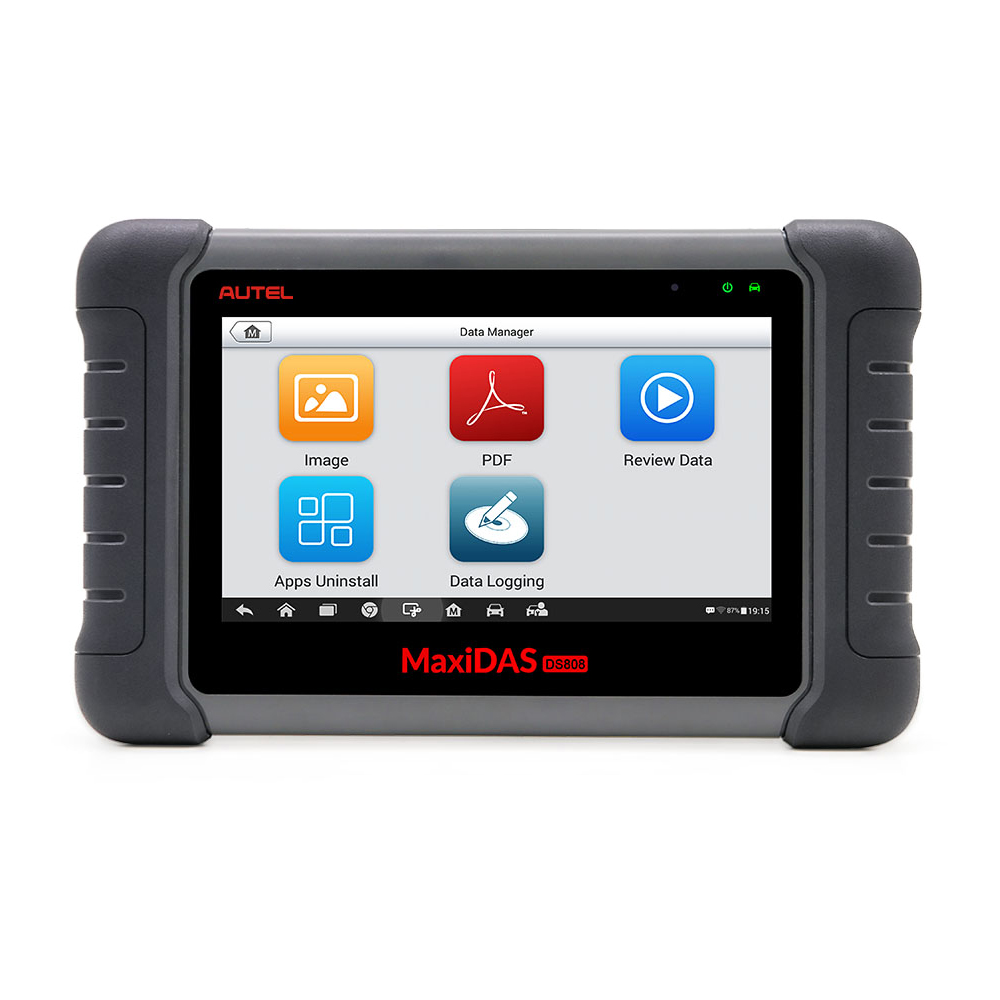

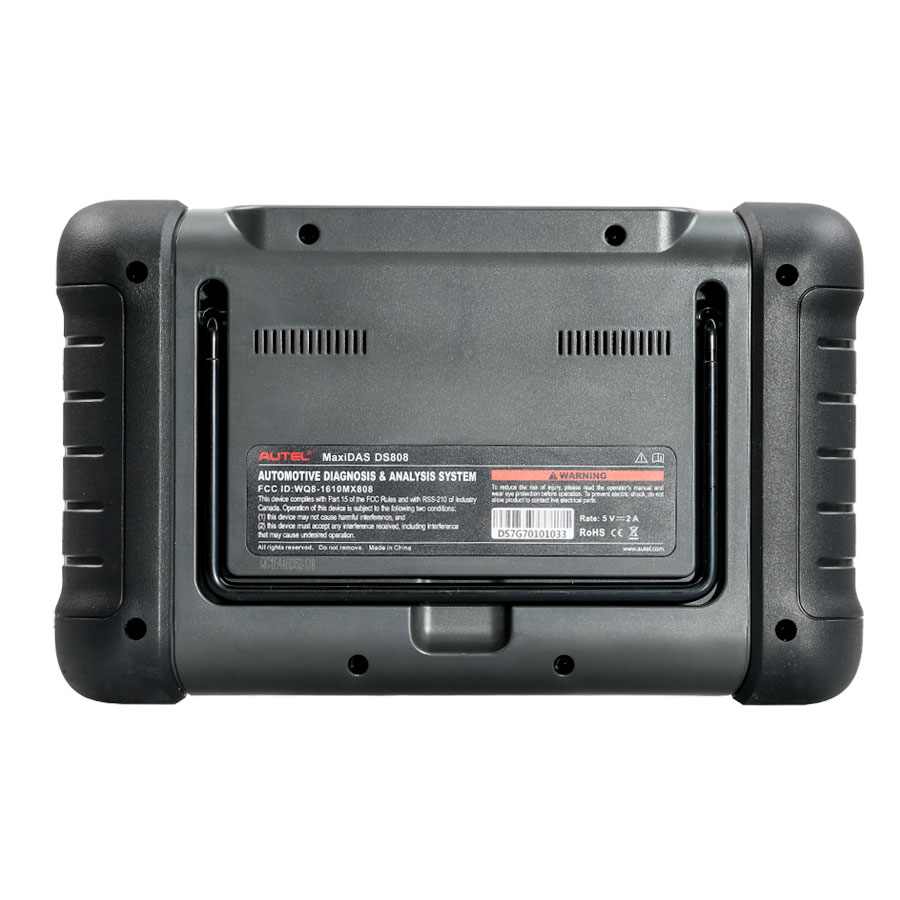

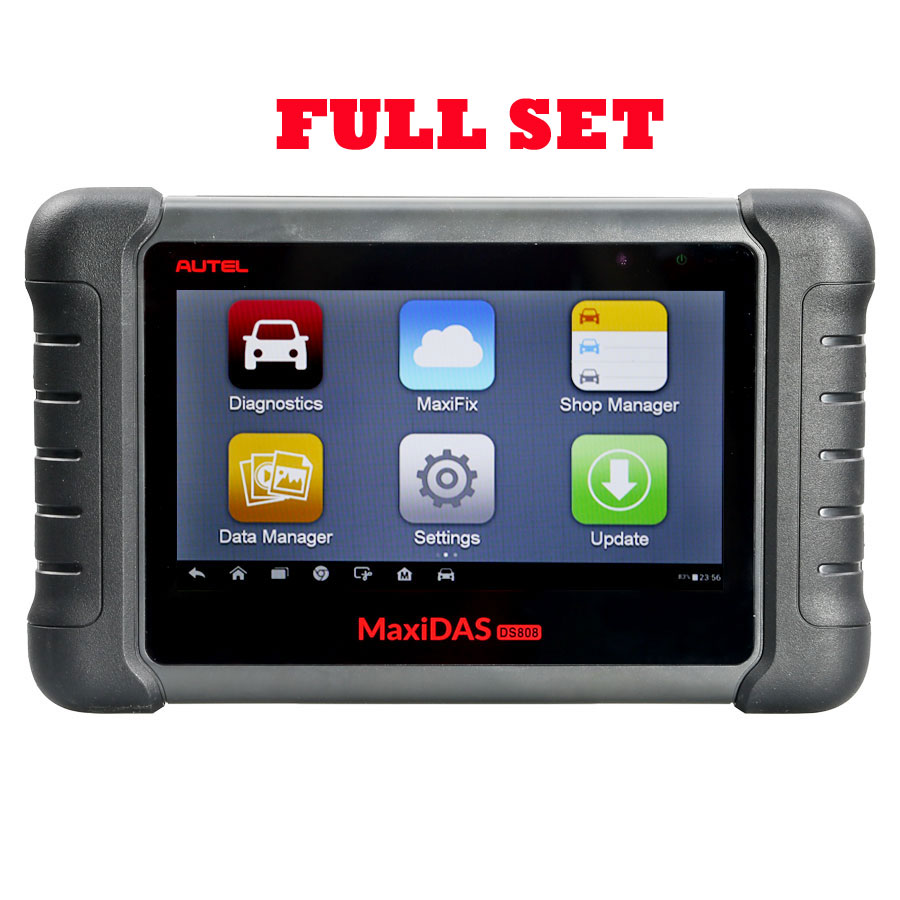

Pictures display :





User Comment(Total 21 Customer Reviews)

  • by MOHAMMED BABELLY,Mar 17,2018

    Hey guys.What is the different with DS808?

    Reply #1 by Cara Mar 17,2018
    This DS808K is includes the whole DS808 Set but also the Full Connect Kit for DS808 with Completed OBDI Adapters/Connectors , thank you

    Cara


  • by Edgar,Mar 02,2018

    Will this ds808k can recalibrate SAS?

    Reply #1 by Cara Mar 02,2018
    Yes , it support , thank you

    Cara


  • by U Sevce Mateje ,Feb 08,2018

    can this program keys and key fob(remote part) on a 1999 vw new beetle 2.0liter gas engine?

    Reply #1 by Cara Feb 08,2018
    Sorry , this tool cant support it , you can choose our autel MS908 pro , thank you

    Cara


  • by Mhike Sakadzo ,Feb 10,2018

    Best scanner for the money!

    Reply #1 by Cara Feb 10,2018
    Thanks for your support for our products

    Cara


  • by Sarah B.,Jan 02,2018

    What is the different with DS808?

    Reply #1 by CNAUTOTOOL Jan 02,2018
    This DS808K is includes the whole DS808 Set but also the Full Connect Kit for DS808 with Completed OBDI Adapters/Connectors , thank you

    CNAUTOTOOL


  • by imre nagy,Dec 22,2017

    Will this ds808k can recalibrate SAS?

    Reply #1 by CNAUTOTOOL Dec 22,2017
    Yes, DS808 kit can recalibrate SAS, also offer many other functions,such as Oil Service Reset,TPMS Relearn,EPB,ABS ,SRS and so on. thank you

    CNAUTOTOOL


  • by Margarita Lara ,Nov 10,2017

    I run my own vehicle remapping business and in order to provide the highest quality service possible, I needed a high quality diagnostic tool I have settled for the Autel DS808 and have no regrets. This is an outstanding tool and you will struggle to find better in terms of value and features.

    Reply #1 by CNAUTOTOOL Nov 10,2017
    Thanks for your support for our products

    CNAUTOTOOL


  • by Hari Sundaresh ,Oct 19,2017

    can this program new TPMS to a 2011 toyot prius

    Reply #1 by CNAUTOTOOL Oct 19,2017
    Sorry , it cant support it , thank you

    CNAUTOTOOL


  • by Kathleen ,Aug 31,2017

    can you use this do program new keys ?

    Reply #1 by CnAutotool Aug 31,2017
    yes , you can reparogram keys with this tester , thank you

    CnAutotool


  • by Jamal Y. ,Aug 29,2017

    can it do a power balance on a ford 2006 f350 diesel ?

    Reply #1 by CnAutotool Aug 29,2017
    Yes , this can support it , thank you

    CnAutotool
