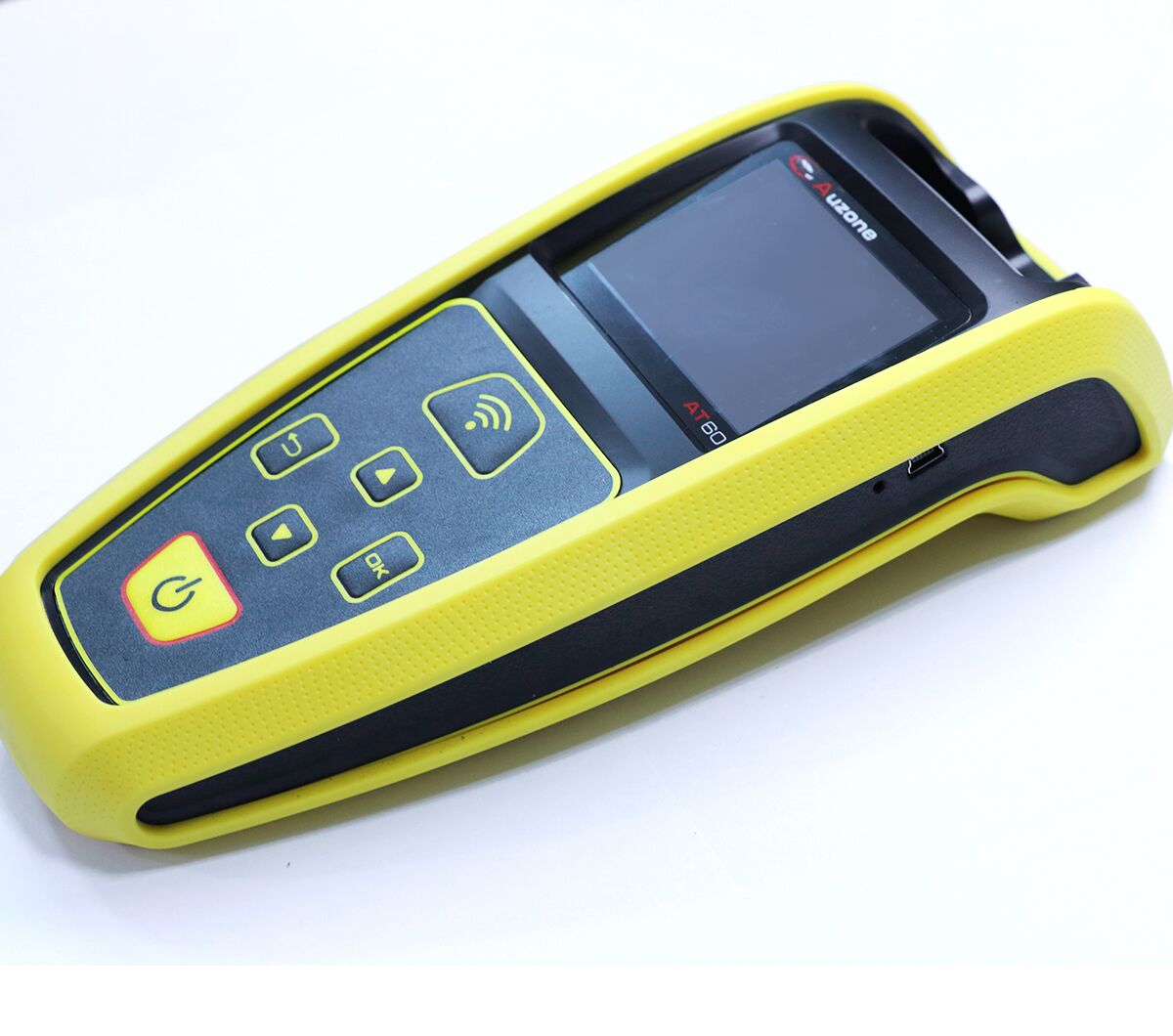

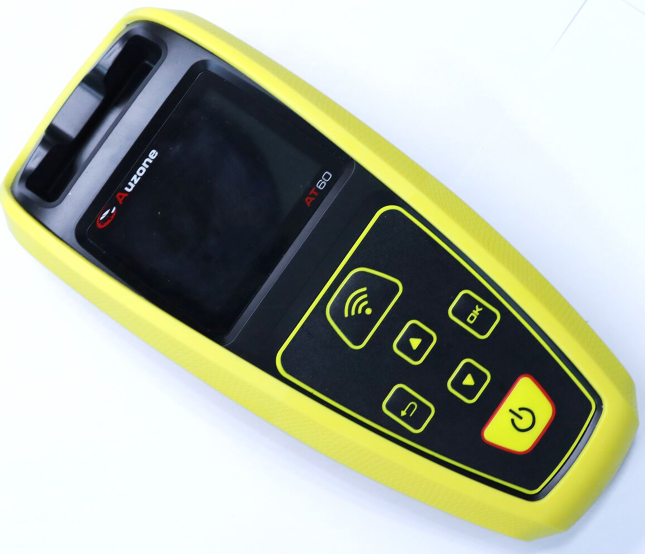

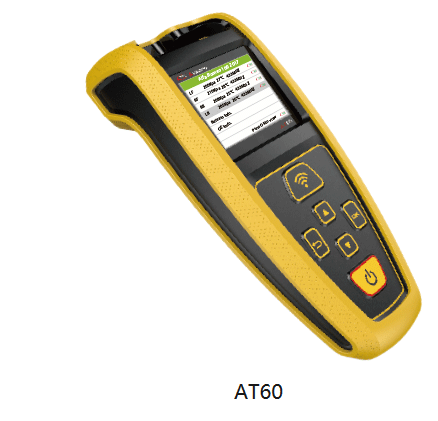

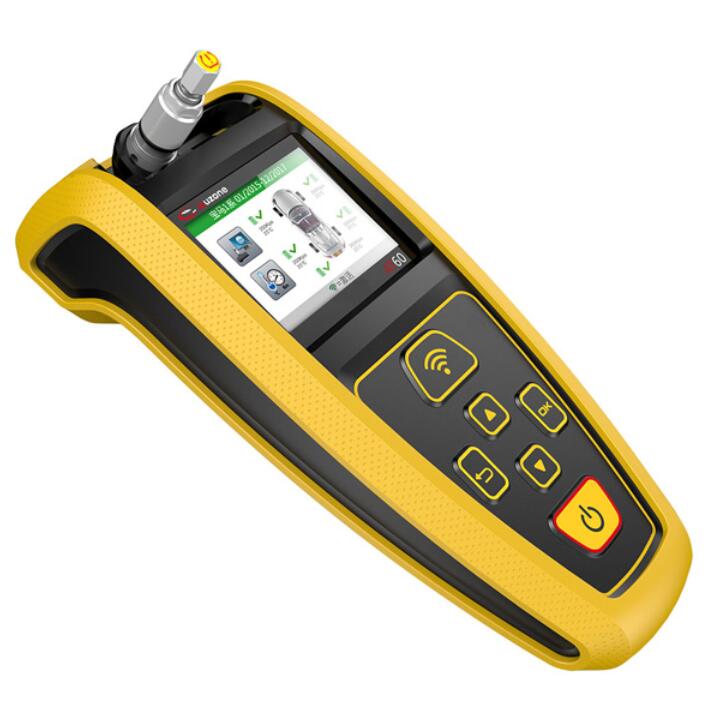

AT60 TPMS OBDII diagnostic tool

AT60 TPMS OBDII diagnostic tool

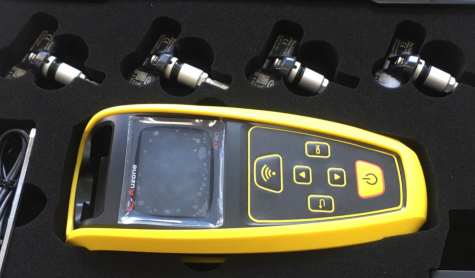

AT60 TPMS tool which can read data from most original and third-party sensors. It can also upgrade the Pro-Sensor wirelessly, and the upgraded sensor can replace the original sensor. The product is simple in operation and friendly in interface, and includes the TPMS Re-learning Operation Guide. It is widely used in garages and tire shops.



1.Features
1）.Smooth appearance and ergonomic design

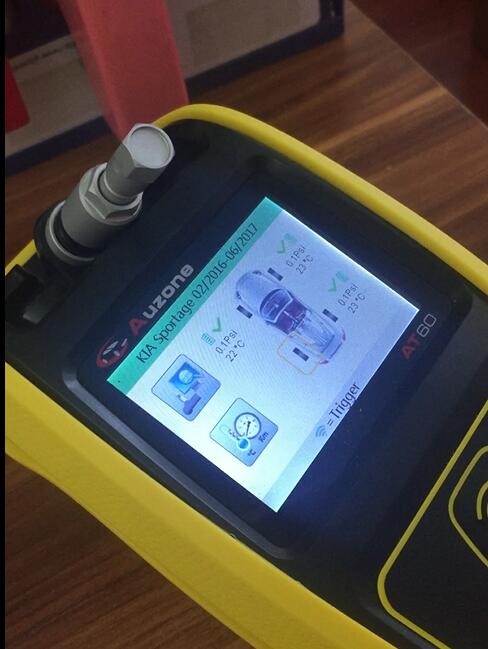

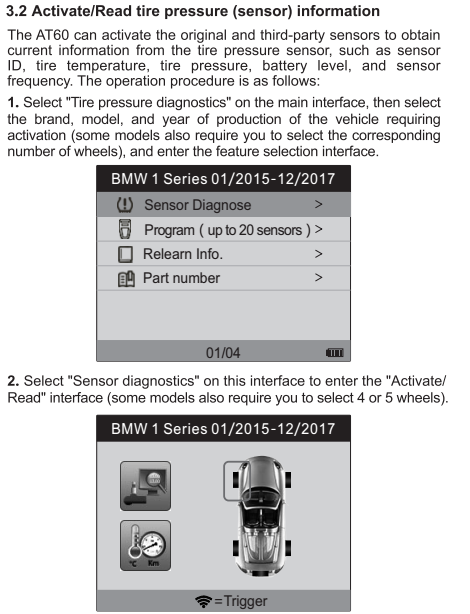

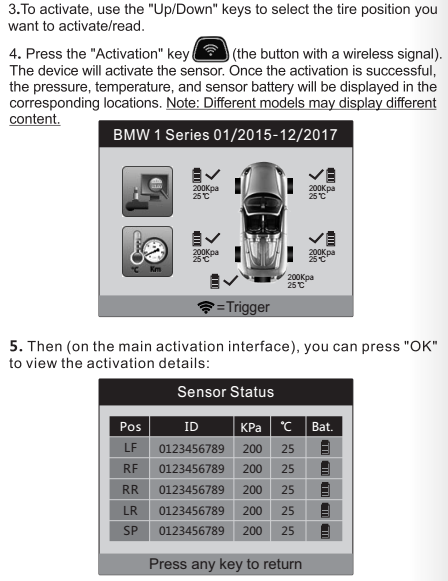

2）.Activation of various types of sensors and visual display of tire temperature, pressure, power and other information

3）.Multilingual support and switching to suit your needs

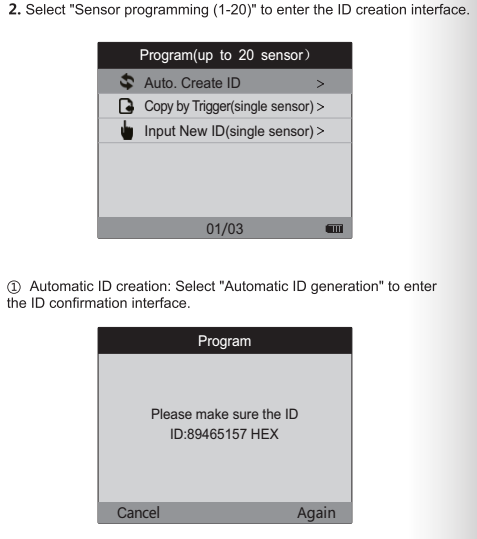

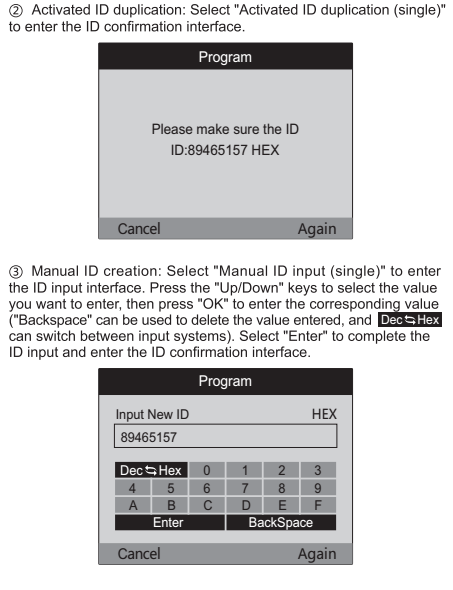

4）.Multiple ID generation modes: Manual copy, auto copy, and auto generation

5）.USB upgrade services for extended support of more updated models

6）.A variety of special functions to meet individual customer needs

7）.Multi-sensor programming: Meets the customer's heavy demand for a certain car sensor within a short period of time, significantly improving work efficiency

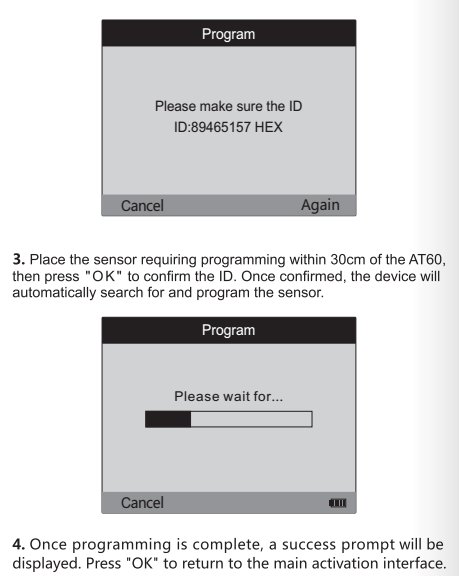

8）.Vehicle programming: Four tire sensors can be programmed at once, simplifying operations

9）.Sensor reading: Sensor information can be read quickly and accurately

10）.ID modification: The ID can be quickly modified without the need for reprogramming

11）.Modification of sensor location: Tools to help modify sensor location on tires, eradicating the hassle of re-disassembly



2.Specifications

1）.Display：TFT 2.8 inch (320 x 240 dpi)

2）.Battery：3.7V 3000mAh Li-polymer

3）.Operating temperature：0 to 50°C (32 to 122 °F)

4）.Storage temperature：-20 to 70°C (-4 to 158 °F)

5）.Dimensions：224.7mm(8.85")\94.5mm(3.72")\58.8mm(2.31")

6）.Weight：0.29kg (0.64lb)

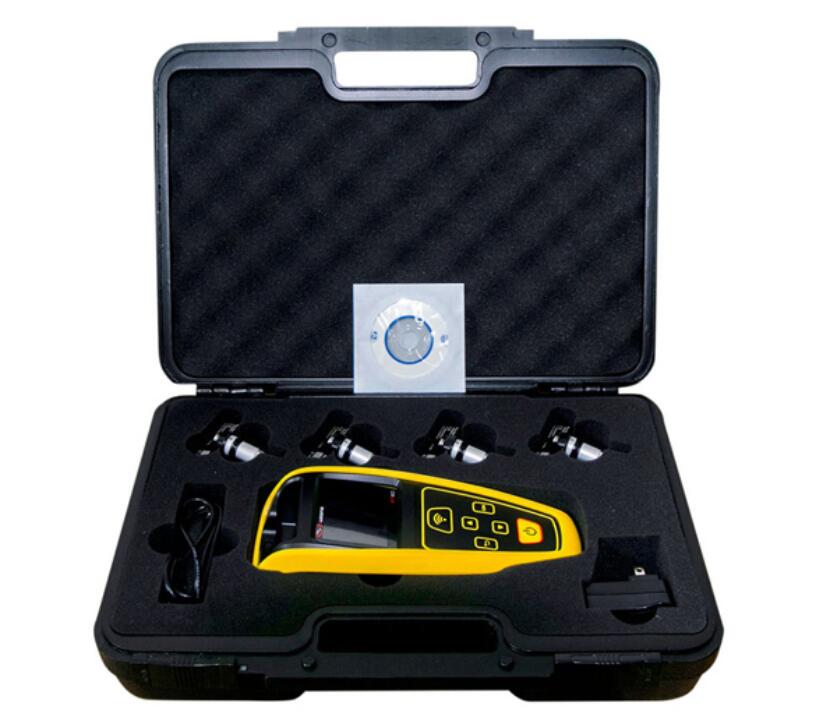

Option 1 (without Pro-Sensor):
Package including:
1pc x AT60 TPMS OBDII diagnostic tool

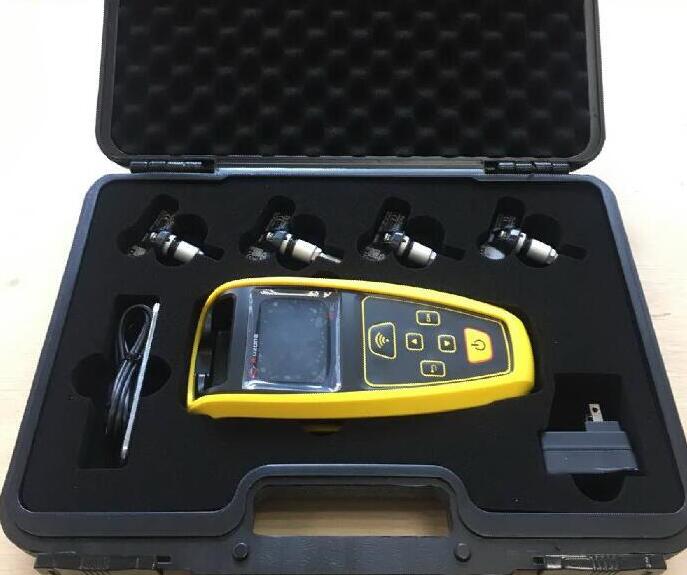

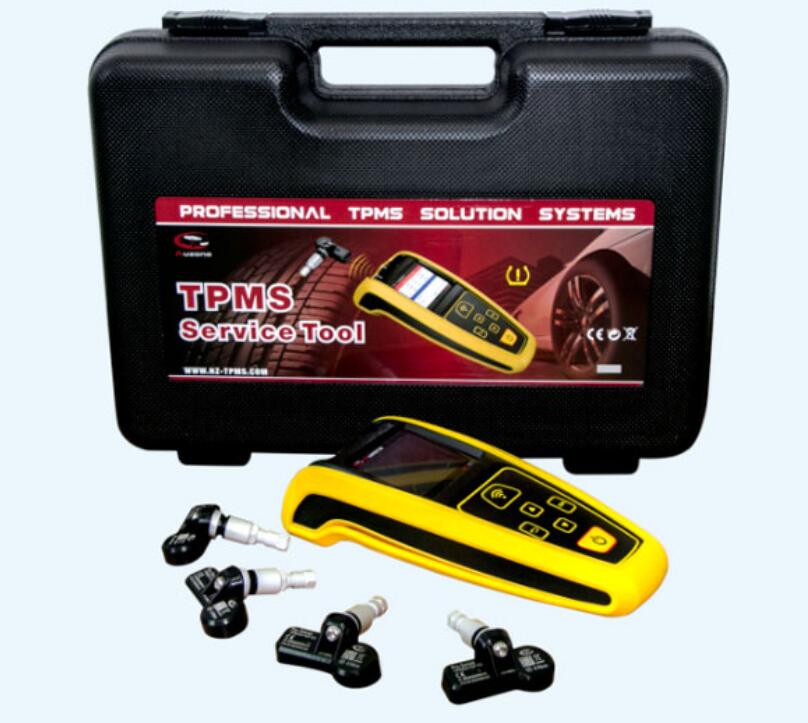

Option 2 (with 433MHz Pro-Sensor):
Package including:
1pc x AT60 TPMS OBDII diagnostic tool

4pc x 433MHz Pro-Sensor



Option 3 (with 315MHz Pro-Sensor):
Package including:
1pc x AT60 TPMS OBDII diagnostic tool

4pc x 315MHz Pro-Sensor
