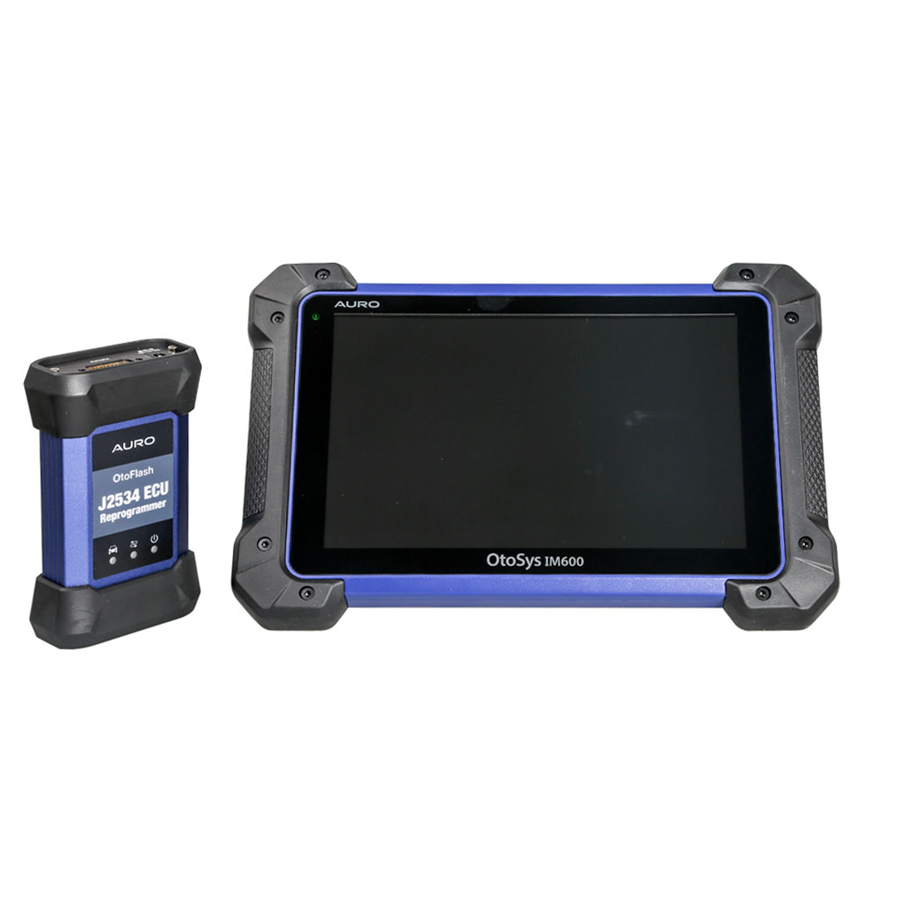

Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online
Auro OtoSys IM600 not produced any more , Autel MaxiIM IM608 instead of it .

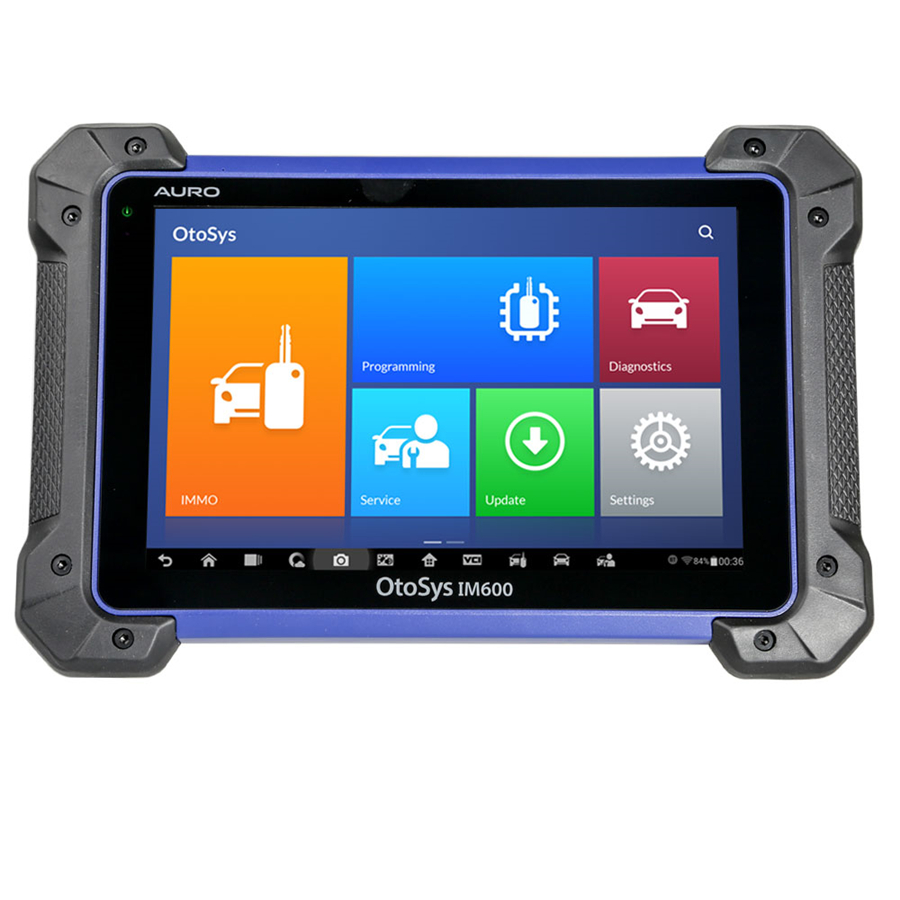

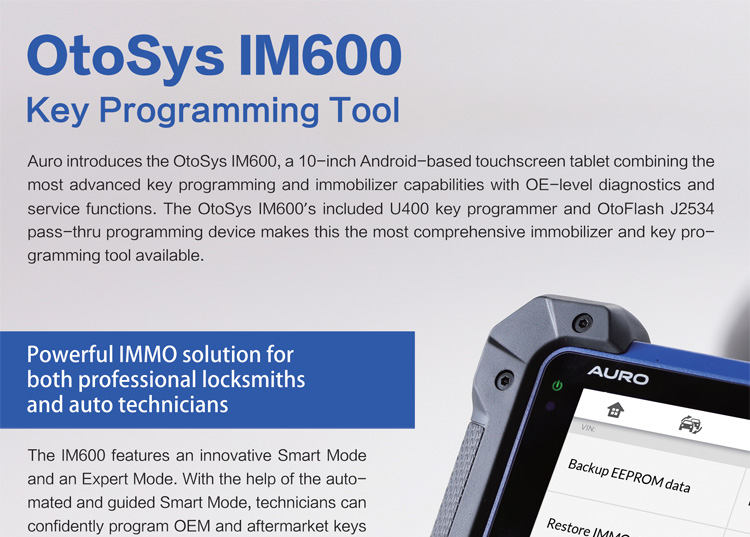

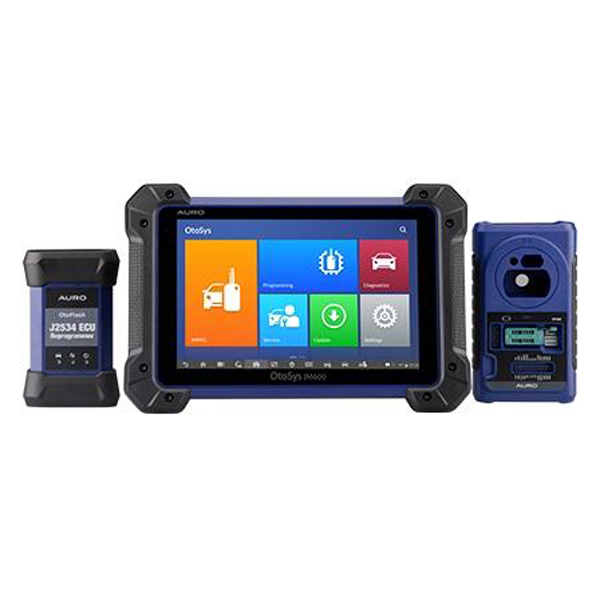

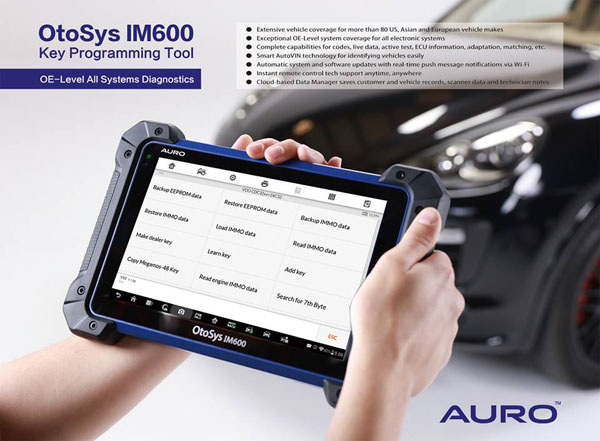

Auro presents the OtoSys IM600 as the most advanced and smart key programming tool that combines the most powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet. With the included key programmer UP400, OtoSys IM600 is destined to be the unprecedented key programming tool that you ever wanted!
Auro OtoSys IM600 Featurs :

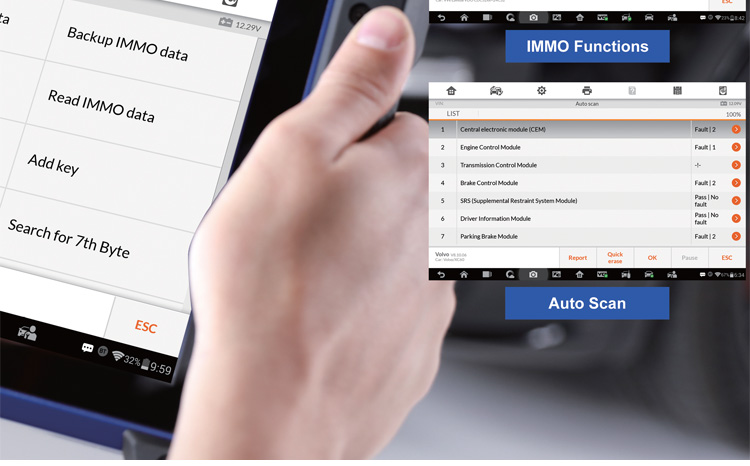

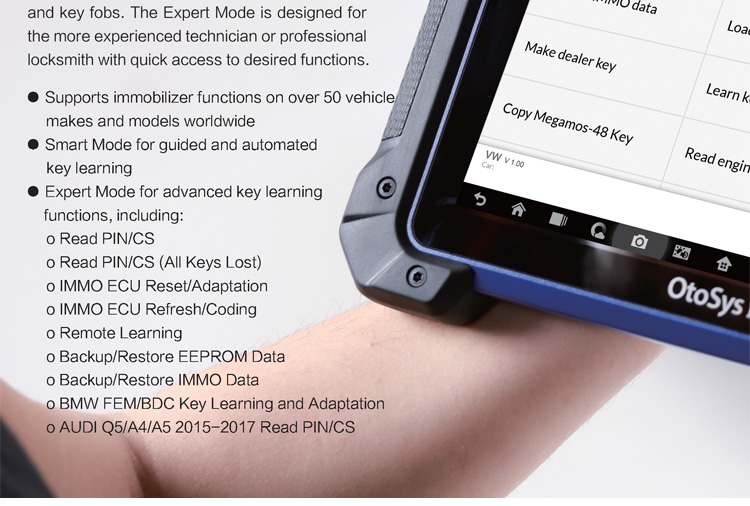

1. Support IMMO functions for over 60 worldwide makes and models.

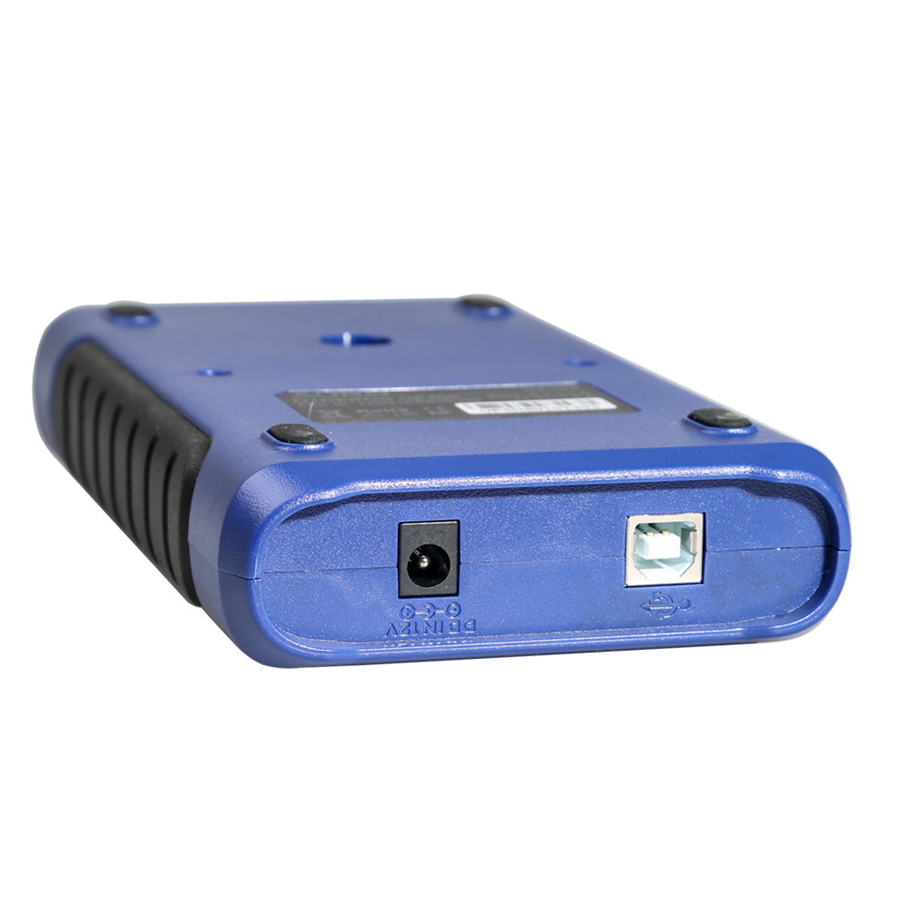

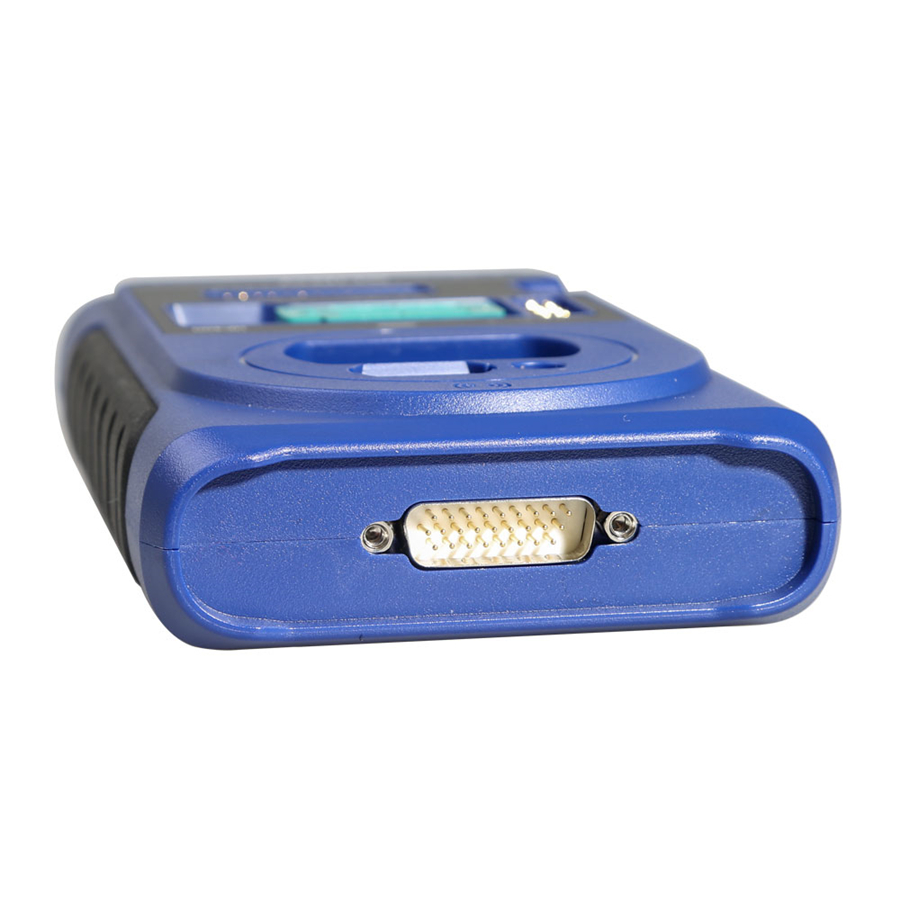

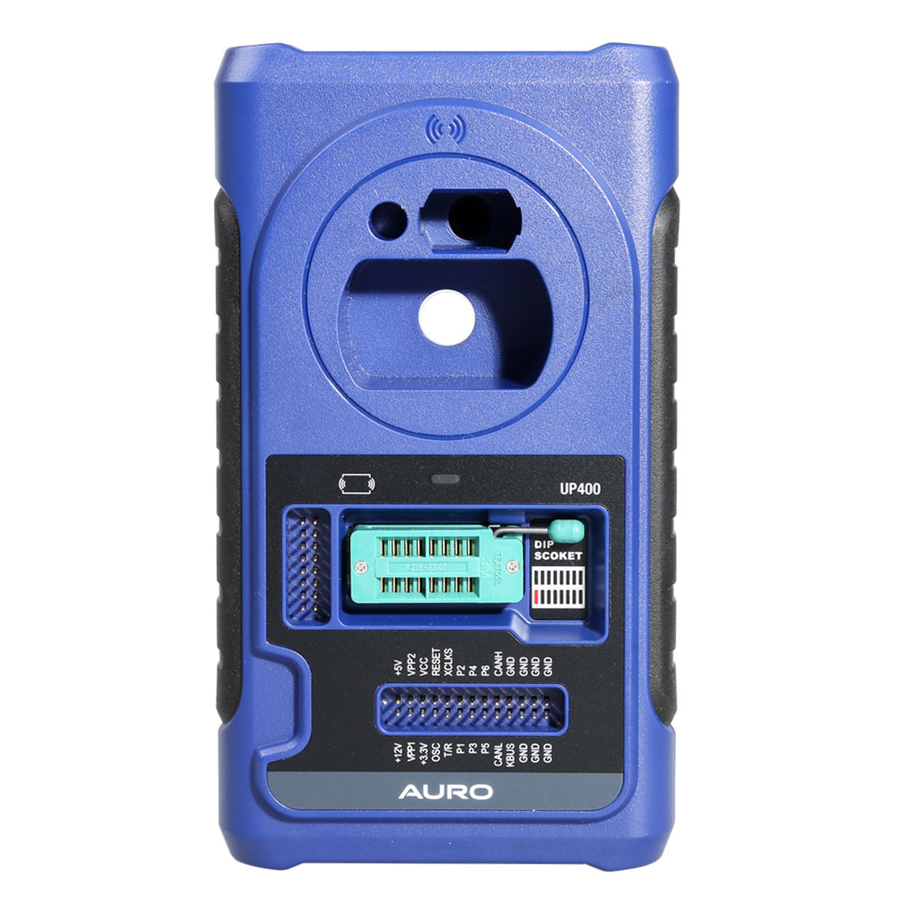

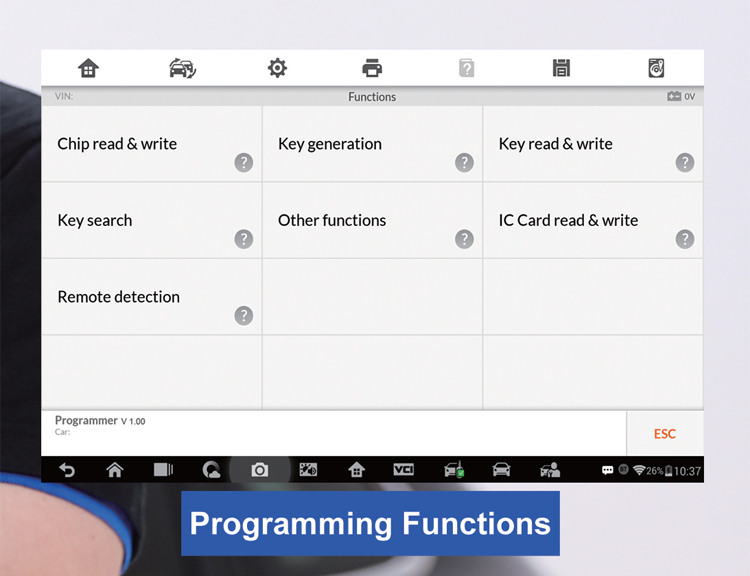

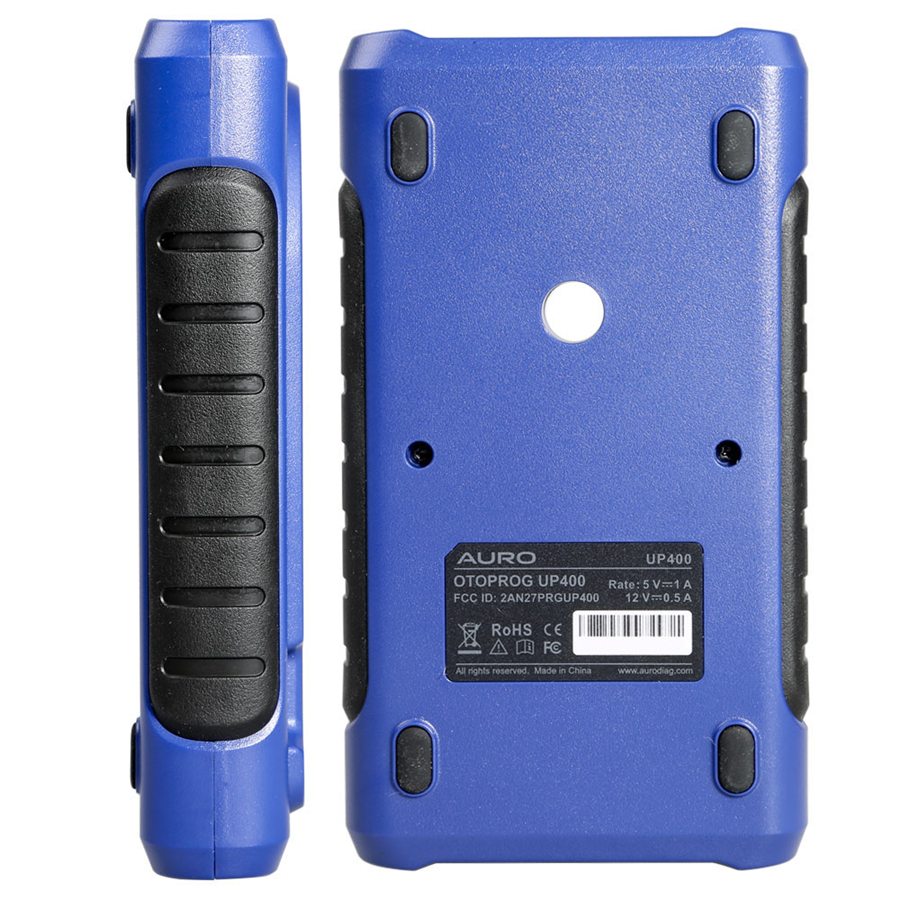

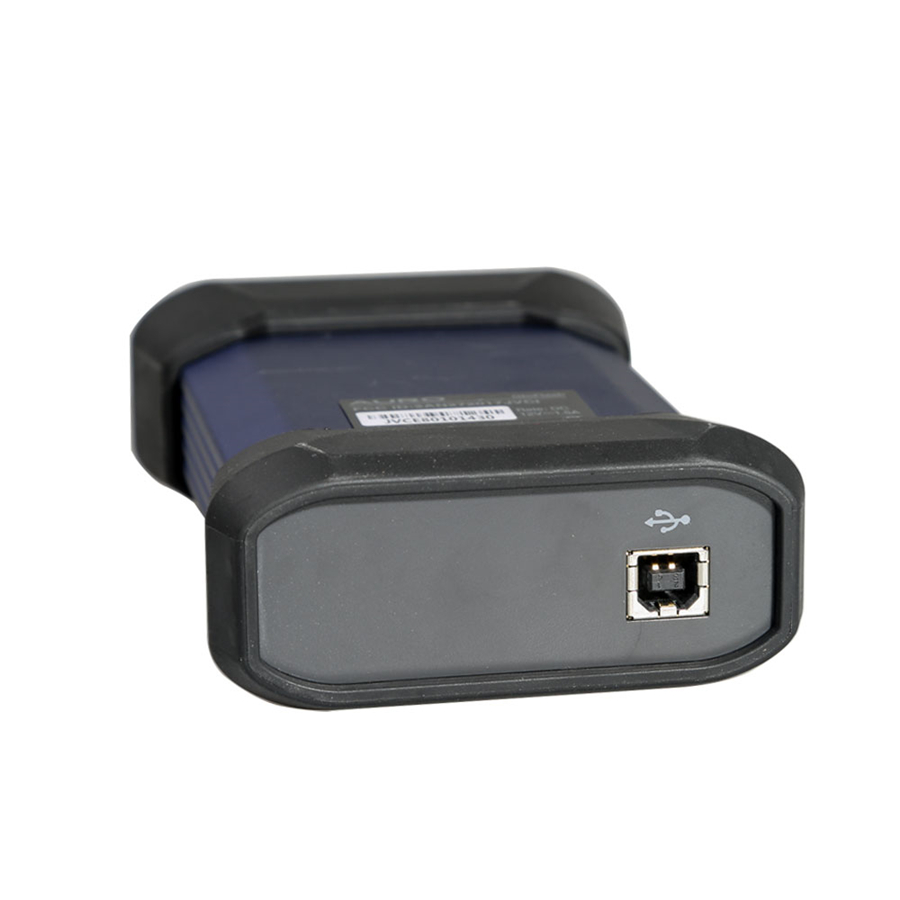

2. Equipped with UP400 to support PIN/CS read, transponder read/write/identification, MCU/EEPROM chip read/write and IMMO ECU3. Reset/Adaption.

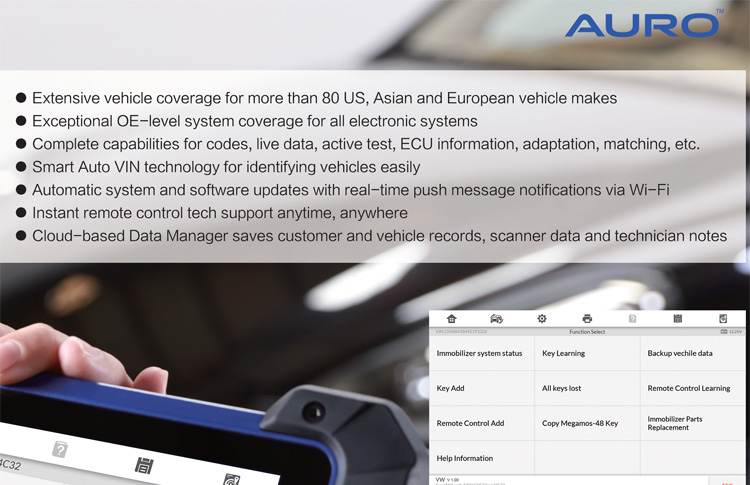

4. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.
5. Complete capabilities for codes, live data, actuation tests, adaptations.
6. Displays live data in text, graph, analog and digital gauge for easy data review and analysis.
7. Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.

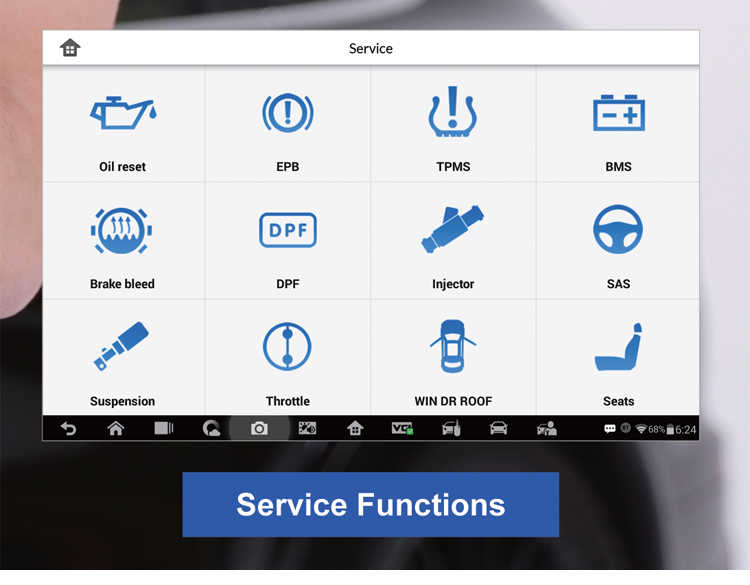

8. Quick access for more than twelve common service functions including Oil reset, EPB, DPF, BMS, SAS, TPMS and more.
9. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
10. Remote technical support for convenient demonstration, training and increased customer satisfaction.
11. Print out recorded data anytime and anywhere with Wi-Fi technology.

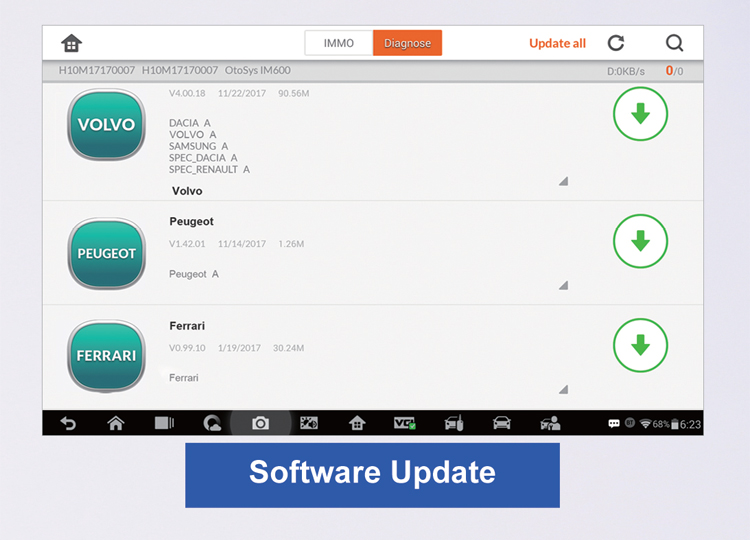

12. Automatic Wi-Fi updates available in new software releases.
Auro OtoSys IM600 Specifications :
Operating System
Android™ 4.4.2, KitKat
Processor
Samsung Exynos hex-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory
2GB RAM & 64GB On-board Memory
Display
10.1-inch LED capacitive touch screen with 1920x1200 resolution

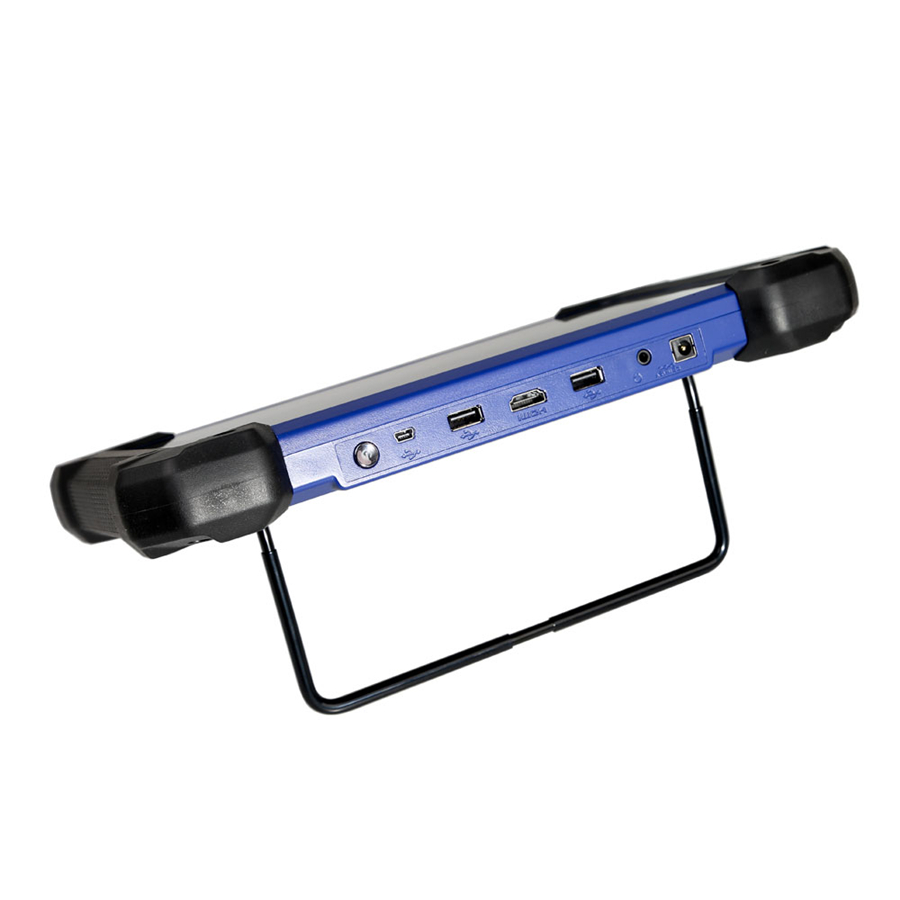

Connectivity
Wi-Fi (802.11 a/b/g/n/ac)
USB 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMICamera (rear)
8.0 Megapixel, AF with Flashlight
Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio input/output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jackPower and Battery
15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°CInput Voltage
12 V (9-24 V)
Power Consumption
6.5 W
Operating Temp.
0 to 50°C (32 to 122°F)
Storage Temp.
-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)
300 mm (11.81”) x 220.0 mm (8.66”) x 50.0 mm (1.97”)
Weight
NW: 1.42 kg (3.13 lb.)
GW: 8.655 kg (19.08 lb.)Protocols
ISO9141-2, ISO14230-2,ISO15765-4, K/L-Line,
Flashing Code,SAE-J1850 VPW, SAE-J1850PWM,
CAN ISO11898, Highspeed, Middlespeed,
Lowspeed and Singlewire CAN,GM UART,UART
Echo Byte Protocol,Honda Diag-H Protocol, TP2.0,
TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN
Comparison of Auro OtoSys IM100 and Auro OtoSys IM600 :
NOTE: √ This function is supported. × This function is not supported.Special Declaration:
Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release
OtoSys IM100

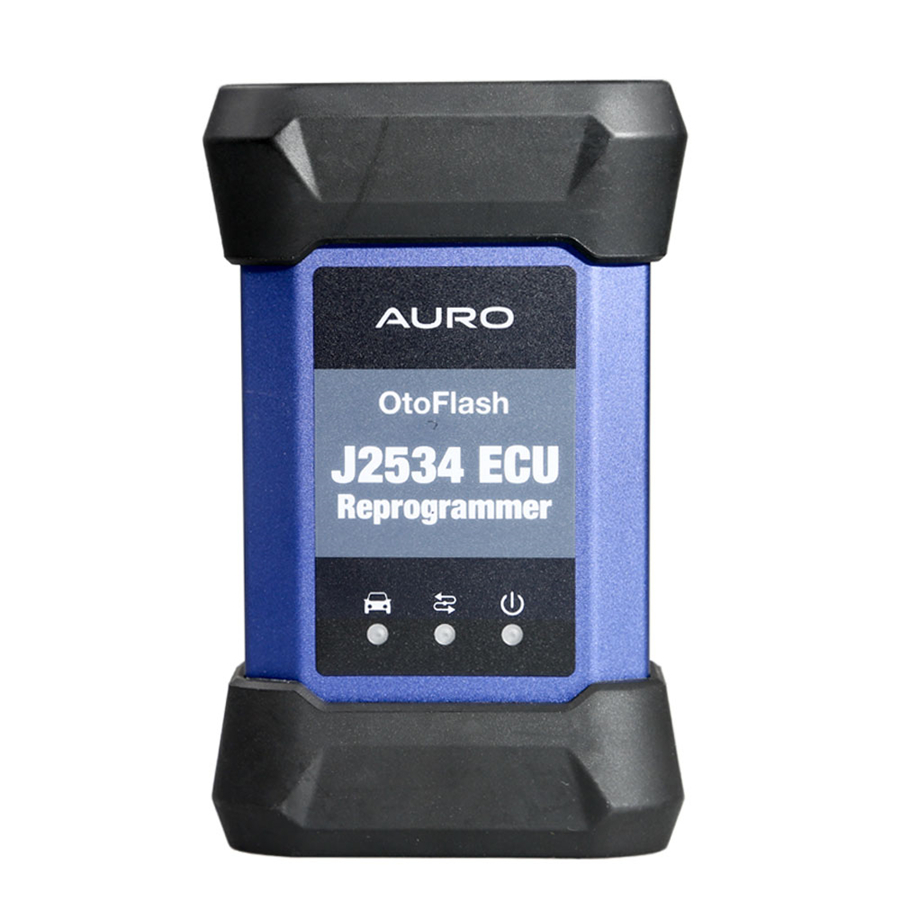

OtoSys IM600 IMMO Smart Mode (Guided and Automated Key Learning Function) √ √ Auto Detect Make/Model/Year/System √ √ Read PIN/CS √ √ Read PIN/CS (All Keys Lost) √ √ Key Learning √ √ IMMO ECU Reset/Adaption √ √ IMMO ECU Refresh/Coding √ √ Remote Learning √ √ AUDI Q5/A4/A5 2015-2017 Read PIN/CS × √ BMW FEM/BDC Key Learning and Adaption √ √ Mercedes Key Learning × √ Programming EEPROM Read/Write √ √ MCU Read/Write Basic Advanced Key Programming √ √ IC Card Read/Write × √ Mercedes Infrared Key Read/Write × √ Remote Frequency Detect × √ OE-Level Diagnostics All Systems for Over 80 Makes and Models √ √ OtoFlash (J2534 ECU Reprogrammer) × √ Advanced Service Functions Oil Serive Reset √ √ Parking Brake Pad Relearn After Replacement √ √ Steering Angle Sensor Relearn √ √ Battery Registration and Reset √ √ Diesel Particulate Filter Regeneration √ √ Tire Pressure Monitoring System √ √ ECU Coding × √ VW/Audi Component Protection × √ Complete Service Functions × √ Tool Features Built-in Rechargeable Li-ion Battery 5000 mAh 15000 mAh Internet Updatable Wi-Fi Wi-Fi Multilingual Support √ √ Limited One Year Warranty √ √ Touchscreen 7-inch 10.1-inch Memory 32 GB 64 GB Processor Quad-core processor Hexa-core processor Camera × 8.0 Megapixel Resolution 1024x600 1920x1200

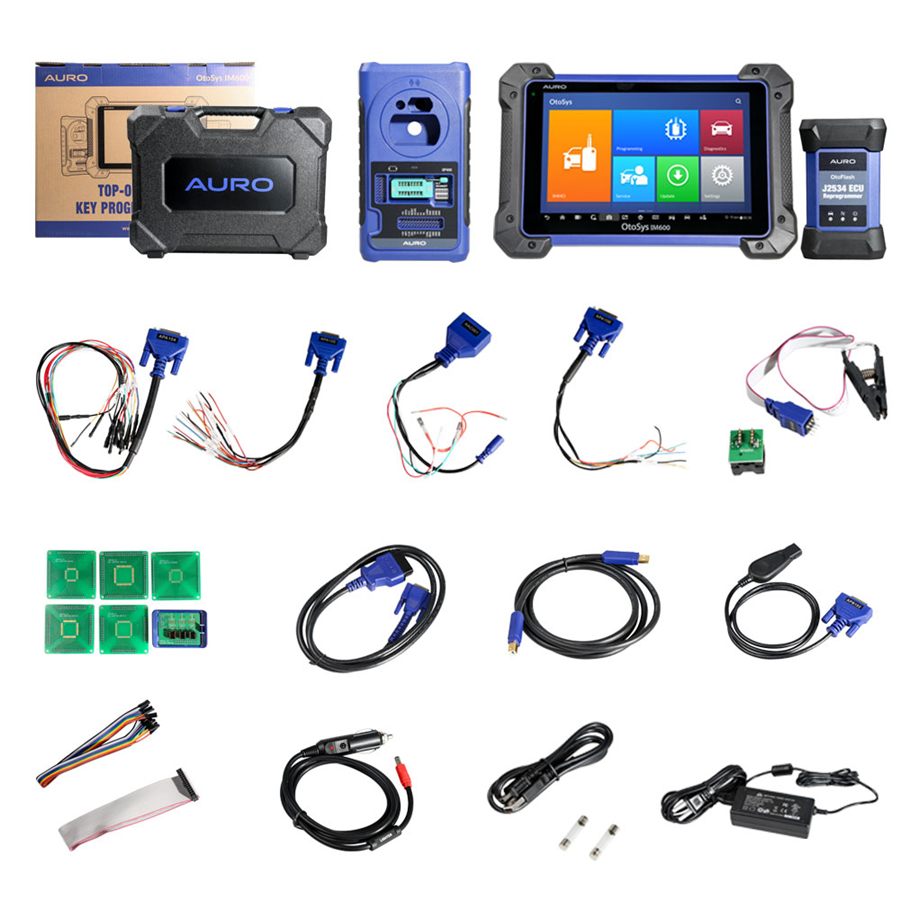

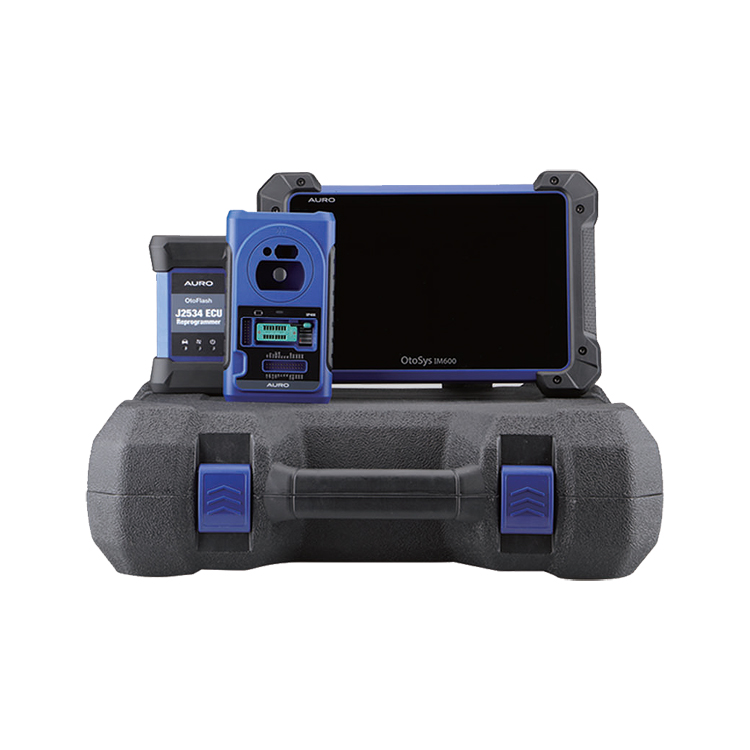

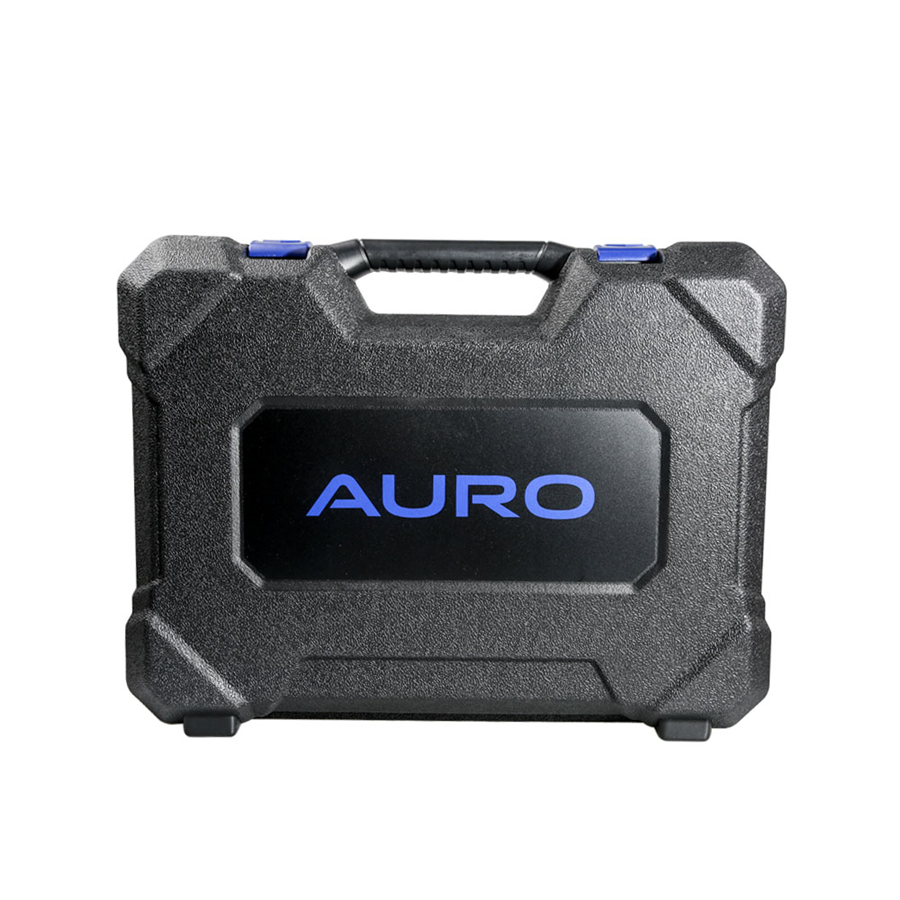

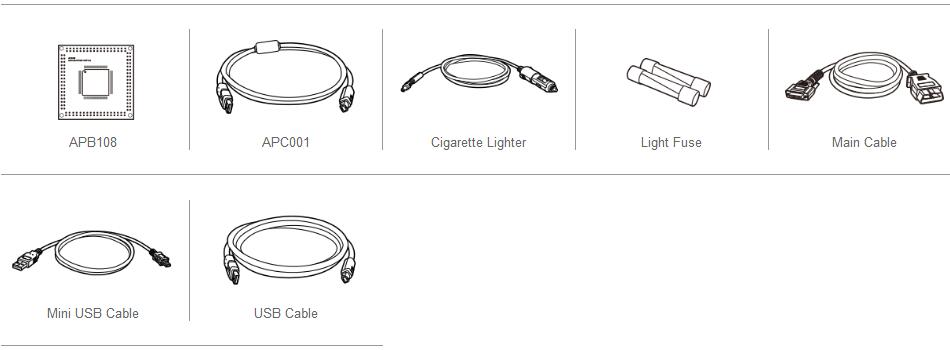

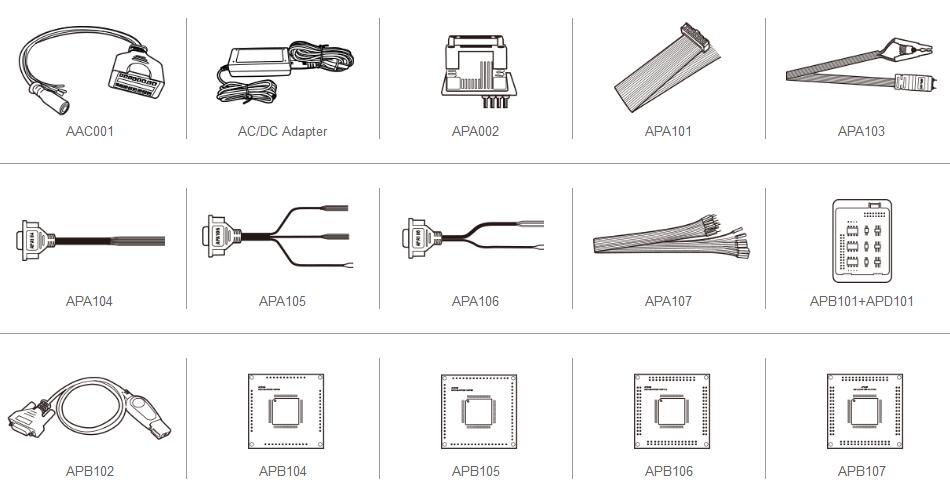

Auro OtoSys IM600 Package :
1pc x OtoSys IM600 main unit
1pc x Main cable
1pc x USB External Power Adaptor
1pc x Mini USB Cable
1pc x AAC001 Adapter
1pc x APA002 Adapter
1pc x AC/DC Adapter
1pc x APA101 Adapter
1pc x APA103 Adapter
1pc x APA104 Adapter
1pc x APA105 Adapter
1pc x APA106 Adapter
1pc x APA107 Adapter
1pc x APB101+APD101 Adapter
1pc x APB102 Adapter
1pc x APB104 Adapter
1pc x APB105 Adapter
1pc x APB106 Adapter
1pc x APB107 Adapter
1pc x APB108 Adapter
1pc x APC001 Adapter
1pc x Cigarette Lighter
1pc x Light Fuse
User Comment(Total 6 Customer Reviews)
CnAutotool.com - Professional Auto Diagnostic Tools Supplier. We provides car diagnostics tools for Do-It-Yourself and professional automotive mechanics. If you have any problems, don't hesitate to contact us, send email to sale@cnautotool.com or chat online. We are well organized by a group of rich-experienced design experts who have been engaging in auto diagnostic tools for more than 10 years. FREE, Professional & Unlimited Technical Support, Factory Price!
Please feel free to contact us ,If you have any question:
Shipping Terms: a 1) Items will be sent to all the countries over the world.This package will be sent by Hongkong Airmail Post,EMS,UPS or DHL. b 2) Items will be checked carefully before sent out. c 3) We will use air bubbles to wrap the items carefully.
Shipping Time: Usually the shipping time is about 5-7 days via DHL, UPS, TNT and Fedex Express, 15-30 days via POST AIR to Worldwide, but Because the COVID-19 Global Pandemic recently, the delivery date will may be delayed. We are sincerely sorry to bring all inconvenience to you.Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding
Return Policies:
If you are not satisfied with your purchase .please contact us quickly, we can exchange one to you,but buyers is responsible for the returning shiping cost .
Contact Us:
Our office hours are 24hours 7 days online service
Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!) |
Join our community: |
 |
 |
 |
 |
 |
can I have the same function of BMW in ACDP if I have an Im600?
Reply #1 by Cara Oct 06,2018
IM600 for BMW FEM/ BDC only, not for CAS and EWS , thank you
Cara
do you have this instock now ?
Reply #1 by Cara Sep 19,2018
Sorry , out of stock need time prepare , thank you
Cara
Does the IM600 support add key Toyota G and H chip & all keys lost ?
Does the IM 600 provide Benz IMMO?
Reply #1 by Cara Aug 20,2018
It will update in near future , thank you
Cara
I just purchased Im600 but I dt know may be I still need Pin Code Caculator, such as ICC or CWP?
Reply #1 by Cara Aug 12,2018
Hello , it does not pull pin codes.thank you
Cara
Very good device too much work on just one device
Reply #1 by Cara Jul 07,2018
Yes , it with strong functions, thank you
