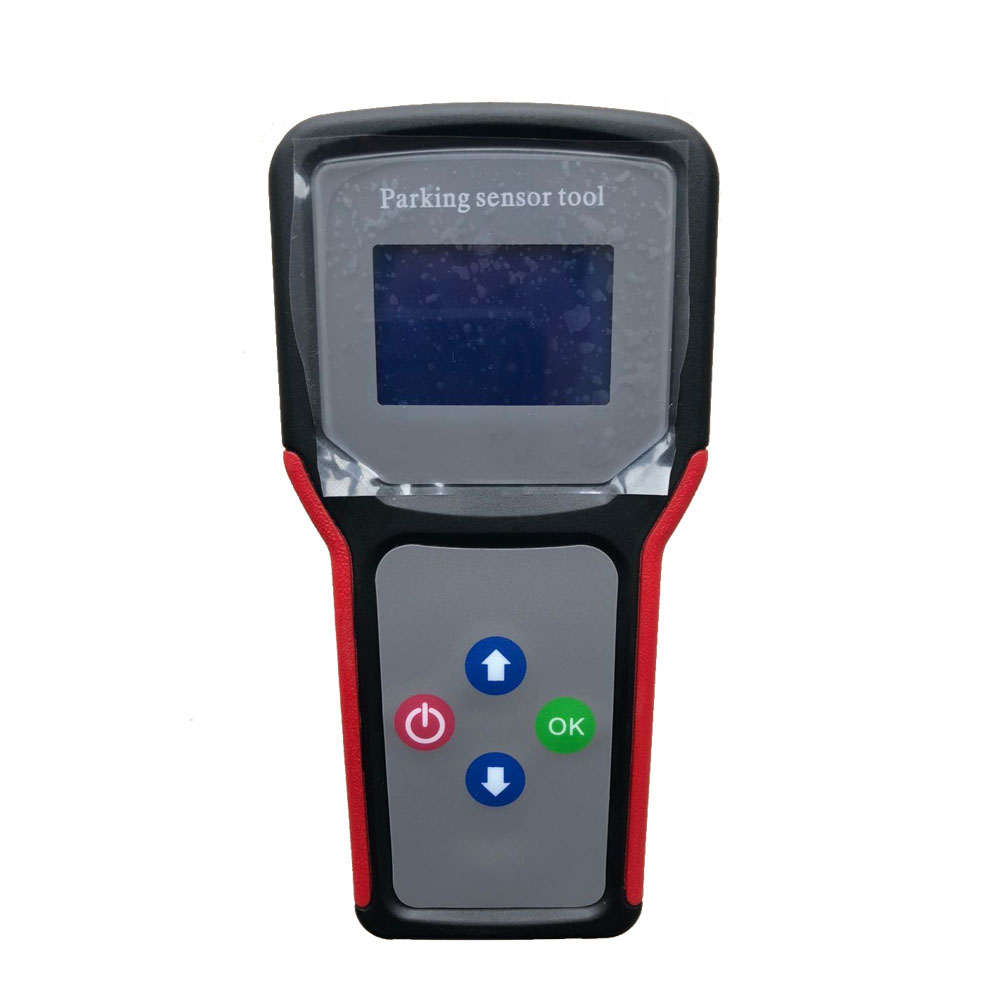

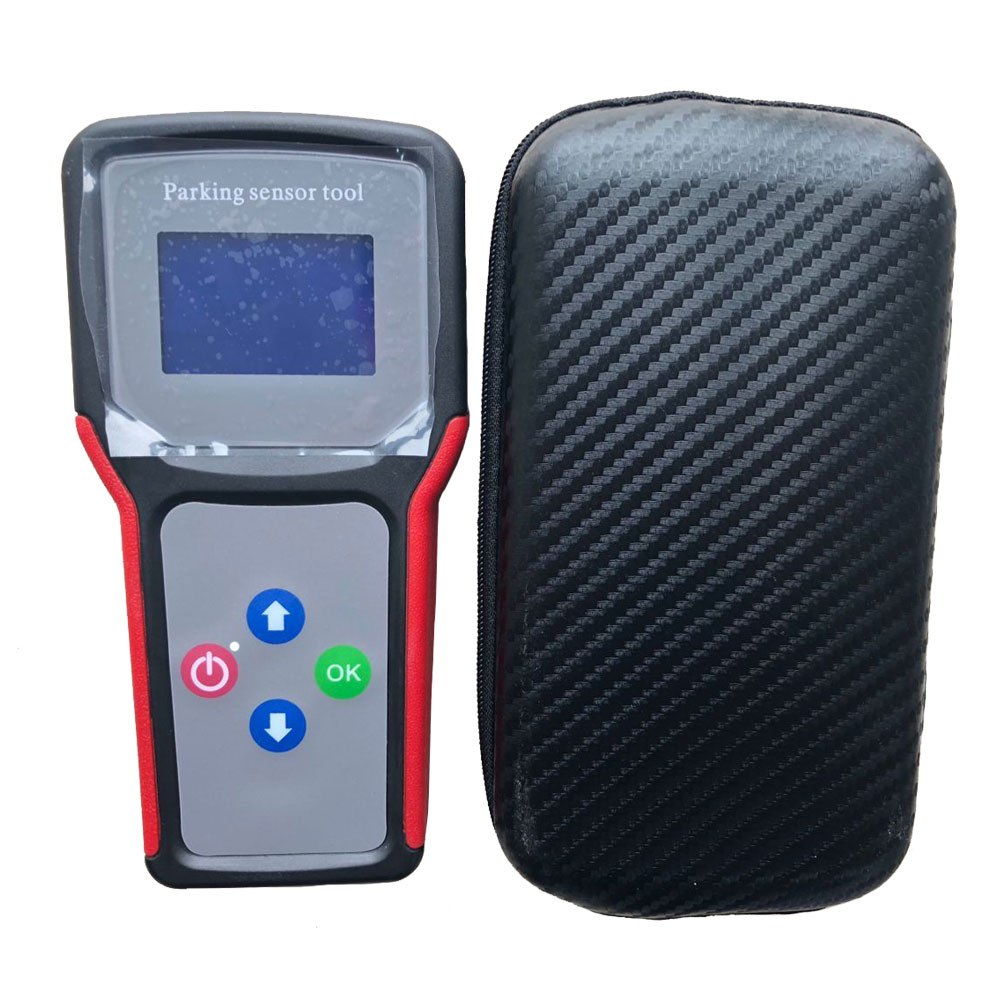

Radar Detector Parking Sensor tool for Car Radar



The PARKING SENSOR TOOL has been designed to give a visual indication of the output signals of parking sensors using ultrasonic sensors on a range of vehicles.




Many parking sensor systems now fitted to the latest vehicles require the engine running and the car in reverse gear. In addition to this the vehicles that have a parking assist will shut down if there is a problem and diagnostics of the sensors requires 2 people to check. The PARKING SENSOR TOOL with its extended pick lead allows a single person

to operate the vehicle safely and test the sensors while in the drivers seat.



This makes the PARKING SENSOR TOOL both a time saving product, but also ensures the system can be tested safely and easily by the workshop technician.

The internal wide frequency range microphone covers the typical ultrasonic automotive range of 34.8 kHz to 68 kHz. The LCD screen can show the signal as a pulse, an average value in either graph form or as a bar graph or a waveform.

PARKING SENSOR TOOL also has the facility to display the operating frequency of the ultrasonic sensor together with its signal strength.

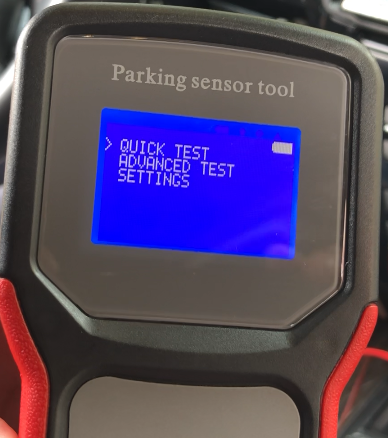

The Quick Test also provides a way to check all the sensors together, and

compare the results to ensure they are all operating within their normal

specifications.

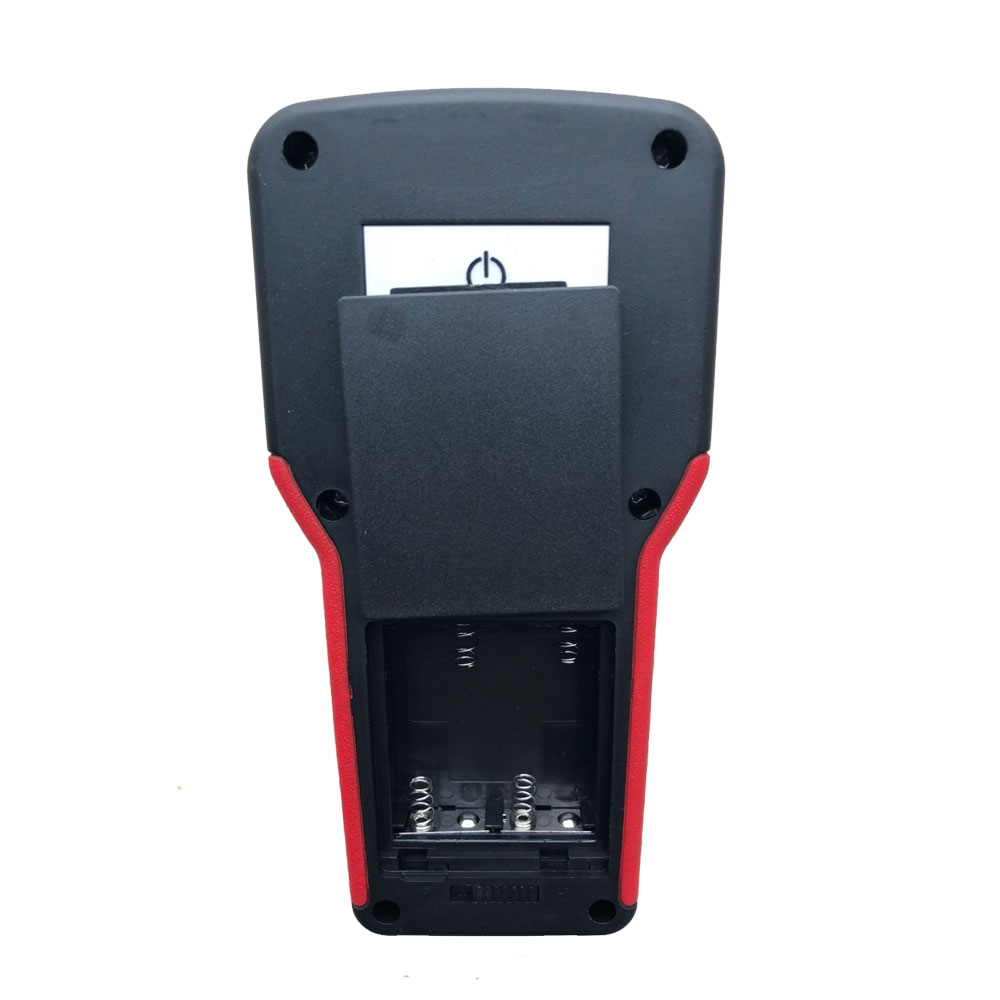

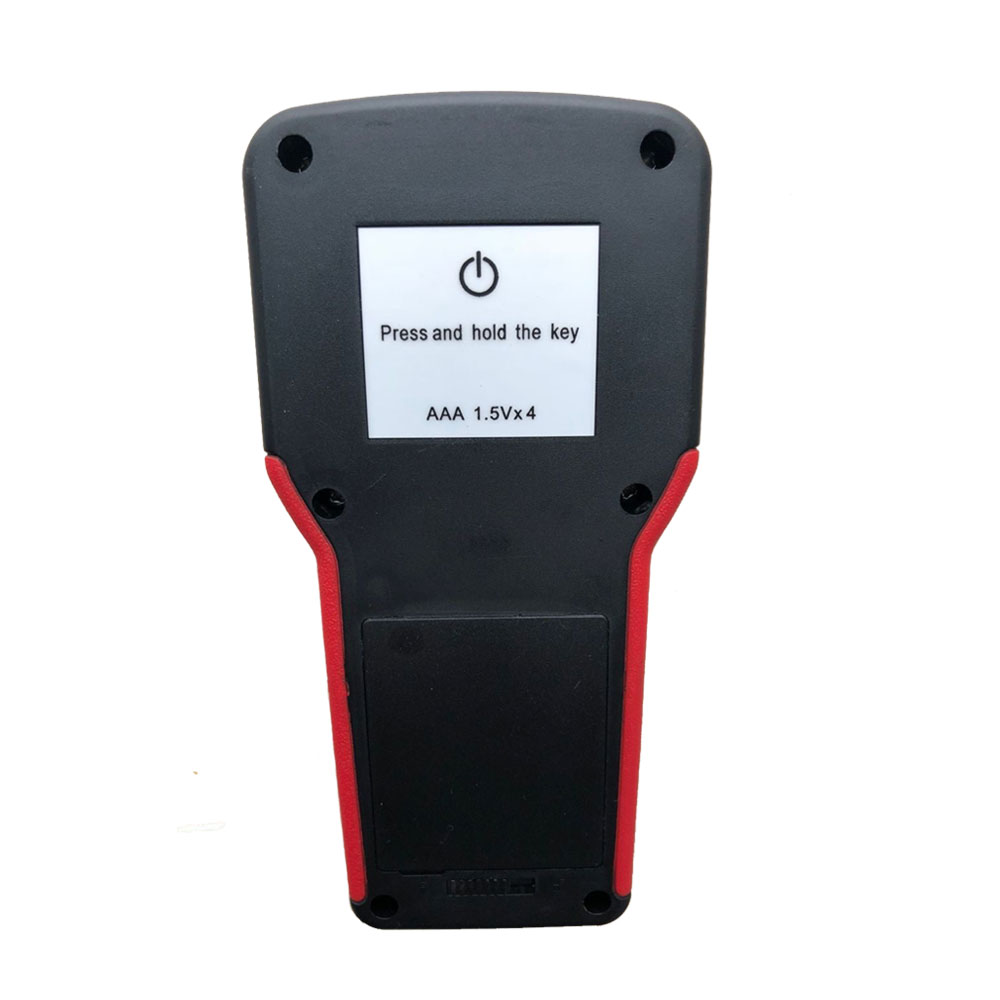

Powered by 4 AAA cells the PARKING SENSOR TOOL has an operational time of over 20 hours of use, and it also includes a low battery warning and programmable auto

switch off time.

LCD SCREEN CONTRAST

SELECT UP/DOWN TO SET

REQUIRED CONTRAST.

VEHICLE TEST - STAND ALONE

VEHICLE TEST - EXTERNAL SENSOR PICK UP

VEHICLE TESTING

SELECT THE REQUIRED

TEST AND POINT THE

PARKING SENSOR TOOL SENSOR PICK UP

TOWARDS THE PARKING

SENSOR

PLACE THE EXTERNAL

SENSOR AS CLOSE TO

THE PARKING SENSOR AS

POSSIBLE. ENSURING THE

PICKUP HOLE IS POINTING

TOWARDS THE SENSOR.

PLEASE NOTE THE INTERNAL AND EXTERNAL SENSOR PICK UPS WILL

PRODUCE SLIGHTLY DIFFERENT RESULTS. PLEASE ENSURE YOU TEST

ALL SENSORS WITH THE SAME SENSOR AND NOT MIX THE INTERNAL AND

EXTERNAL SENSOR TESTS OTHERWISE YOU WILL GET MIXED READINGS. OPERATING VOLTAGE 6 VOLTS

OPERATING CURRENT 50 mA average

POWER CONSUMPTION 300 mW

DETECTION RANGE (FREQUENCY) 30kHz to 70kHz

MICROPHONE RANGE 10Hz to >80kHz

BATTERY 4 x AAA Alkaline or NiMh Rechargeable

OPERATING TEMPERATURE RANGE 0 to 50 degrees C

SIZE 165mm x 80mm x 31mm

WEIGHT 160 grams

FREQUENCY ANALYSER Low range 30kHz to 50kHz

High range 50kHz to 70kHz

Sensitivity adjustment

OSCILLOSCOPE Pulse mode 25uS/div

Sensitivity adjustment

PEAK SCAN Scan time (Full screen) 2 seconds

Sensitivity adjustment

BATTERY LEVEL Visual indicator and audible low battery warning

AUDIO TONE Active in the presence of ultrasonic field and repetition rate

increases with signal strength

AUTO POWER OFF User programmable for 5, 10, 15 mins or none

SPECIFICATION
