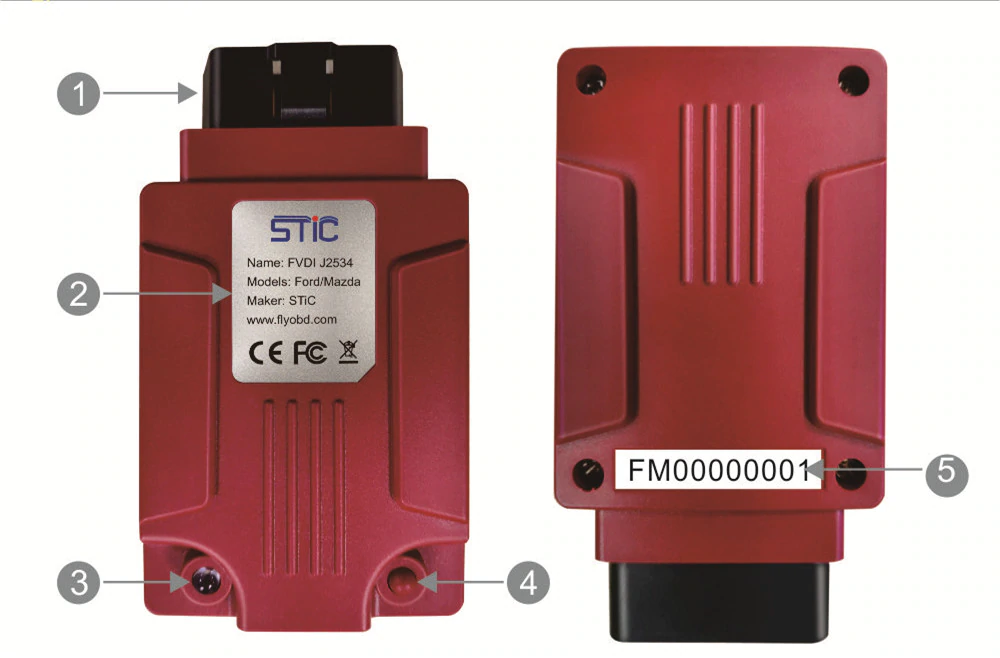

FVDI J2534 Diagnostic Tool for Ford and Mazda better than Vcm2 Vcm 2
FVDI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2. It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software. And it can be used as a ELM327 device also, support most of ELM327 software.
User Manual.pdf

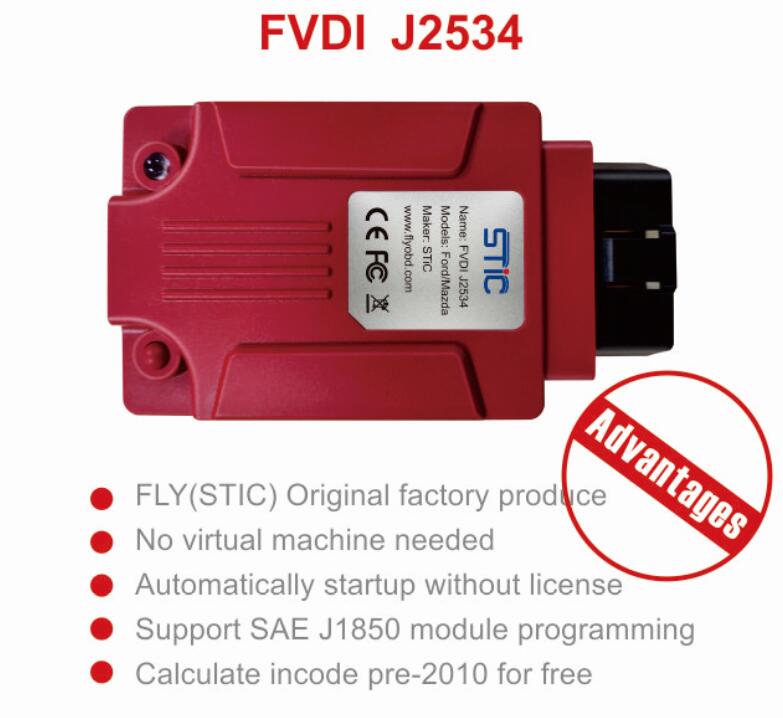

FVDI J2534 Highlights:
a) High speed host communication. (3M bps)
b) Stable host communication. (with RTS/CTS flow control)
c) Automatically register software and no virtual machine needed.
d) Online software update and keep software latest always.
e) Online firmware update.
f) USB/802.11 selectable host communication.
g) Support ELM327 software by one device.
FVDI J2534 Technical specifications
a) Voltage & Current requirements
8~32VDC, 100 mA (max), 0.6 Watts @ 12 VDC
Note: protected against reverse battery polarity
b) Vehicle Protocols
ISO9141
ISO14230
J1850 VPW
J1850 PWM(Ford SCP)
ISO11898 HS(500K BPS)
ISO11898 MS(125K BPS)
ISO15765 HS(500K BPS)
ISO15765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
Honda SCS
Honda DIAGH
KWP1281
J2819(TP2.0)
c) Supported software for J2534
Ford IDS V110
Mazda IDS V108
d) Supported software for ELM327
ELMconfig
Forscan
FOCCCUS
FF2

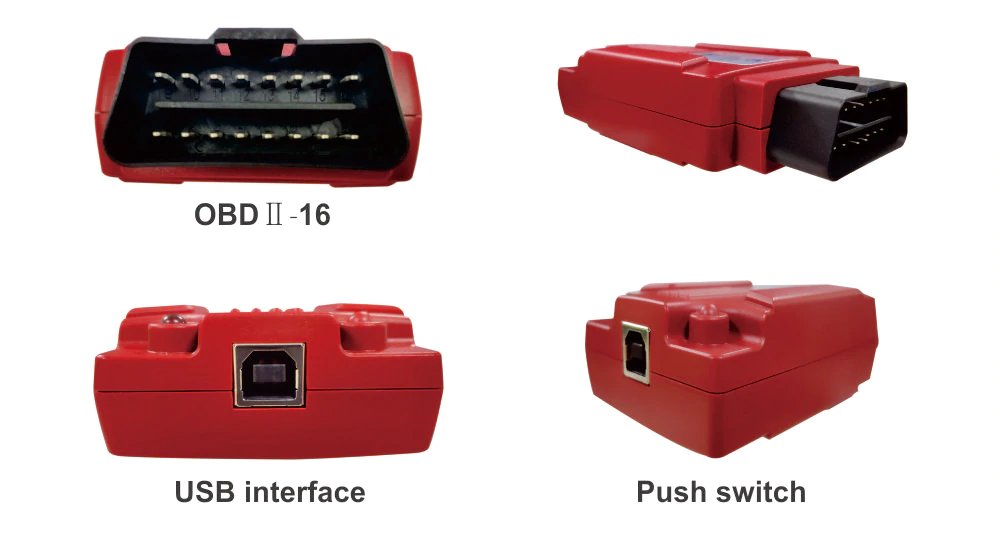

e) Vehicle Connection
Molded DLC3(OBDII-16)

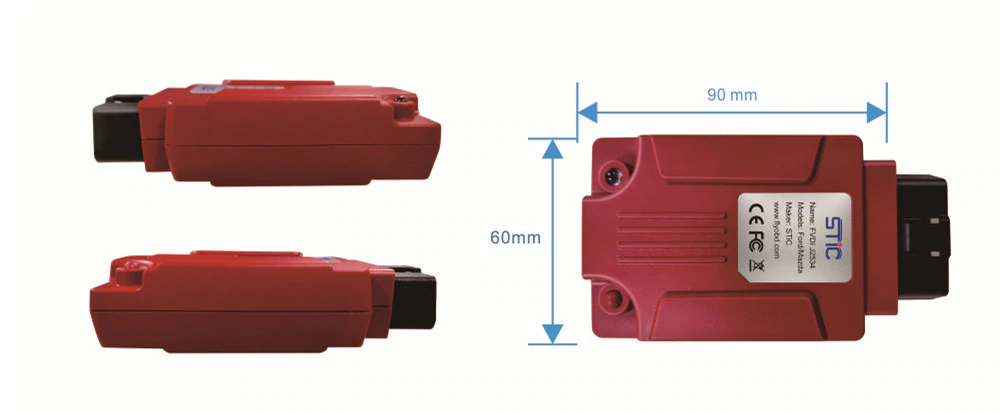

f) Dimensions
H:22mm (0.87in) W:54mm (2.13in) L:76mm (2.99in)
g) Weight 50g (1.76oz)
h) Environmental Operating: -20ºC to 45ºC (-4ºF to 113ºF) at 15% to 85% RH
non-condensing
