V1.5.2 Xhorse Condor DOLPHIN XP005 Automatic Key Cutting Machine English Supports IOS & Android

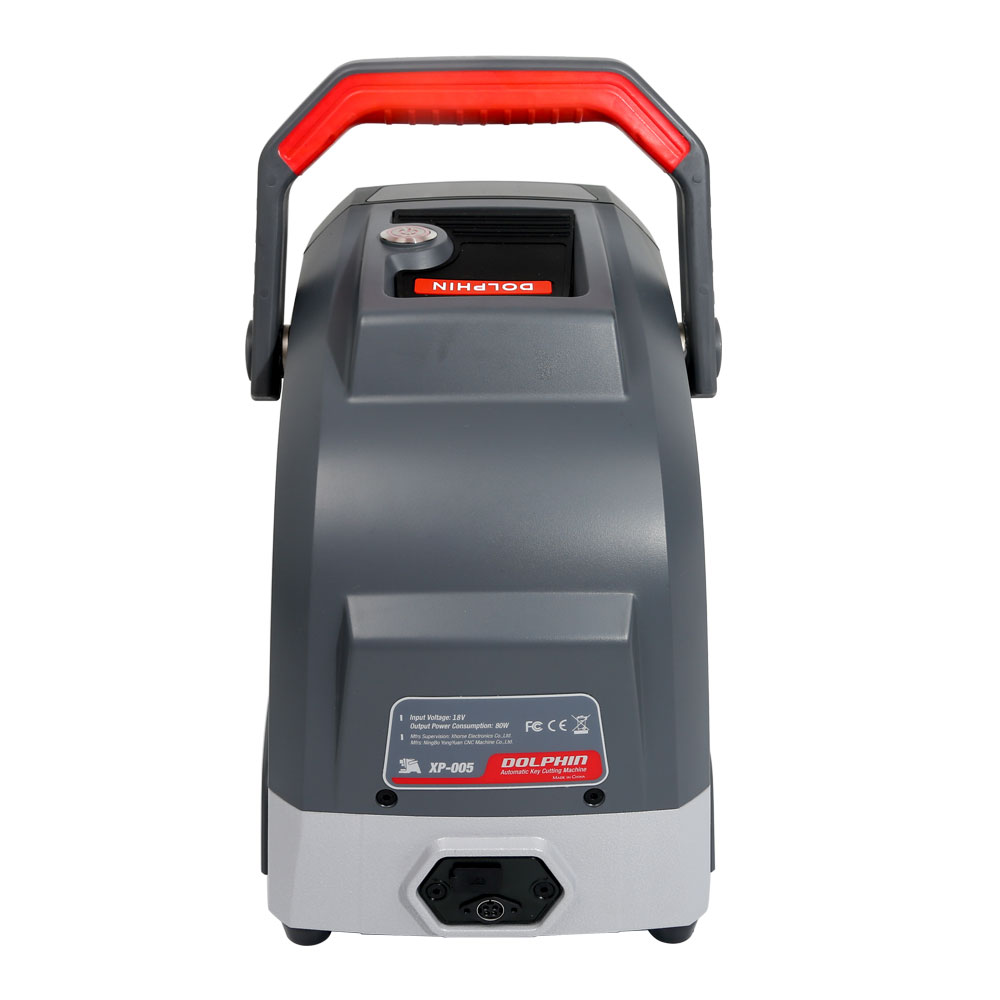

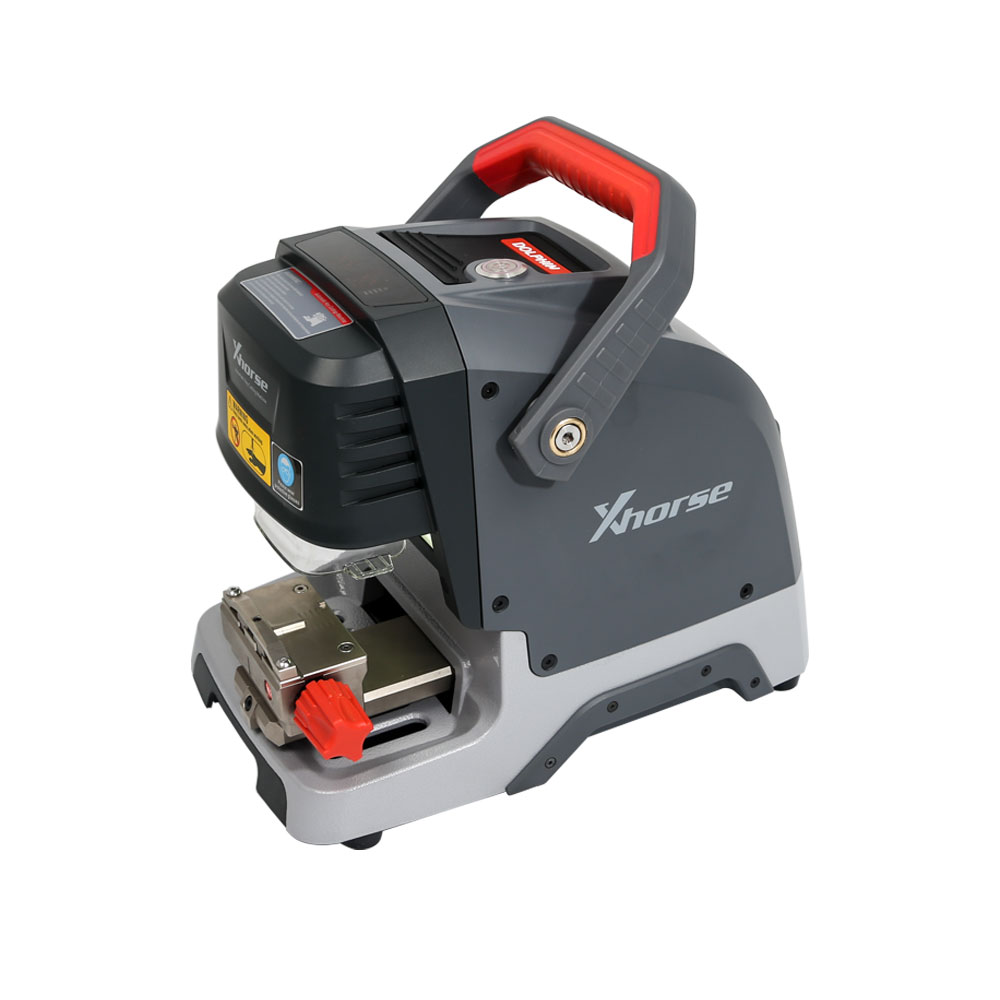

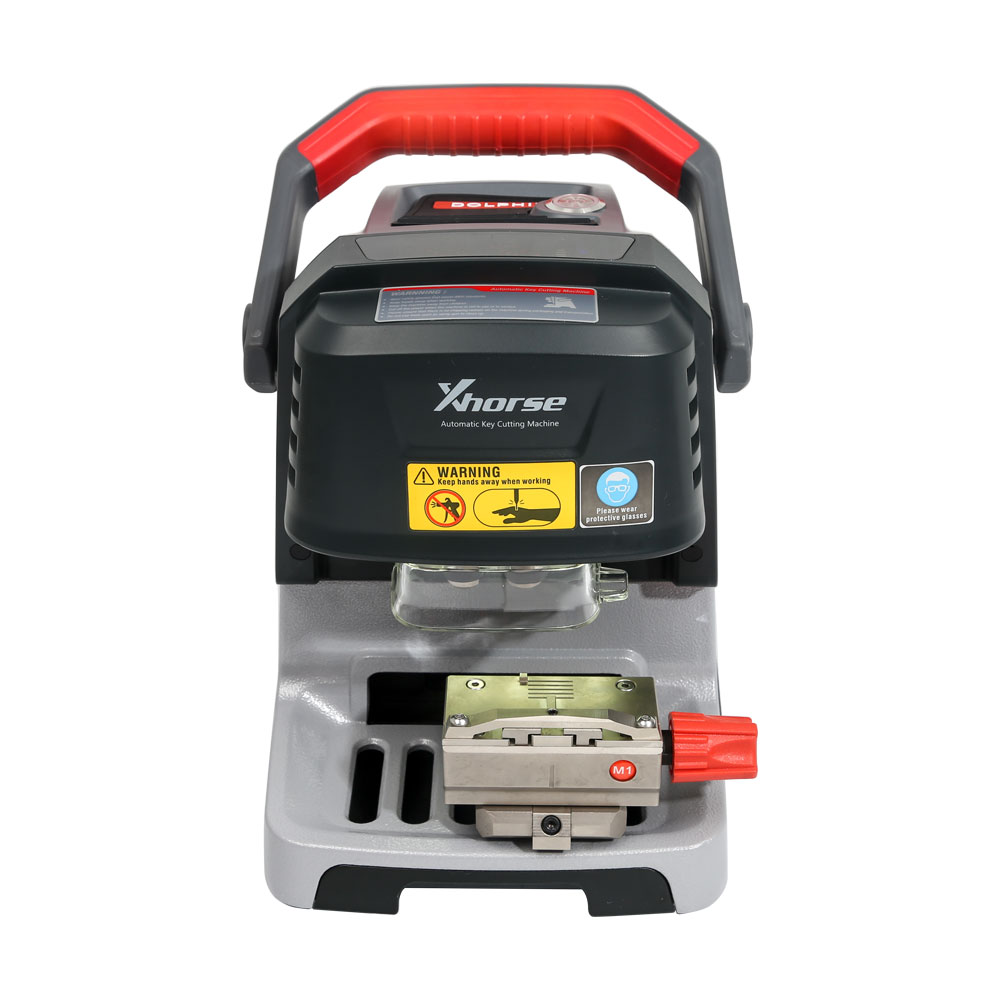

Xhorse Dolphin XP-005 is a portable machine with a small volume and light weight, which is particularly and carefully designed for locksmiths worldwide.

Xhorse Condor DOLPHIN XP005 Main Features :
1. It has all the capabilities of Condor XC-Mini, Build-in key database
2. Smart control and operation on APP

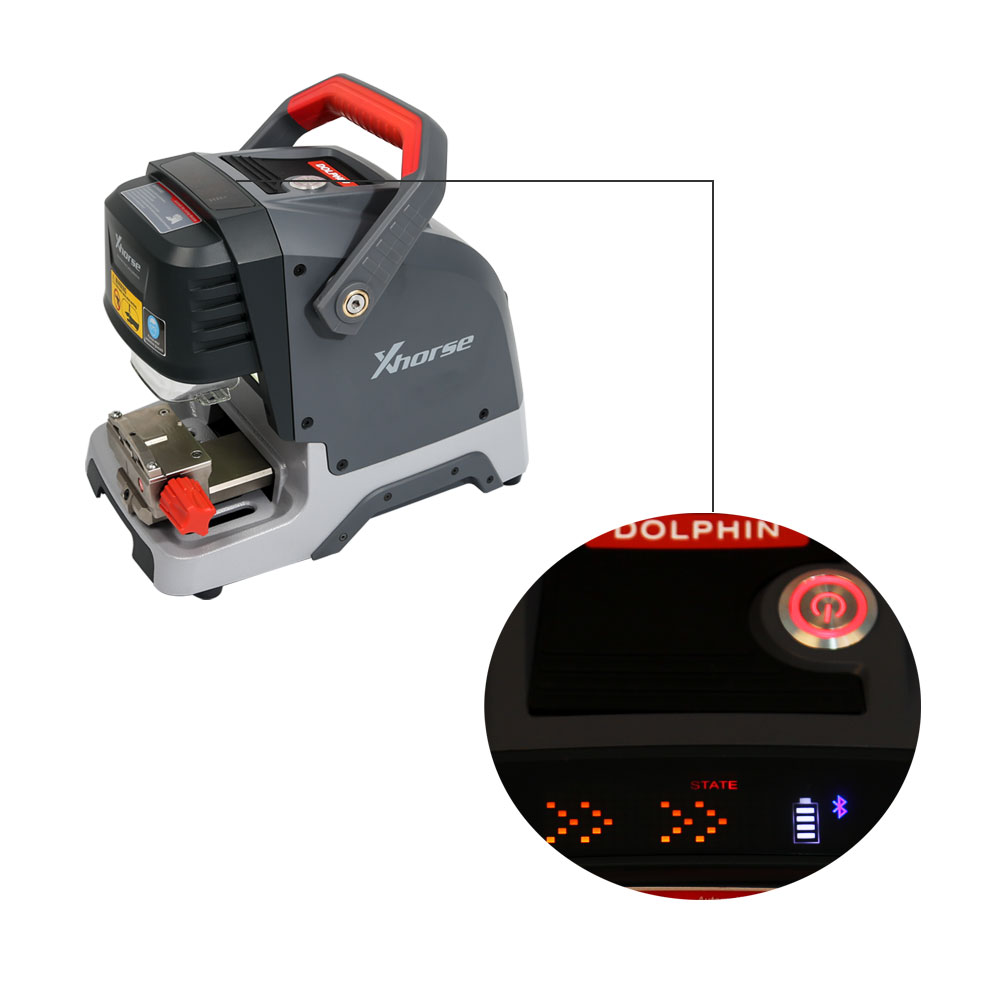

3. Portability and build-in Lithium battery with a long battery life
4. Support clamps M1, M2, M3(optional), M4(optional)
5. Support sided/track/dimple keys/tibbe keys/some household keys
6. Cutter and probe work in parallel
7. Aluminum structure
8. Imported ball screw with high precision
9. Cross rail with high rigidity
10. Free Online Update

Xhorse Dolphin XP-005 Update Information:
Xhorse Dolphine XP-005 V1.5.2 (2021-05-25)
+ Condor machine add all key blank option (From brand-all key blank)
+ Add parts of Chinese car models
+ Add Nissan Kicks key data
+ Add Maserati GranCabrio/GranTurismo key data
+ Add Ford Territory key data
+ Add Hyundai verna key data
+ Add VW Tiguan L key data
+ Add Hyundai Mistra key data
+ Add Buick Regal key data
* Fix some key data issue

Xhorse Dolphin XP-005 V1.4.1 (2020-05-14)
* This version need to update firmware
* Add cutting preview function(Need use latest APP version)
* Add decoding and cutting optios of the worn HON66 (Need upgrade the database)
* Modify the cutting method of the external key universal key duplication
* Fix the Parameter micro-adjustfunction bug

Xhorse Dolphin XP-005 V1.4.0  (2020-03-28)
* This version need to update firmware
* Improve some cutting strategy
* Change standard double sided default tip cutting strategy
* Fix Electrical Conductivity Measurement bug
* Fixed cutting problem of 2 Track external
* Fix some universal key duplication bugs
Please Use Xhorse Update Kit to update.

Xhorse Dolphin XP-005 V1.3.8   (2020-01-13)
This version need to update fireware
Add "Cut by single-bitting" function(Not support internal track key blank)
Add "Parameter micro-adjust" function
Improve high level adjustment function, not need do clamp calibration every time after high level adjustment
Fix cutting depth not accurate problem
Fix HU66 EXT 9th slot width problem
Fix some universal key duplication bugs

Xhorse Condor Dolphin XP005 Key Cutting Details :
APP smart cellphone operation
Built-in Bluetooth function, use smart cellphone or tablett to download APP, easy for smart operations

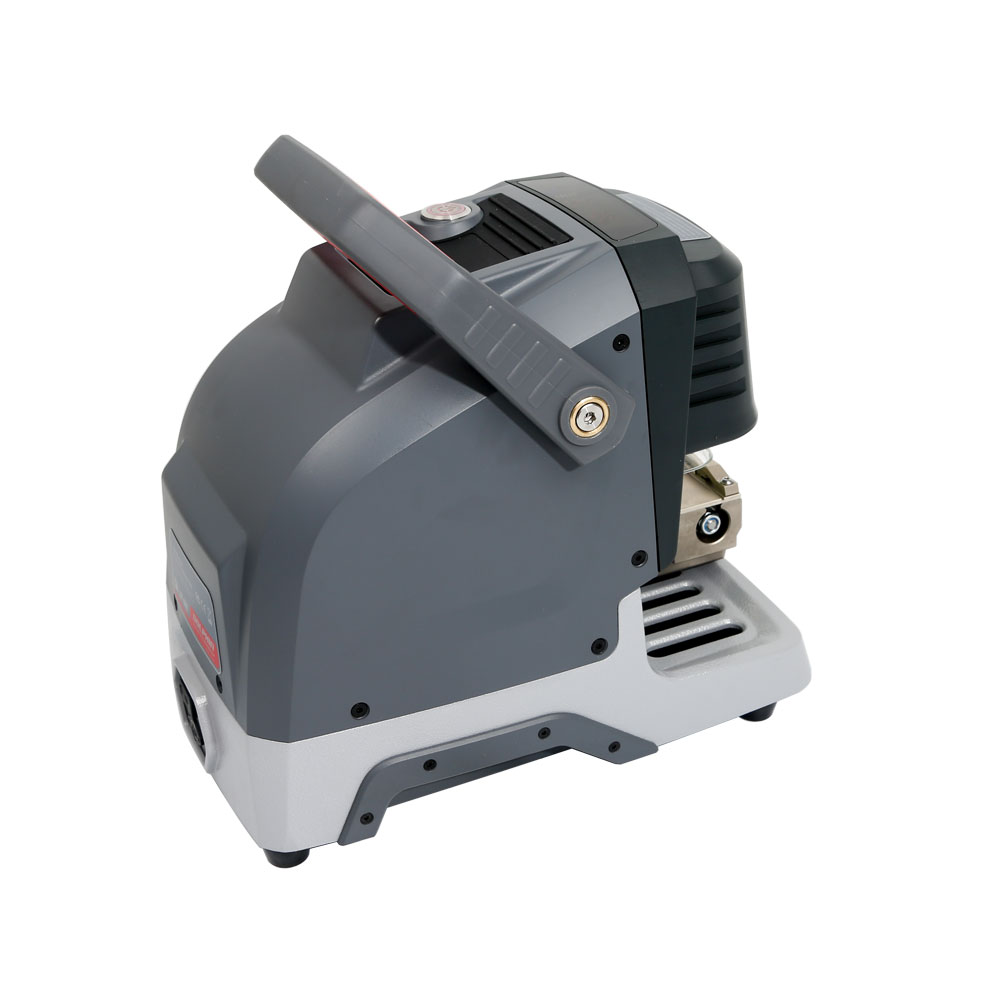

Portable and convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

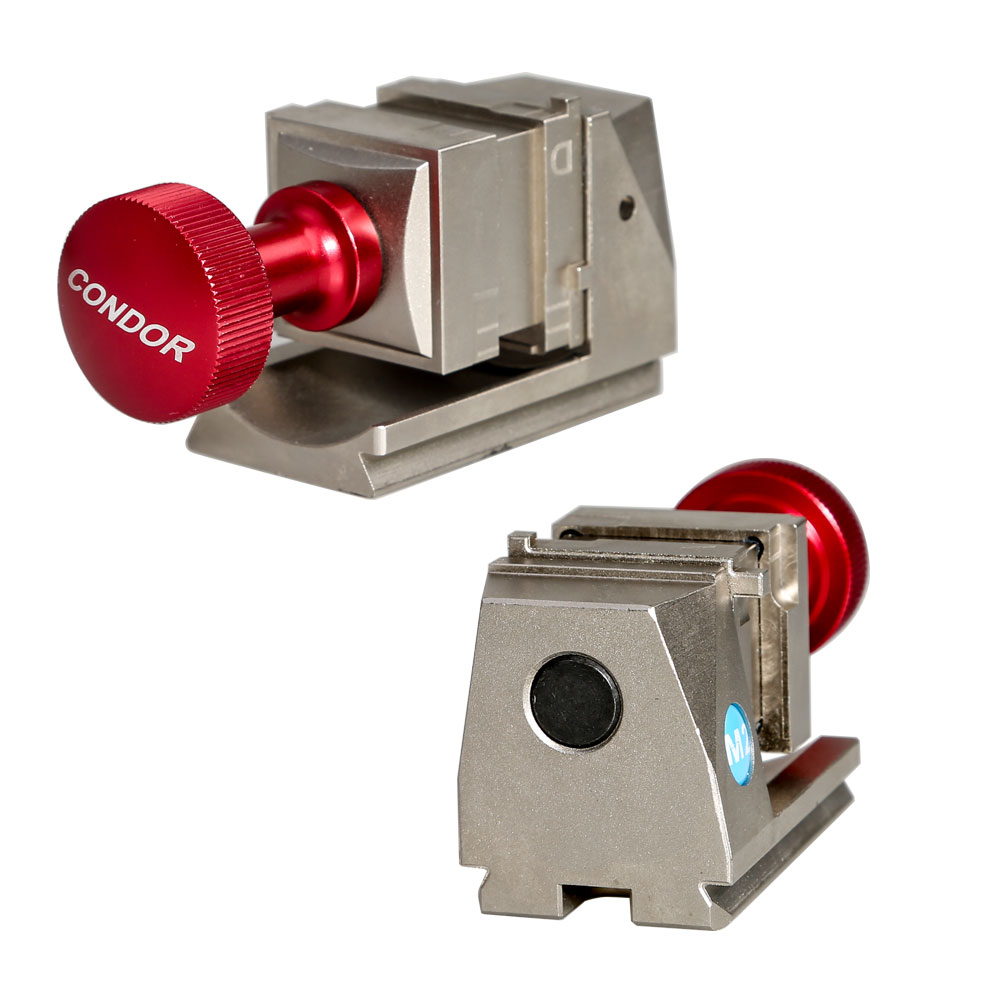

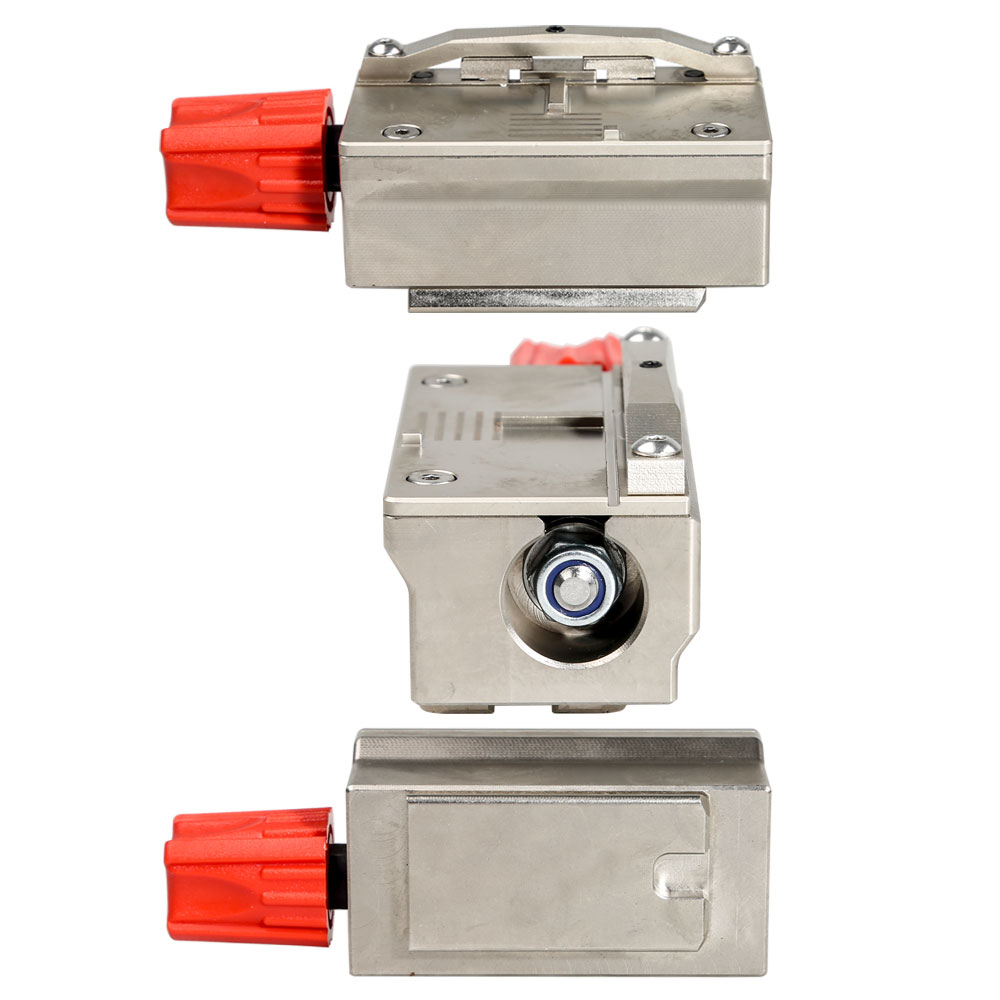

Standard equipped 2 clamps M1 and M2 with powerful function
Supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 Clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 Clamp is applicable to single sided house-key.

Manufacture Process
All aluminum body structure, Manufactured by Germany-made DMG CNC machine;
American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Online update
Free online update software, the latest update information will be released timely, 24hours support server online update, no need to send back for update.

Technical service
One-year warranty, free technical support, online service to provide remote control support

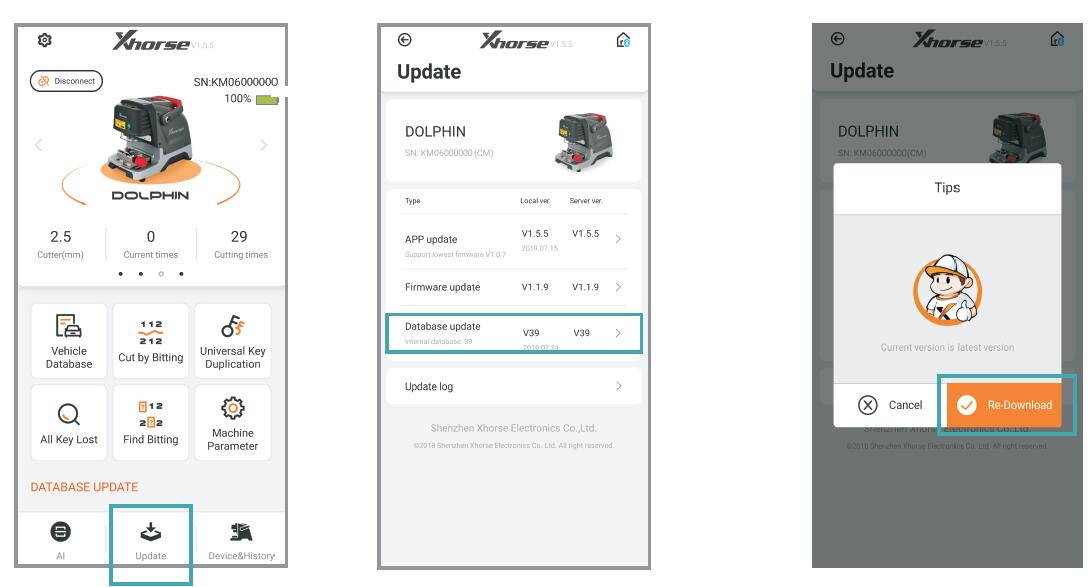

How to Update Xhorse Dolphin XP-005 Database?
1) Enter Dolphin XP-005 main interface and click "Update"
2) Click "Database update"
3) If you find a new version,click "Update" and download the new version.
Click on "OK" after download database success
If cellphone connected by mobile internet data,a prompt saying that download maybe costs data fee,recommend downloading by WIFI.


Condor Dolphin Key Cutting Machine Parameters:
Working temperature: -10~50℃
Input voltage:12-24V
Battery capacity: 64.75wh
Cutting power: 100W
Standby power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated torque: 0.15 Nm

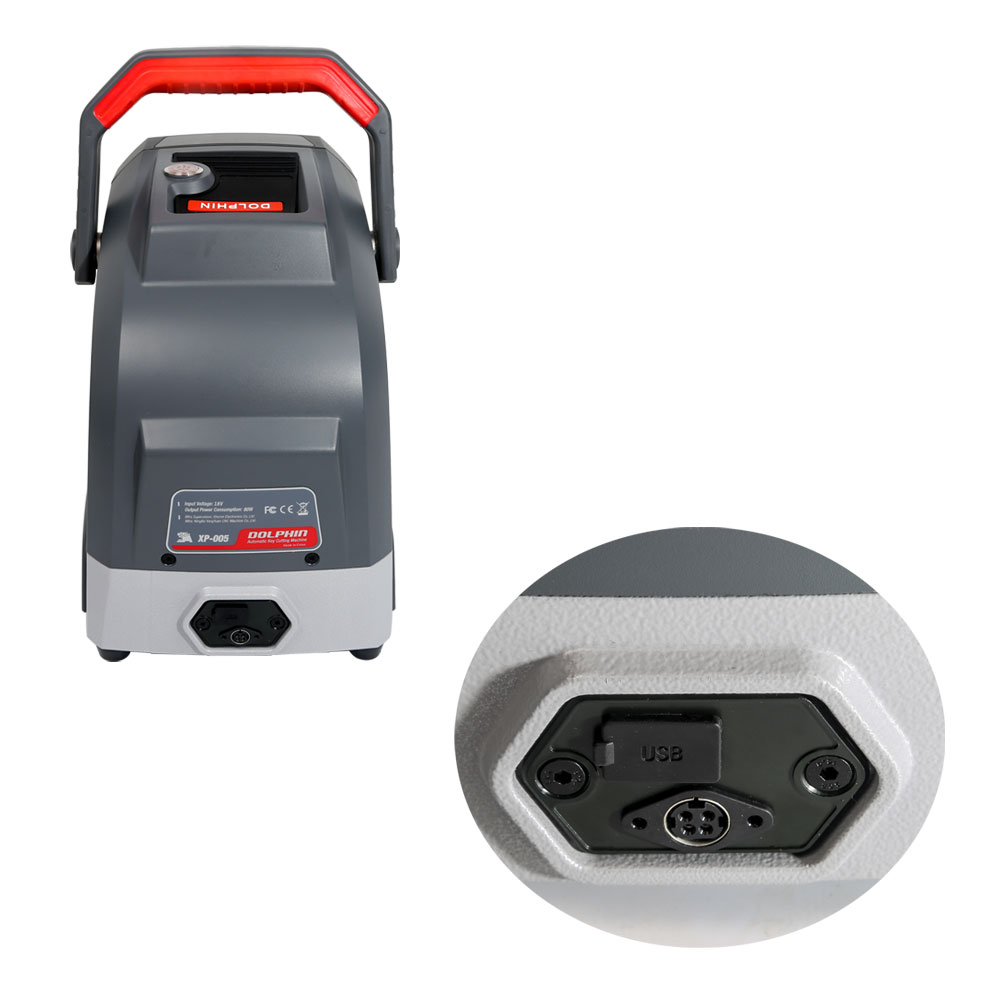

USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg

Condor XC-Dolphin vs Condor XC-Mini
Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet to install APP and get software Data.
index Condor DOLPHIN Condor XC-MINI
Spindle Mechanical shaft +60W DC motor (with a foreign model)”
“Electric spindle brushless 300W, built-in angular contact bearing
Electric spindle brushless 300, built-in angular contact bearing
Transmission mechanism “T-shaped screw + anti-backlash nut Ball screw
guide Roller guide Cross-track
shell Base aluminum alloy die-casting, the upper body is made of plastic
shell and the body is made of integrated aluminum alloy die-casting.
Plastic outer casing body is formed by body alloying die casting
Fixture Standard fixture Two sets of standard fixtures
Manipulation No touch screen, no built-in database Quick start, with touch screen, built-in database
Offline operation not support stand by
Dedicated app Support dedicated mobile phone APp Support dedicated mobile APP
Built-in battery Yes Yes
protecting mask Simple protective cover Comprehensive protection
VVD binding Yes Yes
Cutting speed 1X SPEED 2X SPEED
weight <10kg 18kg
Warranty 1 year 3 years
