KTM BENCH Read&Write ECU Via Boot/Bench No Open ECU PCMFlash V1.1.99 KTM-Bench Flash EEPROM Newest Professional ECU Prog

KTM BENCH Read&Write ECU Via Boot/Bench No Open ECU PCMFlash V1.1.99 KTM-Bench Flash EEPROM Newest Professional ECU Programmer

What is differences between KTMBENCH ,KTMFLASH and KTMOBD?

KTM Bench Boot is the latest ECU programming tool for ECU read and write via Boot mode or on bench.
KTMFlash ECU programmer can read the chip data, read & write ECU data. read transmission data etc. at a high speed.

KTMOBD programmer was born for reading chip data, reading and writing data of ECUs and a few types

ECU programming tool	KTM BEHCH	KTMOBD	KTM FLASH
Language	English, Russian	English, Russian	English, Russian
Software	PCMFlash	PCMFlash	PCMFlash
Run	USB dongle and  software	USB Dongle and software	USB Dongle and software
Operating system	Window XP;   Windows 7; Windows 10;	Window XP;   Windows 7; Windows 10;	Window XP;   Windows 7; Windows 10;
Speed	High	High	High
Risk	Less risk	Less risk	Risky
Method	via Boot    on Bench  (no need to open the cover)	via OBD	Most ECUs need to be disassembled for r/w
ECU disassemble	NO	NO	Most yes!
ECU read/write	Yes	Yes	Yes
Gearbox or transmission read/write	NO	Yes, only a few	Yes
Chip read/write	NO	Yes	Yes



In conclusion:

All programming tools above can be used for ECU read and write, but differs in ECU coverage and Read/Write method.

There is NO LIMITS of the car model and year when using KTM bench to read/write data.



But if you have chips and gearboxes to read and write, you should have a KTM flash. The bad is: disassembling is required. KTM bench doesn’t cover chips and gearboxes and KTM OBD cannot not work good for gerabox Read/Write.

So, you’d better check the ECU/gearbox/chip before your purchase.

Check each car list on corresponding product page.



KTM BENCH Professional ECU Programmer Tool Supports BOOT+BENCH 2Ways Read&Write Without Disassemble ECUs



Software Version:PCMFlash V1.99



Note: Please disconnect internet,do not update yourself . If locked,buyer need pay cost to send back repair. Do not risk this ,thank you .



KTM BENCH Highlights:

1. NO LIMITS of the car model and year + NO NEED disassemble ECUs Read and write for Bos** ECUs (Infin***'s chips) incl. flash and eeprom

2. LESS RISK to clone/copy ECUs Able to modify data or do chip tuning to achieve superior performance

3. MUCH CHEAPER, compared with the same functional tools The price is 1/10 of other programming tools in the market



KTM BENCH Support：

Cover for BMW N20, N55, N63, etc. to change or read/write ISN codes (done with other tools)

Cover for Bentley MED17.1.1 to read/write immo data

Cover the latest for Jaguar MED17.8.32

Cover for V-W MED17.5.5, MED17.5.22, MED17.5.25

...

ALL can be done without ECU disassembling Good equipment of high quality and with the best technology

Professional service and good efficiency



Read and write an ECU in two ways: BOOT and Bench



Read/Write an ECU via BOOT:

For Infin****: TC1762/TC1766 MICRO (1504KB) (permanent)

For Infin****: TC1762/TC1766 EEPROM (32KB) (permanent)

For Infin****: TC1792/TC1796 MICRO (2048KB) (permanent)

For Infin****: TC1796 MICRO+EXT (4096KB/6144KB) (permanent)

For Infin****: TC1796 EXT (2048KB/4096KB) (permanent)

For Infin****: TC1796 EEPROM (128KB) (permanent)

For Infin****: TC1792 EEPROM (64KB) (permanent)

For Infin****: TC1738/TC1767 MICRO (2048KB) (permanent)

For Infin****: TC1738/TC1767 EEPROM (64KB) (permanent)

For Infin****: TC1797 MICRO (4096KB) (permanent)

For Infin****: TC1797 MICRO+EXT (6144KB/8192KB) (permanent)

For Infin****: TC1797 EXT (2048KB/4096KB) (permanent)

For Infin****: TC1797 EEPROM (64KB) (permanent)

For Infin****: TC1724/TC1728 MICRO (1536KB) (permanent)

For Infin****: TC1724/TC1728 EEPROM (64KB) (permanent)

For Infin****: TC1782/TC1784 MICRO (2560KB) (permanent)

For Infin****: TC1782/TC1784 EEPROM (128KB) (permanent)

For Infin****: TC1793/TC1798 MICRO (4096KB) (permanent)

For Infin****: TC1793/TC1798 MICRO+EXT (6144KB/8192KB) (permanent)

For Infin****: TC1793/TC1798 EXT (2048KB/4096KB) (permanent)

For Infin****: TC1793/TC1798 EEPROM (192KB) (permanent)

For Bos**: For BMW/MB/For V-A-G GPT (permanent)

For Bos**: For Ford/For Opel/For VOLVO GPT (permanent)

For Bos**: For BMW TPROT8+ (permanent)

For Bos**: For V-A-G TPROT8+ (permanent)

For Bos**: For KIA/For HYUNDAI/For Honda TPROT8+ (permanent)

For Bos**: For Chrysler/For Jeep/For Dodge/For Fiat TPROT8+ [Test] (permanent)

For Bos**: VAZ/UAZ ME17.9.71 (permanent)

For Bos**: China ME17.8.8 (permanent)

For Contin*****: For KIA/For HYUNDAI/For SsangYong SIM2K-24X/C201 (permanent)

For Contin*****: For Ford EMS2204 (permanent)

For Contin*****: For Ford EMS2207 (permanent)

For Contin*****: For Ford EMS2211 (permanent)

For Contin*****: For Ford SID208 (permanent)

For Contin*****: For Ford SID209 (permanent)

For Contin*****: For Ford Mondeo 4 SID807EVO (permanent)

For Contin*****: For Ford Focus 3/Transit Connect SID807EVO (permanent)

For Contin*****: For Citroen/For Peugeot SID208 (permanent)

For KIA/For HYUNDAI: For Del*** MT86 EEPROM (16KB) (permanent)

For Mercedes-Benz: For Del*** CRD3.1 EEPROM (32KB) (permanent)



Read/Write an ECU on BENCH (without disassembling an ECU)

ECUs covered:

For Bos**_MED17.1.62_IROM_TC1793_EGPT_For V-A-G

For Bos**_EDC17C60_IROM_TC1793_EGPT_For PSA

For Bos** ME17.5.26 TC1724 For V-A-G e-GPT

For Bos**_EDC17CP57_IROM_TC1793_EGPT_For Mercedes

For Bos**_EDC17C69_IROM_TC1793_EGPT_FCA

For Bos**_EDC17CP04_IROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17CP14_XROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17C19_IROM_TC1792_EGPT_For Opel

For Bos**_EDC17CP02_IROM_TC1766_EGPT_For BMW

For Bos**_EDC17CP10_XROM_TC1796_EGPT_MEB

For Bos**_EDC17CP09_XROM_TC1796_EGPT_For BMW

For Bos**_EDC17CP01_IROM_TC1796_EGPT_MEB

For Bos**_EDC17CP22_XROM_TC1796_EGPT_For VOLVO

For Bos**_EDC17CP24_XROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17C08_IROM_TC1766_EGPT_For KIA_For HYUNDAI

For Bos**_EDC17CP20_XROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17CP07_IROM_TC1766_EGPT_For TOYOTA

For Bos**_MEDV174_IROM_TC1766_EGPT_For PSA

For Bos**_EDC17CP05_XROM_TC1796_EGPT_For Ford

For Bos**_MEDV174_XROM_TC1796_EGPT_For PSA

For Bos**_MEVD17.2_IROM_TC1797_EGPT_For BMW

For Bos**_MED17.1_XROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17C10_IROM_TC1797_EGPT_For PSA

For Bos**_EDC17CP45_IROM_TC1797_EGPT_For BMW

For Bos**_EDC17CP10_XROM_TC1796_EGPT_MEB

For Bos**_EDC17CV52_IROM_TC1797_EGPT_DEUTZ

For Bos**_EDC17C18_IROM_TC1766_EGPT_For Opel

For Bos**_EDC17C10_IROM_TC1797_EGPT_For Ford

For Bos**_MED17.1.1_IROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17C46_IROM_TC1767_EGPT_For V-A-G

For Bos**_ME17.9.11_IROM_TC1762_EGPT_For KIA_For HYUNDAI

For Bos**_EDC17CP52_IROM_TC1797_EGPT_ALL_BRAND

For Bos**_EDC17C08_IROM_TC1766_EGPT_PIAGGIO

For Bos**_MED17.1.1_IROM_TC1797_EGPT_For V-A-G

For Bos**_EDC17C42_IROM_TC1767_EGPT_For NISSAN

For Bos**_EDC17CP22_XROM_TC1796_EGPT_For VOLVO

For Bos**_EDC17CV54_IROM_TC1767_EGPT_ALLBRAND

KEFICO_MEG17.9.12_IROM_TC1762_EGPT_For KIA

For Bos**_EDC17CV54_IROM_TC1767_EGPT_ALLBRAND

For Bos**_ME172_BMSX_IROM_TC1797_EGPT_For BMW_MOTORRAD

For Bos**_EDC17C53_IROM_TC1767_EGPT_MAHINDRA

For Bos**_EDC17C55_IROM_TC1767_EGPT_MAHINDRAV

For Bos**_EDC17C49_IROM_TC1797_EGPT_ALL_BRAND

For Bos**_ME17.7.8_TC1797_EGPT_IROM_MEB

For Bos**_ME17.9.21_IROM_TC1724_EGPT_KTM

For Bos**_EDC17CP14_IROM_TC1796_EGPT_For HYUNDAI_For KIA

For Bos**_EDC17C53_IROM_TC1767_EGPT_MAHINDRA

For Bos**_EDC17CV54_IROM_TC1767_EGPT_ALLBRAND

For Bos**_MED17.0.1_IROM_TC1767_EGPT_For Ford

For Bos**_E86_IROM_TC1797_EGPT_CHEVROLET_GMC

For Bos**_EDC17CV42_IROM_TC1797_EGPT

For Bos**_EDC17CV41_IROM_TC1797_EGPT_ALLBRAND

For Bos** ME17.3.0 TC1724 EGPT FAL

For Bos**_MED17.3.3_IROM_TC1793_EGPT_FAL

For Bos**_EDC17C53_IROM_TC1767_EGPT_SAME

For Bos**_MED17.1.61_IROM_TC1793_EGPT_For V-A-G

For Bos**_EDC17CP14_XROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17C41_IROM_TC1797_EGPT_For BMW

For Bos**_E86_XROM_TC1796_EGPT_CHEVROLET_GMC

For Bos**_EDC17C50_IROM_TC1797_EGPT_For BMW

For Bos**_EDC17C56_IROM_TC1797_EGPT_For BMW

For Bos**_EDC17CP49_IROM_TC1797_EGPT_For BMW

For Bos**_ME17.9.74_IROM_TC1762_EGPT_POLARIS

For Bos**_EDC17C64_IROM_TC1797_EGPT_For V-A-G

For Bos**_MEVD172G_IROM_TC1797_EGPT_For BMW

For Bos**_MEVD1728_IROM_TC1797_EGPT_For BMW

For Bos**_EDC17CP48_IROM_TC1797_EGPT_For VOLVO

For Bos**_EDC17C57_IROM_TC1793_EGPT_For KIA_For HYUNDAI

For Bos**_MED17.8.31_IROM_TC1797_EGPT_For JAGUAR_LR

For Bos**_EDC17C59_IROM_TC1767_EGPT_For Opel

For Bos**_MED17.5.2_IROM_TC1767_EGPT_For V-A-G

For Bos**_MED17.5.21_IROM_TC1782_EGPT_For V-A-G

For Bos**_MED17.5.5_IROM_TC1767_EGPT_For V-A-G

For Bos**_ME17.5.24_IROM_TC1724_EGPT_For V-A-G

For Bos**_ME17.2.4.2_BMSO_IROM_TC1793_EGPT_For BMW_MOTORRAD

For Bos**_EDC17C74_IROM_TC1793_EGPT_For V-A-G

For Bos**_ME17.8.3_IROM_TC1797_EGPT_MCLAREN

For Bos**_MED17.3.4_IROM_TC1797_EGPT_For MASERATI

For Bos**_EDC17C66_IROM_TC1793_EGPT_For Mercedes

For Bos**_MED17.7.5_IROM_TC1793_EGPT_For Mercedes

For Bos**_MED17.5.5_IROM_TC1766_EGPT_For V-A-G

For Bos**_EDC17CP14_XROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17CP47_IROM_TC1797_EGPT_For Opel

For Bos**_MEVD17.2.3_IROM_TC1793_EGPT_For BMW_MINI

For Bos**_MED17.1_IROM_TC1796_EGPT_For V-A-G

For Bos**_EDC17C84_IROM_TC1782_EGPT_For NISSAN

For Bos**_MED17.5.25_IROM_TC1782_EGPT_For V-A-G

For Bos**_MED17.8.31_IROM_TC1797_EGPT_ASTONMARTIN

For Bos**_MED17.4.4_IROM_TC1793_EGPT_For PSA

For Bos**_EDC17CP68_IROM_TC1797_EGPT_For VOLVO

For Bos**_ME17.9.21_IROM_TC1724_EGPT_DUCATI

For Bos**_EDC17C73_IROM_TC1793_EGPT_For TOYOTA

For Bos**_ME17.5.6_IROM_TC1767_EGPT_For V-A-G

For Bos**_ME17.1.1_IROM_TC1796_EGPT_For V-A-G

For Bos**_MED17.1.11_IROM_TC1797_EGPT_PORSCHE

For Bos**_MED17.1.21_IROM_TC1793_EGPT_For V-A-G

For Bos**_EDC17CP50_IROM_TC1797_EGPT_For HONDA

For Bos**_MED17.9.3_IROM_TC1793_EGPT_For HONDA

For Bos**_EDC17C79_IROM_TC1797_EGPT_FCA

For Bos**_MED17.3.5_IROM_TC1793_EGPT_FCA

For Bos**_MED17.9.7_IROM_TC1767_EGPT_For JAGUAR_LRV

For Bos**_EDC17CV42_IROM_TC1797_EGPT_MAN

For Bos**_MEDC17.9_IROM_TC1793_EGPT_For JAGUAR_LR

For Bos**_EDC17CP55_IROM_TC1793_EGPT_For JAGUAR

For Bos**_EDC17CP62_IROM_TC1793_EGPT_For KIA_For HYUNDAI

For Bos**_EDC17C70_IROM_TC1793_EGPT_For Ford

For Bos**_EDC17C53_IROM_TC1767_EGPT_For KIA_HYUNDA

For Bos**_MED17.2_IROM_TC1767_EGPT_For Ford

For Bos**_MED17.1.27_IROM_TC1793_EGPT_For V-A-G

For Bos**_MED17.9.63_IROM_TC1793_EGPT_SUZUKI

For Bos**_EDC17C49_IROM_TC1797_EGPT_ALL_BRAND

For Bos**_EDC17C76_IROM_TC1793_EGPT_For BMW

For Bos**_ME17.5.20_IROM_TC1767_EGPT_For V-A-G

For Bos**_EDC17C54_IROM_TC1797_EGPT_For V-A-G

For Bos**_EDC17C53_IROM_TC1767_EGPT_MAHINDRA

For Bos**_EDC17CP65_IROM_TC1793_EGPT_For Ford

For Bos**_EDC17C69_IROM_TC1793_EGPT_FCA

For Bos**_ME17.9.64_IROM_TC1724_EGPT_For SUZUKI

For Bos**_ME17.9.52_IROM_TC1782_EGPT_For TOYOTA

For Bos**_ME17.9.71_IROM_TC1724_EGPT_For PSA

For Bos**_ME17.9.23_IROM_TC1724_EGPT

For Bos**_ME17.7_XROM_TC1796_EGPT_MEB

For Bos**_MED17.1.10_IROM_TC1793_EGPT_For V-A-G

For Bos**_ME17.9.71_IROM_TC1724_EGPT_For PSA

For Bos** ME17.5.22 TC1724 For V-A-G e-GPT

For Bos**_EDC17CP05_IROM_TC1797_EGPT_For Ford

For Bos**_ME17.2.4_BMSMP_IROM_TC1793_EGPT_For BMW_MOTORRAD

For Bos**_MED17.0.7_IROM_TC1782_EGPT_For Ford

For Bos**_MEVD1784_IROM_TC1797_EGPT_For BMW

For Bos**_EDC17C83_IROM_TC1793_EGPT_For ISUZU

For Bos**_MED17.8.32_IROM_TC1793_EGPT_For JAGUAR_LR

For Bos**_MED17.7.7_IROM_TC1793_EGPT_MEB

For Bos**_ME17.9.53_IROM_TC1782_EGPT_For TOYOTA

For Bos**_ME17.8.33_IROM_TC1793_MCLAREN



If buyer need details supported list ,please contact us ,we will send you .

We have details Wiring Diagram to conenct with this tool For Bosch and PDF files to show connection with different ECU Computer.Please contact  us to send you weblink .

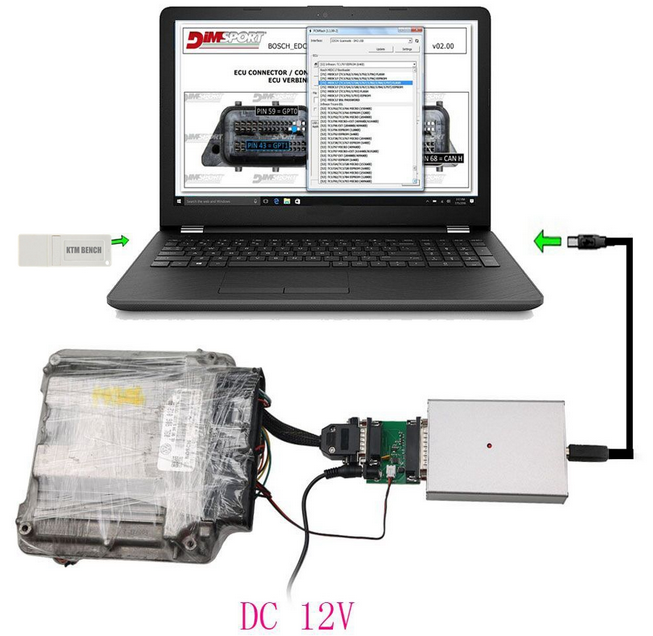

KTM Bench ECU Connection Display:

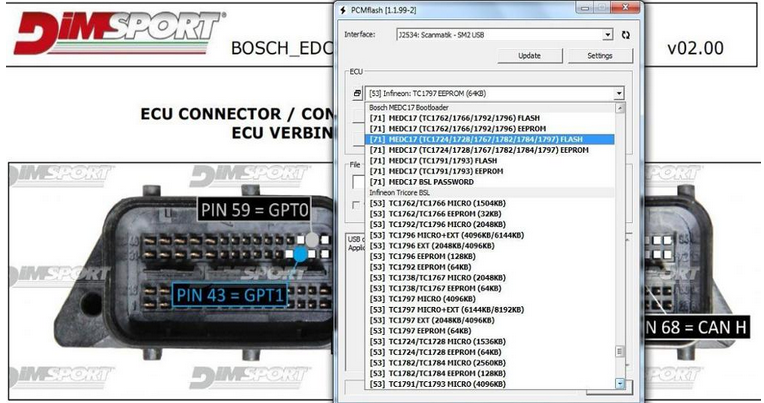

KTM Bench ECU Software Display:


Green Board Adapter Connection:

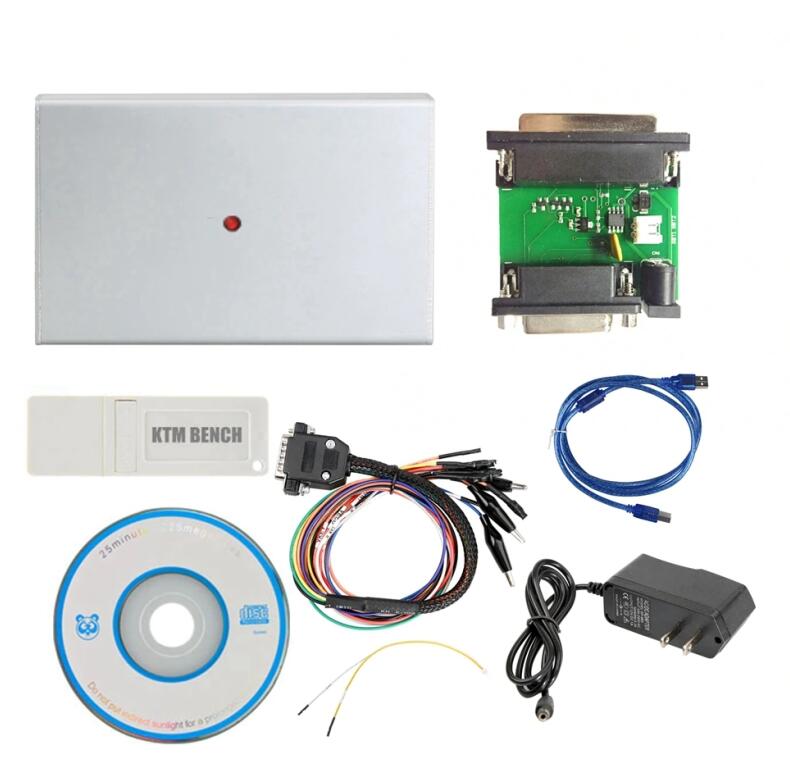

Package List:

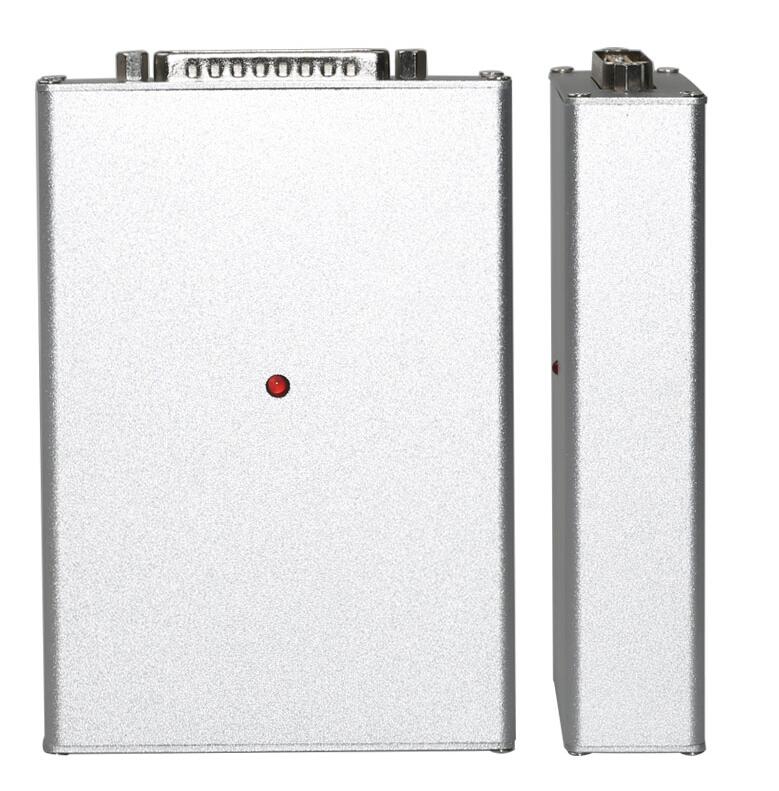

1 x KTM BENCH Unit

1 x Green PCB Adapter

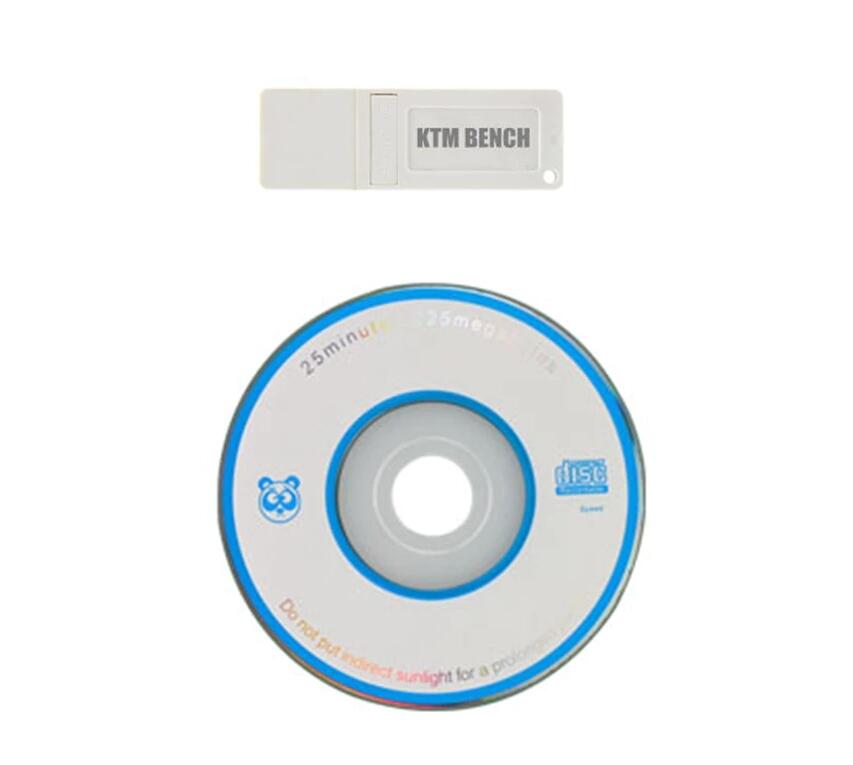

1 x USB Dongle

1 x DB15 Color Wire

1 x Charger Power

1 x USB Cable

1 x CD Software
