GM MDI 2 Diagnostic Tool Multiple Diagnostic Interface V2020.09 GM Scanner Shop by Category

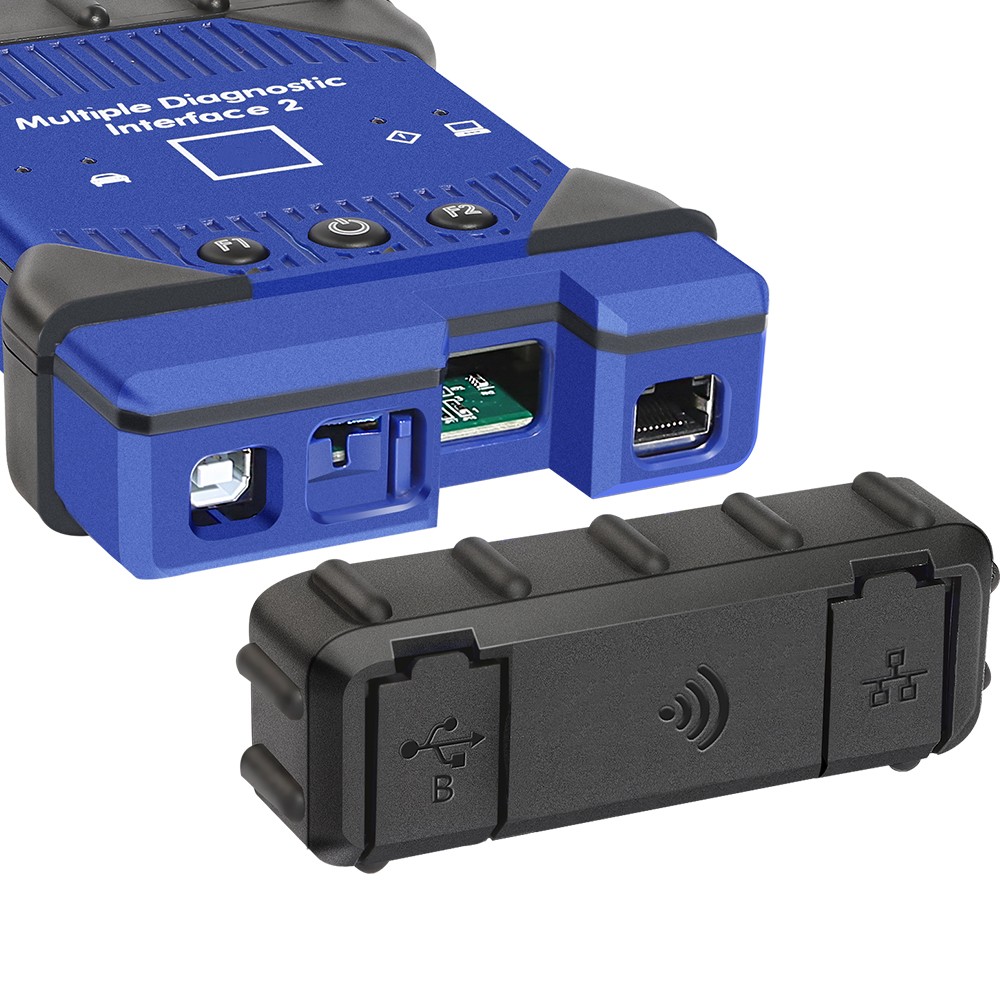

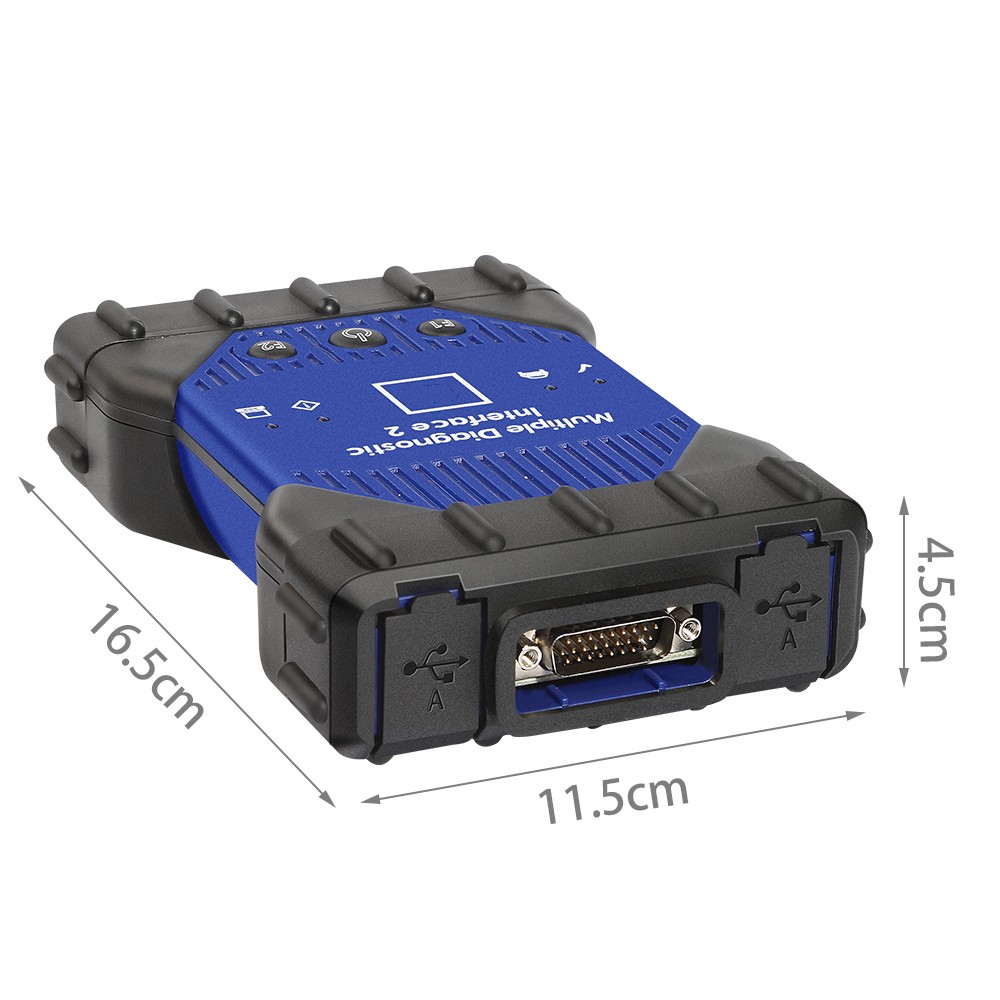

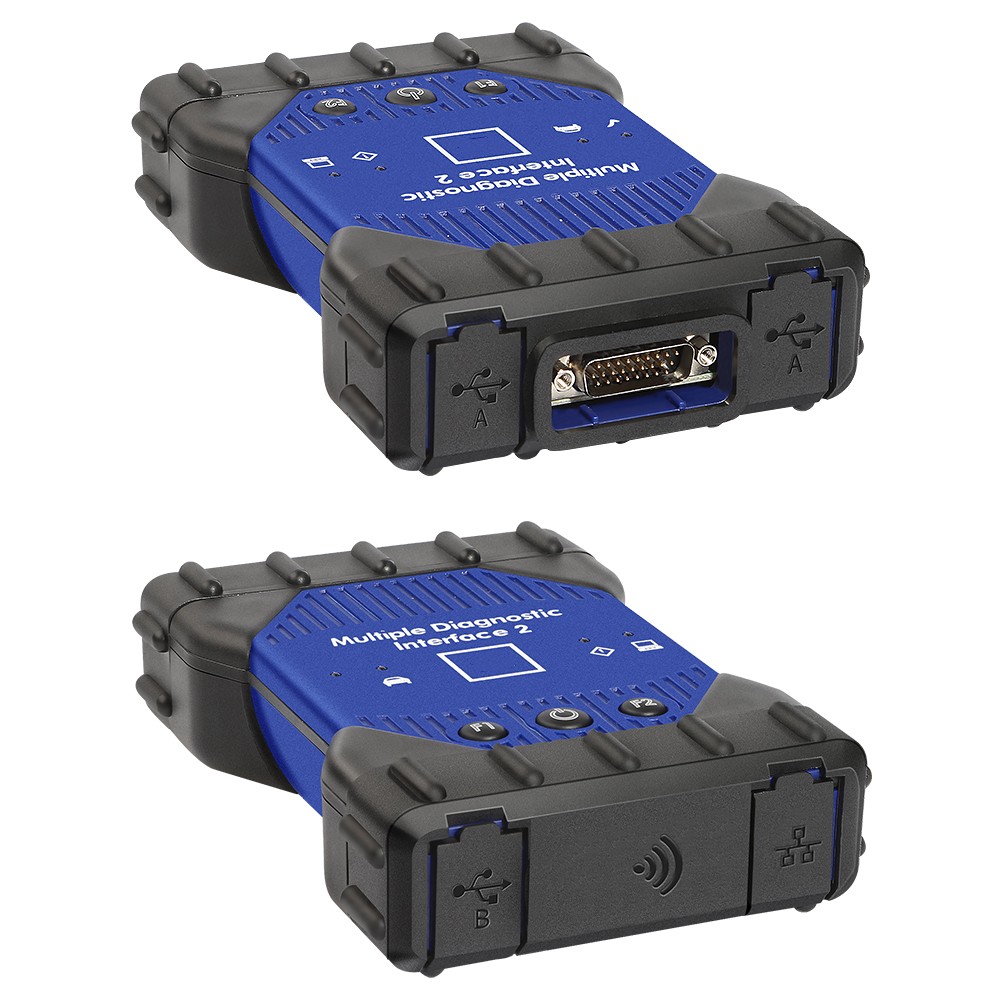

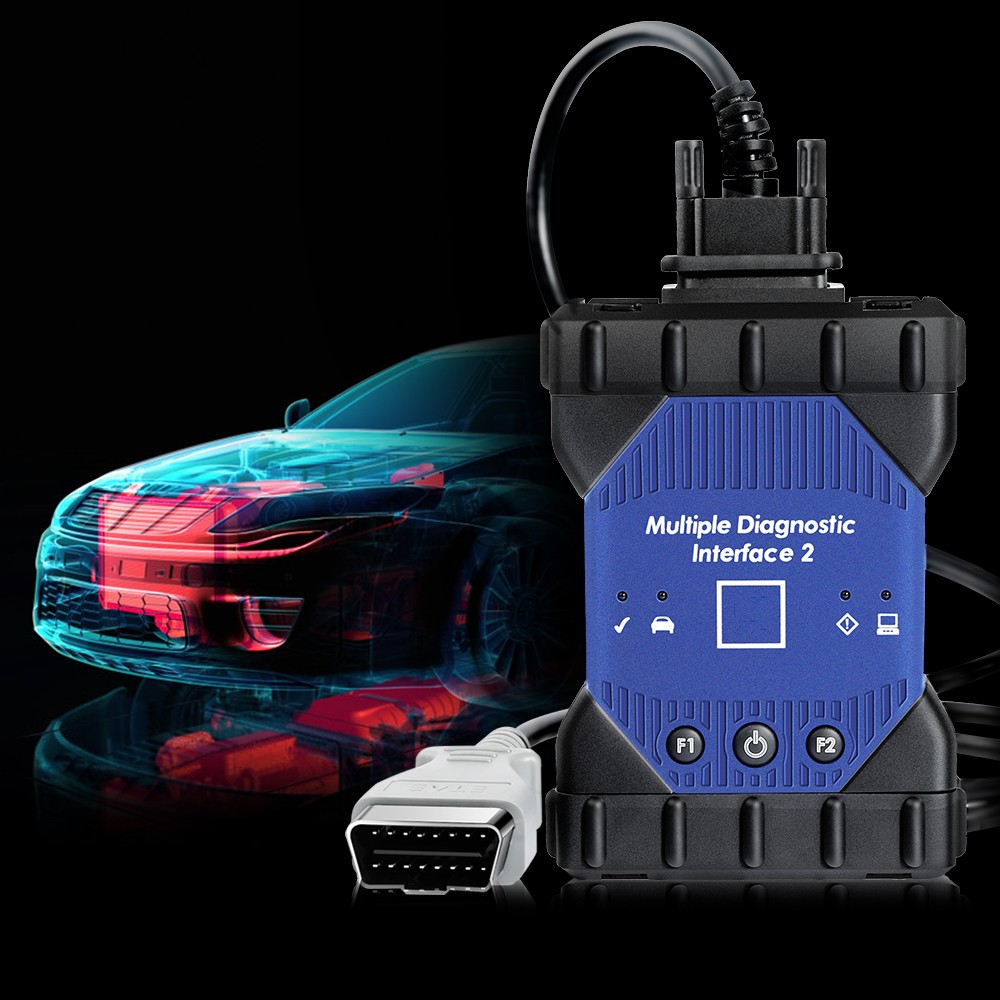

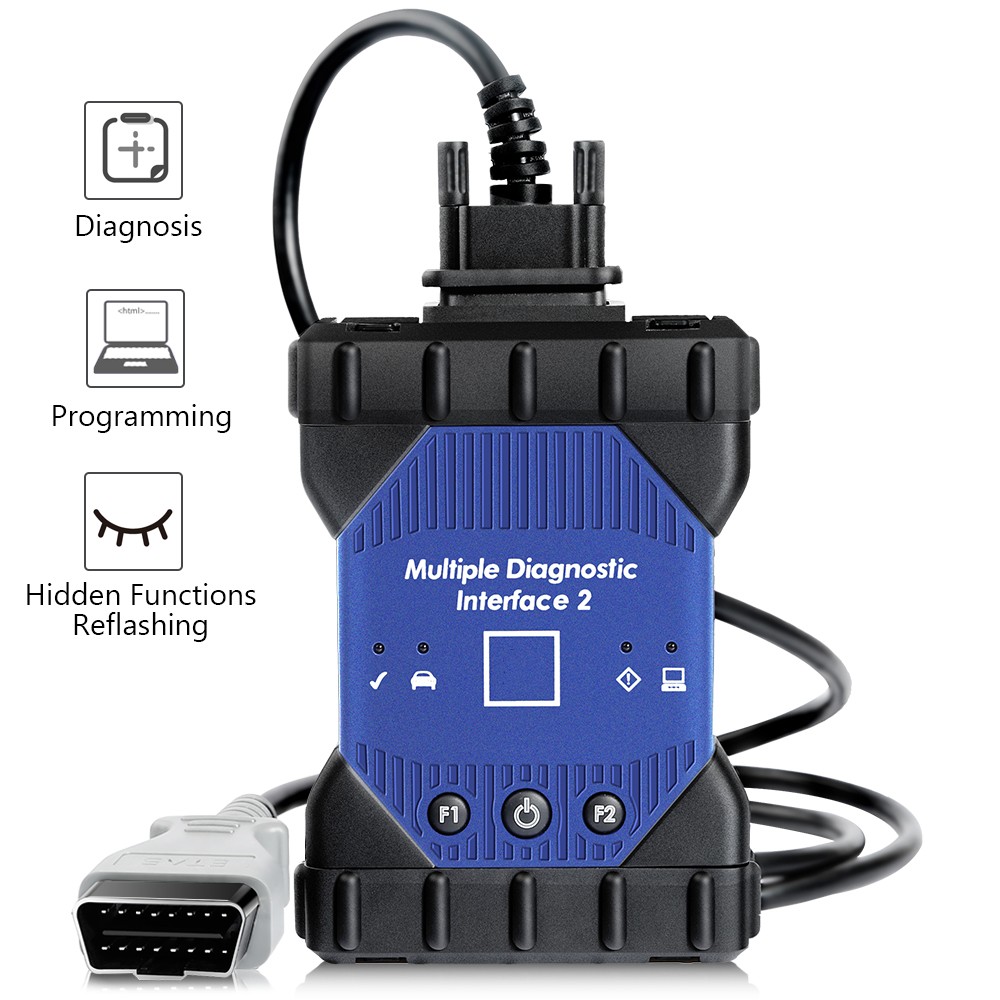

GM MDI 2 Diagnostic Tool Multiple Diagnostic Interface V2020.09 GM Scanner
Highlights of GM MDI 2:
1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose
2.Can do cars from 1990-2020.09 Year
3.you can select the package with HDD( software ) or not , we already installed the GM MDI 2 software into 500G SATA interface laptop HDD,the HDD can be used after 2008 year SATA hard disk interface laptop
4.Support 2010-2020.09 year new cars
5.Not Support WIFI
Vauxhall / Opel MDI 2 (Tech 3) OEM Level Diagnostics
MDI scan tool is the Multi Diagnostics Interface
Works as the high-quality Vauxhall / Opel dealer diagnostic interface
Can be used with Global TIS, GDS 2, Tech2Win software on a new laptop
Provides full dealer level diagnostics and programming
Supports all Vauxhall /Opel 16 pin vehicles from 1996 to 2017
Perfoms quickly and used easily to make customers happy and win new business by offering the exact same functions as the main dealers, including:
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions
GM MDI 2 and GDS Background
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Can be Used for SPS programming on existing and future SGM vehicles
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic
GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Passthrough progrmming on past model and Global A vehicles
Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
Includes Flight Recorder Mode
What protocols does the GM MDI 2 support?
For immediate use — At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the GM Tech2:
- UART
- Class 2
- KWP2000
- GMLAN (CAN)
Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicle
When you want to test After 2010 year GM car, you can use the GDS software to test it,run fast and stable
![]()
When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:

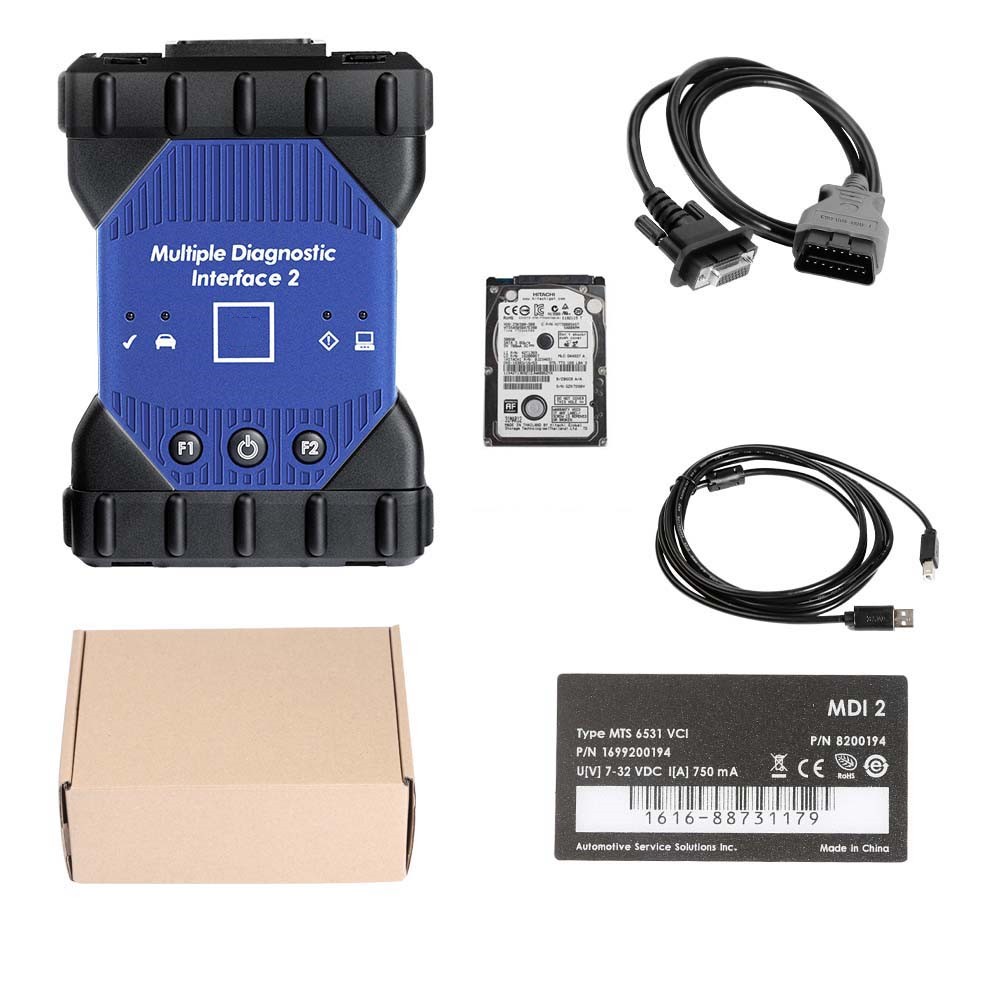

GM MDI 2 Scan Tool Package List:
1pc x GM MDI 2 Main unit
1pc x OBD2 Cable
1pc x USB Cable
1pc x HDD 500G ( optional )
User Comment(Total 13 Customer Reviews)
CnAutotool.com - Professional Auto Diagnostic Tools Supplier. We provides car diagnostics tools for Do-It-Yourself and professional automotive mechanics. If you have any problems, don't hesitate to contact us, send email to sale@cnautotool.com or chat online. We are well organized by a group of rich-experienced design experts who have been engaging in auto diagnostic tools for more than 10 years. FREE, Professional & Unlimited Technical Support, Factory Price!
Shipping Terms: a 1) Items will be sent to all the countries over the world.This package will be sent by Hongkong Airmail Post,EMS,UPS or DHL. b 2) Items will be checked carefully before sent out. c 3) We will use air bubbles to wrap the items carefully.
Shipping Time: Usually the shipping time is about 3-5 days via DHL, UPS, TNT and Fedex Express, 15-30 days via POST AIR to Worldwide, but Because the COVID-19 Global Pandemic recently, the delivery date will may be delayed. We are sincerely sorry to bring all inconvenience to you.Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding
Return Policies:
If you are not satisfied with your purchase .please contact us quickly, we can exchange one to you,but buyers is responsible for the returning shiping cost .
Contact Us:
Our office hours are 24hours 7 days online service
Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!) |
do i have to get the software to use MDI as an interface between the laptop an car for downloading from ACdelco ?
Reply #1 by cnautocara Aug 12,2020
hello , this MDI must work with the software , thank you
cnautocara
support wifi or not ?
Reply #1 by Cara Apr 19,2020
This link not support wifi , if you want buy wifi version , please check here : https://www.cnautotool.com/goods-6863-Best-quality-GM-MDI-2-Diagnostic-Tool-Multiple-Diagnostic-Interface-with-WIFI.html , thank you
Cara
can you help me how to install the software ?
Reply #1 by Cara Mar 26,2020
Yes , of course we can help , thank you
Cara
Goods arrived in a very good conditions
Reply #1 by Joanna Mar 07,2020
Good day!
Thank you for your support and feedback on our website.
Any further questions please feel free to contact us.
Best regards!
Joanna
thank you for your meaningful reply
Reply #1 by Joanna Feb 16,2020
Good day!
Thank you for your support and feedback on our website.
Any further questions please feel free to contact us.
Best regards!
Joanna
It works perfectly.
Reply #1 by Joanna Feb 16,2020
Good day!
Thank you for your support and feedback on our website.
Any further questions please feel free to contact us.
Best regards!
Joanna
Hello, what’s the best price for it and the software hard disk
Reply #1 by Joanna Jan 19,2020
I send the best price to your email, please check
Joanna
i have problem use the tool , who can i contact ?
work stable good for my gm vehicles
Reply #1 by Cara Jul 20,2019
Thanks for your good feedback
Cara
do i need to active the software myself ?
Reply #1 by Cara Jul 04,2019
Hello , if you buy the software together , no need you activate the software ,its ready to use , thank you
Cara
