LAUNCH CR-HD Pro Car and Truck OBD2 HOBD Code Reader Scanner Support 12V/24V

  • Item No.  CF162-1
  • History: 59  sold
  • Market Price: US$186.00
    Shop Price: US$155.00
    Express Shipping Service    Estimated delivery time: 3-5 days »
    Affected by the epidemic, there will be delays in transit time.
  • Stock  200
  • Weight:  500.0gram
  • Rate:  comment rank 40 () Write a Review
  • Member Benefits  Shipping  Return Policy




Technical Support


LAUNCH CR-HD Pro Car and Truck OBD2 HOBD Code Reader Scanner support 12V/24V multi-language

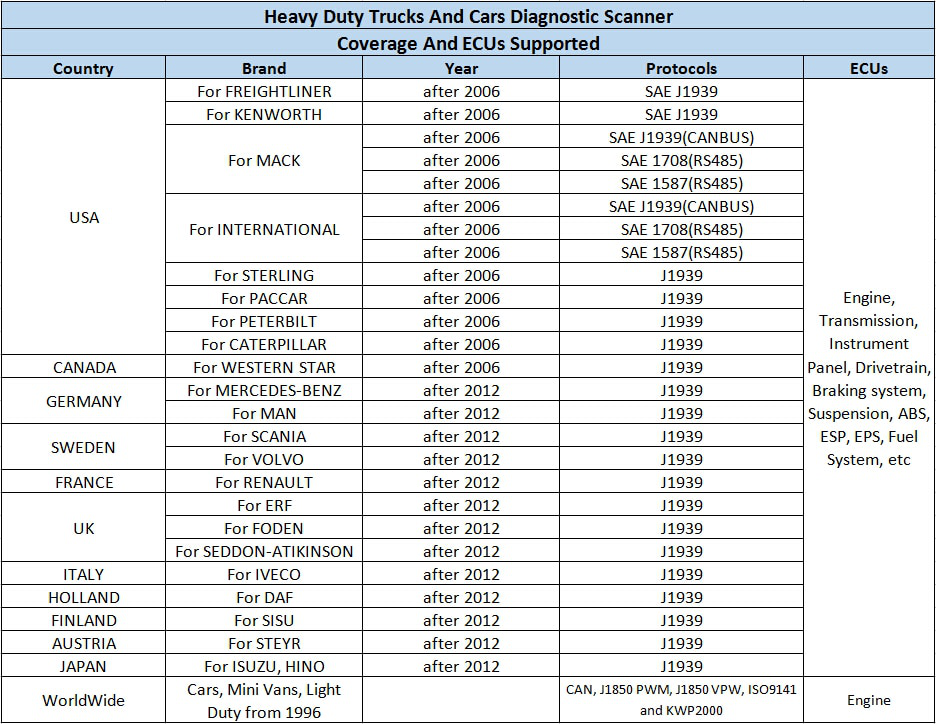

The Function for 24 Truck :
1. Support System : Engine system , Transmission System , instrument panel system , ect
2. Function : Read troble codes , clear troble codes and read data stream information

3. Support protocols: J1939,J1708,SAEJ1979(OBDII)
4. Language : English , French, Spanish , German , Russian , Portuguese

The Function For 12V Car:
Read fault ,Delete Fault code,Live Data ,Read Vehicle information ,O2 Sensor Test ,EVAP System Test, On-board mintor Test, DTC Code lookup ,IML Fault indicator , View Freeze frame,I/M Readiness

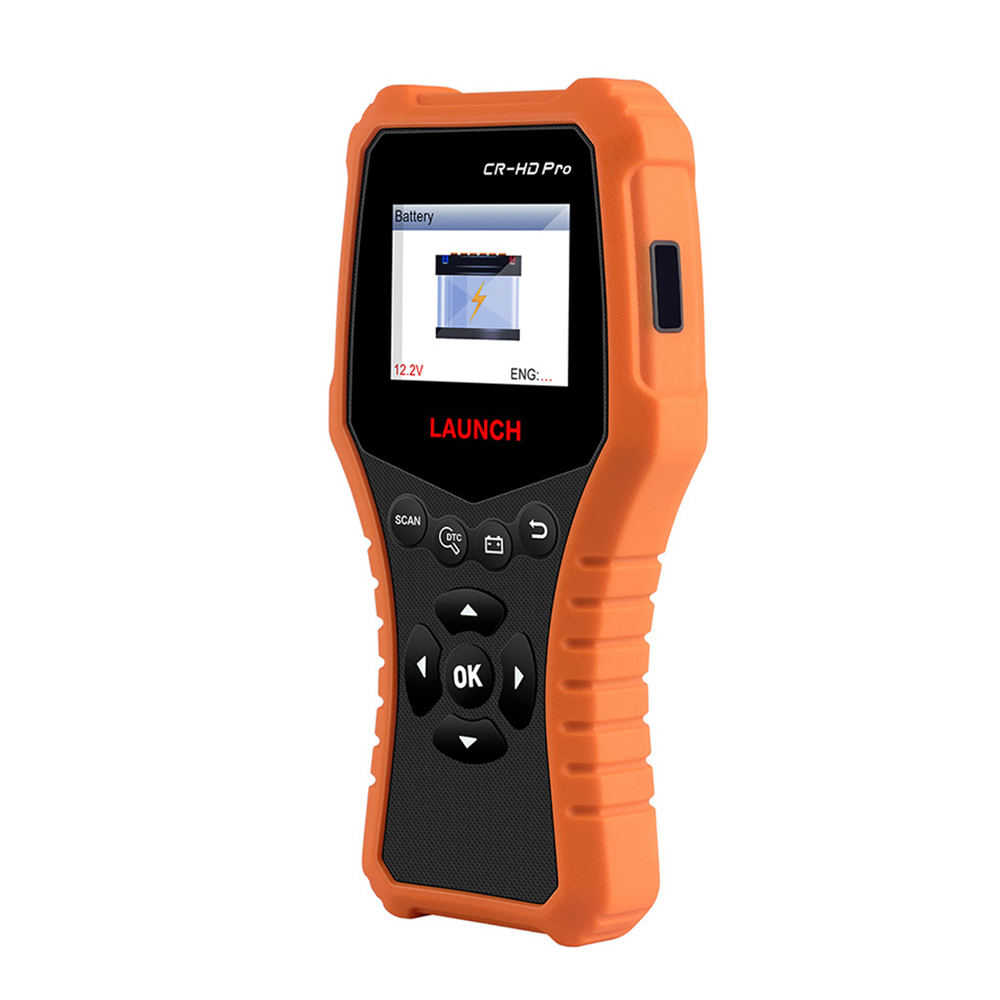

Battery: Reads the vehiclersquo battery voltage
Lookup: Retrieves the desired Diagnostic, Trouble Code (DTC) from the DTC library.
Help: Lets you have a general knowledge of the OBD II, HD OBD and I/M Readiness. Info: Includes the tool information, including software & hardware version, and Serial Number etc.

Support OBD 2 protocols car :
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Support Car :
American Car : Need Standard OBD2 Protocols from 2000 to now
European Car : Need Standard OBD2 Protocols from 2003 to now
Japanese/Korean Car: Need Standard OBD2 Protocols from 2006 to now
Chinese Car: Need Standard OBD2 Protocols from 2009 to now

Updated via data cable ,Make sure the PC has an Internet connection.
1. Go to official website,and download the update tool to the computer.
2. Decompress and install it on your computer(compatible with Windows XP, Windows 7, Windows8 & Windows 10).
3. After installation, connect one end of the data cable to the USB port of PC, and the other end to the tool.

Note: If the tool is properly connected to the pc, the no dtc led illuminates green, and the dtc led goes out.
Otherwise, the red led illuminates and the green led lights off.
4. Launch the update tool on your pc, the system starts reading the tool. Once it obtains the tool information, it will directly navigate to the update center.
5. The update process is complete, your tool is now ready for use.
Note: To enjoy more functions, you are suggested to check for updates on a frequent basis and keep synchronized with the latest available software
Packing list :
1* Diagnostic Cable
1* OBD-6 Adaptor Cable
1* OBD-9 Adaptor Cable
1* Data Cable
