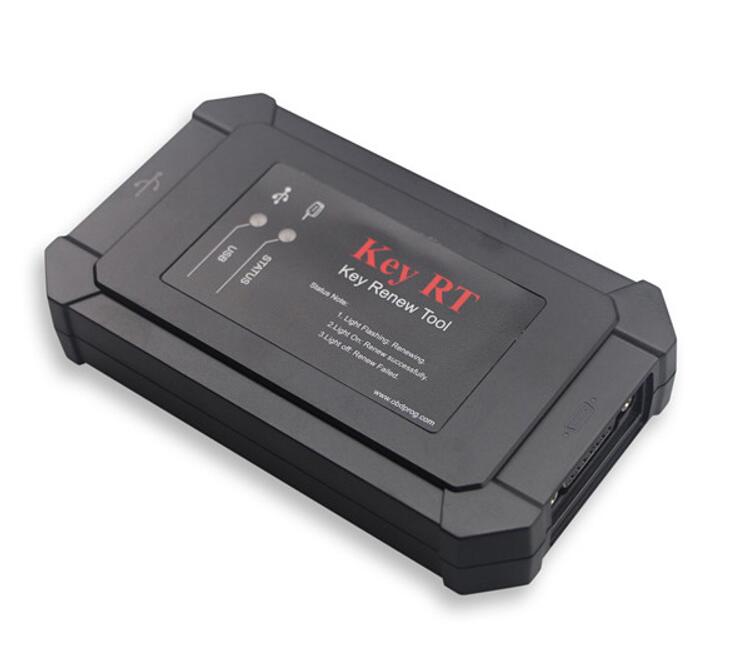

OBDSTAR Key RT Key Renew Tool supported PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, and PCF7961 chip

OBDSTAR Key RT Key Renew Tool is a key renewing product. Supports a variety of car key chip renewing that can be repeated to renew,OBDSTAR Key RT Key Renew Tool supported chip types :PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, and PCF7961.

OBDSTAR Key RT Key Renew Tool Description:
1.PC software, renewing box, chip wiring board and w001 wiring.
2.Supports a variety of car key chip renewing that can be repeated to renew
3.Supports Windows7 and above operating systems,with use USB2.0/3.0 communication
4.Supported chip types: PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, and PCF7961
5.If the original key is renewed, the Key RT box and the original key are connected via w001 wiring
6.If there is no original key, the chip small board can be used to solder the chip and connect to the key RT box to renew

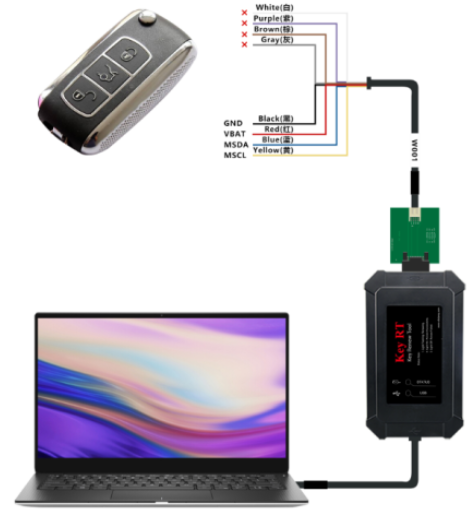

The Specific Connection Method is Shown in Figure:


How to do Key Renewing:

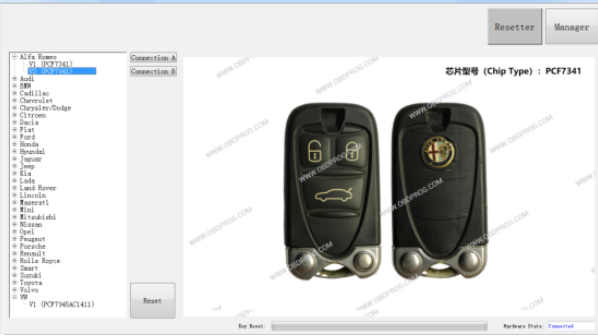

1)Select chip type shown in figure:(Take Alfa Romeo PCF794)

As shown in Figure:
After selecting the vehicle model and chip type,
the right side will display the appearance of the key to be renewed, and select the connection method to view the specific connection method.

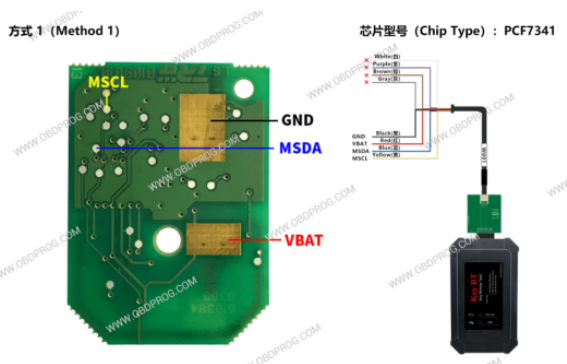

The welding method shown in Figure:

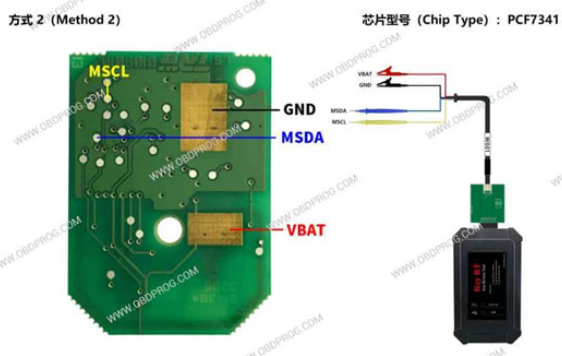

The fixture method shown in Figure:

2)Execute renewing: Click the Reset button to execute the renewing

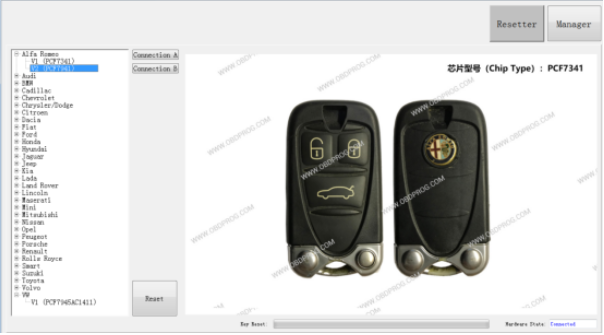

The renewing is successful as shown in Figure:


Chip Select:
1)The key renewing window controls include:
supporting model catalog, key appearance and wiring mode picture window.
2)The supported chip types are PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, and PCF7961.
3)Click on the model catalog to see the specific chip type, key appearance and wiring mode;
supporting welding and fixture connection method.

OBDSTAR RT Key Renew Tool Vehicle List:
Alfa Romeo
V1 (PCF7341)
V2 (PCF7941)
Audi
V1 (PCF7945AC0902)
V2 (PCF7945AC0911)
V3 (PCF7945AC2319)
V4 (PCF7945AC0902) KeylessGo
V5 (PCF7945AC1415) KeylessGo
V6 (PCF7945AC1500) KeylessGo
V7 (PCF7945AC1411) KeylessGo
V8 (PCF7945ATJ807) KeylessGo
BMW
E-Series
Remeo (PCF7945)
KeylessGo (PCF7952)
KeylessGo (PCF7953)
F-Series
Hella
V3 433MHz 5FA 011 926-09(PCF7953VC1900)
V6 433MHz 5FA 011 226-19(PCF7953VC1900)
V7 433MHZ 5FA 011 920-15(PCF7953VC1900)
V9 433MHZ Korea(PCF7953VC1900)
HUF
V1 433MHz HUF5663(PCF7953PC1800)
V2 433MHz HUF5661(PCF7953PC1800)
V5 433MHz HUF5767(PCF7953PC1800)
V8 433MHz HUFxxxx(PCF7953PC1800)
V10 315MHz HUF5662(PCF7953PC1800)
Siemens
V4 315Mhz 5WK49663(PCF7953PC1100)
V11 315MHz 5WK49661(PCF7953PC1100)
China E-Series
V1 (PCF7952)
V2 (PCF7952)
V3 (PCF7941)
V4 (PCF7961)
V5 KeylessGo(PCF7952)
China Specific
V1 433MHz(PCF7952)(BeiJing)
V2 315MHz(PCF7961)(ShangHai Buick)
V3 433MHz(PCF7952)
V4 433MHz(PCF7952)(Wagon)
V5 433MHz(PCF7952)(Trumpchi)
Cadillac
V1 315MHz (PCF7952)
Chevrolet
V1 433MHz (PCF7952)
Chrysler/Dodge
Blade
V1 (PCF7941)
Fobic
V1 (PCF7941)
V2 (PCF7941)
V3 (PCF7941)
V4 (PCF7941)
V5 (PCF7941)
V6 (PCF7941)
V7 (PCF7941)
V8 (PCF7941)
V9 (PCF7941)
V10 (PCF7941)
V11 (PCF7941)
V12 (PCF7941)
Citroen
V1 (PCF7941)
V2 (PCF7945)
V3 (PCF7341)
V4 (PCF7953)
V5 (PCF7961)
Dacia
V1 (PCF7961)
Fiat
V1 (PCF7961)
V2 (PCF7941)
V3 (PCF7941)
Ford
V1 (PCF7345)
V2 (PCF7353)
Geely
V1 (PCF7952)
Haval
V1 (PCF7952)
Honda
V1 (PCF7961)
V2 (PCF7945)
Hyundai
V1 (PCF7953)
V2 (PCF7953)
V3 KeylessGo(PCF7953)
V4 (PCF7952)
V5 (PCF7952)
V6 (PCF7952)
Jaguar
V1 433MHz(PCF7953)
V2 433MHz(PCF7945)
Jeep
V1 (PCF7953)
V2 (PCF7953)
V3 (PCF7953)
V4 (PCF7953)
Kia
V1 (PCF7952)
V2 (PCF7953)
Lada
V1 (PCF7961)
V2 (PCF7941)
V3 (PCF7941)
V4 (PCF7961)
Land Rover
V1 433MHz (PCF7953)
V2 (PCF7941) Vogue
V3 (PCF7945) Freelander
V4 (PCF7941) Discovery.Sport
V5 315MHz (PCF7953)
V6 433MHz (PCF7953)
Lincoln
V1 315MHz (PCF7952)
Maserati
V1 433MHz(PCF7953)
Mini
433MHz (PCF7953 38pin)
868MHz (PCF7945)
315MHz (PCF7945)
Mitsubishi
V1 (PCF7952)
V2 (PCF7941)
V3 (PCF7941)
Nissan
V1 (PCF7952)
V2 (PCF7952)
V3 (PCF7961)
V4 (PCF7953)
V5 (PCF7961)
V6 (PCF7953)
V7 (PCF7961)
V8 (PCF7953) Japan
V9 (PCF7953)
V10 (PCF7952)
V11 (PCF7953)
V12 (PCF7952)
Opel
V1 (PCF7341)
V2 (PCF7341)
V3 (PCF7941)
V4 (PCF7941)
V5 (PCF7341)
V6 (PCF7941)
V7 (PCF7941)
V8 (PCF7341)
V9 (PCF7941)
V10 (PCF7961)
V11 (PCF7341)
V12 (PCF7341)
Peugeot
V1 (PCF7961)
V2 (PCF7945)
V3 (PCF7341)
V4 (PCF7341)
V5 (PCF7341)
V6 (PCF7341)
V7 (PCF7941)
V8 (PCF7341)
V9 (PCF7341)
Porsche
V1 KeylessGo 315MHz (PCF7953PC1200)
V2 Remote 315MHz (PCF7953PC1800)
V3 KeylessGo 433MHz (PCF7953PC1800)
Renault
Card
V1 (PCF7952)
V2 (PCF7941)
V3 (PCF7945)
V4 (PCF7953)
V5 (PCF7952)
V6 (PCF7941)
V7 (PCF7953)
Flip
V1 (PCF7961)
V2 (PCF7961)
V3 (PCF7961)
V4 (PCF7961)
Rolls Royce
V1 (PCF7953)
Smart
V1 (PCF7941)
V2 (PCF7961)
Suzuki
V1 (PCF7961)
Toyota
V1 (PCF7953AC1500)
Volvo
V1 (PCF7945)
V2 868MHz KeylessGo (PCF7945)
VW

V1 (PCF7945AC1411)

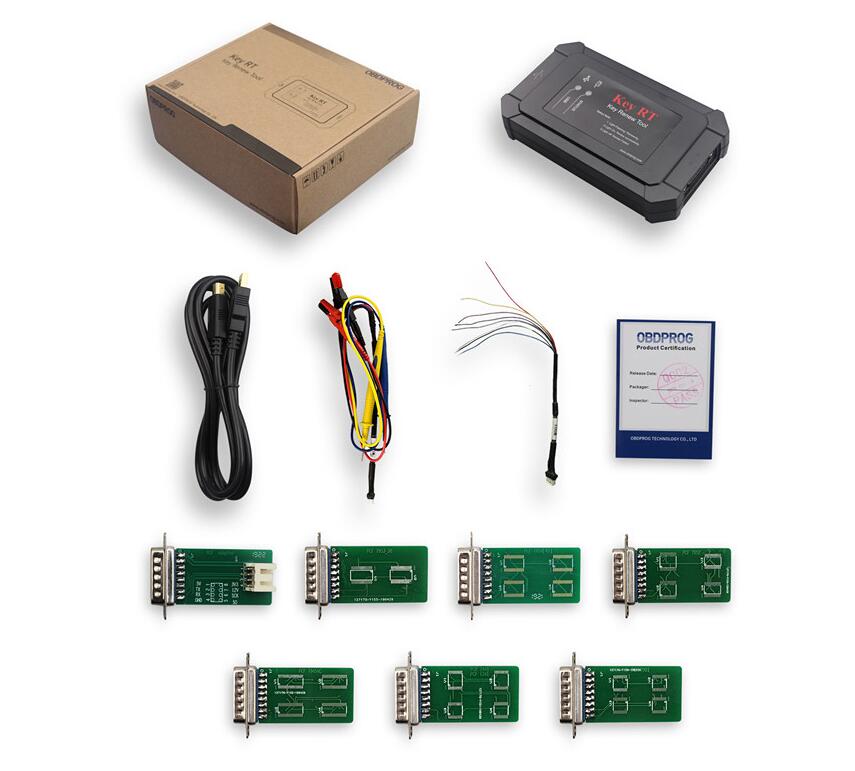

Package includes:
1pc Key RT Key Renew Tool
