Autel MaxiDiag MD806 Pro Full System OBD2 Diagnostic Tool Update Online for Lifetime

  • Item No.  CF307
  • History: 19  sold
  • Market Price: US$298.80
    Shop Price: US$249.00
    Quantity
    Total
    Shipping:
    Express Shipping Service    Estimated delivery time: 3-5 days »
    Affected by the epidemic, there will be delays in transit time.
    continue
  • Stock  200
  • Weight:  1.6KG
  • Rate:  comment rank 50 () Write a Review
  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


Autel MaxiDiag MD806 Pro Full System OBD2 Diagnostic Tool Update Online for Lifetime

Autel MD806 Pro Features:
1.Supports AutoScan
2.1 Year Warranty
3.Lifetime Free Update
4.Print diagnostic reports via PC connection
5. Multi-language: English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Greek, Simplified Chinese. Provide serial number to change language

Introduction
Autel MaxiDiag 806 PRO, as an OBDII diagnostic tool specially designed for the DIY car owner or the skilled mechanic, features all system diagnoses, 7 most commonly used special services, along with 10 modes of OBDII function, DTC lookup and Data Playback & Print etc., in creating easy work to help you diagnose efficiently and precisely.

Bullet Points
ALL ECUs COVERED ➤ The diagnostic tool scans all the main systems/subsystems in a vehicle (Body, Chassis, Powertrain, Network and etc.), instantly displays all the errors detected, and allows errors to be viewed and cleared with just a single click.

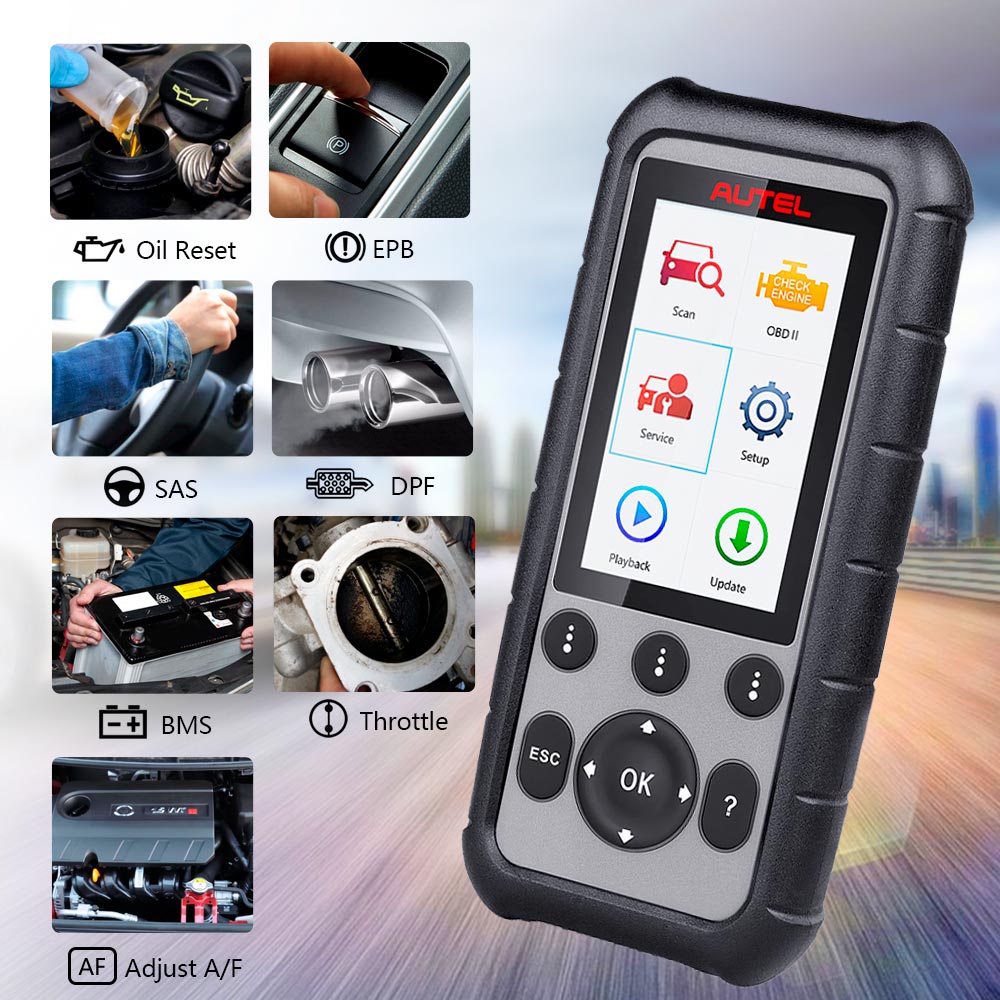

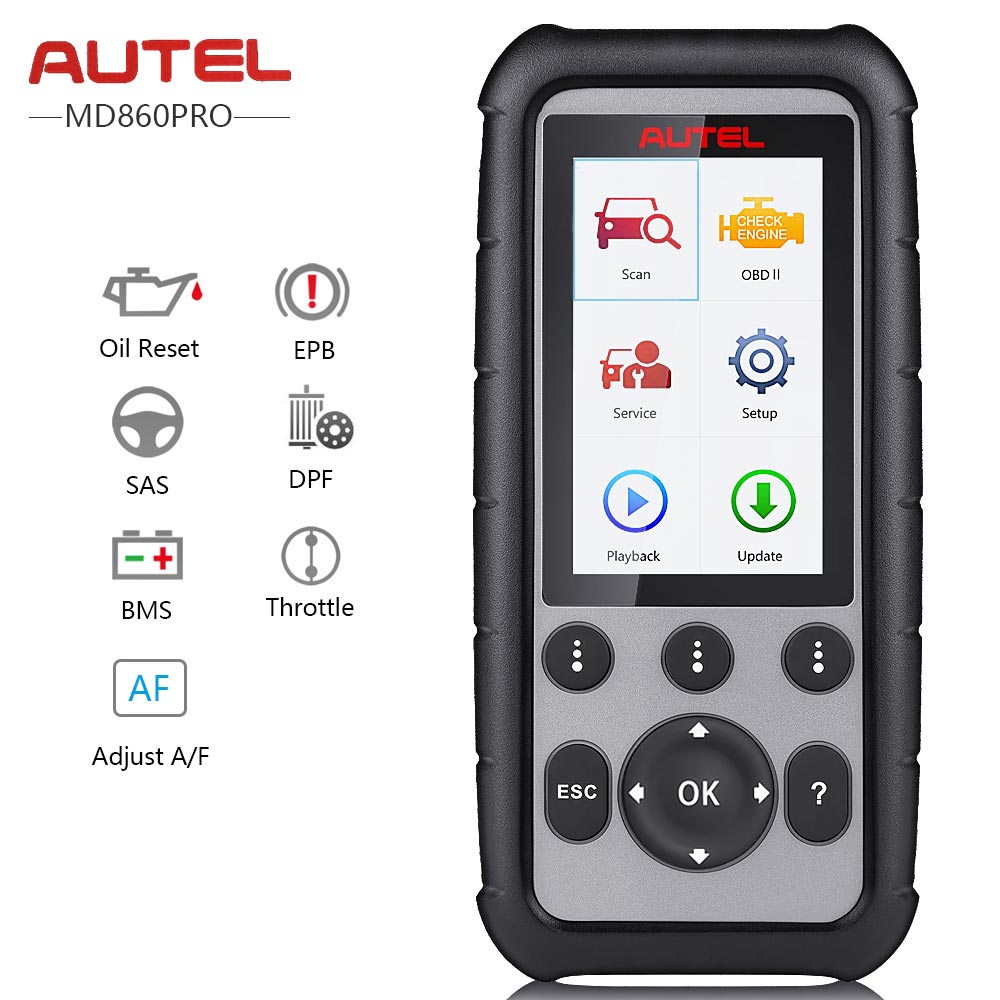

7 ADVANCED FEATURES ➤ Oil Reset, Electronic Parking Brake Release, Steering Angle Sensor Calibration, Diesel Particulate Filter Service, Battery Management System Service, Throttle Matching, Adjust A/F, all above 7 special services are supported.
FULL OBD2 MODES ➤ Full OBDII functions of this scanner are effective to quick & precise diagnostics of your vehicle (Read OBDII Data/Erase Codes …), and are great for passing the emission test smoothly (I/M Readiness Check, O2 Sensor Test, On-Board Monitor Test …).
USER-ORIENTED ➤ Handheld design for being portable; Hotkeys for quick access to the commonly used functions; Plug & Play, no battery required; DTC LookUp, Data Playback and Print etc., above all for simplifying the analysis and repair process.
WARRANTY & UPDATE ➤ Autel MD806 PRO carries a complete 12-month guarantee from the date of sale provided from Autel Headquarters in China, with free lifetime software update, and 14 languages support (EN, CN, FR, DE, ES, PT, NL, PL, SV, KR, JA, RU, IT, GR).

1. Autel MD806 Pro ALL System Diagnoses
 Guide Directly to the Fix and Eliminate Guesswork, MD806 PRO allows you to:
1.1 Retrieve ECU information of tested control units including unit type, version numbers, and other specifications;
1.2 Read & Erase DTCs to locate problem areas and clear the codes easily;
1.3 View live data of each parameter item;
1.4 Get access to all vehicle systems and subsystems, such as Engine; Automatic Transmission; Suspension; Audio; IMMO Immobilizer; Air Conditioning; Auto Headlamp; ACC; Car Radio Audio; Car Door Windows etc. To perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related.
1.5 Read and clear trouble codes for Special Functions
    OLS - Oil Service Reset
    BMS - Battery Registration & Reset
    DPF - Diesel particulate service including forced regeneration
    SAS - Reset steering angle sensor functionality
    EPB - Relearn parking brake pad after replacement
    Odometer - Reset service mileage and service intervals
Throttle

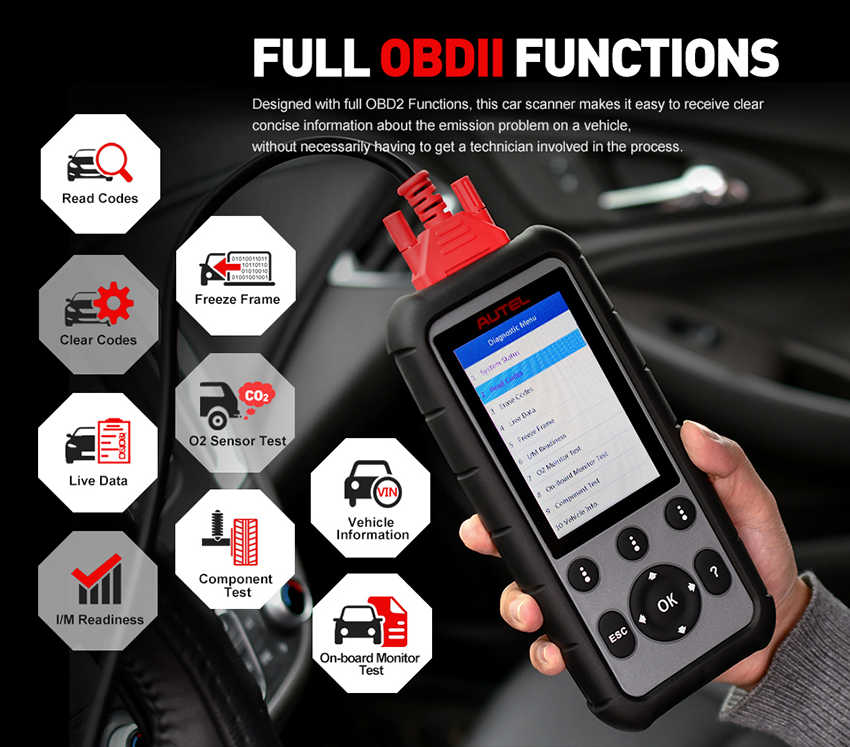

2. Autel MD806 Pro Designed with full OBD2 Functions
2.1 Read & clear detected diagnostic trouble codes and turn off the Check Engine Light;
2.2 Read I/M readiness status to have a vehicle inspected for state emissions compliance;
2.3 View graphical live data of vehicle's computer module(s) for easy analyses;
2.4 View the vehicle's operating parameters at the moment a DTC is detected;
2.5 Show the last results of the O2 sensor test in the graphic display for troubleshooting;
2.6 Read the results of on-board diagnostic monitoring tests for specific components/systems;
2.7 Component Test: Allow initiating a leak test for the vehicle's EVAP system;
2.8 Retrieve the vehicle information of VIN, CINs, and CVNs completely.

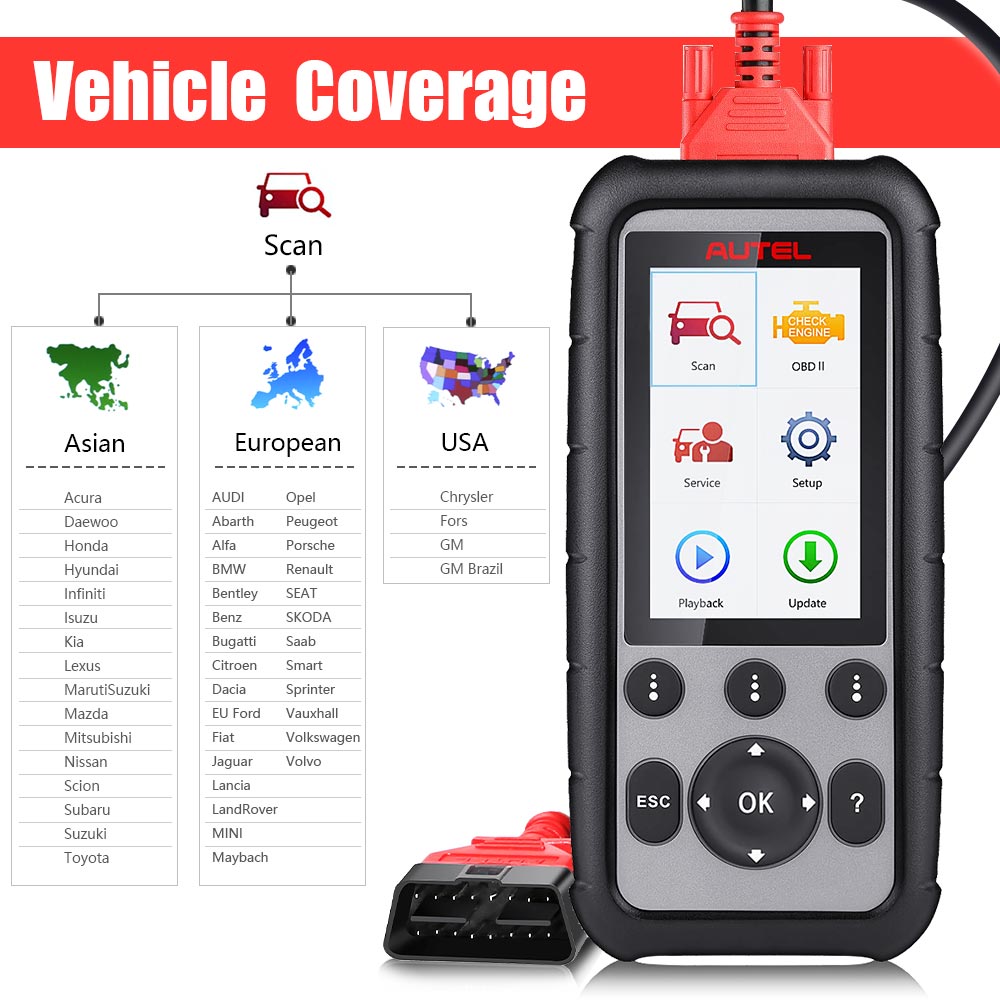

3. Autel MD806 Wide Vehicle Coverage
MD806 Pro supports Global OBD II coverage for U.S. domestic, Asian and European makes and models. All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support.

Oil Reset Service Coverage:
Asian For Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota; AU Holden
European For Audi, Abarth, Alfa, BMW, Bentley, Benz, Bugatti, Citroen, Dacia, Fiat, Jaguar, Lancia, LandRover, MINI, Maybach, Opel, Peugeot, Porsche, Renault,Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volvo
USA For Chrysler, Ford

Service Coverage:
Asian For Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Nissan, Scion, Toyota
European For Audi, BMW, Bentley, Benz, Bugatti, Citroen, EU Ford, Jaguar, LandRover, MINI, Maybach, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Vauxhall, Volkswagen, Volvo
USA For Chrysler, Ford

SAS Service Coverage:
Asian For Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Maruti Suzuki, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota, AU Holden
European For Audi, Abarth, Alfa, BMW, Bentley, Benz, Bugatti, Citroen, Dacia, EU Ford, Fiat, Jaguar, Lancia, LandRover, MINI, Maybach, Opel, Peugeot, Renault, Seat, Skoda, Vauxhall, Volkswagen, Volvo
USA For Chrysler, Ford, GM

DPF Service Coverage:
Asian For Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Suzuki, Toyota
European For Audi, Abarth, Alfa, BMW, Bentley, Benz, Bugatti, Citroen, EU Ford, Fiat, Jaguar, Lancia, LandRover, MINI, Opel, Peugeot, Renault, Seat, Skoda, Sprinter, Vauxhall, Volkswagen, Volvo
 USA For Chrysler, Ford, GM

BMS Service Coverage:
Asian For Infiniti, Lexus, Mitsubishi, Nissan, Scion, Suzuki, Toyota
European For Audi, BMW, Bentley, Bugatti, Citroen, Jaguar, LandRover, MINI, Peugeot, Porsche, Seat, Skoda, Volkswagen, Volvo
USA For Ford

Throttle Service Coverage:
Asian For Acura, Daewoo, HONDA, Hyundai, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Scion, Suzuki, Toyota, AU Holden
European For Audi, Abarth, Alfa, Bentley, Bugatti, Citroen, Dacia, Fiat, FordEU, Jaguar, Lancia, LandRover, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Vauxhall, Volkswagen
USA For Chrysler, Dodge, Ford, GM, Jeep

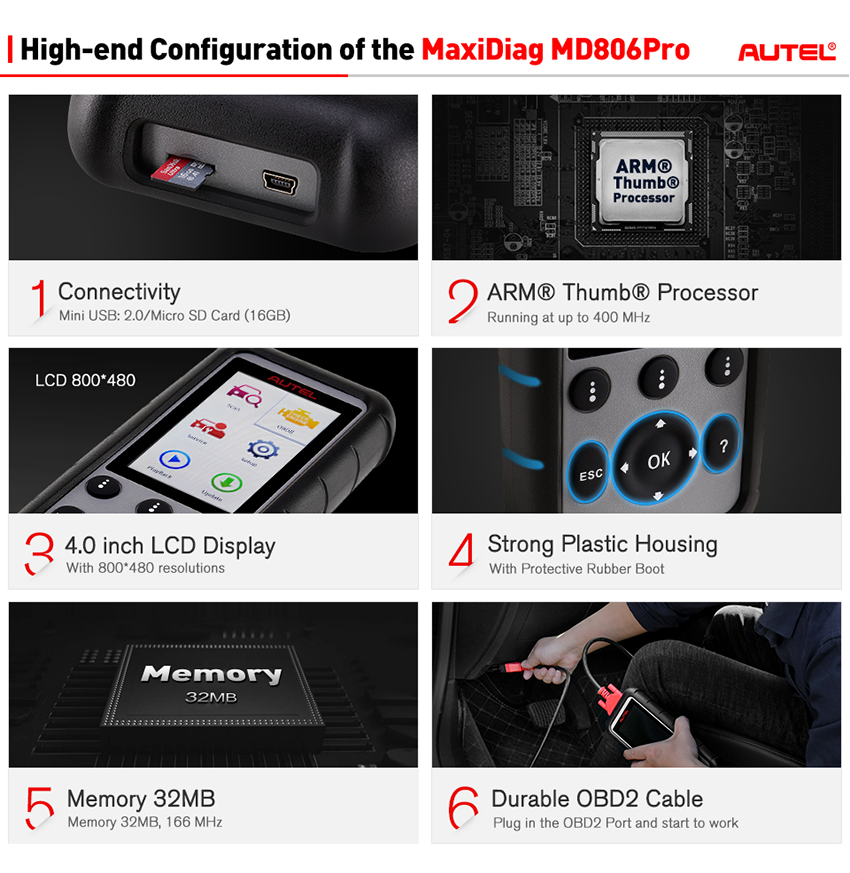

Autel MD806 Pro Specification:
Processor : ® Thumb® Processor running at up to 400 MHz
Memory: 32MB, 166 MHz
Display: 4.0 inch LCD with 800 x 480 resolution
Connectivity: Mini USB: 2.0; Micro SD Card (16GB)
Power Consumption: 1.7 W
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 5% - 95% non-condensing
Housing: Strong plastic housing with protective rubber boot
Dimensions: 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight: 313 g (0.69 lb.)

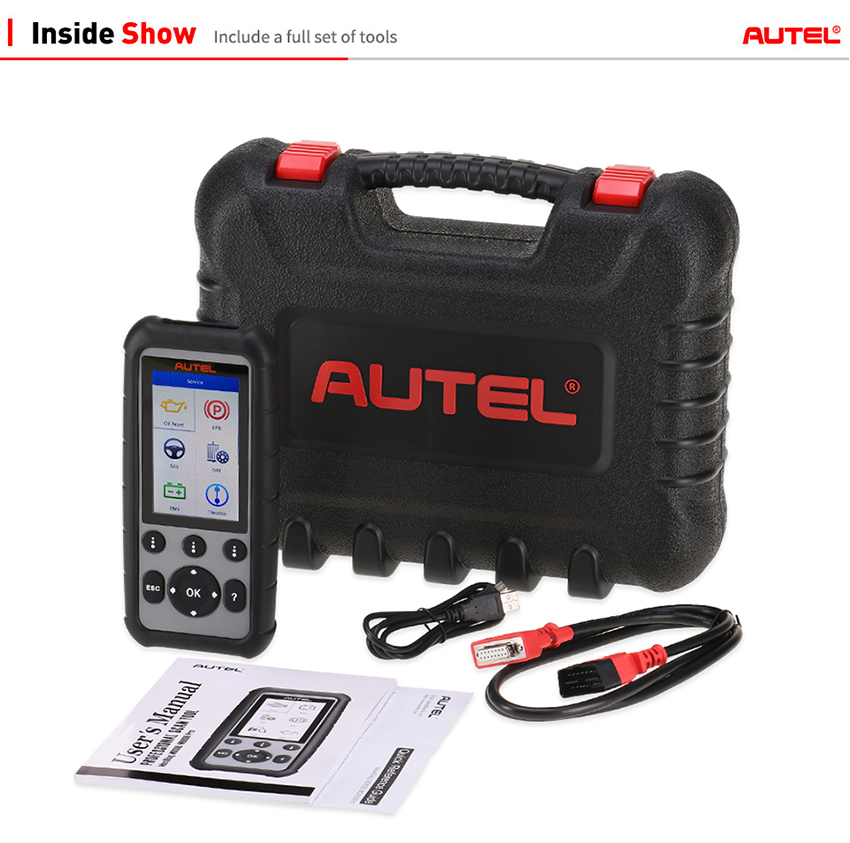

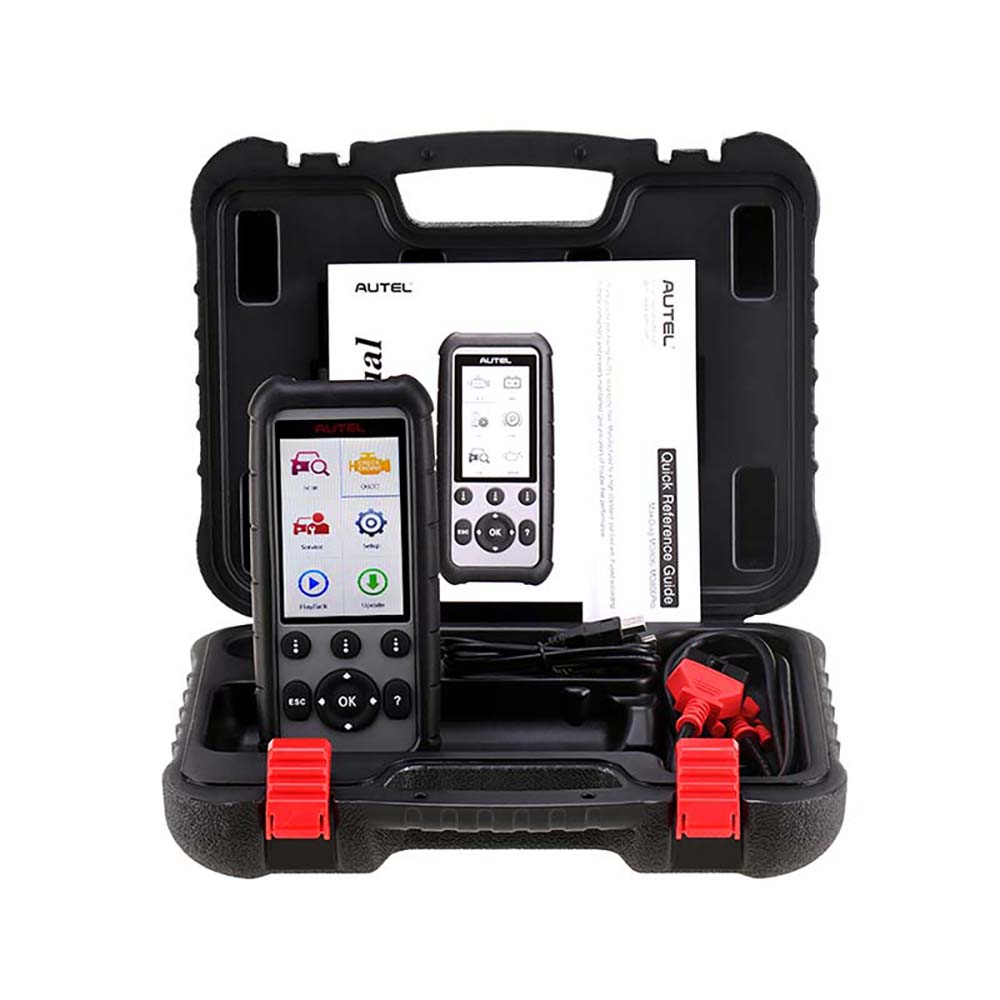

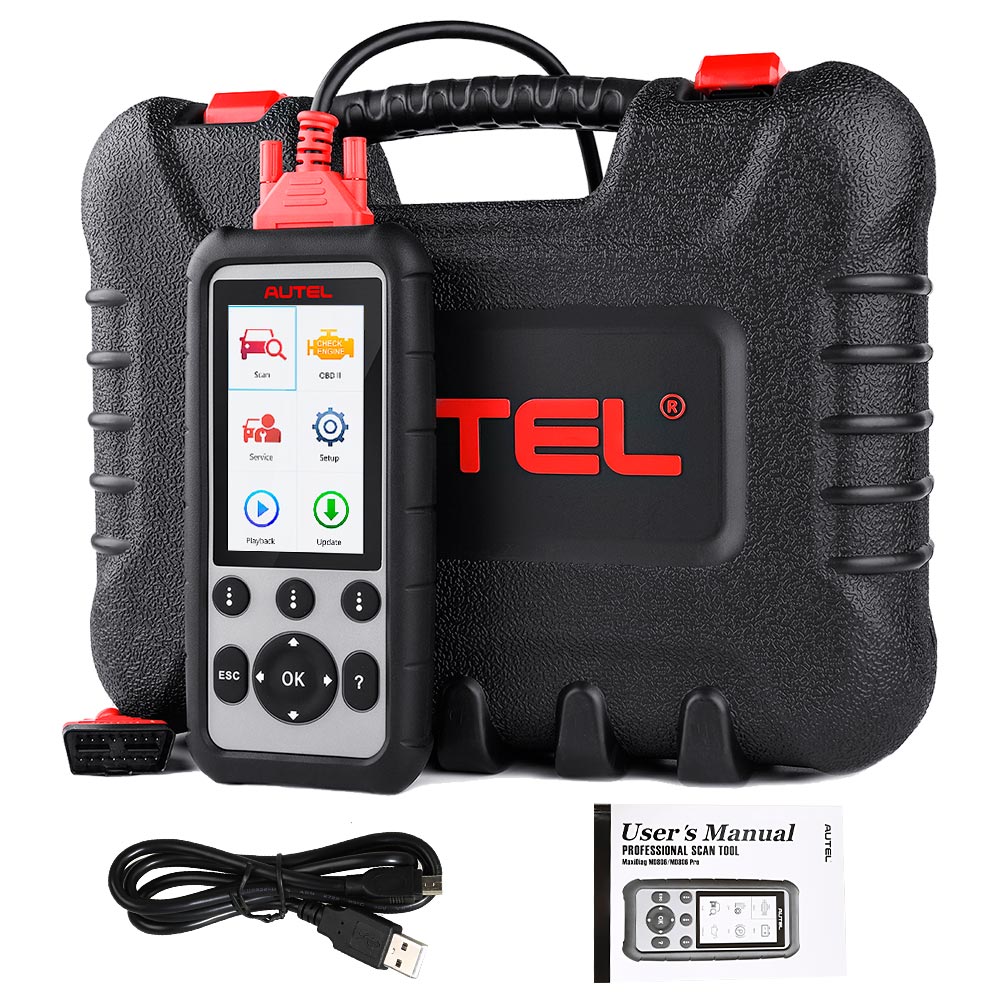

Autel MD806 Pro Package List:
1x MD806 Pro Main Unit
1x User Manual
1x OBD II Cable
1x USB Cable
1x Micro SD Card
1x Quick Guide
1x Carry Case
