New Holland Electronic Service Tools（CNH EST 9.13 9.14）Engineering Level Diagnostic Software

New Holland Electronic Service Tools（CNH EST 9.13 9.14）Engineering Level Diagnostic Software

Note:
After receiving the software, please contact us, we will provide you with a computer installation and activation remotely.

Type of catalogue: Diagnostic Software
Make: Case, New Holland
Region: WorldWide
languages: English, Italian, Russian, Polish, Spanish, French, Portuguese, German, Dutch, Danish.
OS: Windows 10/11 64 bit , 100GB capacity
Notice: this link only includes CNH software, does not contents ETIMGO, here is link for ETIMGO purchase separateyl: https://www.cnautotool.com/goods-7217-eTimGo-for-CNH-EST-All-Brands-OFFLINE-Repair-Manual.html

The brand new version of New Holland CNH EST works with OS Windows 10 64 bit / 11 64 bit, except Home editions. If you have windows 7/ 8, we can offer you a previous version of CNH EST, as the 9.14/9.13 versions no longer support Windows 7 / 8 and in some cases won't even loading.

New minimum PC specifications
All computers must use a 64-bit version of their operating system. The older 32bit options are limited to 4 gigabytes of RAM, and cannot provide enough performance to run these programs.

Minimum Specifications
Processor: Intel Core i5 (higher than generations 6)
RAM Memory: 8 GB or greater;
Operating System: Windows OS: 64-bit (Mandatory)
Windows 10/11 (Recommended)
Hard Drive: 256 GB or greater;
Ports: One 9 pin Serial port (preferred) OR USB to RS-232
Converter - FTDI Chipset)
Two USB ports
10/100 Ethernet
WiFi 802.11b / g
Bluetooth
Mobile Wireless (recommended)

To your attention is presented the Offline Database eTimGo AGCE for CNH EST all brands:
* Case Agriculture
* Case Construction
* New Holland Construction
* New Holland Agriculture
* Flexicoil
* Miller
* STEYR

New Holland Electronic Service Tool allows you to:
 • Check the status of parameters;
 • Retrieve faults;
 • Run diagnostic tests;
 • Make ECU and parameter programming;
 • Monitor active and logged diagnostics;
 • View and change ECU configuration;
 • View diagnostic procedures and schematics.
 • Troubleshoot problems;
 • Run scope diagnostics;

E.A.S.y - additional engine diagnostic and download tool for connection directly to ECU to perform diagnostic, programming and ECU reload by K-Line protocol.

CNH Engine Download Tool operates from within the EST program to perform the following engine download operations:
 • Provide Engine Control Unit (ECU) programing update capability;
 • Provide blank ECU initialization and programming capability;
 • Provide ECU programming reassignment for blank and other ECUs;
 • Provide ECU download crash recovery.

NOTE:
This tool can perform diagnostic, programming and ECU reload by K-Line protocol with E.A.S.y software for Iveco engines.

CNH Interfaces OEM 380002884. This interface is  Working 2 CAN and K line ( for diagnostic CASE and New Holland with IVECO Engine with EASY under EST

Package :
1 PC activation (we will remote help you installation by team viewer )

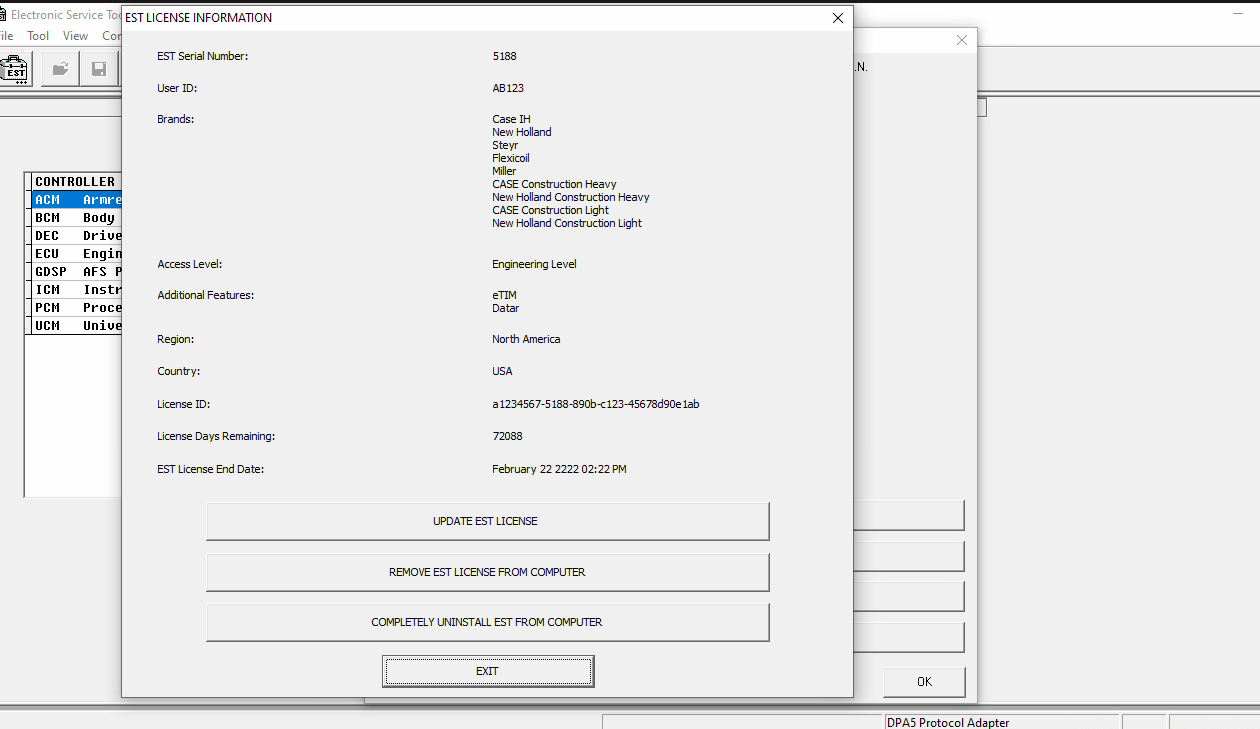

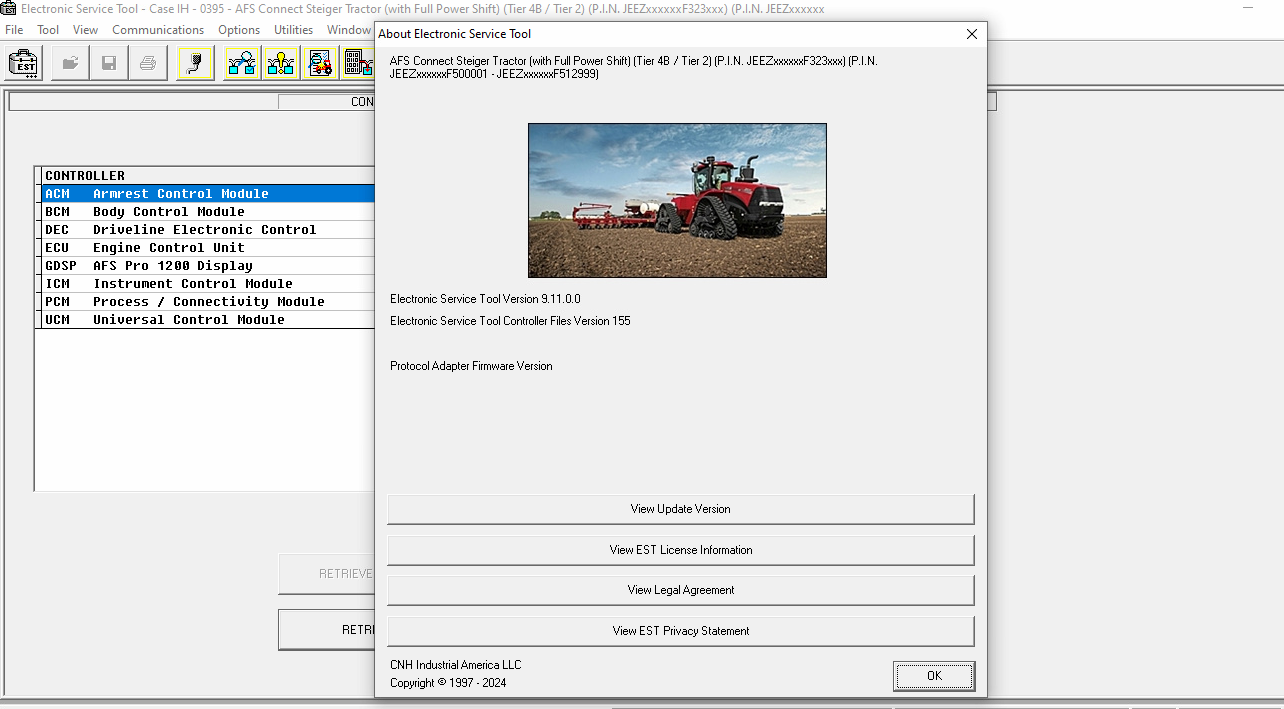

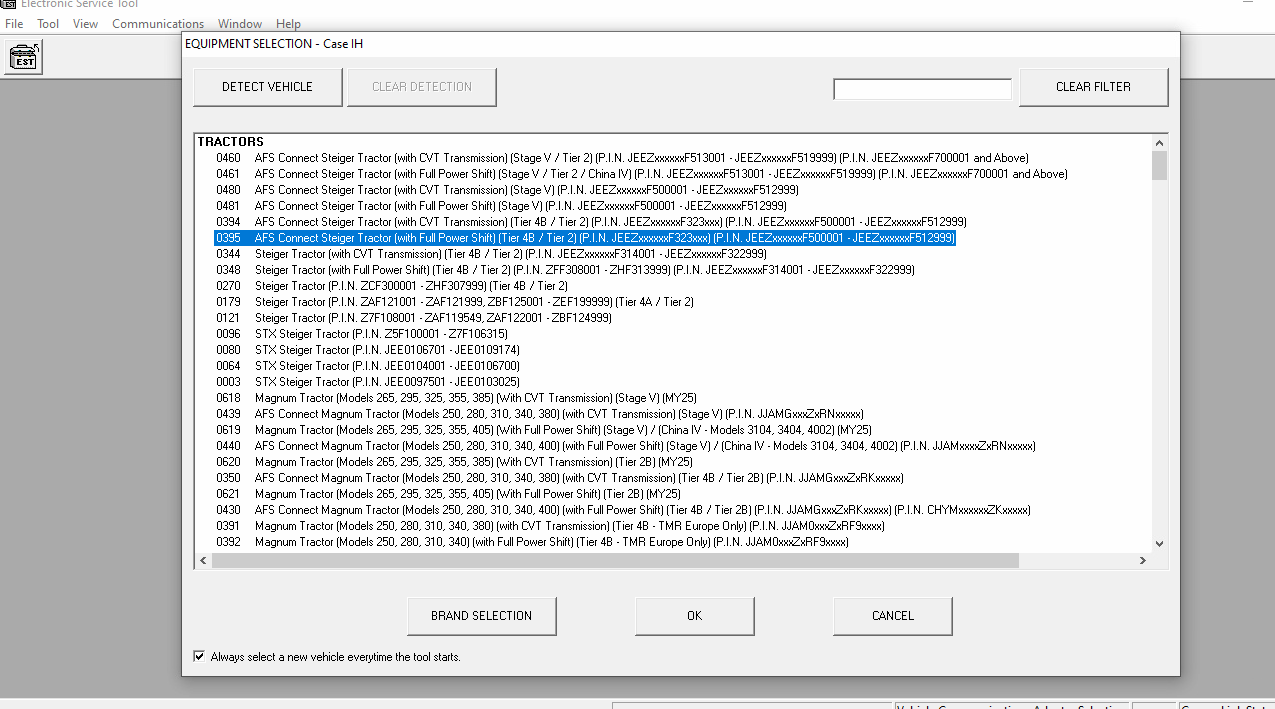

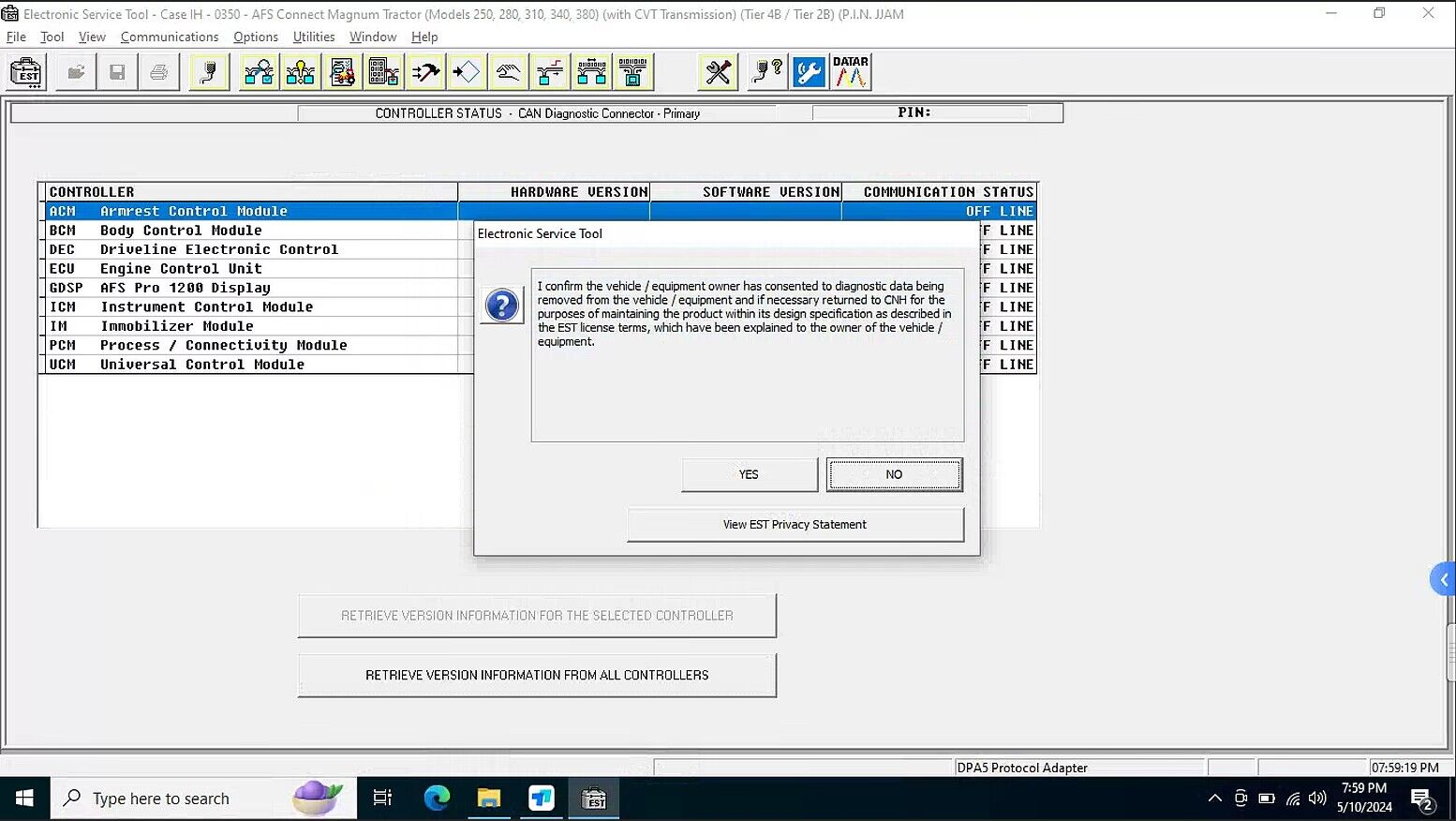

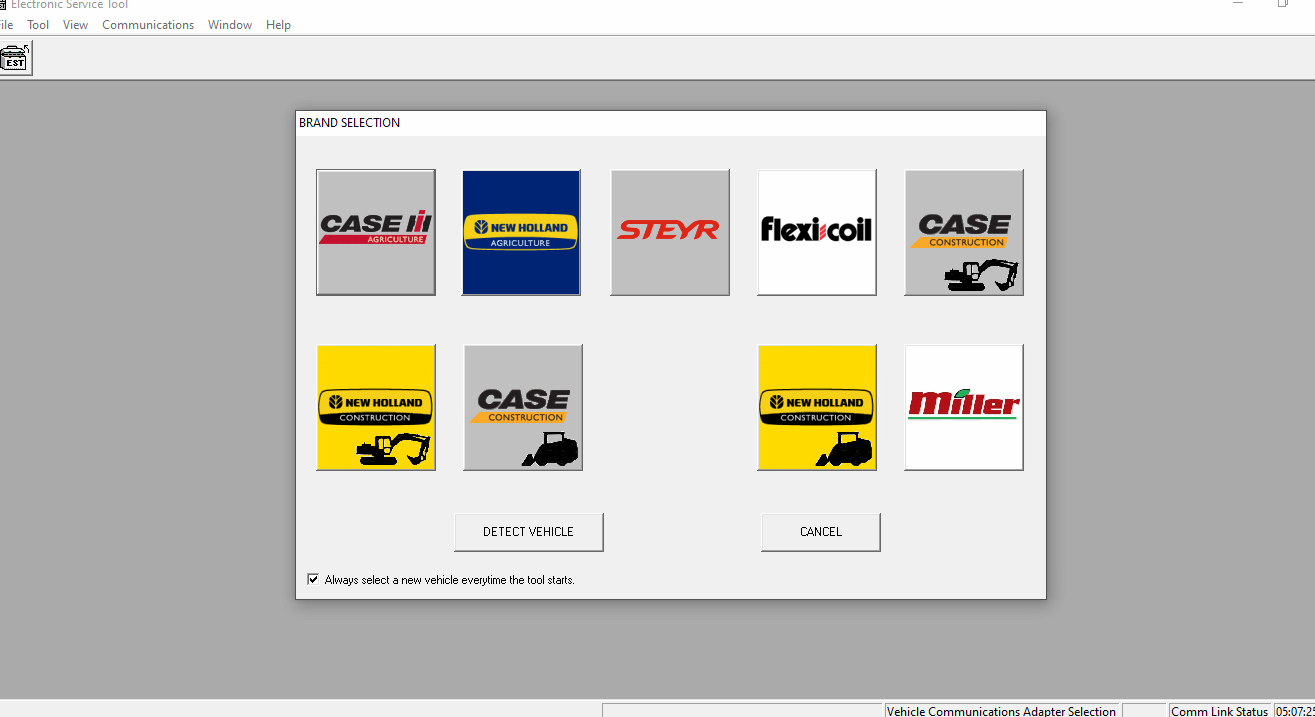

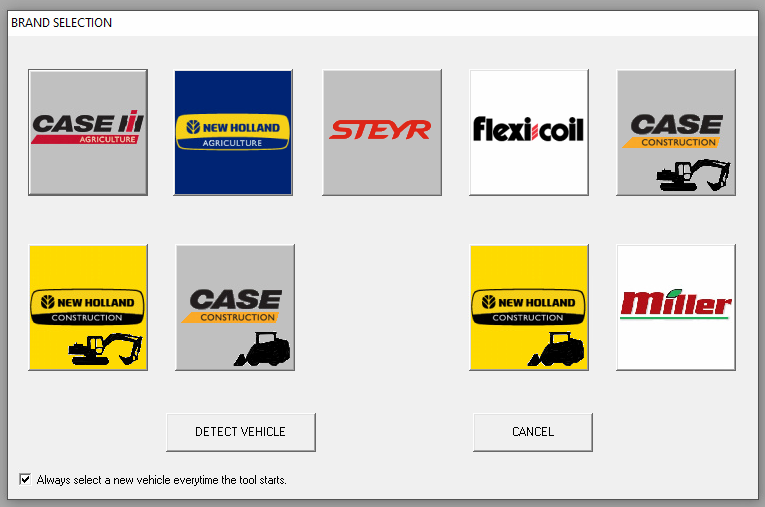

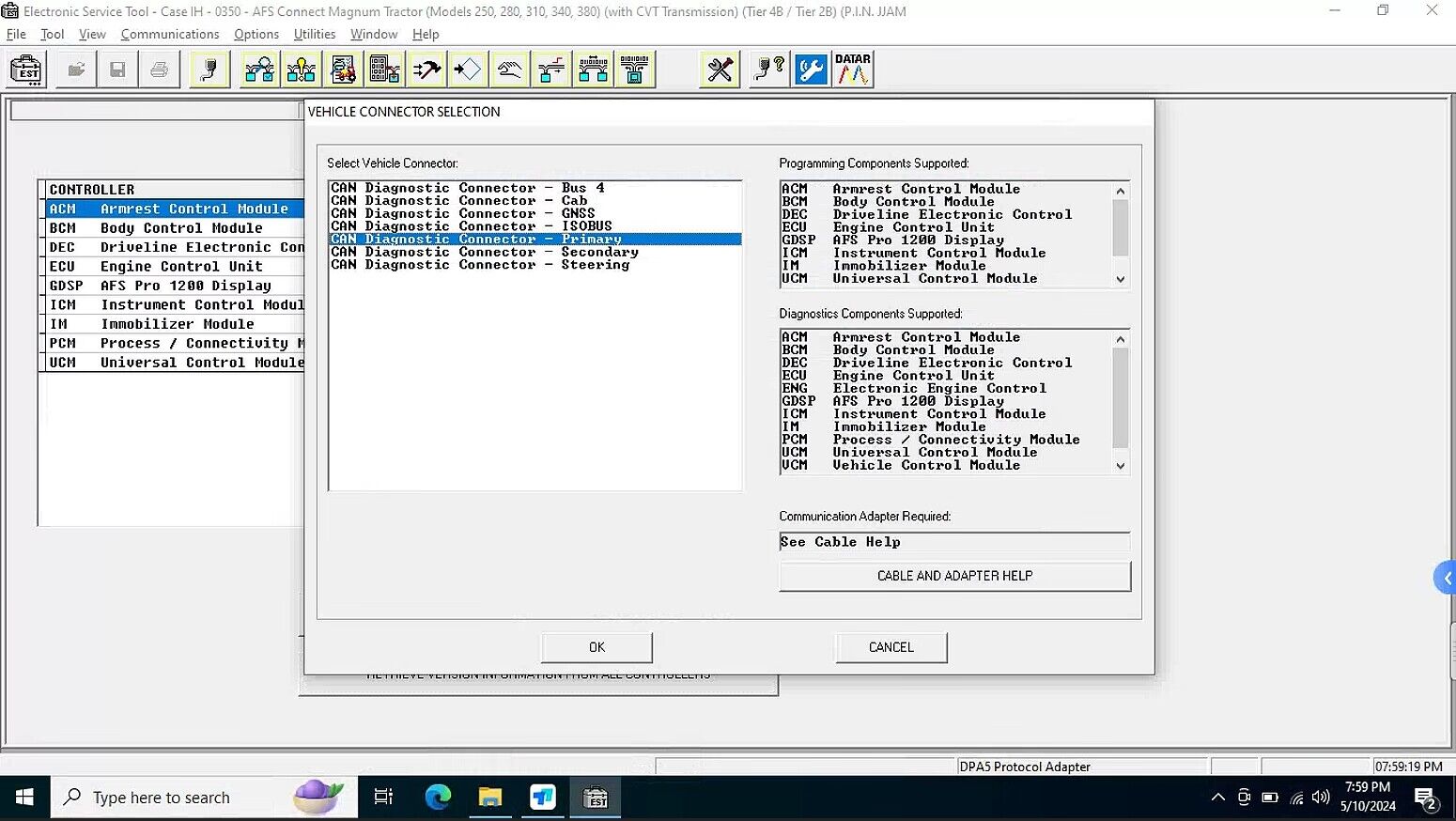

Software display:
