Original Alientech KESS V3 KESS3 ECU and TCU Programming via OBD Boot and Bench Replace Kess V2 Ktag

Download

ALIENTECH-KESS-V3-User-Manual.pdf

Original Alientech KESS V3 KESS3 ECU and TCU Programming via OBD Boot and Bench Replace Kess V2 Ktag

Note: The hardware does not come with any software and cannot perform any functions. You need to purchase the Protocol to support it.

KESS V3 Product Description:
KESS3 gives you more control than its predecessors, KESSv2 and K-TAG, and can be upgraded without the need to spend money on new hardware. This new tool allows users to remap in a faster, easier way than ever before, with the ability to use both OBD or Bench Tuning methods from the same device. You no longer need separate tools for OBD and Bench Tuning. With the new KESS3, this is now a combined feature.

ALIENTECH KESS V3 ECU and TCU Programmer:
KESS3 is the new Alientech ECU and TCU Programmer via OBD, Bench and Boot Mode all in a single tool.

KESS3 combines 3 operating modes in one tool. OBD, Bench and Boot mode.

OBD - With the OBD mode, you can easily access all the ECU data through the diagnostic socket.

BENCH - A simple interface to the connector and you have complete access to the data of your ECU.

BOOT - This mode allows you to access all system data areas. Read, Write and Clone.

ALIENTECH KESS V3 Advantages:
The most powerful microprocessor on the market. 7 times more powerful than the previous generation. Pure power that can execute your commands reliably, faster and more efficiently.KESS3 automatically and instantly recognizes the right communication line, to work faster, using only an OBD cable. Ethernet, FlexRay, CAN Bus, K-Line, L-line, J1850, J1708 GPS, Accelerometer, Bluetooth, and Wi-Fi. All embedded in one platform The renewed USB Full speed chip allows an up to 10x increase in the performance of importing and exporting files to and from the KESS3 Alientech added a new web infrastructure to the new KESS3, as a result, an Alientech cloud with improved speed and performance.

ALIENTECH KESS V3 Features:
1. OBD Tuning
2. Bench/Boot Tuning
3. Upgradable from Slave to Master
4. Separate Car & Bike Protocols
5. Works with some existing KESSv2 cables
6. Uses Alientech Suite
7. Upgraded Cable Set
8. Superfast Checksum Calculations
9. 10x Faster Processing

Note:
When purchasing the device, at least one software protocol is required. The basic version cannot function without licenses and is not sold separately! Upon purchasing a protocol you will recieve software updates and free technical support and for a year. In the future, the subscription is renewed for an annual fee.

Original KESS V3 Protocols Activation：

Original KESS V3 Protocols Activation

KESS3 Master --Car -- LCV OBD Protocols activation
KESS3 Master --Bike --ATV & UTV OBD Protocols activation
KESS 3 Master --Agriculture --Truck & Buses OBD Protocols activation
KESS3 Master --Marine & PWC OBD Protocols activation
KESS 3 Master --Car --LCV Bench-Boot Protocols activation
KESS3 Master --Bike --ATV & UTV 8ench-Boot Protocols activation
KESS 3 Master --Agriculture --Truck & 8uses aench-aoot Protocols activation
KESS3 Master --Marine & PWC Bench-Boot Protocols activation
KESS3 Master --12 Months Subscnption
KESS3 Master --6 Months Subscription
KESS3 Slave Protocol activations

KESS3 Slave --Car --LCV OBD Protocols activation
KESS3 Slave --Bike --ATV & LJTV OBD Protocols activation
KESS 3 Slave --Agriculture --Truck & Buses OBD Protocols activation
KESS3 Slave --Marine & PWC OBD Protocols activation
KESS 3 Slave --Car --LCV Bench-Boot Protocols activation
KESS 3 Slave --Bike --ATV & LITV Bench-Boot Protocols activation
KESS3 Slave --Agriculture --Truck & Buses Bench-Boot Protocols activation
KESS 3 Slave --Marine & PWC Bench-Boot Protocols actlvation
KESS 3 Slave --12 Months Subscription
KESS 3 Slave --6 Months Subscription

KESS3 Master vs Slave Version
As a Master user, you can read the files in clear. This allows you to operate independently in order to remap and reprogram the ECU with modified files.
As a Slave user, only your master will be able to decrypt your files. (Recommended choice for taking the first steps in chiptuning, supported by your Master)

THE CPU
The most powerful microprocessor on the market. 7 times more powerful than the previous generation. Pure power that can execute your commands reliably, faster and more efficiently.

LINES OF COMMUNICATION
KESS3 automatically and instantly recognizes the right communication line, to work faster, using only an OBD cable. Ethernet, FlexRay, CAN Bus, K-Line, L-line, J1850, J1708.
All the essential lines to start any operation inside the vehicle in total safety.

PROJECTED TOWARDS THE FUTURE.
GPS, Accelerometer, Bluetooth, and Wi-Fi. All embedded in one platform.
The combination of these features and the constant technological developments that distinguish us will allow us to develop many new functions in the future.

PERFORMANCE
The renewed USB Full speed chip allows an up to 10x increase in the performance of importing and exporting files to and from the KESS3.
But not only that, Alientech added a new web infrastructure to the new KESS3.
The result being, an Alientech cloud with improved speed and performance.
Resilience and Durability for your workshop.

Innovative Design
lientech has provided added value by researching and incorporating the best usable materials. Designed to offer you versatile and rugged mobility, thanks to the durability of the materials. KESS3 is built around a fiberglass shell which gives it lightness and flexibility. An ergonomic shell, resistant to shocks and vibrations.
An exceptionally strong tool that can be taken anywhere.

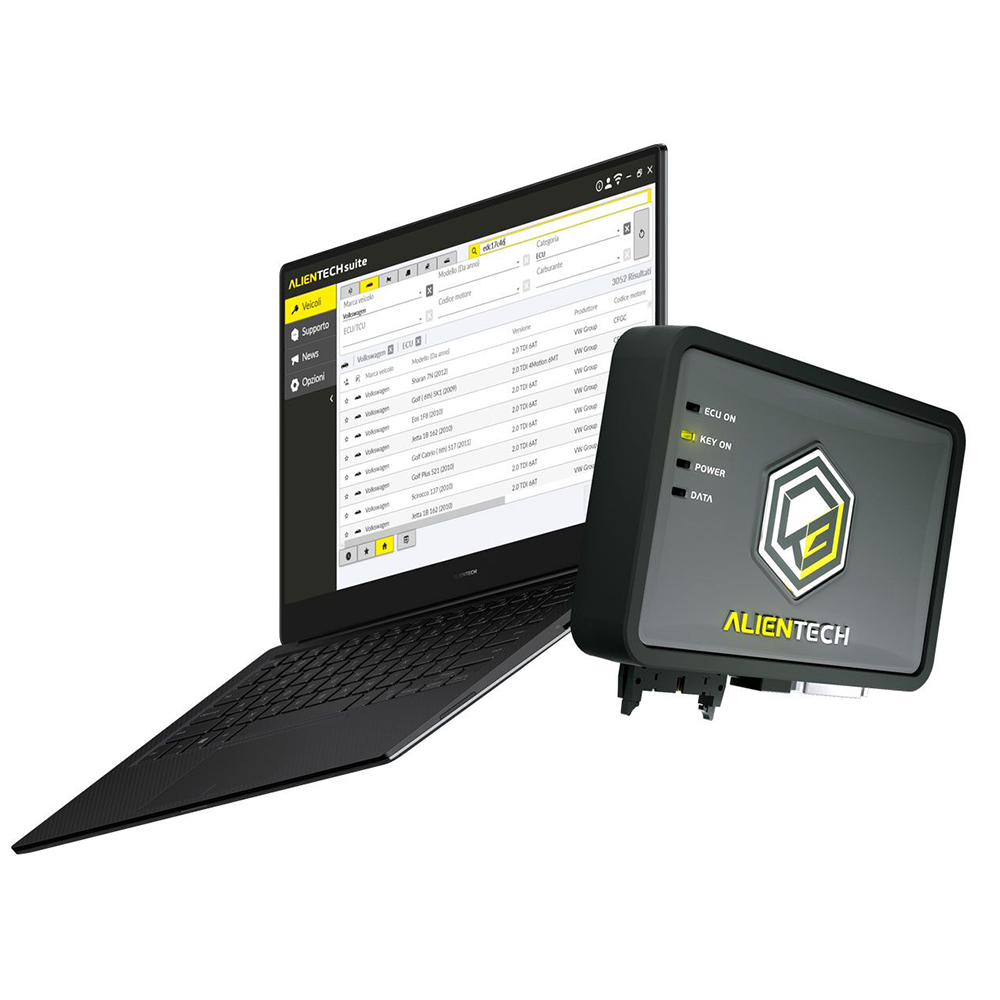

Alientech Suite – NEW Software.
Such an advanced new hardware inspired Alientech to design software that would take full advantage of its potential. A completely redesigned and new operating suite, in design and architecture.

NEW DESIGN
New look, clean design, everything you need at your fingertips. Updated regularly to be functional, usable and easy.

USER EXPERIENCE
A completely renewed UX. An intuitive dashboard with improved access to the vehicle list with the ability to create a list of favorite vehicles and a view of the history of vehicles already interfaced.

COMPATIBILITY LIST
List of protocols and vehicles updated daily and always available online www.alientech-tools.com/vehicles. Technical instruction available in multi-language to support users during the most complex operations.

PERFORMANCE
The new interactive "search" function will allow you to access the vehicle list or search for the microprocessor of your ECU in a few seconds.
Downloading and updating the list are now instant.

SUPPORT
Direct access to the Alientech help desk and all development news.

Personalize your custom KESS3.
Alientech gives a flexible solution that best suits your business requirements. You can choose the right configuration for you, based on your job today or what you may require tomorrow.

VERSIONS: Master or Slave according to your needs.

TYPE OF VEHICLES:
Communication protocols divided into packages by type of vehicle.
Choose from the Car, Motorcycle, Truck / Tractor and Marine world packages.

COMMUNICATION METHODS: OBD, BOOT and BENCH connection from KESS3 to the control unit.

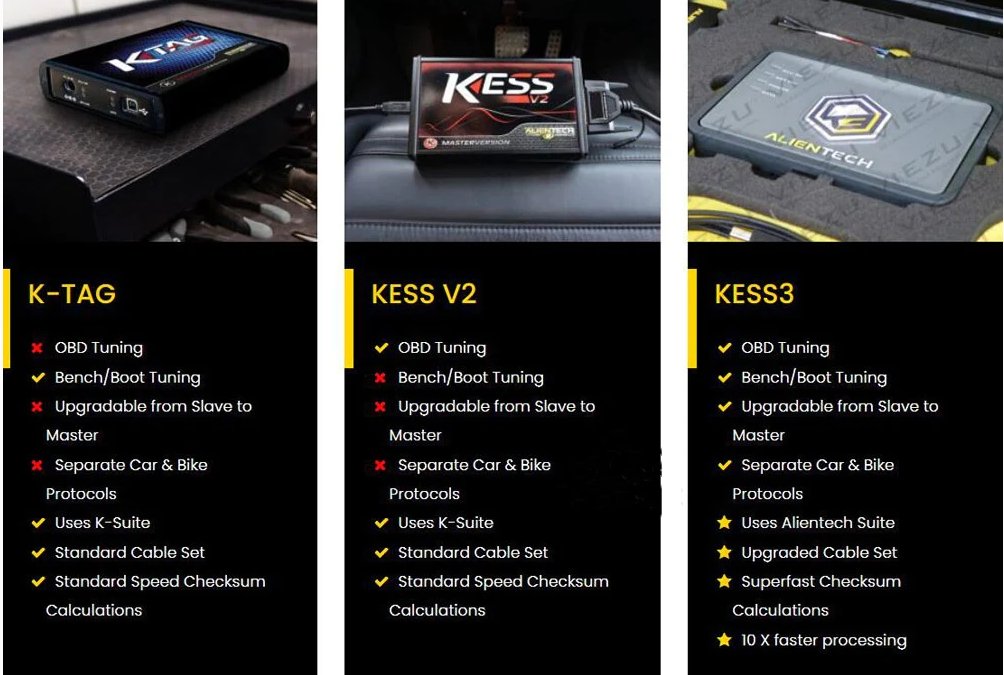

Ktag vs KESS V2 vs KESS V3:

KESS V3 Interface:
DB25 connector
Tyco 12 connector
USB 2.0 type B connector

KESS V3 Compatible operating systems:
32-bit or 64-bit editions of Windows 11 and Windows 10
RAM: 1 gigabyte (GB) for 32-bit OS or 2 GB for 64-bit OS
Processor: 1 gigahertz (GHz) or faster
Hard disk space: 200 MB
1 USB port
Microsoft Edge
Active Internet connection

KESS V3 Optional System Requirements:
Bluetooth V4.2 BR/EDR and Bluetooth LE
Wi-Fi 802.11b/g/n
Alientech Srl does not guarantee the correct functioning of the software on operating systems that are not indicated in the table above.

KESS V3 Environmental conditions:
Temperature range of us: -10°C/+50°C – 14°F/122°F
Storage temperature rang: -20°C/+70°C – -4°F/158°F
Maximum usage humidit: 60%
Operating altitude: max. 5000 m/16400ft
Degree of waterproofin: IP X0

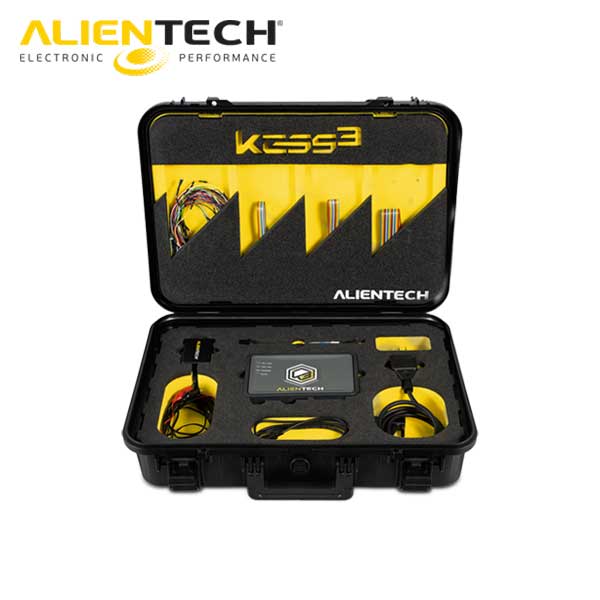

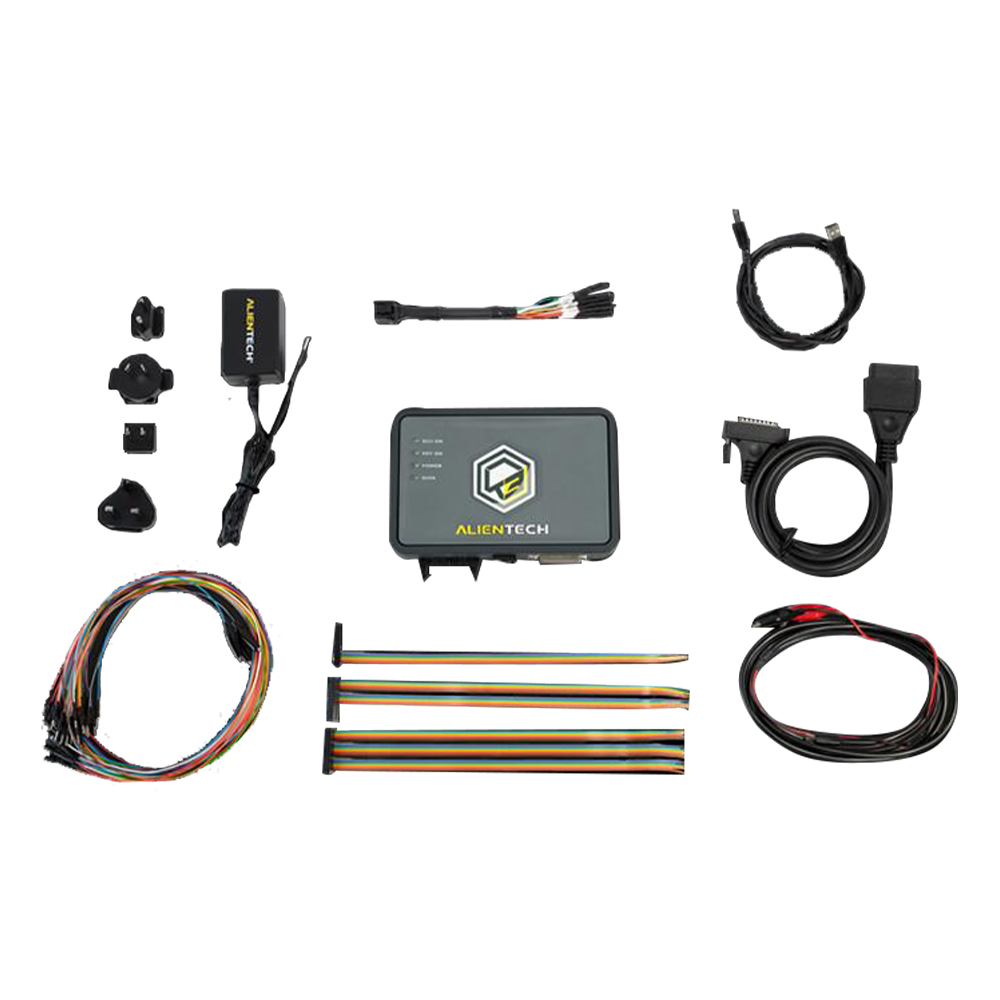

KESS V3 Packing List:
KESS3
USB cable
The new generation OBD cable
1400SWALIM power supply
144300TALI Cable
144300KBNC Cable
144300KTER Pack
144300T104 Rainbow Cable IDC 26-10
144300T105 Rainbow Cable IDC 26-16
144300T106 Rainbow Cable IDC 26-26

Notice:
One-year hardware warranty , no returns or exchanges.
