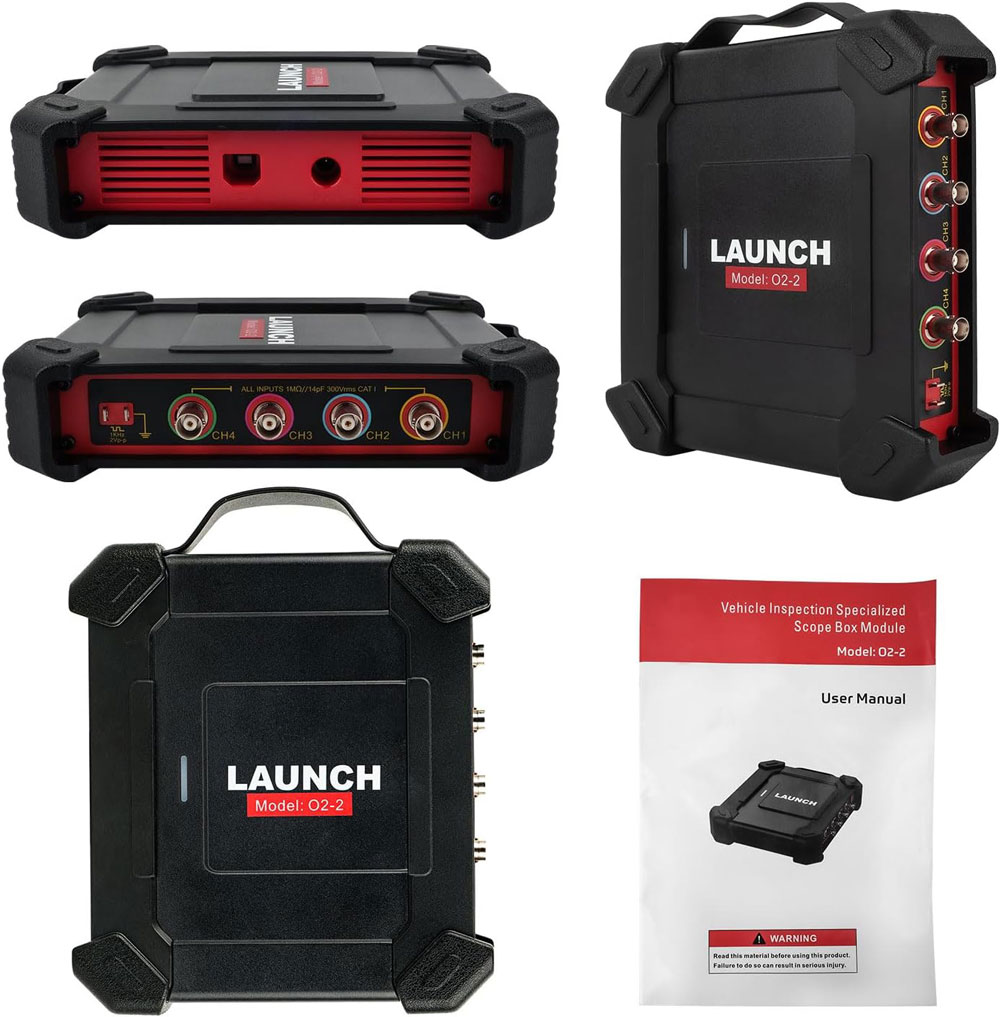

LAUNCH X431 O2-2 Scope Box Oscilloscope 4 Channels Automotive Oscilloscopes Work with PRO3S+ V5.0/PAD V/PAD VII

LAUNCH X431 O2-2 Scope Box Oscilloscope 4 Channels 100MHz USB DC Automotive Oscilloscopes Work with PRO3S+ V5.0/PAD V/ PAD VII

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.

LAUNCH O2-2 Scope Box For Solving Complex Electrical Faults
Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool's functionality.

Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S+, X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.

Highligts:
4 channels
Bandwidth 100MHz
Auto configuration
Save waveforms with one click
Cursor measurement
One-click preset waveform parameter settings
Demo mode
Online help
Waveform math operations
23 automatic measurements

Features:
1. ECU troubleshooting and Diagnostics
2. Features the alility to record and palyback high-resolution waveform data for future analysis. One key enable function allows the suers to capture
3. A particular waveform which makes the process 70% more efficient as compared to other scopes
4. Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch
5. Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency
6. Buffer memory up to 50M
7. Use the zoom in/out feature to review precise details
8. Customizable personal system settings that can be saved as configuration files for viewing
9. The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy
10. Magnifies waveform math operations, such as affition, subtraction, multiplication and FFT function for high level waveform anlysis
11. Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more
Multi language user interface
12. USB Sunc data transfer to external devices such as laptoop, tablet, etc..

Functions:
Supports multiple vehicle preset project tests
Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.

23 automatic measurement settings
23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.

Quick trigger source switching
Supports edge, pulse and other triggers. Simple and intuitive trigger settings and fast trigger source switching methods make the most difficult part of oscilloscope application extremely easy.

Quickly create waveform preset parameters with one click
When testing waveforms, you can save the existing settings on the current interface as waveform preset parameters with one click. When testing similar waveforms later, you can directly load the preset parameters without repeated settings.

Quickly save waveforms with one click
Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.

Convenient cursor operation
Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.

Support cursor/phase ruler changes accordingly
When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.

Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.

Support demonstration function
Preset sine waveforms to demonstrate common functions without connecting an oscilloscope.

Supports waveform math operations
Supports addition, subtraction, multiplication and division calculations of two channel waveforms, in addition to fast Fourier transform.

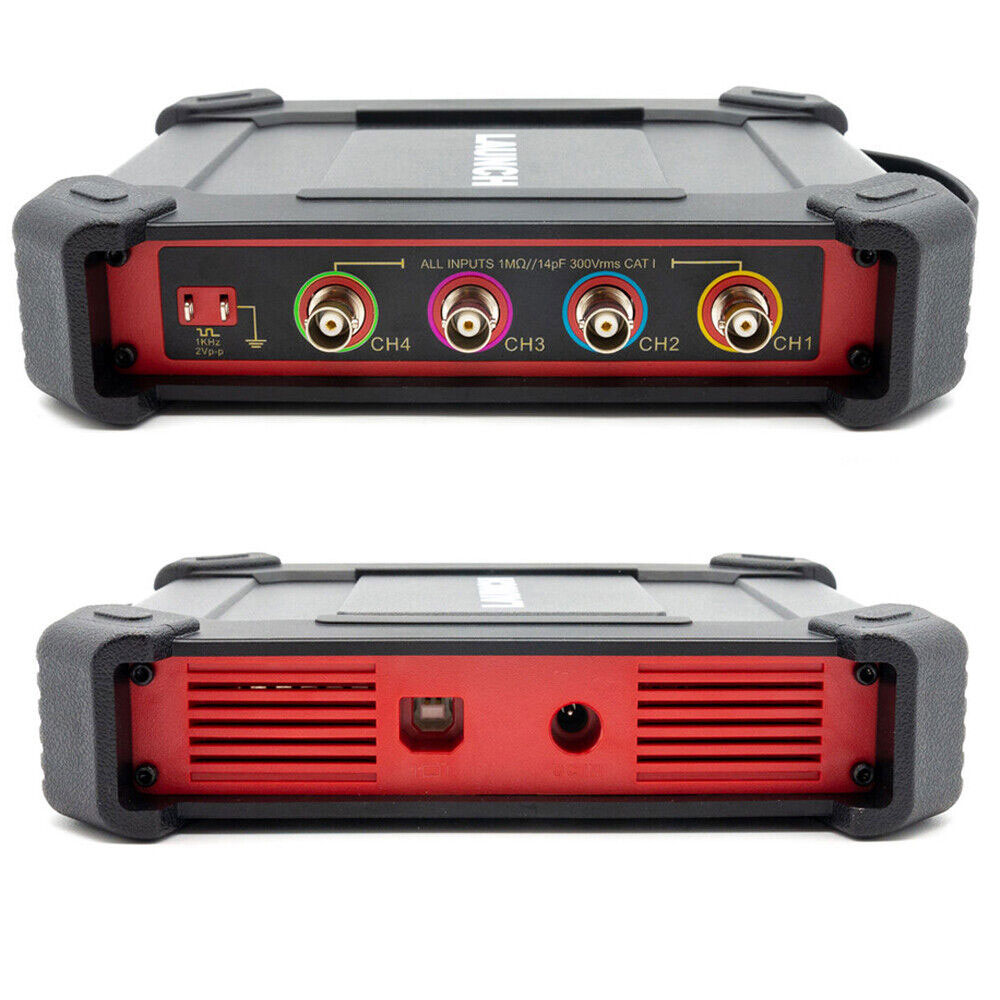

How to Connect the Cables?
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

Note: * PADVII series tablets support USB power supply.

2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box

Model	O2-1	O2-2
Channel	4	4
Bandwith	100MHz	100MHz
Rise Time	≤3.5ns(typical)	≤3.5ns
Maximum sampling rate	1Gbps(for four channels)	1Gbps
Input resistance	1MΩ±1.5%	1MΩ±1.5%
Storage depth	50M	10M
Number of sampling bits	8bit	8bit
vertical accuracy	3%	3%
Vertical gear	5mV~10V	5mV~10V
Inverting	Support	Support
Channel coupled	DC, AC	DC, AC
Time base gear	5ns~1ks	1ns-1ks
Time base accuracy	20ppm	20ppm
Sampling mode	Normal	Normal
CANBus decoding	CAN, LIN	CAN, LIN
Trigger type	Edge, Pulse width	Edge, Pulse width
Trigger mode	Normal, Auto and Single SEQ	Normal, Auto and Single SEQ
Trigger coupling	DC, Noise rejection	DC, Noise rejection
Math	Double wave\FFT	Double wave\FFT
Display	YT、Zoom、Roll	YT、Zoom、Roll
Roll mode	200ms/div~1000s/div	200ms/div~1000s/div
Auto configuration	Support	Support
Auto measurement	23	23
Cursor	Horizontal cursor, Vertical cursor	Horizontal cursor, Vertical cursor
Powered by	USB port, DC IN port	USB port, DC IN port
Data transmission method	USB	USB
Vehicle configuration options	Circuits, sensor, actuators, ignition	Circuits, sensor, actuators, ignition
Operating temperature	0℃~50℃	0℃~50℃
Power supply range	USB:5V/1A DC:12V/24V	USB:5V/1A DC:12V/24V
Compatibility	Different tablet resolutions require different APPs	One APP can be compatible with multiple tablet resolutions
Multi-touch gestures	No	Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
Vehicle configuration	No	Each test project can support online help documentation (help documentation will be compiled according to needs later)
Firmware upgrade	Manual upgrade	Support online upgrade
Trigger	Waveform observation cannot be expanded during normal trigger waiting.	Can be used normally during normal trigger waiting.
Demo function	No	Yes
Split-screen	No	Yes
Sampling rate	Single channel 1G/s, more than 2 channels only 250M/s	Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s
Start time	2-3S	about 16s
Power consumption	about 6W	about 7.5W

Specification:

Channels	4
Bandwidth	100MHz
Rising Time	3.5ns (typical)
Accuracy	±3%
Input Impedance	1M ±1.5%
Input Type	Single-ended, BNC Connector
Input Coupling	DC, AC
Overload Protection	±200V on single input
Timebase Ranges	1ns~1ks (1 Channel) 1ns~1ks (2 Channels) 1ns~1ks (4 Channels)
Vertical Resolution	8bits
Buffer Memory	10M (for 4 Channels)
Power Interface	USB port, DC IN port
Data Exchange Via	USB
Trigger Mode	Normal, Auto and Single SEQ
Advanced Triggers	Edge, Pulse width

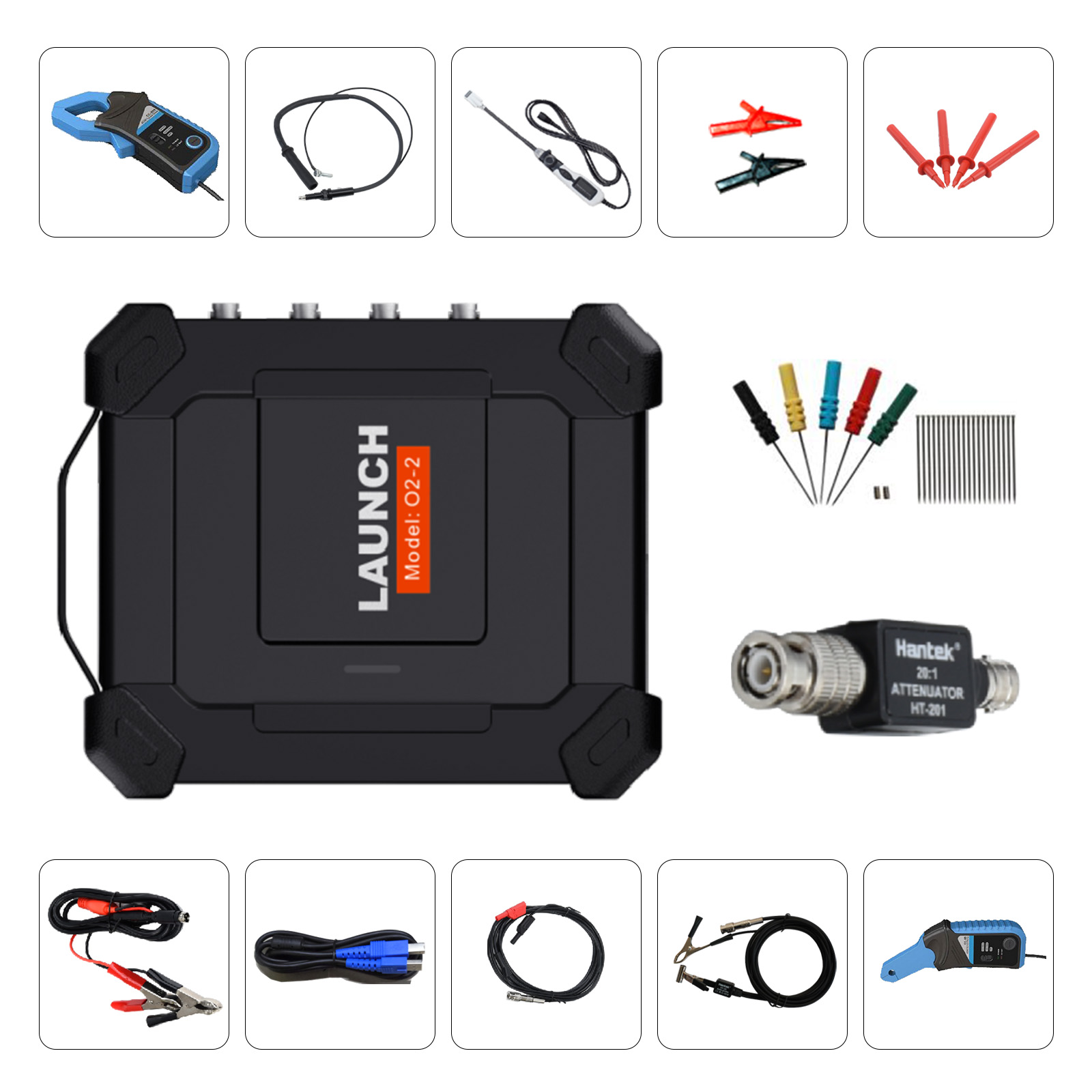

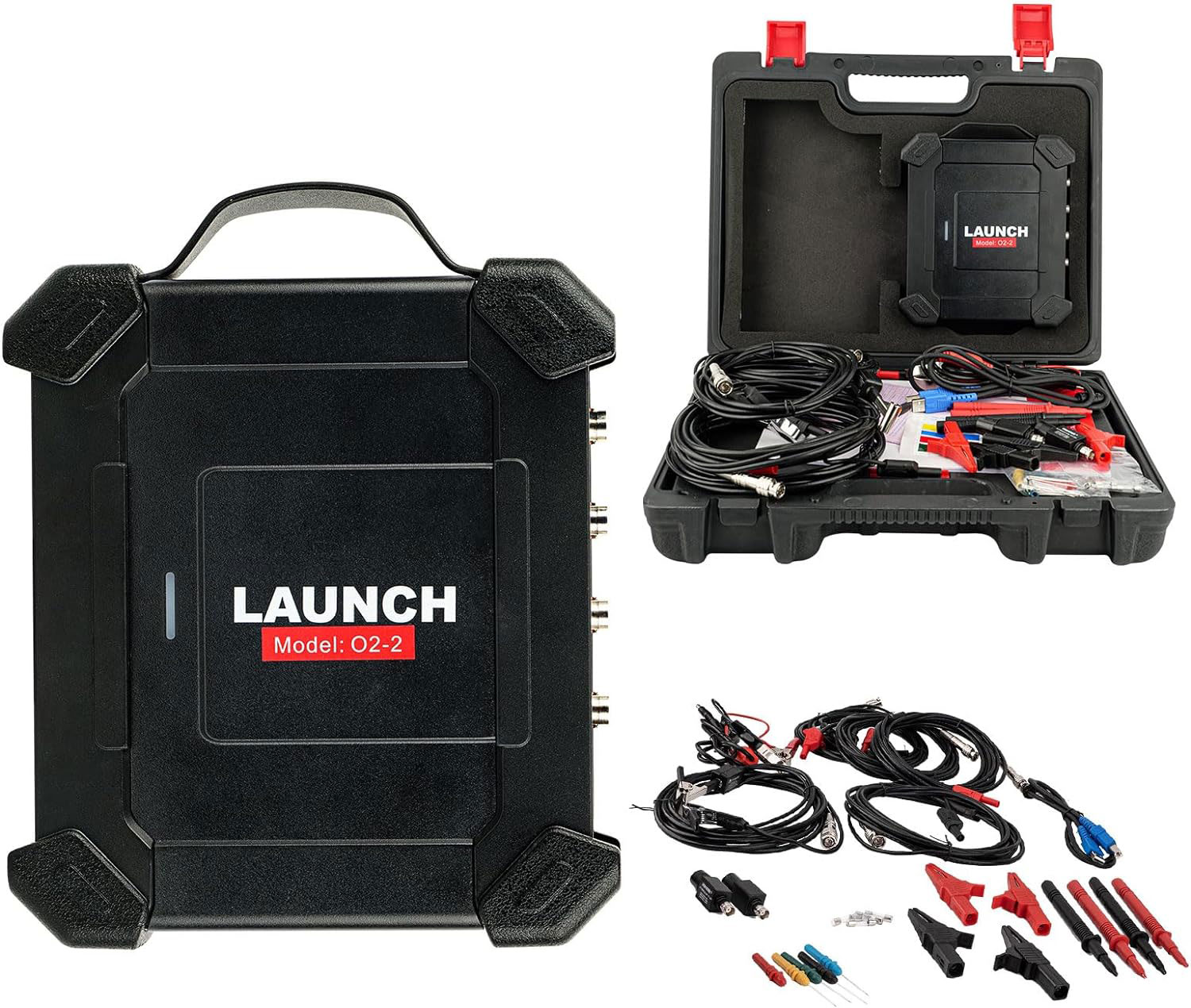

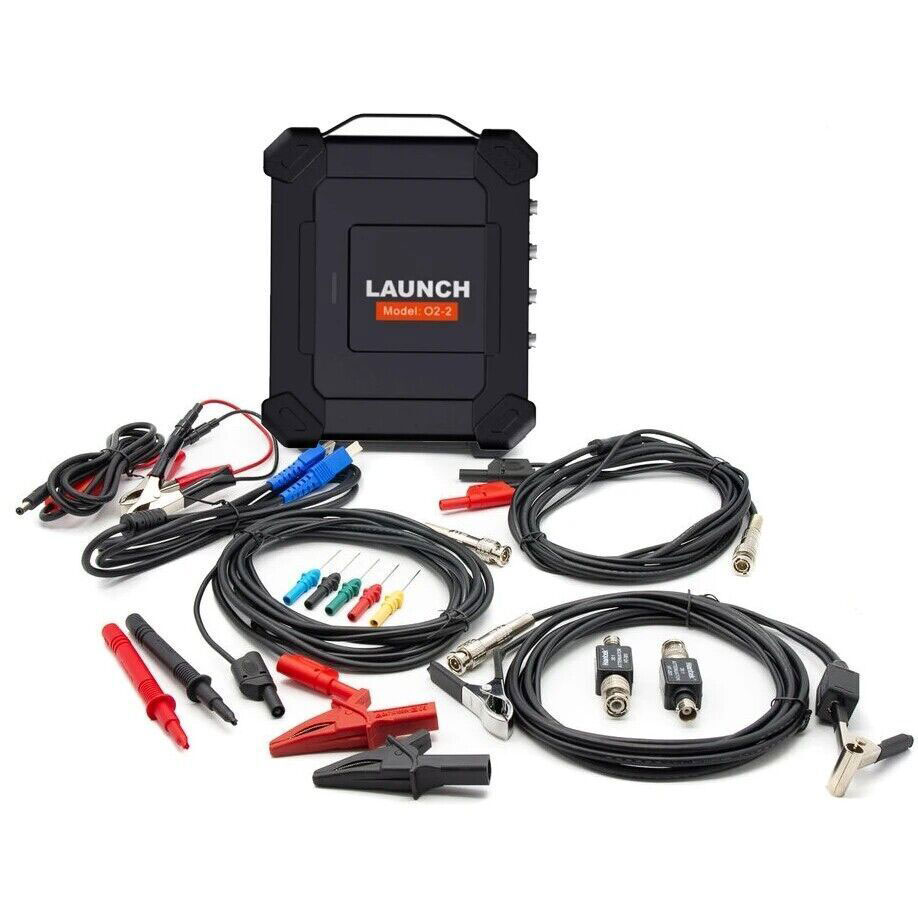

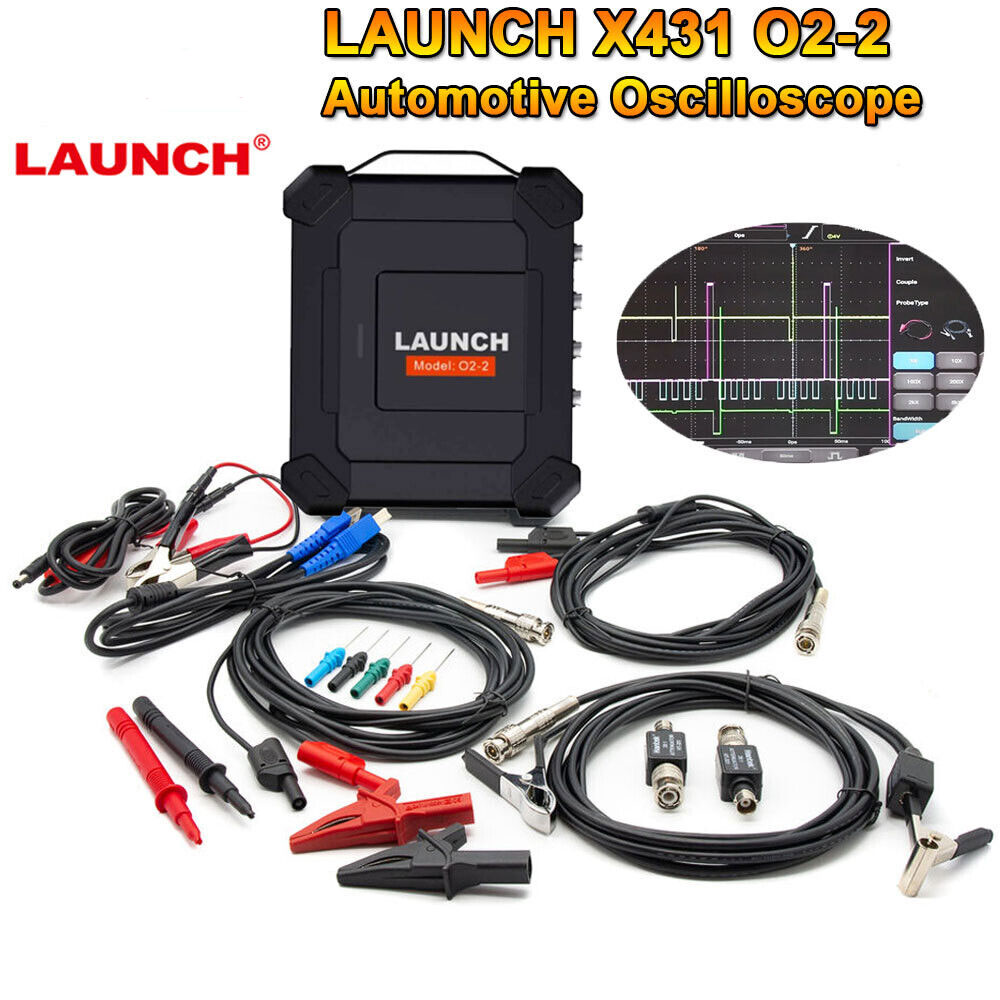

Package List:
1pc x Launch O2-2 main unit
1pc x BNC to 4mm interface test cable
1pc x Secondary ignition pickup cable
1pc x USB cable
1pc x 20:1 attenuator
1pc x multimeter probe
1pc x Battery clips
1pc x Piercing Probe set
2pcs x crocodile clips
1pc x Independent ignition extension cable
1pc x COP independent ignition probe
