OBDSTAR IScan DUCATI Motorcycle Diagnostic Tool Support IMMO Programming & Service Light Reset

OBDSTAR IScan DUCATI Motorcycle Diagnostic Tool Support IMMO Programming & Service Light Reset

Motorcycle/snowmobile/ATV/UTV support series
DUCATI Motorcycles
OBDSTAR iScan Ducati Diag Car List


Motorcycle key programming support series
DUCATI
OBDSTAR iScan Ducati Immo Car List


Ducati Motocycle odometer list
OBDSTAR iScan Ducati Motorcycle ODO List (Odometer adjustment function need to buy license--$99)

1.Ducati Motorcycle diagnostic and service function till 2023
2.Ducati Motorcycle key programming and odometer correction (optional license)
3.Control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system


What is OBDSTAR iSCAN?

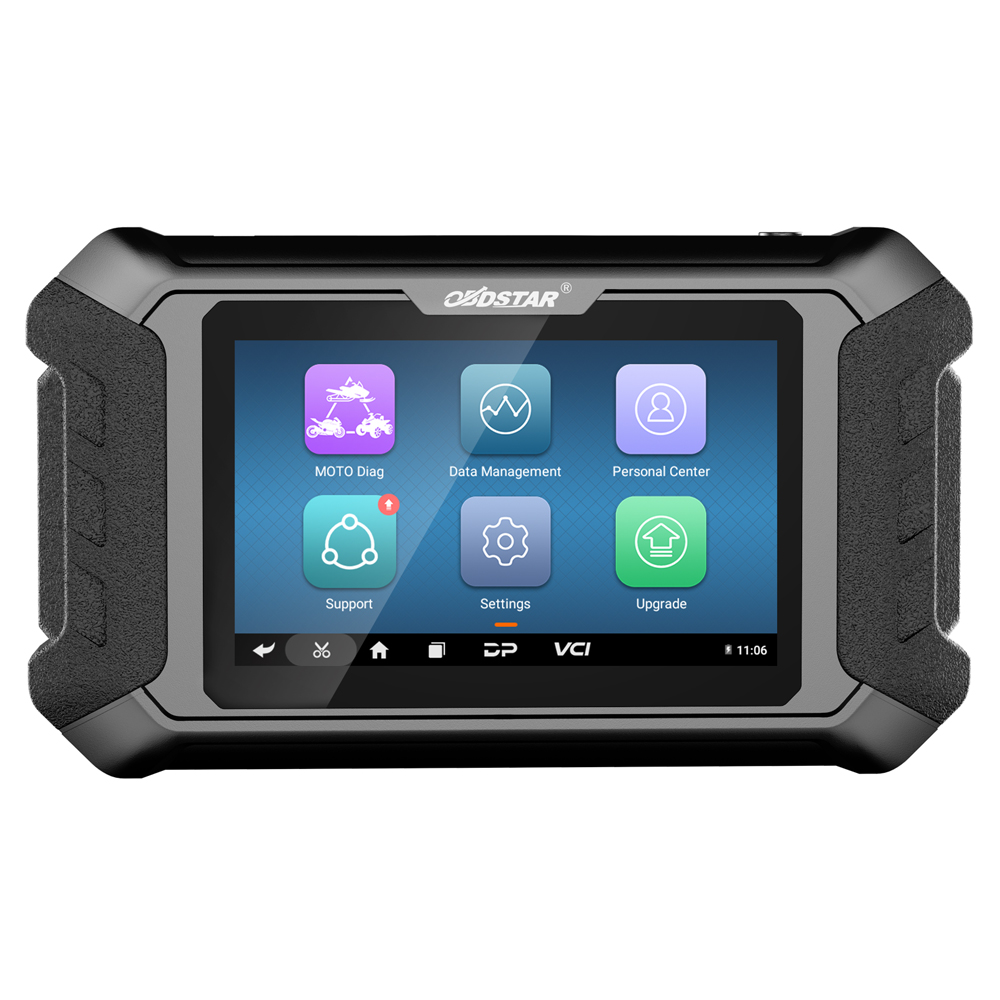

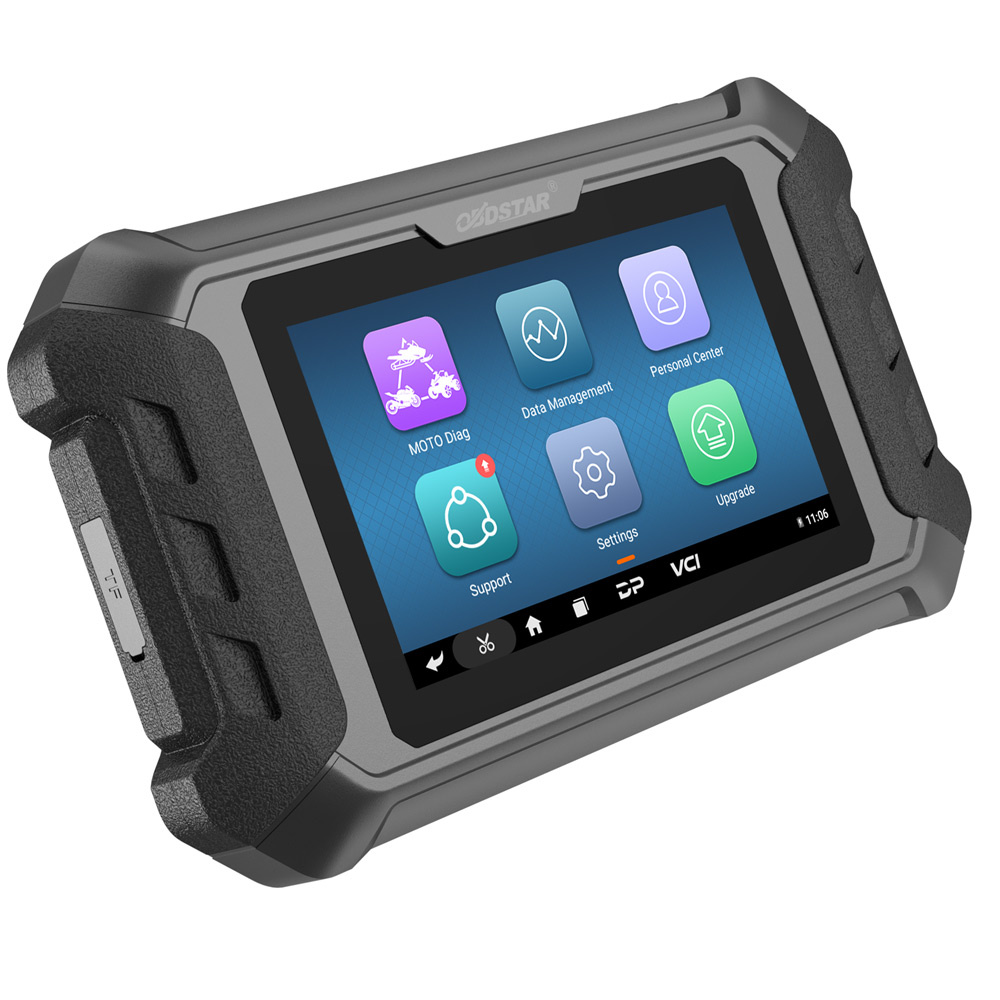

OBDSTAR iScan DUCATI is a professional DUCATI motorcycle diagnostic scanner. It is a portable tablet with a stylish appearance. Designed with ingenuity and practicality, it is a perfect tool for DUCATI motorcycle maintenance and repair. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, OBDSTAR iScan DUCATI brings its customers a professional diagnostic experience and a good user experience.


OBDSTAR iScan DUCATI is a new generation of intelligent motorcycle diagnostic equipment which supports automatic scanning, VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory, and key programming, etc.



Highlights of OBDSTAR iScan DUCATI
1.New Android 5.1.1 operation system;
2.Simple and intuitive menu guidance allows you to quickly understand how to use the tablet;
3.Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc;
4.Menu selection is more convenient and quick;
5.Record and playback real-time data streams, quickly and accurately locate sensor and component faults;

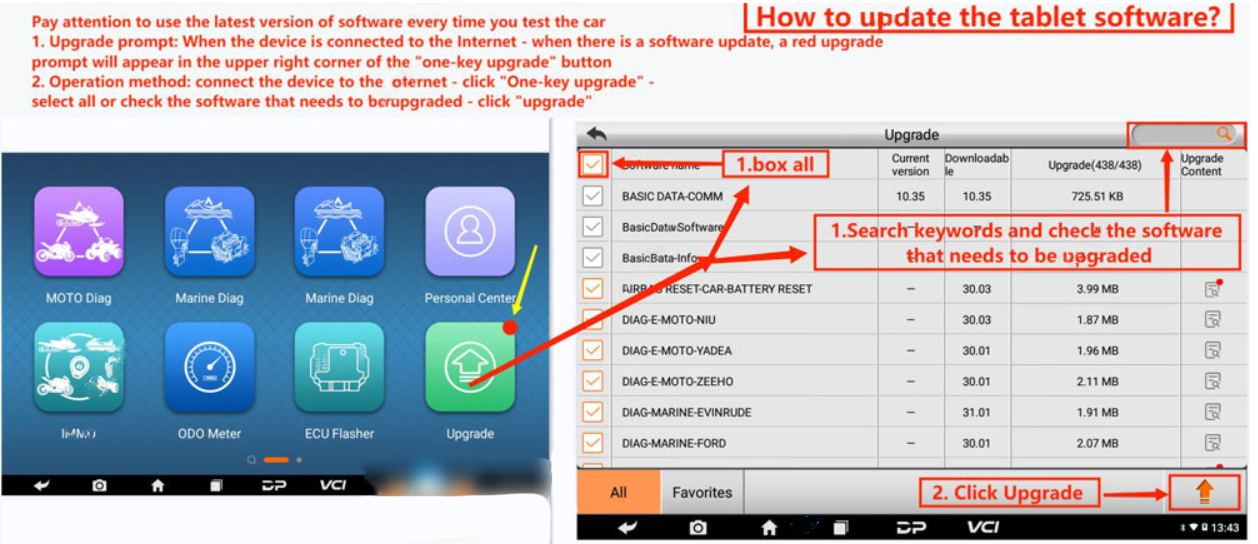

6.Wi-Fi connection to the internet, one-click software upgrade;
7.One-click remote help function, OBDSTAR technical staff offer remote assistance.
8.Lightweight and portable, your motorcycle repair helper.
9.Support DUCATI diagnosis and key programming till year 2023
10.Supports Multi-language: English (Default) , the language can be changed freely after registration.
English, Spanish, Portuguese, French, German, Italian, Polish, French, Turkish, Indonesian, Persian and Korean
11.If need to correct the odometer for Ducati motors, need to pay for an odometer license.
12.One year update for free, after one year, it costs 80USD for updates per year.
13.ISCAN DUCATI can do DUCATI for activate fog lights and grip heater for ducati Multistrada v4s 2022.    At the moment, even Ducati Original tool can not do above functions .   Only OBDSTAR !!!

Advanced Function of OBDSTAR iScan DUCATI
1.The first fault guidance, help data, technical bulletin, diag socket, and so on ,help you diagnose accurately and efficiently;
2.Diversified data stream display modes such as text, waveform diagram, and instrument diagram, allow you to easily analyze faults;
3.Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory, etc.

Attention:
Single brand device.Unable to add other brand motorcycle software.If need a multi-brand motor scanner,check MS50 or MS80
Please register the device before using.
The distributor code is 0086A002.

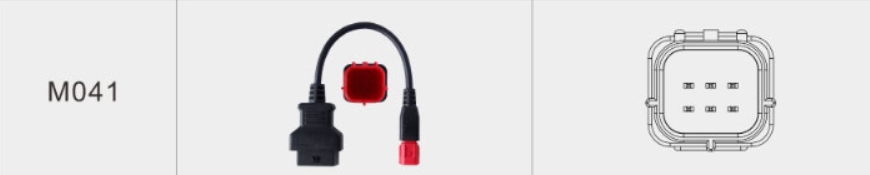

2019 and newer Ducatis need to purchase M041 cable connector separately.



Note: There is no software on the device. After registering an account, enter the one-click upgrade to download the DUCATI software.

Check: How to set up OBDSTAR iScan Ducati Scanner?



Main Functions of OBDSTAR iScan DUCATI

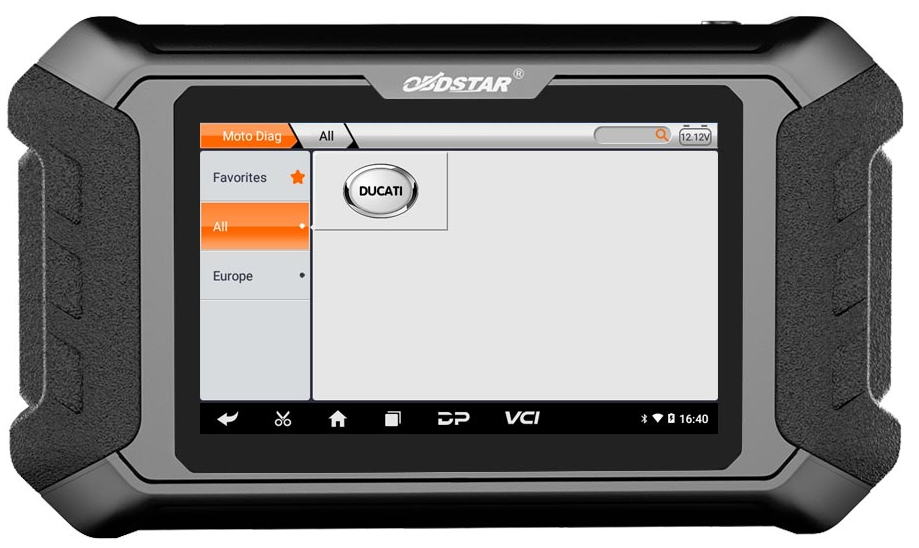

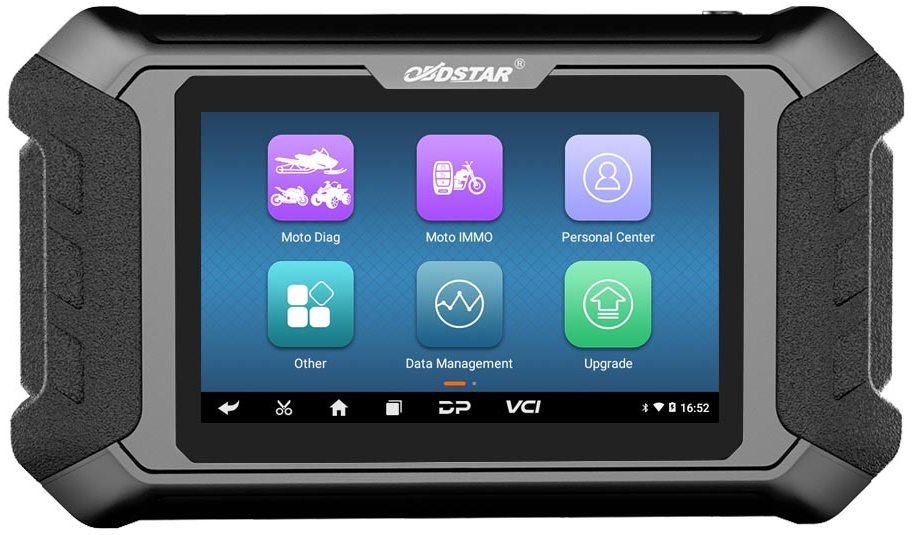

1) Main Page/ Brand Supported

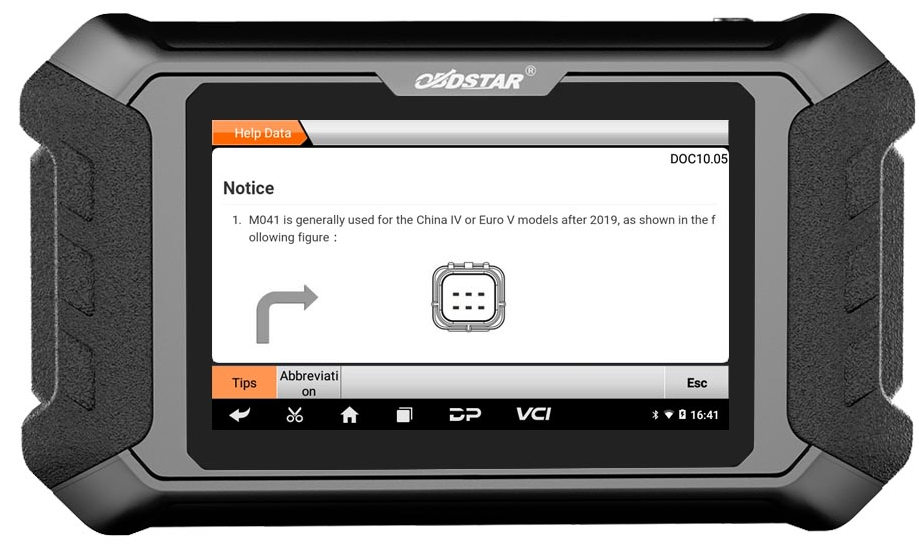

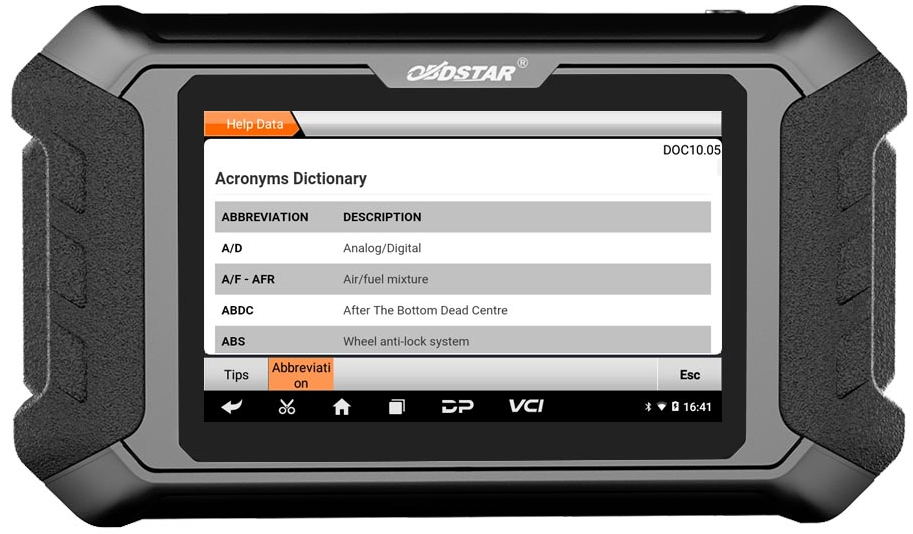

2) Help Data/Technical Bulletin

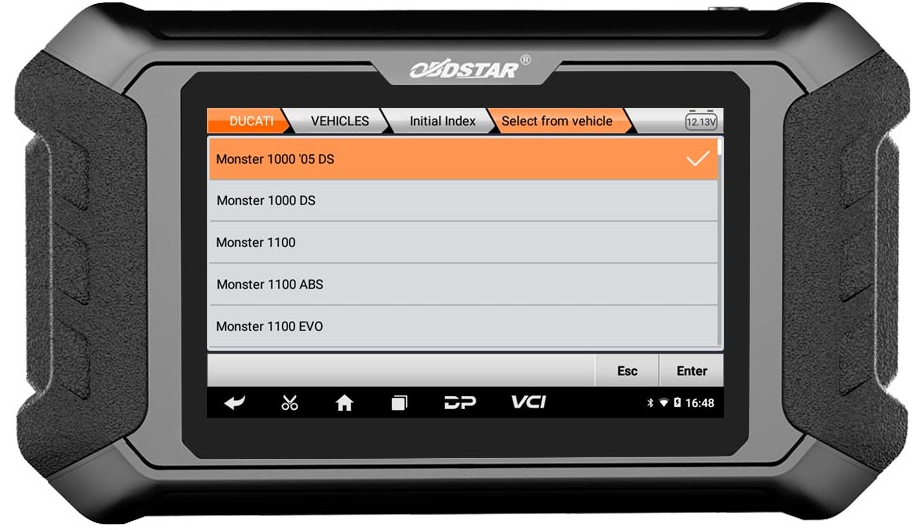

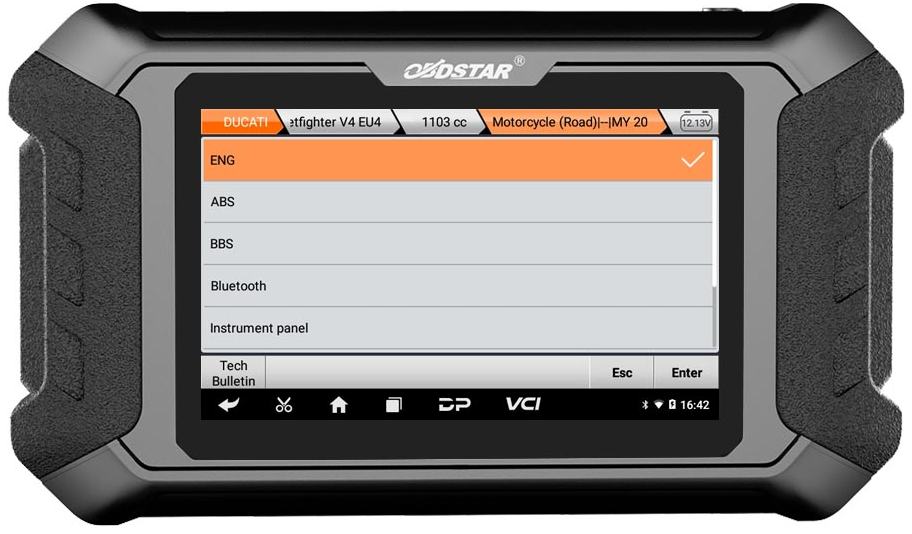

3) Supported System List

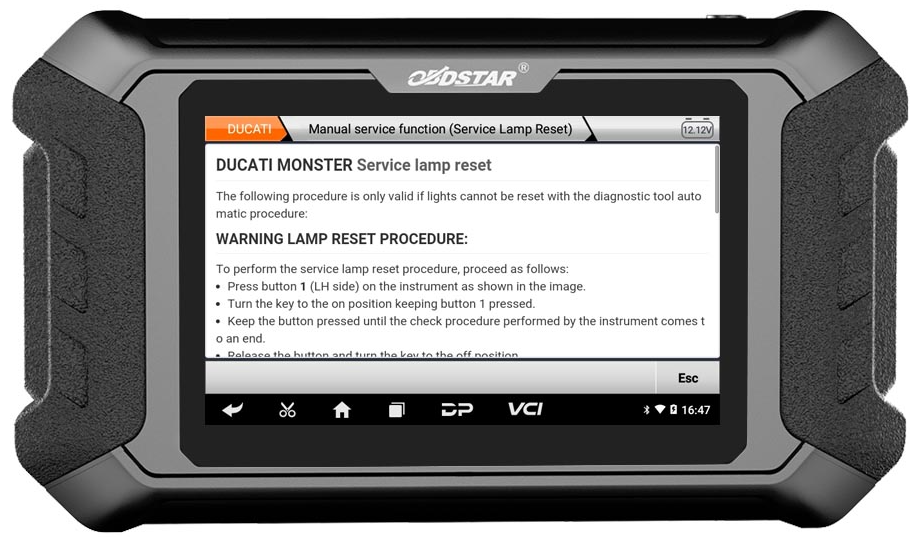

4) Manual Service Function

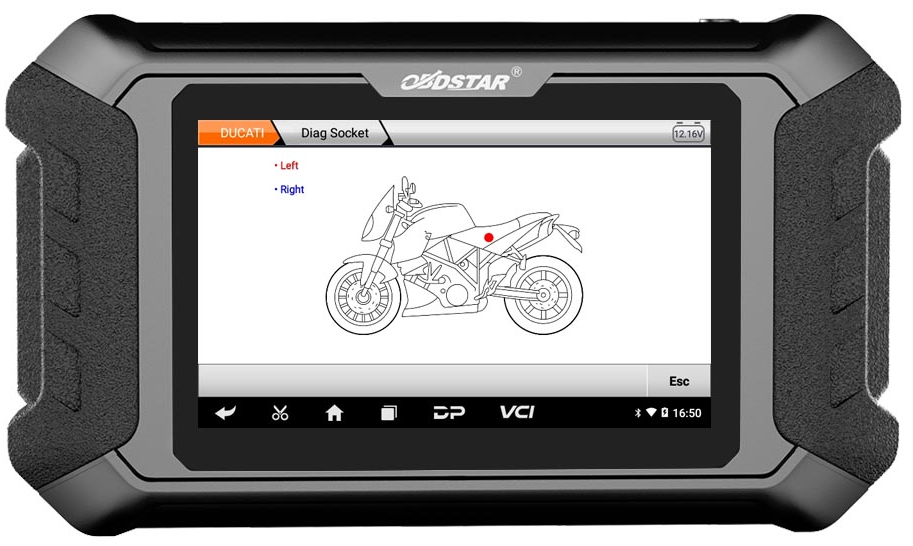

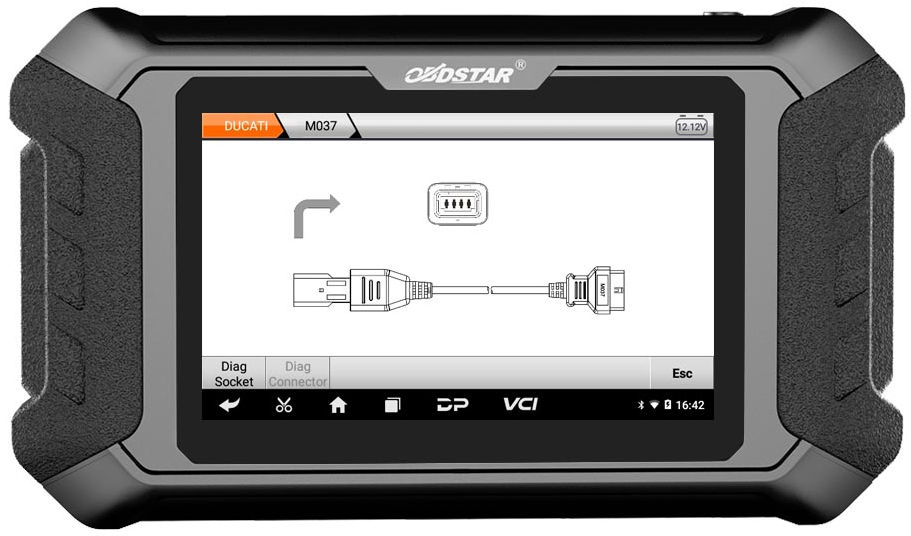

5)Diag Socket/ Diag Connector Location

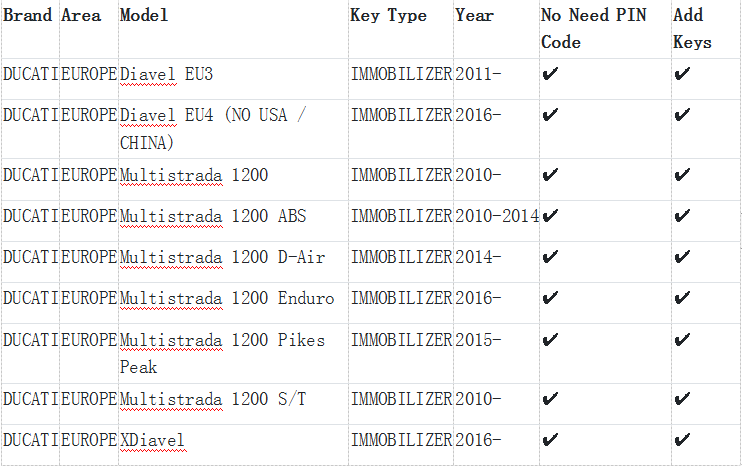

OBDSTAR iScan Ducati Key Programming Supported List:

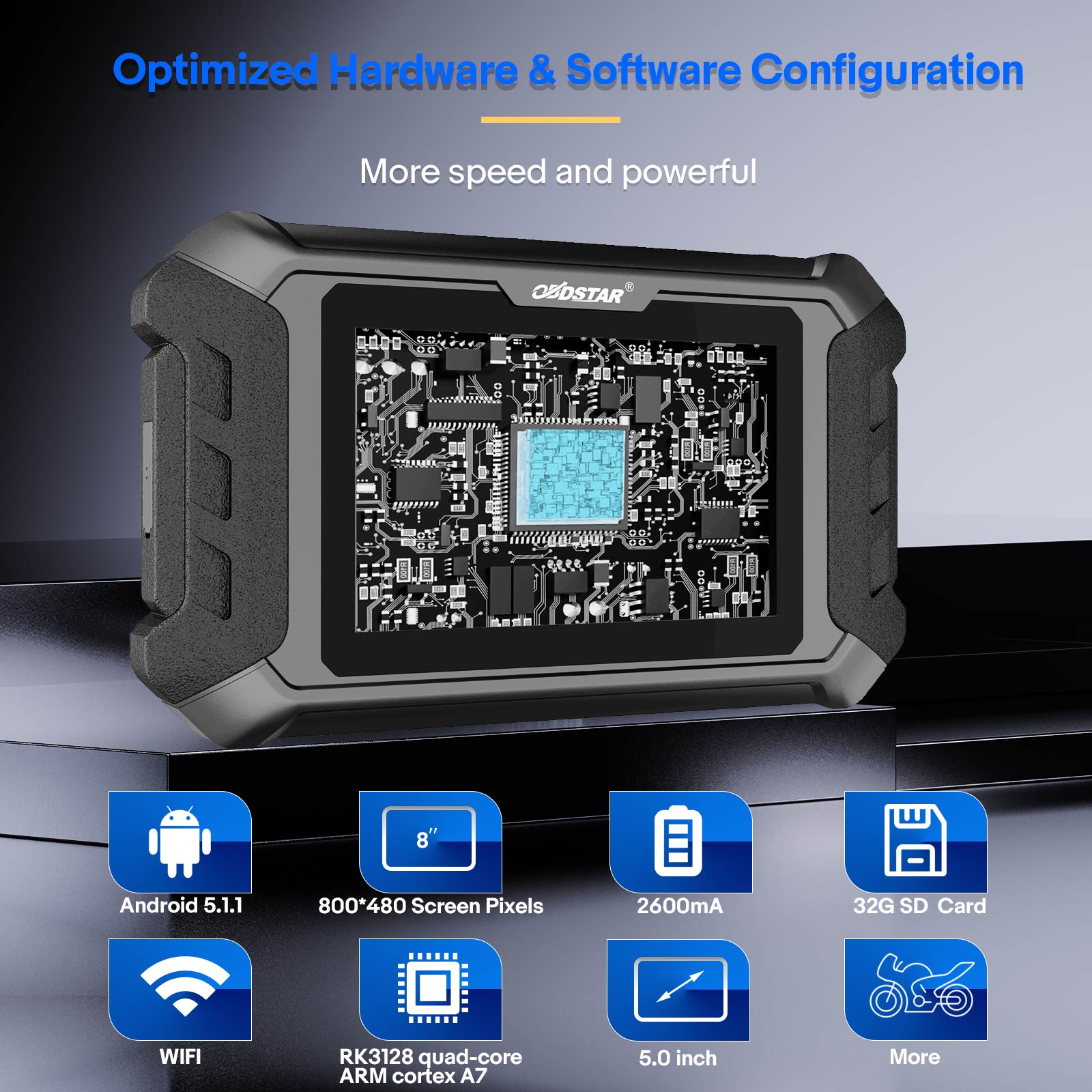

Specifications of OBDSTAR iScan DUCATI
Operation system Android 5.1.1
CPU RK3128 quad-core ARM cortex A7
Battery 2600mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 16GB
LCD 5.0 inch
LCD resolution 800*480
Touch screen Capacitive touch screen
Wifi Supported
Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature -20℃~70℃ (-4℉~158℉)
Weight About 700g
Dimension 198mm*115*mm*31mm

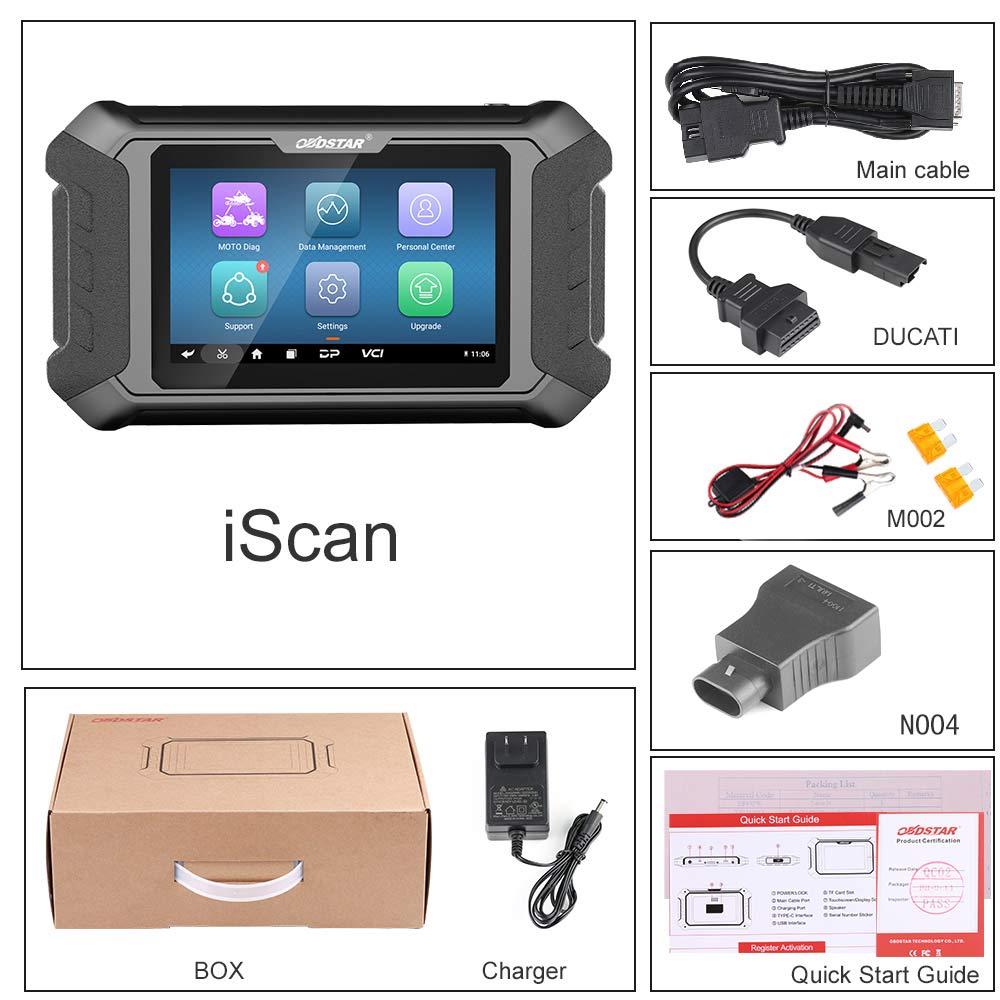

Package Includes:
1pc x iScan DUCATI Main Unit
1pc x M001A iScan DUCATI Main Cable
1pc x N004 Adapter
1pc x M037 DUCATI Cable
1pc x 12V2A charger
1pc x English Manual
N004 adapter (optional)
M043 adapter (optiona
