OBDSTAR iScan JAPAN Motorcycle Diagnostic Scanner & Key Programmer for HONDA KAWASAKI SUZUKI YAMAHA

OBDSTAR iScan JAPAN supports HONDA, KAWASAKI, SUZUKI, and YAMAHA motorcycle diagnosis, and key programming.

What is OBDSTAR iScan?

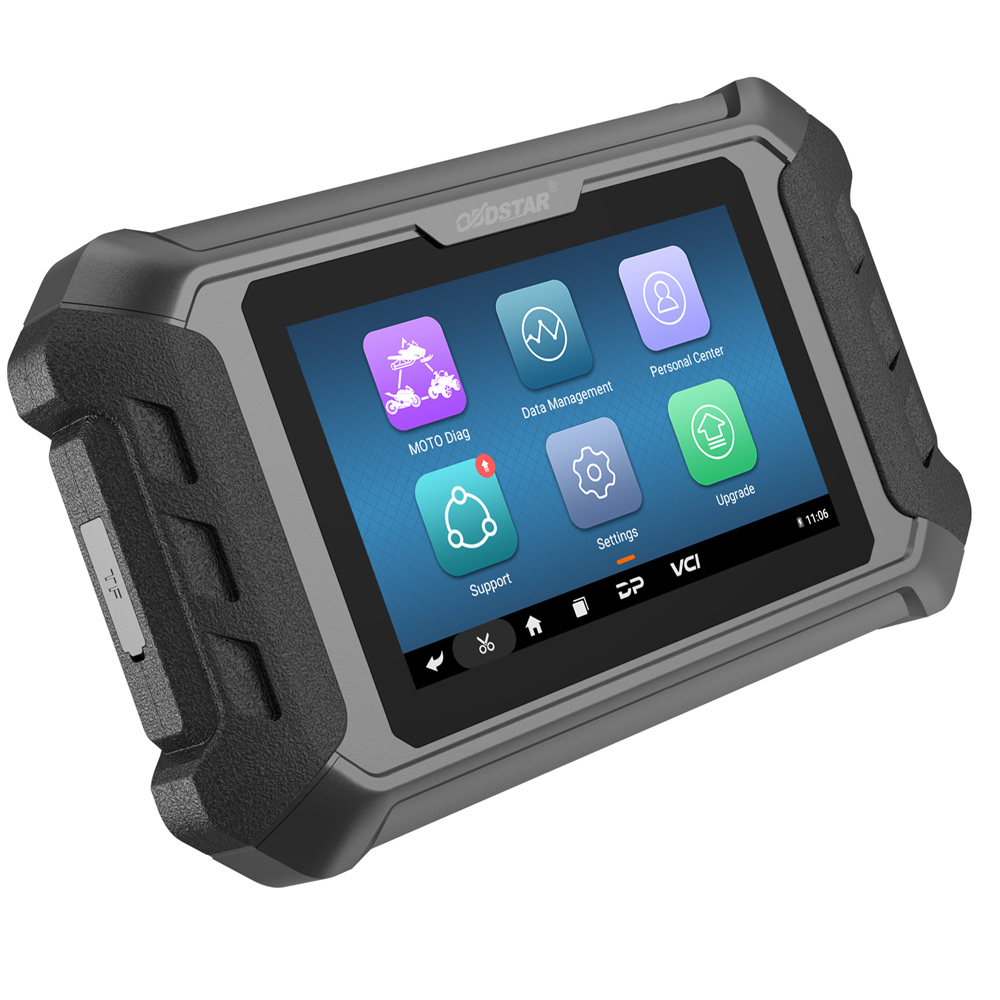

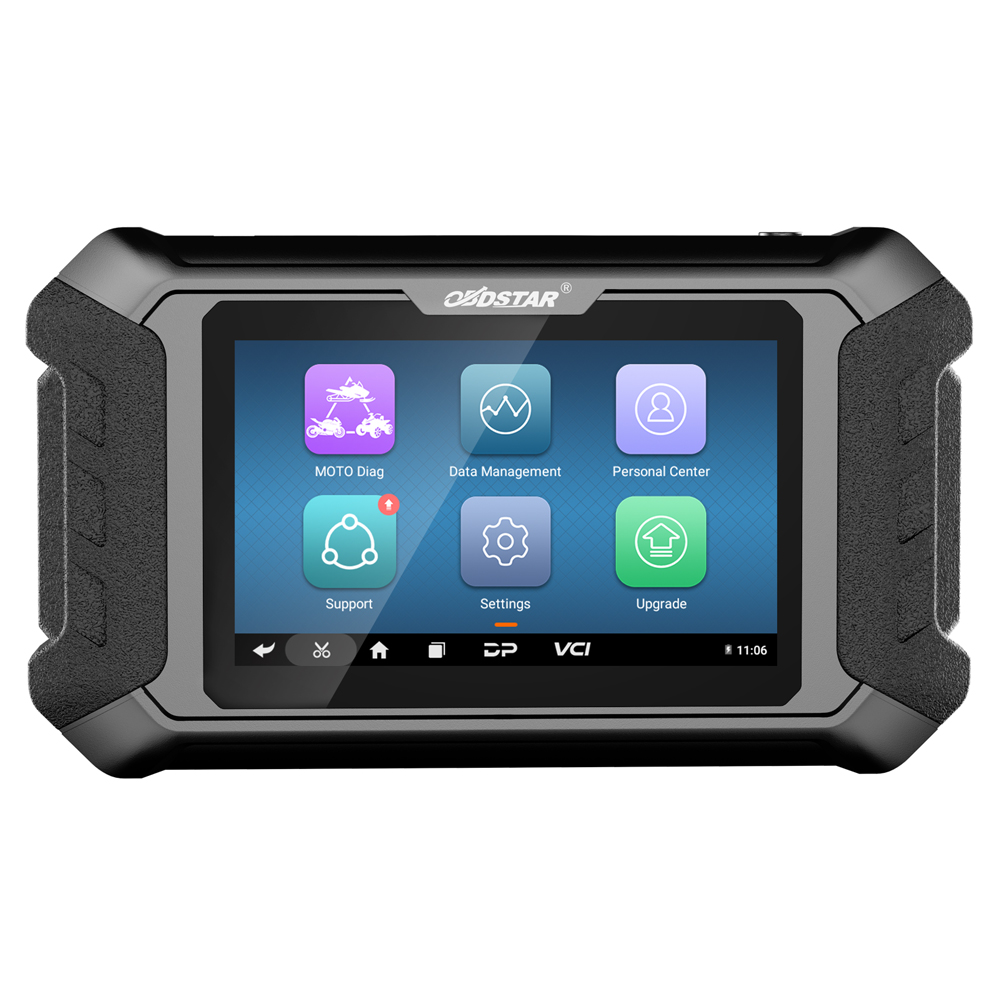

OBDSTAR iScan JAPAN, specialized in Japanese motorcycle brands like HONDA, KAWASAKI, SUZUKI, and YAMAHA, is a portable tablet that has super performance and industrial style appearance.
It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers.
Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, it brings customers a professional diagnosis experience.

Product Features:
1.  New android 5.1.1 operation system;
2.  Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3.  Menu arbitrary selection is more convenient and quick;
4.  Wi-Fi connection to the internet, one-click software upgrade;
5.  One-click remote function, OBDSTAR technical staff remote assistance.
6.   One year update for free, after one year, it costs 80USD for updates per year.


What can OBDSTAR iScan?
1.Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
2.Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
3.Supports HONDA, KAWASAKI, SUZUKI, YAMAHA motorcycle diagnosis and key programming.

Attention:
Unable to add other brand motorcycle softwares.
Need to buy cables for different brands of motorcyles.
Need to work with P001 adapter for key programming.
Please register the device before using.

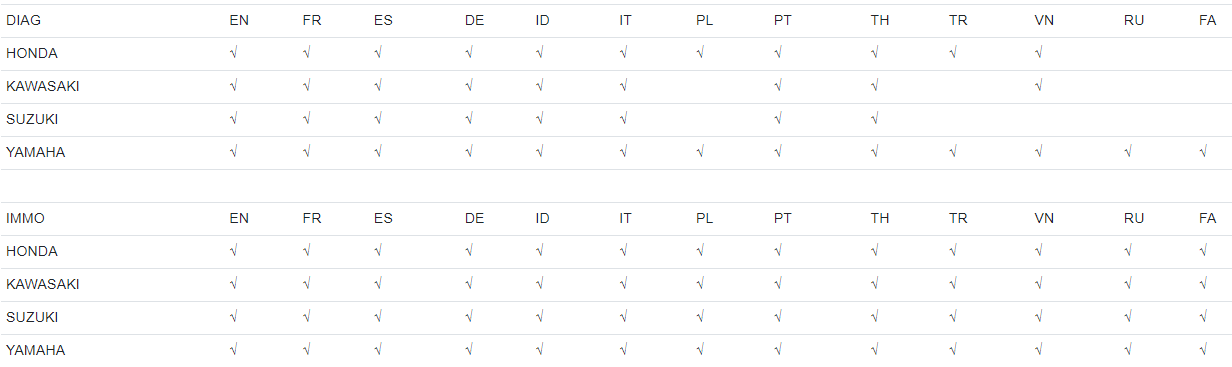

Support multi-languages: English (EN), Spanish (ES), Portuguese (PT), French (FR), German (DE), Italian (IT), Indonesian (ID), Thai (TH), Turkish (TR), Russian (RU), Vietnamese (VN), Persian (FA).
(The default language is English, please register the device before changing language.)



Advanced Functions:
1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV supported series
HONDA, KAWASAKI, SUZUKI, YAMAHA

Motorcycle key programming support series
HONDA, KAWASAKI, SUZUKI, YAMAHA

Functions Display:

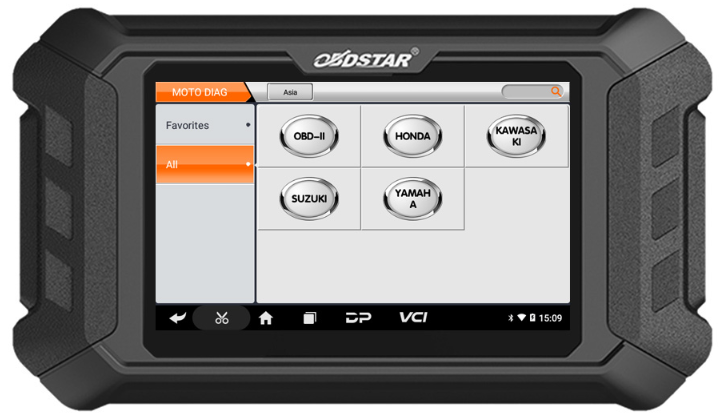

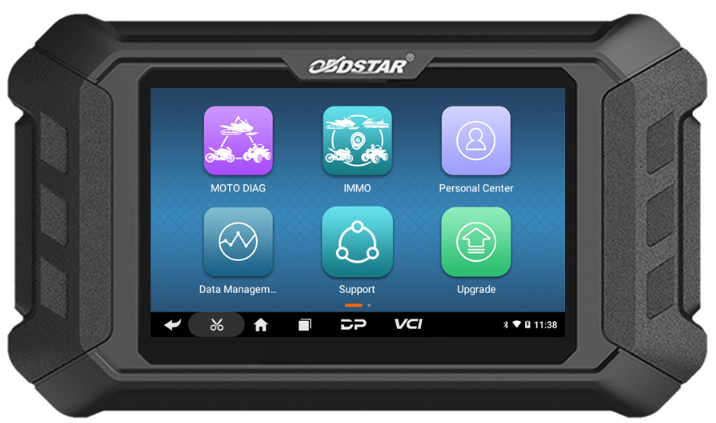

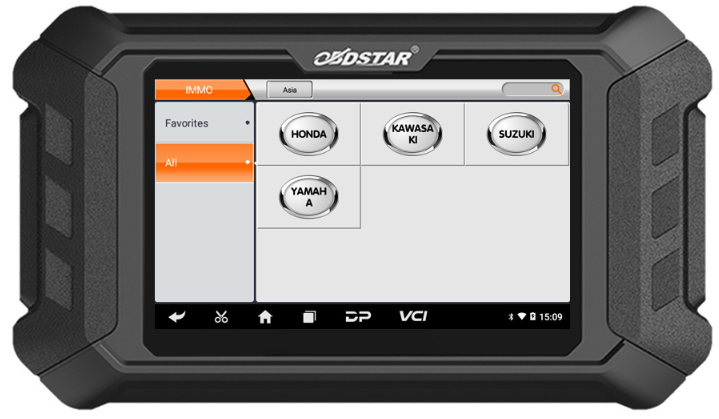

1)Main Page/ Brand Supported

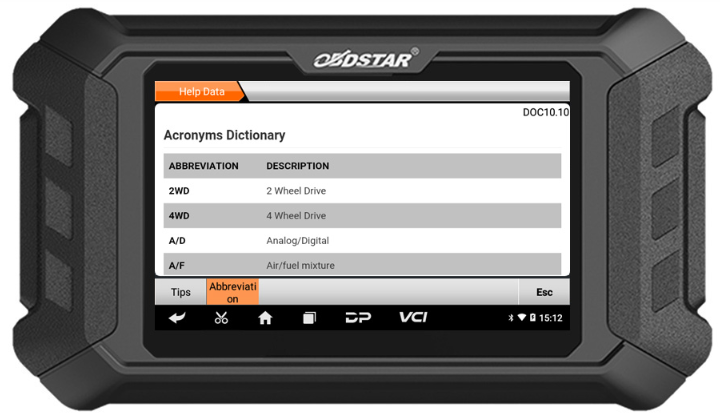

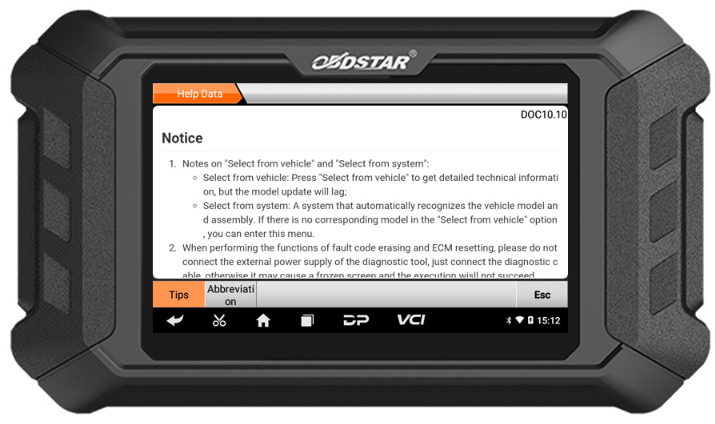

2) Help Data/Technical Bulletin

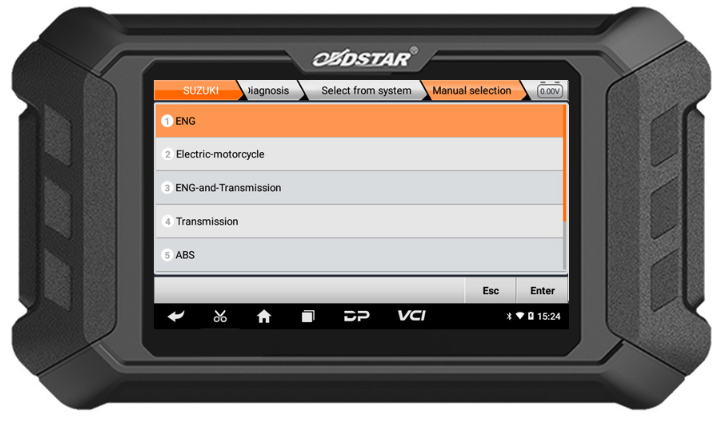

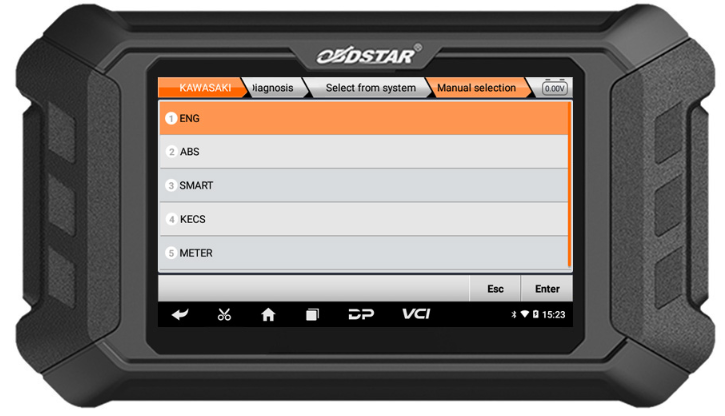

3) Supported Systems List

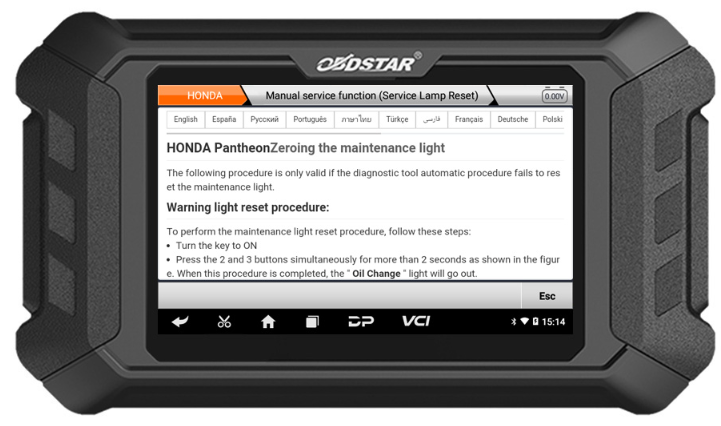

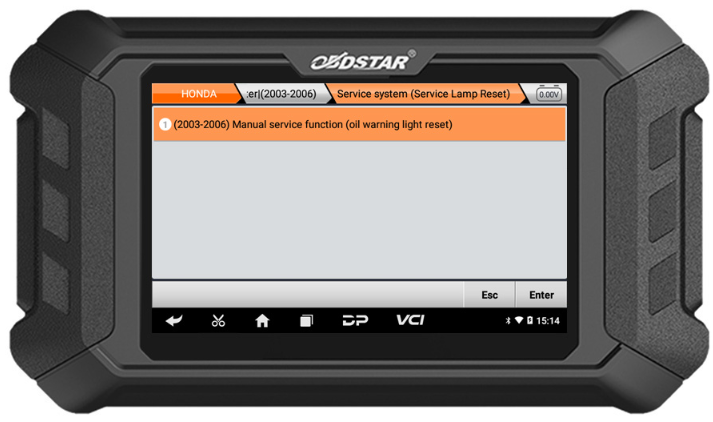

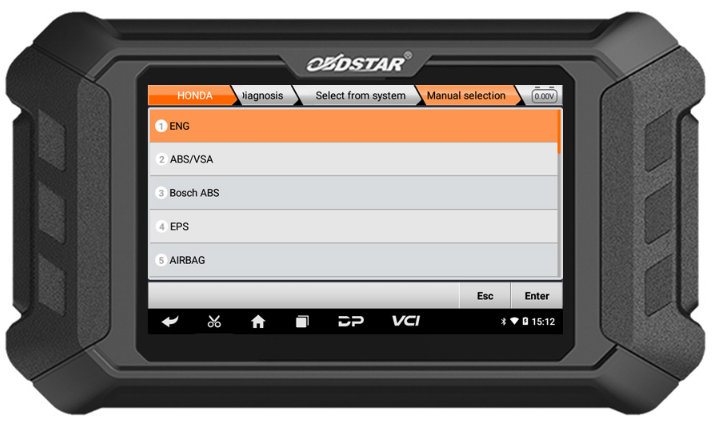

4) Manual Service Function

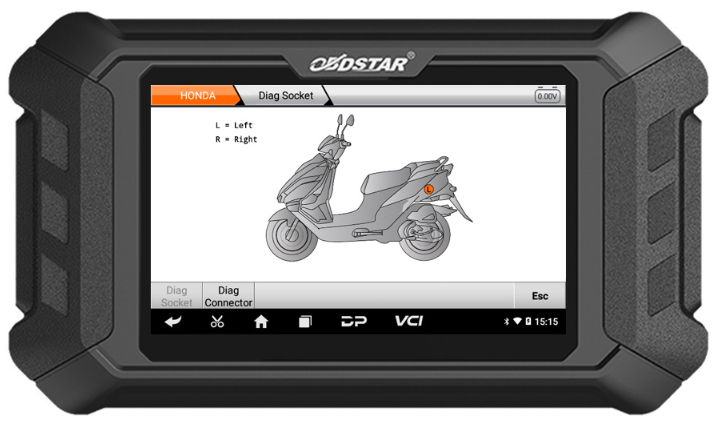

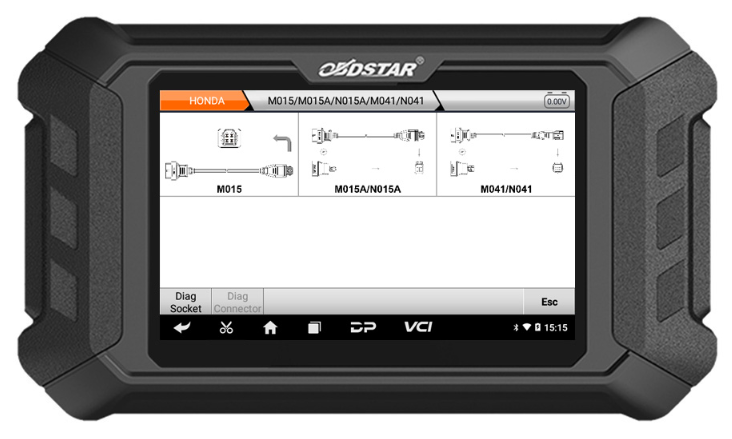

5) Diag Socket/ Diag Connector Location

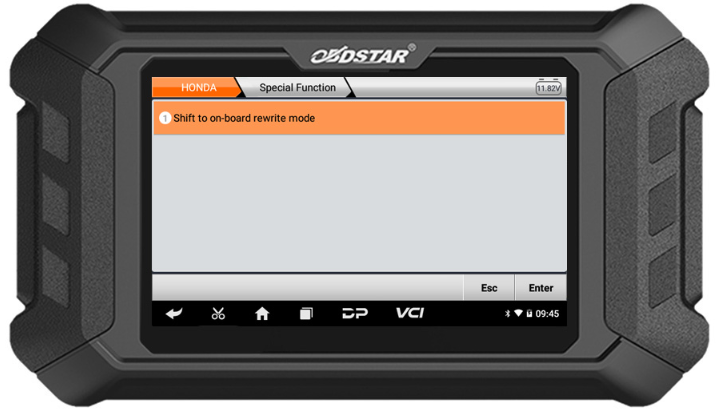

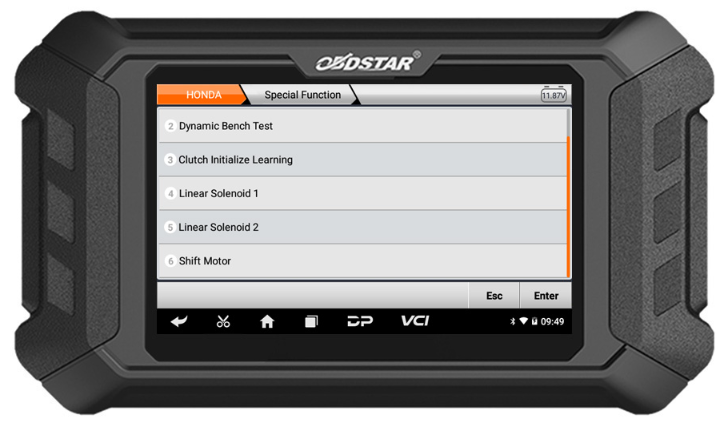

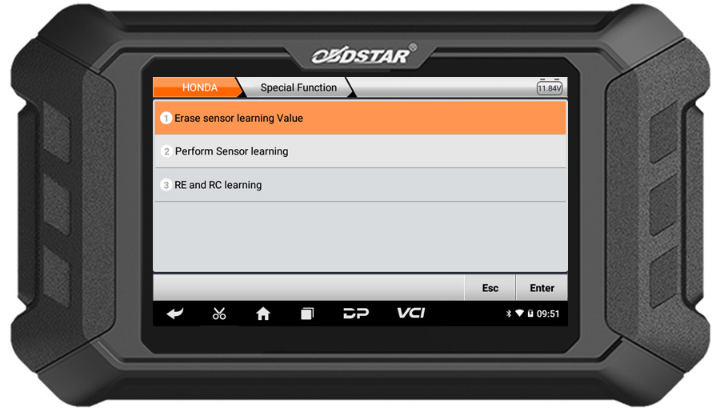

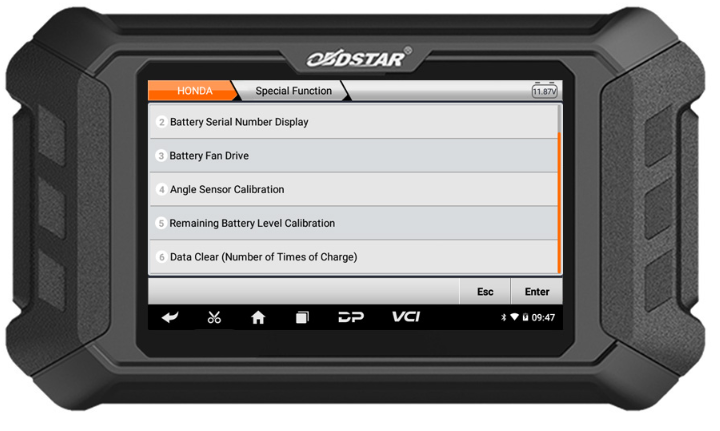

6) Special Function-HONDA

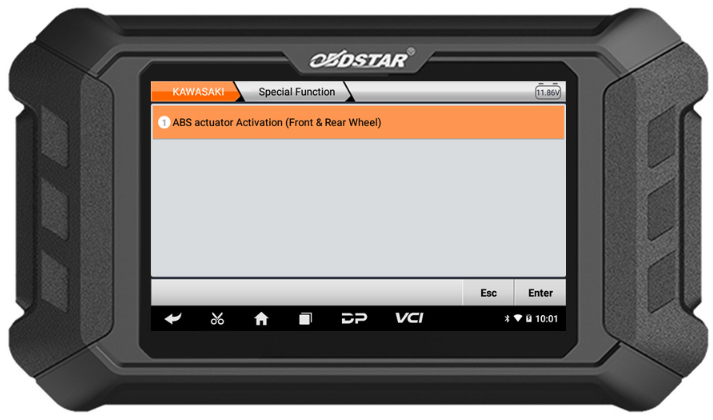

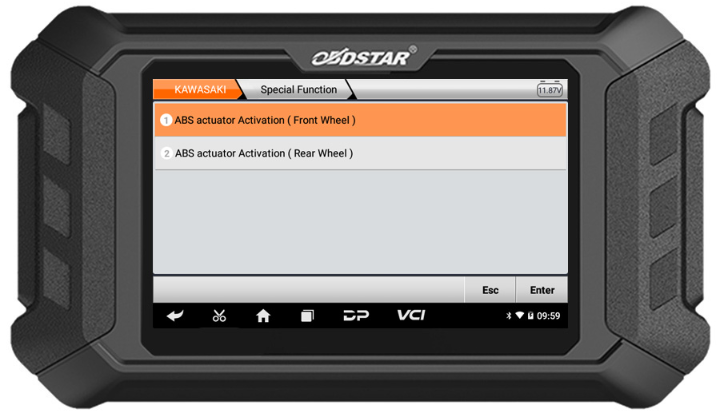

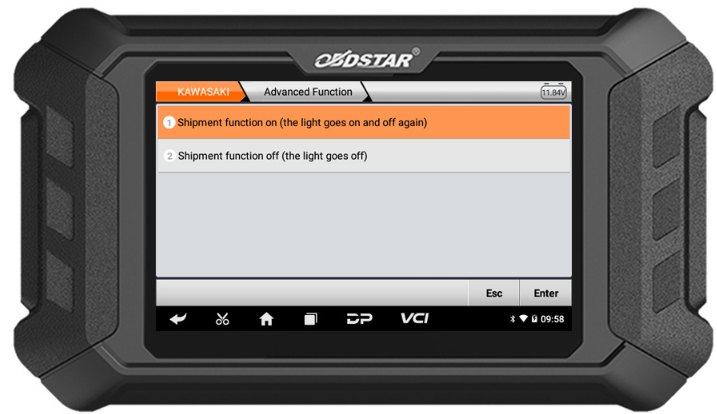

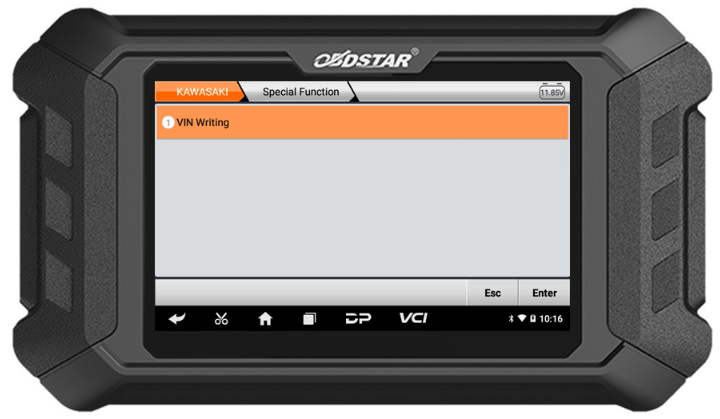

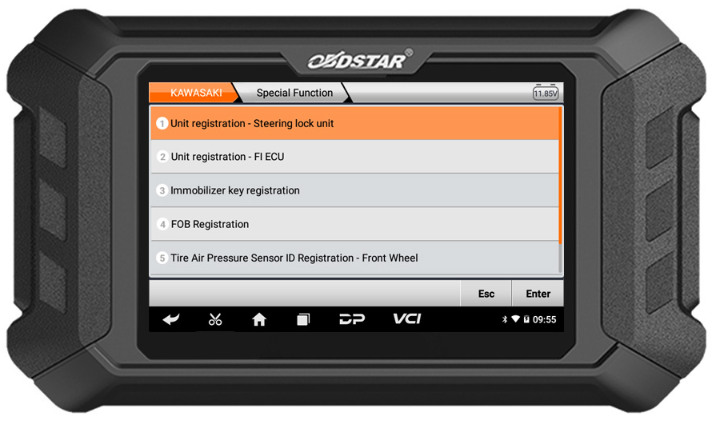

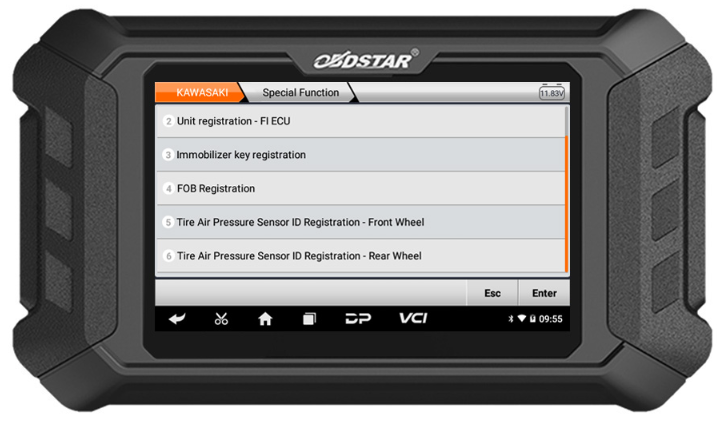

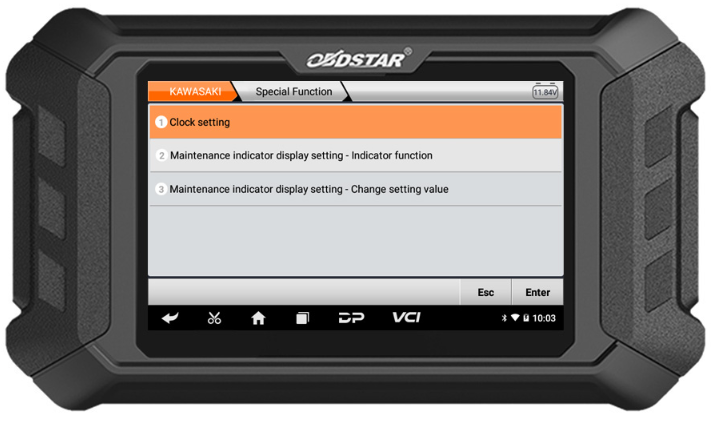

7) Special Function/Advanced Function-KAWASAKI

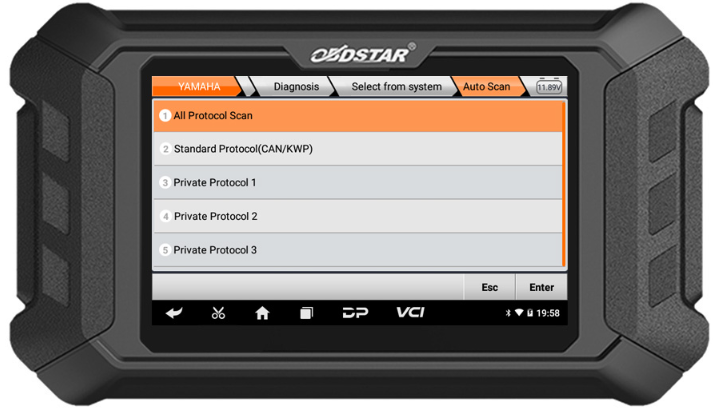

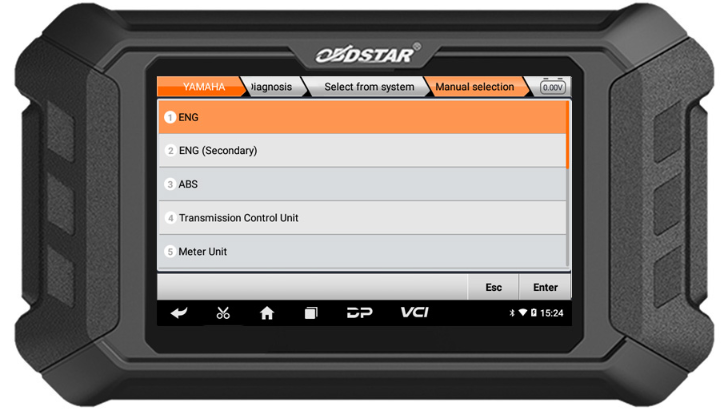

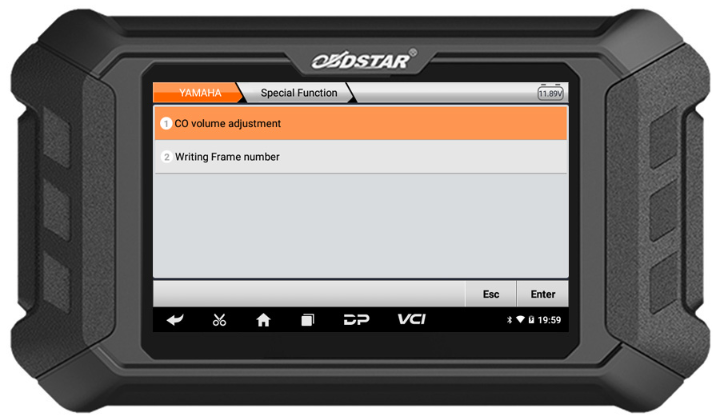

8)Special Function/Auto Scan-YAMAHA

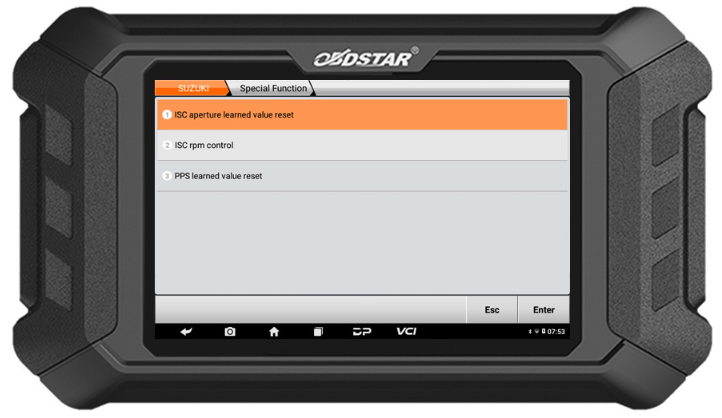

9)Special Function-SUZUKI


Product Specifications:
Operation system Android 5.1.1
CPU RK3128 quad-core ARM cortex A7
Battery 2600mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 16GB
LCD 5.0 inch
LCD resolution 800*480
Touch screen Capacitive touch screen
Wifi Supported
Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature -20℃~70℃ (-4℉~158℉)
Weight About 700g
Dimension 198mm*115*mm*31mm

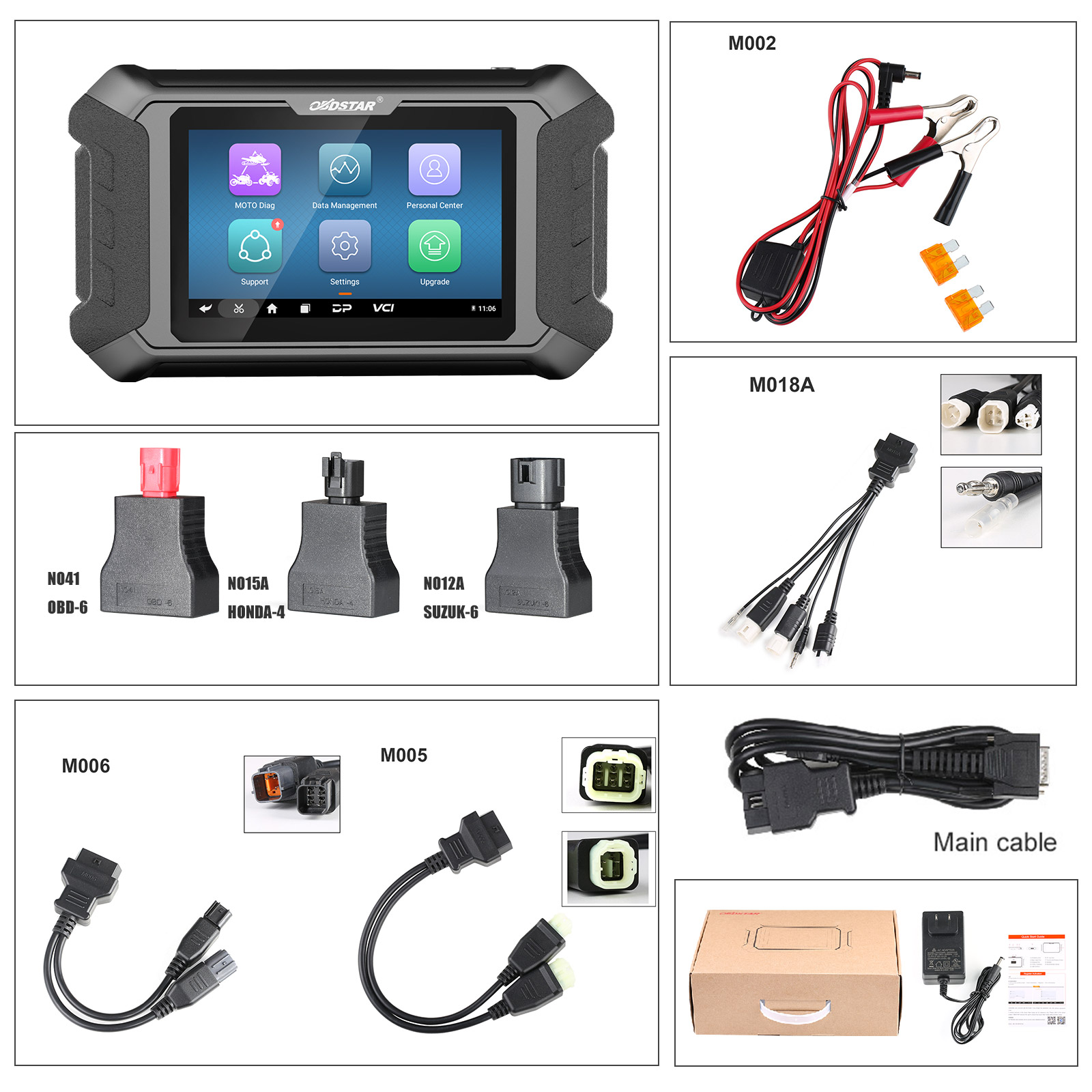

Package Includes:
1pc x iScan JAPAN Tablet
1pc x M001A Main cable
1pc x M002 Power cable
1pc x M005 KAWASAKI adapter
1pc x M006 KAWASAKI adapter
1pc x N012A SUZUKI adapter
1pc x N015A HONDA adapter
1pc x M018A YAMAHA adapter
1pc x N041 EURO V adapter
1pc x 12V2A Charger
