Newest Sinotruck EOL OBD Diesel Truck Scanner Diagnostic Tool For HOWO A7/T7H/Sitrak/Hohan

Newest Sinotruck EOL OBD Diesel Truck Scanner Diagnostic Tool For HOWO A7/T7H/Sitrak/Hohan

The new model has two more functions than the old model:
1) Support wireless
2) Compatible with Weichai Diagsmart

NOTE：
1.Software download link : https://www.sinotruksfs.com/dn2/

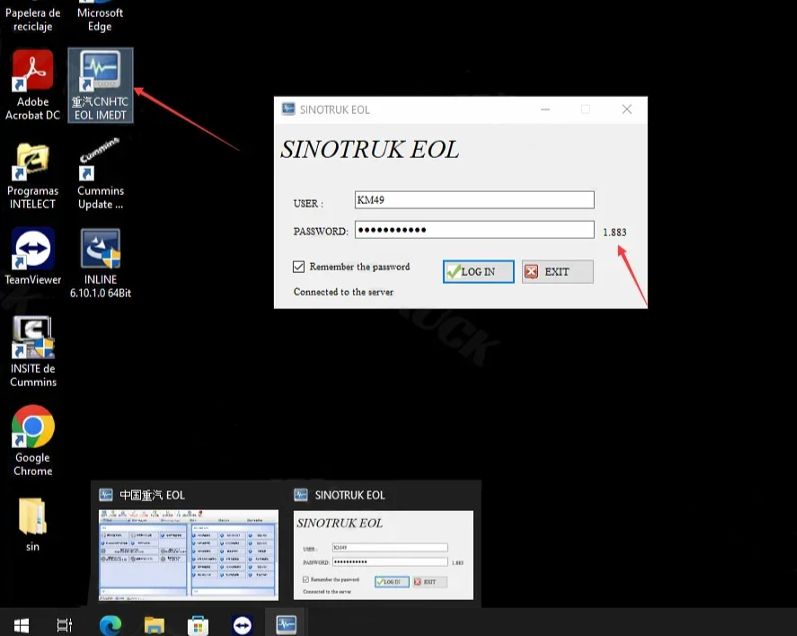

2. If you buy our product , we we offer account for software login

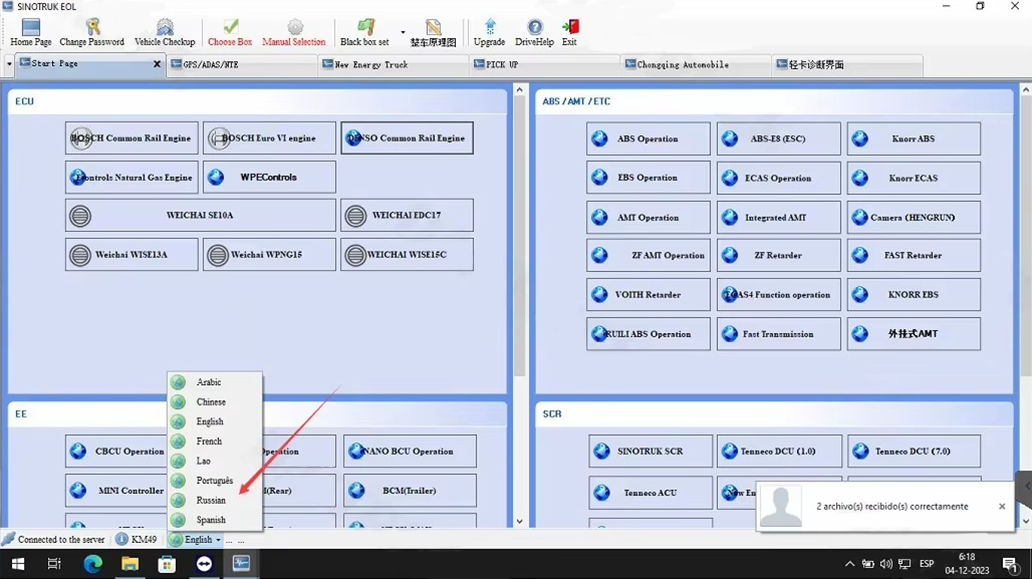

Support Multi-Languages
Arabic , chinese, English, French, Portugues, Russian , Spainish

Weichai Diagsmart is a new generation engine diagnostic tool developed by Weichai.   Supports various types of engines under Weichai, integrating data flashing, body diagnosis, and maintenance

It integrates vehicle function calibration and other functions, and can be operated on Windows, Android, iOS and other systems.

EOL diagnostic scanner for SINOTRUK, Sitrak, Sinotruck, HOWO, Weichai, SHACMAN, Denso.

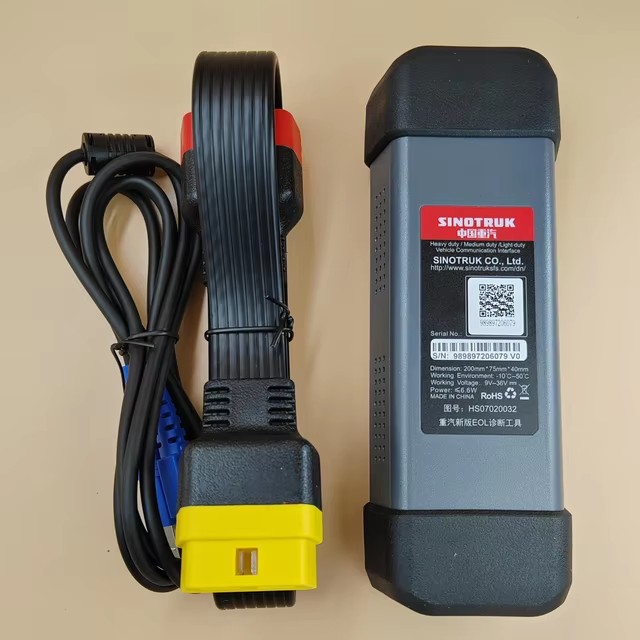

Technical parameters of SINOTRUK’s new version of EOL diagnostic tool support BT/WIFI:
Operating system:Linux
Processor: Dual processor Cortex-A7+Cortex-M7
Memory: 256MB
Storage: 8GB
Power supply: DC9V-36V
USB:Type B
USB2.0
Wi-Fi: 2.4G/5GHz dual band
Weight:310g
Working temperature:-10℃-50℃
Storage temperature:-20℃-70℃

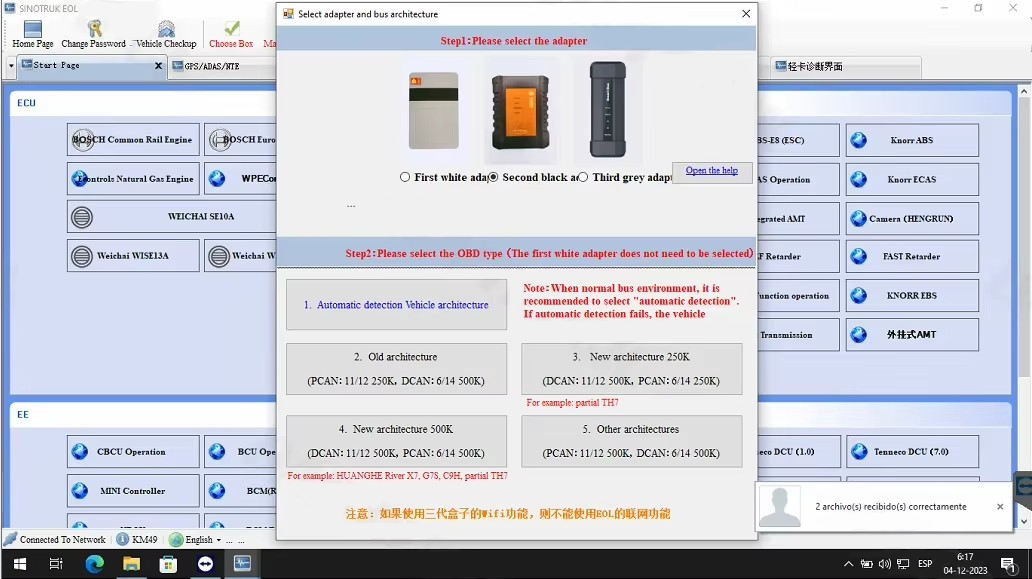

Standard: Complies with J2534. RP1210 standard, supports CANBUS, CAN-FD, ISO 15765,DOIP, J1850, BTSJ1708 and other protocols

The device supports diagnostics, programming, calibration of control units and removal of speed limits for Novo, SITRAK, etc. cars.

Original diagnostic tool for SINOTRUK, HOWO trucks.

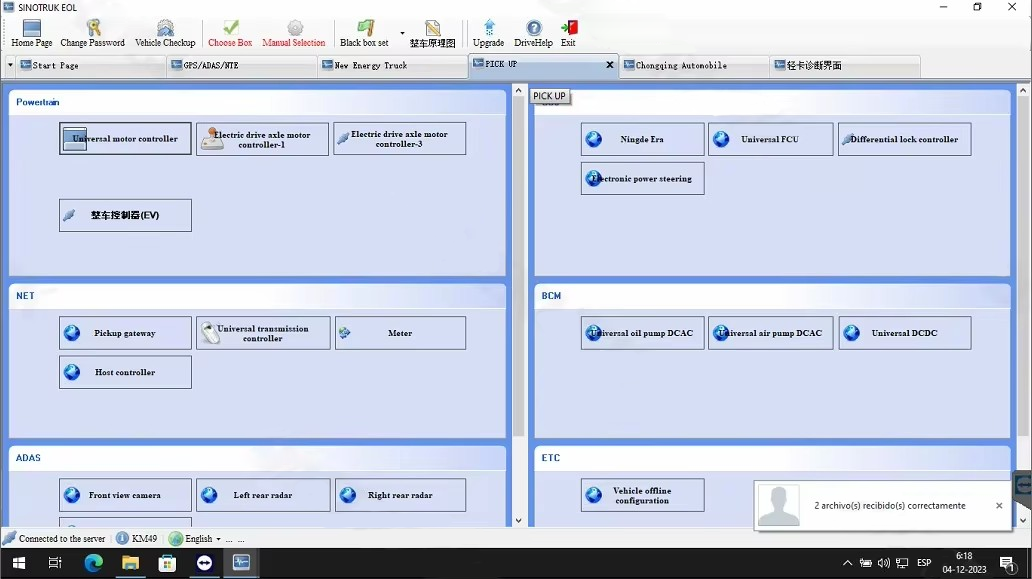

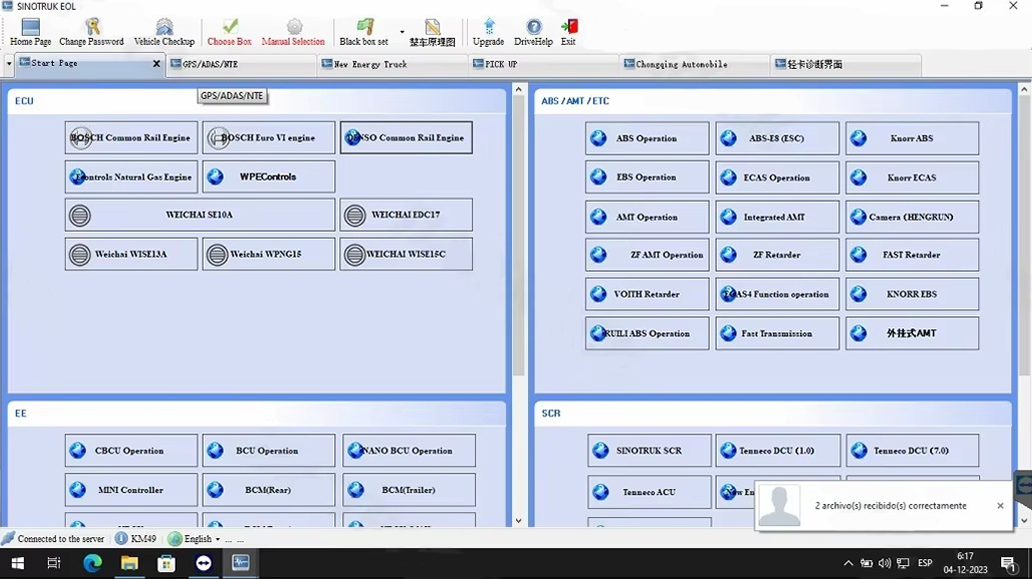

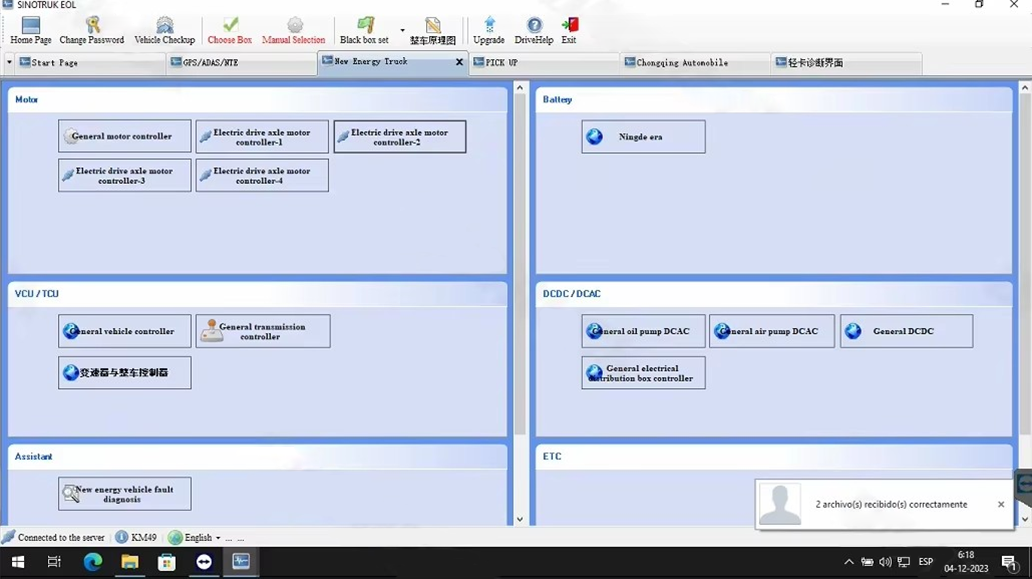

This dealer scanner allows you to connect to control units: ECU, CBCU, DCU, ATM, ABS, EGR, SCR, etc.

Main functions: reading and clearing fault codes, data monitoring, parameter setting, signal monitoring, active testing, updating, flashing and changing speed limit.

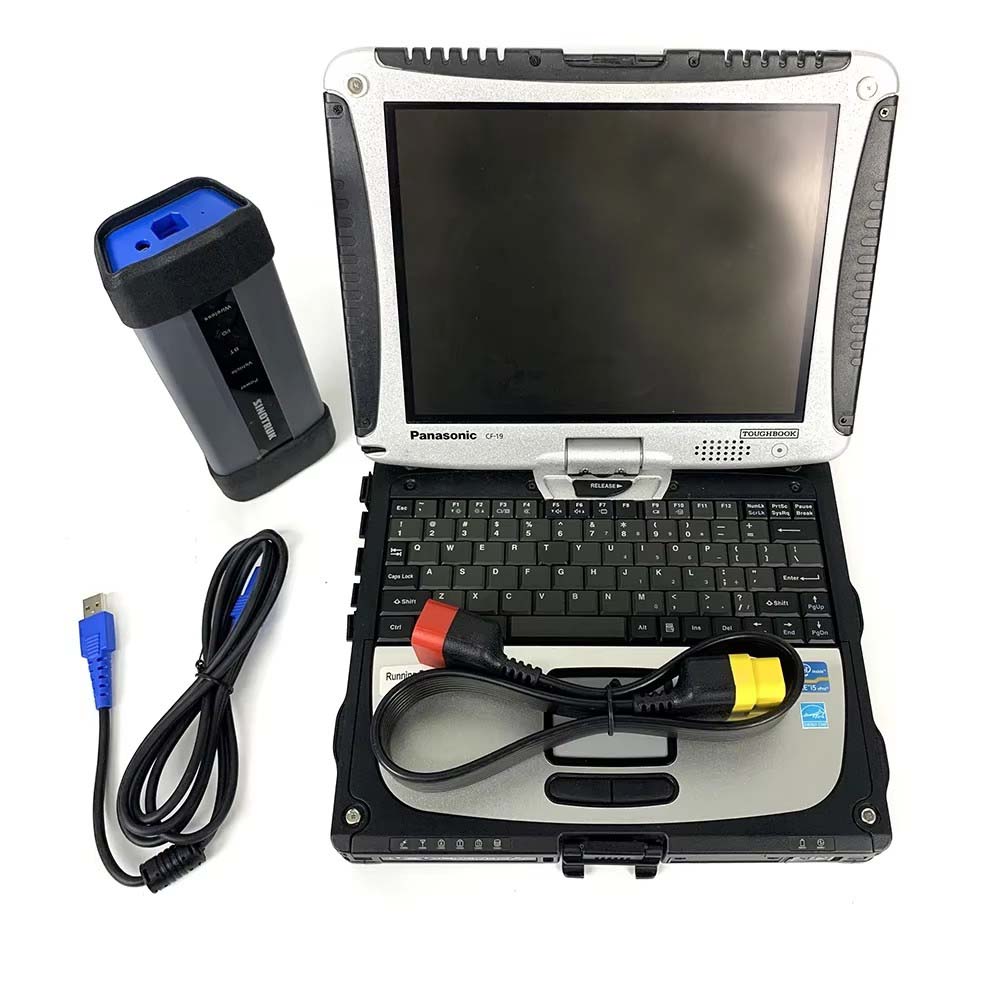

CF19 SINOTRUK Kit Package List:
1.HOWO interface *1
2.OBD Cable*1
3.USB Cable*1
4.CF19 Laptop well installed the latest software (option)

Second Hand Panasonic CF19 I5 4GB Laptop Specification:
Model No: CF-19
Processor Type: Intel(R) Core(TM)I5 CPU i5-3320
Memory Size: 4096 MB
Available Memory: 3893 MB
Condition: Used
256G SSD
