Allison DOC Premium v2024.11 Diagnostic Software with Gen 5 Data files and Programming
Allison DOC® Premium Quick Reference Guide
Diagnostic Software Allison DOC Premium with Gen 5 Data files and Programming [11/2024]
Type of catalogue:Diagnostic Software
Make:Noregon
Region:WorldWide
Languages:English
Amount：2.22 Gb
OS: Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit, Windows 11 Pro 64 bit
Software download link:
https://mega.nz/file/k0YHyTLQ#pmgbgZMxMES7v6fZMNbelakzbXtE-V3IvwzANyR2Dlo

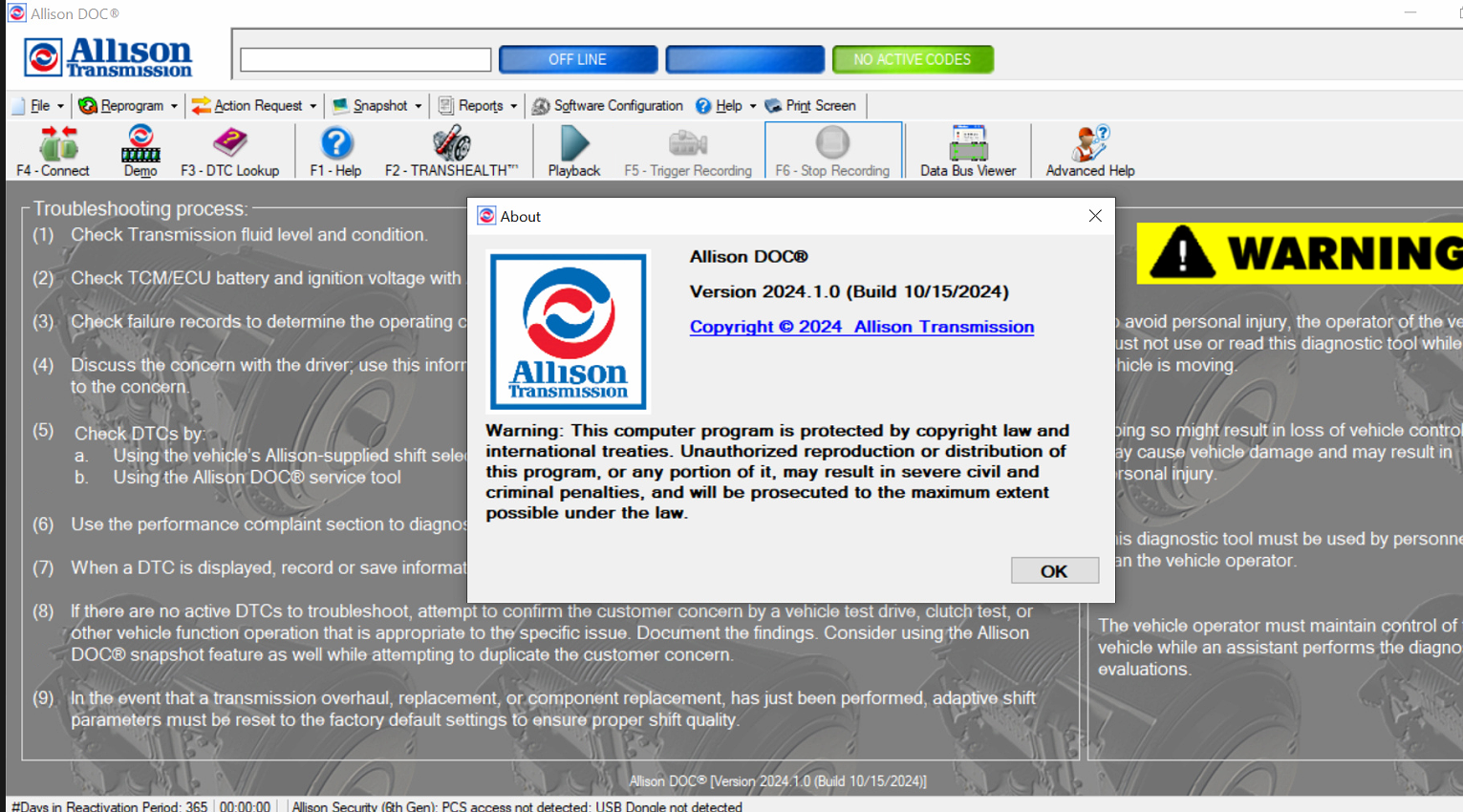

The Allison DOC Software (Diagnostic Optimized Connection) is a Windows-based diagnostic application for diagnosing, troubleshooting, and reprogramming Allison's Product Families transmissions.
Notice:
After payment, we will remotely install and activate the software for you (just install on one computer).
Allison Doc Software Requirements
Microsoft Windows 10®
20 GB Hard Drive (40 GB or greater recommended)
3 GB of RAM
Monitor capable of supporting a resolution of 1280x768 or higher, recommended
USB port, depending on the installation media
Full computer administrative privileges are required to install, use, and update Allison DOC® Premium.
Internet broadband connection capability for activation/reactivation, receiving updates, and Allison doc download.
New for Allison Transmission Software Version 2023.1 for August 2023
- Updated 1K/2K 5th Gen Troubleshooting Manual
- Updated 3K/4K 6th Gen Troubleshooting Manual
- Updated CEC3 (Off-Highway) Troubleshooting Manual
- Updated CEC5 (Off-Highway) Troubleshooting Manual
- Updated H 40/50 EP(TM) Troubleshooting Manual
- New eGen Flex(TM) Troubleshooting Manual
Allison TCMs Supported
1) 1K/2K and 3K/4K 6th Generation Controls - including 9-Speed and TerraTran(TM).
2) 1K/2K, 3K/4K, and TC10 5th Generation Controls.
3) 1K/2K and 3K/4K 4th Generation Controls.
4) CEC6 (Off-Highway) 6th Generation Controls - e.g., FracTran(R).
5) CEC5 (Off-Highway) 5th Generation Controls.
6) CEC3 (Off-Highway) 4th Generation Controls.
7) CEC2 Electronic Control Unit (ECU) data.
8) CEC (On-highway and Off-highway) Electronic Control Unit (ECU) data.
9) World Transmission Electronic Control (WTEC) II/III Electronic Control Unit (ECU) data.
10) 1000/2000/2400 Series Transmission Control Module (TCM) data.
11) eGen Flex(TM) Electronic Control Unit (ECU) data.
12) H 40/50 EP(TM) Electronic Control Unit (ECU) data.
Allison DOC Software Features
1) TAC Data Collection capability for WTEC III ECUs
2) Display multiple transmission parameters and Diagnostic Trouble Codes.
3) Display of Failure Records.
4) A graphic display of limited data using analog and digital gauges.*
5) Reprogramming of ECU or TCM settings**
6) Ability to activate/reset tests and transmission capabilities (clutch test, solenoid test, adaptive shifts, throttle calibration, etc.)*
7) Recording of vehicle data and bus information into snapshot sessions.
8) Display of vehicle data bus traffic.*
9) E-mailing of snapshots along with optional comments.
10) Ability to Export snapshots to a comma-delimited file (4th Gen or greater Controls only).
11) Ability to create/display/print diagnostic reports.

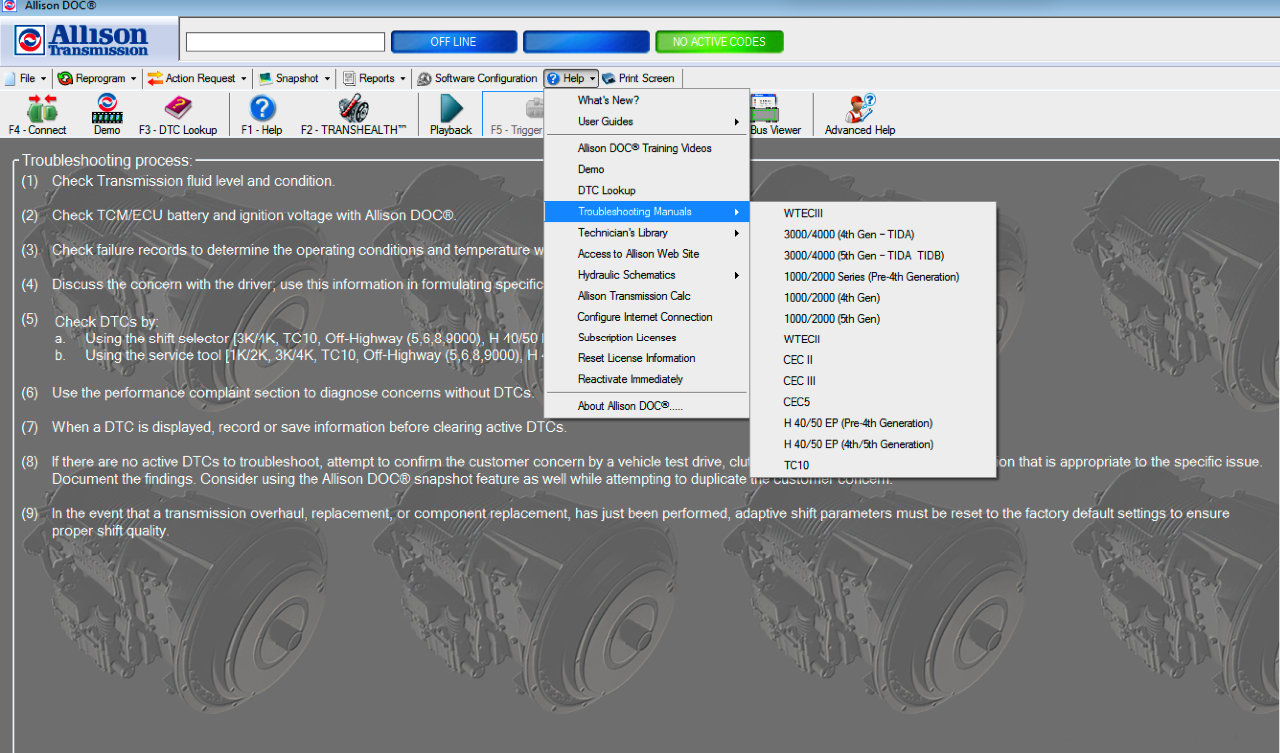

12) Access to transmission Troubleshooting Manuals, including context-sensitive links.
13) Integrated help with video-based training materials.
14) The ability to launch TCM Reflash when installed.
15) Automated application updates.
16) Access to Service Information Letters via the Allison Transmission website.
17) Ability to monitor TRANSHEALTH(TM) status and to generate and display TRANSHEALTH(TM) reports*, **
18) Display of vehicle prognostics information when supported by a 4th Generation or greater TCM.
19) Language support for English, French, Japanese, Spanish, Russian, German, Portuguese, Simplified Chinese, Korean, French, Canadian, Italian, Polish, Thai, Turkish, and Arabic.
20) Reads engine faults.
21) Displays engine data when selected and if connected to a 4th generation or greater control.
22) Certain limitations apply to the Interactive FuelSense® dialog that displays an easy-to-use interface to customize fuel economy/performance settings.
Translator Device Support:
For NEXIQ USB-Link2 - V2.8.0.4 drivers or better.
- Refer to http://www.nexiq.com for updated driver information
For Dearborn DPA5 - V5.01 drivers or better.
- Refer to http://www.dgtech.com for updated driver information
For Noregon Wireless/USB Translator 2.0 - V4.1.173 drivers or better.
- Refer to http://www.noregon.com/adapter-drivers for updated driver information
