Launch X431 Key Programmer Remote Maker with Super Chip and 4 Sets of Smart Keys

Launch X431 Key Programmer Remote Maker with Super Chip and 4 Sets of Smart Keys

Currently the Launch X431 key programmer can be used with LAUNCH X431 IMMO PLUS, LAUNCH X431 PAD VII, LAUNCH X431 IMMO ELITE, and LAUNCH X431 PAD V Elite



NOTE:

If you try to update key programming software and firmware on Launch X431 IMMO Plus/ Elite/ PAD V/ PAD VII, you must connect this key programmer with tablet, otherwise it will give error device no response.

Key programmer, professionally read and write key information, generate various key chips; key sub-machine, select various key sub-machine models (consumables) corresponding to different car models; write the corresponding key program into the key sub-machine to generate different vehicle keys (only supports Yuanzheng key sub-machine) such as Volkswagen, Audi, Honda, Toyota, Nissan model keys to replace the original keys, and can be reused. Then execute the matching process

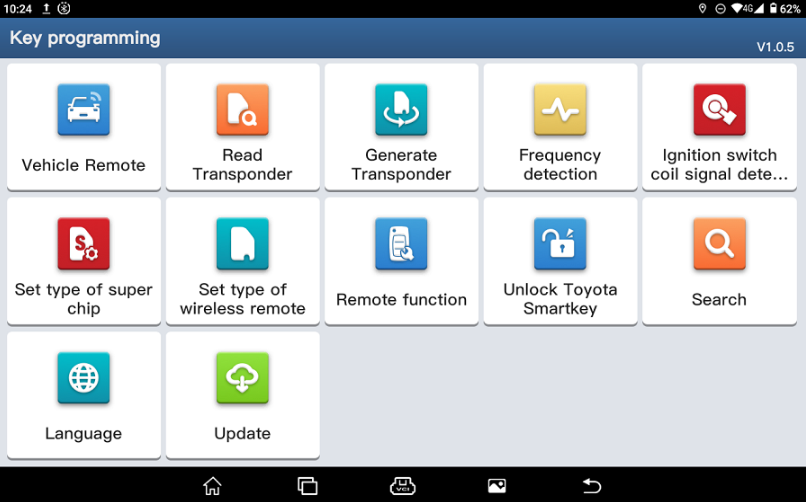

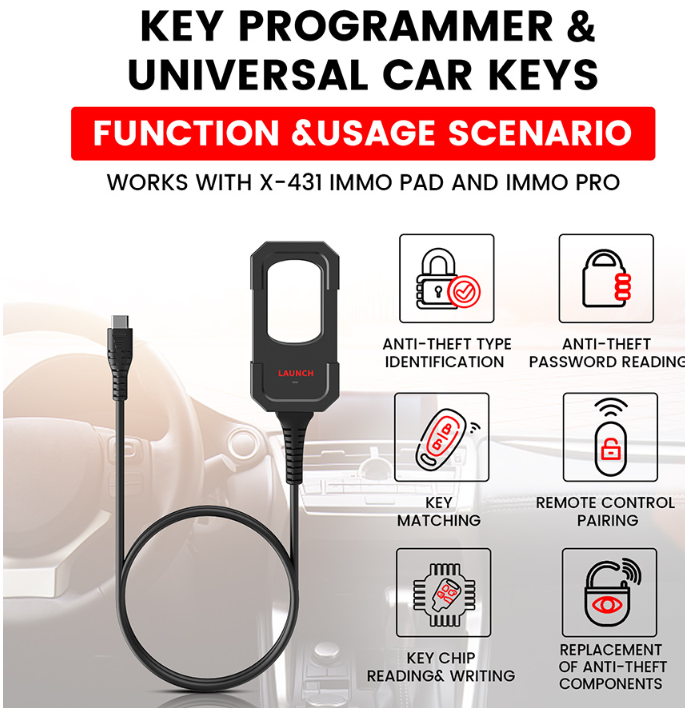

Launch X431 Key Programmer Remote Maker Function List:

Read Transponder

Generate Transponder

Detect Frequency

Detect Ignition switch coil signal

Generate Remote (Launch X431 remote)

Set type of super chip

Set type of wireless remote

Unlock Toyota smart key



Package Details:

1. Launch Key programmer + 4 Sets of Smart Keys includes: key programmer, USB to Type C, LS Nissan (smart card, 4 buttons) -01, LN Peugeot DS (folding 3 buttons) -01, LE Volkswagen super remote (folding 3 buttons) -01, LE Ford super remote (folding 4 buttons) -01

2. Free Super Chip Function: Support the conversion of most car model chip types, and support separate matching to achieve vehicle startup. Support chips of the 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, 11/12/13 types.

3. USB to TYPEC Connector: device to key programmer

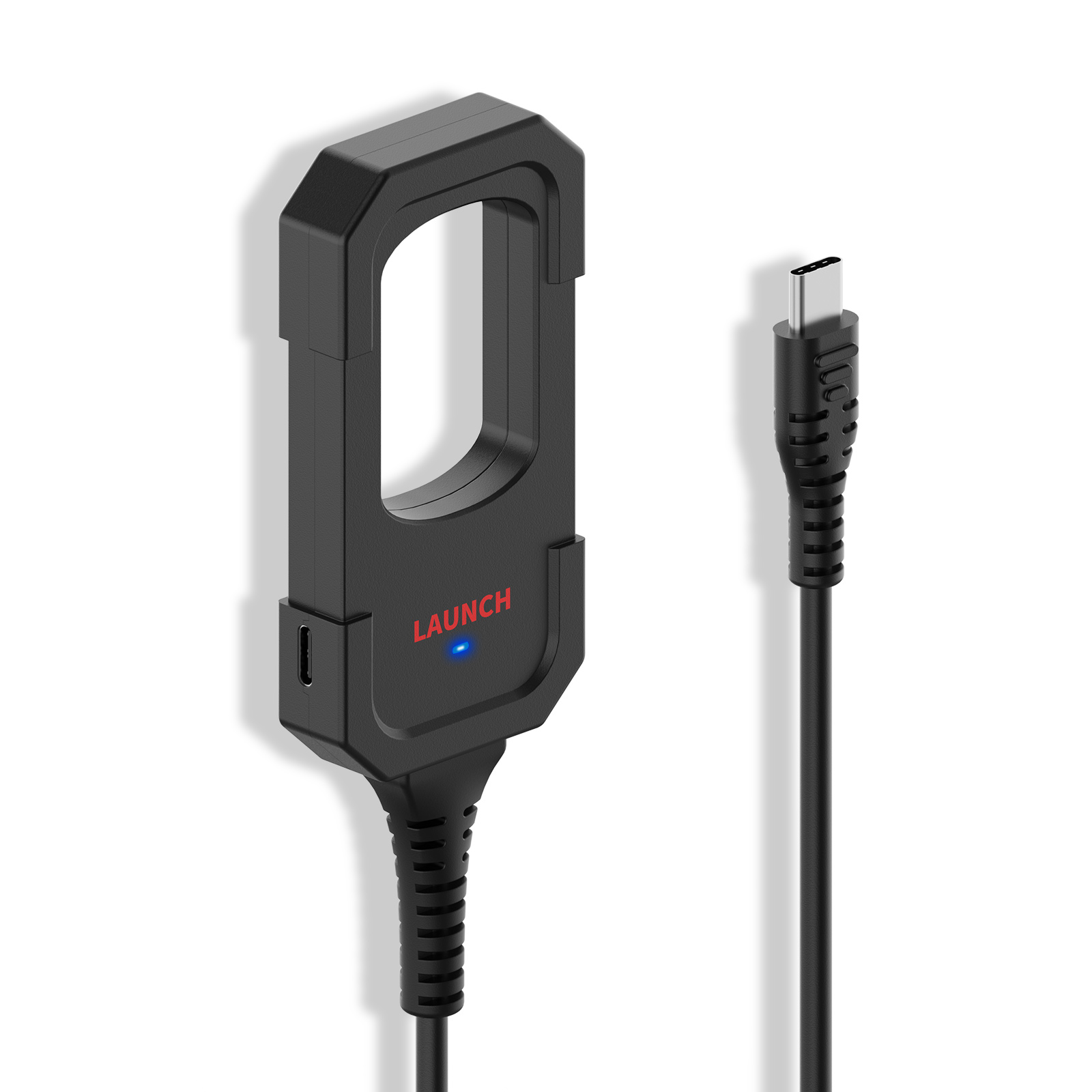

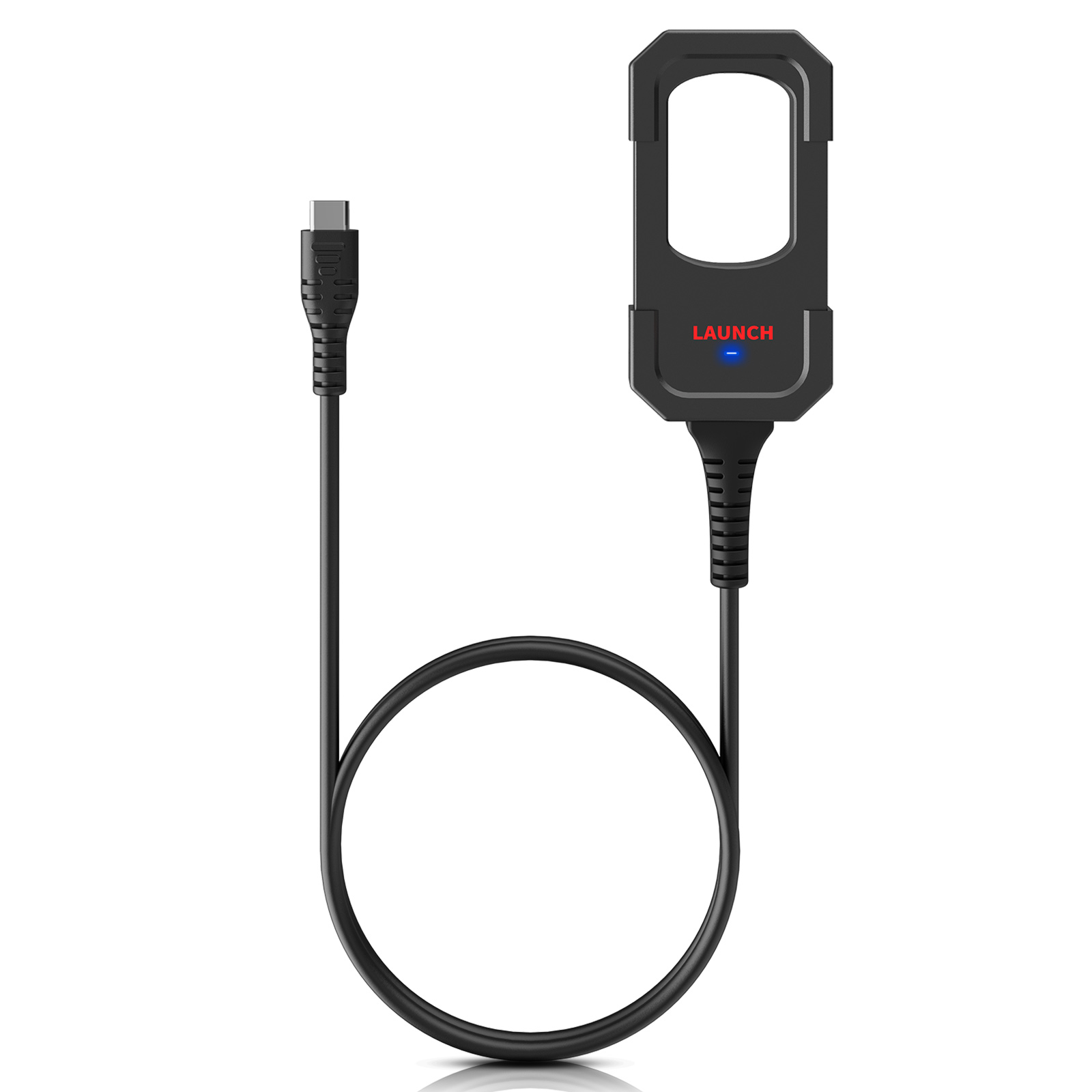

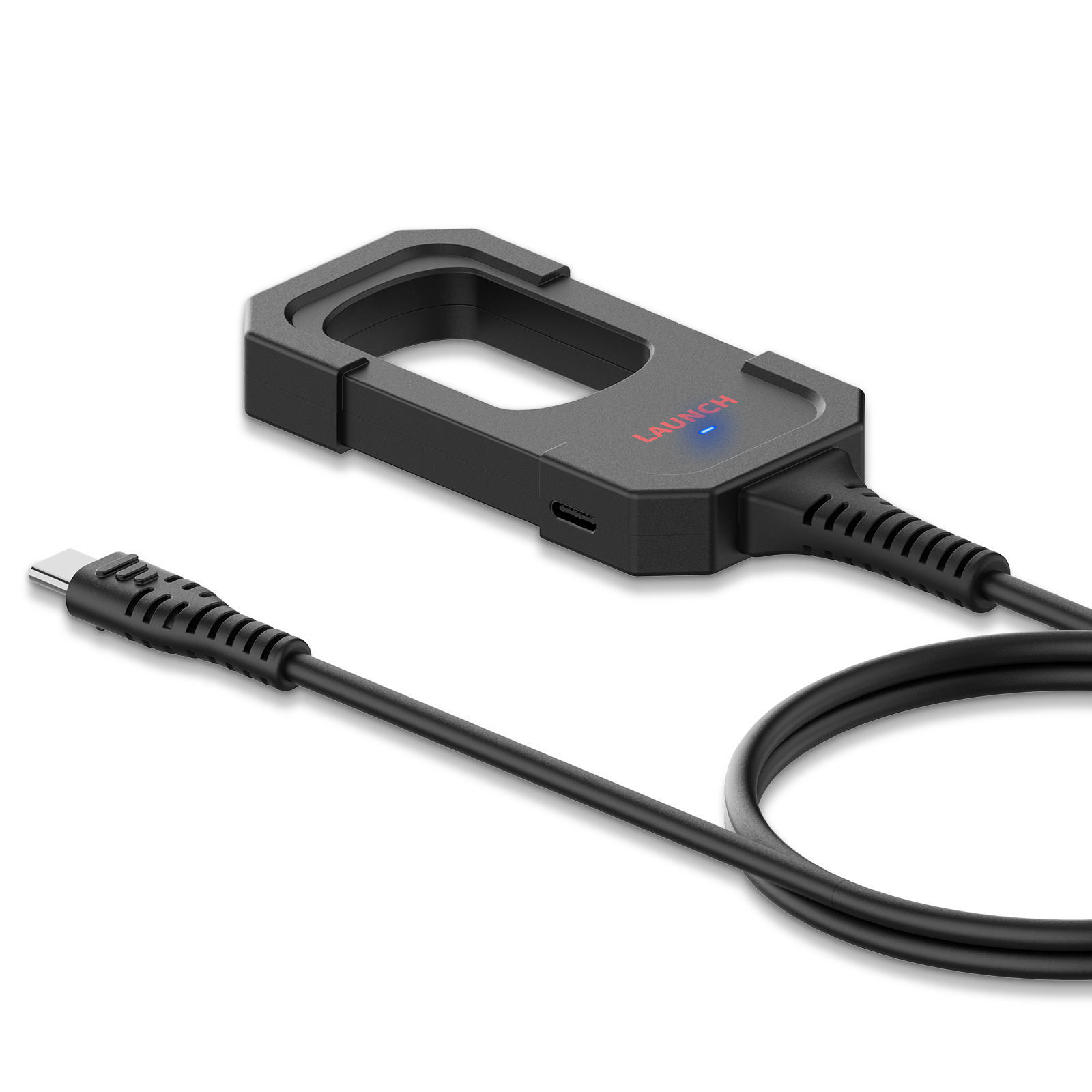

Launch Key Programmer: Identify car key chips and generate various types of chip models from super remotes, read the remote control frequency of car keys, and generate remote control devices for different car models from various types of super remotes.

LS Nissan (smart card, 4 buttons) -01, LN Peugeot DS (folding 3 buttons) -01, LE Volkswagen super remote (folding 3 buttons) -01, LE Ford super remote (folding 4 buttons) -01 super remote: One click start smart key models and use LS series Nissan super remotes to generate corresponding keys. For car models with electronic chip keys or the 11/12/13/7936/7937/7947/7946 chips, use the LN series DS super remote. For models without electronic chip keys or models 46, 48, 4D/70, 83, 8A/H, G, 4E, 11/12/13/C, 42, 33, 47, 8C, and 8C, use the LE series Volkswagen and Ford super remotes.



Method of using Launch Super Chips:

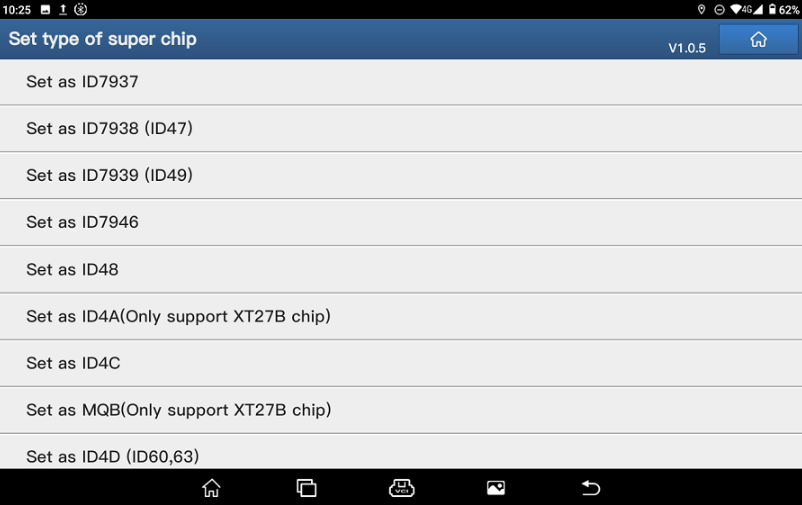

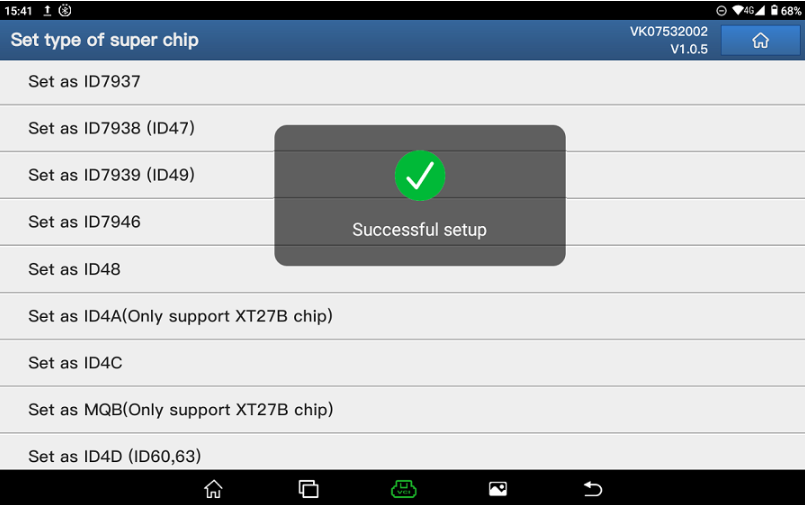

1. Enter the menu [Set type of super chip] to generate.

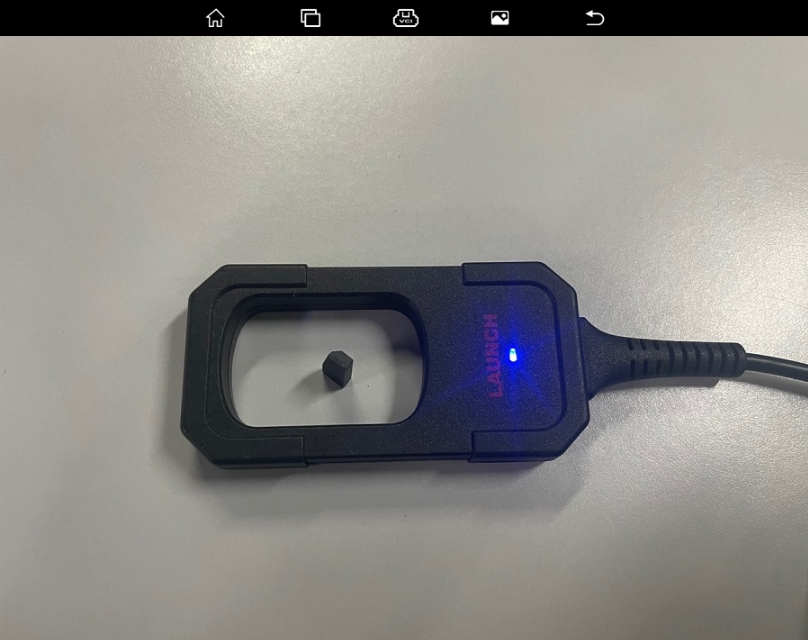

2. Select the corresponding key chip type and insert the super chip into the anti-theft induction coil.


3. Once successfully generated, it can be used.

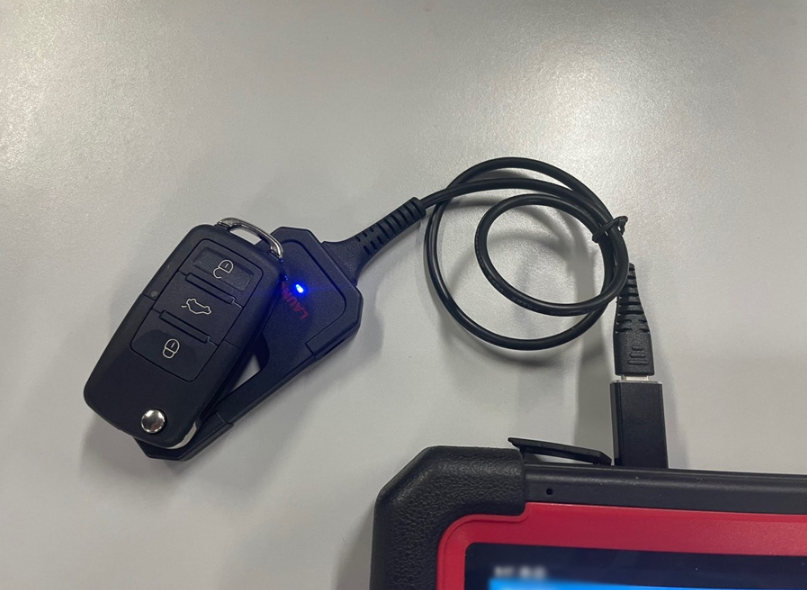

Method of using the LE Volkswagen and LE Ford super remotes:

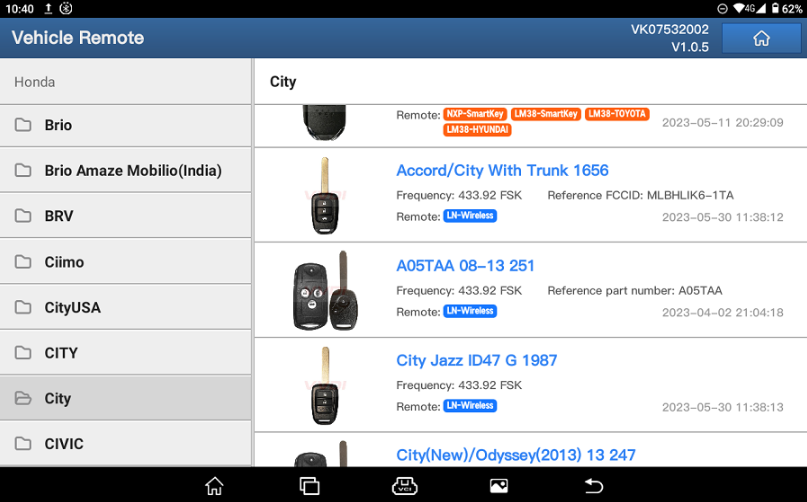

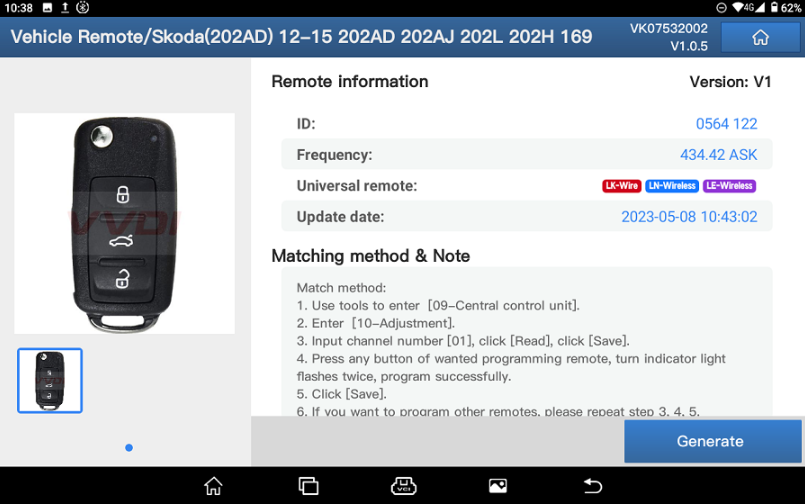

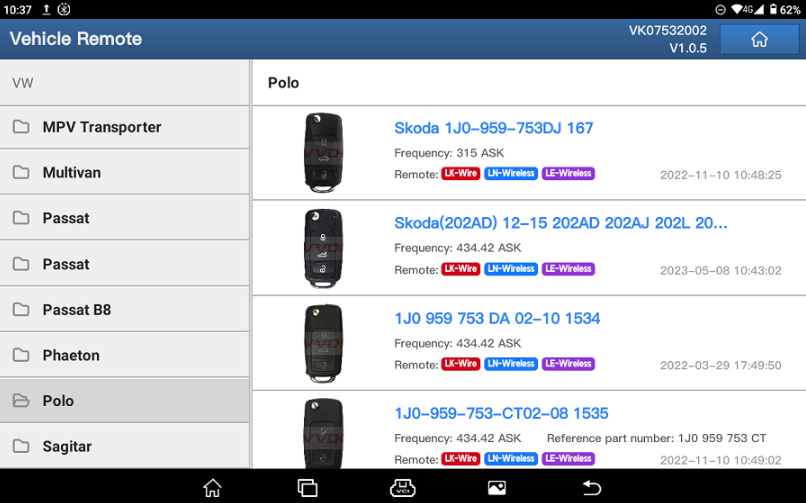

1. Enter the [Vehicle Remote] menu and select the corresponding available super remote to generate.

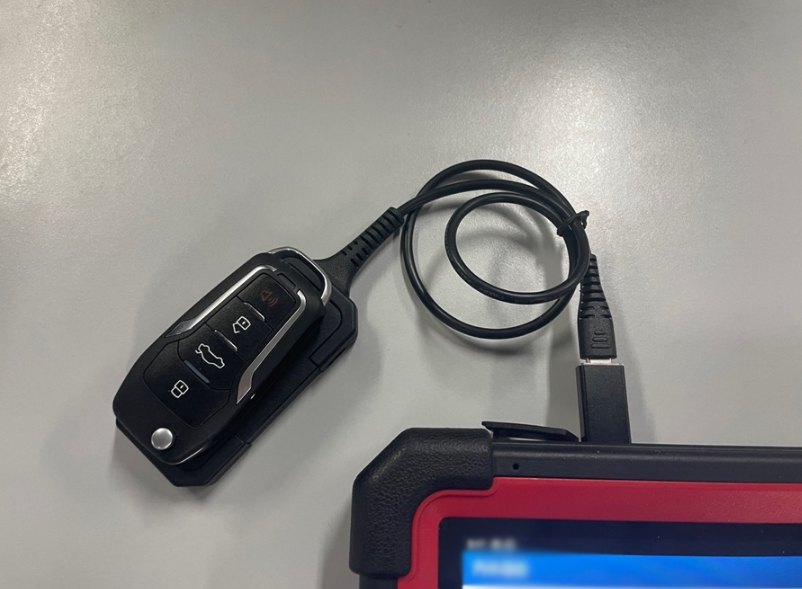

2. Select the corresponding key and place the super remote key in the key programmer to generate.

3. After the remote control is successfully generated, enter the [Set type of super chip] menu to generate the corresponding key chip.

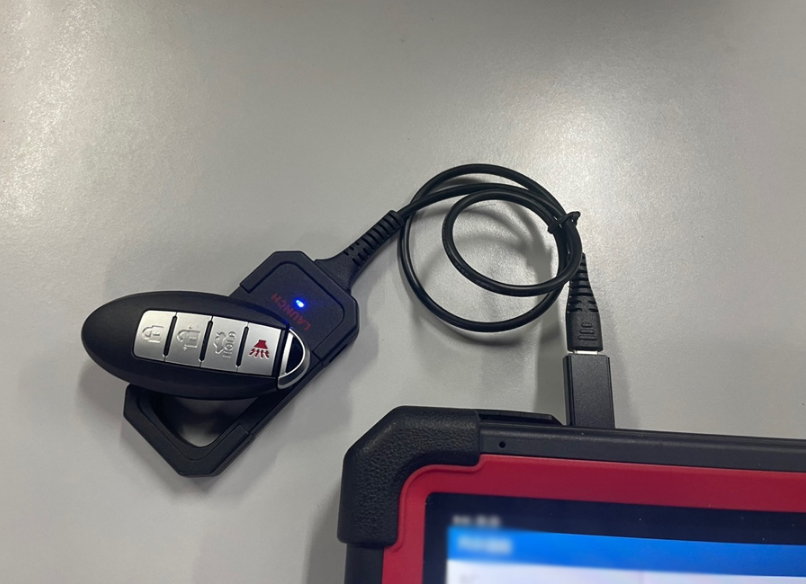

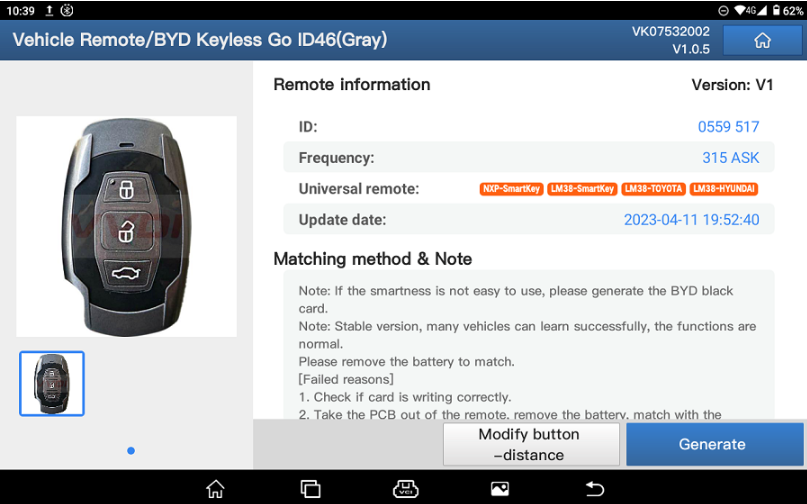

Method of using LS Nissan super remote:

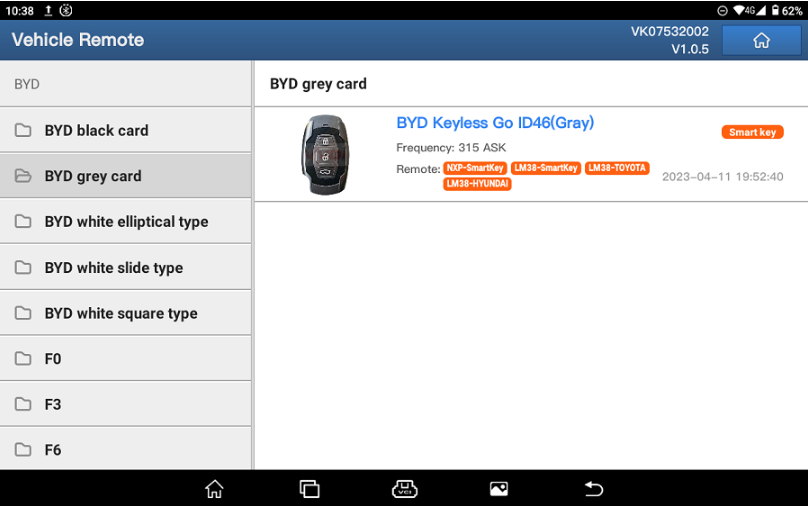

1. Enter the [Vehicle Remote] menu and select the corresponding smart key model to generate.

2. Place the smart remote key in the key programmer to generate.


Method of using LN Peugeot DS super remote:

1. Enter the [Vehicle Remote] menu and select the corresponding electronic key model to generate.

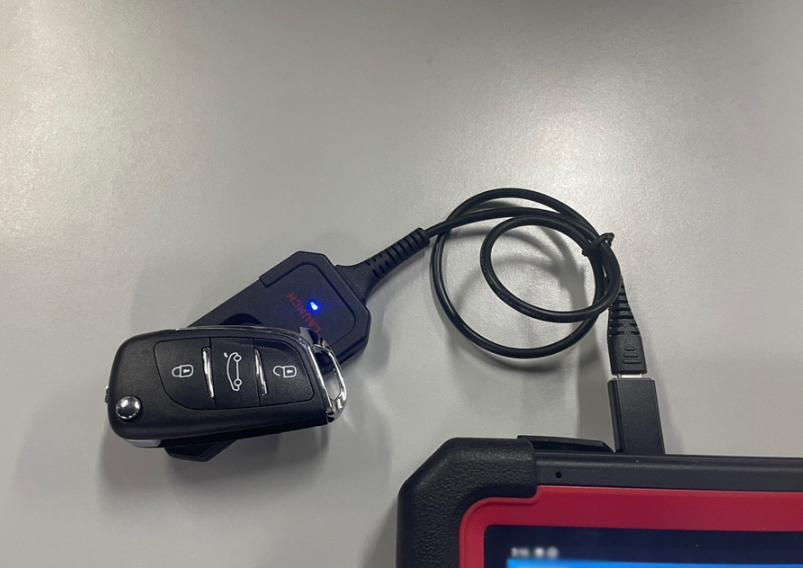

2. Place the electronic remote key in the key programmer to generate.

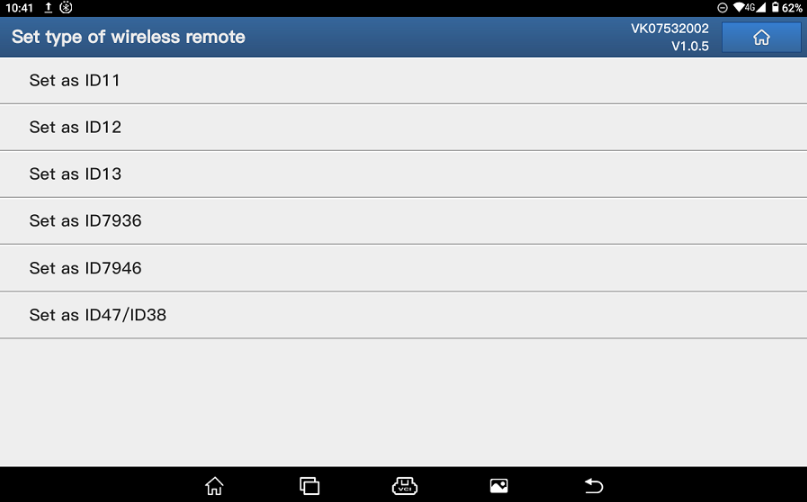

3. For car models without electronic keys, enter [Set type of wireless remote] to generate the corresponding key.

Statement: The content of this document is copyrighted by Launch, and no individual or organization may quote or reprint it without consent.


Introduction of 4 Launch Smart Keys:

Product Name	Picture	Usage Scenario	Function
LS4-NISN-01		LS intelligent key is only compatible with vehicle models equipped with the Kessy system, its functions include keyless starting and door edge sensing.	1.Wireless programming 2. Equipped with anti-theft chip 3. Uses the button cell 2032 4. Circuit board with a 2-year warranty 5. Repeatable writing 6. Batteries need to be installed while generating 7. Supports vehicles with 46, 47, MQB48, MQB49, 4A chips
LN3-PUGOT-01		Certain chips in LN remote can't generate all vehicle models, it's needed to check whether the type of chip can support the vehicle model, the chip is integrated into the remote.	1．Wireless programming 2．Equipped with anti-theft chip 3．Uses the button cell 2032 4．Circuit board with a 2-year warranty 5．Repeatable writing 6．Batteries need to be installed while generating 7．Supports vehicles with 11, 12, 13, 7936, 7937, 7947, 7946 chips
LK3-VOLWG-01		LK remote is applied in the situations where the remote needs to be matched but the chip is not needed, or it can also be used with super chip.	1．Wiring programming 2．Not equipped with an anti-theft chip, needs to be used with an anti-theft chip 3．Uses a button cell 2032 4．Circuit board with a 2-year warranty 5．Repeatable writing 6．Batteries cannot be installed while generating
LE4-FRD-01		LE remote contains chip and remote, the multimode chip can generate most of the vehicle models and cover the majority of them.	1．Wireless programming 2．Equipped with a multimode chip 3．Uses a button cell 2032 4．Circuit board with a 2-year warranty 5．Repeatable writing 6．Batteries need to be installed while generating

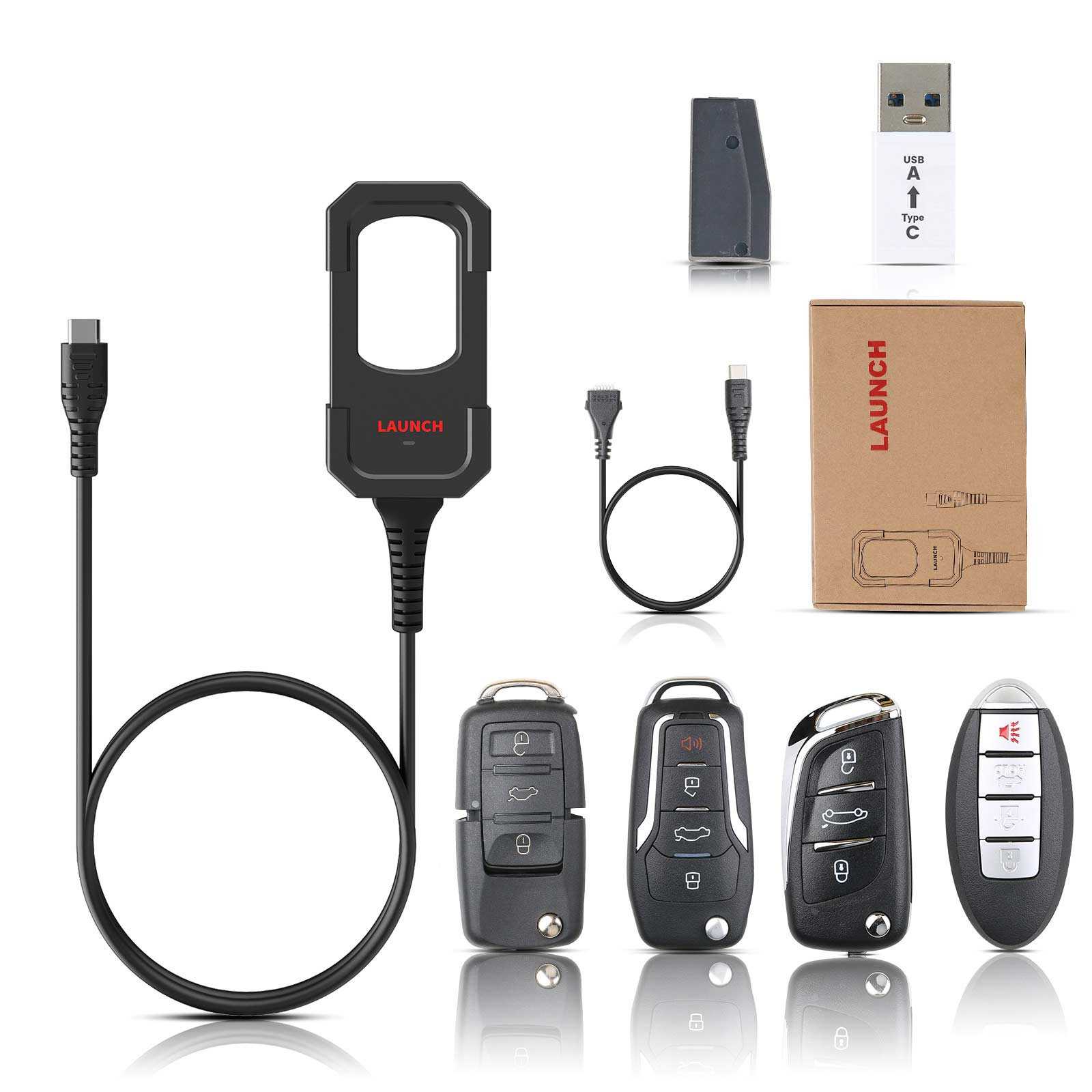

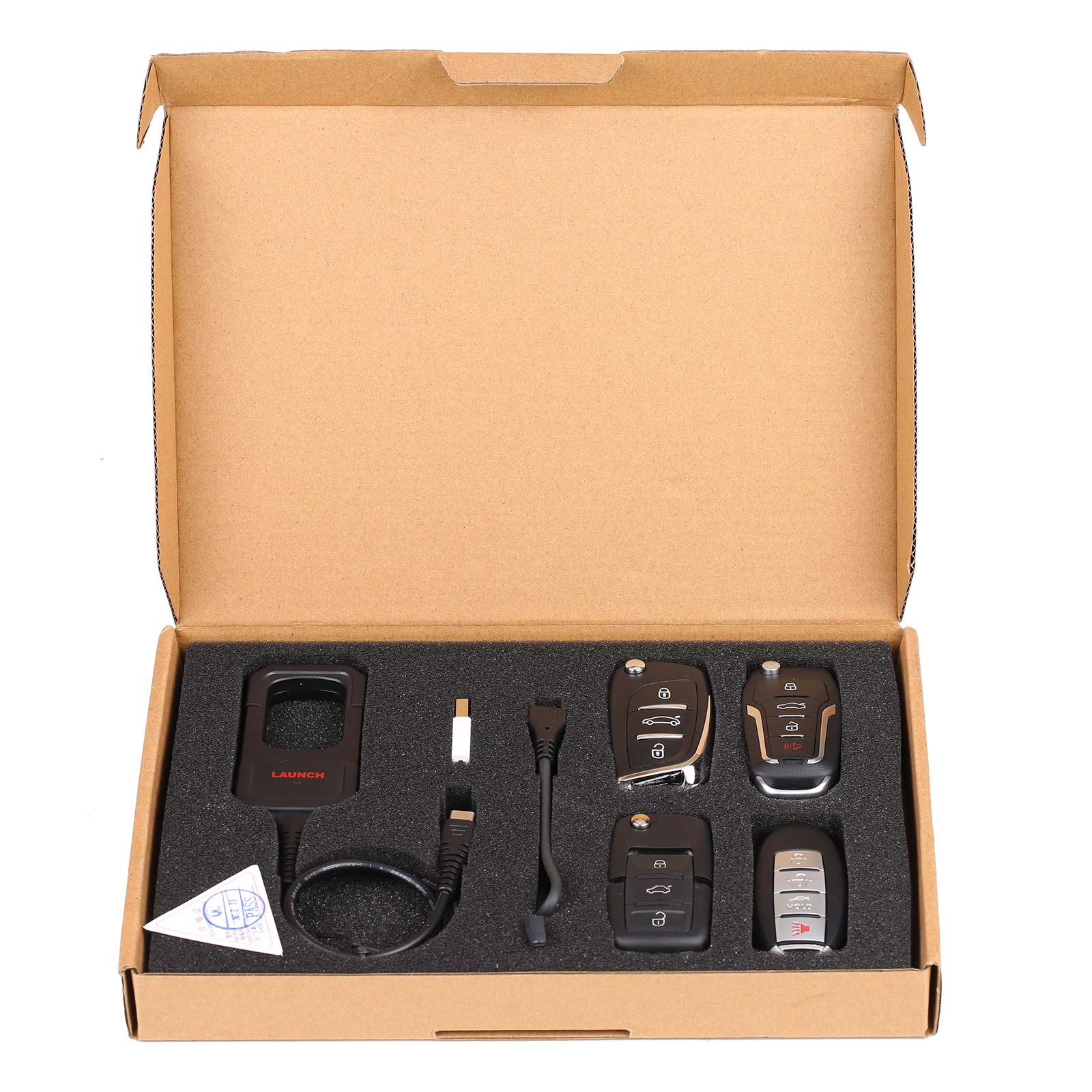

Package Includes:
1pc x Launch X431 Key Programmer
1pc x Super Chip
4pcs x Smart Keys
