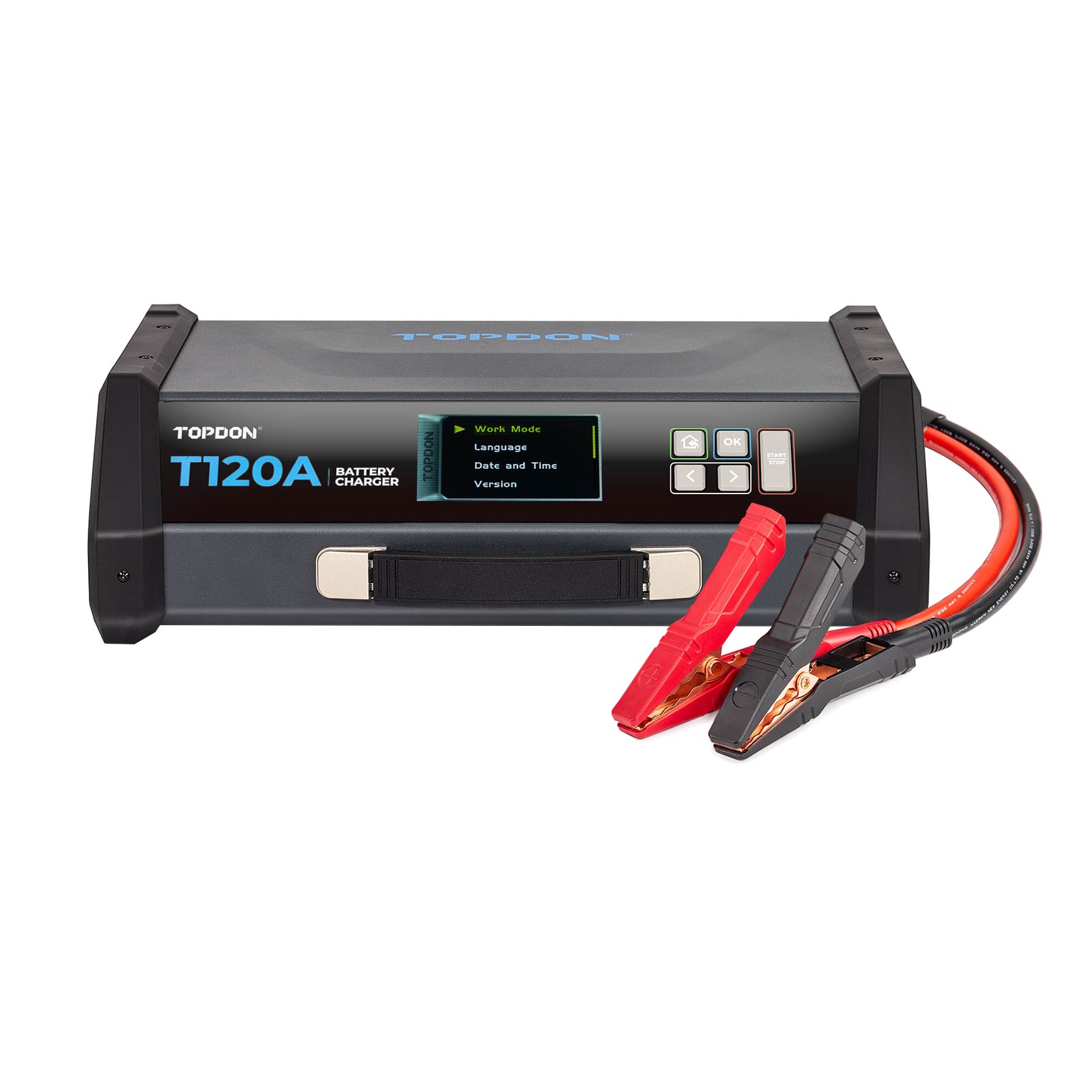

Topdon Tornado120000 Battery Charger 120A Stable Programming Power Supply for 12V Vehicles

Topdon Tornado120000 Battery Charger, 120A Stable Programming Power Supply for 12V Vehicles

User manual download

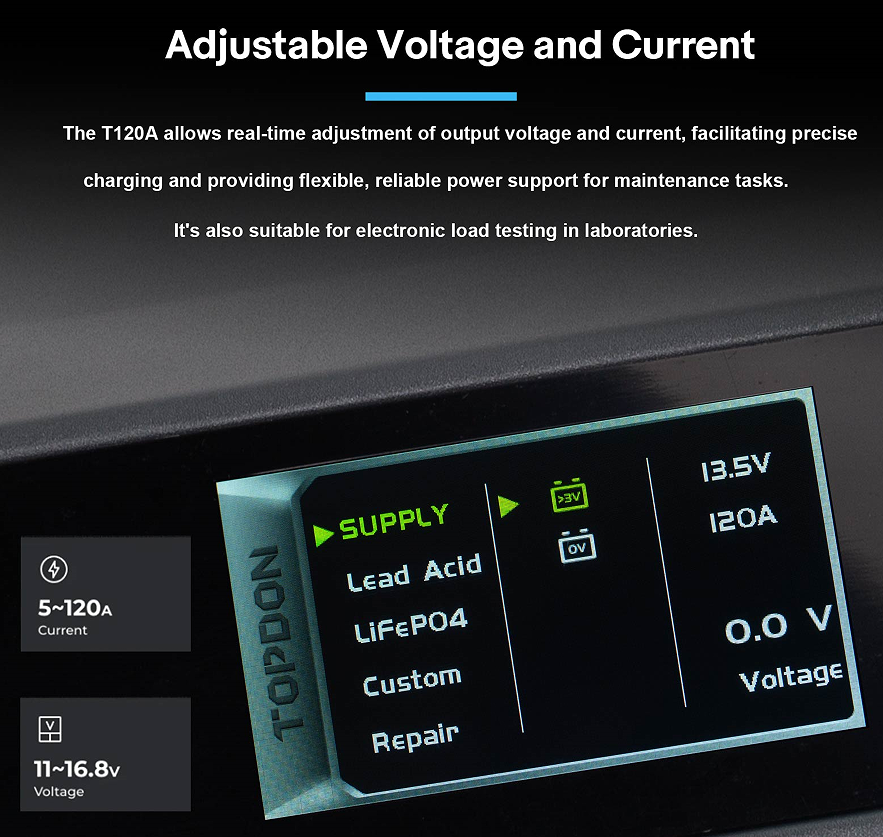

TOPDON Tornado120000 is a professional smart programming power supply designed to provide efficient charging and voltage stabilization for vehicles equipped with 12V batteries. It features intelligent current (5-120A) and voltage (11-16.8V) output adjustment and boasts a maximum power of 1700W to confidently handle every battery.

Why choosing TOPDON TORNADO120000 ？

1.High-Power Performance

2.Max Power Output: 1700W

3.Adjustable Current: 5 – 120A

4.Adjustable Voltage: 11 – 16.8V

5.Confidently handles batteries from 20Ah to 3700Ah



Intelligent Charging Technology

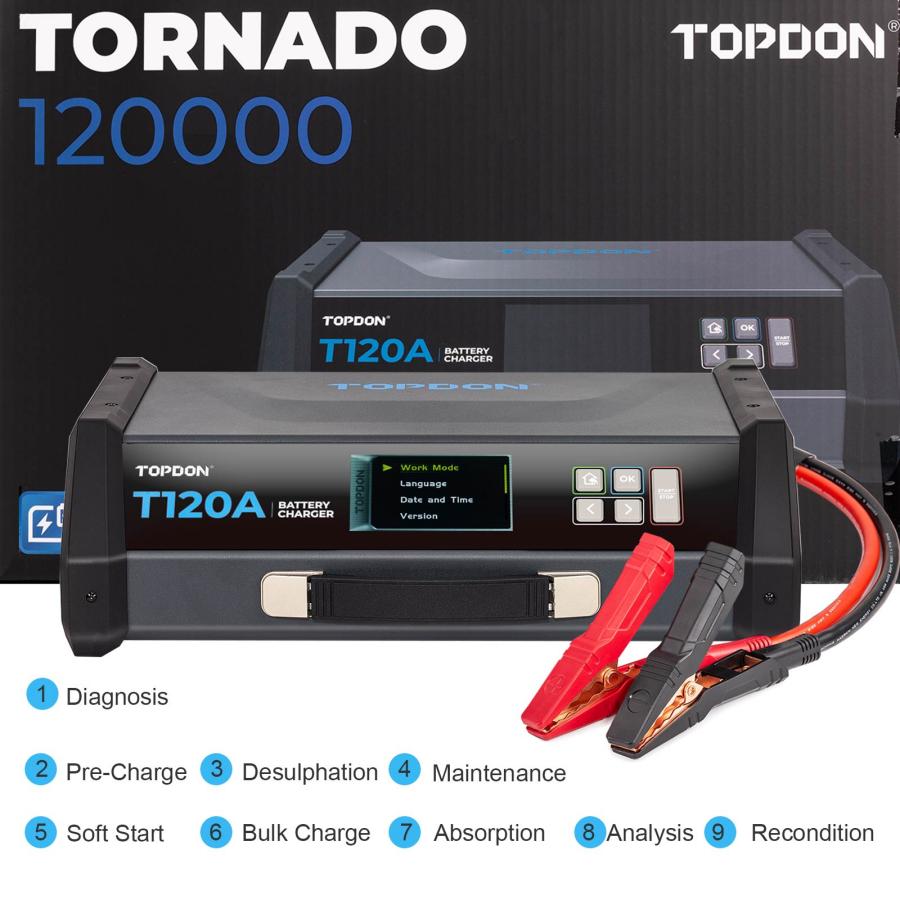

1.Patented 9-Step Charging Process: Optimizes, maintains, and revitalizes batteries through a smart cycle including desulfation.

2.3 Primary Charging Modes: Seamlessly balances charging speed and quality.

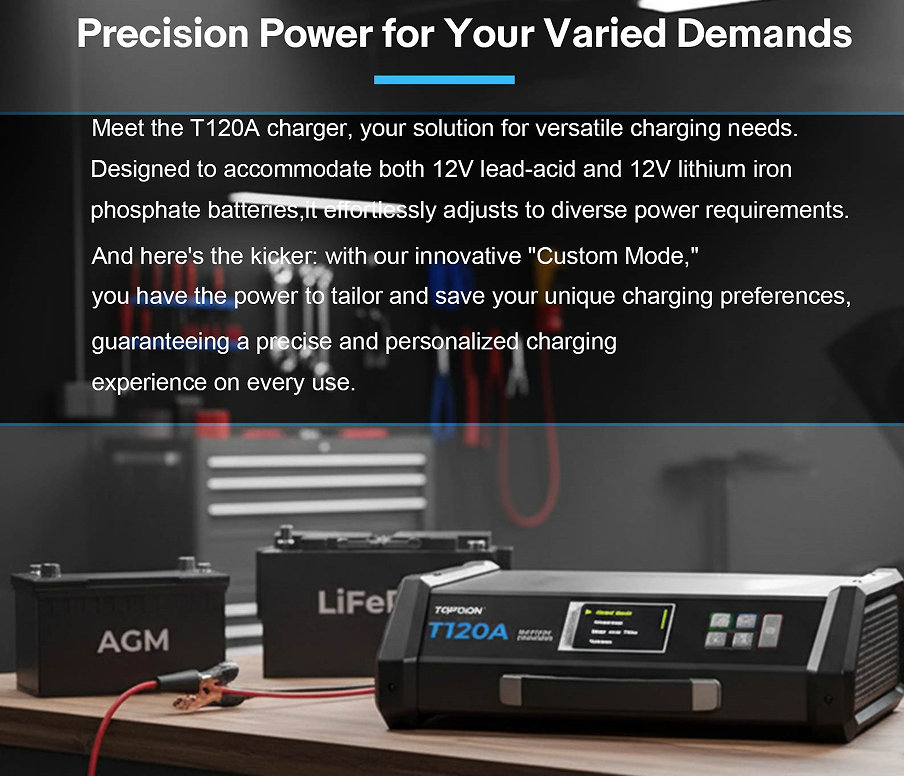

3.Custom Mode: Allows users to save and recall personalized charging parameters for precise, repeatable results.

Universal Compatibility

1.Battery Types: Charges and maintains Wet, Gel, MF, EFB, AGM, Ca, VRLA lead-acid batteries and 12V Lithium Iron Phosphate (LiFePO4) batteries.
2.Applications: Serves as an all-in-one solution for battery charging, automotive repair, ECU programming, and electronic load testing in lab environments.



Enhanced Safety & Protection

1.Incorporates 8 built-in safety protections: Reverse Connection, Short Circuit, Spark Prevention, Over-Voltage, Over-Current, Over-Temperature, Over-Charge, and Fan Fault Protection.

2.Ensures a reliable and worry-free operation during critical tasks.

User-Centric Design & Data Insights

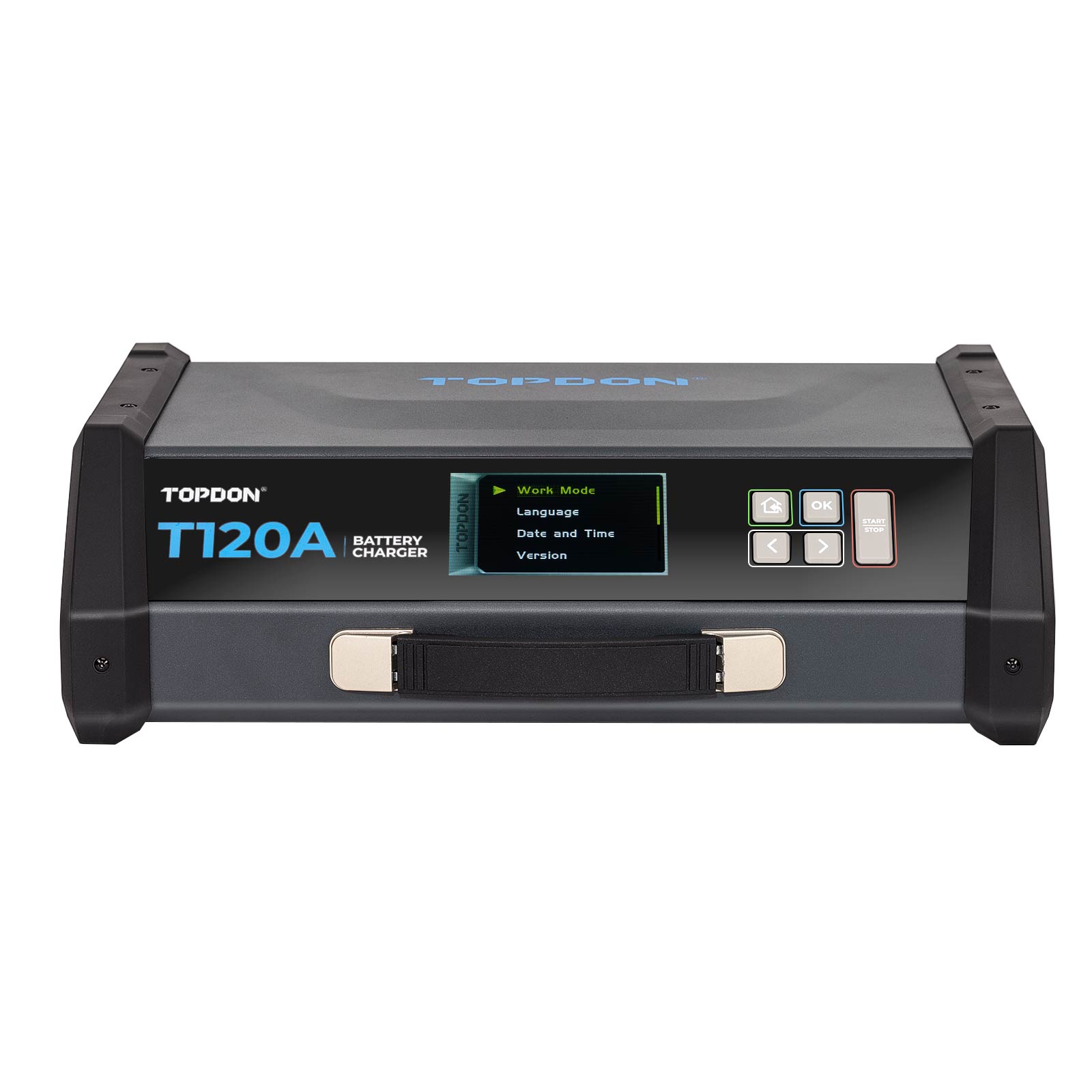

1.Dot-Matrix LCD Display: Provides clear visibility and easy operation.

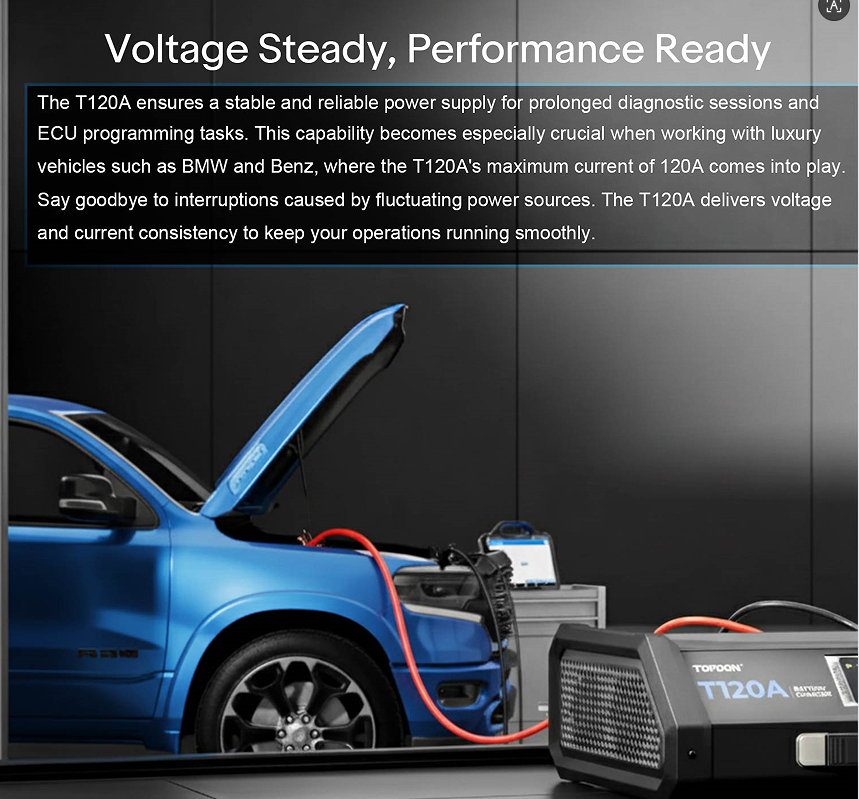

2.Stable Voltage Supply: Eliminates interruptions during sensitive diagnostics or programming, crucial for working with luxury brands (e.g., BMW, Mercedes-Benz).

3.Data Export Function: Connect to computer software to generate detailed reports on charging patterns, power usage, duration, and voltage metrics for analysis and strategy optimization.

Technical Specifications：

Parameter	Specification
Input Voltage	90-240V AC, 50-60Hz
Output	12V DC, 5-120A, 1700W Max
Compatible Battery Types	12V Lead-Acid (All types), 12V LiFePO4
Charging Battery Capacity	20 – 3700 Ah
Clamp Cable	7.2 ft (2.2m), AWG#4 Gauge
AC Power Cable	6.6 ft (2.0m)
Working Temperature	14°F to 104°F (-10°C to 40°C)
Storage Temperature	-4°F to 167°F (-20°C to 75°C)
IP Rating	IP20
Warranty	1 Year





Ideal Use Cases

The Tornado120000 meets diverse power needs across multiple fields:

1.Automotive Repair & Maintenance: Battery charging, recovery, and vehicle system powering.

2.ECU Programming & Diagnostics: Provides stable, clean power essential for modern vehicle programming.

3.Marine & RV: Charging and maintaining batteries for boats and recreational vehicles.

4.Battery Manufacturing & Servicing: Formation, testing, and maintenance of 12V battery banks.

5.Electronics Engineering & Labs: A reliable, adjustable DC power source for testing and development.

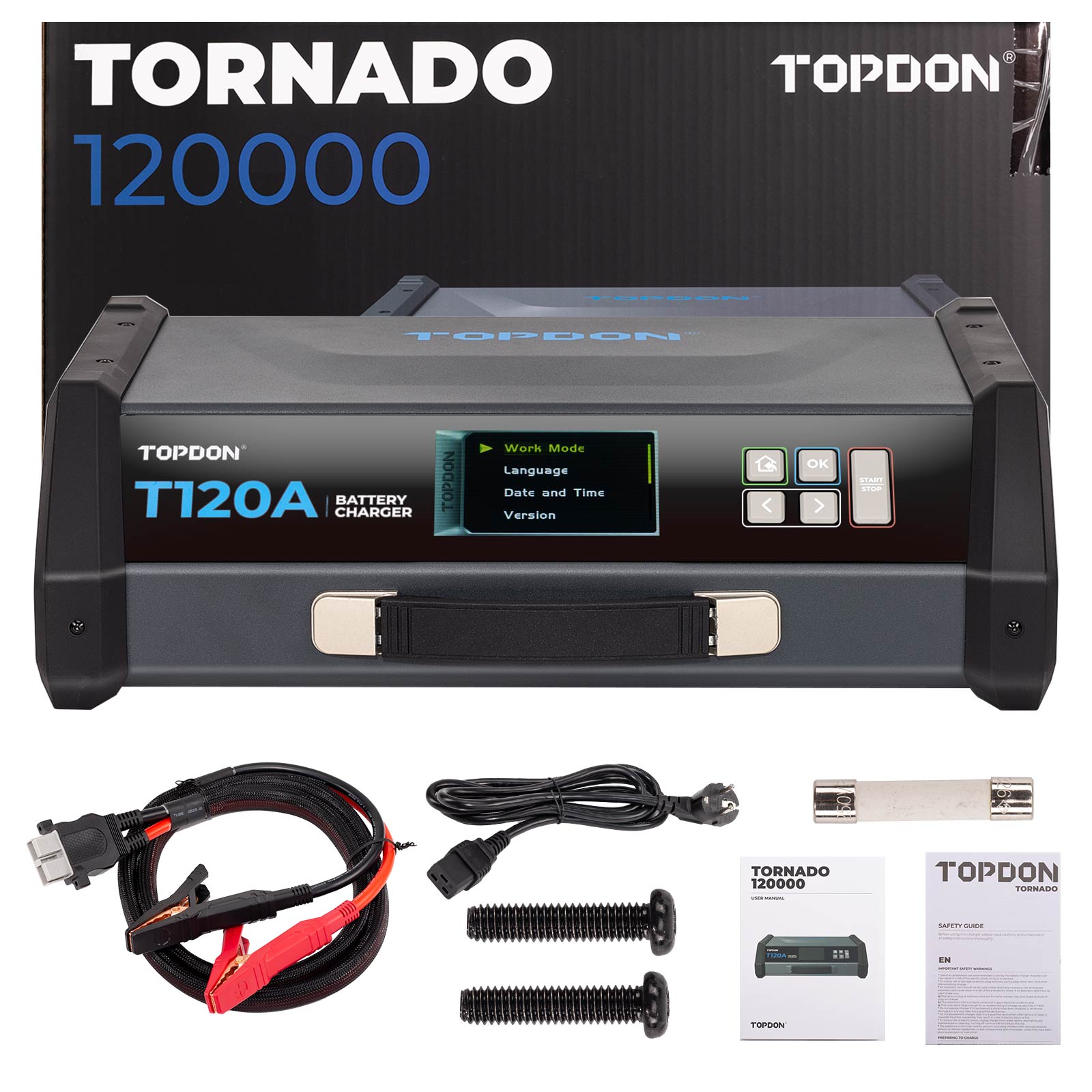

What's in the box:

Tornado120000

Battery Clamps with 16ft cord

AC Power Cable, 6.5ft

USB-A to USB-B Cable

User Manual

Safety Guide

COMPARISON CHART: TORNADO SERIES MODELS
