EoneBoss TLK3 Key Generation and 8A 4D 4A Unlock Tool Supports Frequency Detection For Keys Lost

EoneBoss TLK3 Key Generation and 8A 4D 4A Unlock Tool Supports Frequency Detection For Keys Lost

EoneBoss TLK3 is a professional smart key generation & unlock tool built for automotive locksmiths and repair shops. It delivers fast, accurate key programming for Toyota, Lexus and Subaru aftermarket smart keys, with strong support for All Keys Lost (AKL) scenarios, making your key services more efficient and profitable.

It's time to streamline your workflow with the all-new EoneBoss TLK3!

The Ultimate Solution for Toyota Key Generation

The TLK3 is designed to eliminate confusion. It directly reads data from the original key to automatically identify the Vehicle Brand, Chip Type, and Correct Frequency Sequence in seconds.



Key Features:

Automatic Detection: No more manual selection errors.

Frequency Precision: Identifies the exact frequency sequence automatically.

Customizable Buttons: Select the correct button configuration (2-button, 3-button, etc.) after generation.

User-Friendly: Simple steps, clear interface, professional results.

Smart Identification: 100% accuracy in identifying key frequency, sequence, and chip type.

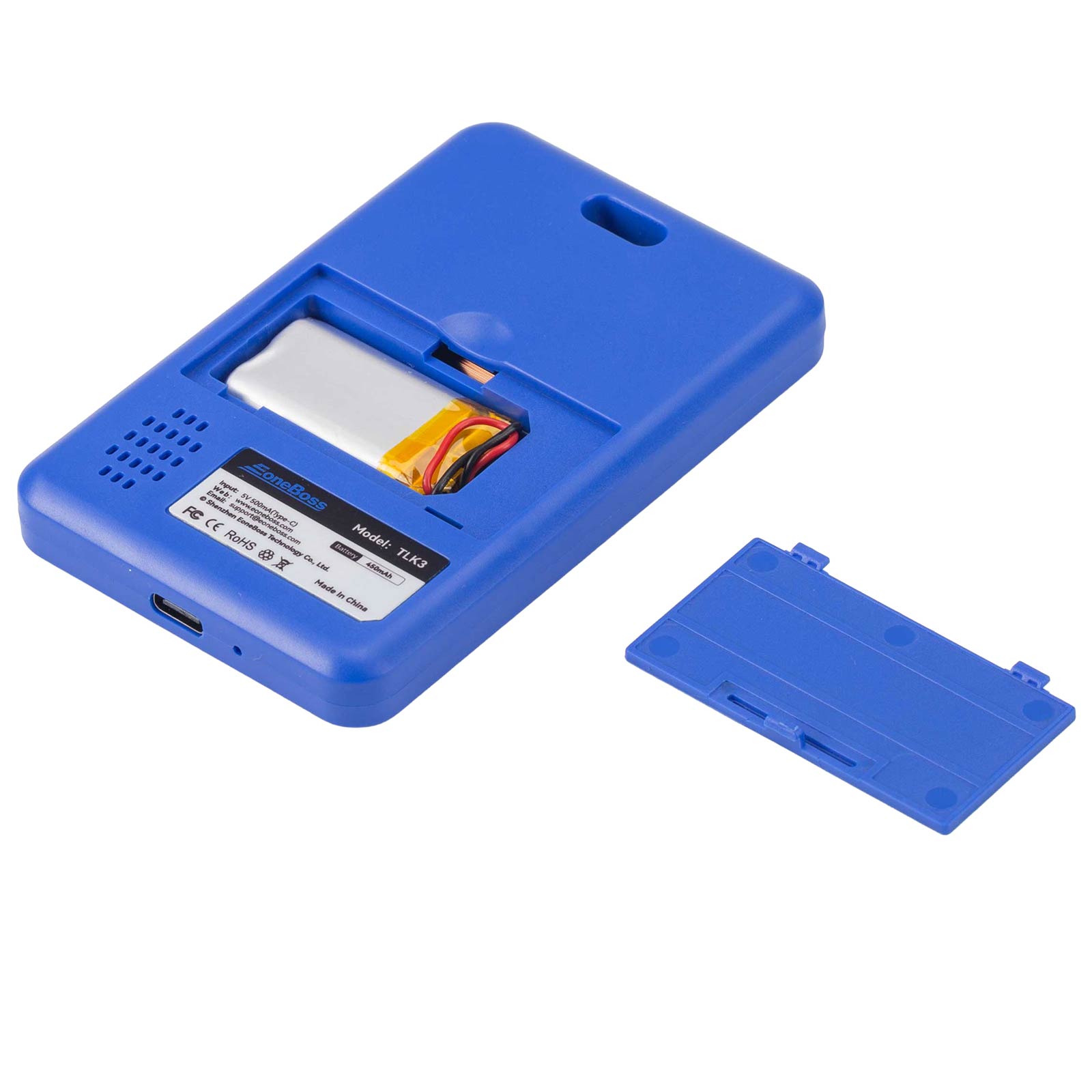

With Lithium battery (3.7V,450mAh,1.665Wh).

All-Keys-Lost (AKL) Capture: Direct ignition coil signal capture—no more guessing.

Aftermarket Unlocking: Effortlessly reset locked keys to "Virgin/Unlocked" status. No wiring, no disassembly!



EoneBoss TLK3 Functions

Support for Toyota / Lexus / Subaru Smart Keys:

Smart Key Identification: With just a few simple steps, the TLK3 can automatically identify and capture the current key's frequency, frequency sequence, and chip type. Once the data is read, you can generate a corresponding smart key using an ET Key, or select other third-party smart key based on the information.

All Keys Lost (AKL) Data Capture: The TLK3 can directly capture signals from the vehicle's ignition coil to identify the actual key frequency, frequency sequence, and chip type. After reading the data, you can proceed to generate a corresponding smart key using an ET Key, or select other third-party smart keys based on the captured information.

Aftermarket Keys Unlocking: No disassembly or wiring required. Locked aftermarket keys can be directly reset to an unlocked (virgin) state. Once unlocked, the key can be programmed to the vehicle normally via OBD matching.



TLK3 Supported Chip Types for One-Click Unlocking:

4D: 94, D4, 98, 9F, 78, F1

8A: 39, 88, A8, A9, AA, B8, B9, BA, F3, F4

4A: AA, BA

EoneBoss TLK3 Update Toyota/Lexus All Keys Lost Remote Generation Solution (May 2026):

Direct Signal Capture: Pulls data directly from the vehicle's ignition coil and PKE antenna.

Precision Data: Instantly identifies the actual chip type, key frequency, and frequency sequence.

Wide Support: Compatible with 4D (94, D4, etc.) and 8A (BA, F3, F4, etc.) chip types.

4D (94, D4, 98, 9F, 78, F1)

8A (39, 8, A9, A8, AA, B8,BA, F3, F4)



NOTE: Need to program on car after generate AKL remote.

LK1 vs TLK2 vs TLK3:

TLK1: for Toyota Lexus 8A-AA BA B9 B8 original key unlock

TLK2: for Toyota Lexus 4A-AA BA original key unlock

TLK3: for unlocking Toyota/Lexus/Subaru aftermarket smart keys. Precise Data Reading All Keys Lost (AKL) Signal Acquisition
