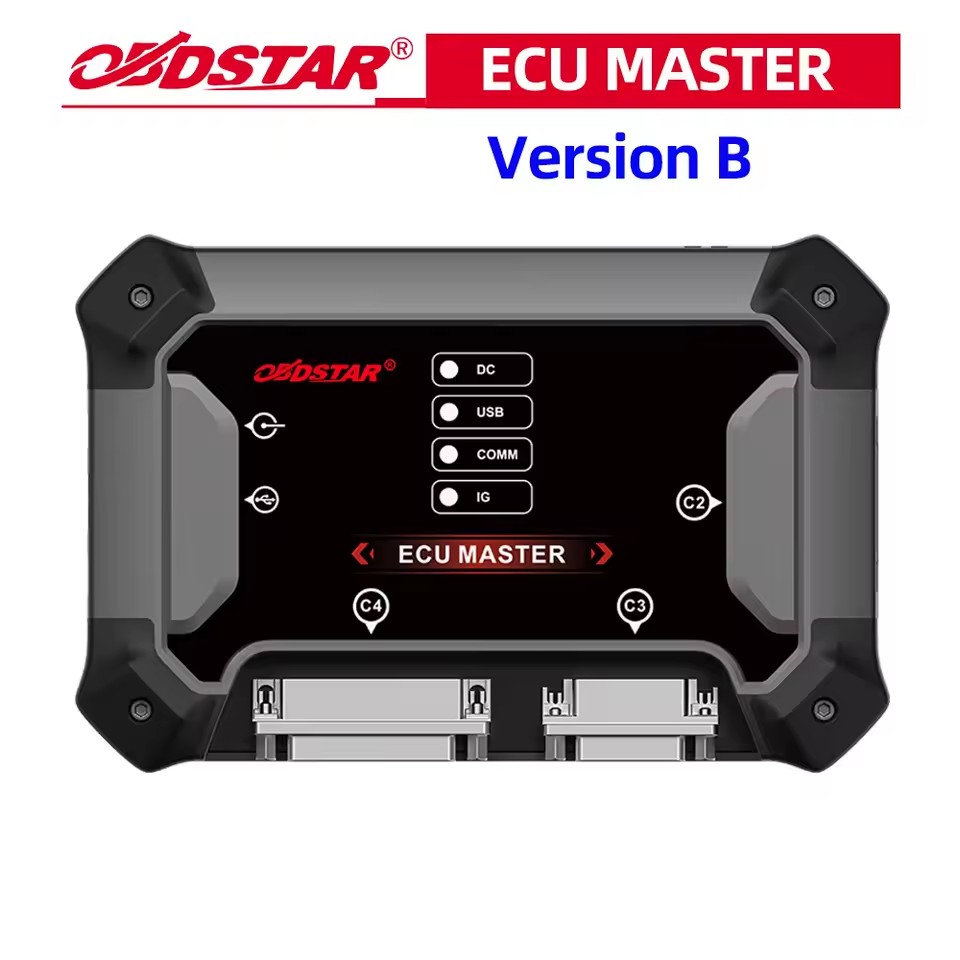

OBDSTAR ECU Master Configuration B for Motorcycle ECM Cloning

OBDSTAR ECU Master Configuration B for Motorcycle ECM Cloning



OBDSTAR ECU Master B Configuration is ECU Master specific version for motorcycle, Supports 100+ motorcycle brands and 300+ motorcycle ECU types with ECU advanced functions, such as VlN Read/Write, Data Read/Write , ISN Read/Write, Virgin Reset, Data Buffer Reset and more.

Features:
1. Supports 100+ motorcycle brands and 300+ motorcycle ECU types
2. Supports ECU advanced functions: VlN Read/Write, Data Read/Write , ISN Read/Write, Virgin Reset, Data Buffer Reset, Mileage Calibration, CheckSum etc.
3. Intuitive Design for Instant Mastery
User-friendly interface with a clear menu structure and complete documentation,equips with anti-misoperation reminders, even beginners can get started quickly.
4. Targeted Solutions for Critical Industry Challenges
5. Market-Driven & Regularly Updated
Keeping pace with automotive electronics repair trends, we deliver monthly updates with continuous feature improvements, ensuring tools and functions meet the latest repair and diagnostics needs.
6. Professional After-Sales Support
Our senior technical team, with direct manufacturer expertise, provides fast troubleshooting, expert guidance, and complete solutions to ensure smooth and efficient repair operations.

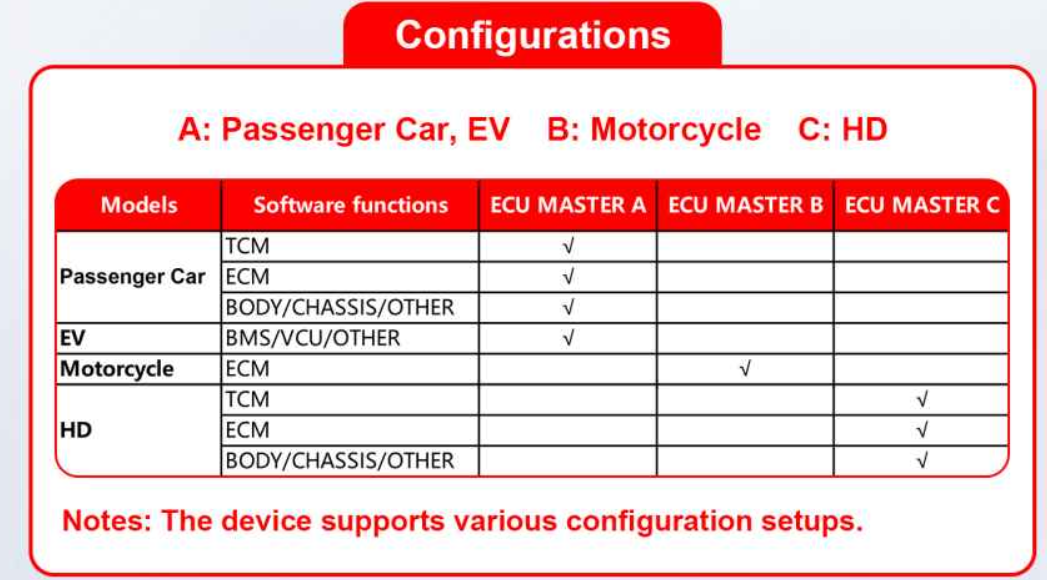

Please Notice that OBDSTAR ECU Master B Configuration is only support motorcycle, If you need Cars/EV/HD Supporting, Please buy OBDSTAR ECU Master Full Version



OBDSTAR ECU Master B Configuration Functions:
Motorcycle ECM Cloning:

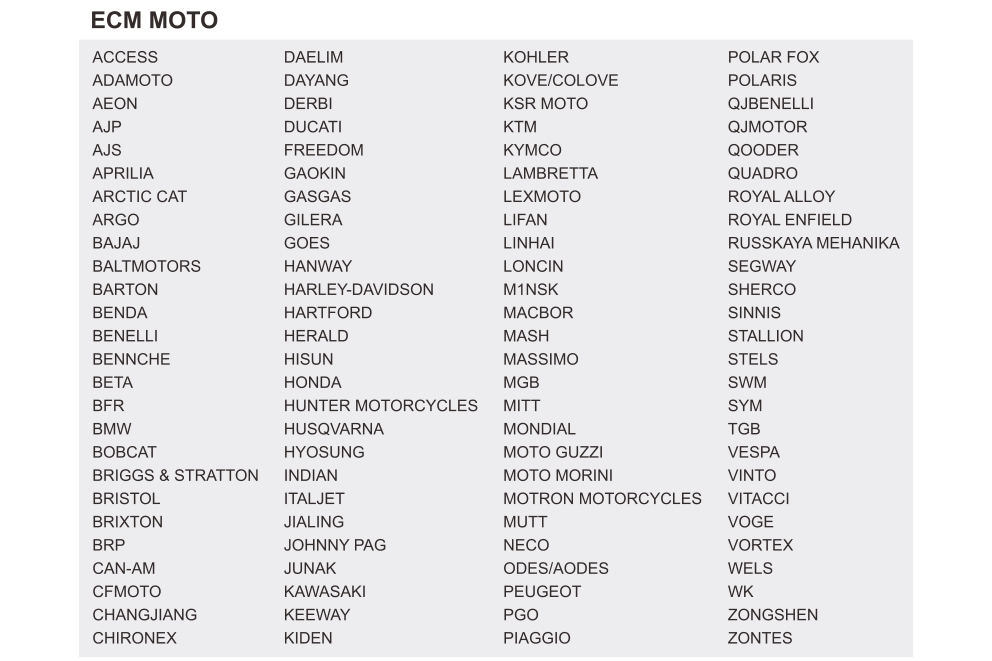

Supports 100+ motorcycle brands and 300+ motorcycle ECU types.

Supports ECU advanced functions:
VlN Read/Write, Data Read/Write , ISN Read/Write, Virgin Reset, Data Buffer Reset, Mileage Calibration, CheckSum etc.

OBDSTAR ECU Master B Configuration Support Models:
Motorcycle：
1. Support HARLEY-DAVIDSON CAN(2-pin connector), CAN(3-pin connector), HD J1850 R/W Data via BENCH mode, VIN Read function.
2. Support HARLEY-DAVIDSON MT21 R/W Data via BENCH mode, VIN Read function and Mileage Calibration.
3. Support HONDA KEIHIN M32R, SH705X, MPC560, RH850 series R/W Data via BENCH mode.
4. Support CFMOTO MSE6.0, MSE8.0, MSE9.0, US6.0, ME17(MED17.8.10) ECU Cloning function via BENCH mode.
5. Support KAWASAKI DENSO series R/W Data via BENCH mode(21175-XXX series).

Specification:

Operation system	Windows 10 or above
CPU	STM32H723, STM32F407
Working Voltage	DC14V
Working temperature	-10℃~55℃（14℉~131℉）
Storage temperature	-20℃~70℃（-4℉~158℉）
Weight	About 0.7kg
Dimension	176mm*115mm*31.7mm
Warranty	1-year hardware warranty; software updates start from the date of manufacture (duration TBD)

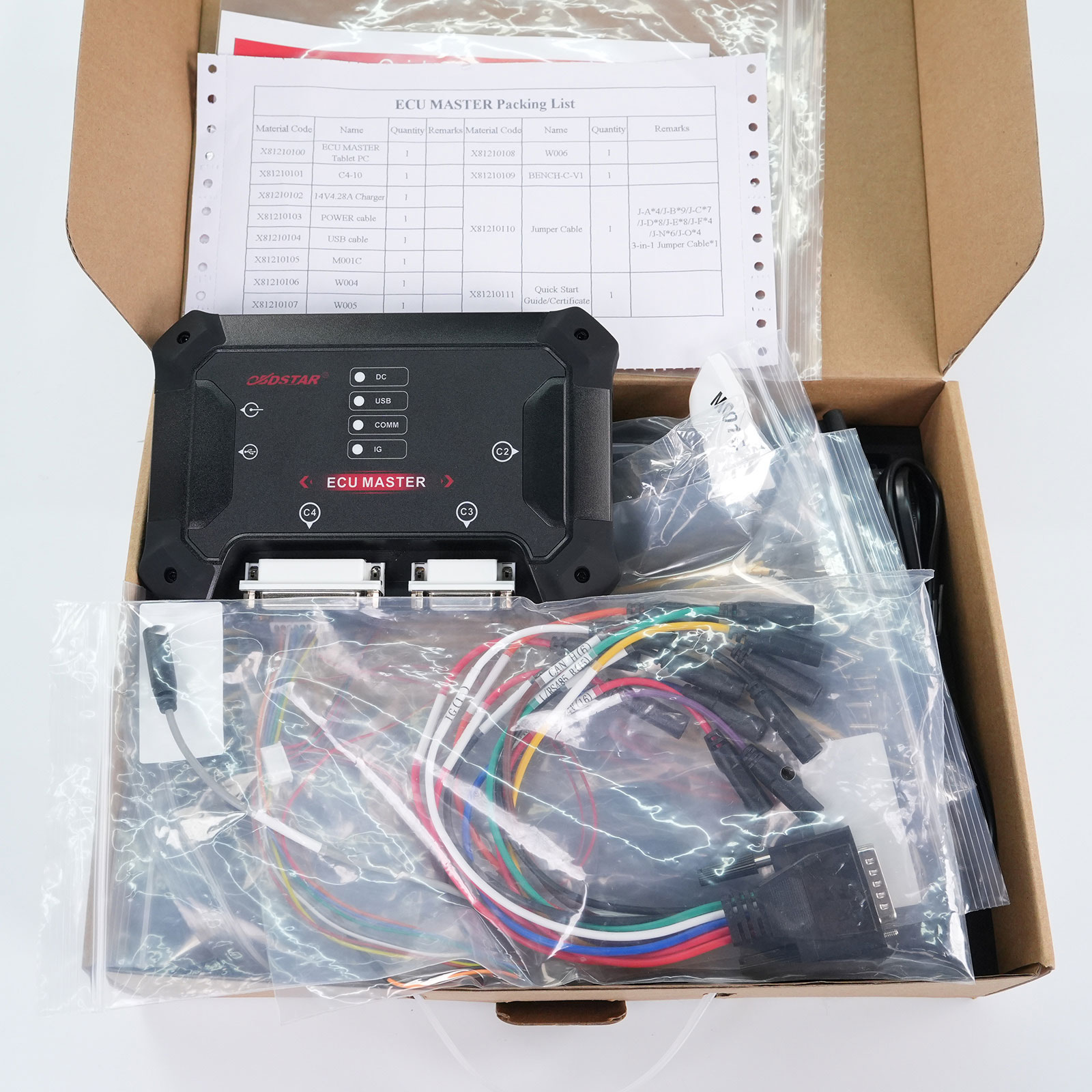

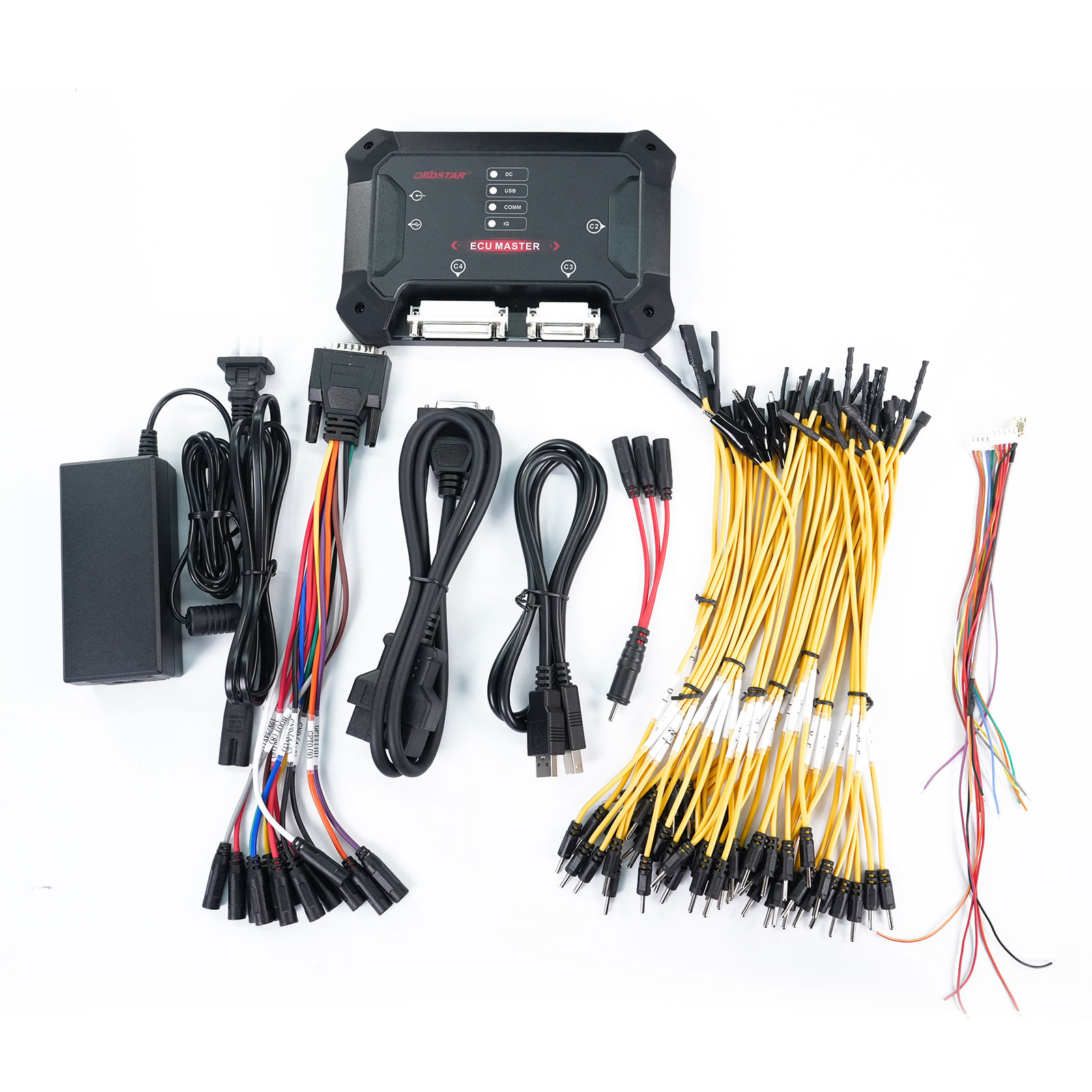

Package List:

1pc x ECU MASTER Tablet PC

1pc x C4-10

1pc x Charger(14V 4.28A)

1pc x Power cable

1pc x USB cable

1pc x 3-in-1 jumper cable

4pcs x J-A jumper

9pcs x J-B jumper

7pcs x J-C jumper

8pcs x J-D jumper

8pcs x J-E jumper

4pcs x J-F jumper

6pcs x J-N jumper

4pcs x J-O jumper

1pc x M001C

1pc x W004

1pc x W005

1pc x W006

1pc x BENCH-C-V1
