MUCAR 892BT Bidirectional OBD2 AI Diagnostic Scanner Full System Auto Repair Tool

MUCAR 892BT Bidirectional OBD2 AI Diagnostic Scanner Full System Auto Repair Tool

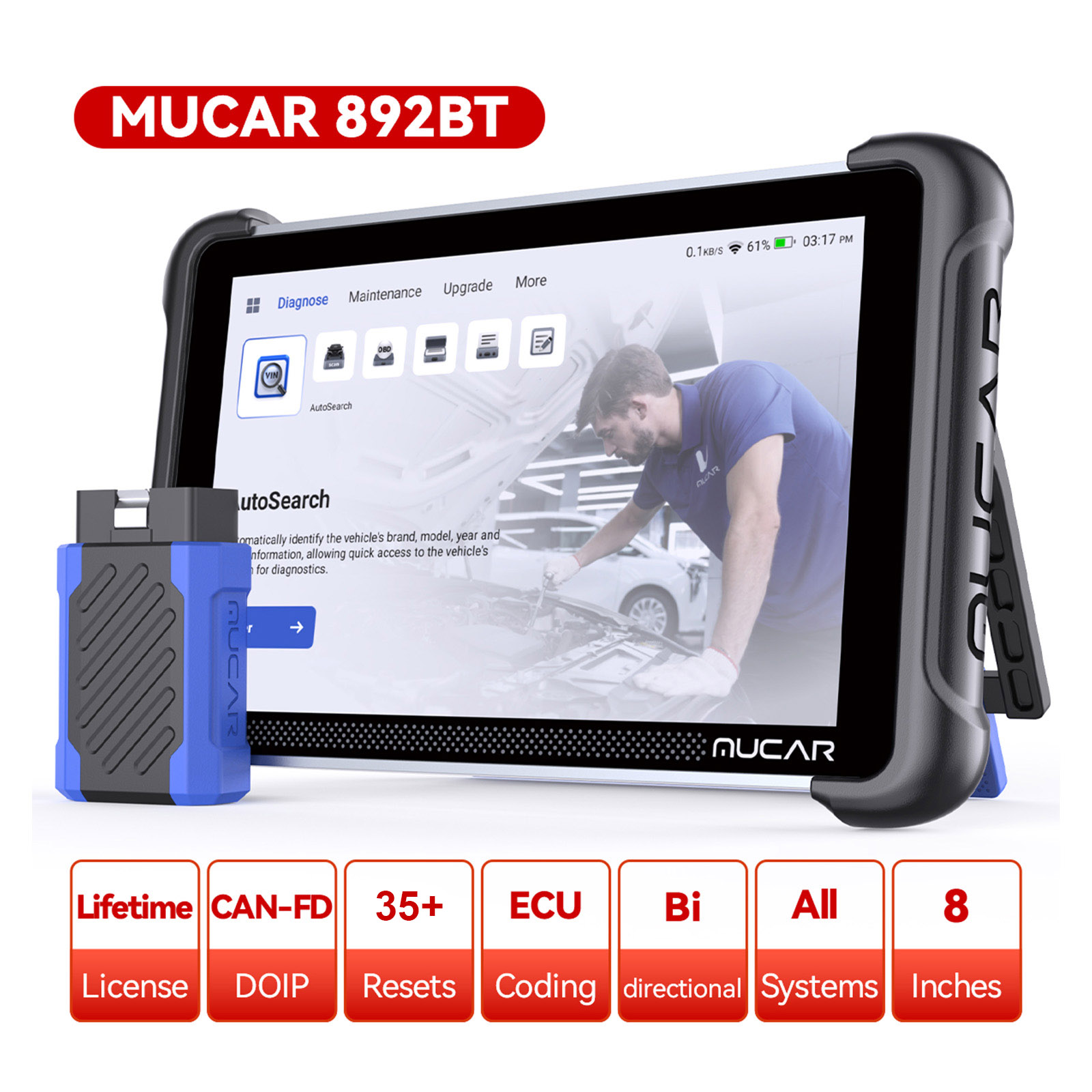

The MUCAR 892BT is a professional OE-level bi-directional automotive diagnostic tablet. It delivers full-system vehicle scanning, active bidirectional component testing, ECU online coding, 35+ maintenance reset functions, and supports the latest CAN FD & DoIP automotive communication protocols.

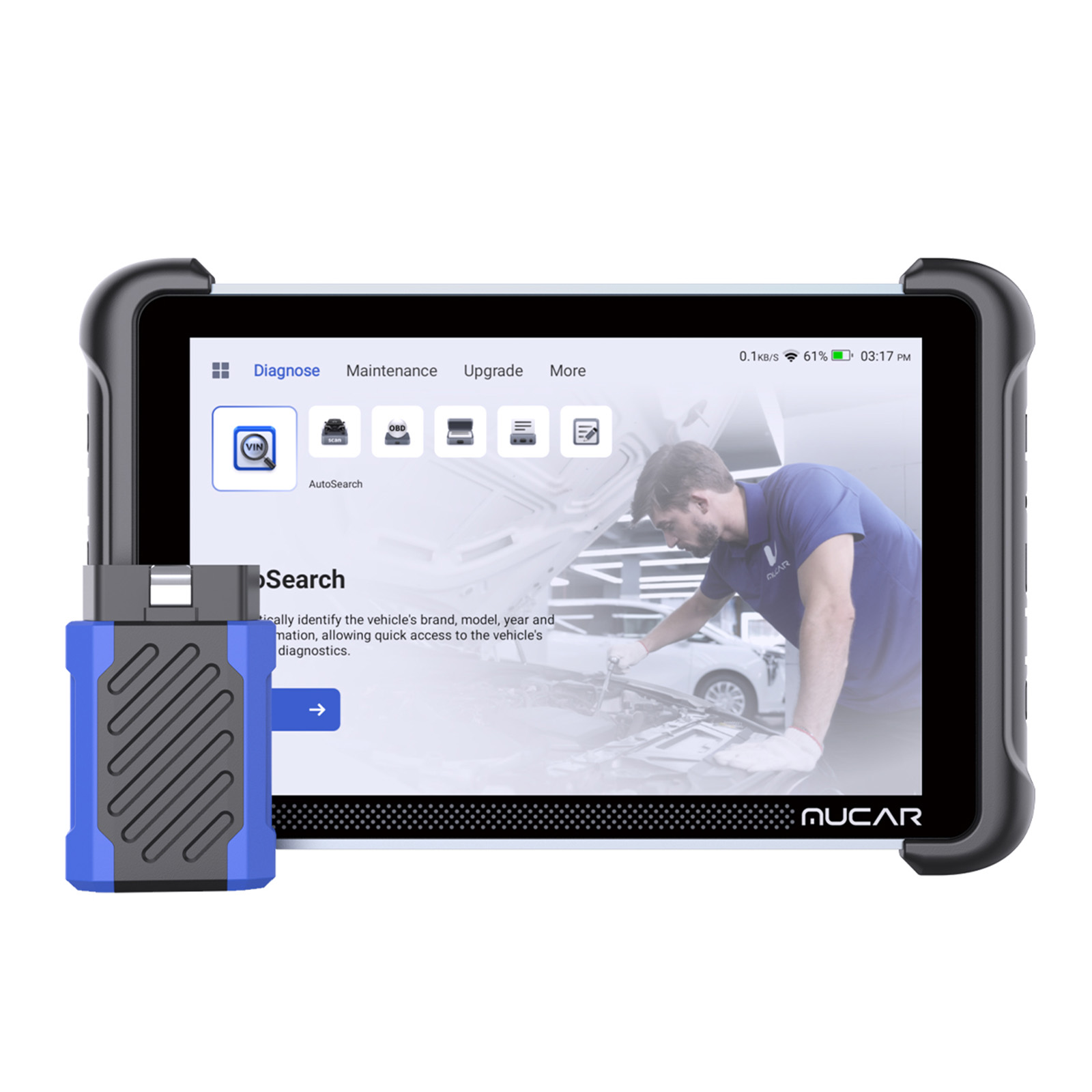

Equipped with an 8-inch HD touchscreen Android tablet and a magnetic detachable Bluetooth VCI dongle, it covers over 100,000 vehicle models worldwide, with lifetime free software upgrades and zero annual subscription fees, making it an all-in-one cost-effective repair solution for daily vehicle troubleshooting and maintenance.

Key Features:

1. Free lifetime updates, no subscription fees

2. AI Intelligent Diagnostic System: Automatic Fault Code Analysis and Real-Time Q&A

3. ECU Coding, Bi-Directional test & 35+ Maintenance Functions: From battery checks to engine diagnostics, tackle all-in-one solutions—boost efficiency by 200%

4. Original Magnetic Design Dongle, easily copes with various usage scenarios

5. Built-in PDF reader, YouTube, Candy Crush… Switch between work and play effortlessly

6. Exclusive technician community: Connect with global repair experts for real-time interactions and case sharing

7. Customize sleek backgrounds to personalize your diagnostic interface

8. 8″ Touchscreen & 2.4G/5G WiFi Update

9. Additional Features:Supports FCA AutoAuth for 2018+ vehicles (requires FCA account and fee).

10. Compatible with CANFD/DOIP protocols for lightning-fast communication.

11. Wireless Bluetooth for seamless data sharing.



MUCAR 892BT Core Functions:

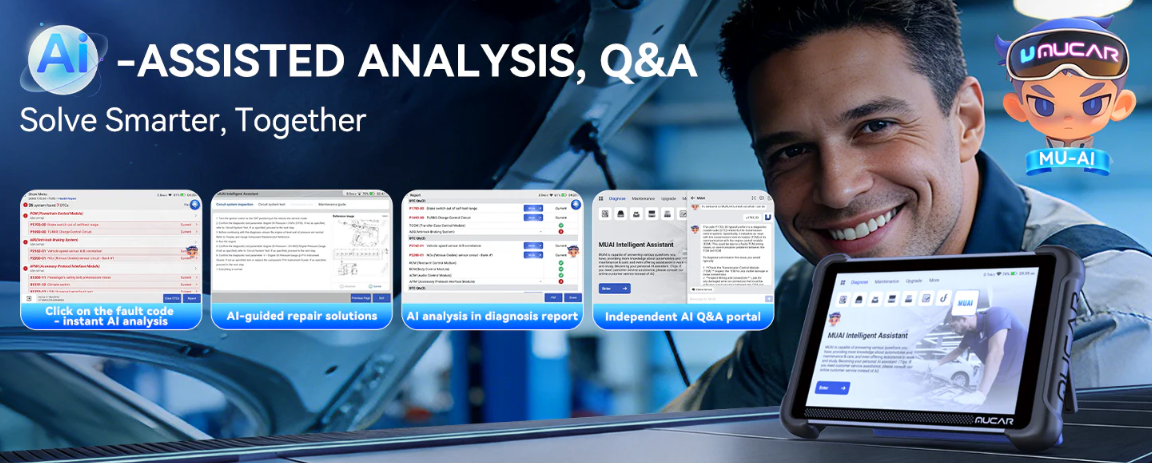

1. Exclusive MUAI Intelligent AI Diagnosis System (Core Highlight)

Powered by DeepSeek large model, MUAI is a professional automotive domain AI assistant exclusive to MUCAR 892BT, unavailable on competing models like ThinkScan 689BT:

Ø Auto-analyze fault codes, output root failure causes without manual data lookup

Ø Generate step-by-step standardized repair guidance, circuit inspection & component testing plans

Ø Intelligent maintenance report auto-generation, including fault risk tips and spare part replacement suggestions

Ø 24/7 real-time technical Q&A, access global technician community to share repair cases & video remote troubleshooting

2. OE-Level Full System All-car Scan

Covers all electronic control modules of 12V gasoline & diesel vehicles: ECM engine, TCM transmission, ABS brake, SRS airbag, EPB electronic parking brake, EPS steering, BCM body control, A/C air conditioning, DPF exhaust, water pump, EGR valve, clutch matching and more modules. Supports topology mapping to visualize complex vehicle bus networks, quickly locate abnormal control units.

3. Advanced ECU Coding & Adaptation

Ø Online ECU coding to unlock hidden vehicle factory functions, adjust vehicle parameters to boost power & fuel efficiency

Ø Module replacement matching, idle speed calibration, gearbox self-learning, component coding after part replacement

Ø Compatible with FCA AutoAuth authorization for 2018+ Fiat/Chrysler vehicles (separate FCA account required)

4. Bi-Directional Active Component Test

Directly send drive signals to ECU to activate vehicle parts for real-time function verification: test fuel injectors, solenoid valves, throttle bodies, window regulators, brake pumps, cooling fans, etc. Quickly confirm faulty components without repeated disassembly, cut repair time by over 200%.


5. 35+ Special Maintenance Reset Service Functions

Complete routine & advanced calibration operations in one device:

Oil light reset, EPB brake pad replacement calibration, DPF regeneration, throttle matching, EGR adaptation, battery registration, gearbox learning, tire pressure TPMS reset, headlight adjustment, odometer inspection, injector coding, coolant pump reset, window initialization, and more than 35 maintenance functions.


6. Full OBDII Standard Diagnostic Functions

Read/clear engine fault codes, real-time live data stream graphing, freeze frame data storage, I/M emission readiness test, oxygen sensor detection, on-board monitoring data reading, to quickly solve engine failure and vehicle emission inspection issues.



7. Multi-Protocol Compatibility for Modern Vehicles

Supports mainstream global automotive communication protocols: CAN FD, DoIP, UDS ISO 14229, ISO 15765 CAN, KWP2000 ISO14230, ISO9141-2, SAE J1850 VPW/PWM, single-wire CAN, fault-tolerant CAN, Honda Diag-H, GM UART and other old & new protocols, compatible with new energy & latest passenger cars.

8. Extra Practical Multifunctional Features

Ø 8-inch 1280*800 HD touch screen, Android 10 system, built-in PDF reader, YouTube, browser, game apps, switch between repair work and entertainment freely

Ø Custom diagnostic interface wallpaper, support uploading shop logo to brand your repair reports

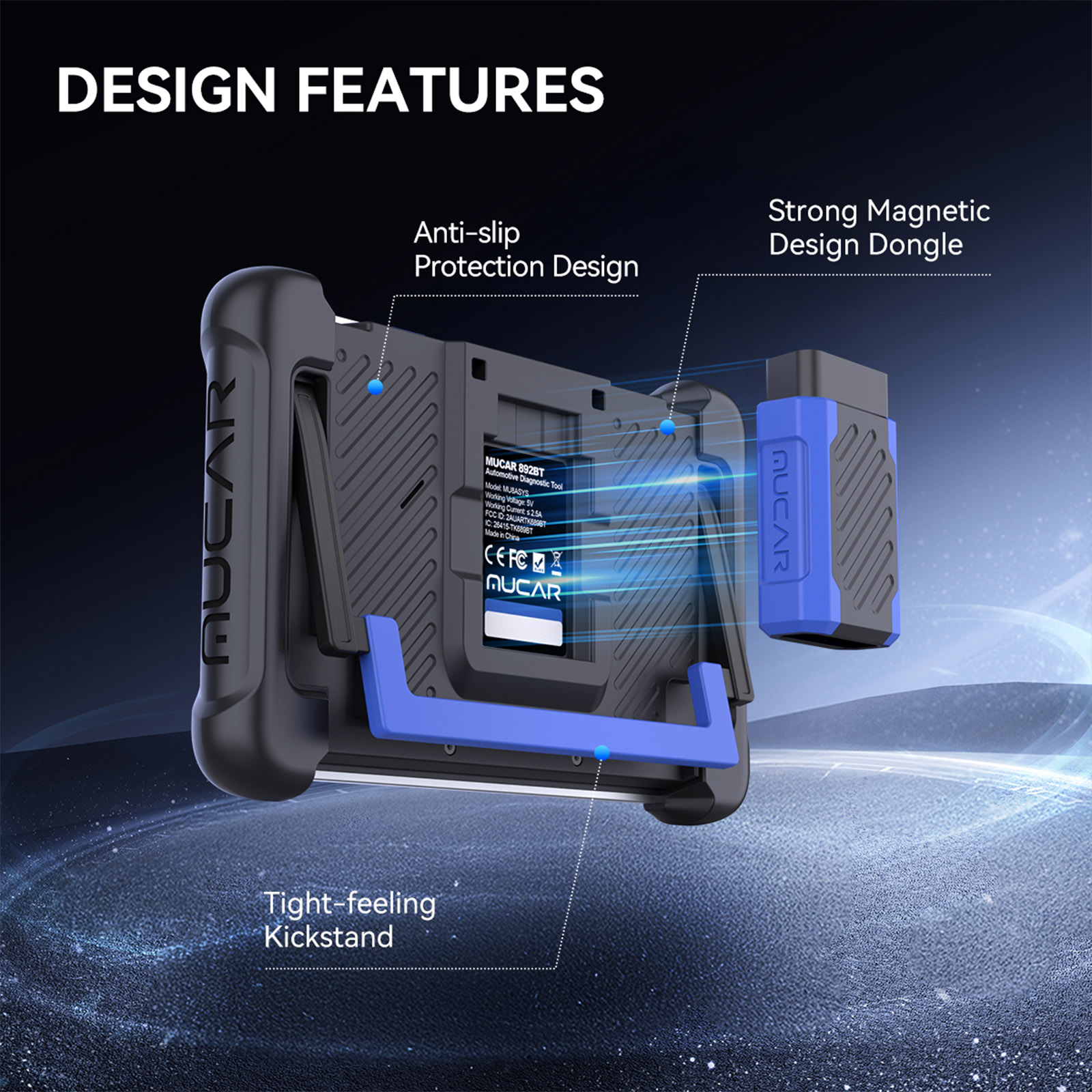

Ø BT5.0 wireless magnetic VCI dongle design, adsorption on the back of the tablet, non-slip shell + foldable kickstand for handheld & desktop dual use

Ø 2.4G/5G dual-band WiFi for fast firmware & vehicle database update

Ø 28+ global multi-language switch, suitable for global repair markets

Ø Expandable modules (optional separate purchase): TPMS tester, videoscope, oscilloscope, battery tester, printer, car key programmer

Cover 99% Models Worldwide

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM



For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa),

for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo,

for Volkswagen, for Vauxhall, for ZAZ



For Asian

Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus,

for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr,

for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

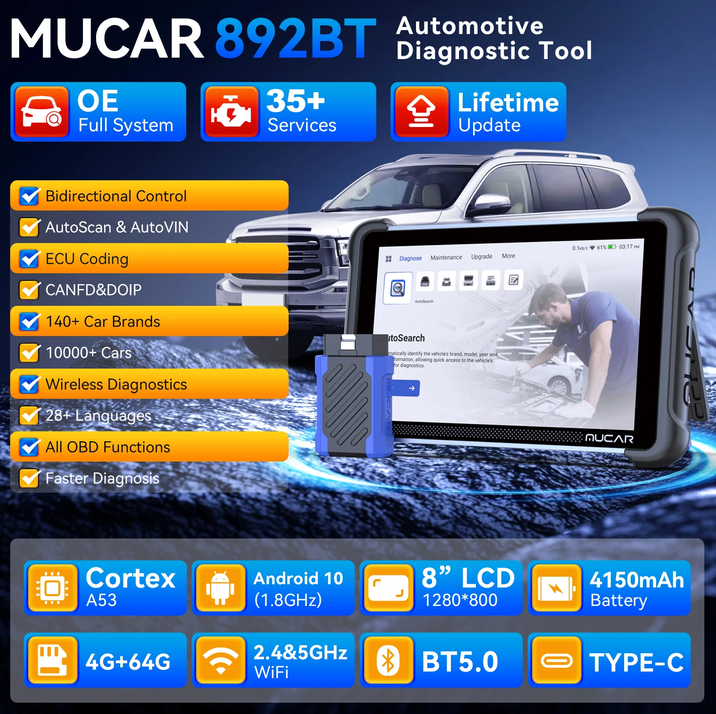

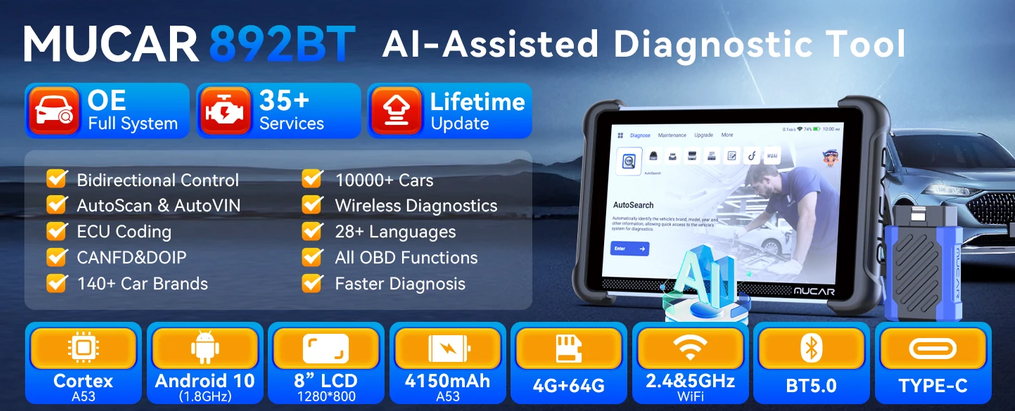

Product specifications

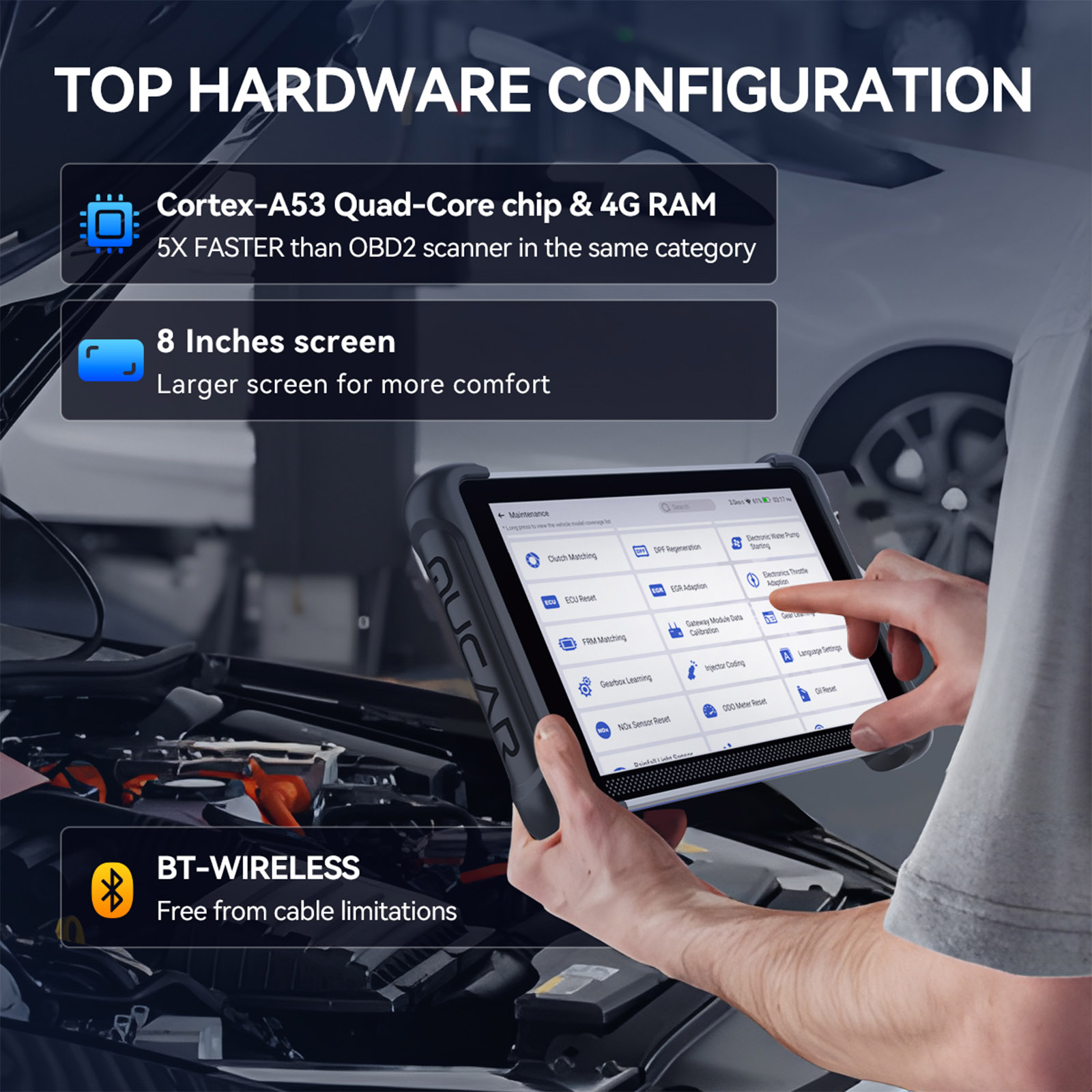

CPU: Cortex-A53 4 core @ 2.0 GHz

Bluetooth: 5.0

Touchscreen: 8", 1280*800 pixel

Android OS: 10.0

Battery: 4150mAh/3.8v

RAM/ROM: 4G/64G

Working Environment: 0~50℃ (32~122℉ )

Storage Environment: -20~60℃ (-4~140℉ )

Working Voltage: 9~18V

Working Current: ≤1.2A

Product Dimensions: Gold

Warranty: 12 months

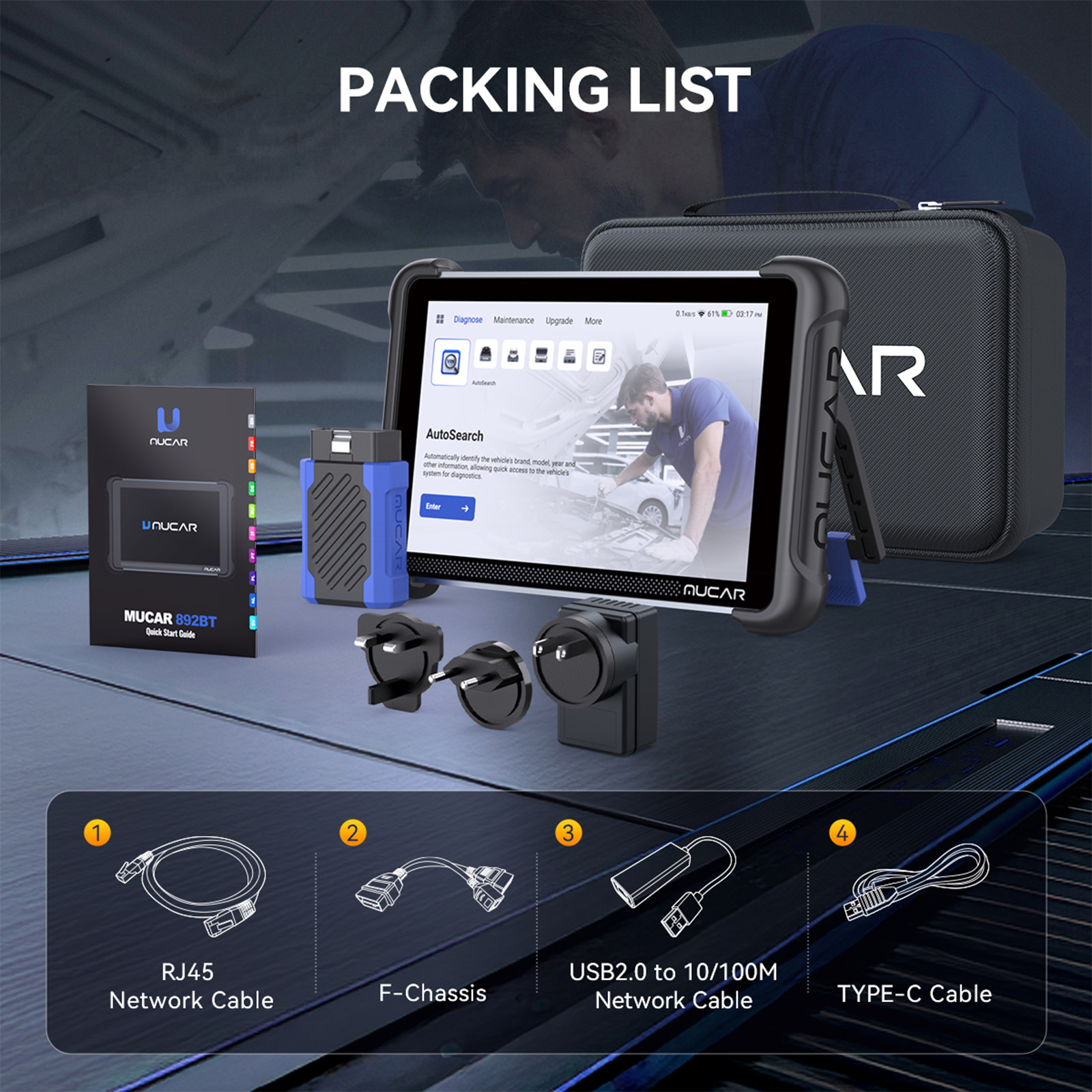

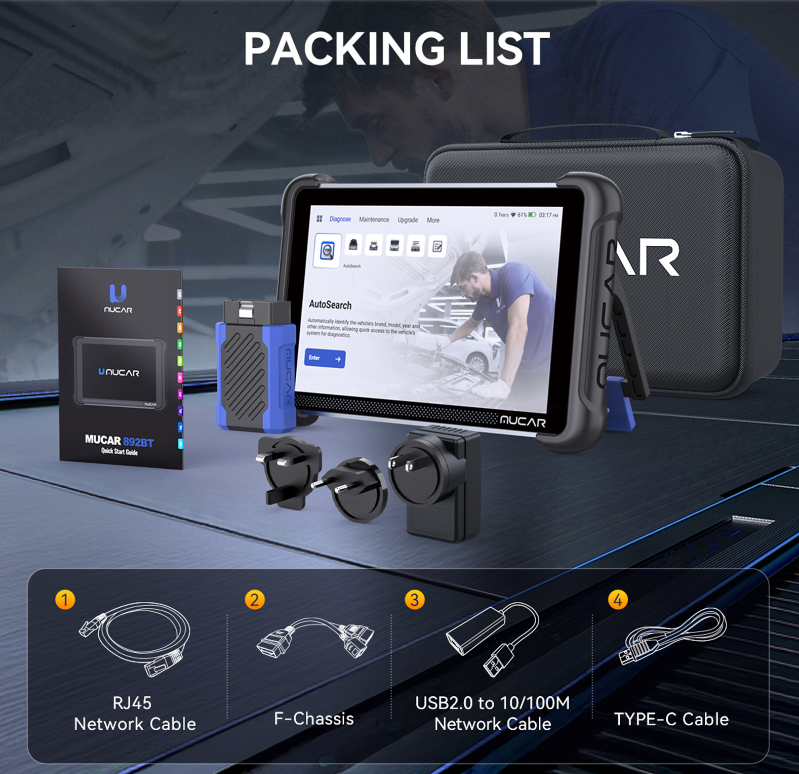

Package List:

1pc x MUCAR 892BT OBD2 Scanner

1pc x Bluetooth Dongle

1pc x 3-in-1 Charger

1pc x TYPE-C Charging Cable

1pc x RJ45 Network Cable

1pc x F-Chassis Cable

1pc x USB2.0 to 10/100MNetwork Cable

1pc x User Manual



FAQs:

Q: What is MUAI in MUCAR 892BT?

A: MUAI is an AI diagnostic engine that analyzes fault codes and provides guided repair suggestions based on vehicle data.



Q: Does MUCAR 892BT support ECU coding?

A: Yes, it supports ECU coding, adaptation, and module replacement functions.



Q: Is it suitable for workshops?

A: Yes, it is designed for professional workshop and advanced diagnostic use.



Q: Does it require subscription?

A: No, it includes lifetime free updates.



Q: What vehicles does it support?

A: It supports 140+ brands and 20,000+ models from 1996 onward.
