Newest HEX-NET VCDS HEX-V2 V2026.03 Diagnostic Cable Intelligent Dual-K WiFi Interface

Newest HEX-NET VCDS HEX-V2 V2026.03 Diagnostic Cable Intelligent Dual-K WiFi Interface

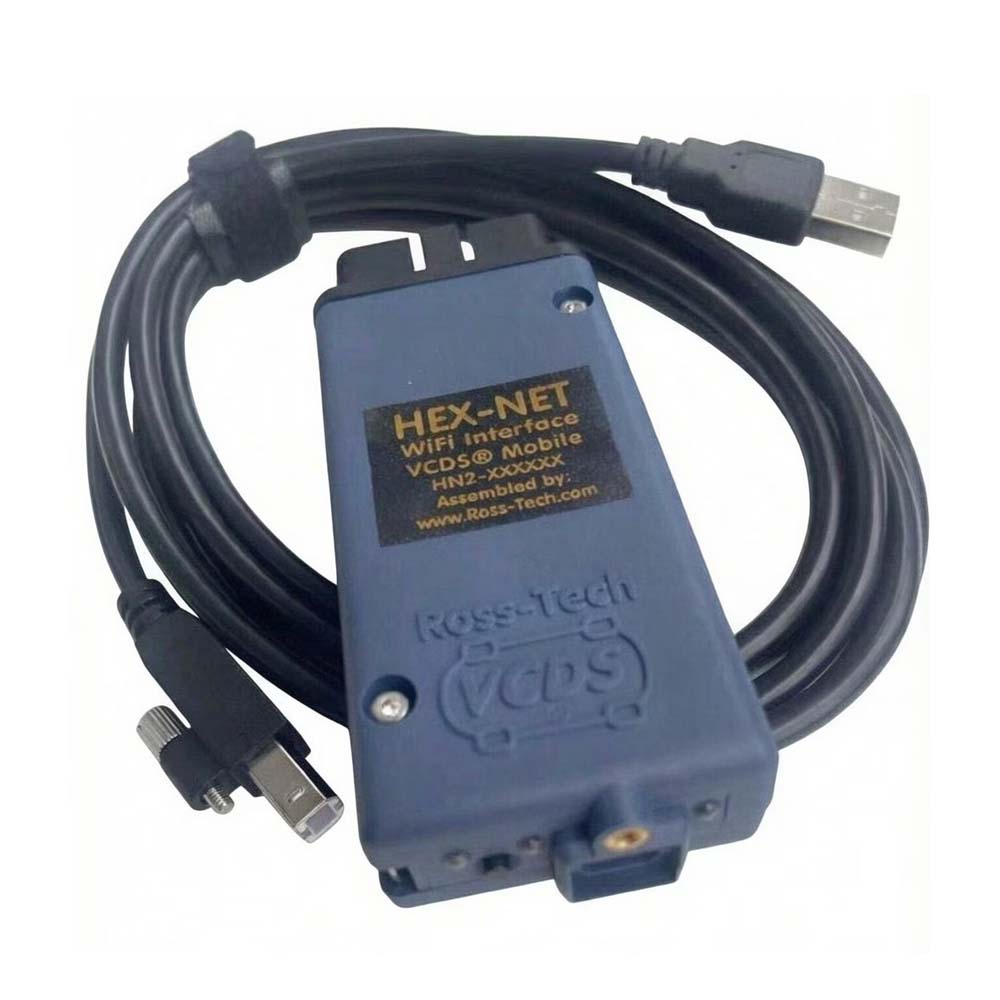

VCDS HEX-NET Cable Overview:

Software Version: V2026.03

Support Language: English, French, German, Chinese, Russian, Italian, Czech, Hungary, Spain, Portugal, Sweden, Netherlands, Russia
Vehicle List: For Audi/VW/Skoda/Seat etc

System Requirements: Windows 7 or newer

HEX-NET Features:
1. PC connectivity with VCDS via WiFi or USB
2. Includes VCDS-Mobile bringing VW/Audi diagnostics to devices such as smartphones and tablets. A chart showing the currently supported functions can be found here.
3. Compatible with all diagnostic-capable VW/Audi passenger cars from 1996 to current; K, K+L, dual-K, or CAN.

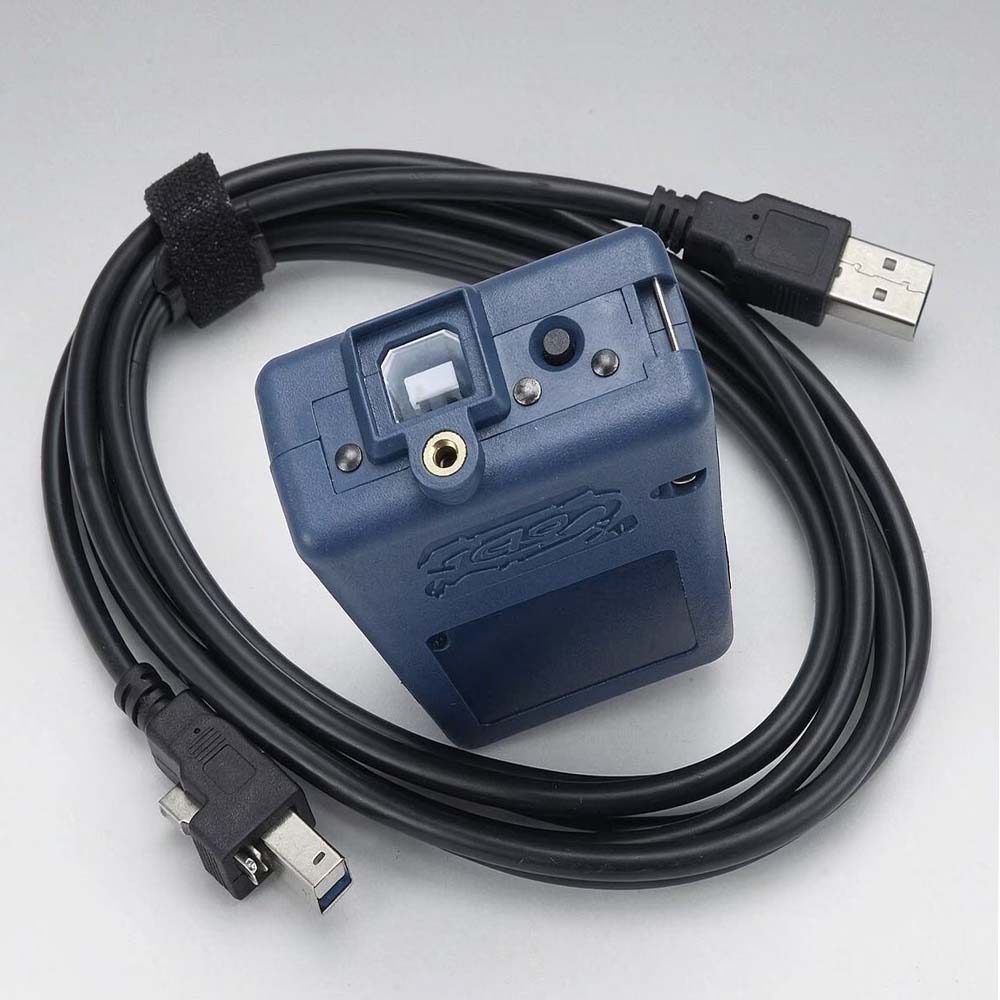

4. Detachable USB cable. The supplied cable has a proprietary screw locking mechanism, but it can be replaced temporarily with a standard USB-A to USB-B ("printer") cable should it become damaged.
5. Modern 32-bit micro-controller and fully updateable firmware.
6. Three bi-color (red/green) status/activity LEDs
7. As of late 2020, "HN2" HEX-NETs in blue shells support car-side communications via DoIP
8. 12 month guarantee against defects in workmanship or materials.
9. Includes an embedded license for VCDS and thus acts as a "dongle" for the software, allowing the software to be used and installed on any compatible PC.

This interface terminates in an OBD-II type connector that plugs right in to most 1995 and newer VW's and 1996 and newer Audis.   It is also compatible with many 1990-1995 Audis and 1990-1994 VW's.

Compatibility:

This interface works with all diagnostic-capable VW-Audi Group passenger cars from 1990 through current, except it does NOT fully support the following vehicles:

1. Routan vans -- All years. These are re-badged Chryslers and don't use VW's diagnostic protocols.

2. Some 1991-1994 Audi TDI engines with ECUs that communicate at 240bps.

Computer Requirements:

We recommend at least a 1 GHz dual-core processor with 1 GB of RAM and Windows 7 or newer. Slower computers or Windows 2000, XP, and Vista may work but are not officially supported. Windows 8. 8.1, or 10 on a machine robust enough to support the respective operating system are also fine.



WiFi Requirements:

To use the HEX-NET wirelessly, it needs to communicate via 802.11 b/g at 2.4 GHz. This means that for Access Point mode, the client device with the web browser (laptop computer, tablet, etc.) needs to support 802.11 b/g at 2.4 GHz. To use the HEX-NET in Infrastructure mode, both the client device and the router that is connected to the Internet need to support 802.11 b/g at 2.4 GHz. Specifically, 5 GHz WiFi is not supported nor are channels 12 and 13 supported.



Software:

The HEX-NET should be used with the latest version of our VCDS software. The HEX-NET does not have the ability to emulate a dumb serial pass-through interface and thus unlikely to be compatible with any software other than VCDS.



Driver Installation:

The HEX-NET enumerates as an HID device and does not require a special driver. However, there are some HID power management quirks in 8.1 and newer fixed by installing a device-specific "driver" (actually just an INF file) supplied with the VCDS installer.



When used with VCDS on a PC via WiFi, Windows Firewall may ask you to allow traffic from VCDS. If this happens, you should allow it. There is also an "Open Windows Firewall for HEX-NET via WiFi" option in the VCDS-Installer that can and should be selected to pre-allow the connection.



Notice: if you would like to the newest software version V2026.03, please download from official website.
https://www.ross-tech.com/vcds/download/current.php

The Current version is: Release 26.3.0 Data Version 20260320 / DS375.1

Universal Installer for all HEX, KEY, KII and MicroCAN series interfaces and Windows 7 or newer. Digitally signed self-installing .EXE file ~85 MB





Package includes:

1pc x HEX-NET VCDS HEX Interface

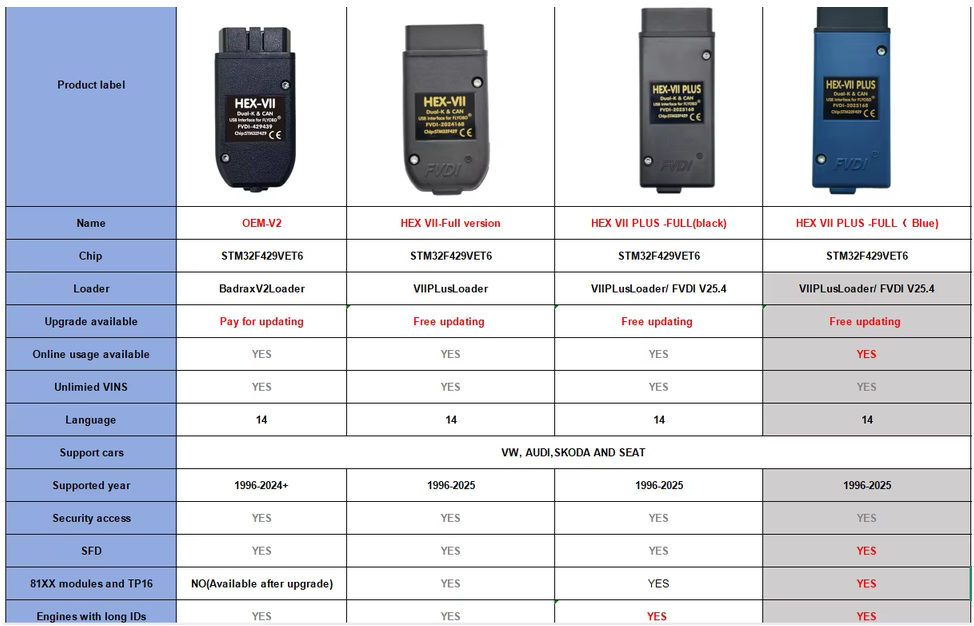

Different versions ：
