Toyota BT Forklift Diagnosis Tool TruckCom Forklift truck scanner Can Bus Line TruckCom Canbox CPC USB/ARM7 USB Cable

Toyota BT Forklift Diagnosis Tool TruckCom Forklift truck scanner Can Bus Line TruckCom Canbox CPC USB/ARM7 USB Cable

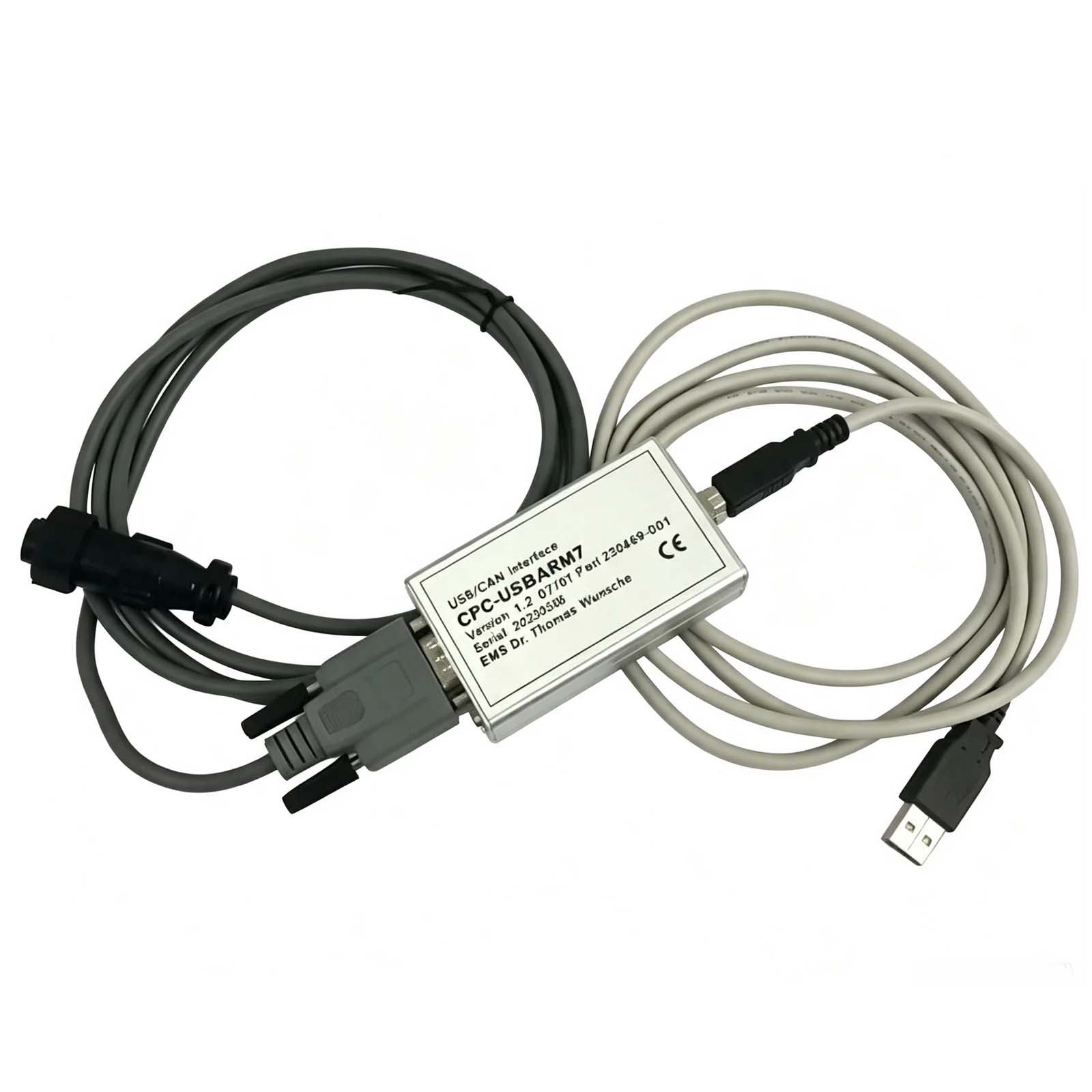

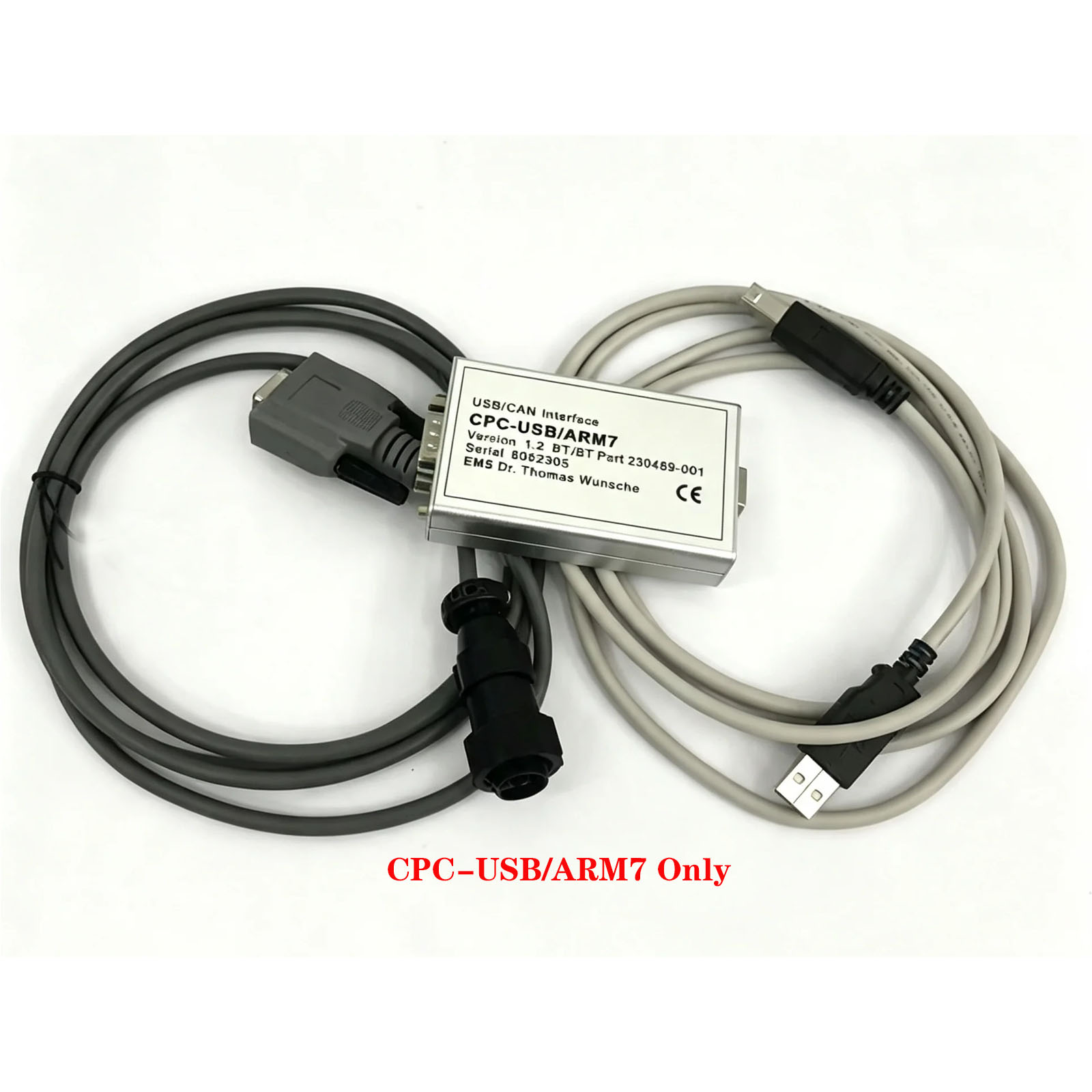

TruckCom CAN Interface is a specialized diagnostic hardware and software kit (often using a CPC USB-to-CAN ARM7 box) designed for Toyota BT Forklifts. It connects a Windows PC to the truck's internal CAN bus network to read error codes, adjust service parameters, and test electronic control units (ECUs).



TruckCom Toyota - BT Diagnostic tool
Hardware Version: v2.12.9 R3 [2019]

Software Size:228 MB (WinRAR Files)

Type of software:Diagnostic software for Toyota - BT

Type of vehicle:Forklift

Region:All regions
Interface Language:English, Spanish, Russian, French, German, Czech, Danish, Dutch, Finnish, Greek, Hungarian,Norwegian, Polish, Swedish, Chinese.

Database Language:English

OS:Window 7, Window 8, Window 10 32 & 64bit

Why choose ARM7 USB Cable?

1. Professional‑grade service tool for forklift mechanics & BT forklift owners. It supports parameter adjustment and full diagnostic access for BT forklifts, covering core maintenance requirements.

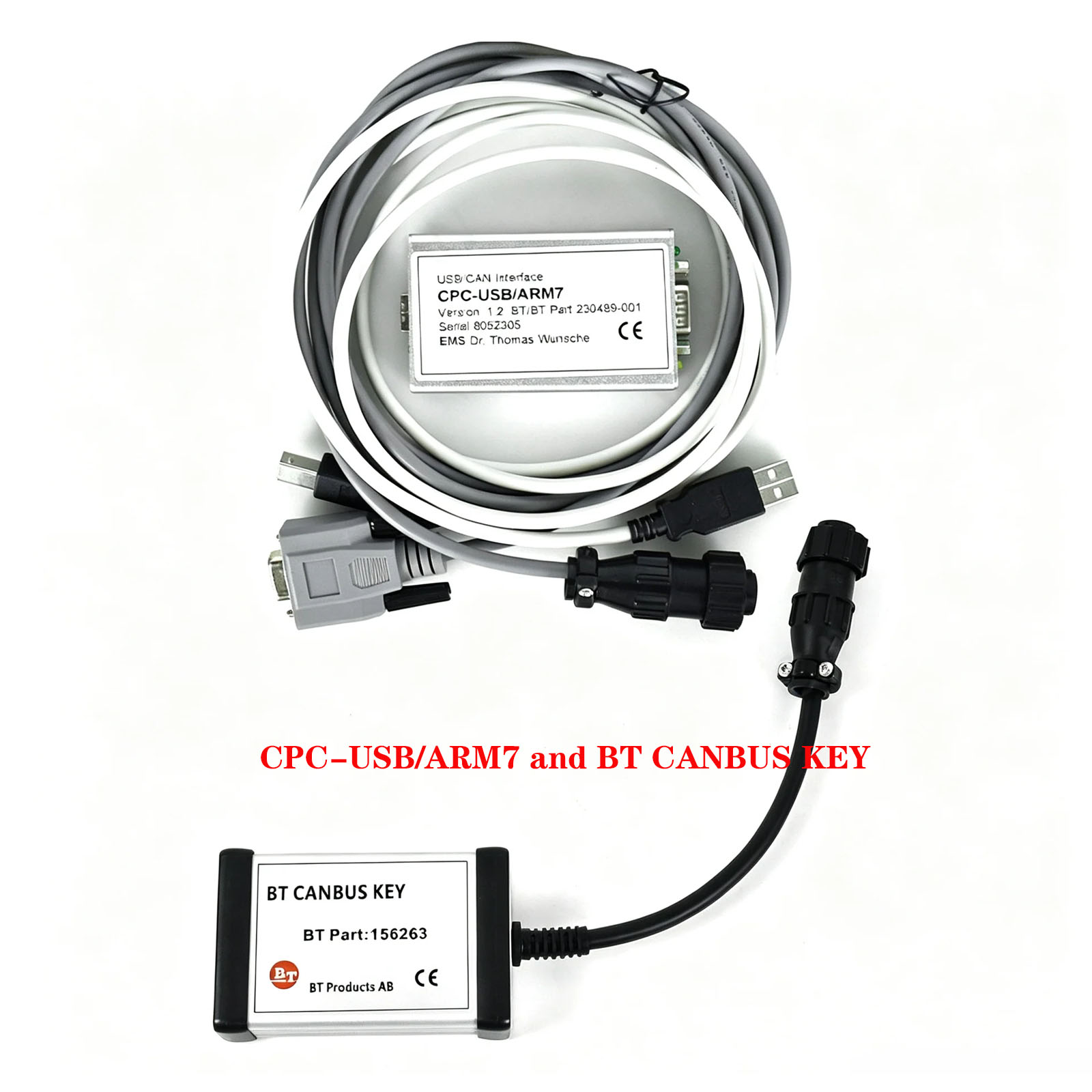

2. Equivalent or better performance than OEM parts with cost‑effective pricing. Aftermarket replacement part (Part No.156263). It matches or outperforms original OEM components, yet comes at a more affordable price to cut your tool investment cost.
3. Simple plug‑and‑play operation: Just plug into the forklift diagnostic socket; no complicated modification required.
4. Unlock hidden service & diagnostic functions; access BT keypad system. Enables full hidden service / diagnostic features and grants entry to the BT forklift keypad for deep‑level troubleshooting.
5. Reasonable parameter‑editing restriction on newer BT machines: Only operator & service‑level parameters can be modified on new‑generation BT forklifts. Factory‑level parameters are locked to prevent accidental changes to original factory configurations.



Important Warning for RRE Reflex reach trucks:
1. Do not go into ANY of the hidden service menus or submenus without FIRST looking in the manual to see what that function, when activated, will do to the truck!
2. There are some functions that could cause serious damage to property or personal injury if you happen to activate a service function at the wrong time with the truck in the wrong configuration for that function.

Applied Toyota - BT Truck Model:

Reach truck:

7FBRE12/14 (Inverter Generation 3)

7FBRE12/14/16N (Inverter Generation 5, Machine no. - 6020966)

7FBRE12/14/16N (Inverter Generation 5, Machine no. 6020967 -)

7FBRE12/14/16N (Inverter Generation 5, Machine no. 6104106 -)

7FBRE16/20/25 (Inverter Generation 5)

7FBRE16/20/25

8FBRE14-25 (Feat MCU2, Machine no. - 6229951)

8FBRE14-25 (Feat MCU2B, Machine no. 6229952 -)

8FBRE12-16S (Feat MCU2B, Machine no. 6308581 -)

Order Picking (Low Level and Tow Truck):

7LOP12、7LOP25/P、7LOP10、7LOP10CW、7LOP10CF

8LOP12、8LOP25/P、8LOP10、8LOP10CW、8LOP10CF

Pedestrian Powerd Stacker:

7SLL12.5

7SLL13.5S

7SLL16

7SLL20

7SLL12.5F

7SLL16F

7SLL20F

7SM08F

7SM10

7SM12

7SM12I

7SM12F

7SM16D

7SM12S

8SM10

8SM12/12F/12S

8SM14/14F

8SM20D

8SM08F

8SM10

8SM12/12F/12S

8SM14/14F

8SM20D

8SM08F

(Machine no. 6384362 -)

8SLL12/12F

8SLL14/14F/14S

8SLL16/16F

8SLL20/20F/20D/20DN

8SM14S

8SM14.5/14.5F

8SM16/16F

8SM20/20F

8SLL12XR

8SM12XR

SP10/S

Powered Pallet:

7PML20-6    BT - HB20/6

7PML20-8    BT - HB20/8

7PML24-M    BT - HB24

7PML24-s

7PM18    BT - HBW18

7PM20    BT - HBW20

8PM14

8PM16    BT - 2HBW15

8PM18    BT - 2HBW18

8PM20    BT - 2HBW20

8PM25    BT - 2HBW25

8PM14

8PM16    BT - 2HBW15

8PM18    BT - 2HBW18

8PM20    BT - 2HBW20

8PM25    BT - 2HBW25

(Machine no. 6384368 -)

8PLL20    BT - 2HB20

8PLL22

8PLL25    BT - 2HB25

PP13



Compatible vehicles:

Car Fitment	Model	Year
toyota car	Avalon	2005-2011
Toyota Van	Sienna	2012-2013
TOYOTA (FAW)(GR)	COROLLA CROSS (TFTM)	2022-2023
TOYOTA (FAW)(GR)	ALPHARD/VELLFIRE	2023-
Toyota LCV - Europe Truck	Hi-Lux	2005-2008
Toyota (FAW)	AVALON (_XA5_, _XH5_)	2019-
TOYOTA (FAW)(EU)	Coaster	2000-2016
TOYOTA (FAW)(EU)	YARIS CROSS/HYBRID	2021-
TOYOTA(EU)	4Runner	2000-2021
Toyota	SOLARA Coupe (_V3_)	2001-2008
Toyota	RAV 4 V (_A5_, _H5_)	2020-
Toyota	SUPRA (DB_), SUPRA / GR SUPRA (DB_)	2019-



Toyota BT Package list:

1set x toyota bt interface

1set x cables

1set x cd

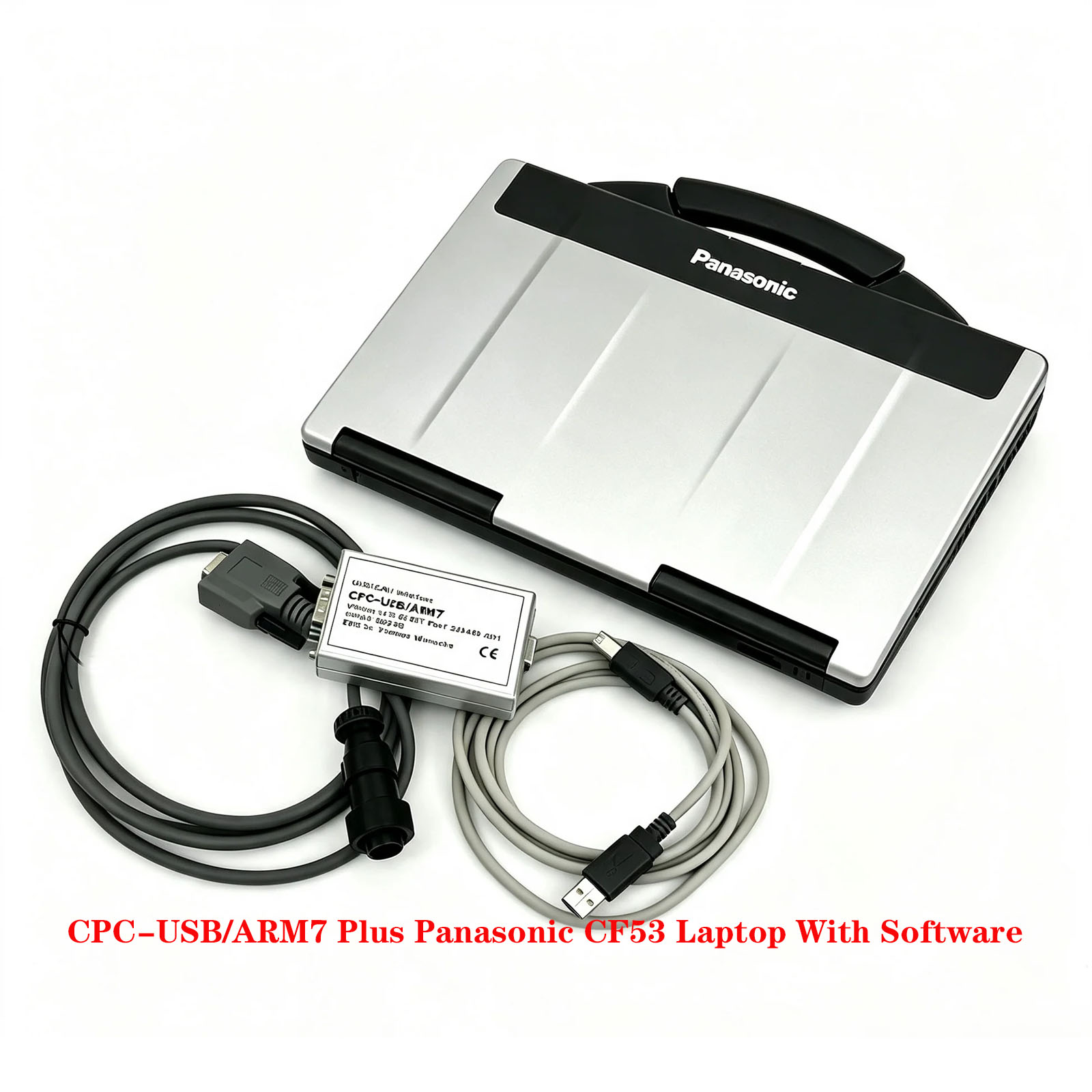

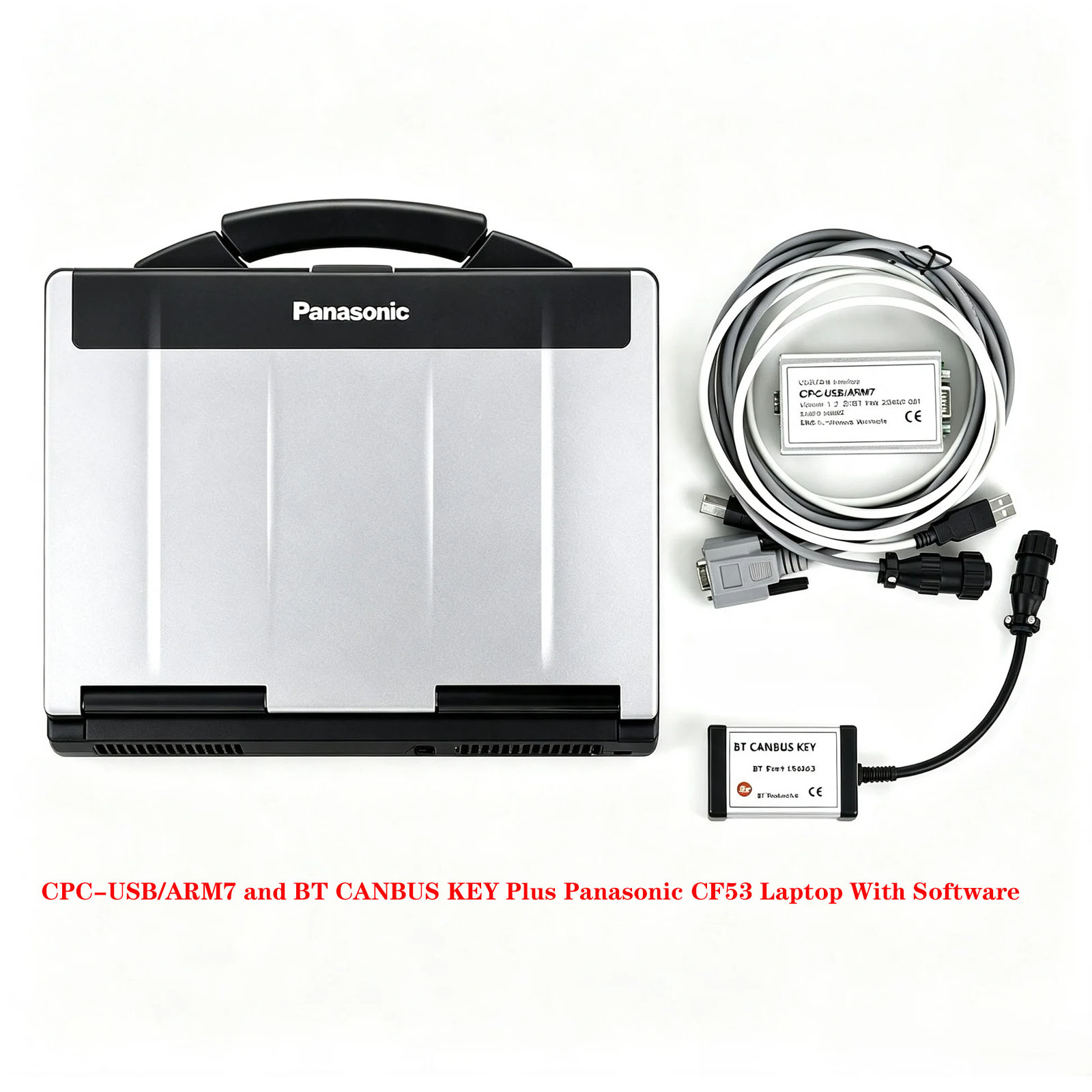

1set x Second Hand Laptop Panasonic CF53/CF54 (optional)

Panasonic CF53 Second Hand Laptop
Processor:Intel Core i5 3320U
Memory:8GB
Screen size:14.0 inches
Resolution:1366 × 768
Hard Disk:256G SSD

Panasonic CF54 Second Hand Laptop
Processor:Intel Core i5 3320U
Memory:8GB
Screen size:14.0 inches
Resolution:1366 × 768
Hard Disk:256G SSD
