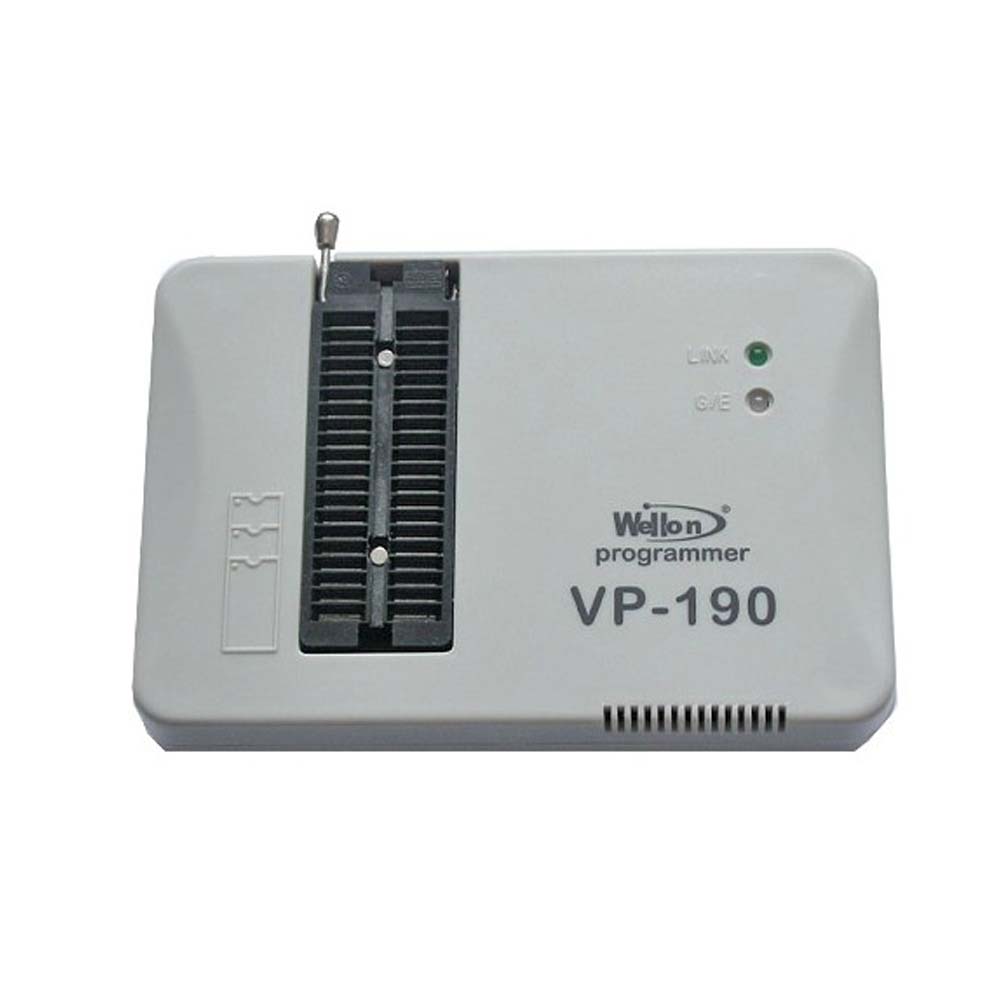

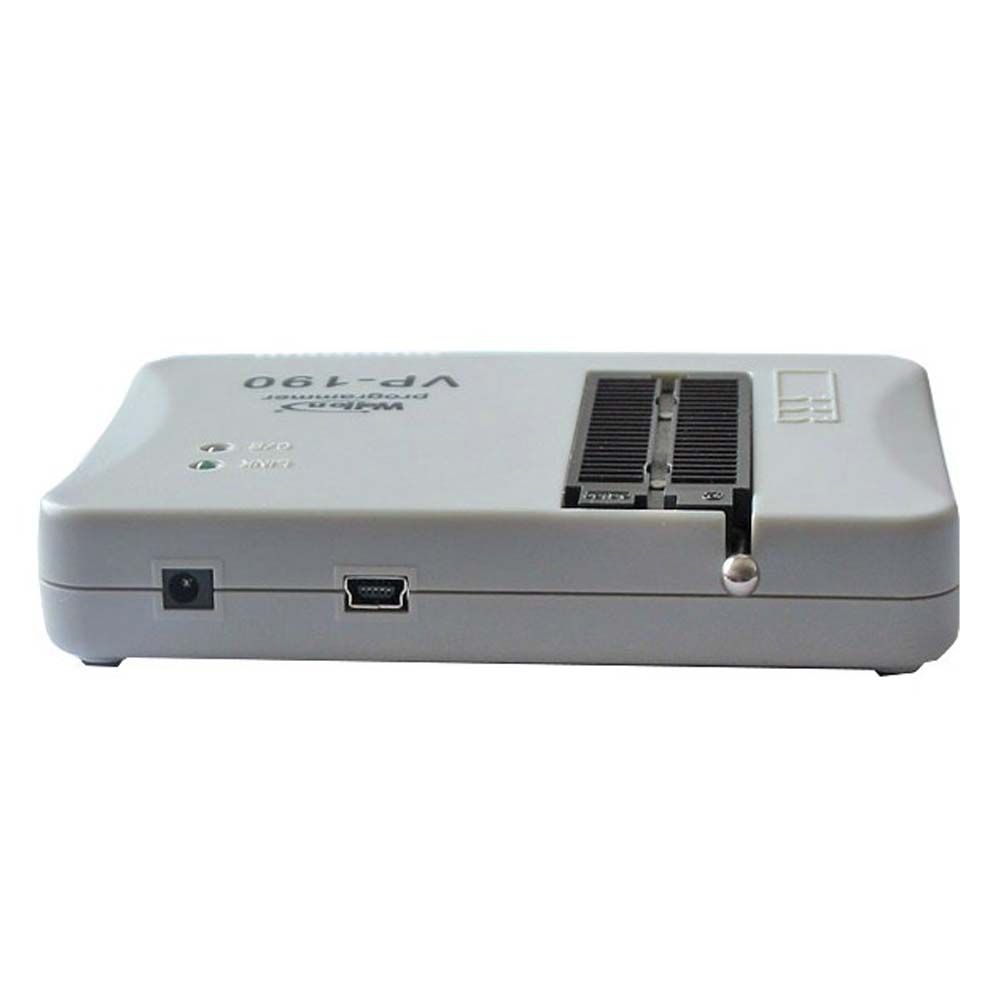

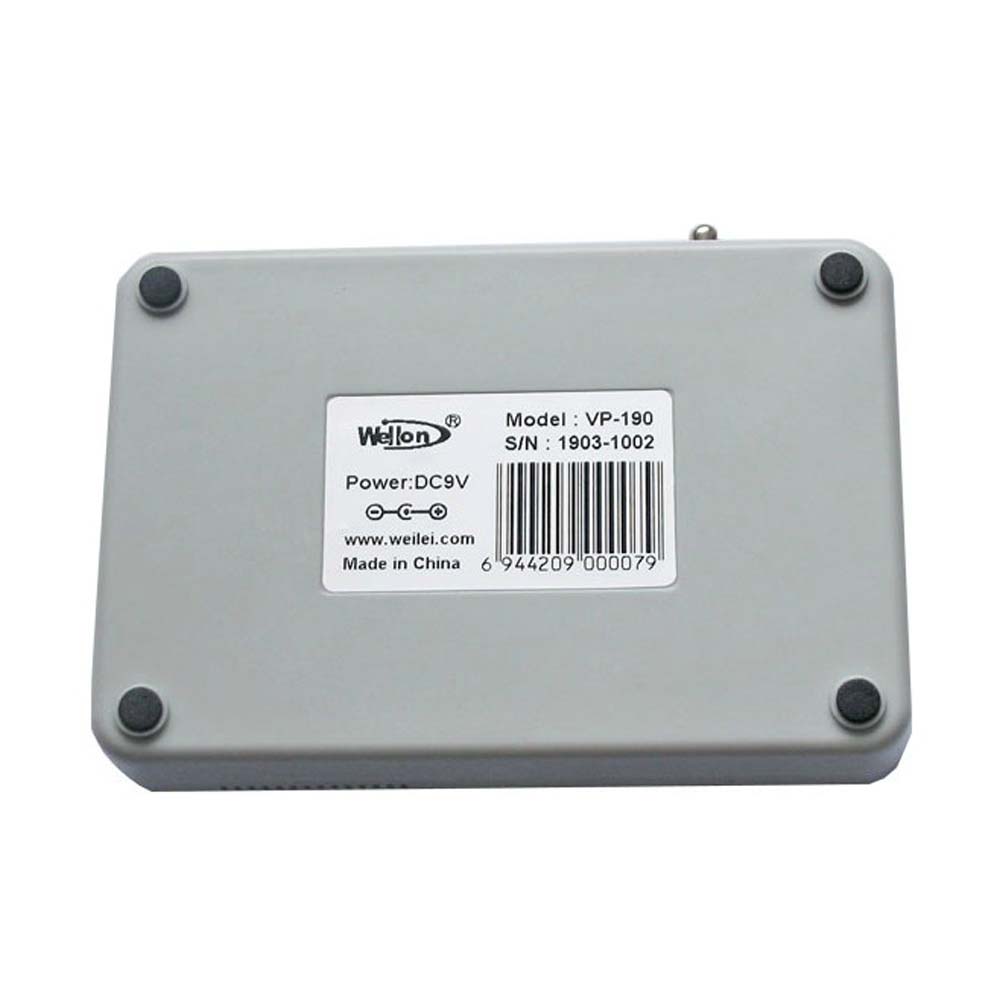

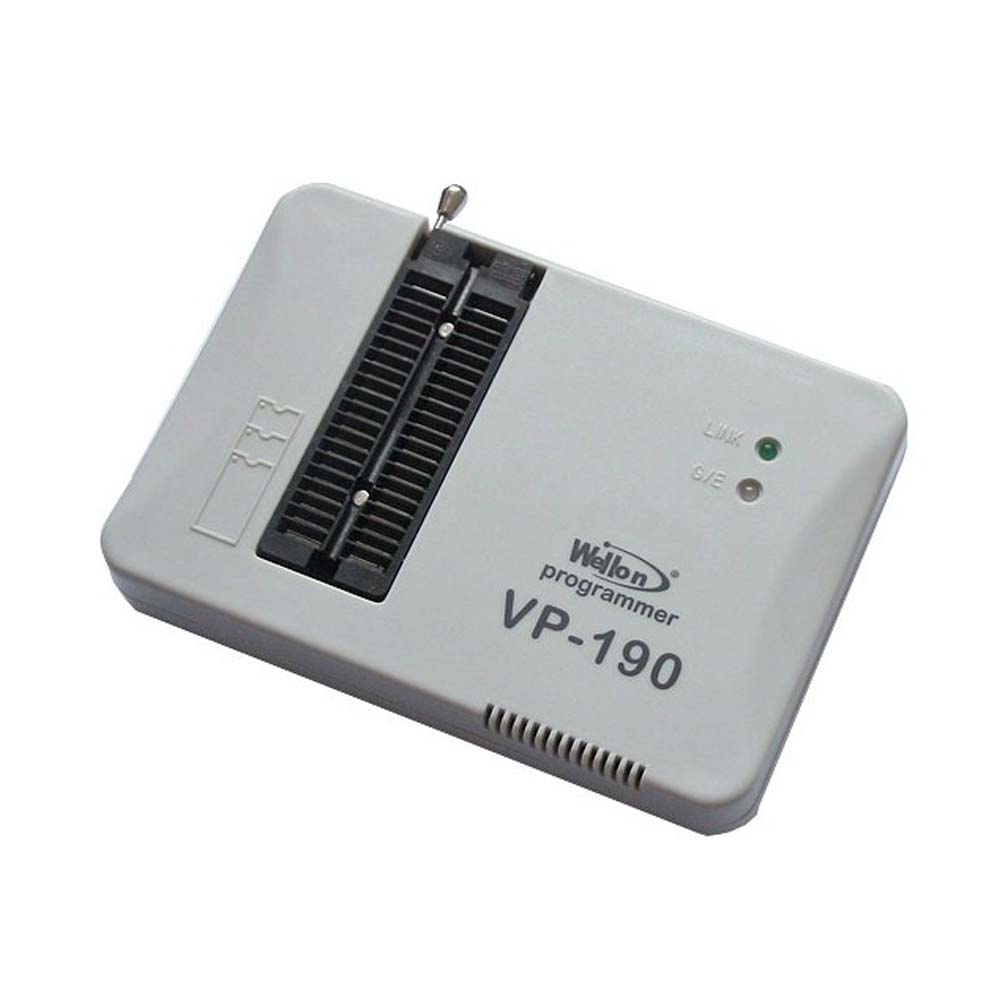

Wellon VP190 VP-190 EEprom Flash MCU USB Programmer

Wellon VP190 VP-190 EEprom Flash MCU USB Programmer

VP-190 is a kind of reliable, fast speed and cost-effective universal programmer. Integrated menu; supports 8 languages. Windows XP/Vista/Windows7 (32 bit and 64 bits) compatibility. Supports thousands of programmable devices such as PLD, E (E) PROM, FLASH, MCU, etc. It also can test TTL & CMOS logic ICs.

FEATURES :
1.Dimension: 115*79*18mm, Weight: 130g.
2.40 Pin ZIF socket pin-drivers.
3.Interface with LAPTOP, PC, PS/2 or compatibles through USB port
4.Accepts standard file formats: JEDEC, INTEL (Extended) HEX, Motorola S record
5.Manages 16 and 32-bit word split (Set Programming)
6.Support most compiler in JEDEC format including ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer and ISDATA
7.Features Test Vector capability and multiarray fuse map editor
8.Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
9.Optimum programming for each individual device
10.Automatically Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
11.Device insertion and poor-pin-contact check
12.Support 1.5v Low voltage devices
13.Not need exterior adapter for mostly devices.
14.Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters (Up to 400 pins)
15.Auto-run mode starts programming automatically upon detection of chip insertion
16.Support IC Card programming
17.Super programming speed. Programs 89C58 in less than 4 seconds
18.Supports WindowsXP/2000/NT/9x/ME
19.Supports seven languages, such as Chinese (Simplified), Chinese (Traditional), English, Korean, Poland, Italian, Portuguese and Dutch.

Package:
1Xprogrammer
1X USB cable
1X User Manual
1X Program CD

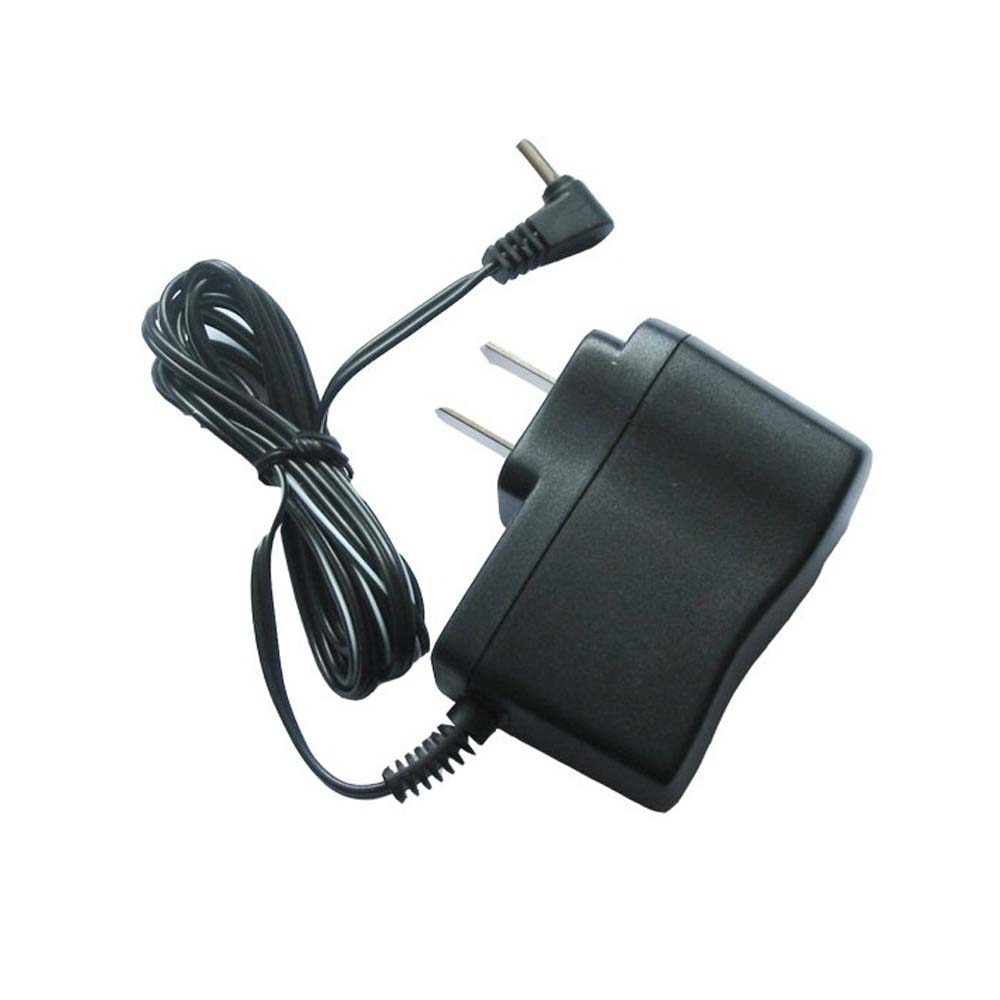

1X DC power supply
