Original Autel Electric Brake Service Tool EBS301

Original Autel Electric Brake Service Tool EBS301


Download Autel Electric Brake Service Tool EBS301 User Manuel

The Autel EBS301 Electric Brake Service Tool is specially designed for safe and professional replacement of brake pads on an increasing number of modern vehicles. Connecting to the vehicle’s OBDII socket, this tool automatically links up with the control module. Disengaging the brake system, it increases safety with the push of a button. Eliminating the needs to use expensive OEM diagnostic systems to do the job on electronic systems, the tool is a time saver and a money maker!

Autel Electric Brake Service Tool EBS301 Applications:

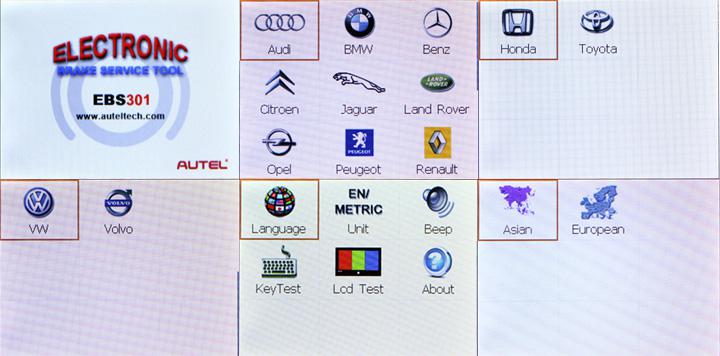

Citroen, Peugeot, BMW, Renault, Ford, VW/Audi, Opel, Toyota, Land Rover, Jaguar, GM, Daewoo, Benz, Sprinter, Smart, Chrysler, Volvo

Autel EBS301 Features:
Multi-brand applications
Opens and closes the brake pads
Reads and clears EPB/SBC trouble codes
Turns off the ECU and brake warning light
Diagnoses EPB/SBC caliper functionality
Resets the brake pad thickness required for Audi A8 service
Complete OBDII/EOBD coverage
Easy to use with step-by-step on-screen guided instructions
Increases efficiency and ensures workplace safety
TFT color screen, user friendly, simple and easy to use
 One year free online software updates
 TF memory card for data backup and software update

Autel EBS301 Specification:
Display                                                                       TFT color display (320 x 240 dpi)
Operating Temperature                                           0 to 60°C (32 to 140 °F)
Storage Temperature                                               -20 to 70°C (-4 to 158 °F)
External Power                                                          12.0 to 18.0 V power provided via vehicle battery or adapter
Length\Width\Height                                                 199 mm (7.83”)\104.5 mm (4.11”)\37.5 mm (1.48”)
Weight                                                                         0.28kg(without wire) 0.484kg(with wire)

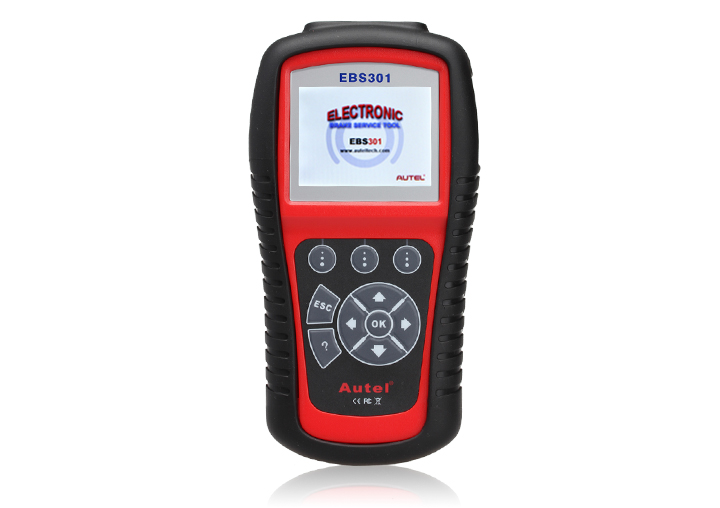

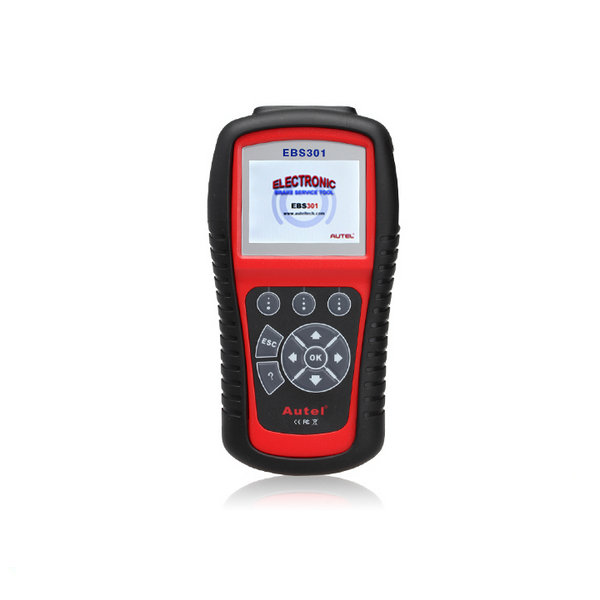

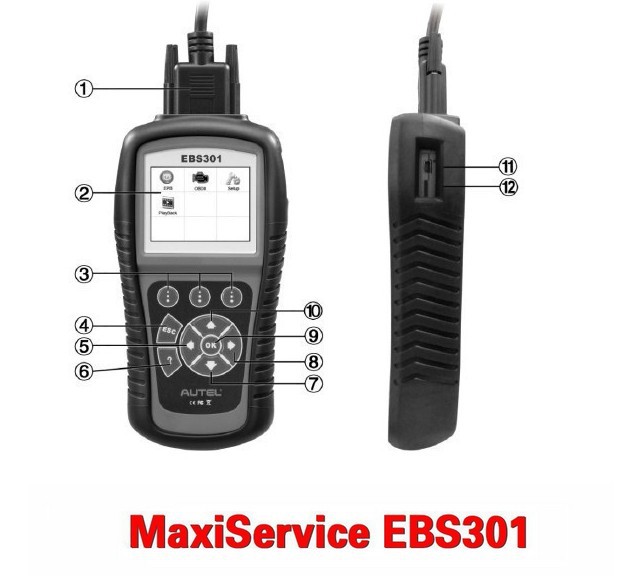

Autel EBS301 Description:

1) CONNECTOR -- Connects the scan tool to the vehicle’s Data Link Connector (DLC).
2) LCD DISPLAY -- Indicates test results. TFT color display (320 x 240 dpi).
3) FUNCTION BUTTON – Corresponds with “buttons” on screen for executing commands.
4) ESC BUTTON -- Cancels a selection (or action) from a menu or returns to the previous screen.
5) LEFT SCROLL BUTTON -- When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers morethan one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.
6) HELP BUTTON -- Provides help information and Code Breaker function.
7) DOWN SCROLL BUTTON -- Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. When looking up DTC, it is used to change value of selected character.
8) RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; views next screen or next frames of recorded data.. It is also used to view next trouble code when viewing DTCs.
9) OK BUTTON -- Confirms a selection (or action) from a menu.
10) UP SCROLL BUTTON -- Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data. When looking up DTC, it is used to change value of selected character.
11) USB CONNECTOR -- Connects the scan tool to the PC for printing.
12) MICRO TF CARD SLOT – Holds the Micro TF card.

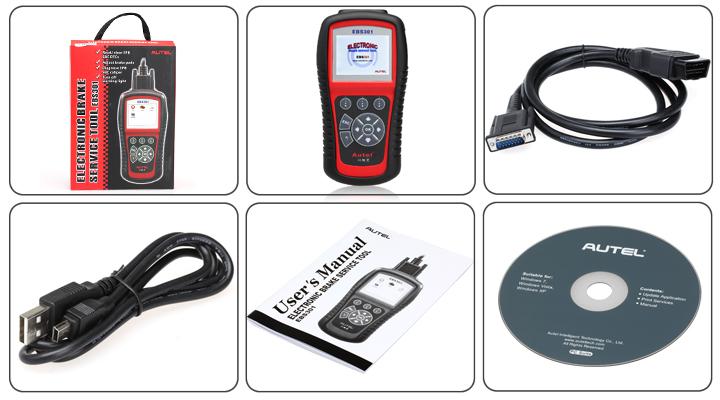

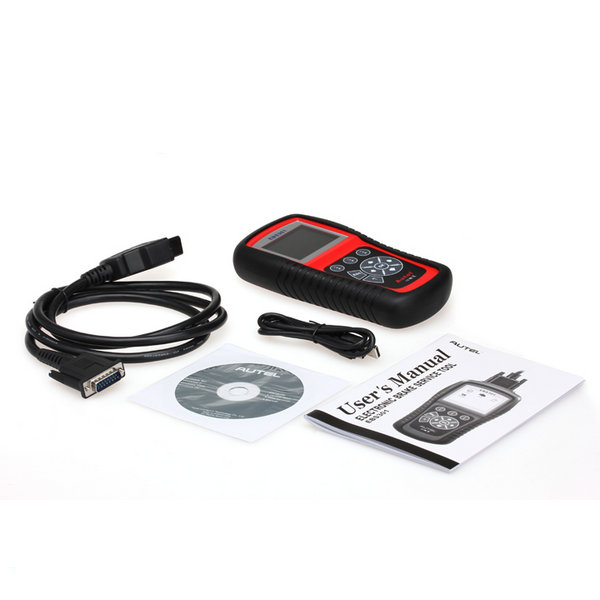

Autel EBS301 Package List:

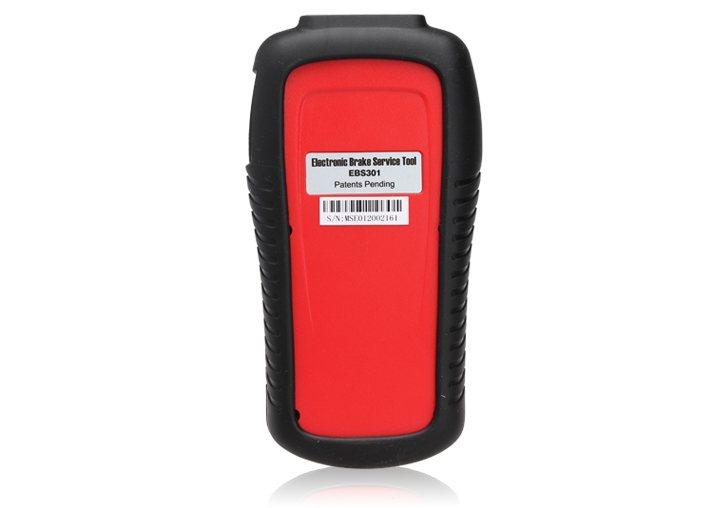

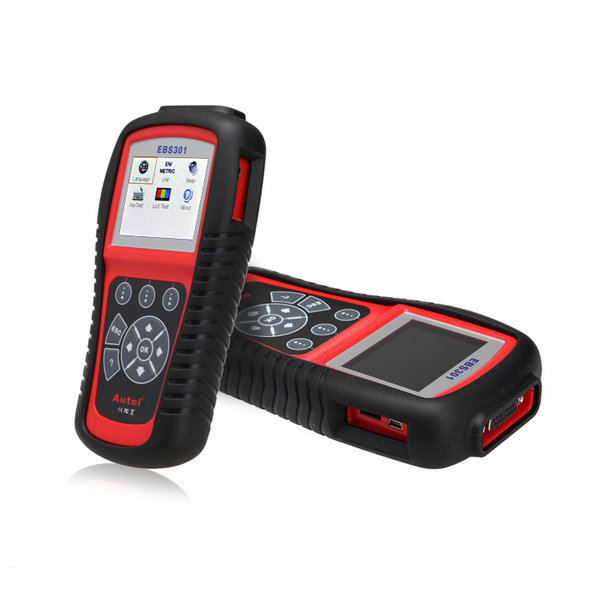

1pc x Autel EBS301 Main Unit
1pc x User’s Manual -- Instructions on tool operations.
1pc x CD -- Includes user’s manual, PC Suit software, and etc.

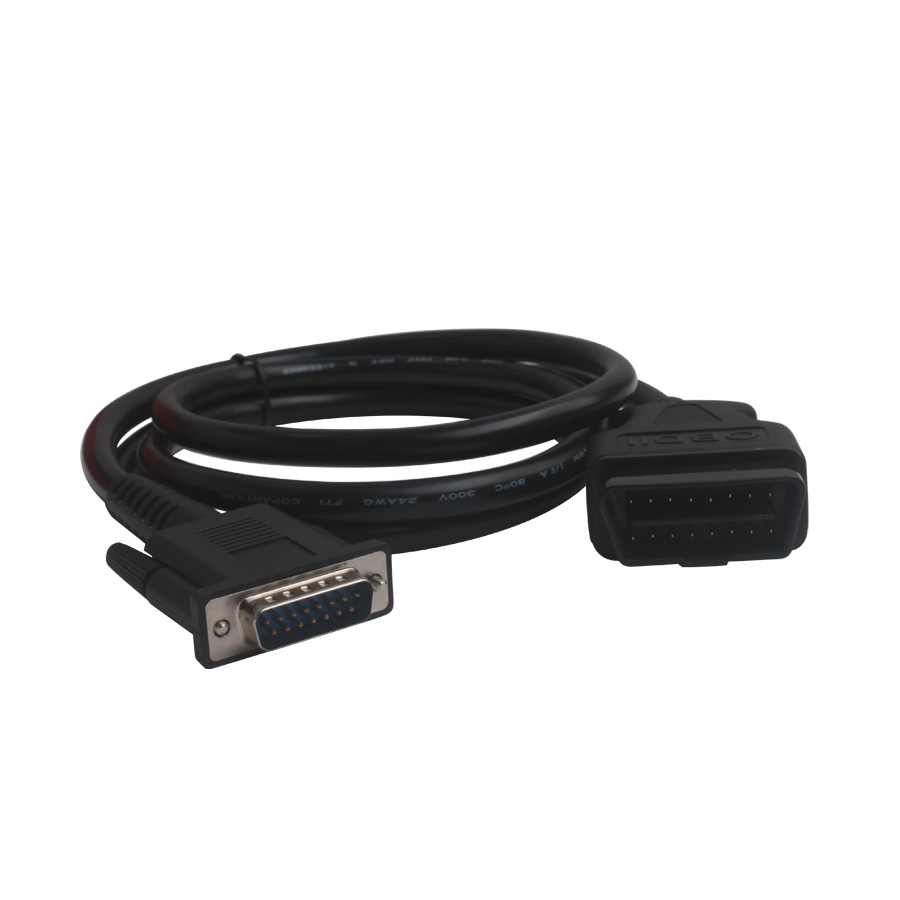

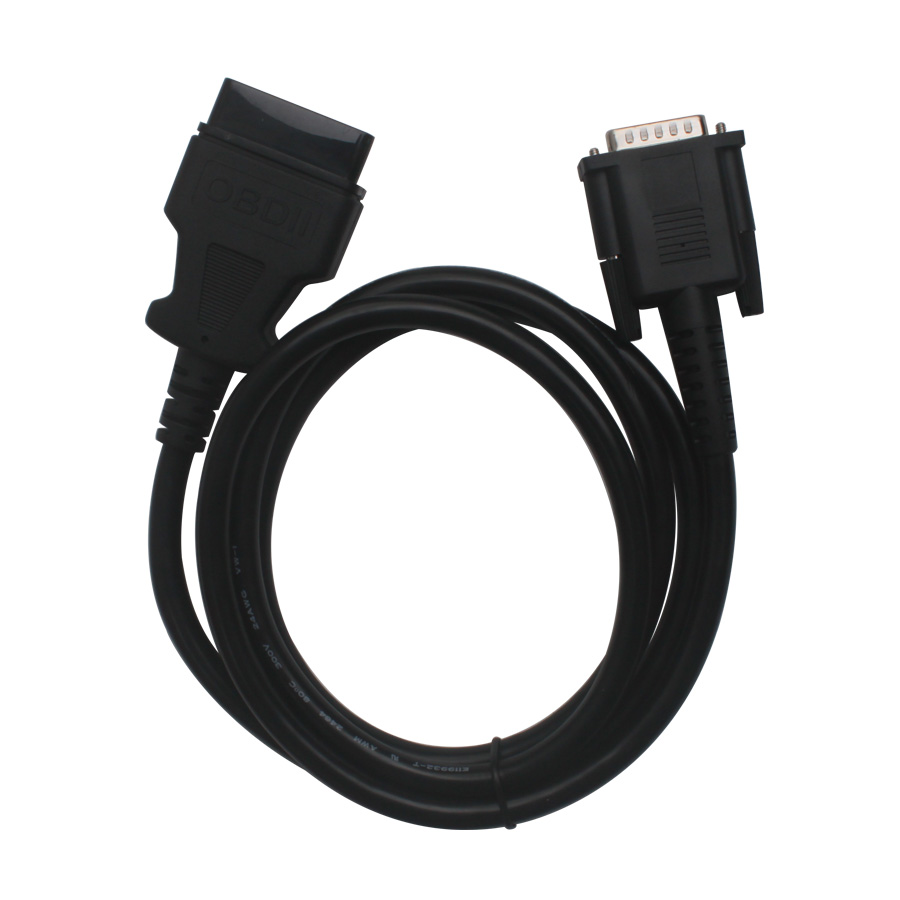

1pc x OBD2 cable -- Provides power to tool and communicates between tool and vehicle.

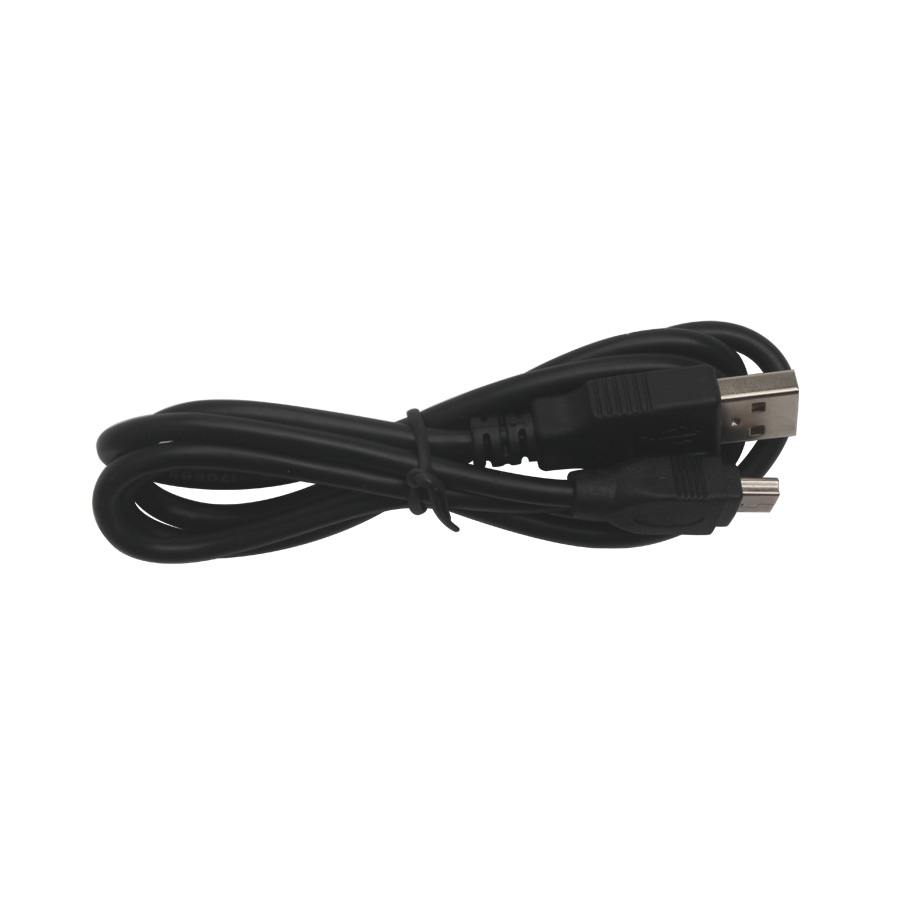

1pc x USB cable -- Used to print retrieved data.
1pc x Micro TF card -- Used to store the data and to upgrade the scan tool

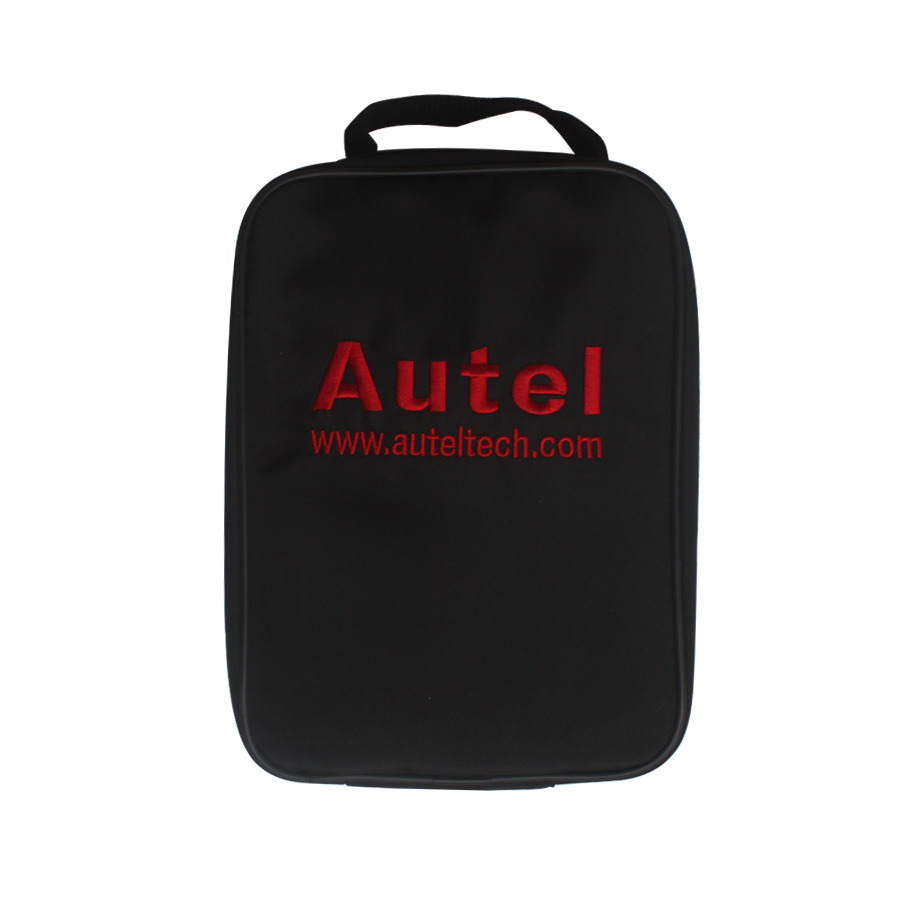

1pc x Protective nylon case-- Used to store the scan tool when not in use.

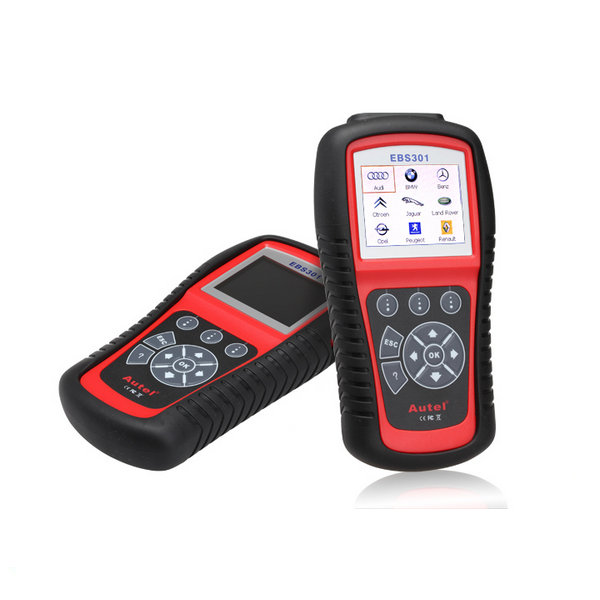

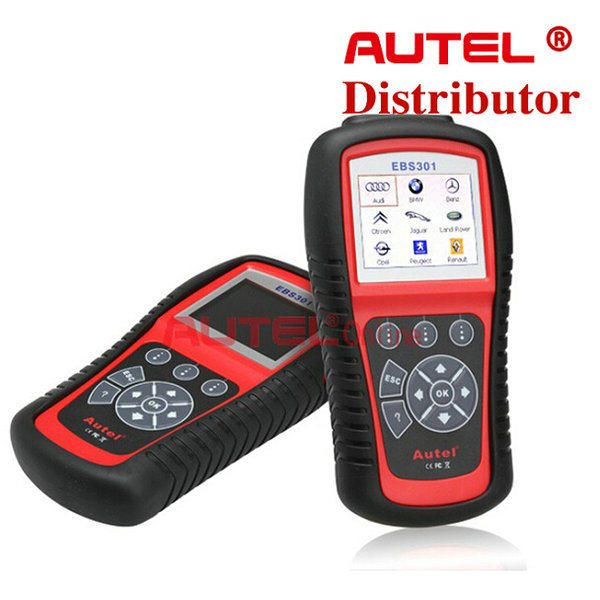

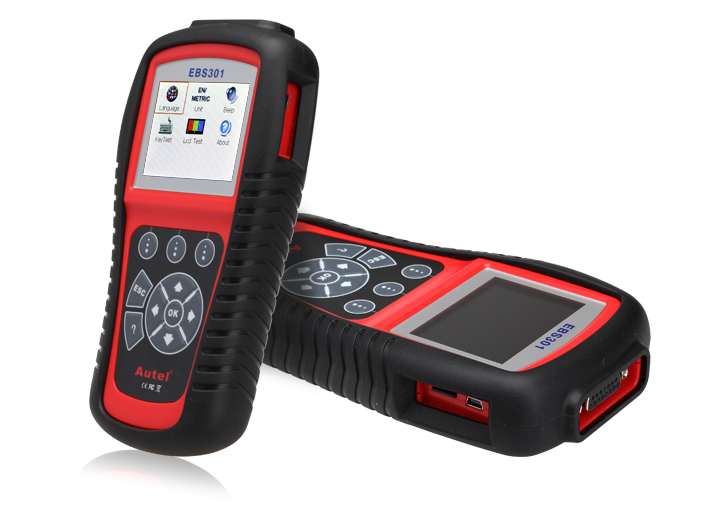

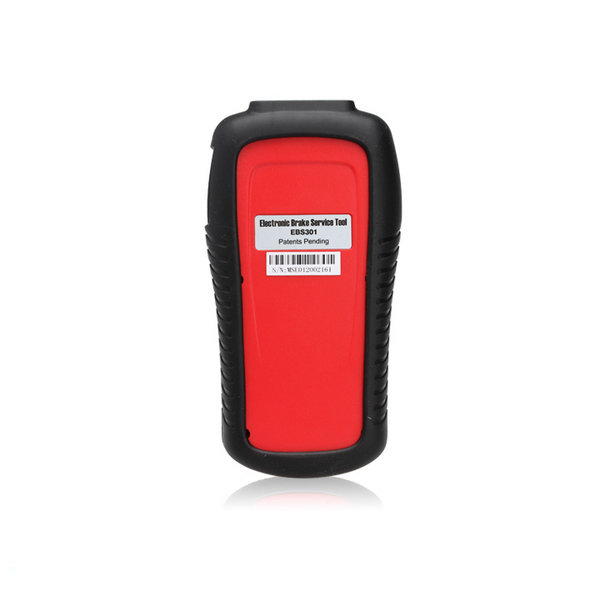

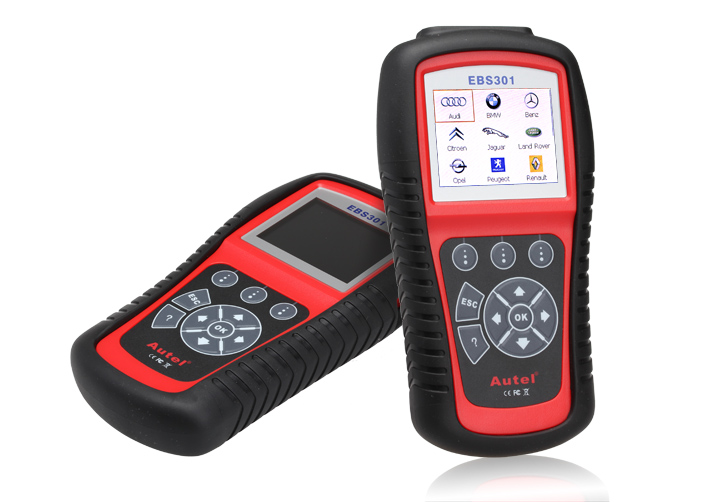

Autel Electric Brake Service Tool EBS301 Related Pictures:
