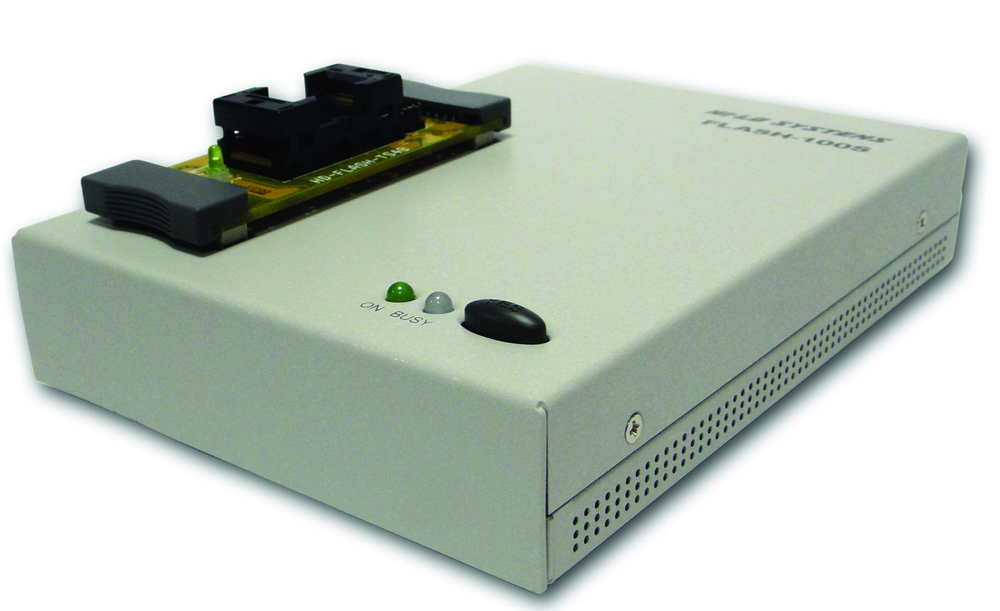

flash-100s Universal programmer

Flash-100s Universal programmer

FLASH-100S Universal Programmer is designed to provide high quality yet compact size programming platform for IC programming at development / engineering stage.FLASH-100S extremely high freq. core circuit design significantly cut down programming time of high density memory products.

FLASH-100S extremely high freq. core circuit design significantly cut down programming time of high density memory products

.FLASH-100S has 56 sets of Precise Universal Pin Driver to provide high speed, low noise, accurate and reliable programming signals for various IC products including high speed low power devices recently released to market.

 FLASH-100S works with dedicated Socket Board (HD-xxx-xxx) per IC package type. This eliminates the requirement of additional socket adaptor / converter which might impact programming yield due to poor contact and/or signal noise.

 The supporting software is updated weekly on HI-LO web site for check / retrieve through Internet. Programming of new products will not be neglected after purchasing.

Features & Benefits

Excellent performance：FLASH-100 extremely high freq. core circuit design significantly cut down programming time of high density memory products. Precise Universal Pin Drivers provide high speed, low noise, accurate and reliable programming signals for various IC products including high speed low power devices recently released to market.

Wide range of IC coverage：

FLASH-100 supports wide range of IC products including EEPROM, Serial EE, SPI memory, NOR/NAND FLASH, MPU/MCU product types and DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, QFN, SON, BGA package types.

Easy to setup & operate：

FLASH-100 setup and operation can be done easily by connecting Programmer to PC with Windows 2000/XP/Server 2003/Vista O.S. through USB port, load data file or read Master IC, then select functional options (Program、Verify、Auto..etc.) to start programming.

Site independent parallel programming：

FLASH-100 Programmer has 56 x 8 sets of Precise Universal Pin Driver, each site owns individual Pin Driver so sites are totally independent without interfering each other during multi-site programming. FLASH-100 can be setup for multi-site & multi-set operation when production required. Up to 8 sites x 8 sets = 64 sites can be programmed simultaneously to maximize production.

High expansion flexibility：

Easy to expand programming types for various FLASHs by simply replacing appropriate Socket Boards on top of Programmer.

Timely software support：

The supporting software is updated weekly on HILO web site for check / retrieve through Internet easily. Programming of new products will not be neglected after purchasing.

World wide service：

Distribution channel covers 35 countries worldwide, all inquiries / problems can be served easily and timely

Specification：
Core controller
16 bits high freq. core control circuit with big sized FPGA & CPLD
Key functions 　

Load File、Read Master、Program、Verify、Auto、ID Check、Checksum、Blank Check、Erase、Secure、Protect / Unprotect、Edit、Function Configuration、Self Test.

Support devices 　
IC types : EEPROM, Serial EE, SPI memory, NOR/NAND FLASH, MPU/MCU…etc. 　
IC packages : DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, QFN, SON, BGA…etc. 　
IC leads : 8 pins ~ 300 pins
Device contact 　
Dedicated Socket Board ( HD-xxx-xxx ) per IC package type
I/O channels 　
56 x 8 sets Precise Universal Pin Driver 　
Provide high quality programming signals for high speed low power (1.8V) devices
Load / expansion capacity 　
Up to 8 sites parallel programming per set. Up to 8 sites x 8 sets = 64 sites per PC setup.
Data transfer interface 　
Transfer port : USB x 1 　
Transfer speed : USB1.1 : 12 Mb/sec. USB2.0 : 480 Mb/sec.
Host computer requirement 　
An Intel Pentium 4 or compatible processor with 512MB of RAM 　
At least one USB port is available 　
50MB free hard disk space 　
Windows 2000 / XP / Server 2003 / Vista operation system 　

CD ROM / DVD ROM Drive

Power 　

Power source : 100~240 VAC 50~60 Hz
Power consumption : ~ 0.8 A
Operation temperature 　

0 ~ 40℃ (32 ~ 105 ℉ )

Dimension 　
W x D x H 162mm x 257mm x 100mm
Weight 　
~ 2.24 kg (Base Unit) ~ 2.56 kg (with 8 socket boards)
