Navistar Engine Diagnostic Software (NED) 2025.10

Navistar Engine Diagnostic Software (NED) 2025.10

Notice:

After payment, we will remotely install and activate the software for you (just install on one computer).

Data update: 2025.10

Size: 200 Mb

Region: All regions

Type: Diagnostic Software

Language: English

OS: Win 7,win 10,win 11

Installation: 1 Pc (By Teamviewer)

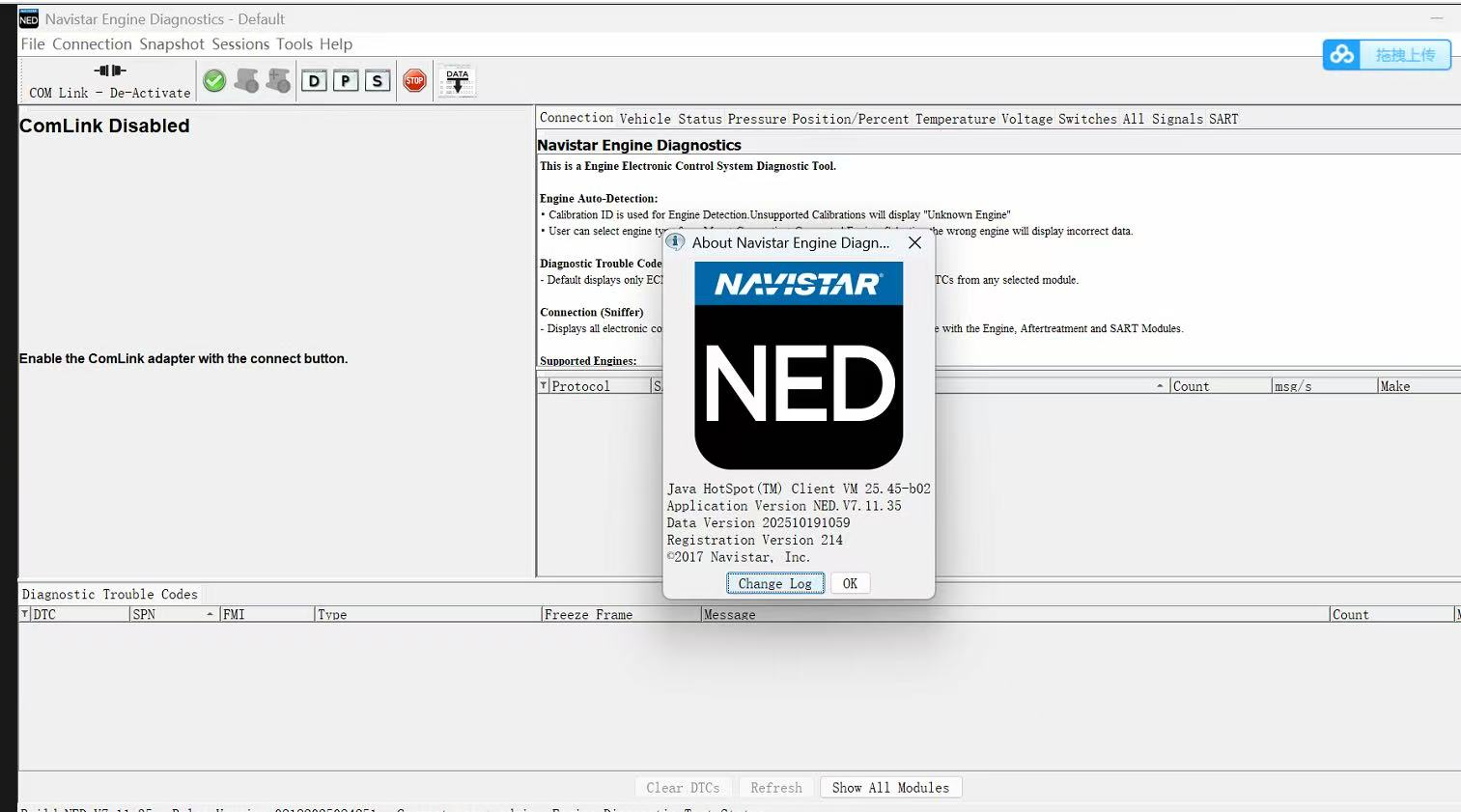

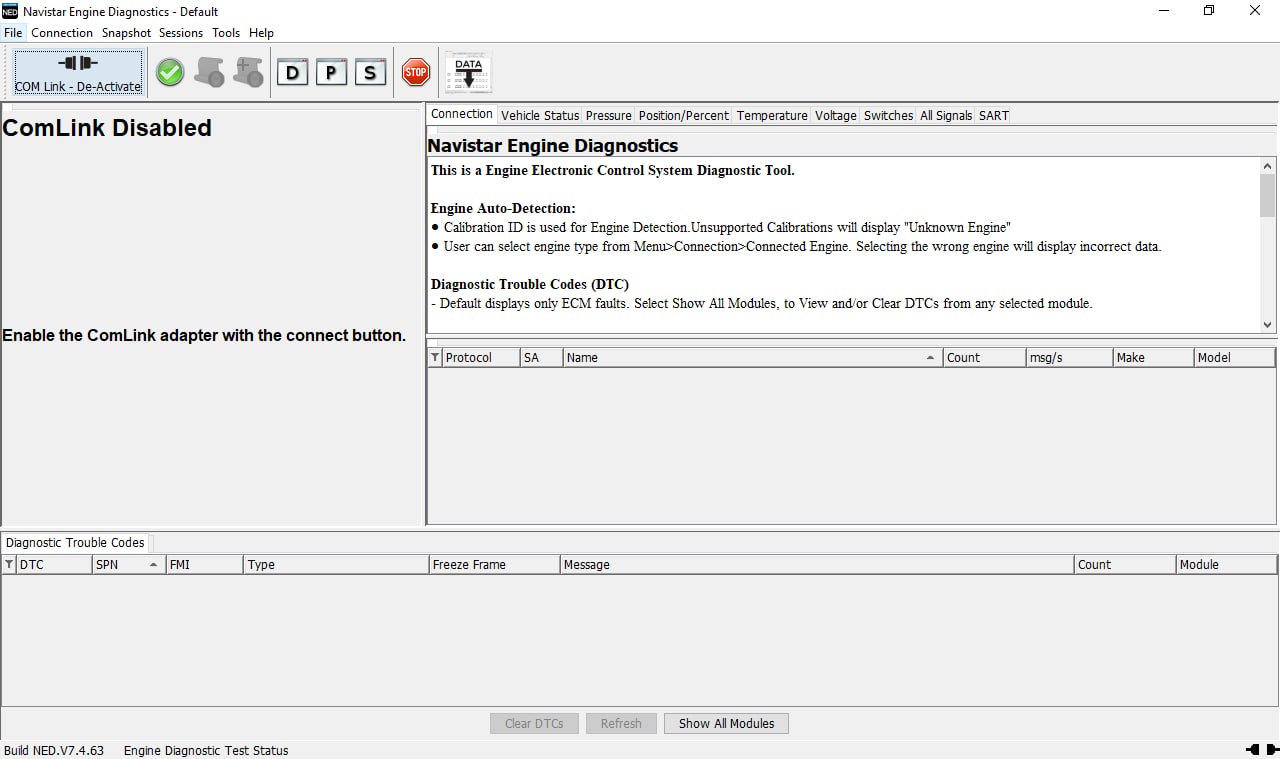

Navistar Engine Diagnostics is a diagnostic and programming service tool for Navistar Engines. A full-featured PC application, Navistar Engine Diagnostics is designed to meet the wide range of diagnostic challenges of servicing a mixed truck fleet.Coverage includes all J1939 International electronic engine systems.It allows you to monitor the control system, retrieve diagnostic trouble codes (DTC), change parameters, view and graph engine data, and run specialized service bay testing on all engine and aftertreatment systems. The application also features period updates, ensuring you the most up-to-date coverage.

Basic Features

1. Read and clear diagnostic fault codes

2. View signals and parameters

3. Print trip and vehicle reports

Advanced Features

1.Diagnostic Tests

KOEO – Key On Engine Off

KOER – Key On Engine Running

KOEO – Injector Buzz Test

KOER – Injector Contribution Test

Cylinder Cutout Test (EPA 04′ and newer)

Injector Disable Tests (EPA 04′ and newer)

2.Display and change configurable Parameters

Crank Inhibit

Fan Control

Idle Shutdown Timer

Warm-up Device

Warning and Protection System

Hydraulic Pressure Governor

PTO Control

Radiator Shutter

Vehicle Speed Limit

Vehicle Retarder

Two Speed Axle

Traction Control

Minimum System Requirements:

Microsoft® Windows 10 and Windows 11

1GHz Intel Core 2 Duo, AMD Athlon X2 or better

2GB (32-bit) or 4GB (64-bit) of RAM

300MB of available hard disk space

1024 x 768 pixel monitor

One or more RP1210A compatible communication devices with SAE J1708 and/or SAE J1939 support

NOTE: Make sure to close Navistar Engine Diagnostics before installing a new version



Engine Support

1. MaxxForce 5 (2007-2009)

2. MaxxForce 7 (2007-2009)

3. MaxxForce 7 (2010-2012)

4. MaxxForce 7 (2013-)

5. MaxxForce DT, 9, 10 (2007-2009)

6. MaxxForce DT, 9, 10 (2010-2012)

7. MaxxForce DT, 9, 10 (2013)

8. MaxxForce 11, 13 (2008-2009)

9. MaxxForce 11, 13 (2010-2013)

10. MaxxForce 15 (2010-2013)

11. N9, N10 SCR (2014-)

12. N13 SCR (2013-2014)

13. N13 SCR (2015-)

14. International A26 SCR (2017-
