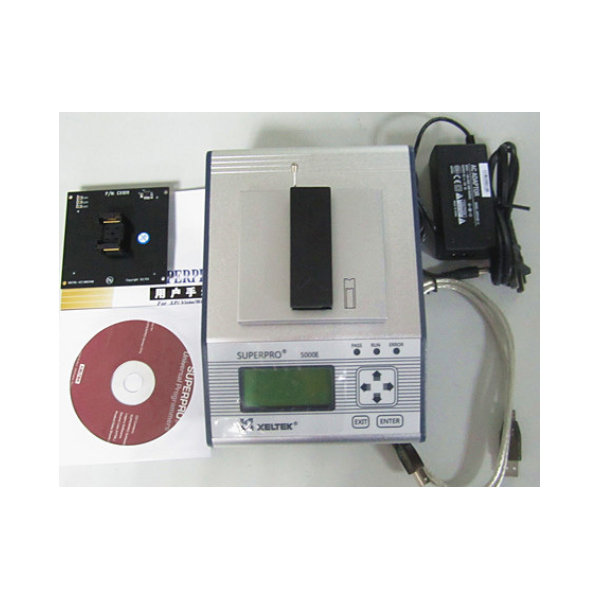

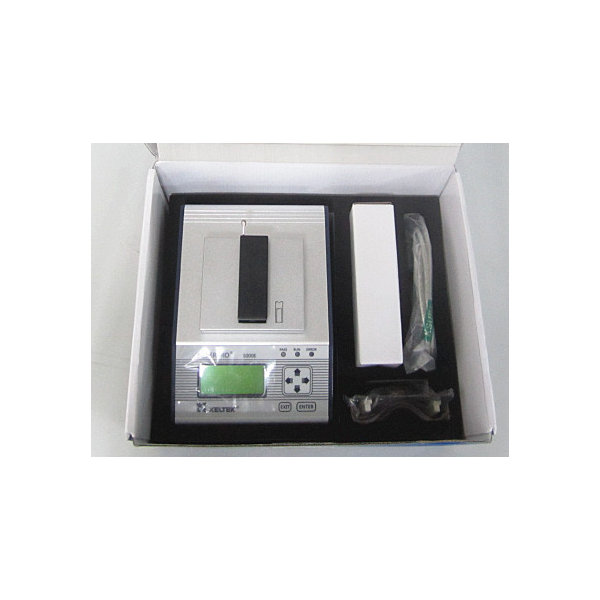

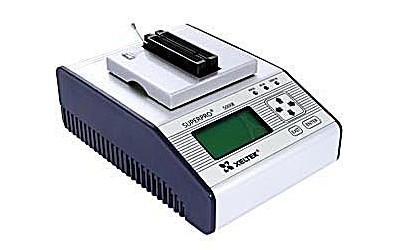

Superpro/5000e Universal Programmer

  • Item No.  EP092
  • History: 26  sold
  • Market Price: US$972.00
    Shop Price: US$810.00
    Express Shipping Service    Estimated delivery time: 3-5 days »
    Affected by the epidemic, there will be delays in transit time.
  • Stock  199
  • Weight:  3.0KG
  • Rate:  comment rank 50 () Write a Review
  • Member Benefits  Shipping  Return Policy




Technical Support


Superpro/5000e Universal Programmer

*The largest device support in the industry: Supports 64,647 IC devices from 218 manufacturers and continuing
*Two programmers in one, a double value: PC mode for engineering and Stand-alone mode for production. The programmer operates in either PC hosted mode or stand-alone mode.
    Under PC hosted mode, a PC controls the programmer via a high-speed USB connection to program a chip.
    Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad.
    A CF (compact flash) card stores the project files.
*Ultra-Fast Programming Speed: Programs and verifies 64 Mb NOR Flash memory in 11.3 seconds and 1 Gb NAND Flash in 108 seconds.
*Built-in 144 universal pin drivers
*Comes with one-year free device update request support.
*CE and RoHS Compliant
*Supports 64,647 IC devices from 218 manufacturers and continuing
*Programs devices with Vcc as low as 1.2V.
*Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 1 GB NAND in 108 seconds.
*Built with 144 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages up to 144 pins.
*The programmer operates in either PC hosted mode or stand-alone mode.
     Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
     Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY
     A CF (compact flash) card stores the project files.
*ISP/ICP programming capability through optional ISP/ICP adapter.
*In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
*Over-current and over-voltage protection for safety of the chip and programmer hardware.
*Compatible with Windows 7 & Vista & XP 32/64 bit
*Only IC manufacturer approved programming algorithms provide high reliability.
*Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
*Includes the following advanced and powerful software functions:
     Chip operation starts immediately upon proper chip insertion in Production Mode.
     Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file              setting into one step.
     Password protection provides security for project files and production volume control.
     Batch command combines device operations like program, verify, security into a single command at any sequence.
     Serial number generators are available as standard or customer-specific functions.
      Log file provides production quality tracking.

*Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic
*PC interface: USB2.0 (High speed)
*Stand-alone memory: Compact FLASH Card
*Power supply: AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A
*Main unit: Dimensions 148(L) * 216(W) * 94(h) mm; Weight 3.5 lbs (1.6 Kg)
*Package: Dimensions 301(L) * 252(W) * 145(H) mm; Weight 6.2 lbs (2.8Kg)

Speed Comparison

 Device  P+v (s)

 Compare with SP3000U


 K8P6415UQB  9.1(P)+2.3(V)= 11.4(s)  25.1(P)+16.8(V)=41.9(s)  64Mb NOR FLASH
 AM29DL640G  20.5(P)+2.3(V) =22.8(s)  38.5(P)+11.8(V)=50.3(s)  64Mb NOR FLASH

 0.8(P)+0.1(V)= 0.9(s)

 1.2(P)+0.8(V)= 2.0(s)



 2.7(P)+1.8(V)= 4.5(s)

 5.0(P)+4.0(V)= 9.0(s)



 29.0(P)+14.4(V)= 43.4(s)

 55.2(P)+41.4(V)= 96.6(s)


 AT89C55WD  2.5(P)+0.4(V)=2.9(s)  3.3(P)+1.0(V)=4.3(s)


 ST72F324BK4B5  2.6(P)+1.3(V)=3.9(s)  18(P)+7(V)=25(s)  32KB FLASH MCU
 Upd78F9234  2.6(P)+1.3(V)=3.9(s)  38(P)+16(V)=54(s)  16KB FLASH MCU
