Best quality MDI for GM Scan Tool

MDI for GM Scan Tool with Wifi in Best Quality 2018.03

Highlights of MDI:
1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose
2.Can do cars from 1990-2018.03 Year
3.You can choose with hard disk (software) or not. the GM MDI software has been installed to a portable hard drive 500G SATA interface, it can be used on all SATA hard drive interface after year 2008
4.Support 2010-2018.03 year new cars
5.Support WIFI

Note: if need programming online，you must have an original account by yourself.

Newest features for GM MDI :

1. With opel Global tis global diagnostic system
2. Support offline lease function
3. Support Opel offline programming function
4. With GDS2 diagnostic system
5. Tech2win diagnostic software support adding latest software
6. support programming online
7. support cable communication
8. support wireless communication
9. support original factory latest software
10. With European Chevetl Global tis, Supports European Chevetl offline programming
11. All Chip are new and original

GM MDI Description:
General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

MDI and GDS Background
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic

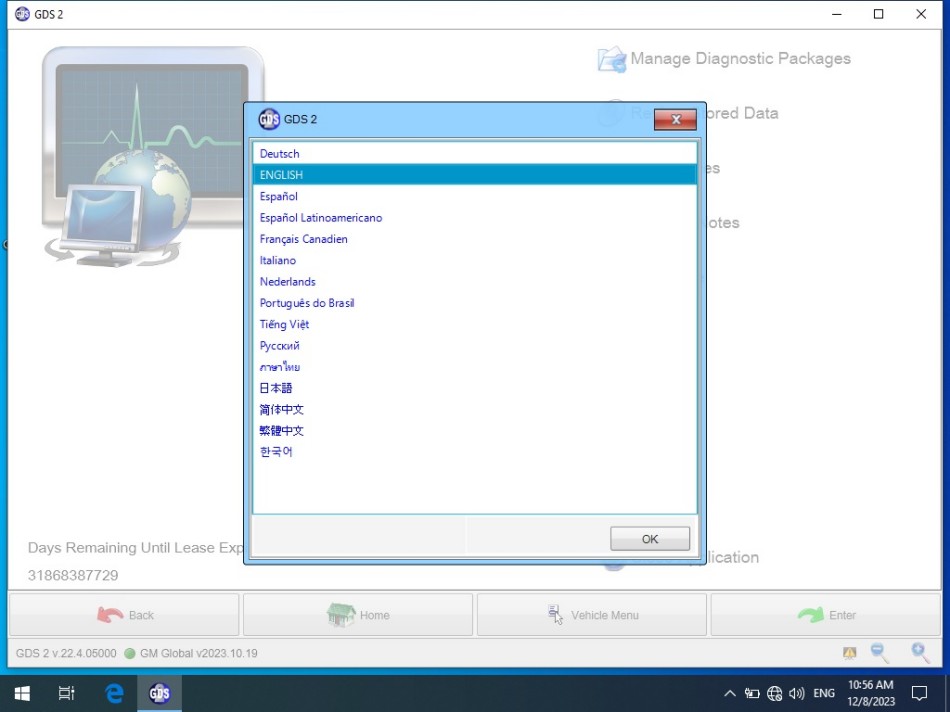

GM MDI Language :

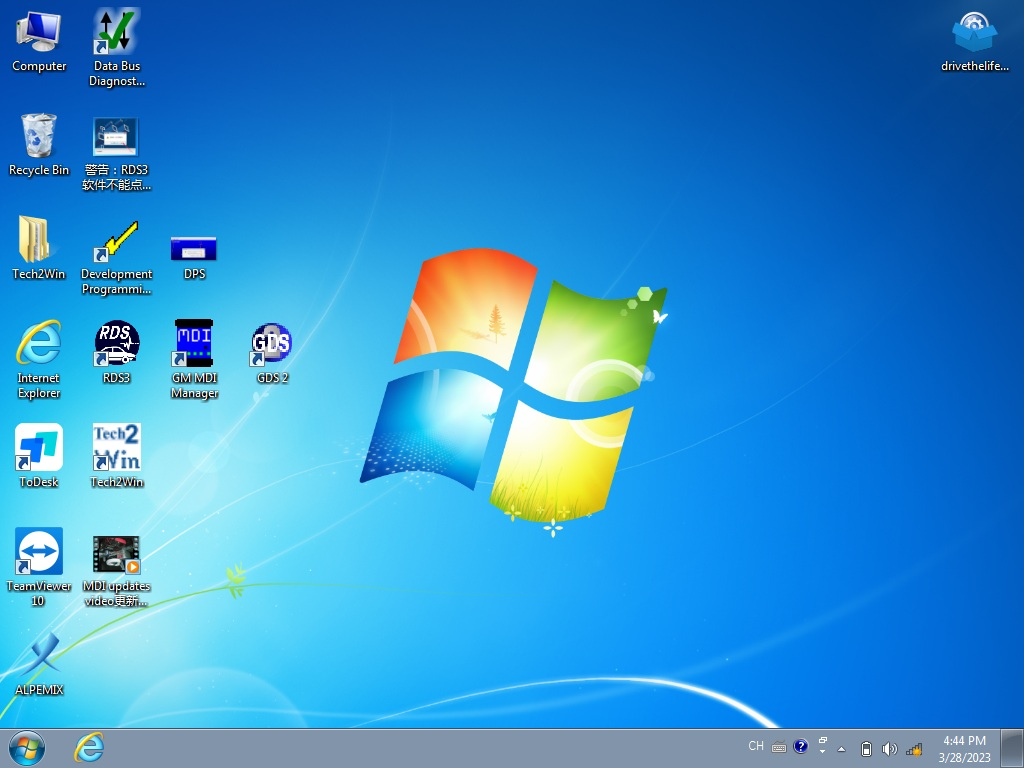

GM MDI Software Display:

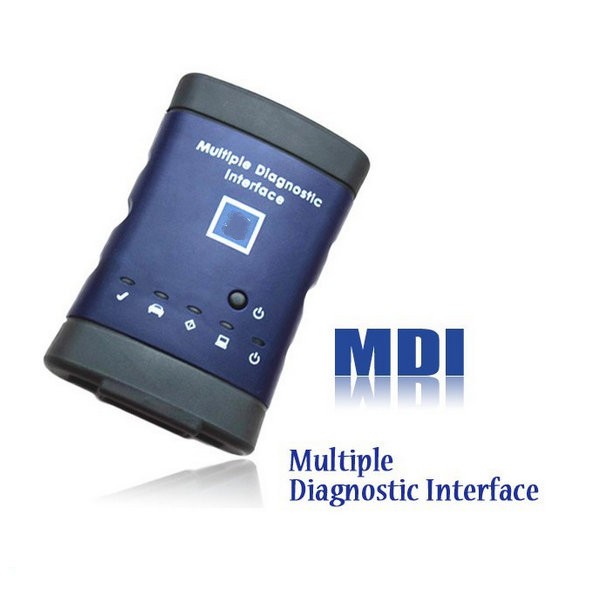

GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
Includes Flight Recorder Mode
New Diagnostic Application Software required for Global A Vehicles
Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.

What protocols does the MDI for GM Support?
For immediate use — At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
- UART
- Class 2
- KWP2000
- GMLAN (CAN)

The Future of the Tech 2
The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

HOW WILL THE MDI BE USED?
The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.

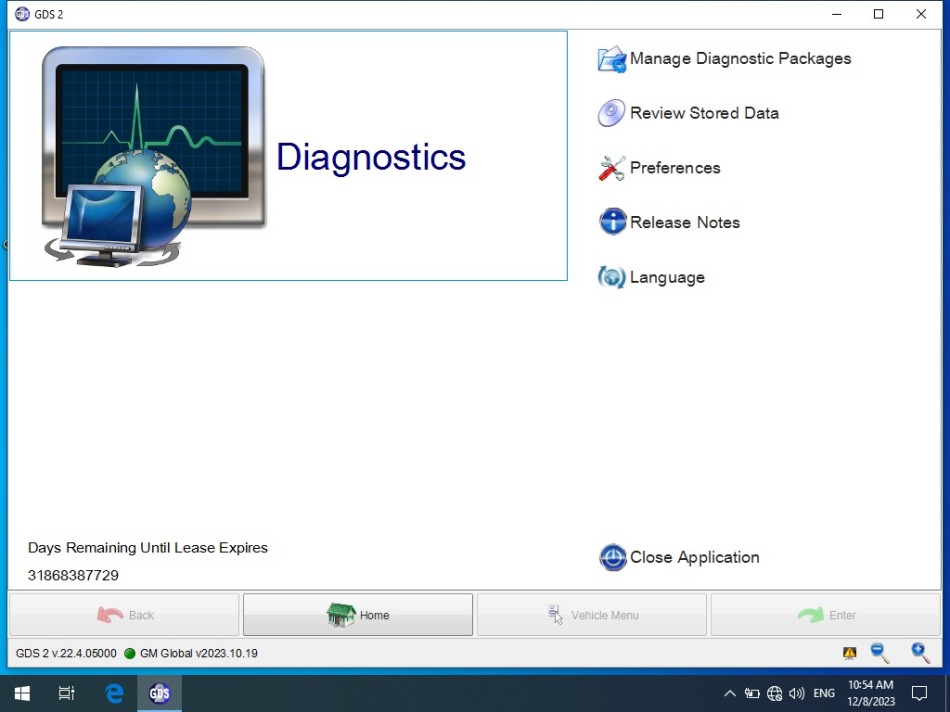

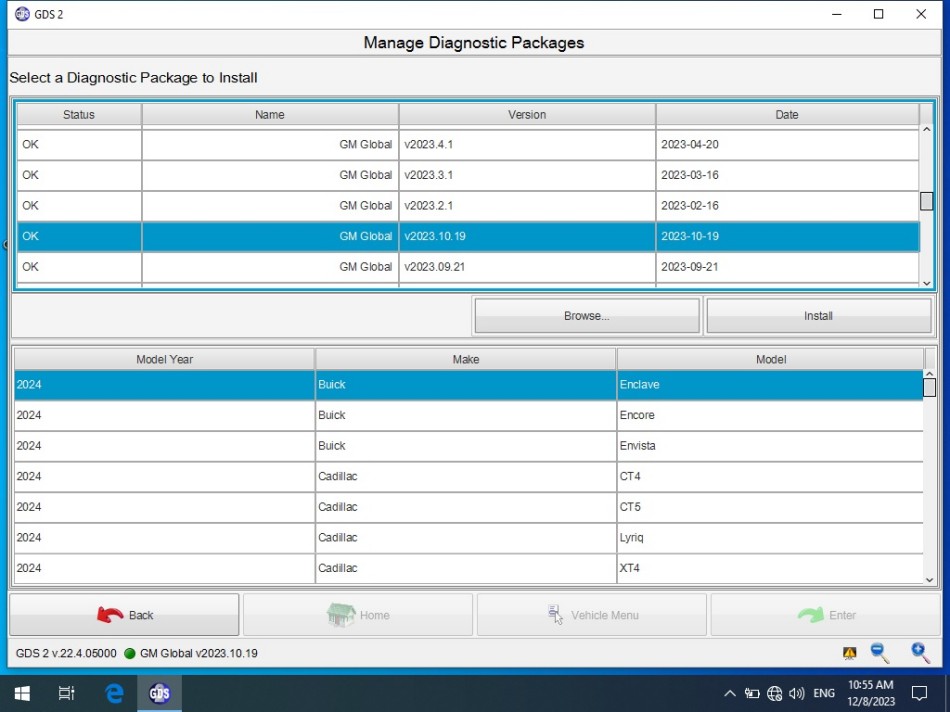

When you test after 2010 year gm car, you can use gm gds2 software:

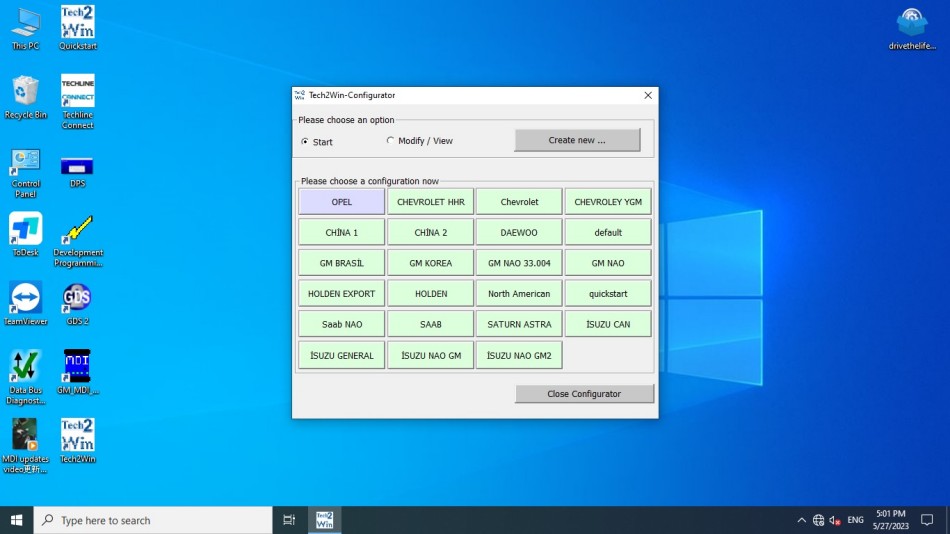

When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:

GM MDI Test steps:
1: finish update lease step, connect with Car OBD, click diagnostic icon on the interface. Choose brand and click “input” on lower right corner, car information will be read automatically, or you can choose manual input VIN
2:choose test what you want, like module diagnostic—engine control modual—identifying information ( picture22-27)

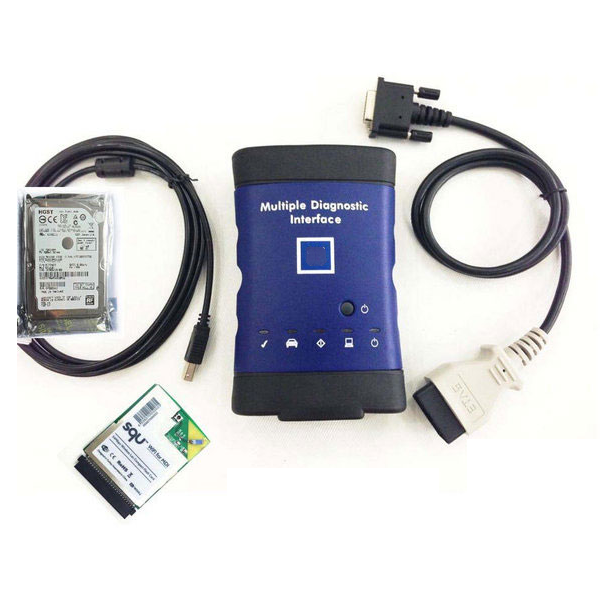

MDI Package List:

1pc x MDI Main unit
1pc x OBD2 Cable
1pc x USB Cable
1pc x AC Adapter
1pc x carry bag

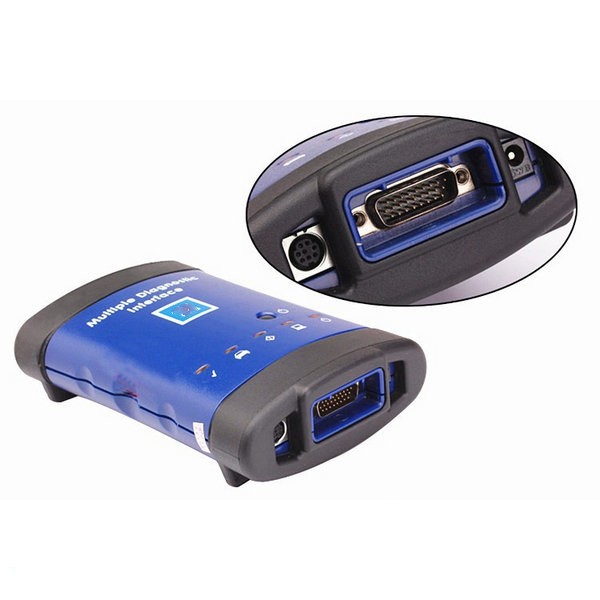

MDI Related Pictures:
