Xhorse VVDI Key Tool Remote Maker Key Programmer English Version V2.3.9

Download

vvdi-key-tool-support-remote-list.pdf

vvdi-key-tool-renew-unlock-wiring-diagram.pdf

vvdi-key-tool-user-manual-engish.pdf

VVDI-MB-Tool-Firmware-Update.pdf

vvdi-mb-tool-overview.pdf

XHORSE VVDI Key Tool English Version V2.3.9

Xhorse VVDI Key Tool remote maker supports most common remote types in the market; it is reliable and easy to use.

VVDI key tool remote generator can perform these functions:
Edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card etc. In a word, Xhorse VVDI Key Tool is a device with multi-functions.

XHORSE VVDI Key Tool Function:

Transponder Generation:

Write most common transponder available in the market including 36, 46, 47, 60, 70

Transponder cloning:

Supports 46 42 11 12 4D

Frequency & power tester:
Frequency test of 27-900 MHZ

Power test 300-450 MHZ

Remote cloning:

Rolling code & Fixed code

Generate remote:

More than 400 FCC ID types

Generate Garage door remote:

More than 100 types

Unlock OEM remotes:
NXP keyless & Prox Remotes

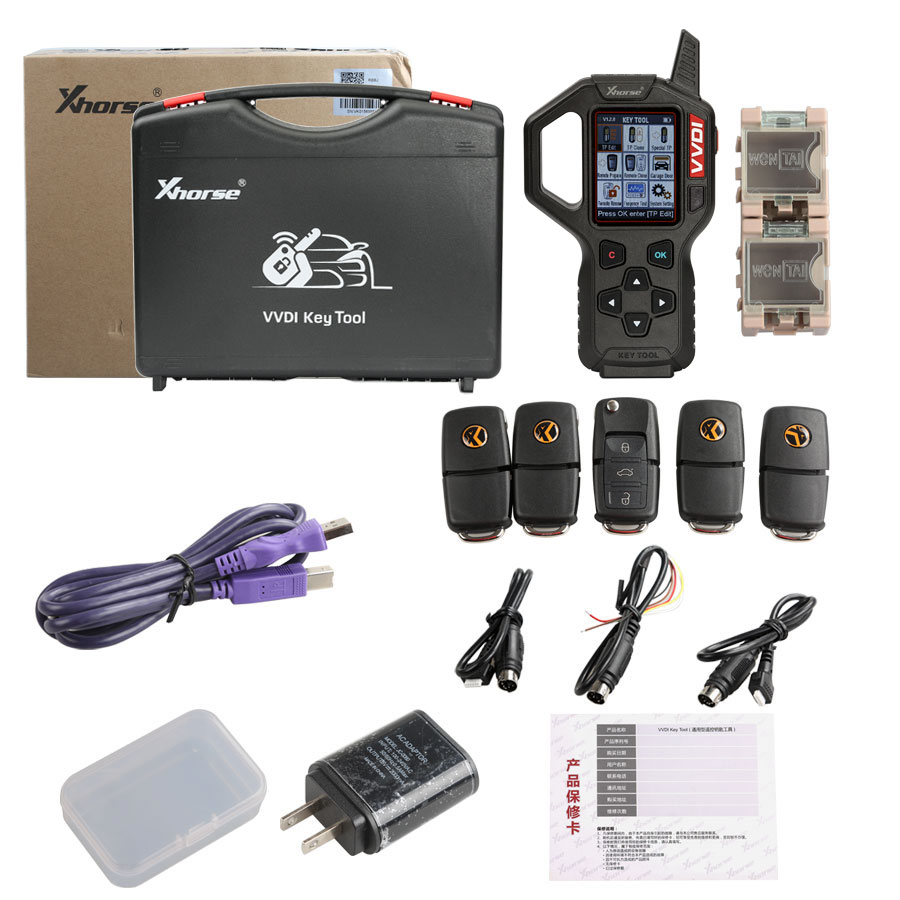

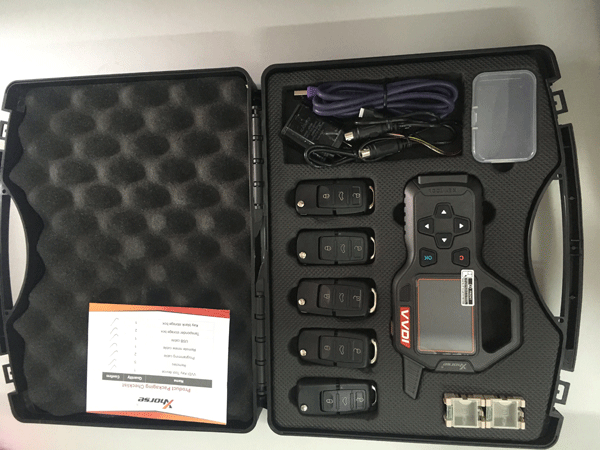

Package includes:
1pc x VVDI Key Tool remote maker main unit

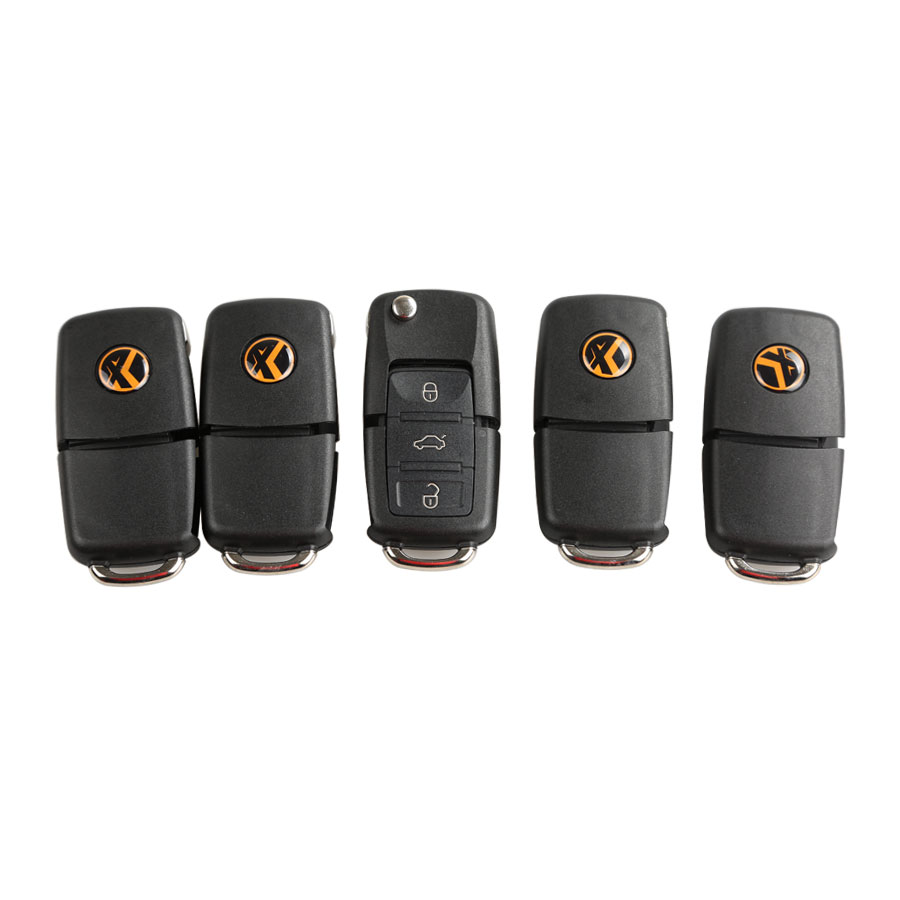

5pcx Remotes keys
2pcx Programming cable
1pcx Remote renew cable
1pcx USB cable
2pcx Transponder storage box
1pcx Key blank storage box

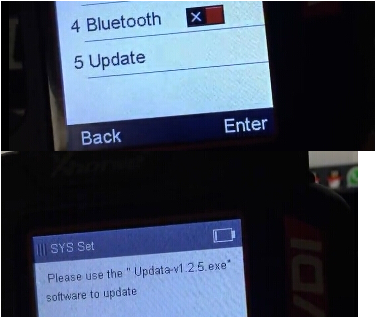

How to Update VVDI Key Tool Software?
Select "Update" option on function menu
Go to VVDI KEY Tool SYS Set to update

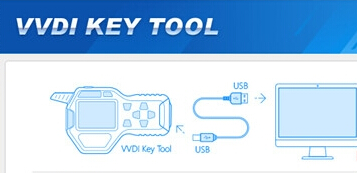

Connect remote maker with PC via a USB cable
Click "Update Online" button to start upgrade
Wait for update completed

VVDI Key Tool Remote Programmer Update Plan:
VVDI Key Tool V2.3.8 Update Feature [2017-07-16]
Firmware version: V2.0.2
Attention: This update only for North American or India English version(na,na-en,in,in-en). Other languages will be released on next week, please get Device Info to check language version.
This version must be updated with V2.3.8 and above. The upgrade may take about 30 minutes
1.transponder clone
+add chrysler 4D-64(4E) clone
+add toyota-G offline clone
+add hyundai ID-70 online clone(Use Calculate option in upgrade software)
+add ford ID-83 online clone(Use Calculate option in upgrade software)
+add ID-4A identify
2.generate transponder
+add toyota-G to generate special transponder
3.remote renew
+add more than 86 remote&keyless go prox unlock
4.remote prepare
fixed XN serial keys problem on ID47 such as suzuki
5.add more vehicles data and fixed some bugs

VVDI Key Tool V1.2.8(2017-04-26)
+ Remote Renew
-BMW-F.315*
-BMW-F-434*
-BMW-F-868*
-BMW-CAS-315
-BMW-CAS-868
-8k0959754-C (Does not turn on the LED light of the remote) - Possibility Incorrect firmware
-8k0959754-J (Does not turn on the LED light of the remote) - Possibility Incorrect firmware
-8k0959754-D (LED light is OK) - Not tested yet in car
-Hyundai (Do not detail model)
* Sure some models like F series, will not work, like to passed with VVDIprog. And Audi see error in the (C and J).
+ Remote Prepare. V4
-Iden KEYDIE - (PCF7947) None Remote.

VVDI Key Tool V1.2.7(2017-04-02)
*Must be used 2.1.2 version upgrade software to update the firmware
*Must be used [fixed] function to update the firmware
1 fixed the remoter database damaged bug
2 fixed the internal firmware damaged bug
3 fixed the remoter clone bug
4 added the calculation of hundyai keylessgo password

VVDI Remote Maker V1.2.6 (2017-3-25)
1, repair the 46 clone bug on part of models
2, add TPX3(ID46) in clone transponder list
3, add to view the ID46 detail data in TP-clone dialog(after clone success,press [right] button to check data)
4, fixed bug of 4d clone
5, fixed part of the fixed code clone bug
6, add the special clone function for part of remoter
7, add fixed code edit function
8, add sort car brand in remote generate function
9, fixed some UI bug

VVDI-Key Tool V1.2.5(2017-2-23)
1,support clone PCF7936/46,TIRIS-4D(40-bit) 4C,PCF7935(ID33 ID42),T5(11 12 13);
2,support to edit 48 46 4d 7935 & common transponder
3,support to make special transponder image such as TP23 TP24 ID33 ID40 ID42 ID44 ID46 ID60 ID67 and so on;
4,support to generate hundreds of key model
5,support to clone most of fixed code and Keeloq roll code remote key,such as pt2240,lx918,hcs30x and so on;
6,support to measure the key's frequency & power

User Comment(Total 5 Customer Reviews)

• by Megan Nierman,Sep 06,2017


  work great , nice tool

  Reply #1 by CNAUTOTOOL Sep 06,2017
  Thanks for your good feedback

  CNAUTOTOOL

  ---

• by MellowRose,Aug 25,2017


  how to use this tool?

  Reply #1 by CNAUTOTOOL Aug 25,2017
  Hello, we have user manual and other details for this product , you can check the detail on our website directly : http://www.cnautotool.com/goods-6533-Xhorse+VVDI+Key+Tool+Remote+Maker+Key+Programmer+English+Version+V239.html , thank you

  CNAUTOTOOL

  ---

• by kristen,Aug 08,2017


  i want to update to newest version , how to do it?

  Reply #1 by CNAUTOTOOL Aug 08,2017
  Hello, The newest version is V2.3.9, you can check our description about the update tool, thank you

  CNAUTOTOOL

  ---

• by Jillian,Jul 22,2017


  what chips can tool write to?
  example
  T5
  CN2
  CN3
  4C 4D
  can i write to oem remote? or unlock first then write?

  Reply #1 by CNAUTOTOOL Jul 22,2017
  Hello, Transponder IC Duplicate
  Support 46 42 11 12 4D immobilizer transponder IC duplicate.thank you

  CNAUTOTOOL

  ---

• by Shari,Jun 16,2017


  This tool is English version?

  Reply #1 by CNAUTOTOOL Jun 16,2017
  Yes , this tool have English version now , thank you

  CNAUTOTOOL

  ---
