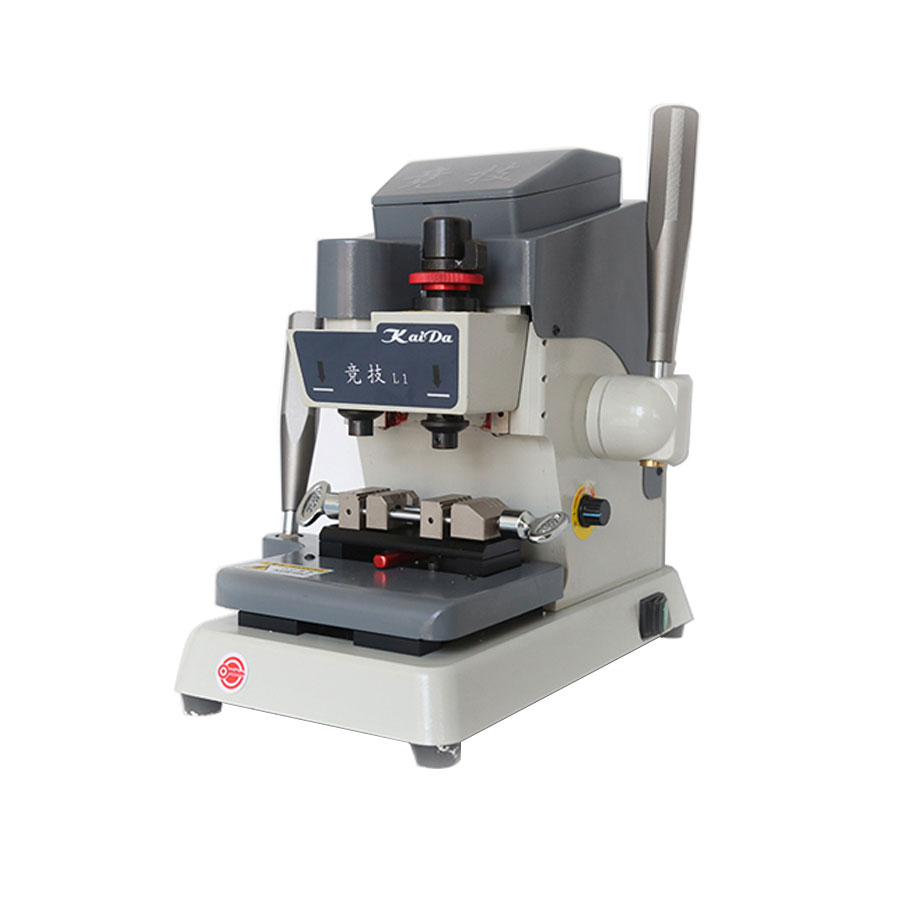

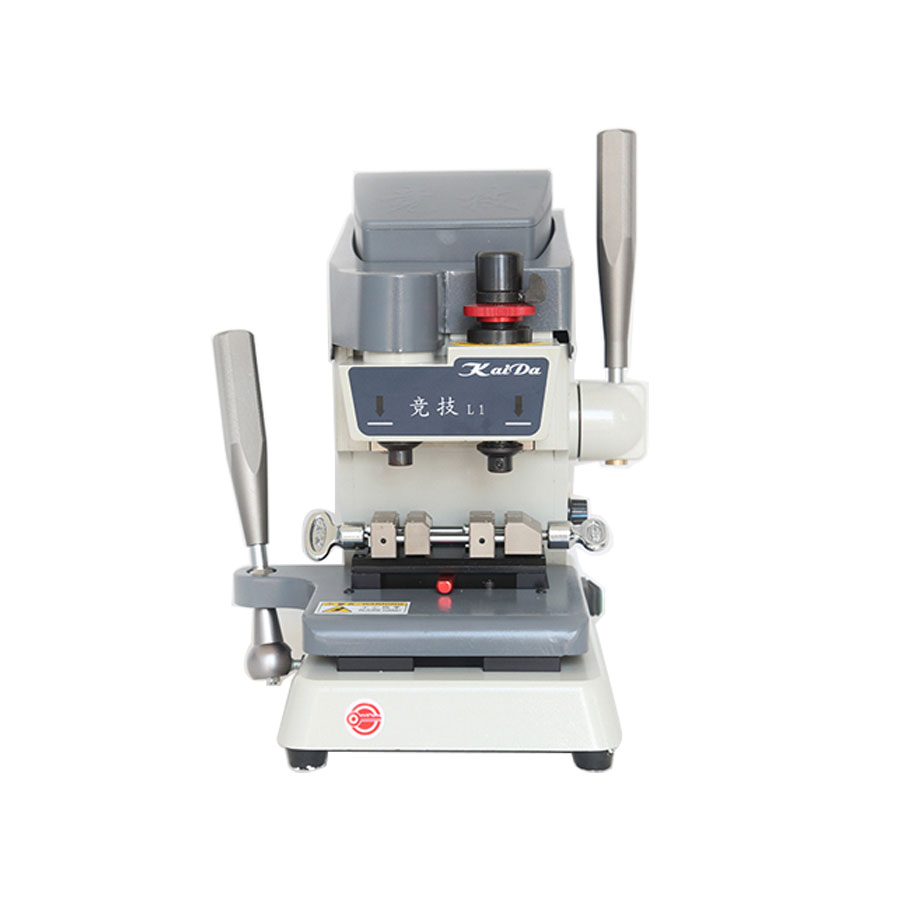

JingJi L1 Vertical Operation Key Cutting Machine

Kaida Jingji L1 Vertical Key Cutting Machine

Features:
1.Straight line slide carriage makes cutting smooth and effortless
2.Cutter speed regulated to 1800rpm
3.Automatical precised callibration system
4.Spring loaded tracer point makes perfect depth alignment
5.Micrometric adjustment tracer system limits the cutting difference within 0.03mm
6.Horizontal movement locking mechanism makes vertical cutting stable
7.Cutting depth locked mechanism makes accurate result
8.Armrest support makes the cutting forward stable and smooth

9.Large storage area for key blanks or other accessories

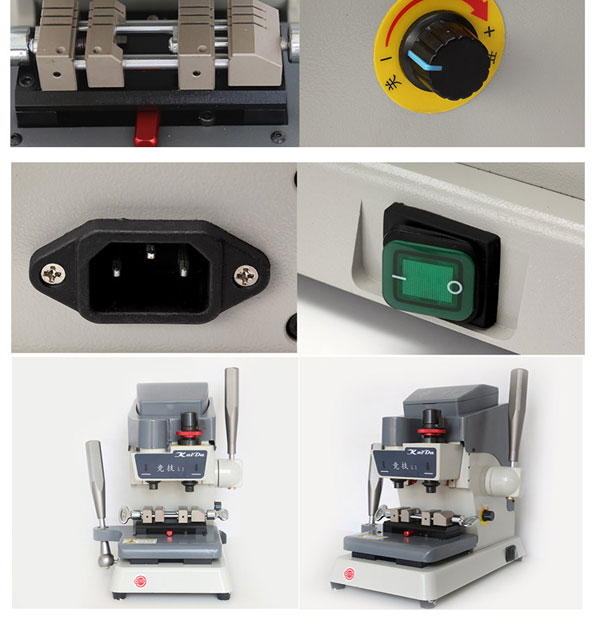

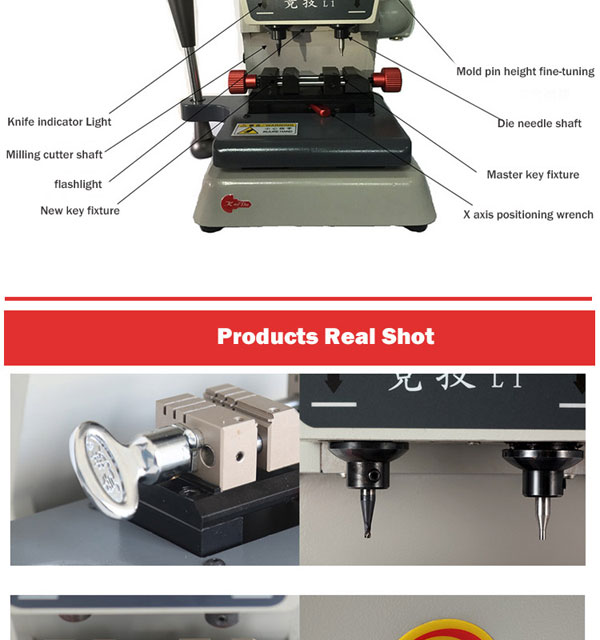

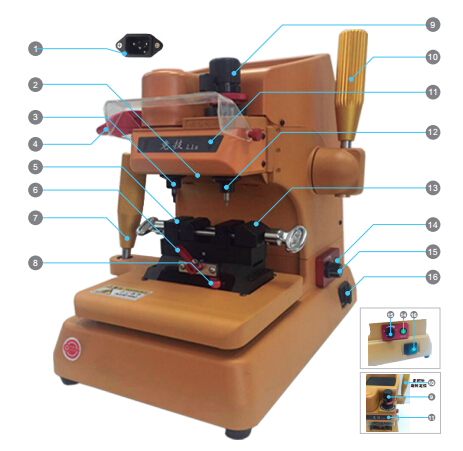

1.Power connection : AC110v/ 220v
2.LED light
3.Cutter
4.Armrest support
5.Clamp to secure key blank
6.Knob to secure jaws
7.Horiz ontal and vertical slide handle
8.Horiz ontal movement lock ing bar
9.Micrometric adjus tment knob
10.Cutting depth locking handle
11.Calibration light
12.Tracer
13.Clamp to secure original keys
14.Calibration button
15.Cutting speed control knob
16.Power switch

◇ Callibration system indicated by LED light makes precisely cutting
◇ Transparent cutting shield guarantees safety operation,LED illuminatingsy stem
◇ Straight line slide carriage makes cutting smooth and effortless
◇ High speed cutting strength drived by DC motor with low noise
◇ Cutter speed regulated to 8500rpm
◇ Cutting depth locking mechanism makes ac curate result
◇ AC 100-240V input power
◇ Removable jaw guarantees quick replacement

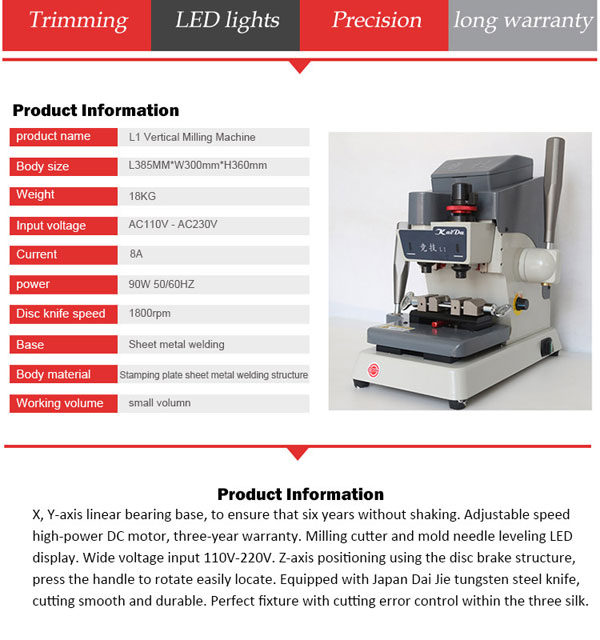

Specification:
Voltage supply AC110V-AC230V Weight 18KG
Current 8A Power:90W 50-60HZ Cutter speed 1800rpm
Size 385MM * 300MM * 360MM

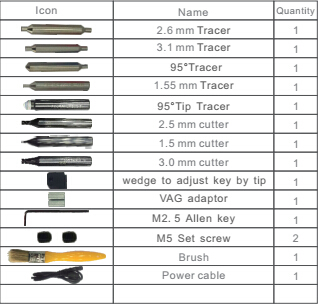

1set x  L1 Vertical key cutting machine
