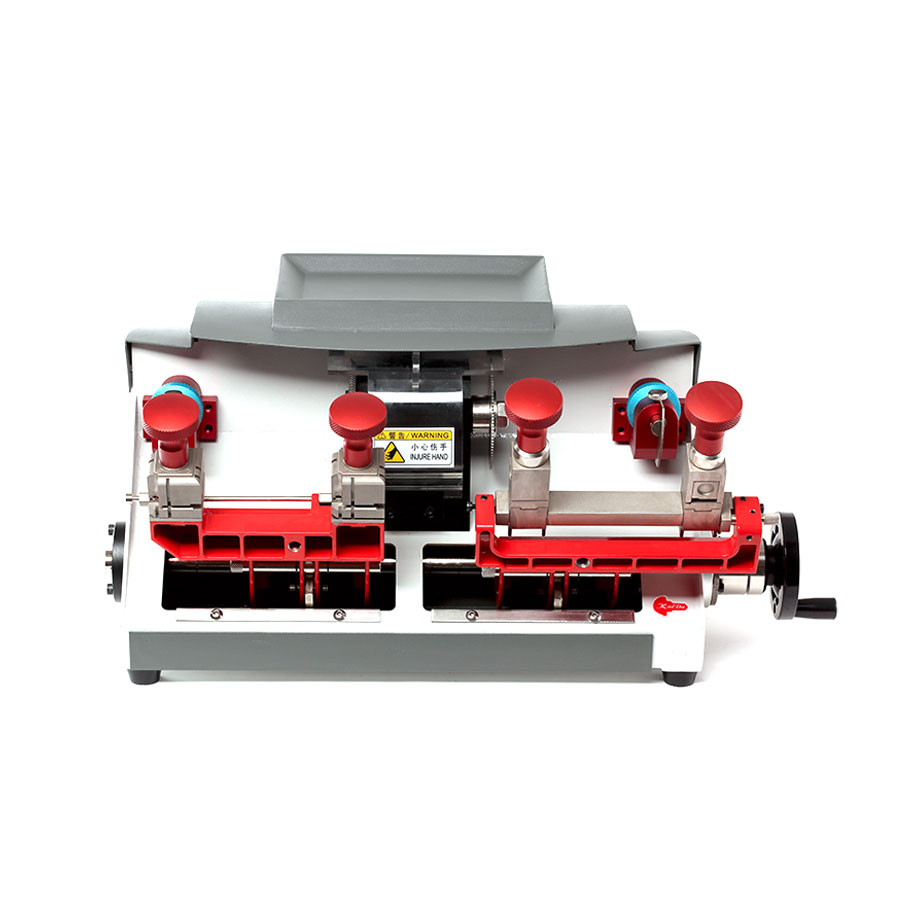

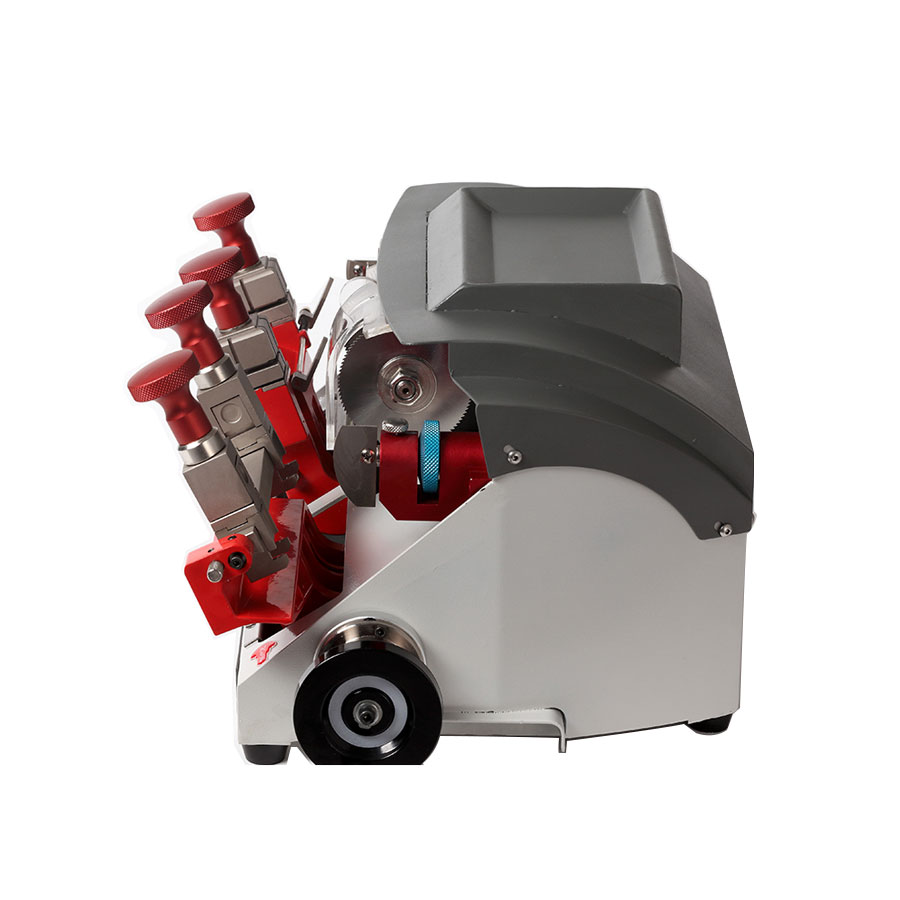

Jingji P2 Double-headed Flat Key Cutting Machine 220V

Jingji P2 Double-headed Flat Key Cutting Machine 220V

Features:

1. Sheet meta l stamping welding structure is durable and long-lasting
2. Left outer diameter Φ 80 mm 40° V cutter and right outer diameter Φ 80 mm flat cutter
3. Left and right clamps working seperately and move smoothly
4. Micrometric (Patent) tracer adjustment mechanism for p recise calibration with the cutter
5.Four-sided revolving clamp and super wide space between clamps make flip key cutting possible
6. The mobile transparent cutting shield guarantees a flexible safety cutting
7. Y axis ballscrew
8. Wide space between jaws accomodates large head and long blade keys incuding flip style automotive keys
9.Duplicate bit and double bit ,pump and other special keys and left block owns the same function as Jingji P1
6.Economical and accuracy combined cutting machine made up with two blocks,with each block working seperatly for different key purpose

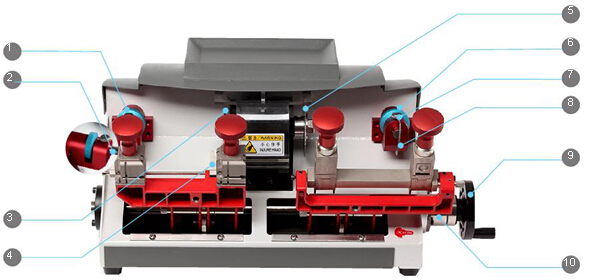

1.Micrometric adjustment wheel
2.Revolving clamp
3.40° V cutter
4.Spacer/ Locating plate
5.1.4mm Flat cutter
6.Micrometric adjustment wheel
7.Tighten/ loosen screw to fix tracer
8.Right Tracer
9.Working hand wheel
10.Pin to work seperately

Parameters:

Product name:JingJi P2 flat key cutting machine
Dimensions:L535MM*W290MM*H270MM
weight:G.W 27KG (N.W 25KG)
Working method:Manual
Error scope:≤0.02mm
Keys:Cylinder and special keys
Jaw:Four-sided revolving clamp
Voltage:AC220V
Current:10A
Power:120W 50-60HZ
Material:Sheet metal stamping welding
Revolution:1200rpm/min
Voice:Nearly silent

Package Includes:
1pc x JINGJI P2  Flat Key Cutting Machine
