88890300 Vocom Interface for Volvo/Renault/UD/Mack Truck Diagnose

88890300 Vocom Interface for Volvo/Renault/UD/Mack Truck Diagnose

88890300 Vocom Interface is a diagnostic application that covers the whole repair process through the use of plug-ins. With 88890300 Vocom Interface you can diagnose, test, calibrate, and program a product (a vehicle, engine, or a machine).  88890300 Vocom Interface also provides functions for updating the tool, communication with the product, and other external applications. Users can setup plug-ins, user authorizations, and available languages as they want.

Note:
1.If you seleccted option 2 : PTT 2.8.241 software Pre-installed in 128G SSD, pls insert hard disk into to your laptop and contact us to activate your software remotely , support the latest vehicles till 2025
2. If you select attribute 3, we will install software for you remotely.

3. If you select attribute 4 or 5，software will be installed on Lenovo T450 or Panasonic CF54 laptop already.

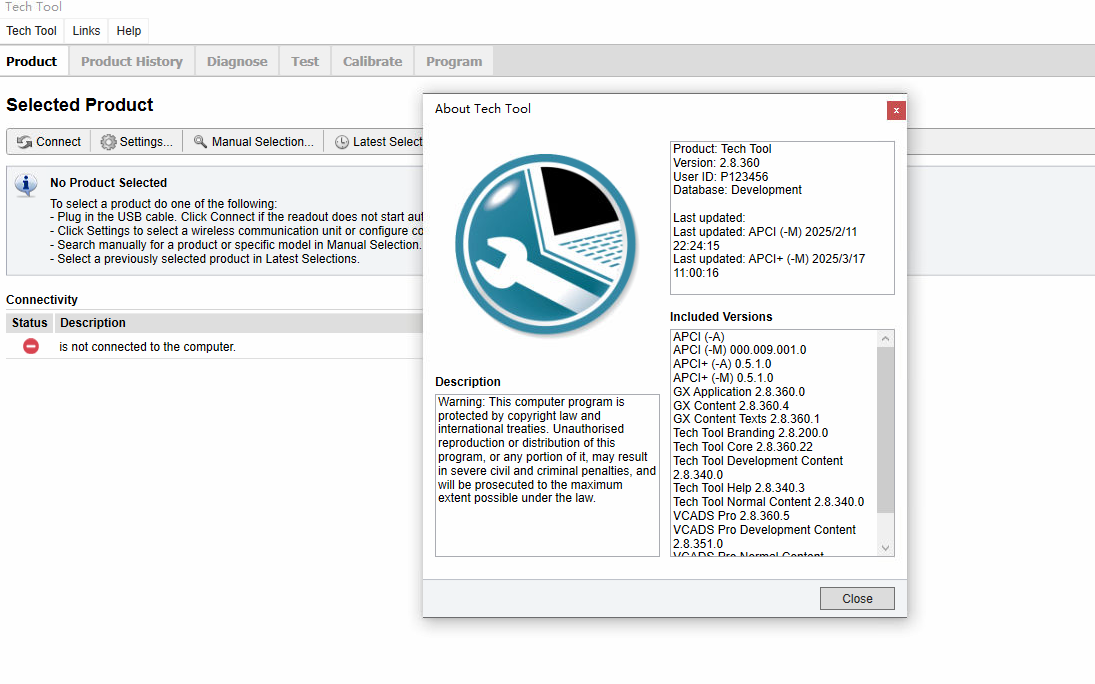

Latest Version PTT 2.8.360 Software:
1. Multi-Languages:Čeština, Dansk, Deutsch, English, Espanol, Francais, Italiano, Latviešu, Lietuva, Magyar, Nederlands, Polski, Portugues, Română, Srpski, Suomi, Svenska, Turkce, Ελληνικά, Pусски, Chinese, Japanese, Korean.
2. Support Renault UD Mack Truck Diagnose
Only work with original nexiq,Vocom 2, Vocom 1.(for other interface please use 2.7 version)
Date of update:2025
ACPI update:APCI+ 2025
3.Update online
4.Expiration:No expiration

88890300 Vocom Interface Supported Companies and Electrical Systems:
For Volvo Trucks (Older electrical system, Vehicle electronics '98, V2, V3, V4);
For Volvo Buses (Conventional, Multiplexed, Multiplexed v2, Multiplexed v3);
For Volvo Construction Equipment;
For Volvo Penta (VERSION2,VERSION3);
For Volvo OEM Component Customer (VERSION2);
Mack Trucks (V-MAC I/II/III, ITC, IV, IV+);
Renault Trucks (VERSION2,VERSION3,VERSION4);
UD Trucks (VERSION2)
Eicher Trucks and Buses(VERSION3）

Volvo 88890300 Vocom Interface Functions:
Identify a product.
View information history.
Diagnose a selected product.
Test a selected product.
Program a selected product.
Calibrate a selected product.

VOCOM 88890300 Support Models List:
For Volvo Trucks:
AC  Compo4  F10  F12  F16  FE FH FH12 FH16 FH565 FL FL10 FL12 FL6 FL7 FM FM10 FM12 FM9 FM7 Nh12 NH525 NH565 NL10 Nl12 VAh VHD Vm VN VT WC WG WI WX

For Volvo Busses:
B10B  B10L B10M B10R B11R B12 B12B B12M B12R B13R B58 B5LH B5RH B6 B6R  B7FB B7L B7R B9L B9R B9S B9TL BXRC COMP12 PREVH PREVX OLYMPIAN SUPEROLY

For Volvo Construction Equipment:
Wheel Loader:
L110E  L110F L110G L120E L120F L120G L150E L150F L150G L180E L180F L180G L220E L220F L220G  L250G L330E L350F L45F-TP L45F-TPS L50F-TP L50F-TPS L50G-TP L50G-TPS L60E L60F L60G L70E L70F L70G L90E L90F L90G

Aryiculated Hauler :
A25D A25E A25F A30D A30E A30F A35D A35E A35F A40D A40E A40F T450D

Excavator:
EC135B EC140B EC140C EC140D EC160B EC160C EC160D EC180B EC180C EC180D EC200B EC210B EC210C EC235D EC240B EC240C EC250D EC290B EC290C EC300D EC330B EC330C EC340D EC360B EC360C EC380D EC460B EC460C EC480D EC700B EC700C ECR145C ECR235C ECR235D ECR305C EW140B EW140C EW140D EW145B EW160B EW160C EW160D EW180B EW180C EW180D EW200B EW210C EW210D EW230C FB2800C FBR2800C FC2121C FC2421C FC2924C FC3329C PL3005D PL4608 PL4808D PL7015

Grader:
G710B G720B G726B G730B G740B G746B G780B G930 G930B G940 G940B G946 G946B G960 G960B G970 G976 G990

Skidsteer Loader:
MC110B MC60B MC70B MC80B MC90B

Compact Excavator:
EC55C EC80D ECR88 EW60C

Paver:
ABG7820B ABG8820B P7820C L882C

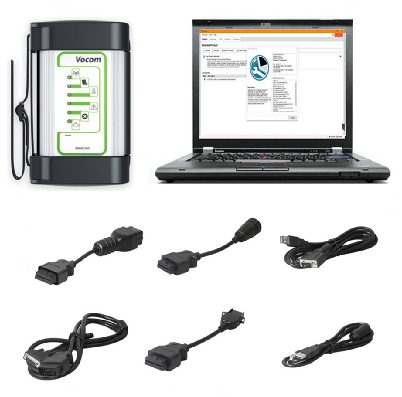

Package List:
1 pc x   88890300 Vocom Interface
1 pc x   OBD2 Cable
1 pc x   8pin Cable
1 pc x   14pin Cable
1 pc x   12pin Cable for Renault trucks
1 pc x   USB cable
1 pc x 128G SSD(optional)
1 pc x  PTT Software install on one laptop remotely（optional)

1 pc x Second Hand Lenovo T450 Laptop With Latest Software（optional)

1 pc x  Second Hand Panasonic CF54 Laptop With Latest Software（optional)

Second Hand Laptop Lenovo T450 Laptop Specification：
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB

Note:

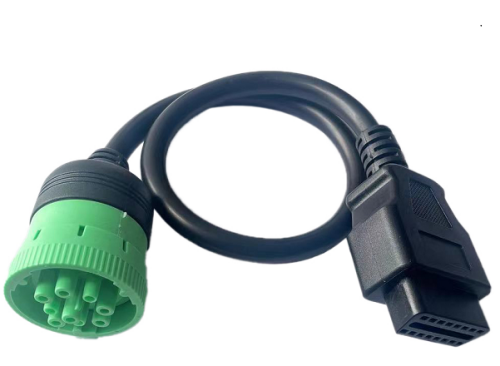

If necessary, you can also choose 9 Pin Duytsch Cable part 88890315 Cable as shown below:
